  1. Welcome to class The warm up is Lesson 1.2 on the back table

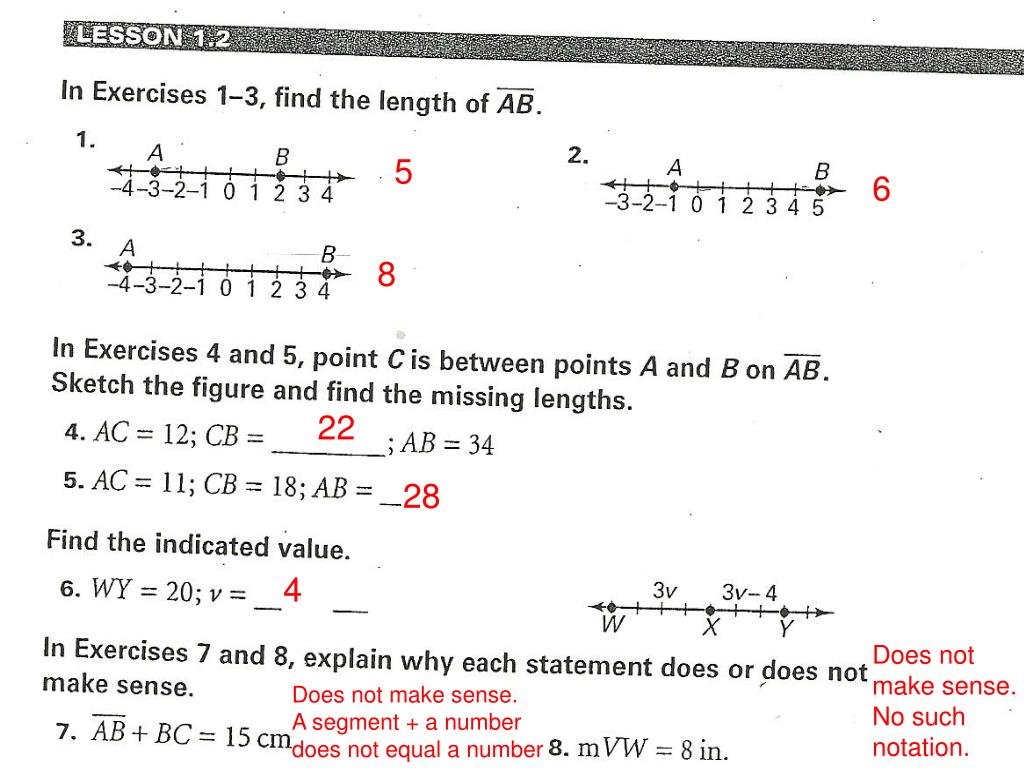

  2. 5 6 8 22 28 4 Does not make sense. No such notation. Does not make sense. A segment + a number does not equal a number

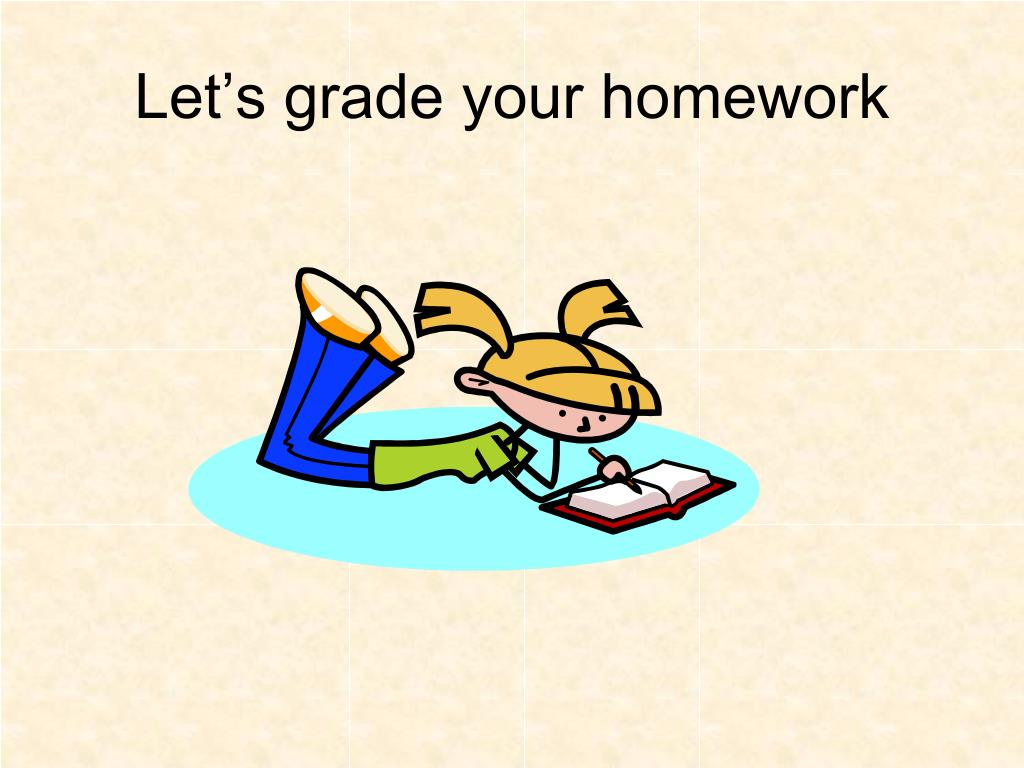

  3. Let’s grade your homework

  4. Measuring Angles Please get: One piece of patty paper Protractor Your notes

  5. With the straight edge, draw these angles on your patty paper (DO NOT FREE HAND): S R P Q CONGRATULATIONS!! You have just created your first set of ADJACENT ANGLES. ADJACENT ANGLES share a vertex and a ray but they can’t overlap. m>PQS = m>SQR = m>PQR = Measure each angle. Do you notice anything?

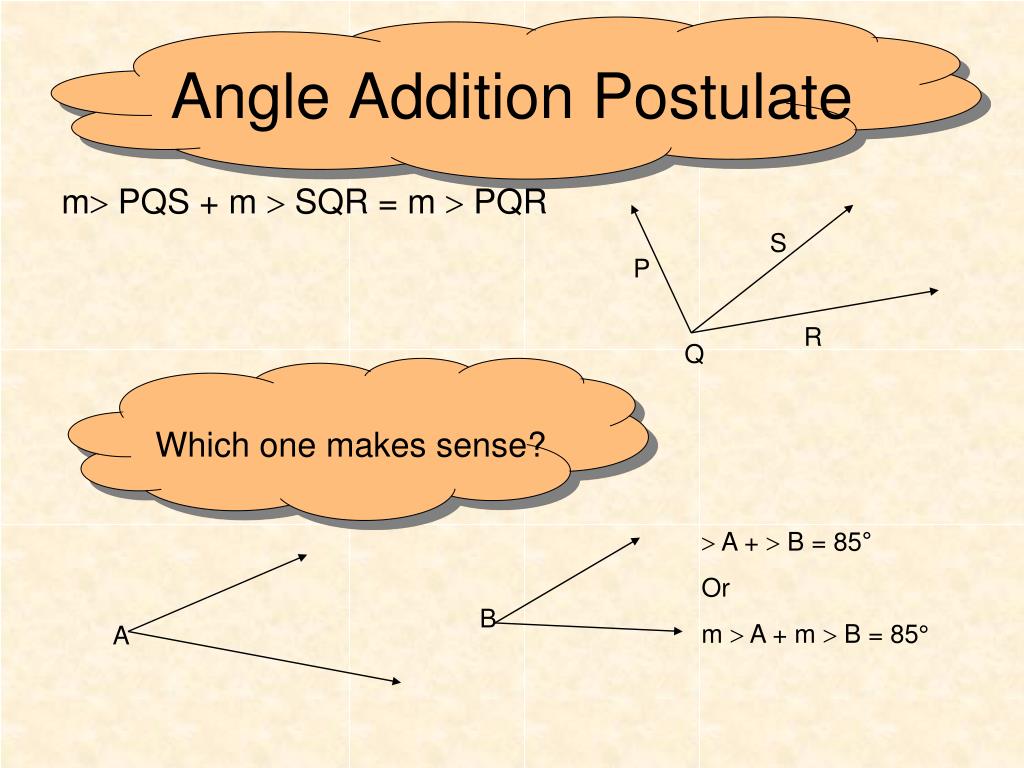

  6. S P R Q Which one makes sense? B A Angle Addition Postulate mPQS + m  SQR = m  PQR  A +  B = 85° Or m A + m B = 85°

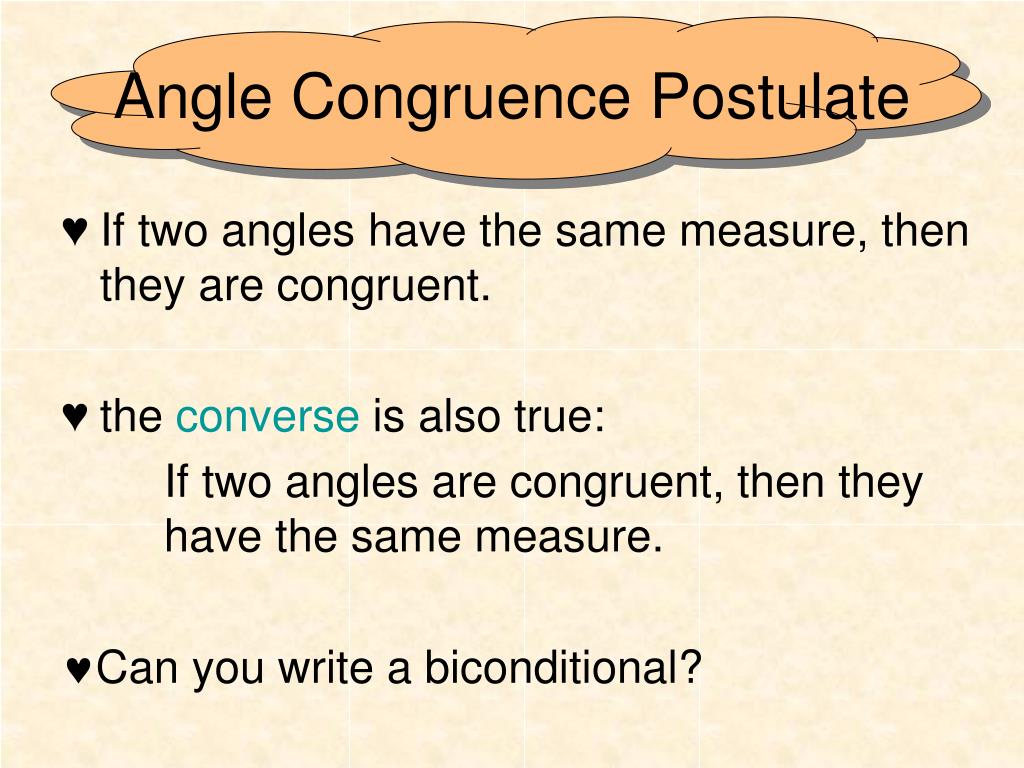

  7. Angle Congruence Postulate • If two angles have the same measure, then they are congruent. • the converse is also true: If two angles are congruent, then they have the same measure. Can you write a biconditional?

  8. Are you doing ok? • COMPLEMENTARY Angles – Exactly two angles whose sum is 90°. Each angle is a COMPLEMENT of the other. • SUPPLEMENTARY Angles = Exactly two angles whose measure is 180°. Each angle is a SUPPLEMENT of the other. 30° B 120° C A 60° Complementary angles are  A and  B  A and  B are complements of each other  A and  C are supplementary angles  A and  C are supplements of each other

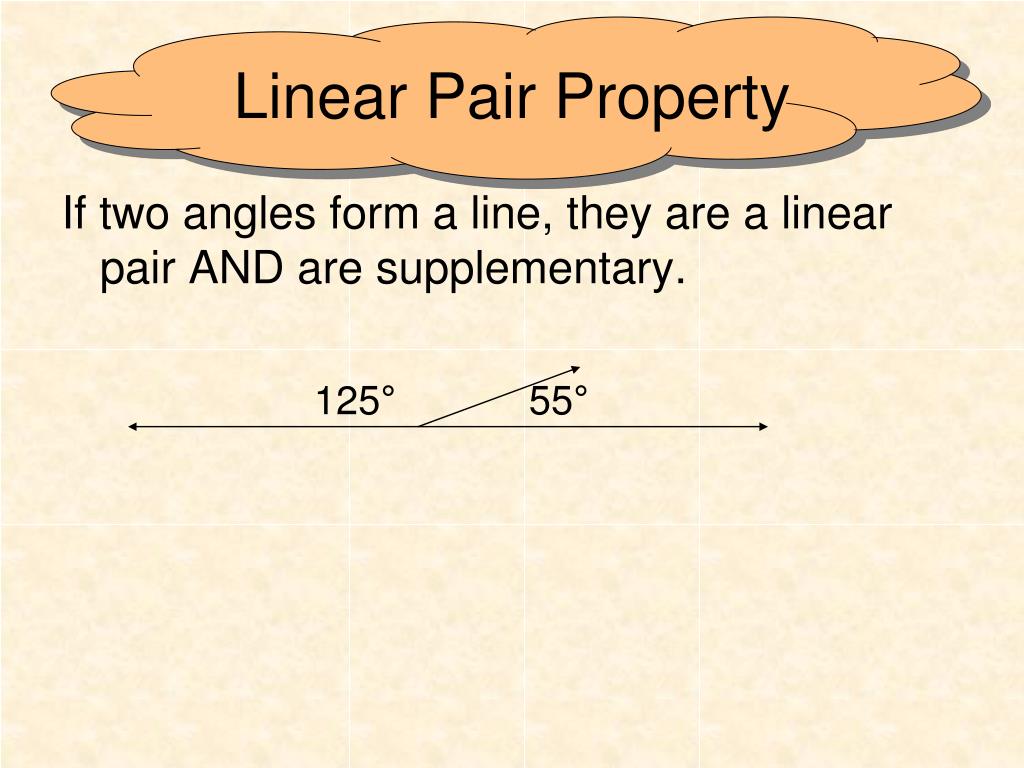

  9. Linear Pair Property If two angles form a line, they are a linear pair AND are supplementary. 125° 55°

  10. Angles RIGHT ANGLE = 90° INDICATED BY THE BOX IN THE CORNER ACUTE ANGLE = angle less than 90° OBTUSE ANGLE = angle more than 90° but less than 180° STRAIGHT ANGLE = angle that equals 180° REFLEX ANGLE = angle greater than 180° and less than 360°.

  11. Whiteboards Please get a whiteboard, marker, and eraser. Doodle time starts in one minute.

  12. Your assignment 3.1 Packet
