Incorrect mapping (non-gapped alignment). GTXX. r. e1. e2. GTXX. GTXX. AG GTXX. GTXX. r. C orrect mapping (spliced alignment). (1 ) Read r may be incorrectly mapped to the intron between exons e1 and e2 . e1. e2. e3. Gene. Read. m apped. e1. e2. e3. Processed pseudogene.

apu
Télécharger la présentation

Read

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

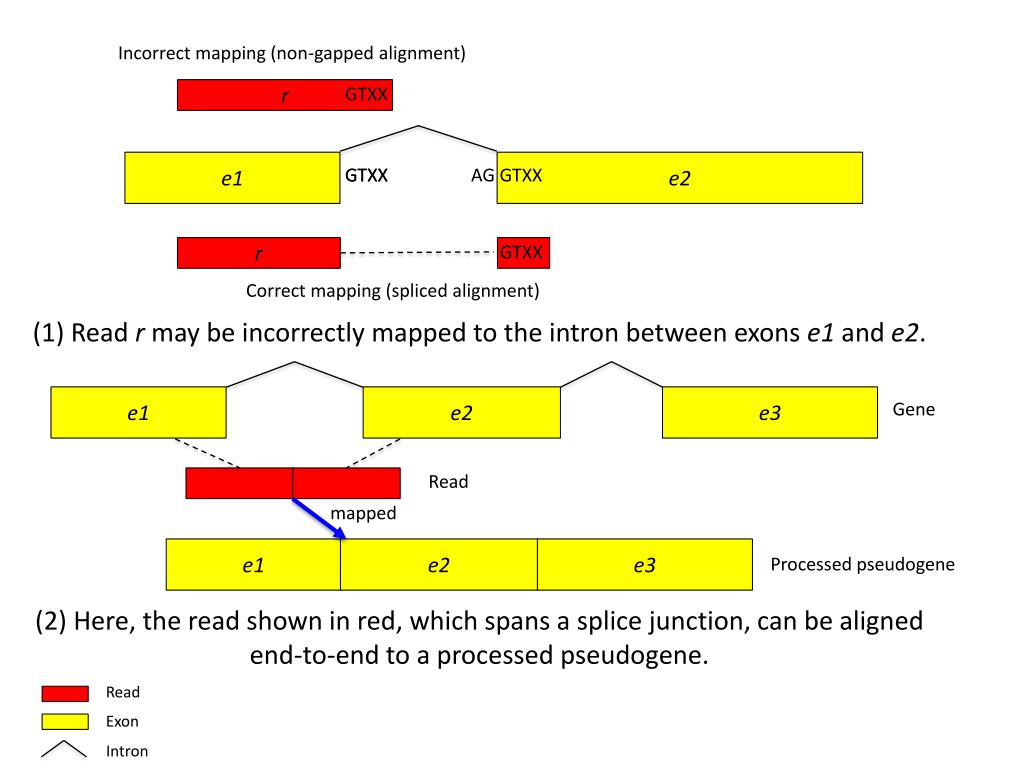

  1. Incorrect mapping (non-gapped alignment) GTXX r e1 e2 GTXX GTXX AG GTXX GTXX r Correct mapping (spliced alignment) (1) Read r may be incorrectly mapped to the intron between exons e1 and e2. e1 e2 e3 Gene Read mapped e1 e2 e3 Processed pseudogene (2) Here, the read shown in red, which spans a splice junction, can be aligned end-to-end to a processed pseudogene. Read Exon Intron
