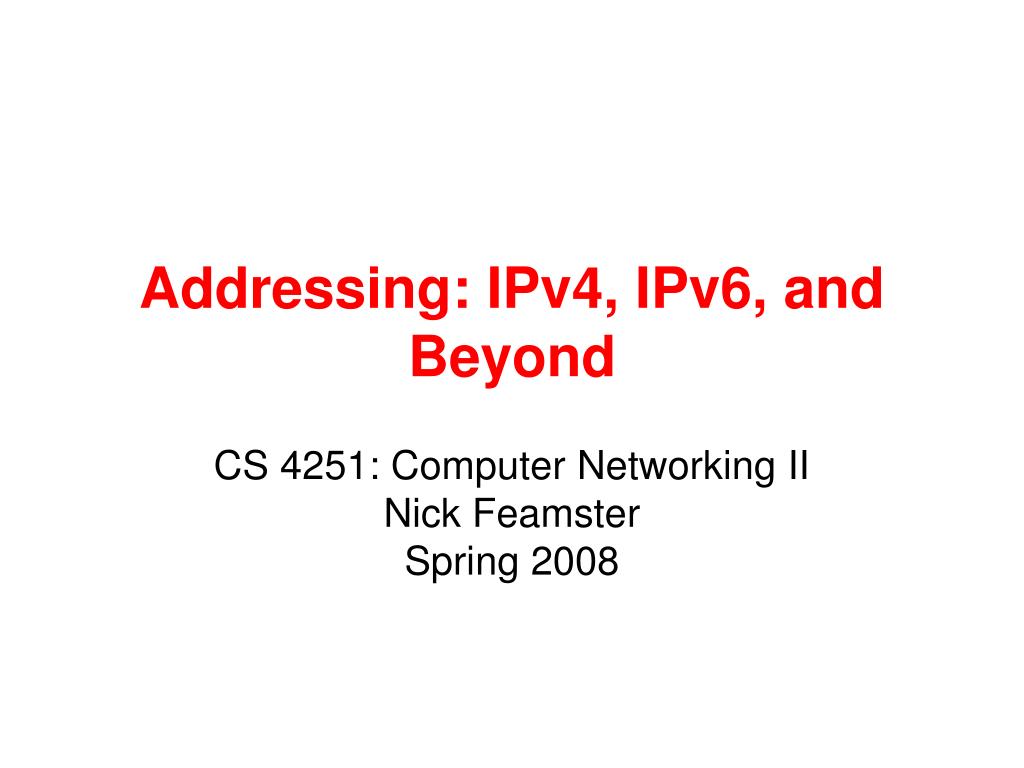

  1. Addressing: IPv4, IPv6, and Beyond CS 4251: Computer Networking IINick FeamsterSpring 2008

  2. 10000010 11001111 00000111 00100100 IPv4 Addresses: Networks of Networks Topological Addressing • 32-bit number in “dotted-quad” notation • www.cc.gatech.edu --- 130.207.7.36 130 207 7 36 Network (16 bits) Host (16 bits) • Problem: 232 addresses is a lot of table entries • Solution: Routing based on network and host • 130.207.0.0/16 is a 16-bit prefix with 216 IP addresses

  3. Pre-1994: Classful Addressing 32 8 16 24 Class A Network ID 0 Host ID • /8 blocks (e.g., MIT has 18.0.0.0/8) Class B 10 • /16 blocks (e.g., Georgia Tech has 130.207.0.0/16) Class C 110 • /24 blocks (e.g., AT&T Labs has 192.20.225.0/24) Class D Multicast Addresses 1110 Class E Reserved for experiments 1111 Simple Forwarding: Address range specifies network ID length

  4. Problem: Routing Table Growth • Growth rates exceeding advances in hardware and software capabilities • Primarily due to Class C space exhaustion • Exhaustion of routing table space was on the horizon Source: Geoff Huston

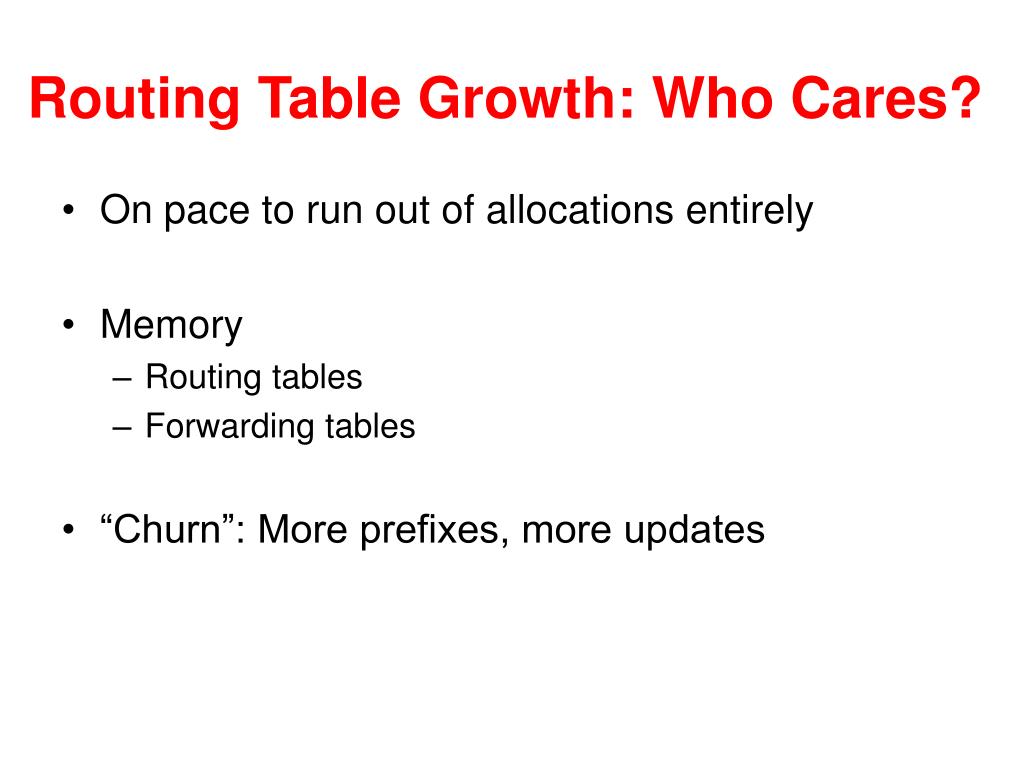

  5. Routing Table Growth: Who Cares? • On pace to run out of allocations entirely • Memory • Routing tables • Forwarding tables • “Churn”: More prefixes, more updates

  6. Possible Solutions • Get rid of global addresses • NAT • Get more addresses • IPv6 • Different aggregation strategy • Classless Interdomain routing

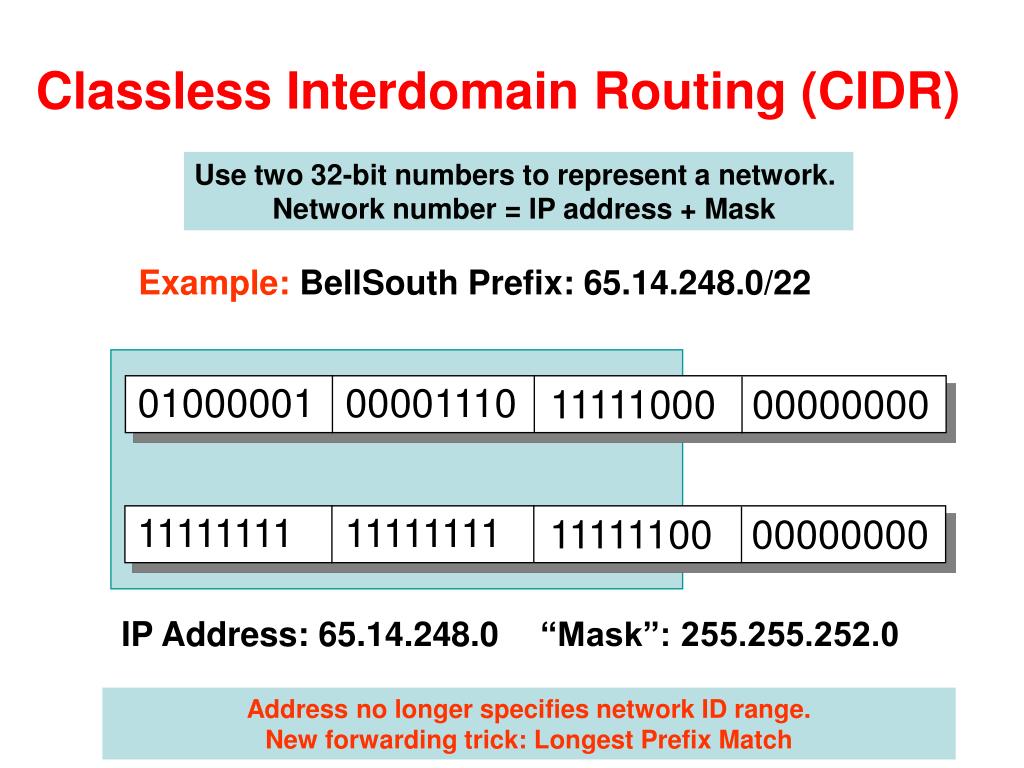

  7. 01000001 00001110 11111000 00000000 11111111 11111111 11111100 00000000 Classless Interdomain Routing (CIDR) Use two 32-bit numbers to represent a network. Network number = IP address + Mask Example: BellSouth Prefix: 65.14.248.0/22 IP Address: 65.14.248.0 “Mask”: 255.255.252.0 Address no longer specifies network ID range.New forwarding trick: Longest Prefix Match

  8. Benefits of CIDR • Efficiency: Can allocate blocks of prefixes on a finer granularity • Hierarchy: Prefixes can be aggregated into supernets. (Not always done. Typically not, in fact.) Customer 1 12.20.231.0/24 12.0.0.0/8 AT&T Internet Customer 2 12.20.249.0/24

  9. 1994-1998: Linear Growth • About 10,000 new entries per year • In theory, less instability at the edges (why?) Source: Geoff Huston

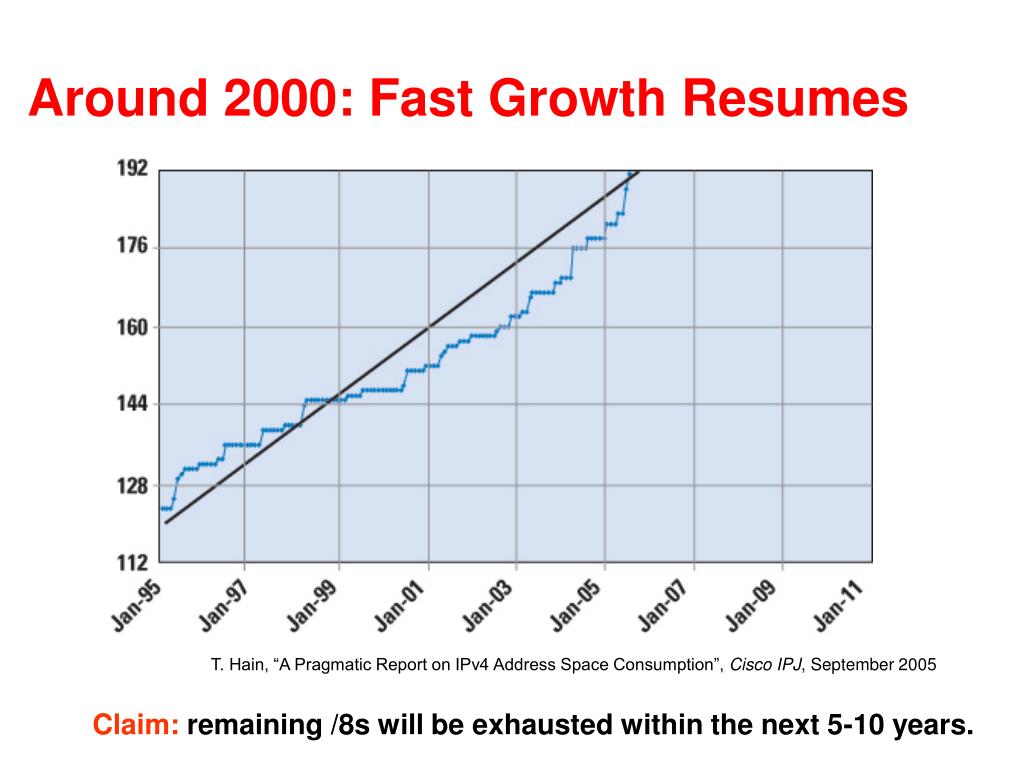

  10. Around 2000: Fast Growth Resumes T. Hain, “A Pragmatic Report on IPv4 Address Space Consumption”, Cisco IPJ, September 2005 Claim: remaining /8s will be exhausted within the next 5-10 years.

  11. Fast growth resumes Significant contributor: Multihoming Dot-Bomb Hiccup Rapid growth in routing tables Source: Geoff Huston

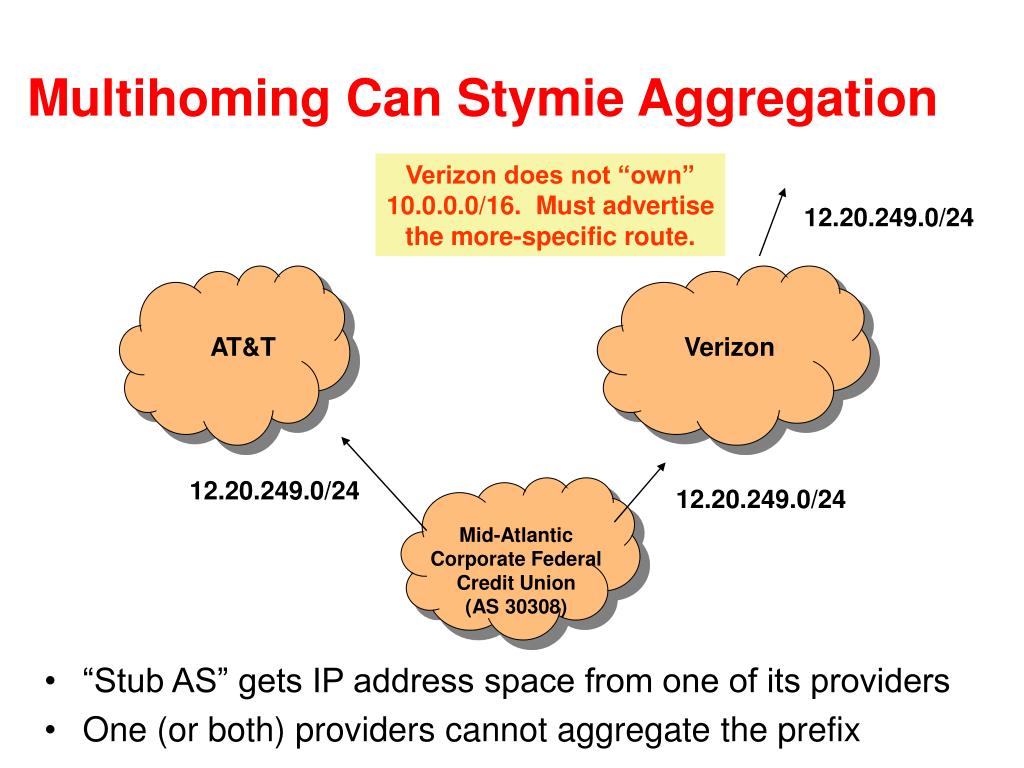

  12. Multihoming Can Stymie Aggregation Verizon does not “own” 10.0.0.0/16. Must advertise the more-specific route. • “Stub AS” gets IP address space from one of its providers • One (or both) providers cannot aggregate the prefix 12.20.249.0/24 AT&T Verizon 12.20.249.0/24 12.20.249.0/24 Mid-Atlantic Corporate Federal Credit Union (AS 30308)

  13. The Address Allocation Process • Allocation policies of RIRs affect pressure on IPv4 address space IANA http://www.iana.org/assignments/ipv4-address-space AfriNIC APNIC ARIN LACNIC RIPE Georgia Tech

  14. /8 Allocations from IANA • MIT, Ford, Halliburton, Boeing, Merck • Reclaiming space is difficult. A /8 is a bargaining chip!

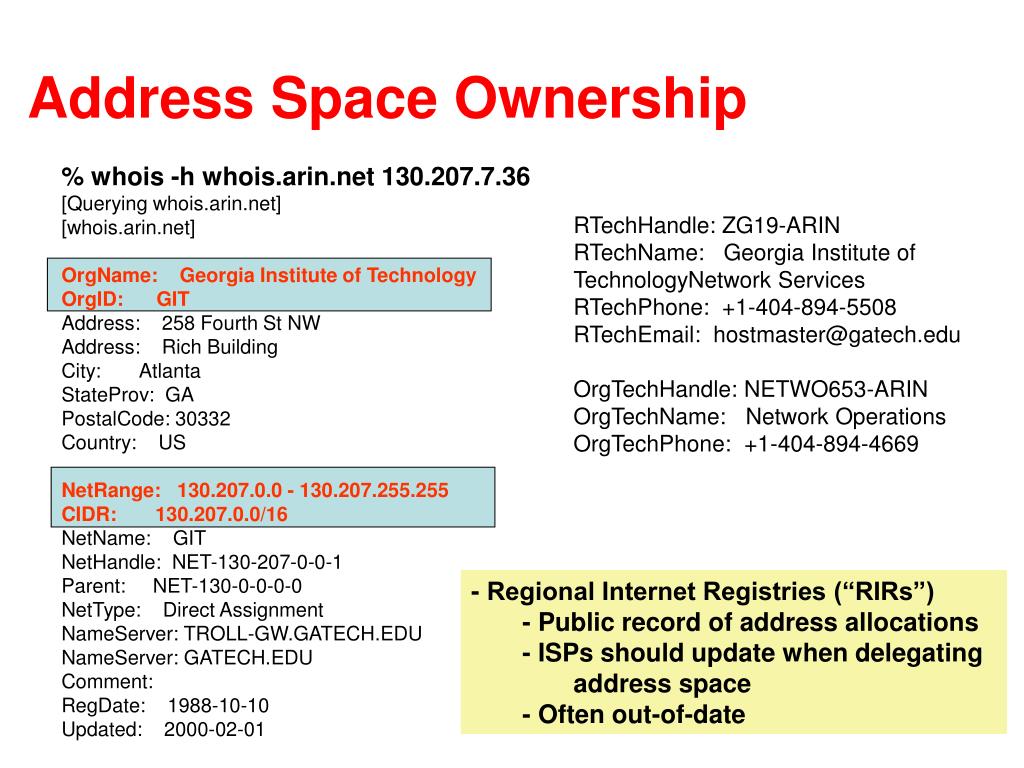

  15. Address Space Ownership % whois -h whois.arin.net 130.207.7.36 [Querying whois.arin.net] [whois.arin.net] OrgName: Georgia Institute of Technology OrgID: GIT Address: 258 Fourth St NW Address: Rich Building City: Atlanta StateProv: GA PostalCode: 30332 Country: US NetRange: 130.207.0.0 - 130.207.255.255 CIDR: 130.207.0.0/16 NetName: GIT NetHandle: NET-130-207-0-0-1 Parent: NET-130-0-0-0-0 NetType: Direct Assignment NameServer: TROLL-GW.GATECH.EDU NameServer: GATECH.EDU Comment: RegDate: 1988-10-10 Updated: 2000-02-01 RTechHandle: ZG19-ARIN RTechName: Georgia Institute of TechnologyNetwork Services RTechPhone: +1-404-894-5508 RTechEmail: hostmaster@gatech.edu OrgTechHandle: NETWO653-ARIN OrgTechName: Network Operations OrgTechPhone: +1-404-894-4669 • - Regional Internet Registries (“RIRs”) • - Public record of address allocations • - ISPs should update when delegating address space • - Often out-of-date

  16. IPv6 and Address Space Scarcity • 128-bit addresses • Top 48-bits: Public Routing Topology (PRT) • 3 bits for aggregation • 13 bits for TLA (like “tier-1 ISPs”) • 8 reserved bits • 24 bits for NLA • 16-bit Site Identifier: aggregation within an AS • 64-bit Interface ID: 48-bit Ethernet + 16 more bits • Pure provider-based addressing • Changing ISPs requires renumbering

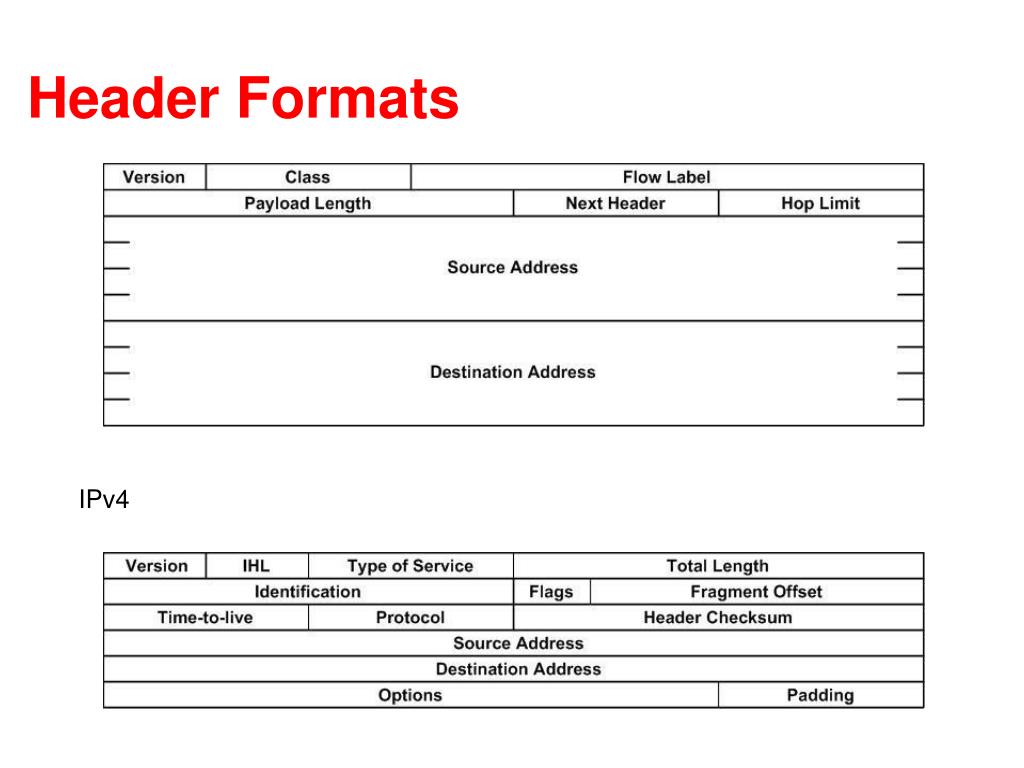

  17. Header Formats IPv4

  18. Summary of Fields • Version (4 bits) – only field to keep same position and name • Class (8 bits) – new field • Flow Label (20 bits) – new field • Payload Length (16 bits) – length of data, slightly different from total length • Next Header (8 bits) – type of the next header, new idea • Hop Limit (8 bits) – was time-to-live, renamed • Source address (128 bits) • Destination address (128 bits)

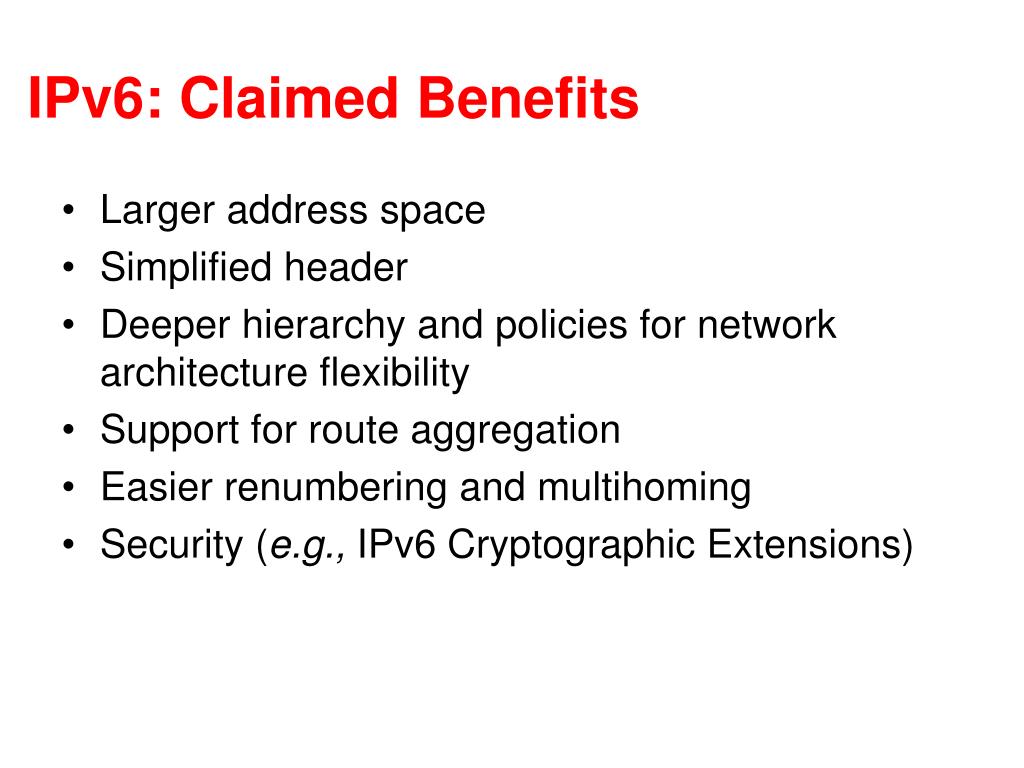

  19. IPv6: Claimed Benefits • Larger address space • Simplified header • Deeper hierarchy and policies for network architecture flexibility • Support for route aggregation • Easier renumbering and multihoming • Security (e.g., IPv6 Cryptographic Extensions)

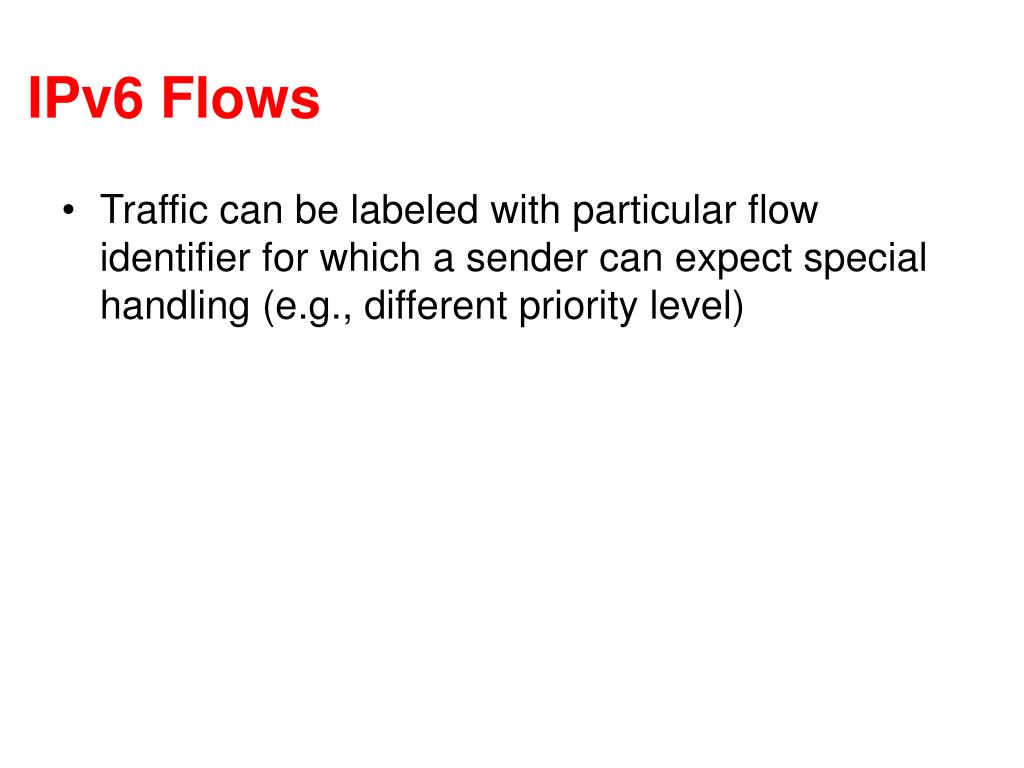

  20. IPv6 Flows • Traffic can be labeled with particular flow identifier for which a sender can expect special handling (e.g., different priority level)

  21. IPv6: Deployment Options Routing Infrastructure • IPv4 Tunnels • Dual-stack • Dedicated Links • MPLS Applications • IPv6-to-IPv4 NAPT • Dual-stack servers

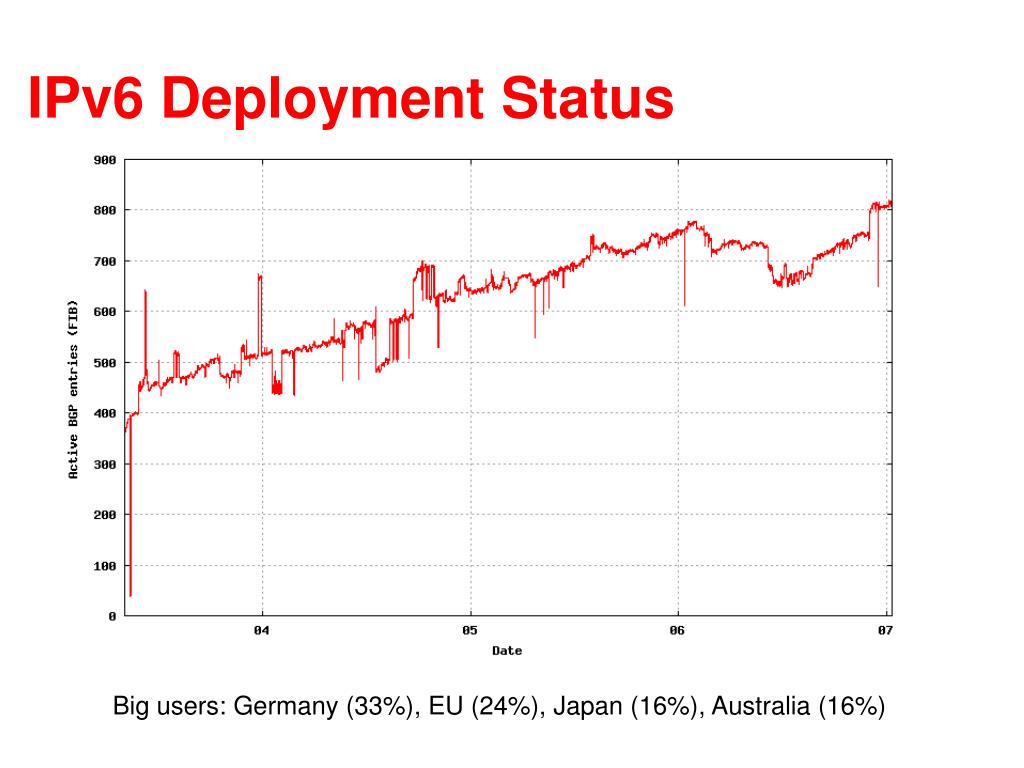

  22. IPv6 Deployment Status Big users: Germany (33%), EU (24%), Japan (16%), Australia (16%)

  23. Transitioning: Dual-Stack • Dual-Stack Approach: Some nodes can send both IPv4 and IPv6 packets • Dual-stack nodes must determine whether a node is IPv6-capable or not • When communicating with an IPv4 node, an IPv4 datagram must be used

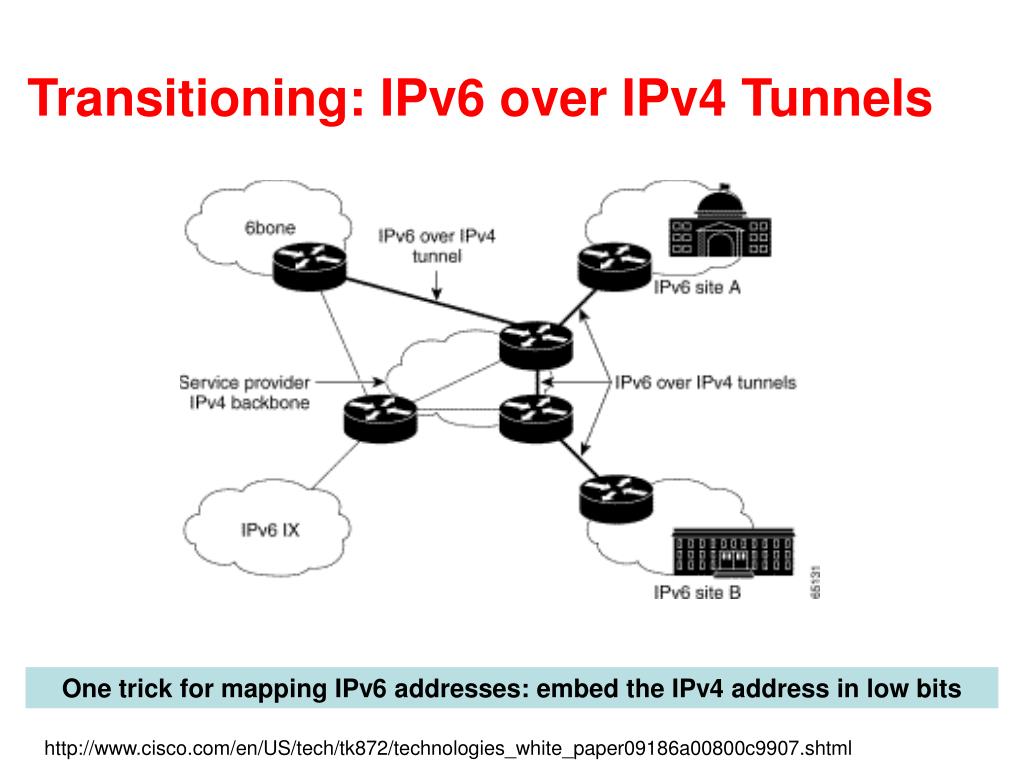

  24. Transitioning: IPv6 over IPv4 Tunnels One trick for mapping IPv6 addresses: embed the IPv4 address in low bits http://www.cisco.com/en/US/tech/tk872/technologies_white_paper09186a00800c9907.shtml

  25. Reality: “96 More Bits, No Magic” • No real thought given to operational transition • IPv6 is not compatible with IPv4 on the wire • Variable-length addressing could have fixed this, but… • Routing load won’t necessarily be reduced • TE Model is the same • Address space fragmentation will still exist • The space is not infinite: 64 bits to every LAN • Not necessarily better security • Routers don’t fully support all IPv6 features in hardware

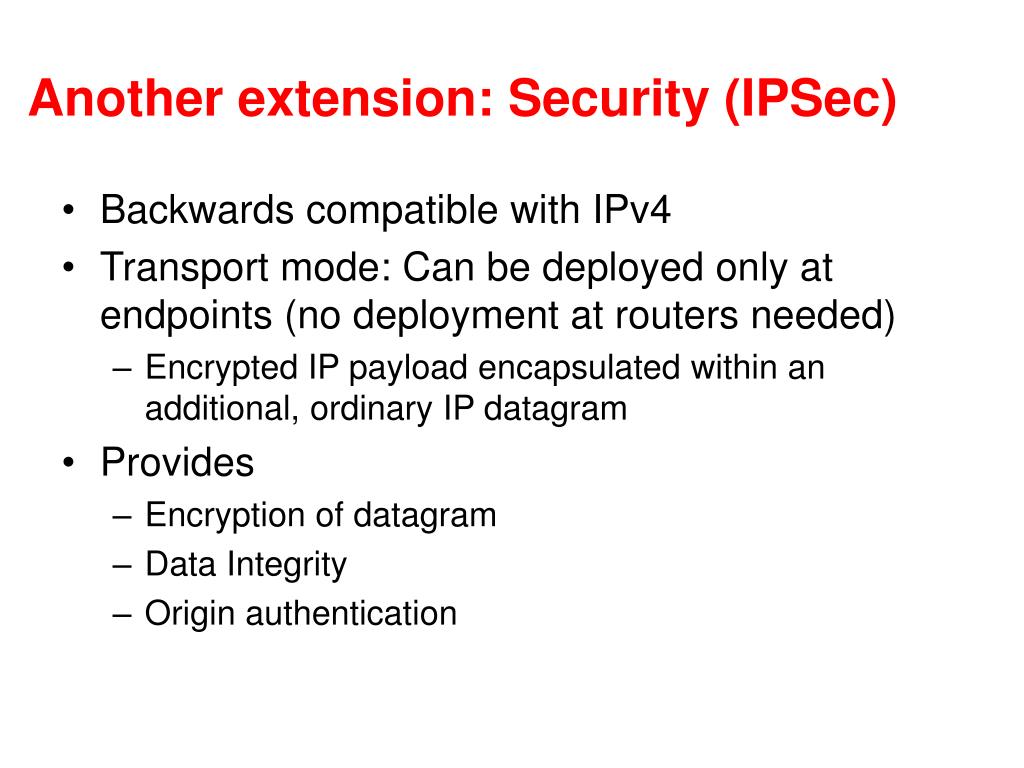

  26. Another extension: Security (IPSec) • Backwards compatible with IPv4 • Transport mode: Can be deployed only at endpoints (no deployment at routers needed) • Encrypted IP payload encapsulated within an additional, ordinary IP datagram • Provides • Encryption of datagram • Data Integrity • Origin authentication

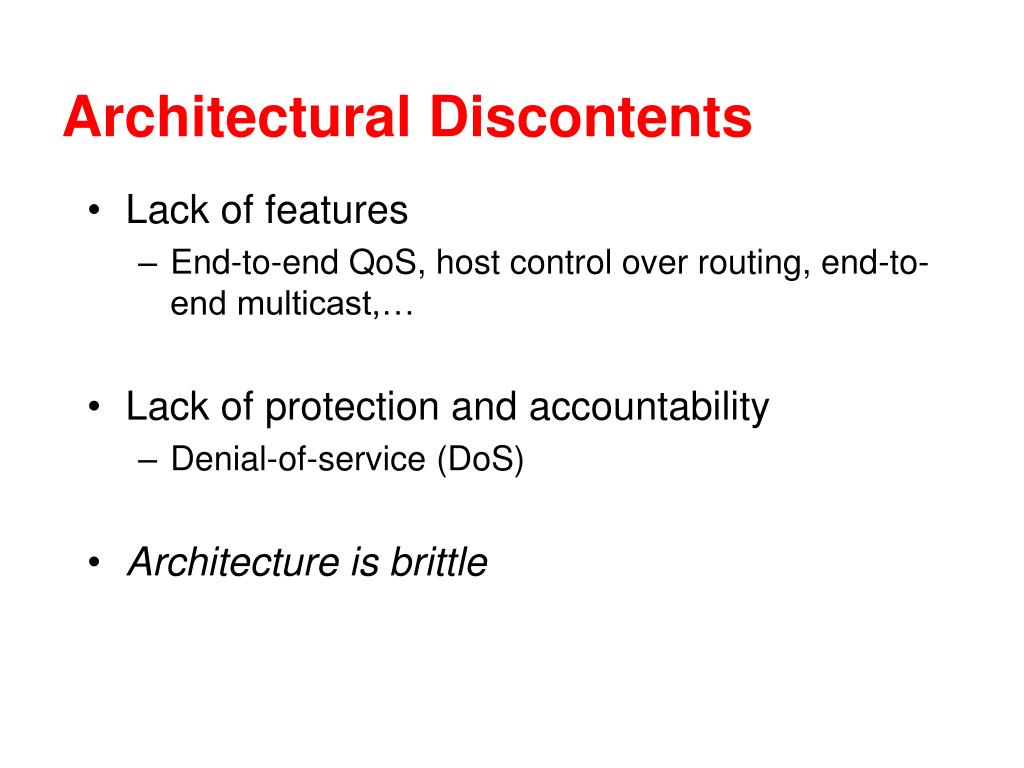

  27. Architectural Discontents • Lack of features • End-to-end QoS, host control over routing, end-to-end multicast,… • Lack of protection and accountability • Denial-of-service (DoS) • Architecture is brittle

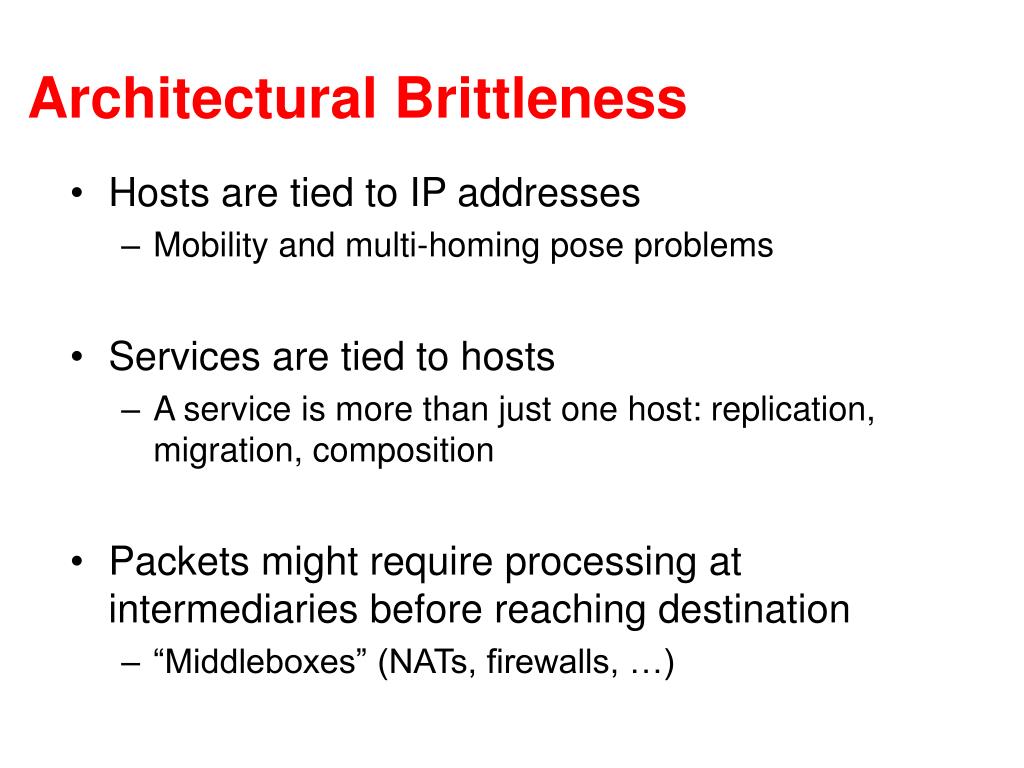

  28. Architectural Brittleness • Hosts are tied to IP addresses • Mobility and multi-homing pose problems • Services are tied to hosts • A service is more than just one host: replication, migration, composition • Packets might require processing at intermediaries before reaching destination • “Middleboxes” (NATs, firewalls, …)

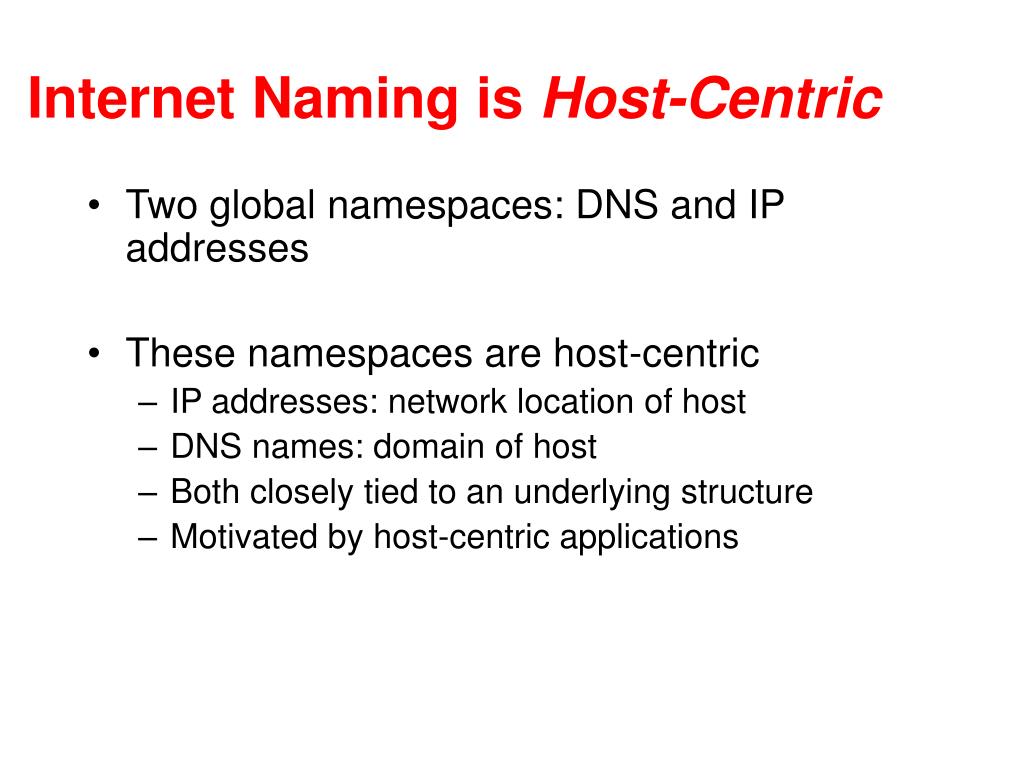

  29. Internet Naming is Host-Centric • Two global namespaces: DNS and IP addresses • These namespaces are host-centric • IP addresses: network location of host • DNS names: domain of host • Both closely tied to an underlying structure • Motivated by host-centric applications

  30. Trouble with Host-Centric Names • Host-centric names are fragile • If a name is based on mutable properties of its referent, it is fragile • Example: If Joe’s Web page www.berkeley.edu/~hippie moves to www.wallstreetstiffs.com/~yuppie, Web links to his page break • Fragile names constrain movement • IP addresses are not stable host names • DNS URLs are not stable data names

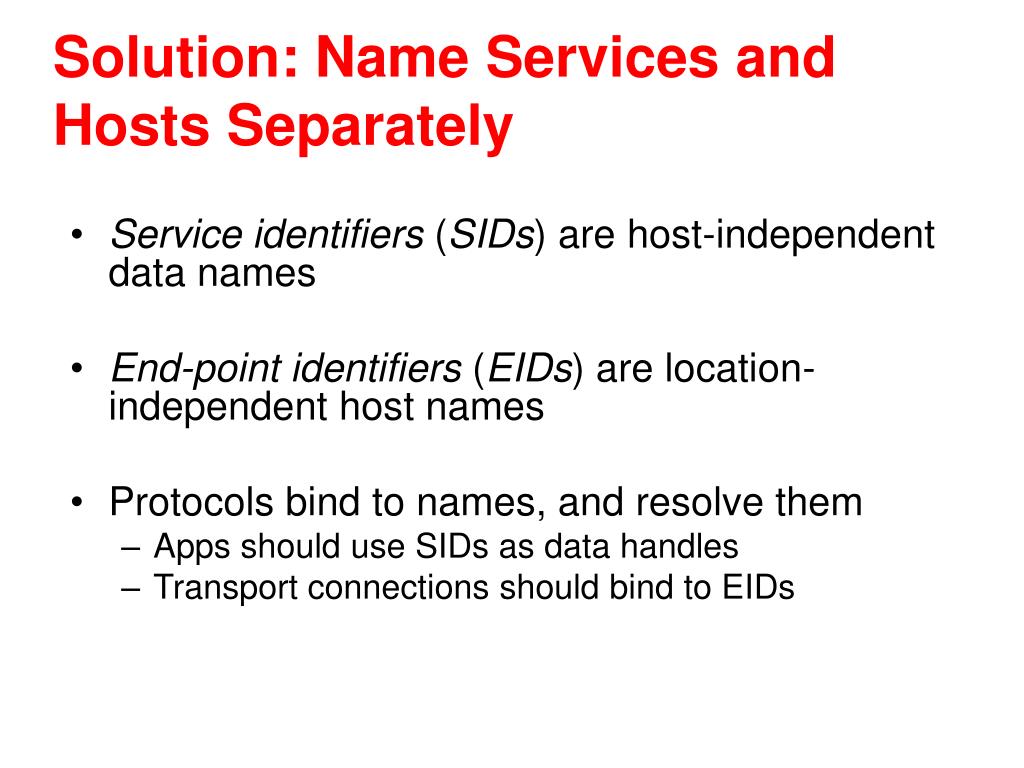

  31. Solution: Name Services and Hosts Separately • Service identifiers (SIDs) are host-independent data names • End-point identifiers (EIDs) are location-independent host names • Protocols bind to names, and resolve them • Apps should use SIDs as data handles • Transport connections should bind to EIDs

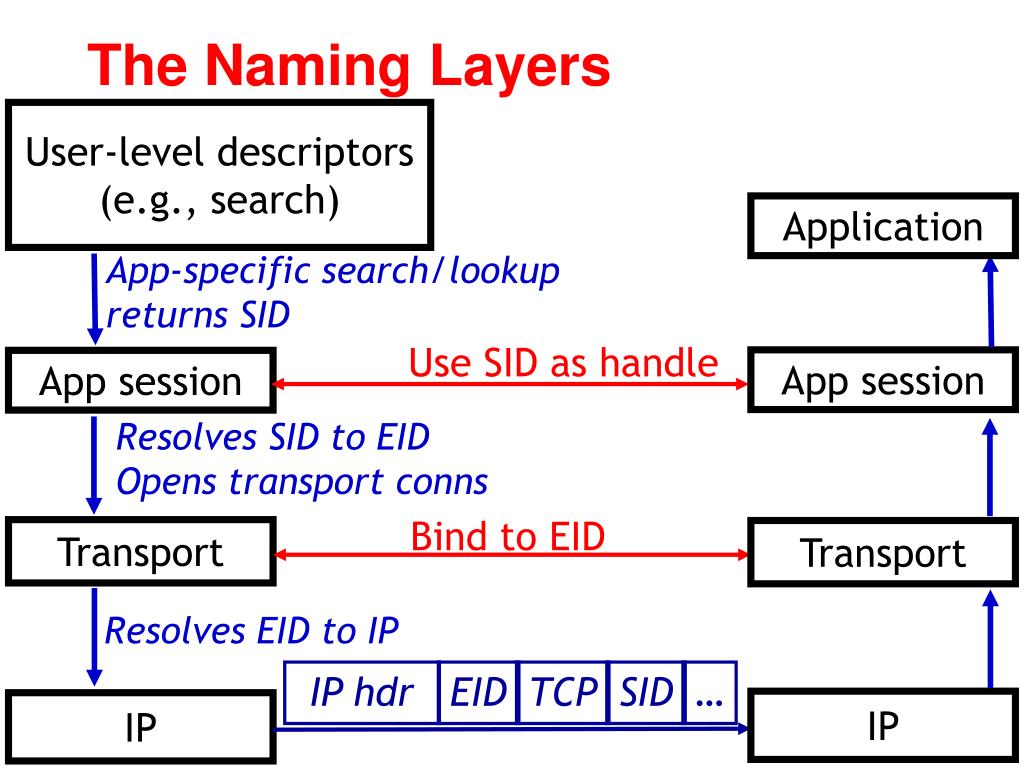

  32. Application Use SID as handle App session Bind to EID Transport IP hdr EID TCP SID … IP The Naming Layers User-level descriptors(e.g., search) App-specific search/lookup returns SID App session Resolves SID to EIDOpens transport conns Transport Resolves EID to IP IP

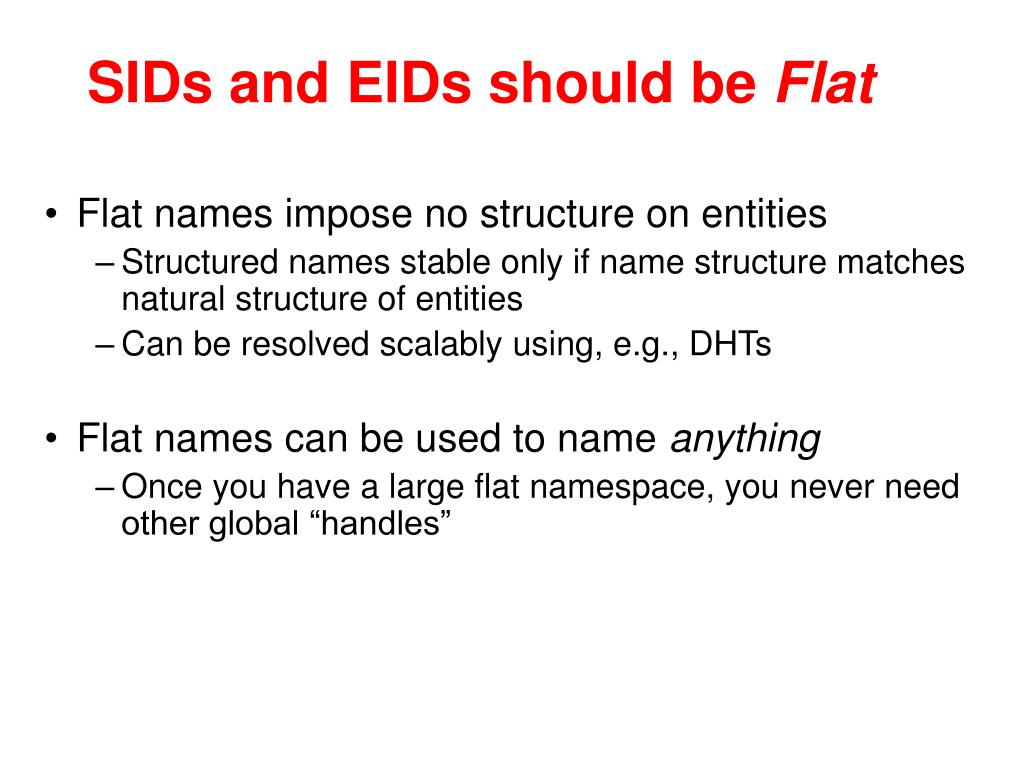

  33. SIDs and EIDs should be Flat • Flat names impose no structure on entities • Structured names stable only if name structure matches natural structure of entities • Can be resolved scalably using, e.g., DHTs • Flat names can be used to name anything • Once you have a large flat namespace, you never need other global “handles”

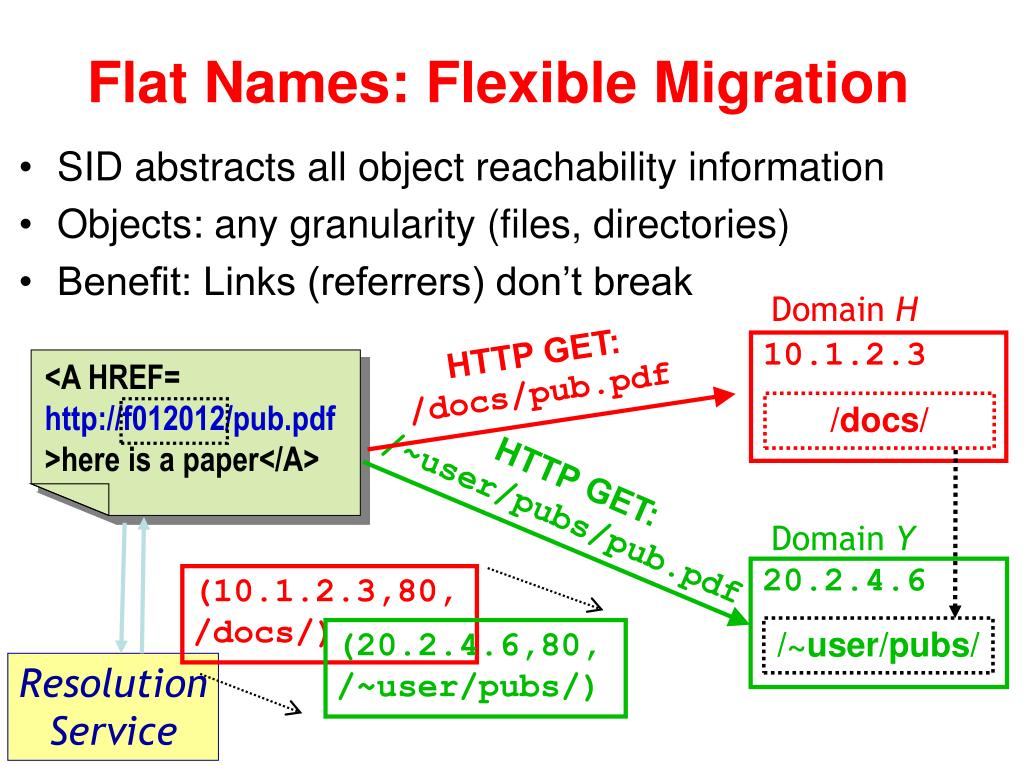

  34. Flat Names: Flexible Migration • SID abstracts all object reachability information • Objects: any granularity (files, directories) • Benefit: Links (referrers) don’t break Domain H HTTP GET: /docs/pub.pdf 10.1.2.3 <A HREF= http://f012012/pub.pdf >here is a paper</A> /docs/ HTTP GET: /~user/pubs/pub.pdf Domain Y 20.2.4.6 (10.1.2.3,80, /docs/) /~user/pubs/ (20.2.4.6,80, /~user/pubs/) ResolutionService
