  1. PC Technology Chapter 6 Teacher: Manju JEOPARDY

  2. Laptop Components Devices Technical Help Acronyms Potpourri 2 100 100 100 100 100 200 200 200 200 200 300 300 300 300 300 400 400 400 400 400 500 500 500 500 500

  3. Laptop Components100 • Which three components are interchangeable between desktop and laptop computers? • PC ExpressCard • Hard disk • PCI sound card • Printer • Scanner • USB flash drive What is Printer, scanner and USB flash drive

  4. Laptop Components 200 What is the major difference between laptop and desktop motherboards? Desktops use the AT form factor while laptops use the mini or baby AT form factor Desktop motherboards typically have a standard form factor & are interchangeable while laptop motherboards are proprietary Desktops have a variety of expansion and RAM slot designs while laptops have standard expansion and RAM slot designs Currently there is no significant difference in the motherboard form factors for the laptop & the laptops. What is Laptops use baby AT form factor while desktops use regular AT form factor.

  5. Laptop Components 300 • Which two laptop ports are used primarily for communication and network connectivity? • Ethernet • Modem • Parallel • DVI What is Ethernet and modem.

  6. Laptop Components400 • Which two devices can be individually configured to power off after a laptop has been idle for a given period of time? • CPU • Disk drive • Fan • Monitor • Wireless NIC What is Disk drive and monitor.

  7. Laptop Components500 • Which three components are used with USB or FireWire interfaces. • Camera • AC adapter • PC card • Printer • Scanner • RAM What is Camera , printer and scanner

  8. Devices100 • Which display device integrated into laptops? • CRT monitor • Digital PCI card • Dot matrix panel • LCD monitor What is LCD monitor.

  9. Devices200 • Which type of interface do current laptops use to achieve similar expansion capabilities as desktops. • CardBus • PC ExpressCard • ISA • PCI What is PC ExpressCard

  10. Devices300 • Which internal laptop component may be designed as a hot-swappable device? • CPU • LCD screen • Optical drive • RAM • Touch pad What is Optical drive

  11. Devices 400 • Which two devices are commonly hot-swappable on laptops? • Integrated LCD screen • CPU chip • PC card • RAM • USB drive What is PC Card & USB Drive

  12. Devices500 What is meant by a laptop device being hot-swappable? The device does not need a driver to interface with the computer OS The laptop does not need to be powered off to install or remove the device The device can be connected using more than one type of port The device can interface with the laptop wirelessly What is The laptop does not need to be powered off to install or remove the device

  13. Technical Help100 Where can a technician change the power schemes on a laptop running Windows XP? Select Advanced Setting from within the BIOS Select Power Options from within the Control Panel Select Power from within Administrative Tools Select Configure Power Settings from within Computer Management What is Select power Options from within the BIOS

  14. Technical Help 200 • A digital projector is connected to an external monitor port on a laptop, but the projector indicates that there is no RGB signal. What should the user try first to resolve the problem? • Connect the projector to the s-video port • Press the function key that will redirect the video output to the external monitor • Try a different laptop • Try a different projector What is Press a function key that will redirect the video output to the external monitor.

  15. Technical Help 300 • Which type of questions would you initially ask to gather information to help solve a client problem? • Categorical • Closed • Directed • Multiple-choice • Open What is Open questions.

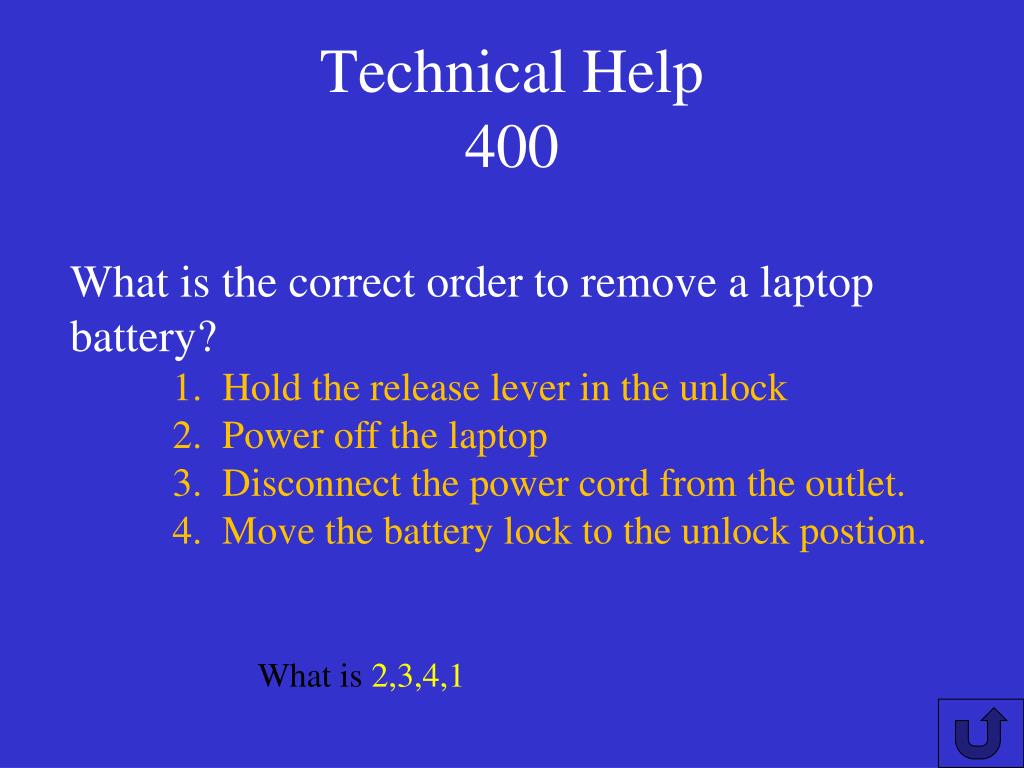

  16. Technical Help 400 • What is the correct order to remove a laptop battery? • 1.Hold the release lever in the unlock • 2. Power off the laptop • 3. Disconnect the power cord from the outlet. • 4. Move the battery lock to the unlock postion. What is 2,3,4,1

  17. Technical Help 500 Which task must be completed first to configure power management states when using Windows XP? APM power management mode must be configured in the BIOS before ACPI can be used to configure power ACPI power management mode must be enabled in the BIOS before Windows XP can be used to configure power management Disable APM power management mode in the BIOS so that Windows XP can be used to configure power management Enable ACPI power management mode in the BIOS using Administrative Tools in the Windows Control Panel What is ACPI power management mode must be enabled in the BOIS before Windows XP can be used to configure power management.

  18. Acronyms 100 LCD What is Liquid Crystal display

  19. Acronyms 200 USB What is Universal Serial Bus

  20. Acronyms 300 CPU What is Central Processing Unit

  21. Acronyms 400 ACPI What is Advanced Configuration and Power Interface

  22. Acronyms 500 PCI What is Peripheral Component Interconnect

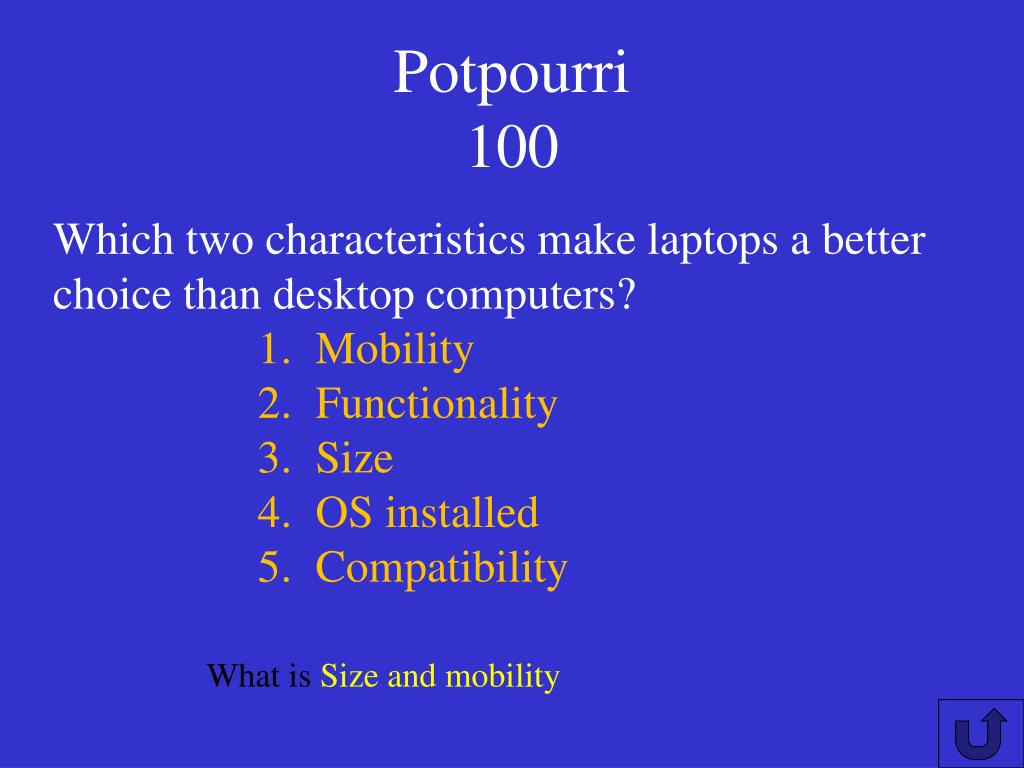

  23. Potpourri 100 • Which two characteristics make laptops a better choice than desktop computers? • Mobility • Functionality • Size • OS installed • Compatibility What is Size and mobility

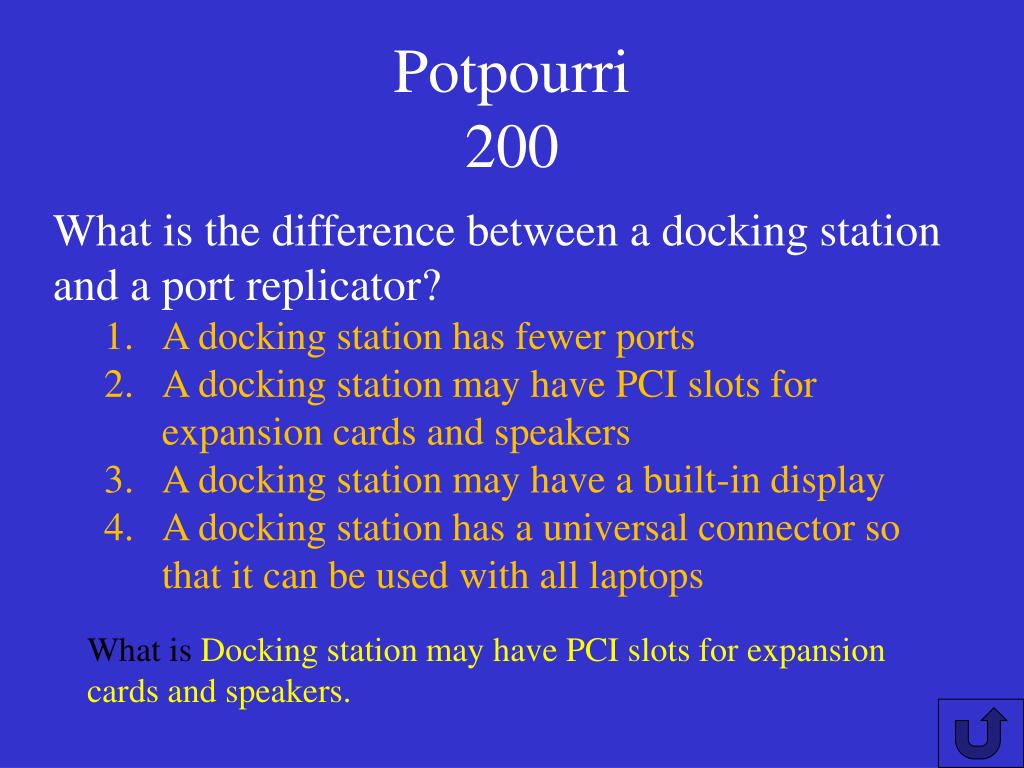

  24. Potpourri 200 • What is the difference between a docking station and a port replicator? • A docking station has fewer ports • A docking station may have PCI slots for expansion cards and speakers • A docking station may have a built-in display • A docking station has a universal connector so that it can be used with all laptops What is Docking station may have PCI slots for expansion cards and speakers.

  25. Potpourri 300 What is the benefit of using CPU throttling in laptops? It reduces the processing time needed by end-user applications It reduces CPU power consumption and heat production It reduces the amount of CPU resources needed by system applications It avoids the need to increase the clock speed of the laptop processor. What is It reduces CPU power consumption and heat production.

  26. Potpourri 400 • Which laptop power state should be used to get maximum battery power conservation but allow for the quickest power on of end user application? • Suspend • Hibernate • Standby • Awake What is standby.

  27. Potpourri 500 • Refer to the exhibit. Which two form factors are supported by the devices shown in the graphic? • 30-pin • 34-pin • 43-pin • 45-pin • 54-pin What is 34 pin and 54 pin.

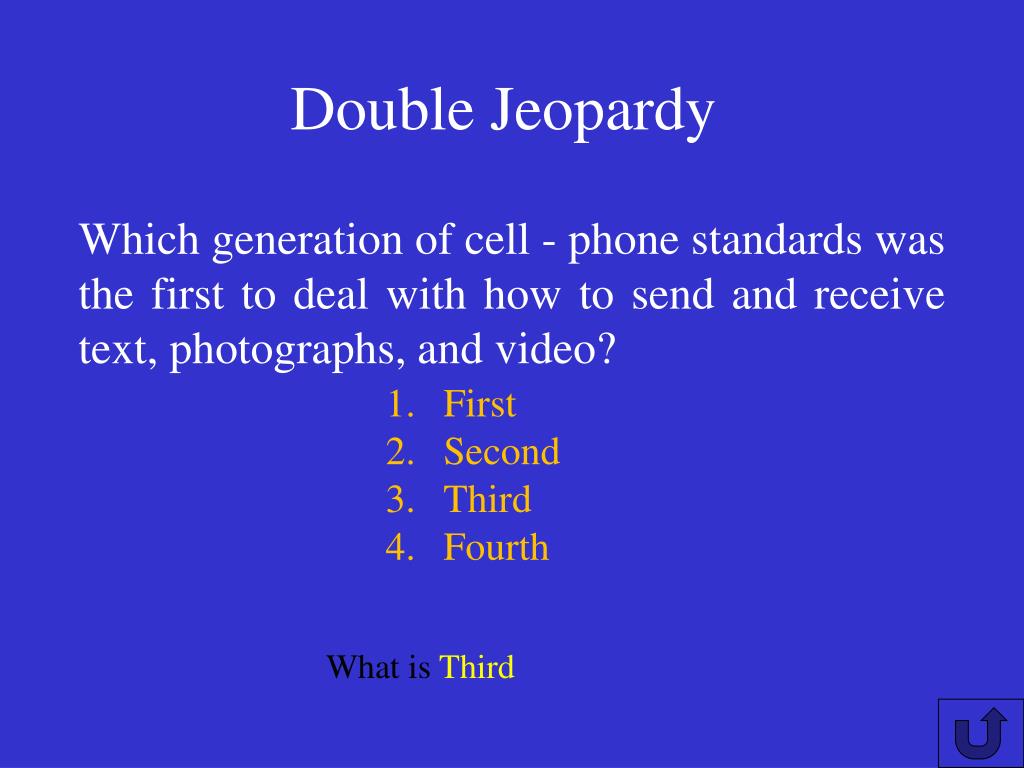

  28. Double Jeopardy • Which generation of cell - phone standards was the first to deal with how to send and receive text, photographs, and video? • First • Second • Third • Fourth What is Third

  29. Double Jeopardy Subject: Devices
