  1. A Modified Non Coherent PN Code Acquisition Scheme Rethnakaran P UbiNetics E-Mail: ratna.p@ubinetics.com, ratnu@ieee.org Joint work with P.K.Venkataraghavan PK (Synopsys Inc) and Tapan Ray (Wipro Technologies)

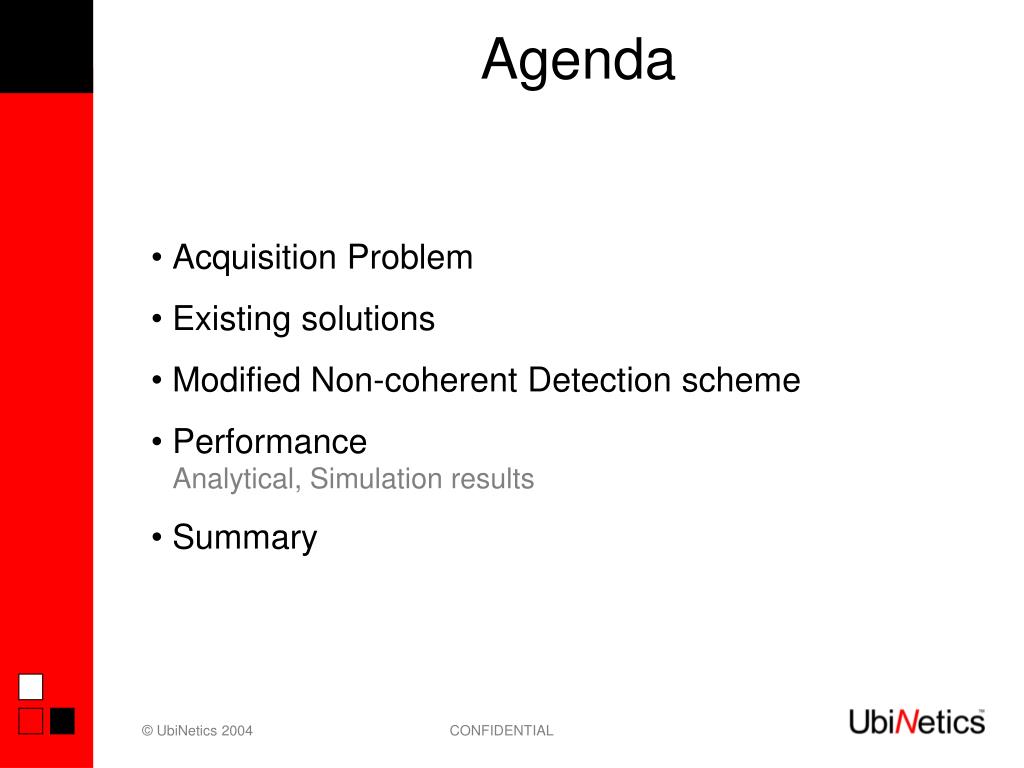

  2. Agenda • Acquisition Problem • Existing solutions • Modified Non-coherent Detection scheme • Performance • Analytical, Simulation results • Summary

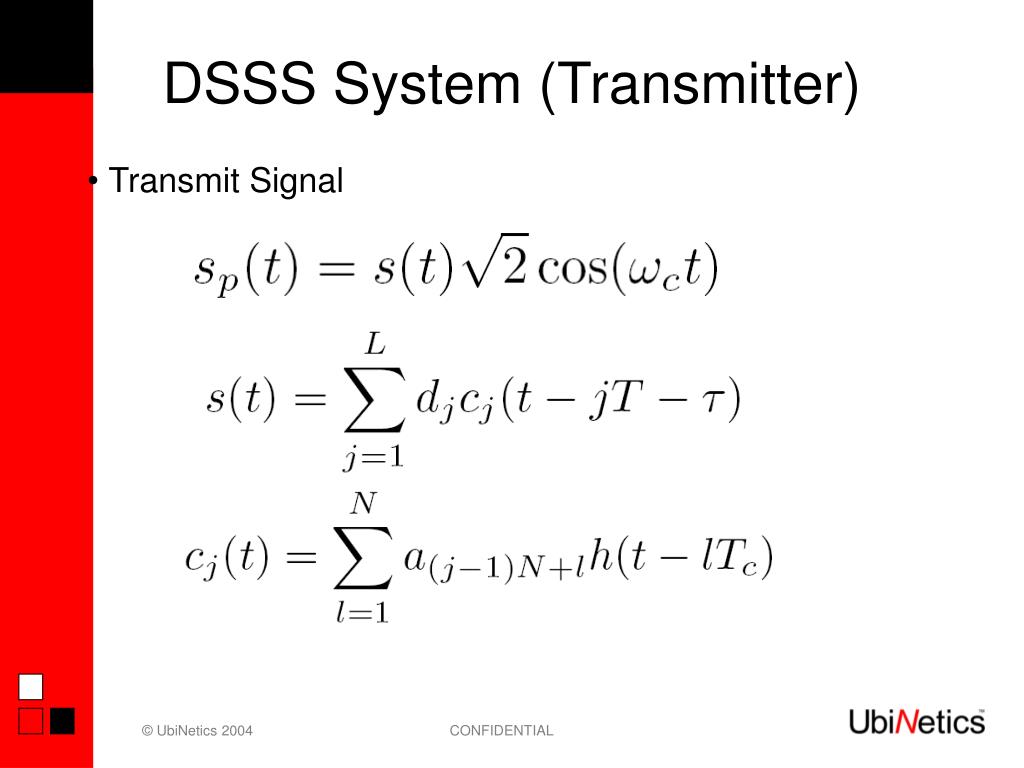

  3. DSSS System (Transmitter) • Transmit Signal

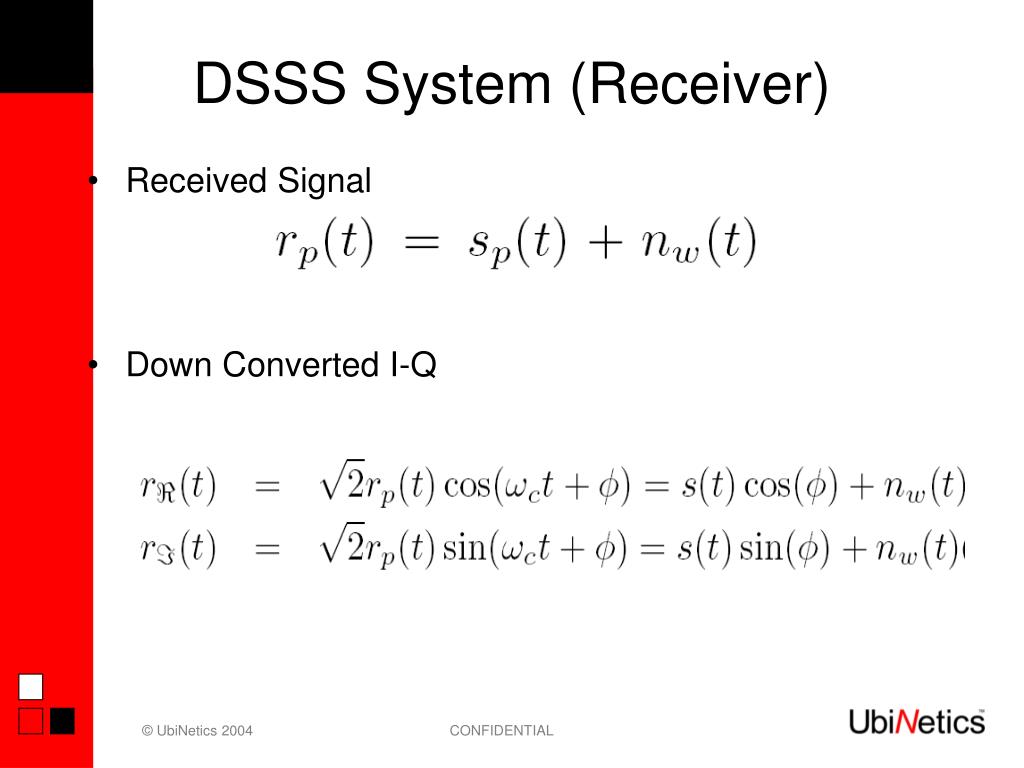

  4. DSSS System (Receiver) • Received Signal • Down Converted I-Q

  5. Acquisition Problem • Identify (Detect) the transmitted PN code (Code Phase) from the received (I and Q) signals,

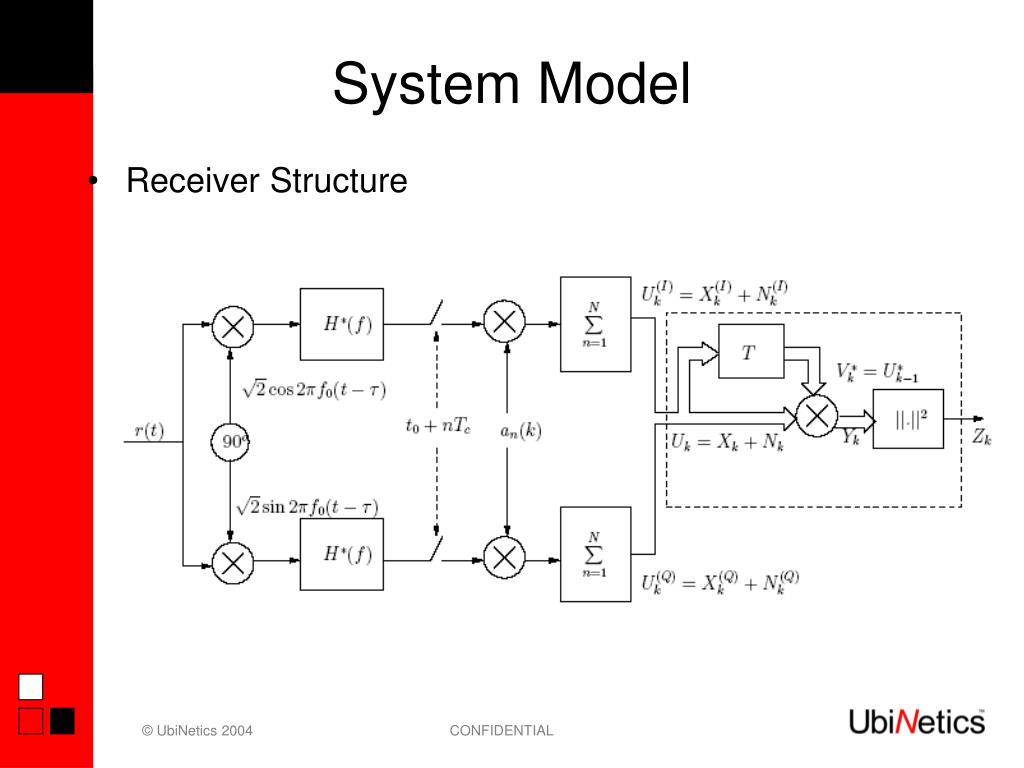

  6. System Model • Receiver Structure

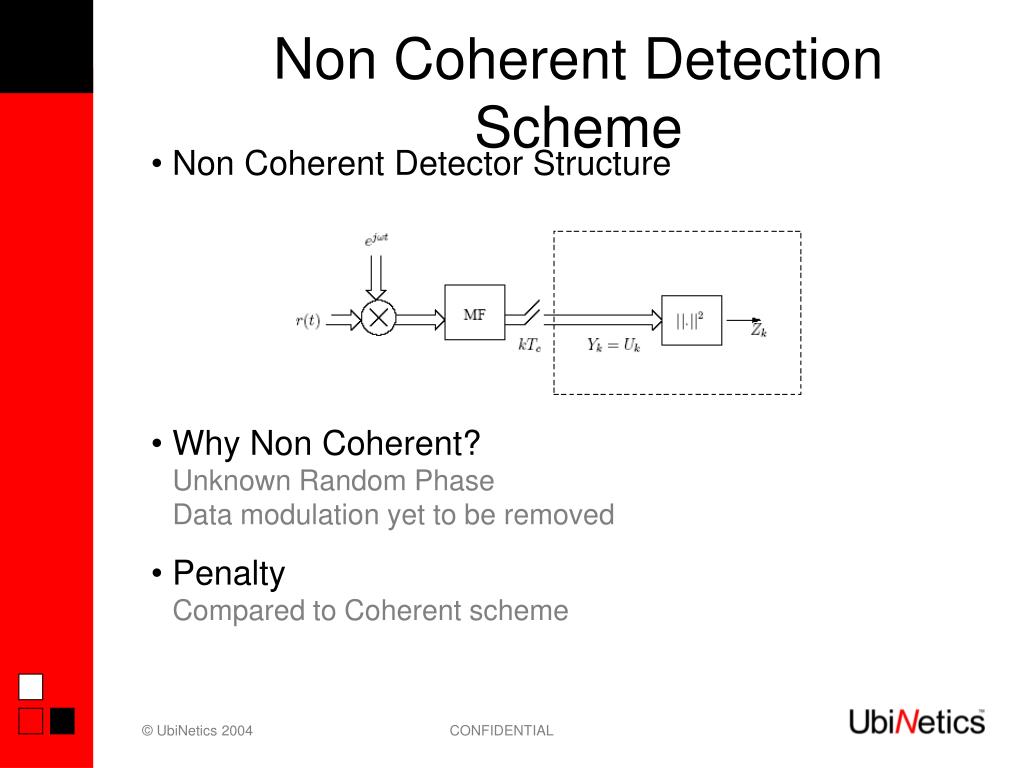

  7. Non Coherent Detection Scheme • Non Coherent Detector Structure • Why Non Coherent? • Unknown Random Phase • Data modulation yet to be removed • Penalty • Compared to Coherent scheme

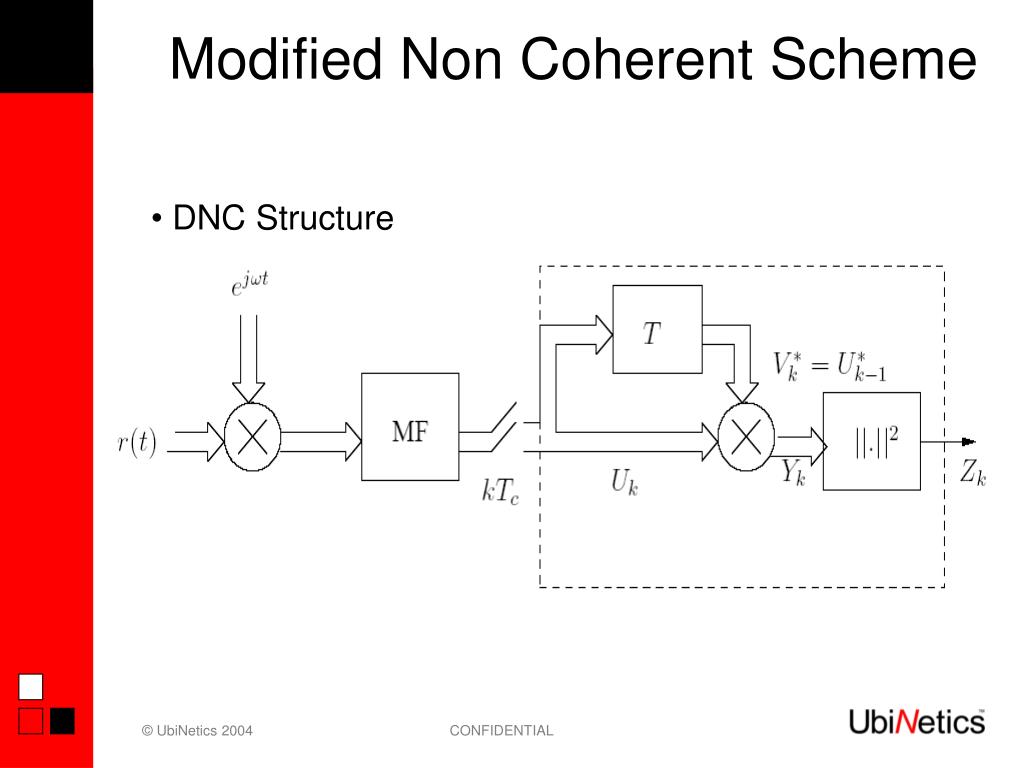

  8. Modified Non Coherent Scheme • DNC Structure

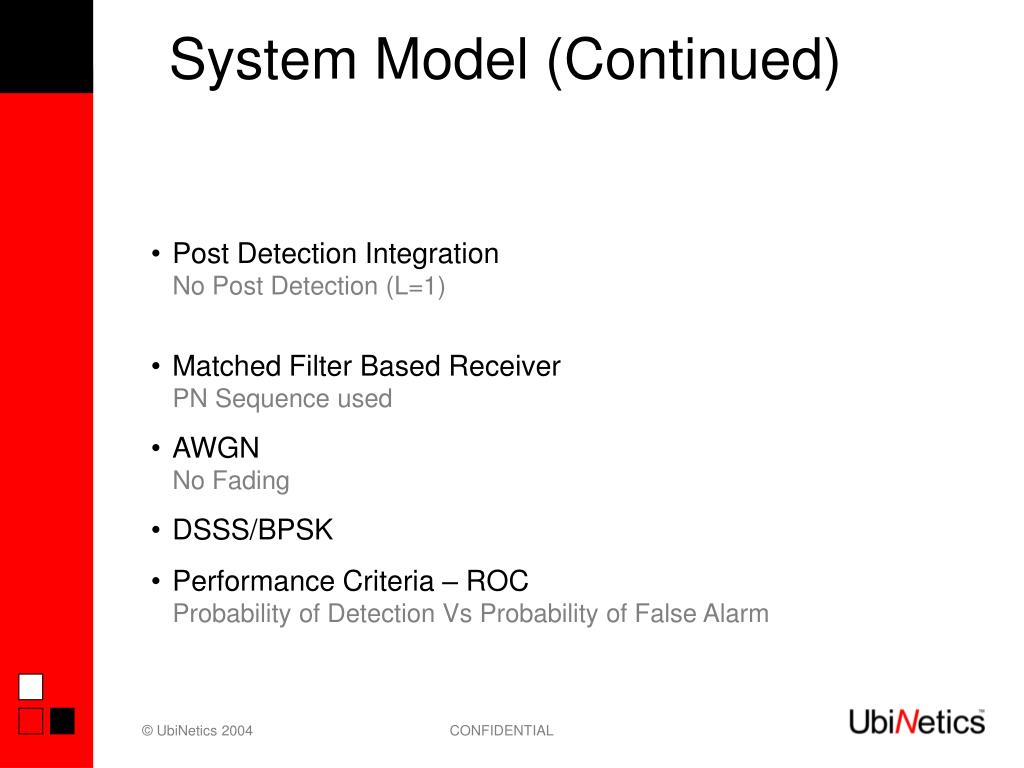

  9. System Model (Continued) • Post Detection Integration • No Post Detection (L=1) • Matched Filter Based Receiver • PN Sequence used • AWGN • No Fading • DSSS/BPSK • Performance Criteria – ROC • Probability of Detection Vs Probability of False Alarm

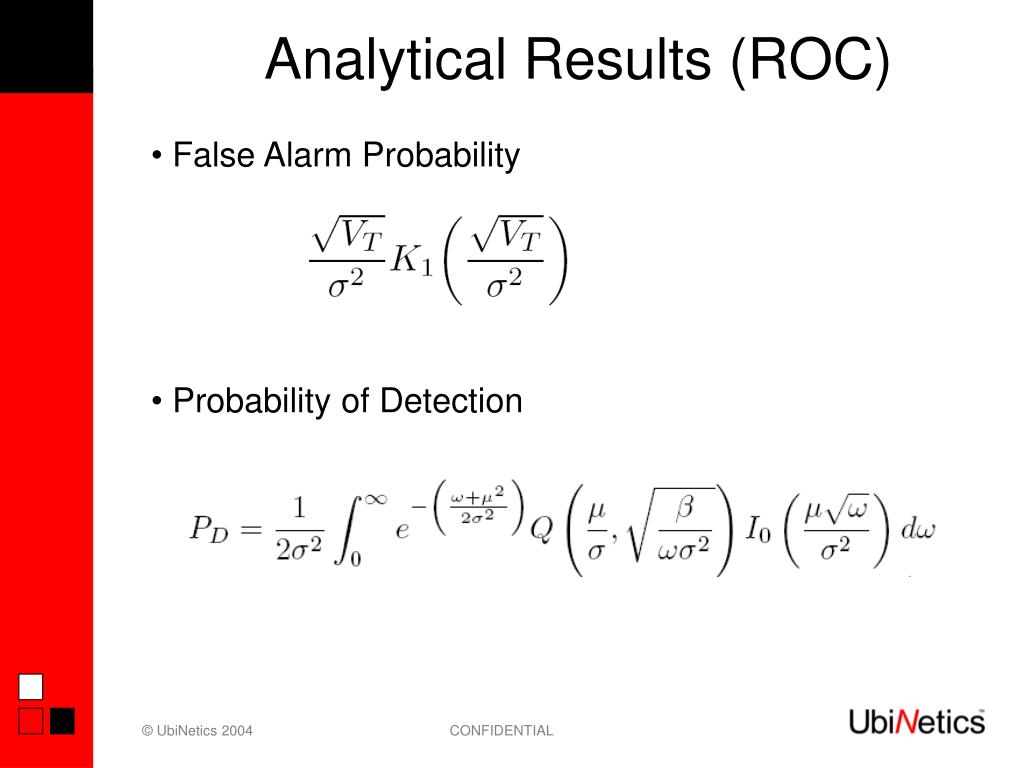

  10. Analytical Results (ROC) • False Alarm Probability • Probability of Detection

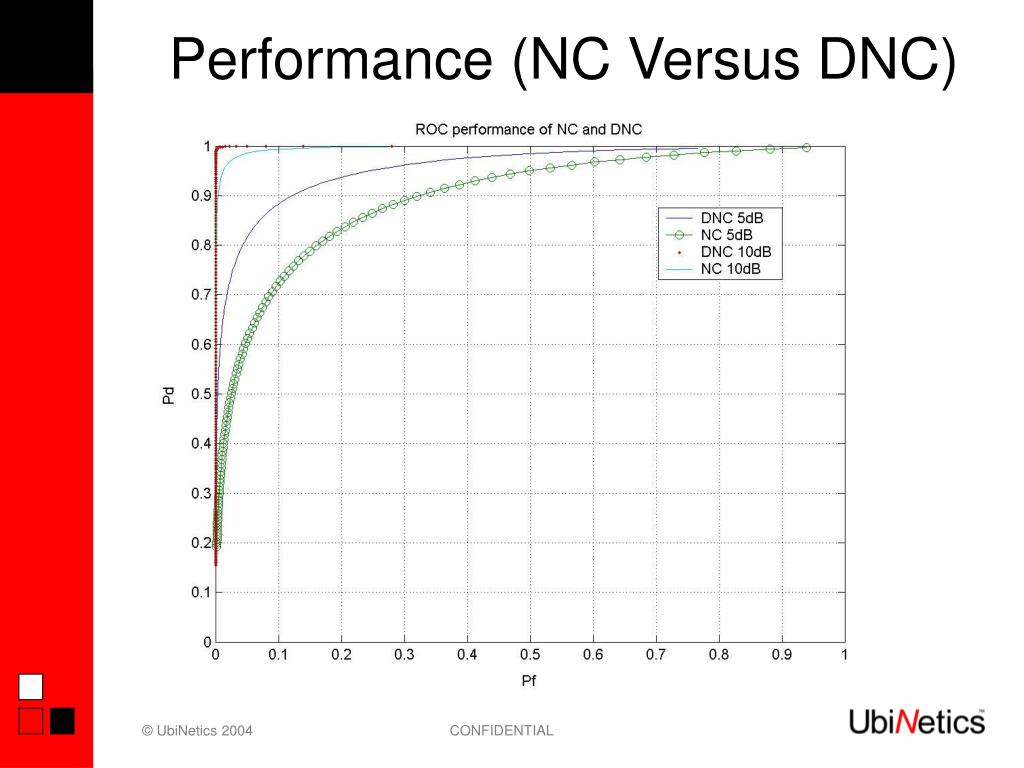

  11. Performance (NC Versus DNC)

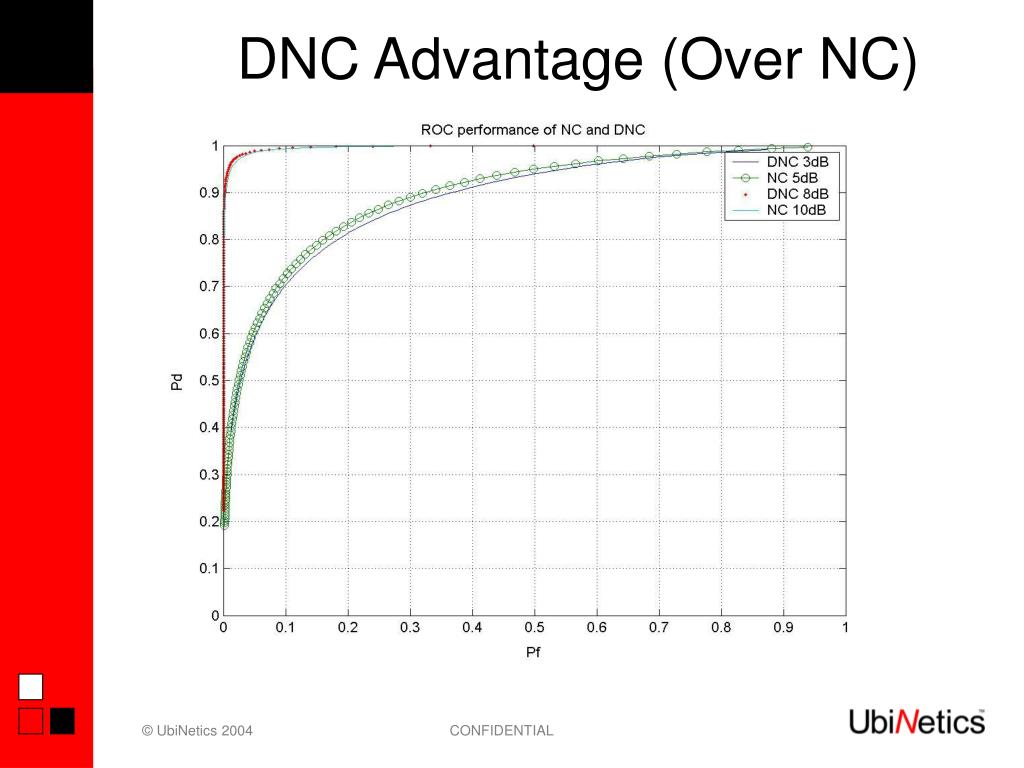

  12. DNC Advantage (Over NC)

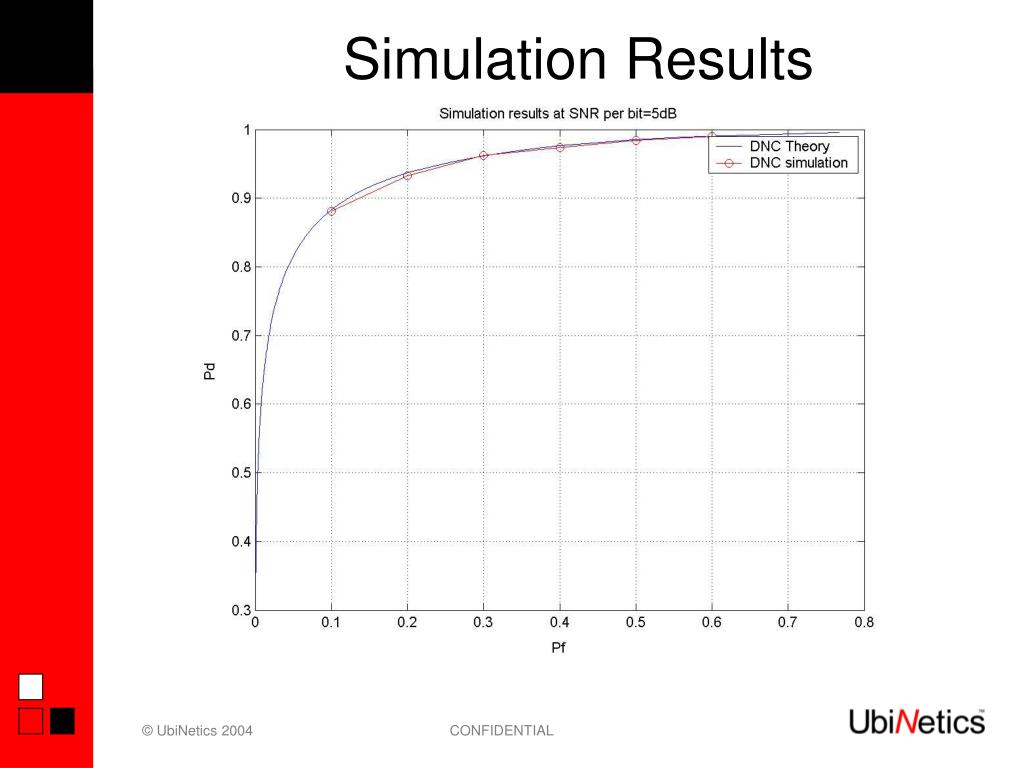

  13. Simulation Results

  14. Summary • New Structure Proposed • Analytical Expressions (ROC) Derived • 2dB SNR Advantage Over Conventional Non Coherent Scheme • Supported by System Level Simulations

  15. Q&A Thank You Rethnakaran P UbiNetics E-Mail: ratna.p@ubinetics.com, ratnu@ieee.org http://ratnu.tripod.com http://www.ubinetics.com
