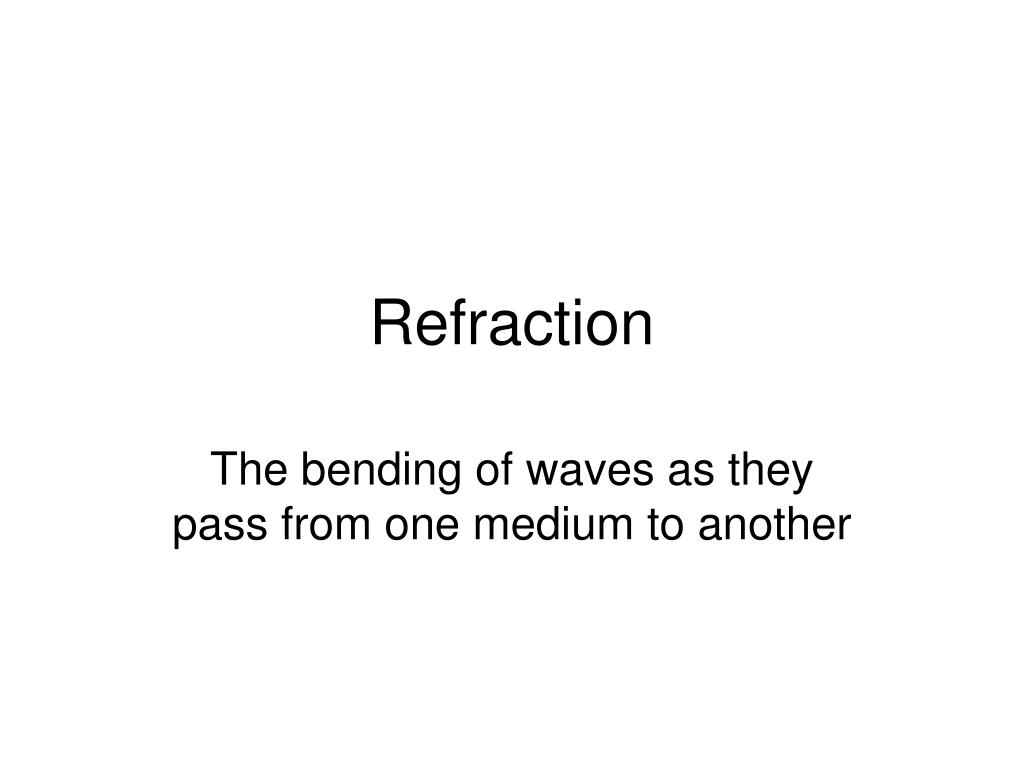

  1. Refraction The bending of waves as they pass from one medium to another

  2. Refraction • http://online.cctt.org/physicslab/content/Phy1/lessonnotes/refractionoflight/refraction.asp

  3. Refraction • The bending of light as it passes from one medium to another. • Dependent upon • Change in light wave speed • Change in direction • Bending means an abrupt change in direction.

  4. Refraction—the cause • Waves change speed as they pass through different mediums • Mechanical waves travel fastest through solids, slowest through gases and not at all through space. • Electromagnetic waves (or light waves) travel fastest through space and slowest through (transparent or translucent) solids.

  5. Refraction • The bending of light as it passes from one medium to another. • Dependent upon • Change in light wave speed • Change in direction • Bending means an abrupt change in direction.

  6. For Light Waves • Light waves slow down as they move from air to water or from air to glass. • Light waves speed up as they move from water to air or from glass to air. Fastest through air Faster through water Fastest through air Slowest through glass

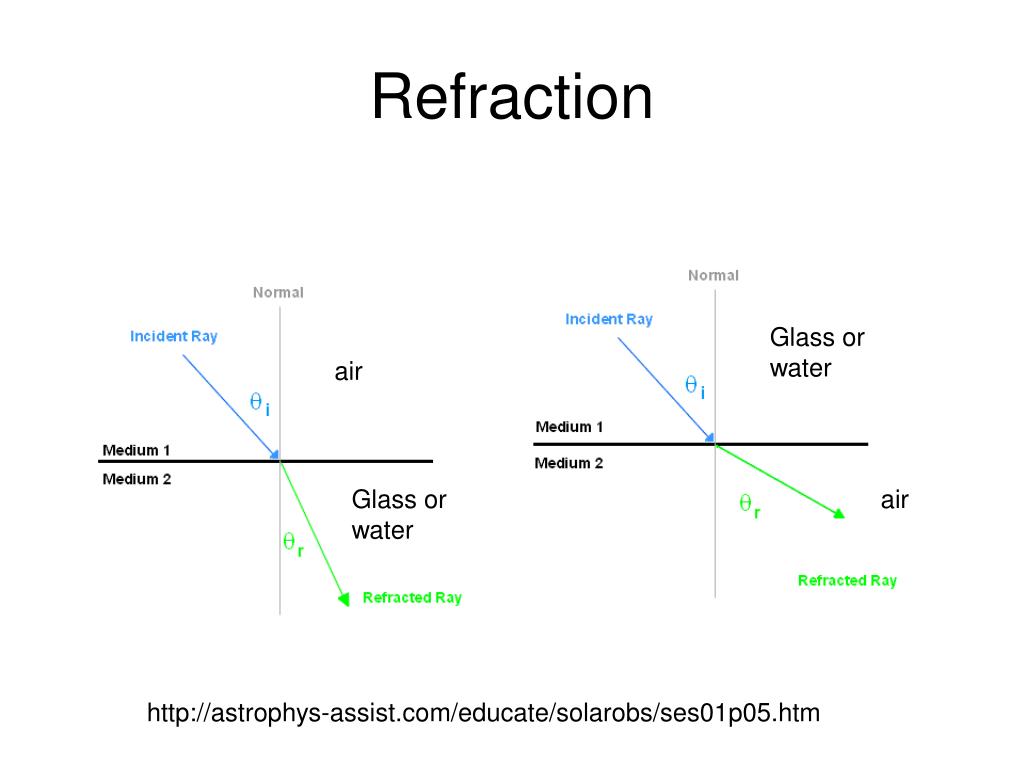

  7. Refraction Glass or water air Glass or water air http://astrophys-assist.com/educate/solarobs/ses01p05.htm

  8. Give three possibilities about what Medium 1 and Medium 2 could be to make this diagram true. First possibility Medium 1 ________ Medium 2 ________ Second possibility Medium 1 ________ Medium 2 ________ Third possibility Medium 1 ________ Medium 2 ________ Less dense to more dense air water air glass water glass

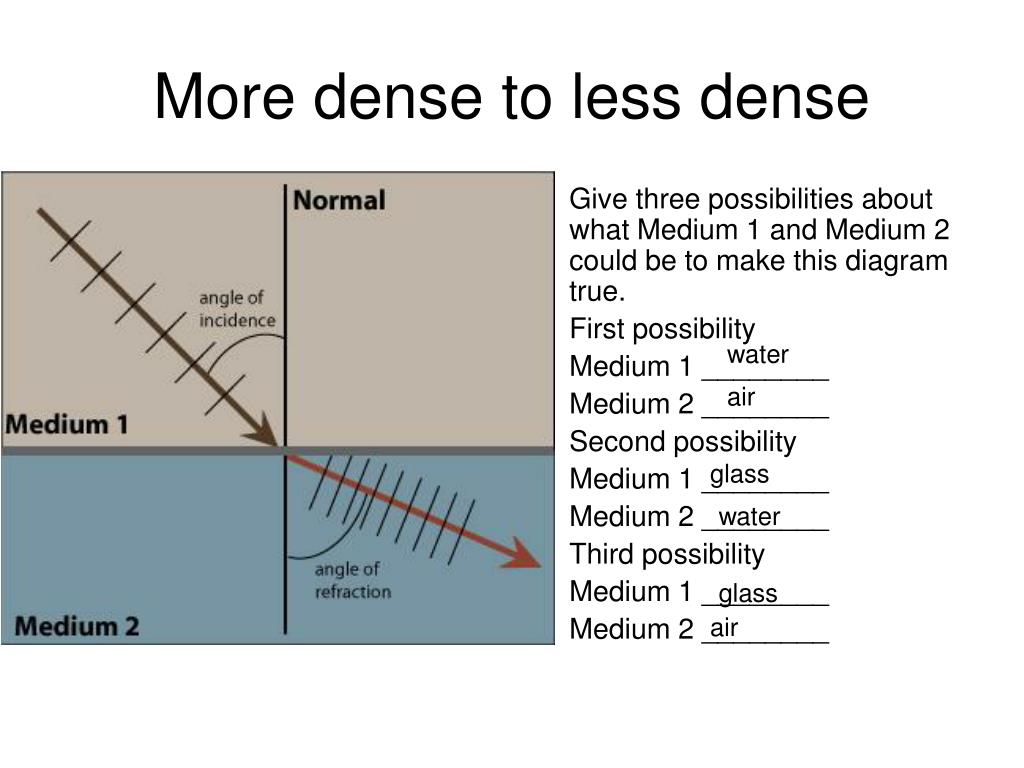

  9. Give three possibilities about what Medium 1 and Medium 2 could be to make this diagram true. First possibility Medium 1 ________ Medium 2 ________ Second possibility Medium 1 ________ Medium 2 ________ Third possibility Medium 1 ________ Medium 2 ________ Give three possibilities about what Medium 1 and Medium 2 could be to make this diagram true. First possibility Medium 1 ________ Medium 2 ________ Second possibility Medium 1 ________ Medium 2 ________ Third possibility Medium 1 ________ Medium 2 ________ More dense to less dense water air glass water glass air

  10. Convex and Concave Lenses convergent divergent http://cache.eb.com/eb/image?id=85238&rendTypeId=34

  11. Lab Assignment—Each Person Must… • Use the ray boxes to trace five light rays as they move toward each lens and as they are refracted through each lens. Use a straight edge. • Draw the lens • Label the rays as incident or refracted • Label the type of lens as convex or concave • Label the lens as divergent or convergent

  12. What type of lens is a magnifying glass? Convergent convex Examples of objects that use convex lenses to focus the image Telescopes, Microscopes, Cameras, The human eye The Human Eye and Sight

  13. Telescope or microscope

  14. Cameras Camera uses a convex lens

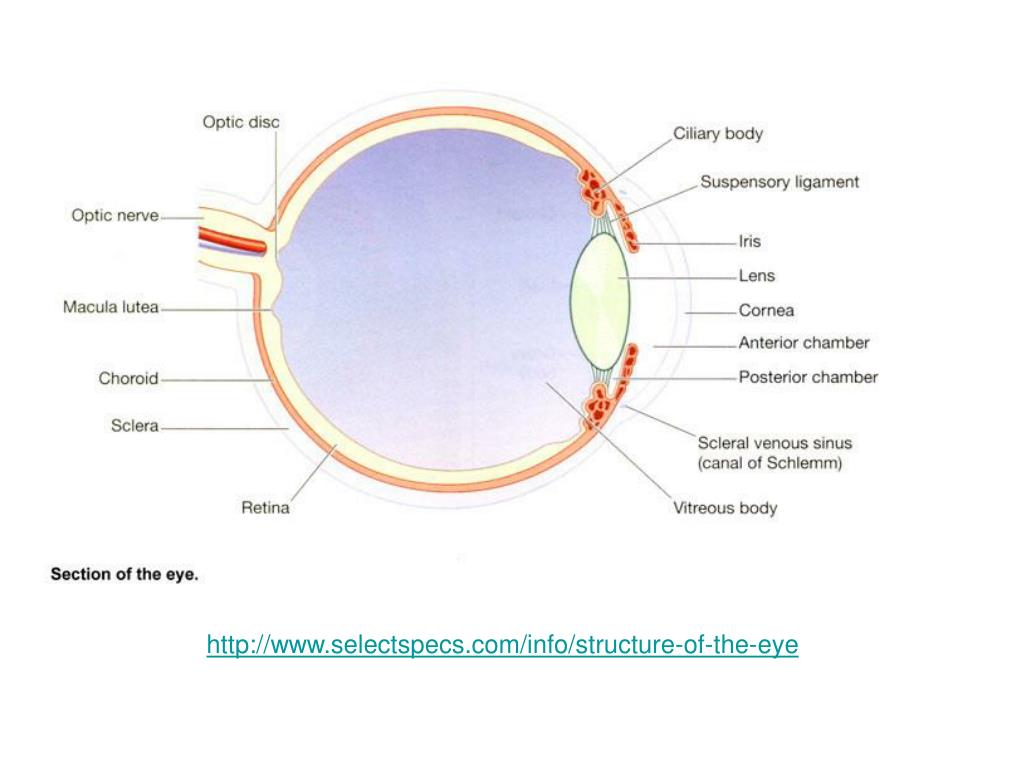

  15. Human eye contains two convex lenses • The cornea • The (secondary) lens • Light must be refracted through both lenses before it will focus on the retina. http://www.physics247.com/physics-tutorial/eye-anatomy.jpg http://upload.wikimedia.org/wikipedia/commons/thumb/1/1e/Schematic_diagram_of_the_human_eye_en.svg/508px-Schematic_diagram_of_the_human_eye_en.svg.png

  16. http://www.selectspecs.com/info/structure-of-the-eye
