  1. Refraction The bending or change in direction of light when it travels from one medium into another.

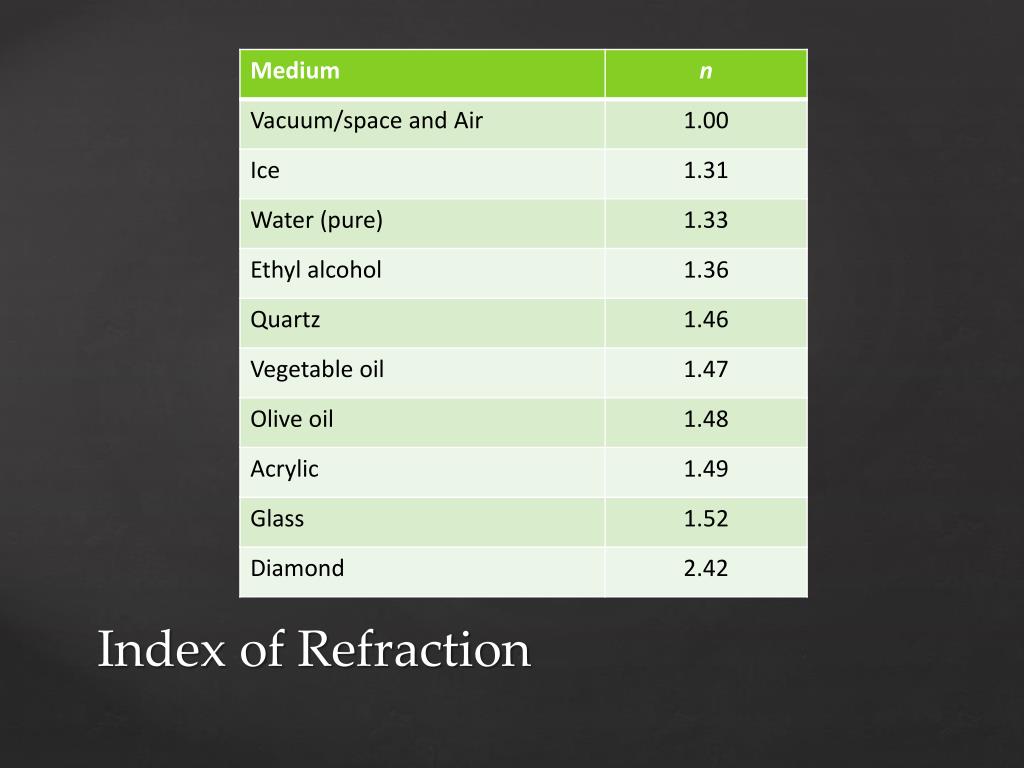

  2. Index of Refraction

  3. Index of Refraction

  4. When light moves from a faster medium to a slower medium, it bends ….. Speed of light (m/s) n ∠i 1.00 3.00 x 108 vacuum 1.33 2.26 x 108 water ∠R

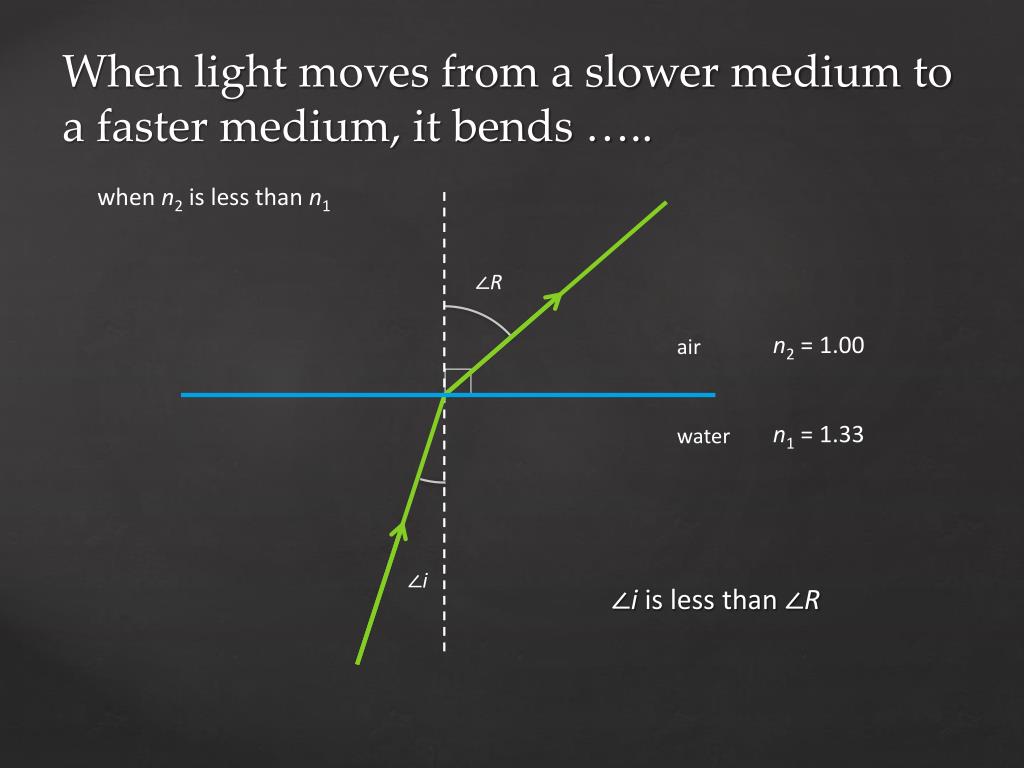

  5. When light moves from a slower medium to a faster medium, it bends ….. when n2 is less than n1 ∠R n2 = 1.00 air n1 = 1.33 water ∠i ∠i is less than ∠R

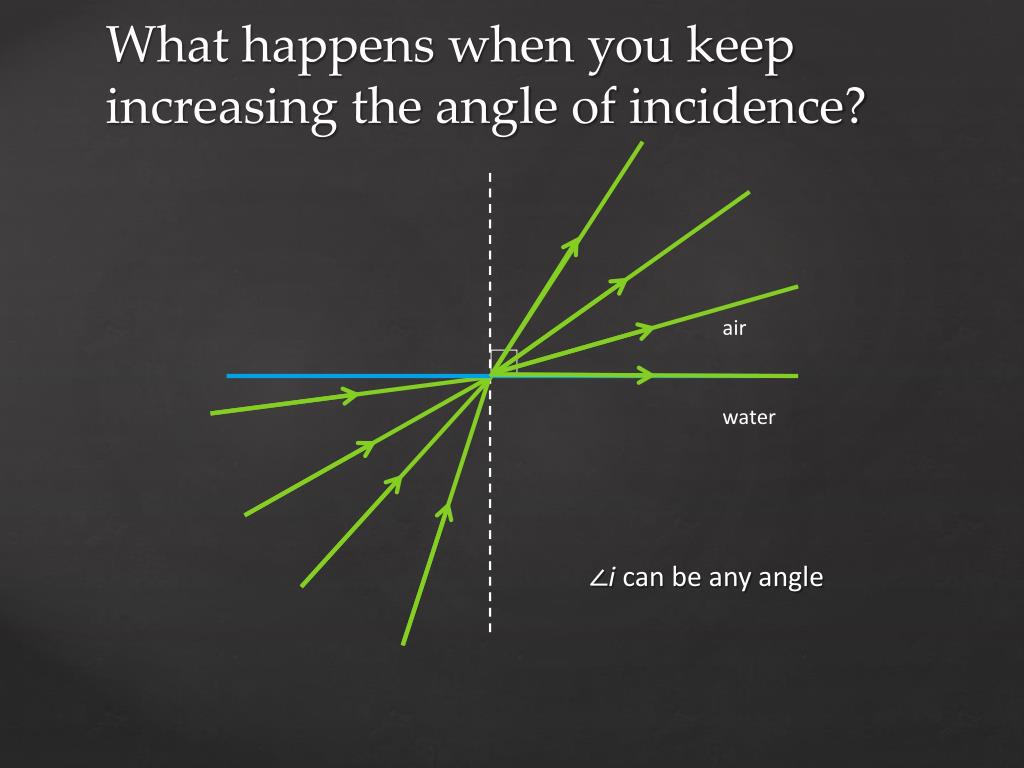

  6. air water ∠ican be any angle What happens when you keep increasing the angle of incidence?

  7. air water ∠ican be any angle What happens when you keep increasing the angle of incidence?

  8. ∠R air water ∠i If ∠R becomes 90° ∠i must be less than 90° Critical angle

  9. Critical Angle the angle of incidence that produces a refracted angle of 90°. Only occurs when n1 is greater than n2 A physical property of the medium.

  10. What happens when an incident angle is greater than the critical angle? ∠R air water ∠i Reflection occurs on the surface. critical angle Critical angle for water: 48.8° Total Internal Reflection

  11. Total Internal Reflection When the angle of incidence is greater than the critical angle, light is reflected at the surface of the medium. Note: only occurs when n1 is greater than n2

  12. critical angle for diamond: 24.4° Refraction in a diamond

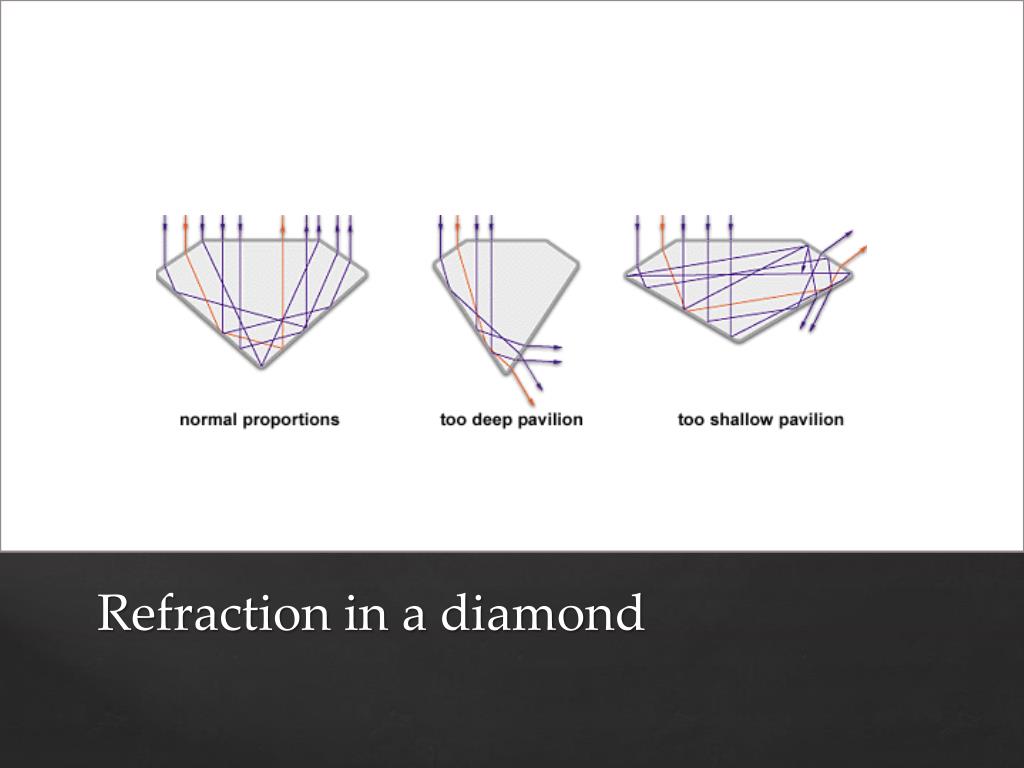

  13. Refraction in a diamond

  14. Fibre Optics

  15. Fibre Optics

  16. www.youtube.com/watch?v=0MwMkBET_5I Fibre Optic Cables

  17. The speed of communications

  18. Fibre Optics – endoscope

  19. Fibre Optics – endoscope

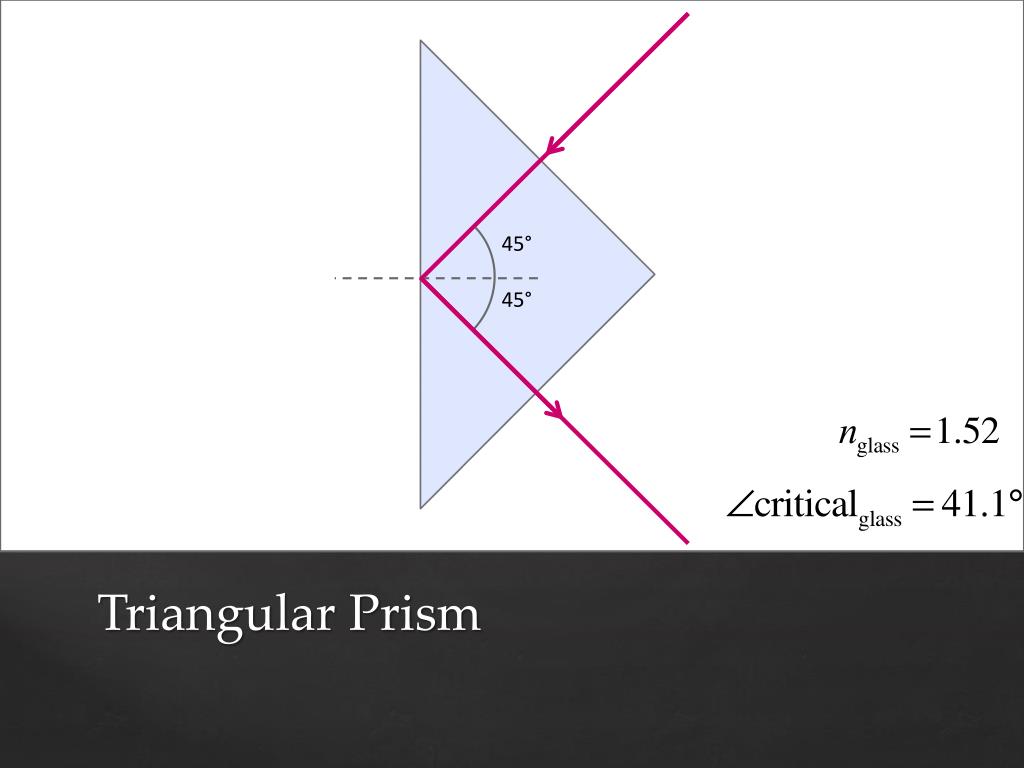

  20. 45° 45° Triangular Prism

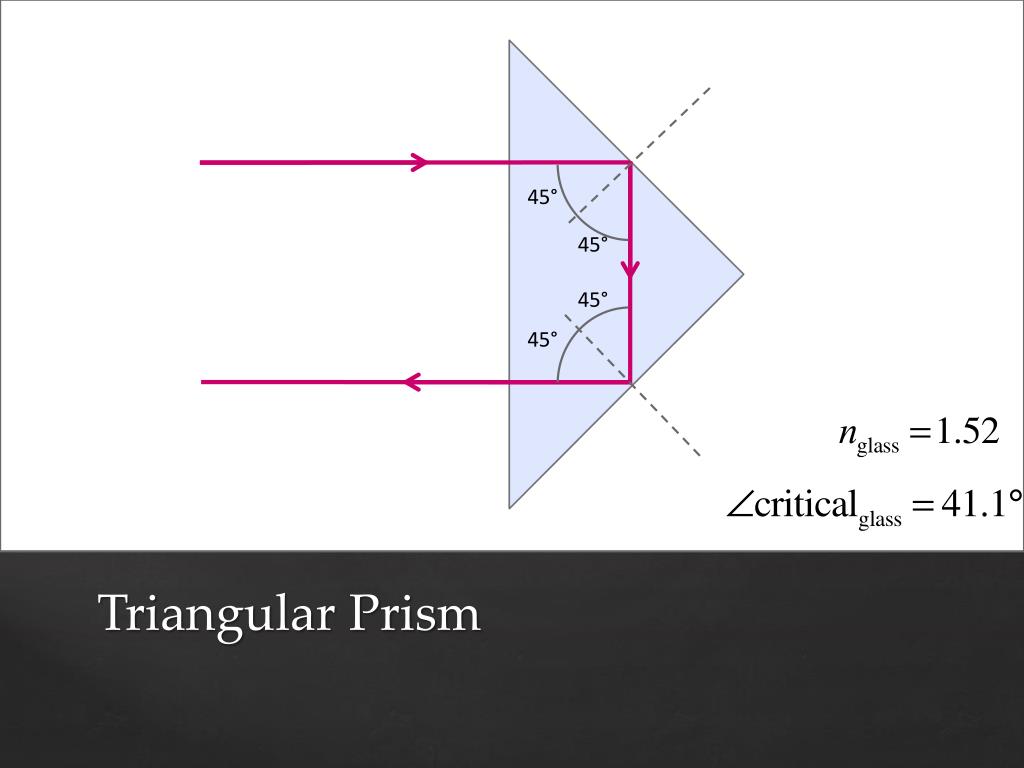

  21. 45° 45° 45° 45° Triangular Prism

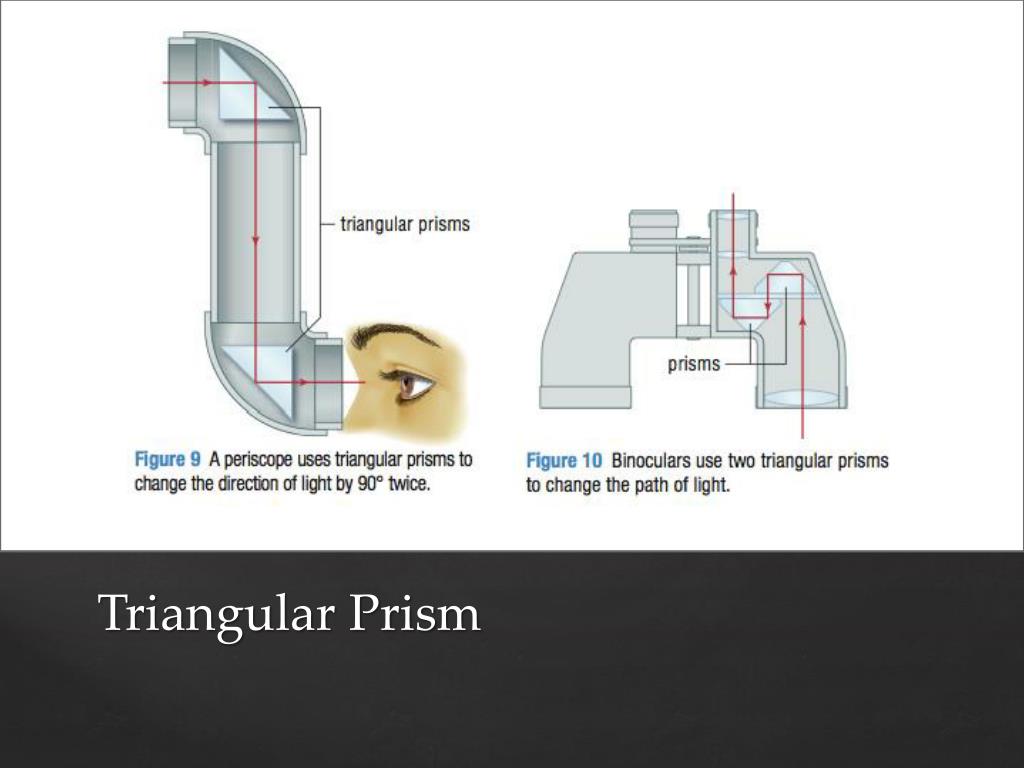

  22. Triangular Prism

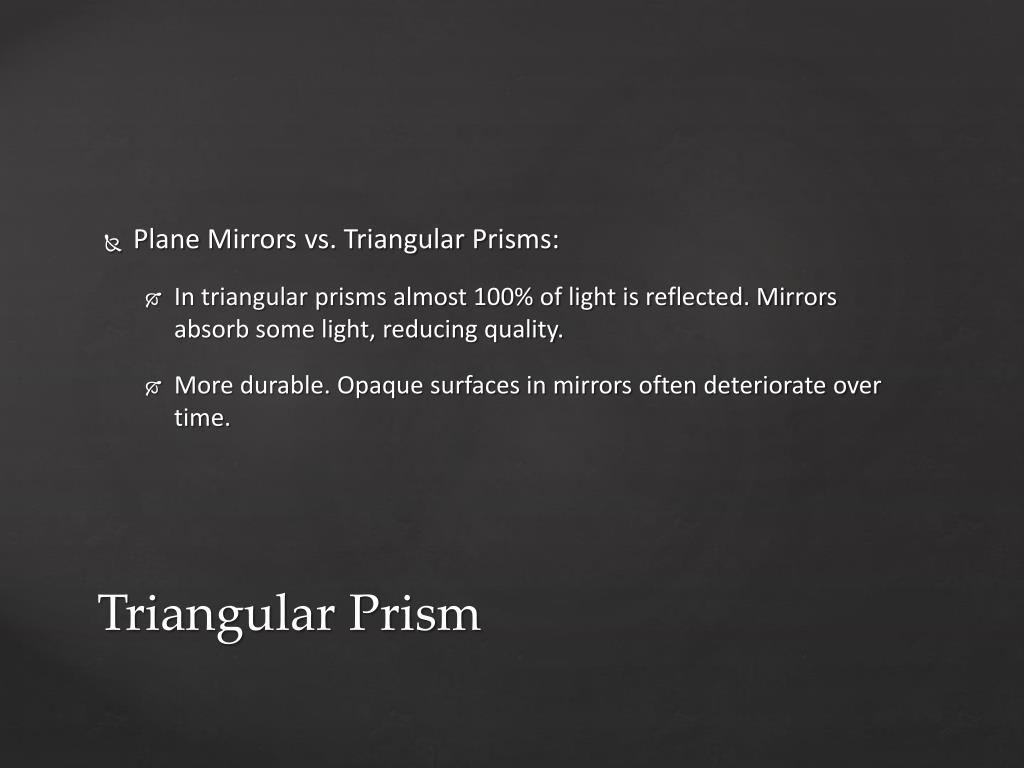

  23. Plane Mirrors vs. Triangular Prisms: • In triangular prisms almost 100% of light is reflected. Mirrors absorb some light, reducing quality. • More durable. Opaque surfaces in mirrors often deteriorate over time. Triangular Prism

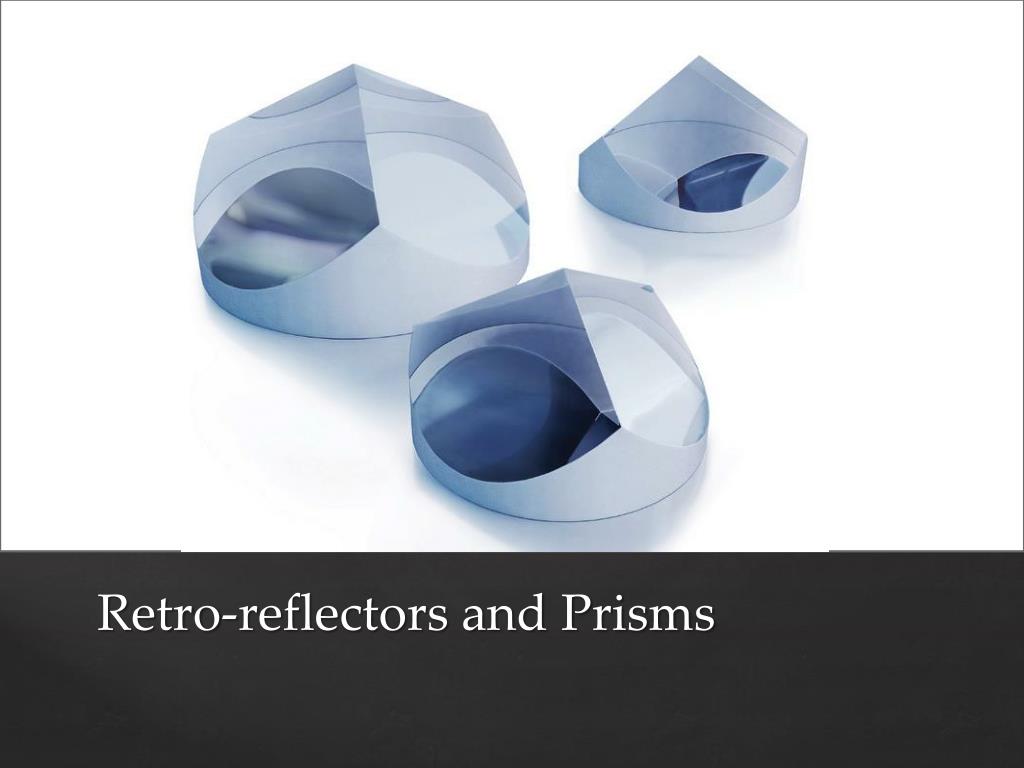

  24. Retro-reflectors and Prisms

  25. Retro-reflectors and Prisms An optical device in which the emergent ray is parallel to the incident ray

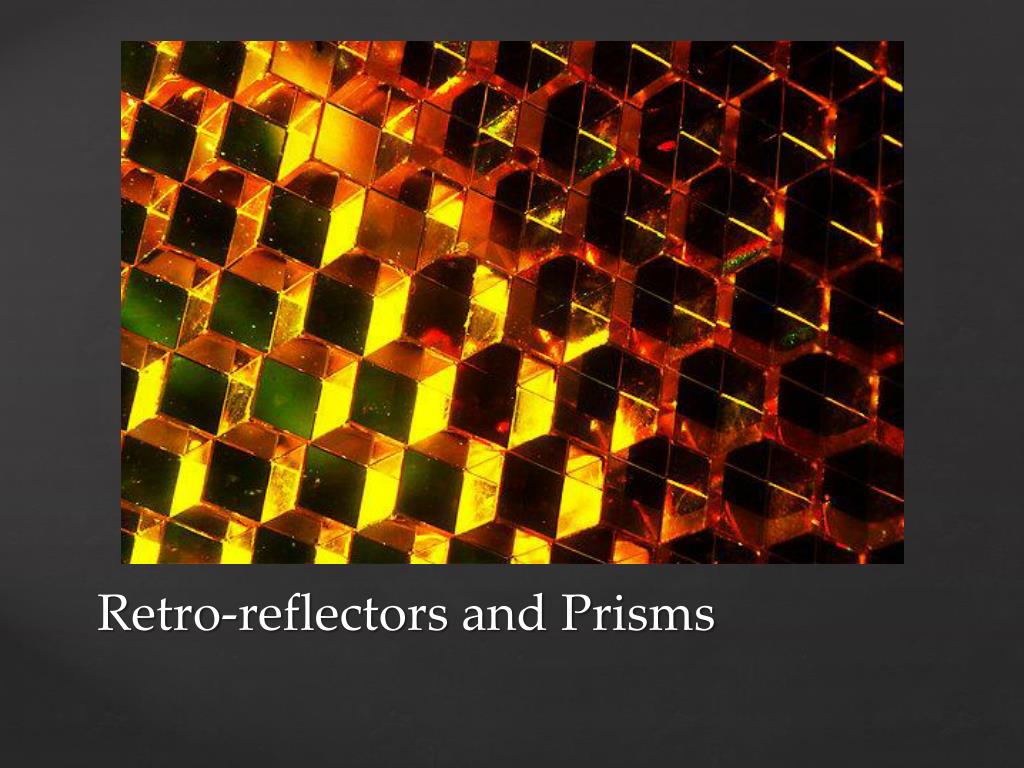

  26. Retro-reflectors and Prisms

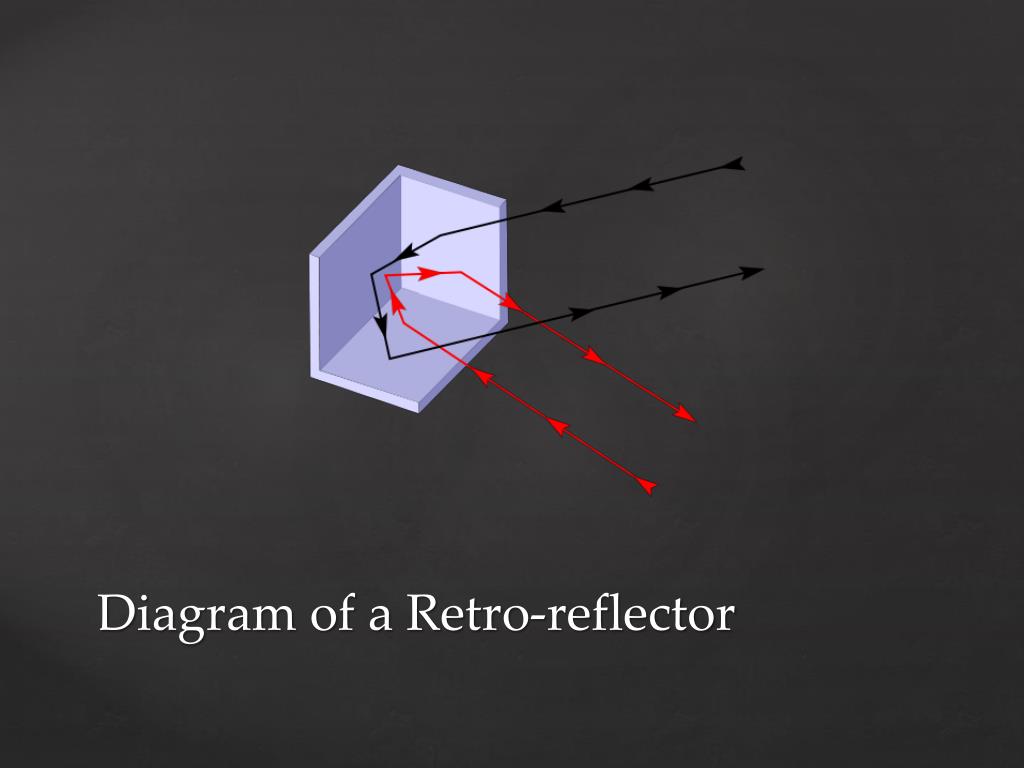

  27. Diagram of a Retro-reflector

  28. Retro-reflectors and Prisms

  29. Retro-reflectors – examples

  30. Retro-reflectors – examples
