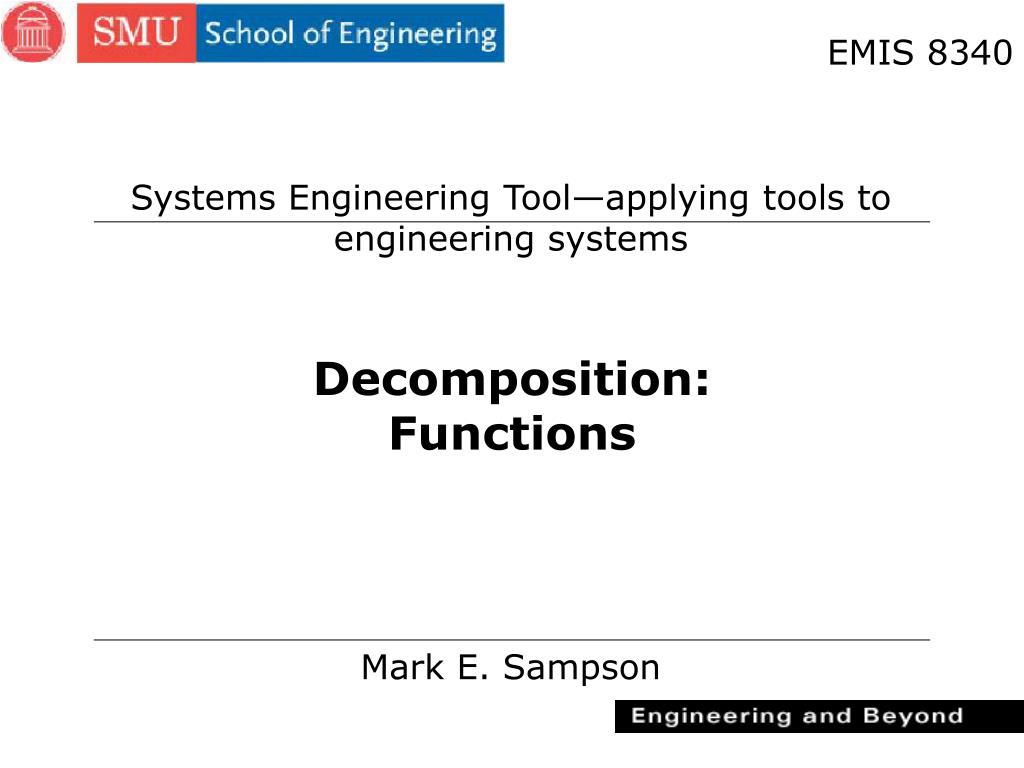

  1. EMIS 8340 Systems Engineering Tool—applying tools to engineering systems Decomposition: Functions Mark E. Sampson

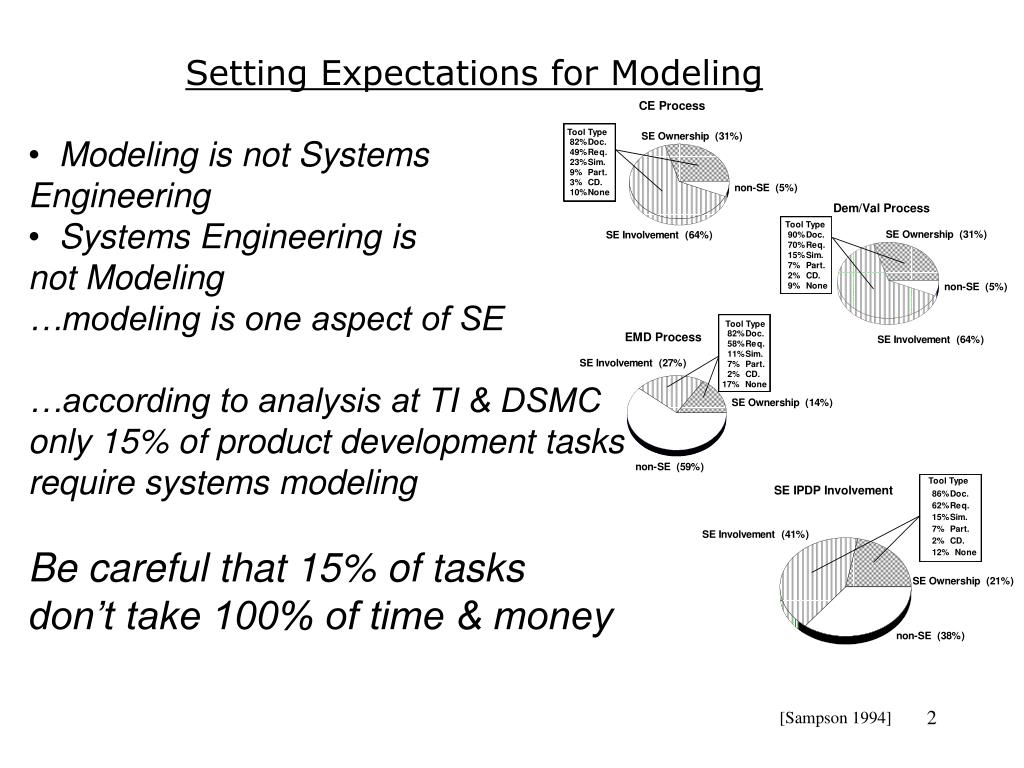

  2. Setting Expectations for Modeling • Modeling is not SystemsEngineering • Systems Engineering is not Modeling • …modeling is one aspect of SE • …according to analysis at TI & DSMConly 15% of product development tasksrequire systems modeling • Be careful that 15% of tasks don’t take 100% of time & money [Sampson 1994]

  3. Methodology Wars… • New modeling methodologies/techniques are added all the time… • We won’t be able to visit them all…just of few of the most widely used ones • Methodology Cults… • …one particular methodology doesnot fit all problems • “To a person with a hammer… • Everything looks like a nail” • …find the tool that matches the • Problem. [Armstrong 1993]

  4. Start with functions/features… • Why? Allows you to… • Avoid bias that leads to pre-selection errors • Captures behaviors which lead to requirements • You need to understand functions: • drives out sequence • understand inter-relationships • timing • before deciding on partitions • optimize inputs/outputs • …essentially your requirements elicitation process has also extracted high level functions/features your product should have. • …on going chicken/egg argument about what comes first—requirements or functions-RFAT vs. FRAT [SE Handbook 9.1] [Lacy 1992]

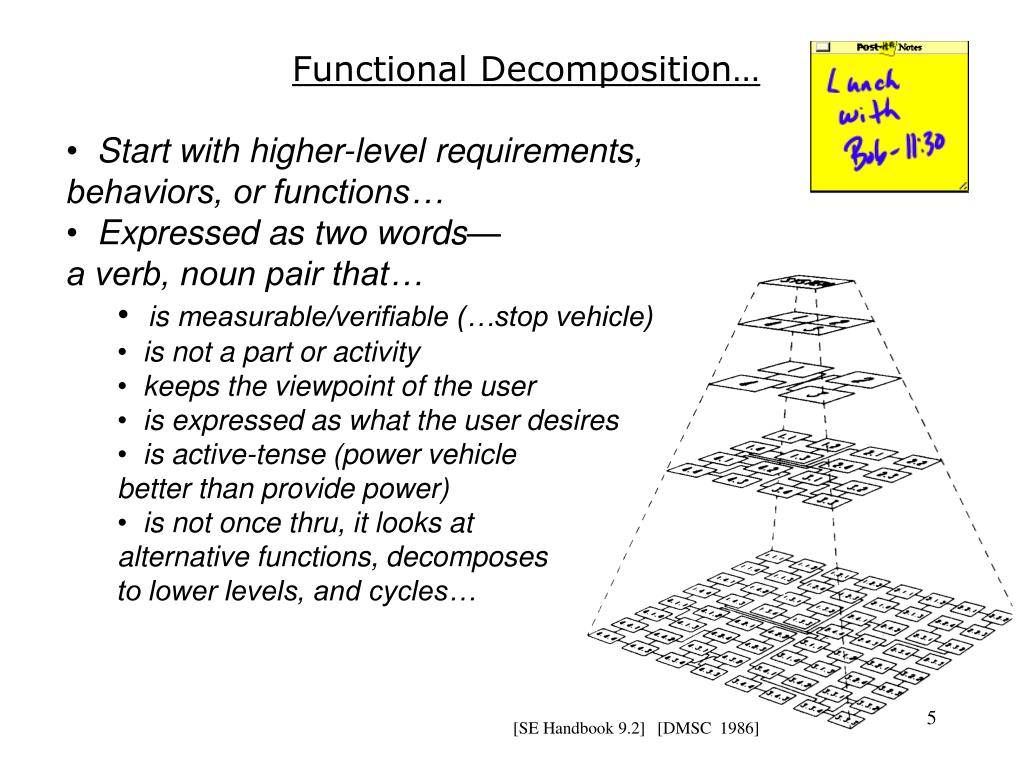

  5. Functional Decomposition… • Start with higher-level requirements, behaviors, or functions… • Expressed as two words—a verb, noun pair that… • ismeasurable/verifiable (…stop vehicle) • is not a part or activity • keeps the viewpoint of the user • is expressed as what the user desires • is active-tense (power vehicle better than provide power) • is not once thru, it looks at alternative functions, decomposes to lower levels, and cycles… [SE Handbook 9.2] [DMSC 1986]

  6. Functional Analysis: Tools • Functional Flow Block Diagrams (Cradle-SEE, CORE, TcSE, Visio,Rhapsody, Simulink, Smartdraw,…) • Requirement tools(Functions as indented lists…problem is that indented listslose a lot of information) • …allocate requirements to functions (that’s how you find holes) • …drive out additional functions/requirements • How far down do you go? Until it’s realizable. [DSMC 1986]

  7. Functional Analysis: Analysis/Simulation • Once captured, you maywant to simulate the system • Some diagramming tools include built-in simulatorslike Cradle-SEE,CORE, Rhapsody, Simulink • Others only capture diagram & logic (Powerpoint, Visio,…) • Simulation enginesare available…

  8. Functional Analysis: Time Lines • …used to depict concurrency,overlaps, & sequential relationships of functions • Identifies time critical functions (those that affect reaction, downtime, or availability) • Basis of performance trace studies NASA: Mission to Planet Earth Earth Observing System [DSMC 1986]

  9. Functional Analysis: Time lines cont… • …shows function interaction which drives out additional requirements • Ground station location • Bandwidth • Storage • Power • Critical Paths—aka project mgmt. • Race conditions Earth Observing System [DSMC 1986] [SE Handbook 9.5]
