2. Tsokos Lesson 5-6magnetic fields

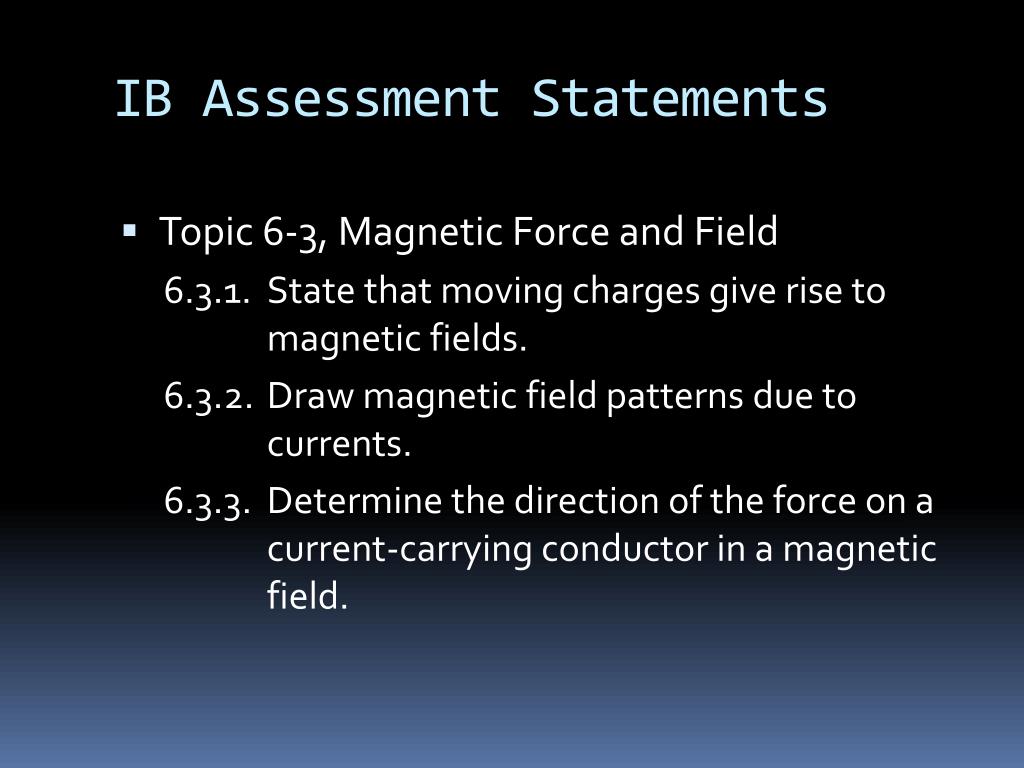

3. IB Assessment Statements • Topic 6-3, Magnetic Force and Field 6.3.1. State that moving charges give rise to magnetic fields. 6.3.2. Draw magnetic field patterns due to currents. 6.3.3. Determine the direction of the force on a current-carrying conductor in a magnetic field.

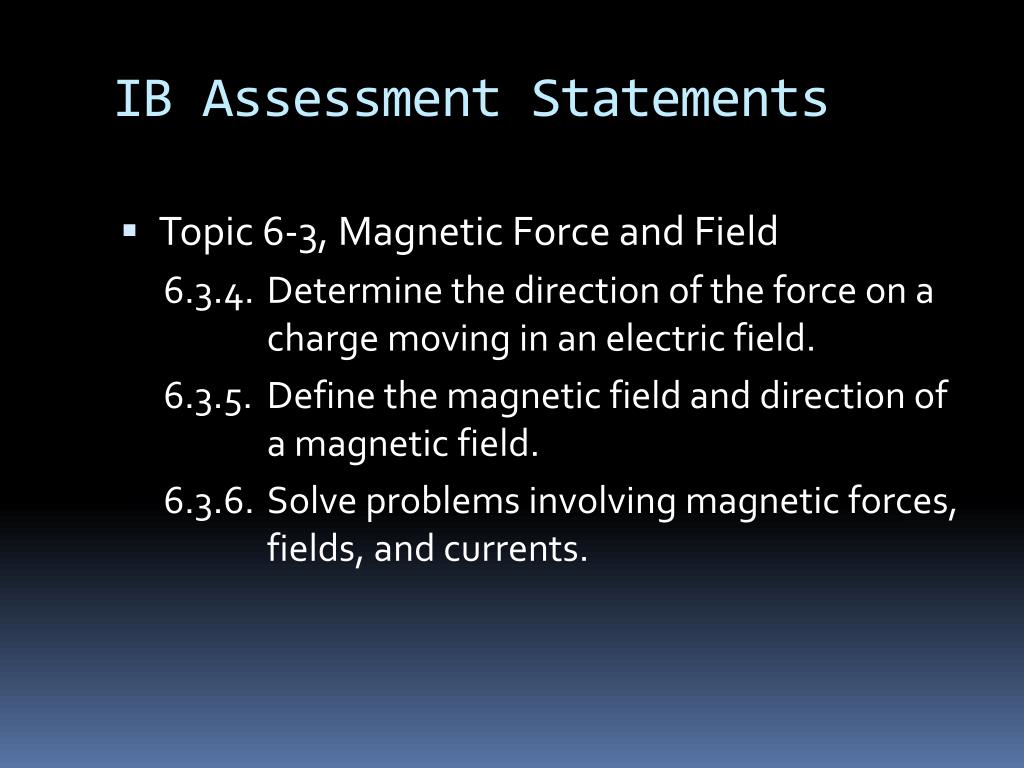

4. IB Assessment Statements • Topic 6-3, Magnetic Force and Field 6.3.4. Determine the direction of the force on a charge moving in an electric field. 6.3.5. Define the magnetic field and direction of a magnetic field. 6.3.6. Solve problems involving magnetic forces, fields, and currents.

5. Objectives • Understand the meaning of magnetic field and find its magnitude and direction in simple situations involving straightline conductors and solenoids using the right-hand rule where appropriate

6. Objectives • Find the force on moving charges • and currents, • in magnetic fields and appreciate the definition of the ampere as a fundamental SI unit, using the right-hand rule for forces where appropriate.

7. Introductory Video

8. Electric Field, Magnetic Field • A charge will generate an electric field around itself • Any other charge (small positive test charge) that enters the field will experience a force on it = electric force

9. Electric Field, Magnetic Field • Same is true for a magnet or an electric current (moving charge) • Each of these produce a magnetic field around them • When another magnet or electric current enters the magnetic field, it will experience a force on it • Direction of magnetic field is determined by relation to magnetic field of the earth

10. Electric Field, Magnetic Field

11. Electric Field, Magnetic Field

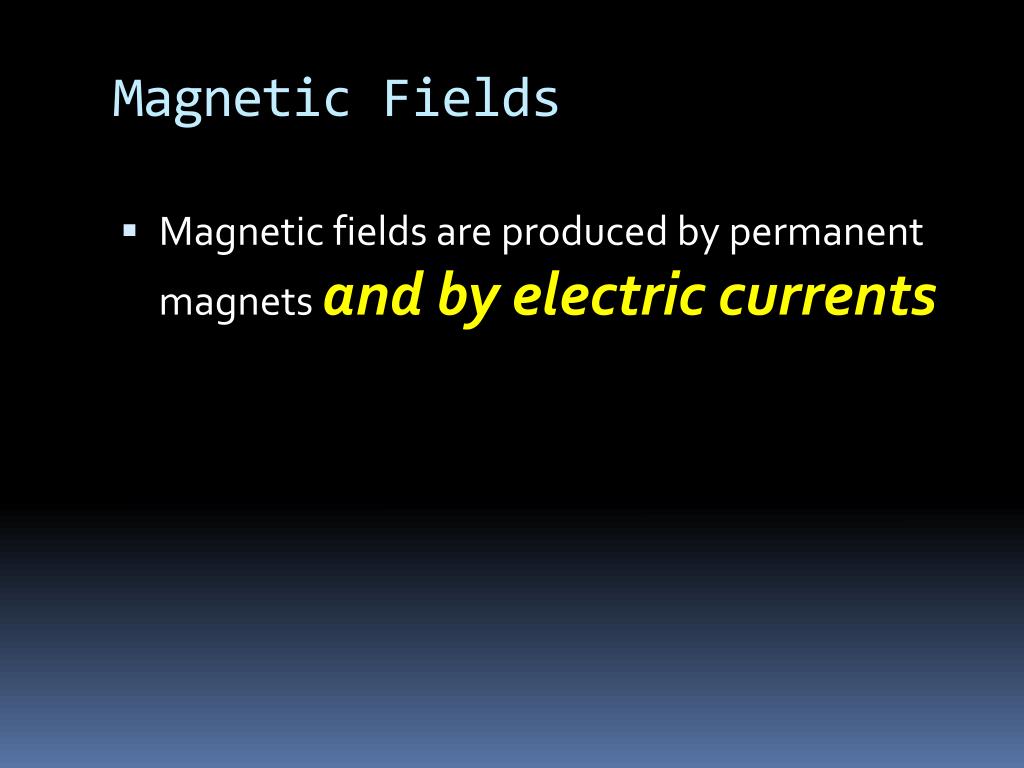

12. Magnetic Fields • Magnetic fields are produced by permanent magnets and by electric currents

13. Magnetic Field from Coil

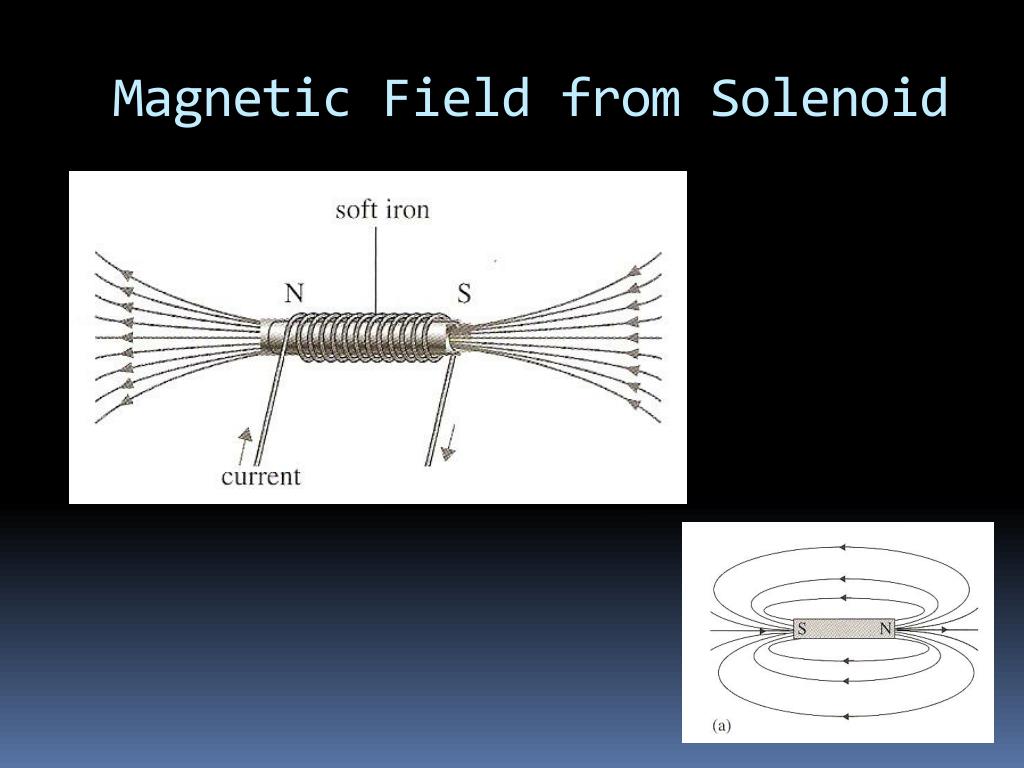

14. Magnetic Field from Solenoid

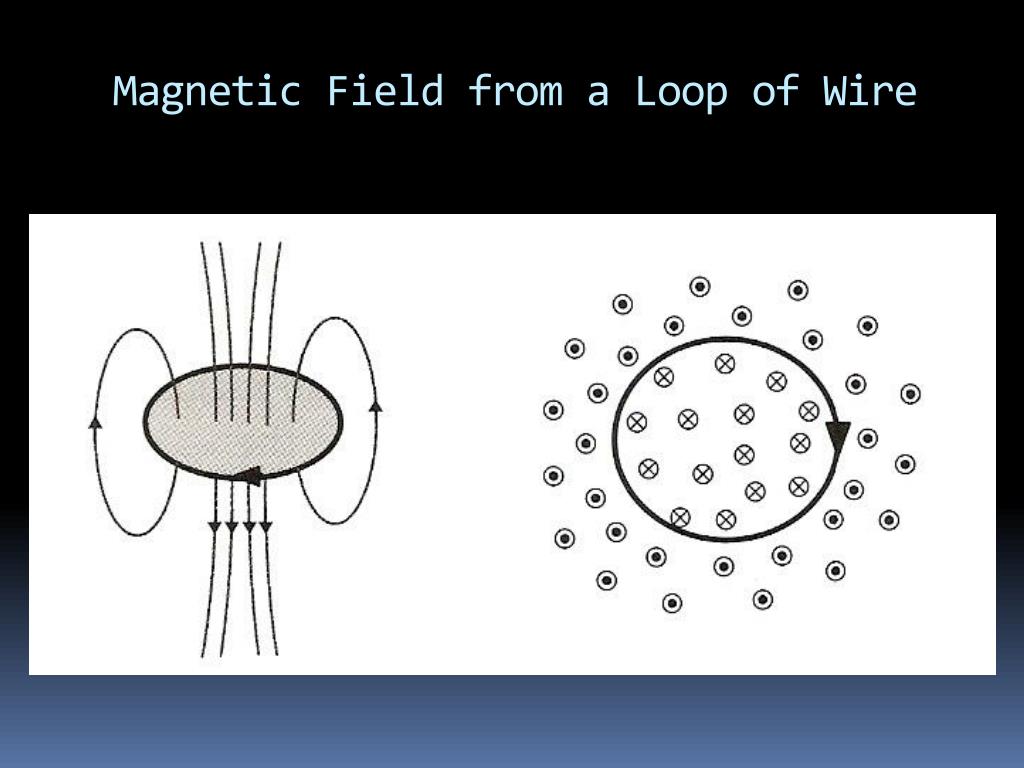

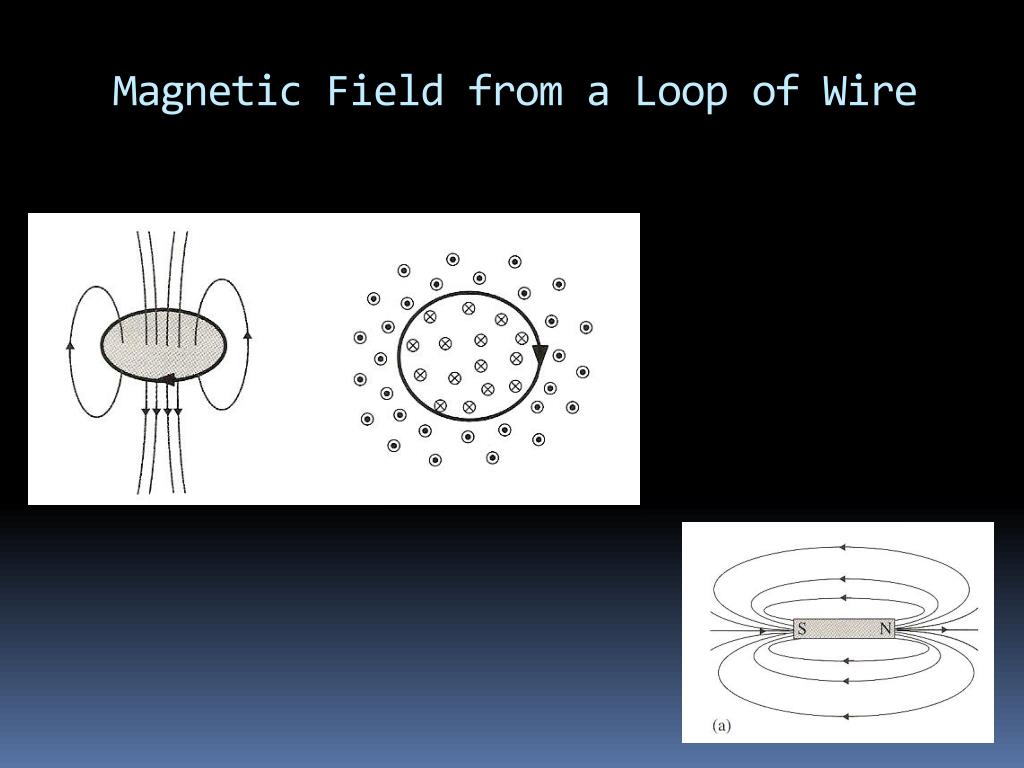

15. Magnetic Field from a Loop of Wire

16. Magnetic Field from a Loop of Wire

17. Magnetic Field from a Straight Wire

18. Electric Field, Magnetic Field • Magnets and electric currents (moving charges) produce magnetic fields around them • When another magnet or electric current enters the magnetic field, it will experience a force on it

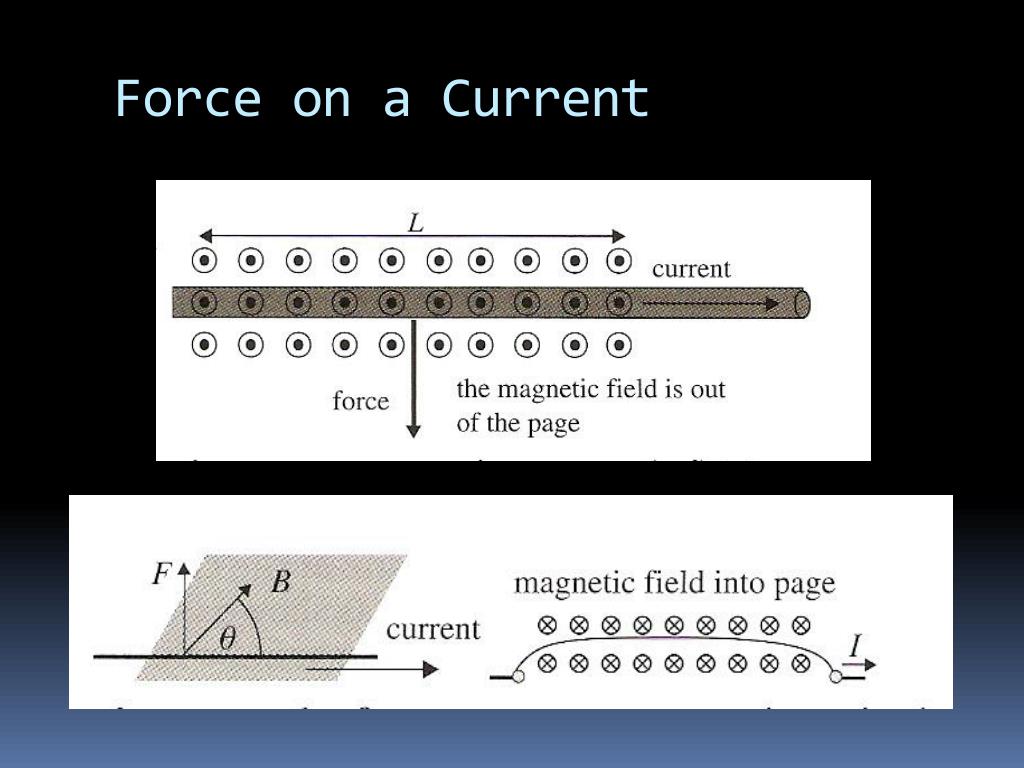

19. Force on a Current

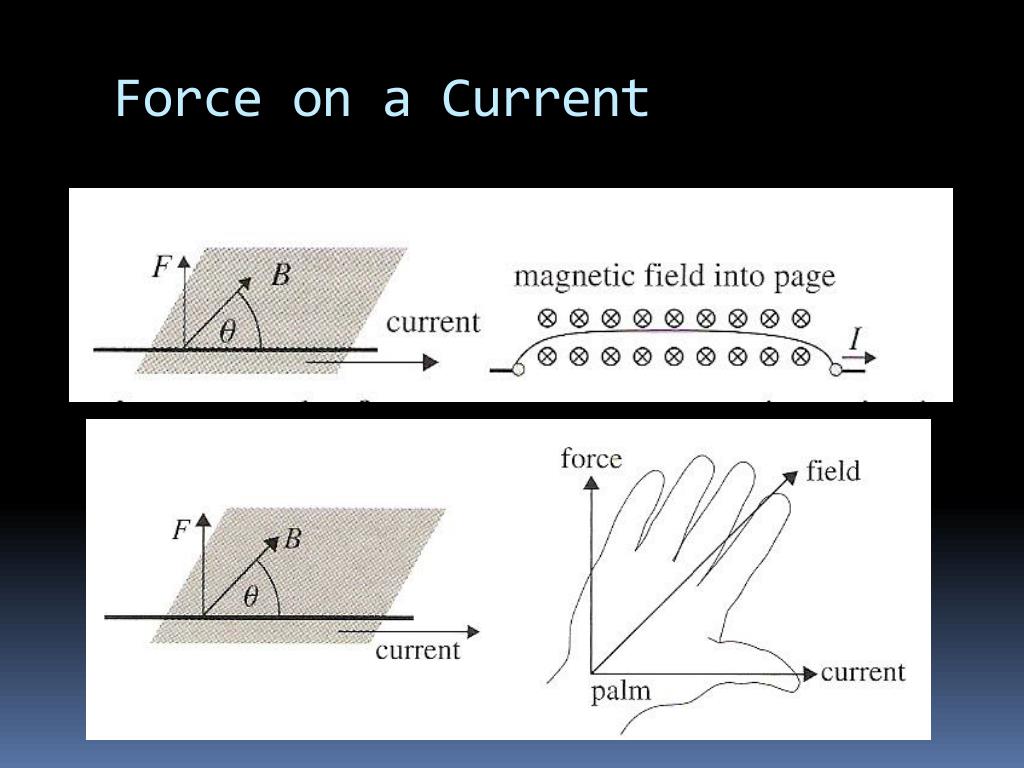

20. Force on a Current

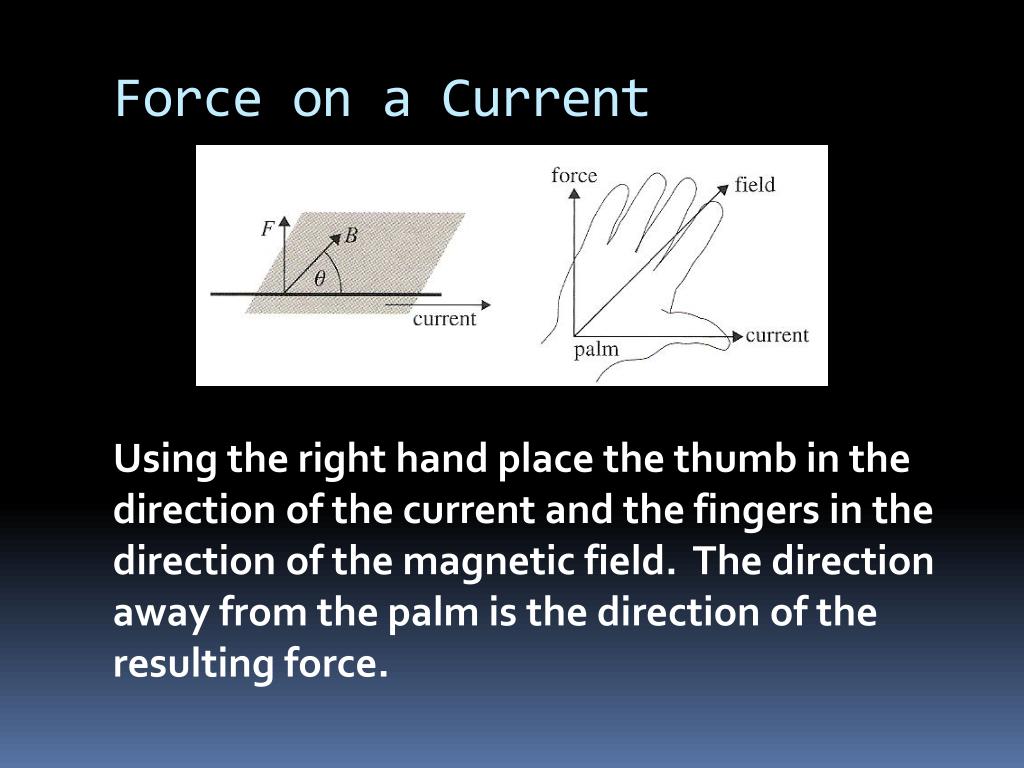

21. Force on a Current Using the right hand place the thumb in the direction of the current and the fingers in the direction of the magnetic field. The direction away from the palm is the direction of the resulting force.

22. Force on a Current Current Field Force Thumb Fingers Palm

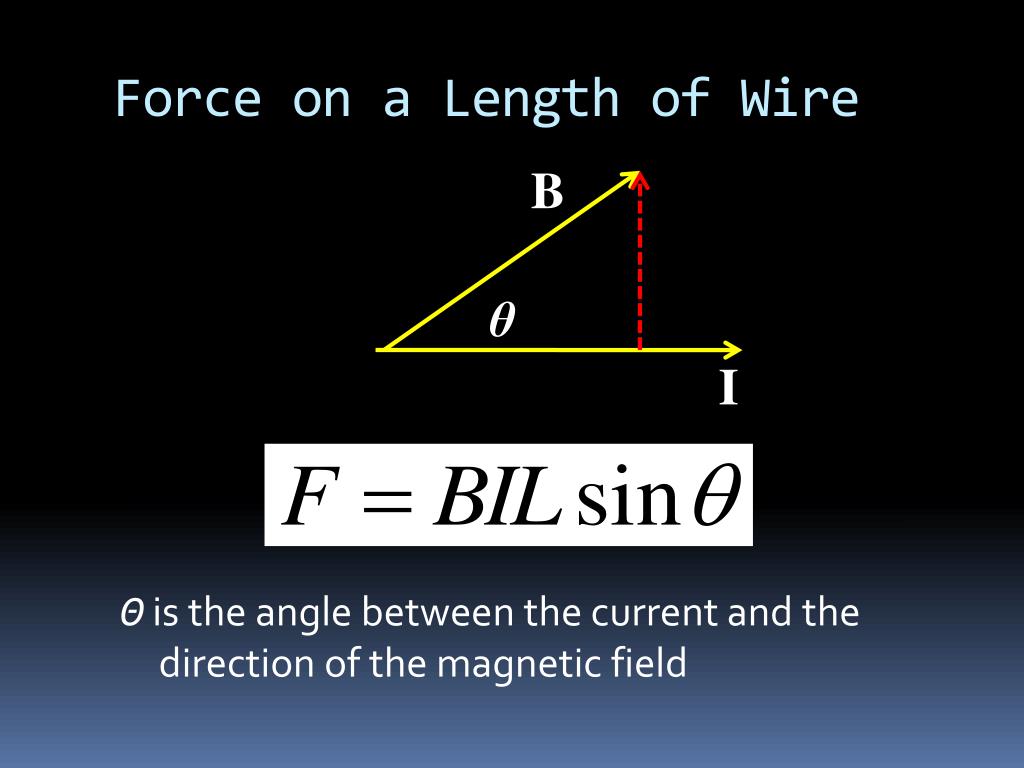

23. Force on a Length of Wire Θ is the angle between the current and the direction of the magnetic field

24. Force on a Length of Wire B Θ is the angle between the current and the direction of the magnetic field θ I

25. Magnetic Force on a Moving Charge

26. Magnetic Force on a Moving Charge

27. Magnetic Force on a Moving Charge

28. Work Done by Magnetic Force • None • Since the magnetic force is always perpendicular to the velocity, it cannot do work • Magnets in particle accelerators merely deflect or direct particles • Electric fields are used to increase the particle’s kinetic energy

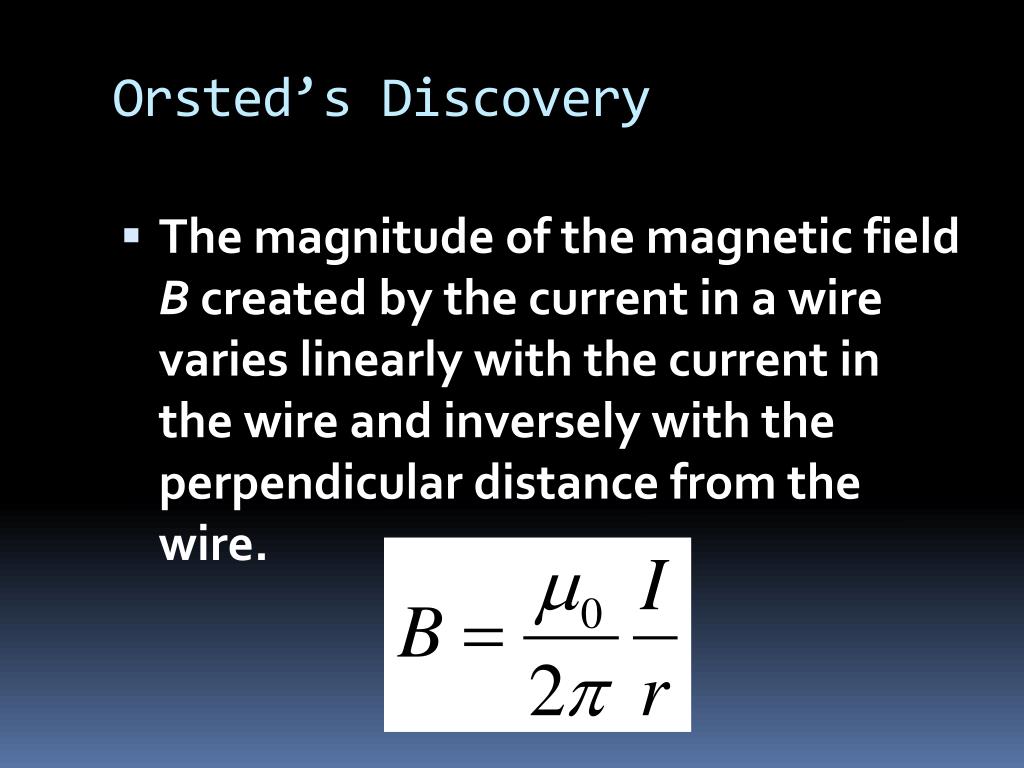

29. Orsted’s Discovery • The magnitude of the magnetic field B created by the current in a wire varies linearly with the current in the wire and inversely with the perpendicular distance from the wire.

30. What does that remind you of?

31. What does that remind you of?

32. Orsted’s Discovery

33. Orsted’s Discovery • µ0 is the magnetic permeability of a vacuum • (ε0 is the electric permittivity of a vacuum)

34. Orsted’s Discovery • Unit for the magnetic field is the tesla (T) • Magnetic field of the earth at the surface is 10-4 T • A high voltage transmission line carrying a 2000 A current produces a magnetic field of 8x10-5 T

35. Direction of the Magnetic Field

36. Direction of the Magnetic Field

37. Strength of the Magnetic Field

38. Field Strength from Single Wire Loop

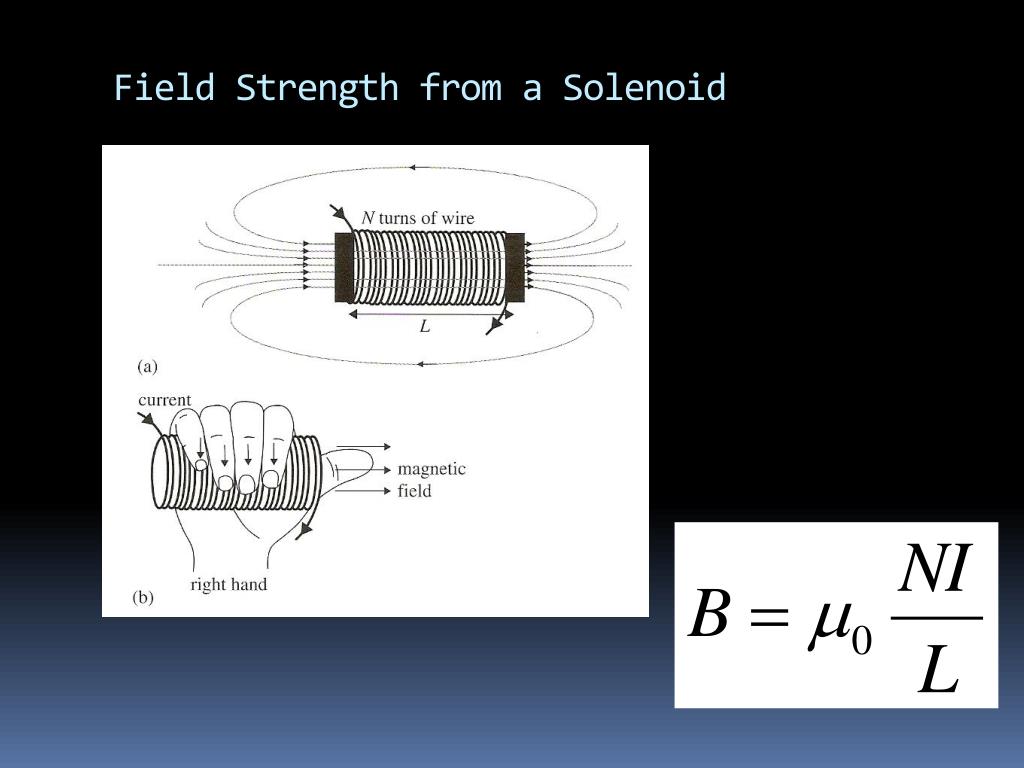

39. Field Strength from a Solenoid

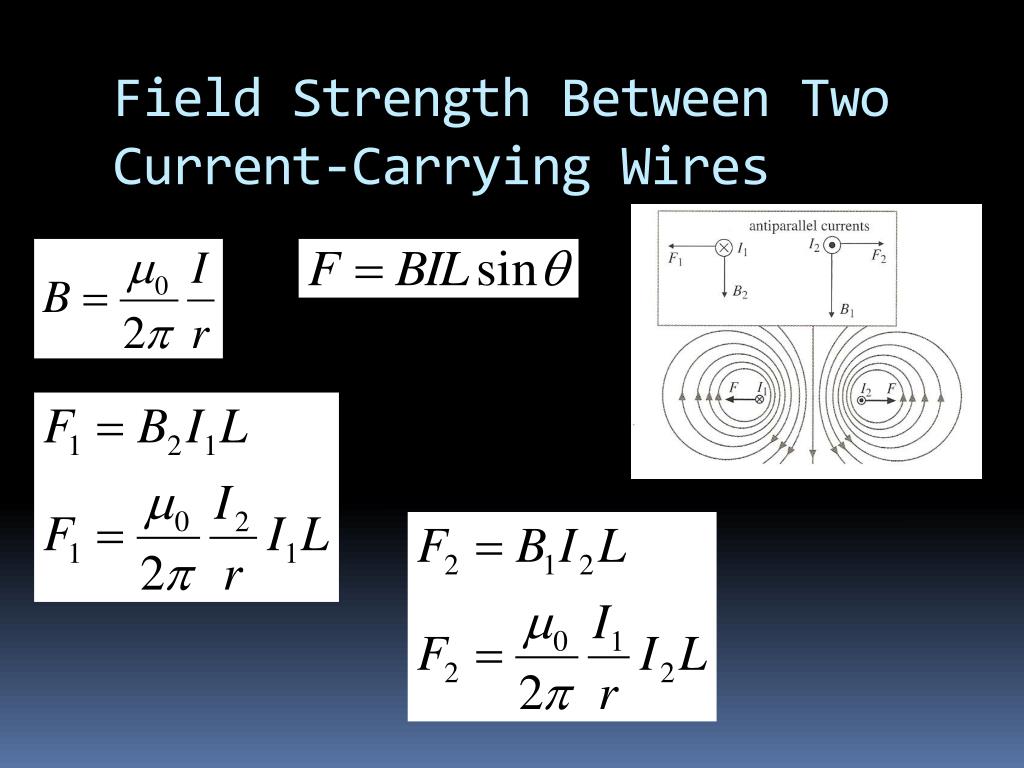

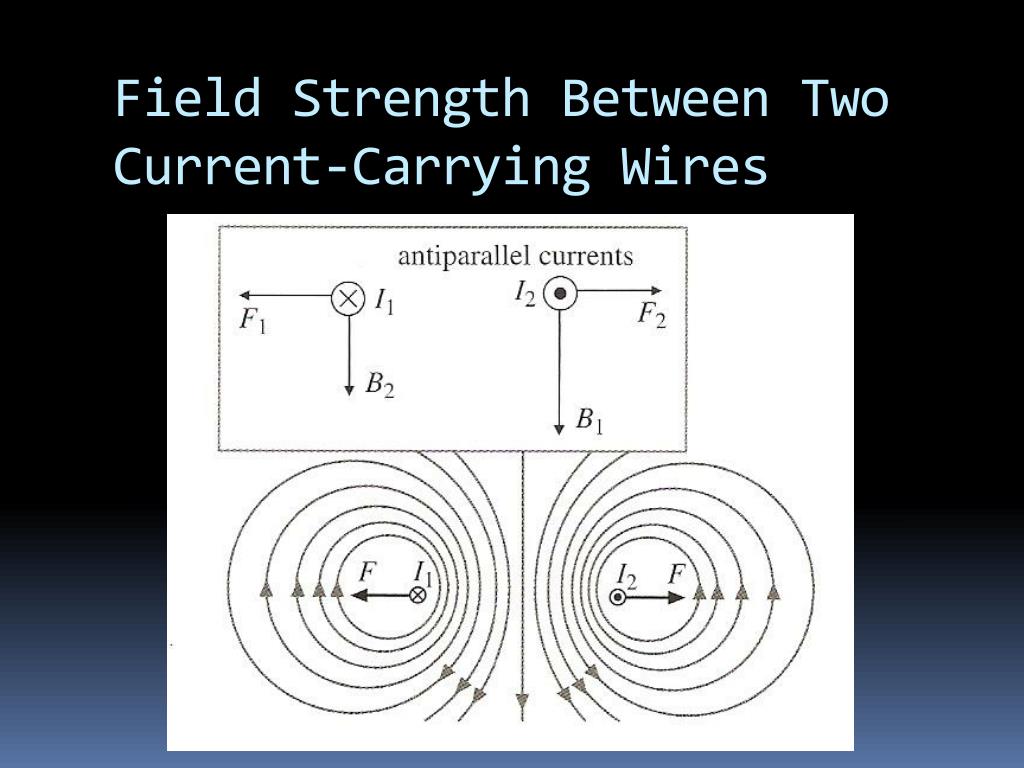

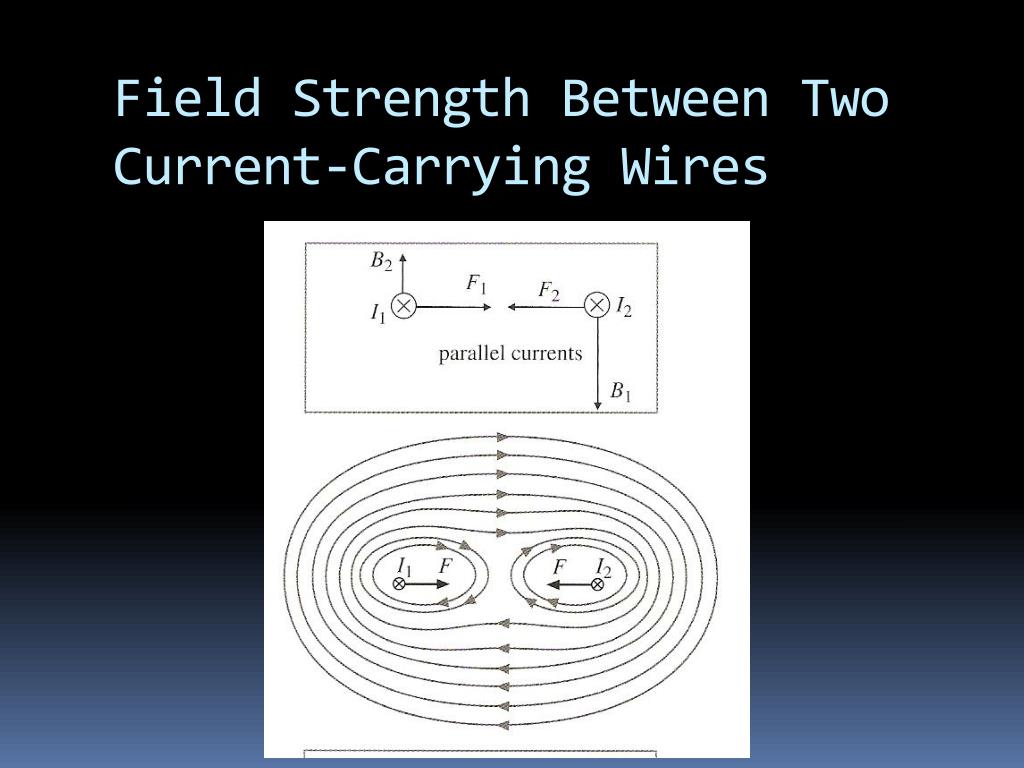

40. Field Strength Between Two Current-Carrying Wires

41. Field Strength Between Two Current-Carrying Wires

42. Field Strength Between Two Current-Carrying Wires

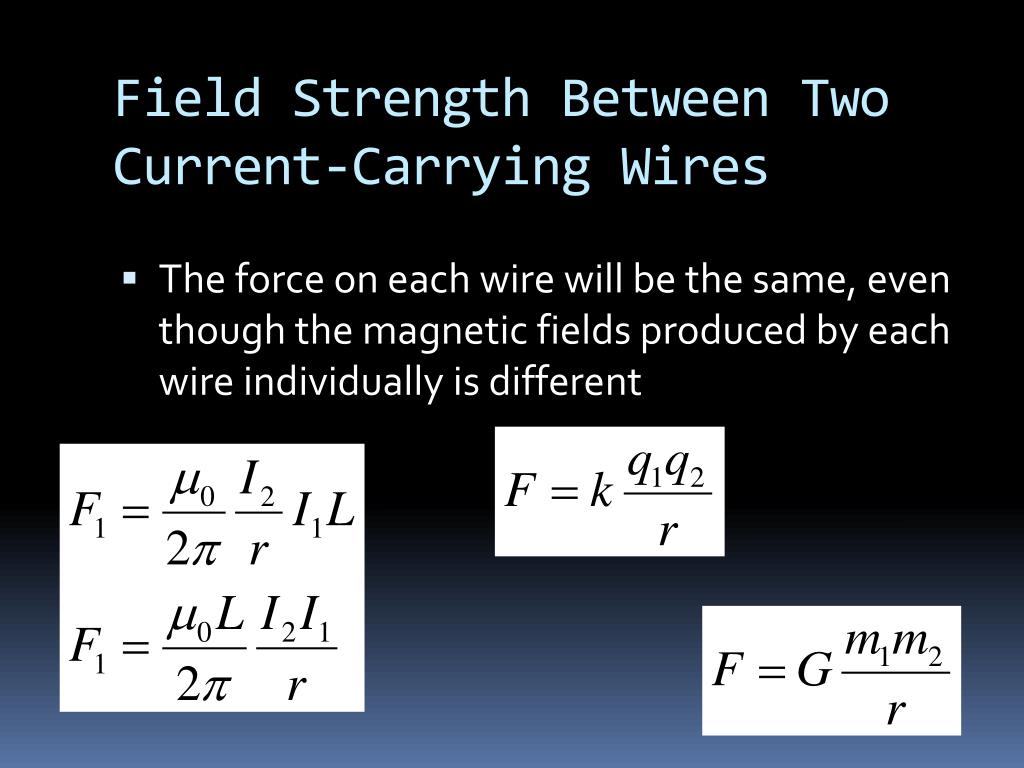

43. Field Strength Between Two Current-Carrying Wires • The force on each wire will be the same, even though the magnetic fields produced by each wire individually is different

44. Fun Facts: • The Ampere is defined through the magnetic force between two parallel wires. If the force on a 1m length of two wires that are 1m apart and carrying equal currents is 2x10-7 N, then the current in each wire is defined to be 1 A.

45. Fun Facts: • The coulomb is defined in terms of the ampere as the amount of charge that flows past a certain point in a wire when a current of 1 A flows for 1 second.

46. Summary: Are you able to • Understand the meaning of magnetic field and find its magnitude and direction in simple situations involving straightline conductors and solenoids using the right-hand rule where appropriate

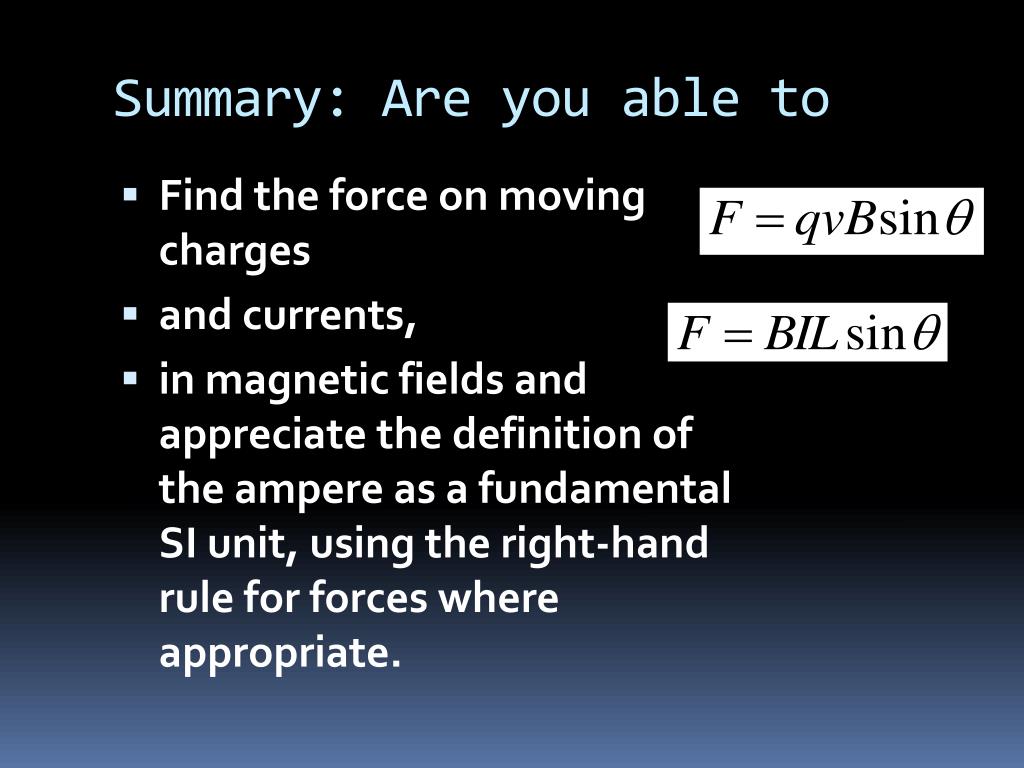

47. Summary: Are you able to • Find the force on moving charges • and currents, • in magnetic fields and appreciate the definition of the ampere as a fundamental SI unit, using the right-hand rule for forces where appropriate.

48. Questions?

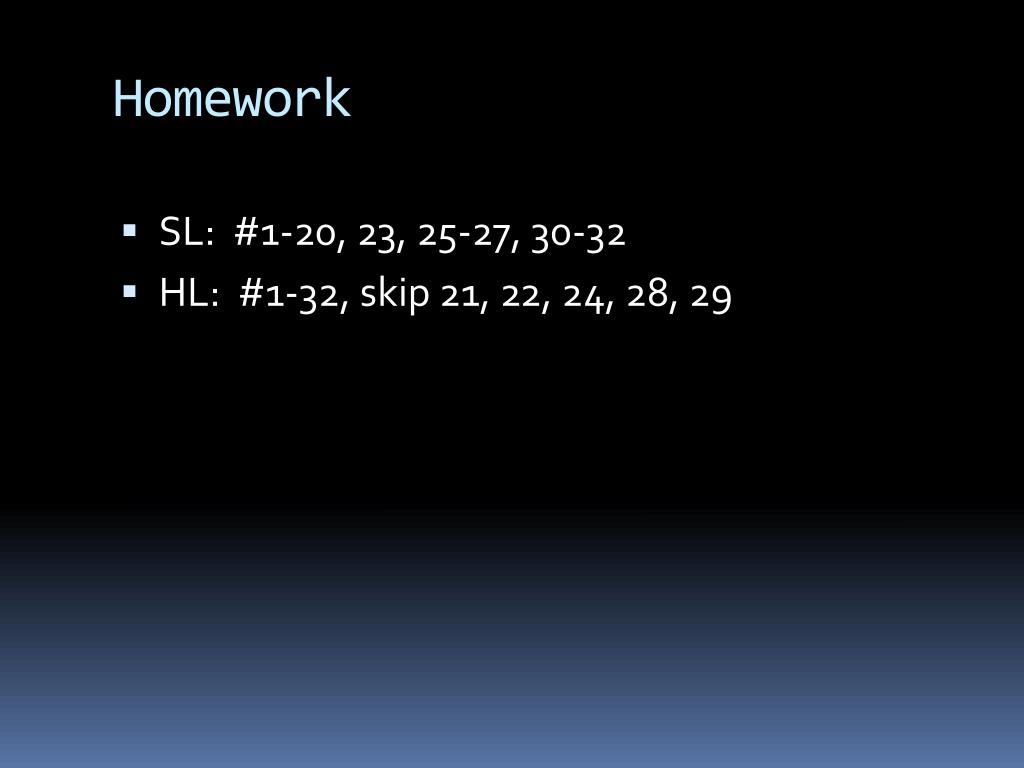

49. Homework • SL: #1-20, 23, 25-27, 30-32 • HL: #1-32, skip 21, 22, 24, 28, 29
