  1. Chester County Interlink Hardware Inventory Connectivity Diagram Shelter Site John R. Hamilton

  2. What are we going to talk about? • Where we've been • Technology Overview • Topology • Strengths and Advantages • Next Steps of Action (Where are we going?)‏

  3. Timeline Jordan Seidel Eric Raymond et.al. Move from CCH to WCU Phila.Found. Grant In-bound lines upgraded: 56K ChesterCounty Connect.net Verizon Grant (new hardware)‏ 1993 2001 2002 2005 2006

  4. Network Topology Dial-up Lines (23)‏ WORLD (courtesy WCU)‏ 610-431-2839 610-458-1030 610-380-0909 610-869-2066 CentreCom MS425FSC CentreCom H824u V2 taurus (Ascend)‏ earth 3.2GHz P4/Xeon 3.2GHz P4/Xeon 1.0GB uranus 800 Mhz 384MB Ascend 2 (backup - NIS)‏ Mars 500MHz PIII 500MHz PIII 1.0GB Smart-UPS 1400 Back-UPS ES750

  5. Network Topology (cont.)‏ “Hello World” CentreCom MS425FSC uranus Ascend (aka taurus)‏ [freeradius: mars] CenterCom FH824u V2 machine machine

  6. Machine IP Addresses • earth (use ifconfig for others)‏ • 192.190.237.11 • 192.190.237.103 news.ccil.org • 192.190.237.116 lists.ccil.org • Mars (use ifconfig for others)‏ • 192.190.237.10 • 192.190.237.108 shelter.ccil.org • 192.190.237.113 webmail.ccil.org • uranus • 192.190.237.12 • UNUSED: 107, 109, 110, 111, 118, 119, 125-127, 136, 142-145 • Out of date???

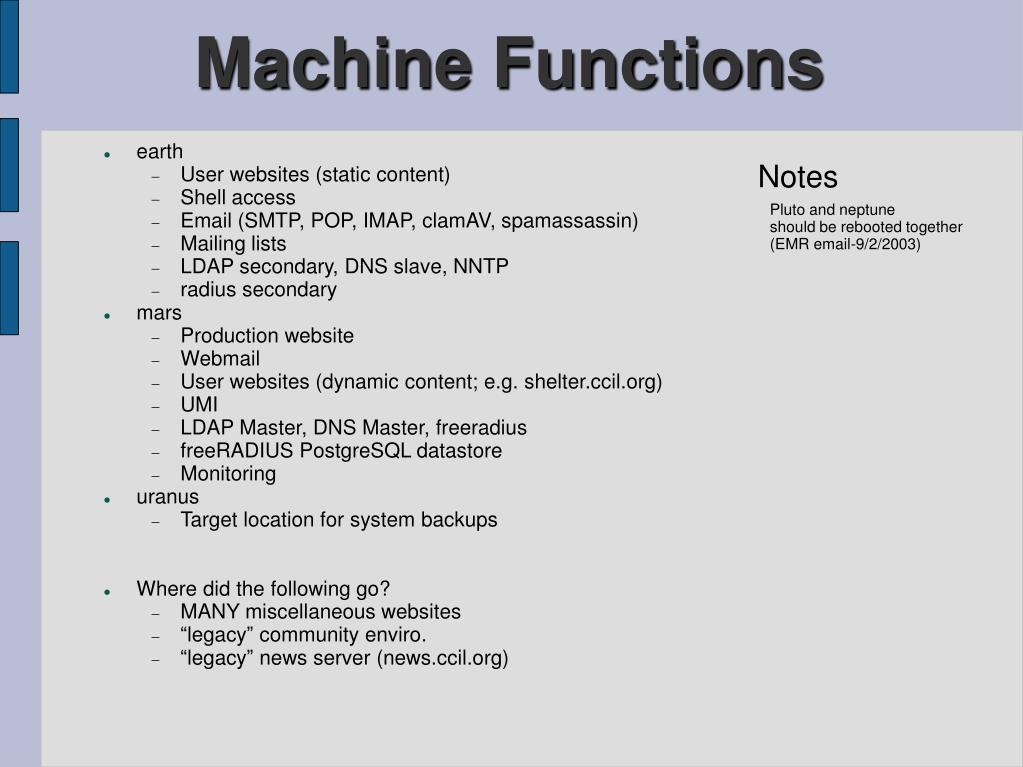

  7. Machine Functions • earth • User websites (static content)‏ • Shell access • Email (SMTP, POP, IMAP, clamAV, spamassassin)‏ • Mailing lists • LDAP secondary, DNS slave, NNTP • radius secondary • mars • Production website • Webmail • User websites (dynamic content; e.g. shelter.ccil.org)‏ • UMI • LDAP Master, DNS Master, freeradius • freeRADIUS PostgreSQL datastore • Monitoring • uranus • Target location for system backups • Where did the following go? • MANY miscellaneous websites • “legacy” community enviro. • “legacy” news server (news.ccil.org)‏ Notes Pluto and neptune should be rebooted together (EMR email-9/2/2003)‏

  8. Electrical Topology jupiter mercury Back-UPS ES750 saturn Surge polaris OUTDATED!!!! Ascend 1 venus Smart-UPS 1400 CentreCom MS425FSC pluto UPS 900 (NIS)‏ neptune CentreCom H824u V2 news Smart-UPS 700 (NIS)‏ Modem lenape Ascend 2 Surge

  9. Next Steps of Action • User Authentication • RADIUS – Apache authentication (freeradius.org)‏ • RADIUS – dialupadmin (freeradius.org)‏ • System Security • Secure email • Secure ftp • Software Upgrades-software in use

  10. Shelter Website • http://shelter.ccil.org • Index • Change Site • http://shelter.ccil.org/secured • uses .htpasswd • Update Shelter • Update Site • Shelter List (XML)‏ • XML parser • Updates • Bed Count • Contact and description (planned)‏ • Constituents • See site for list of subscribed shelters • Solicit additional shelters to utilize application • Determine new clients (How?) [County, shelter admin. “network”]

  11. Miscellaneous Graphical Objects Cloud <line 2>
