Presentation Transcript

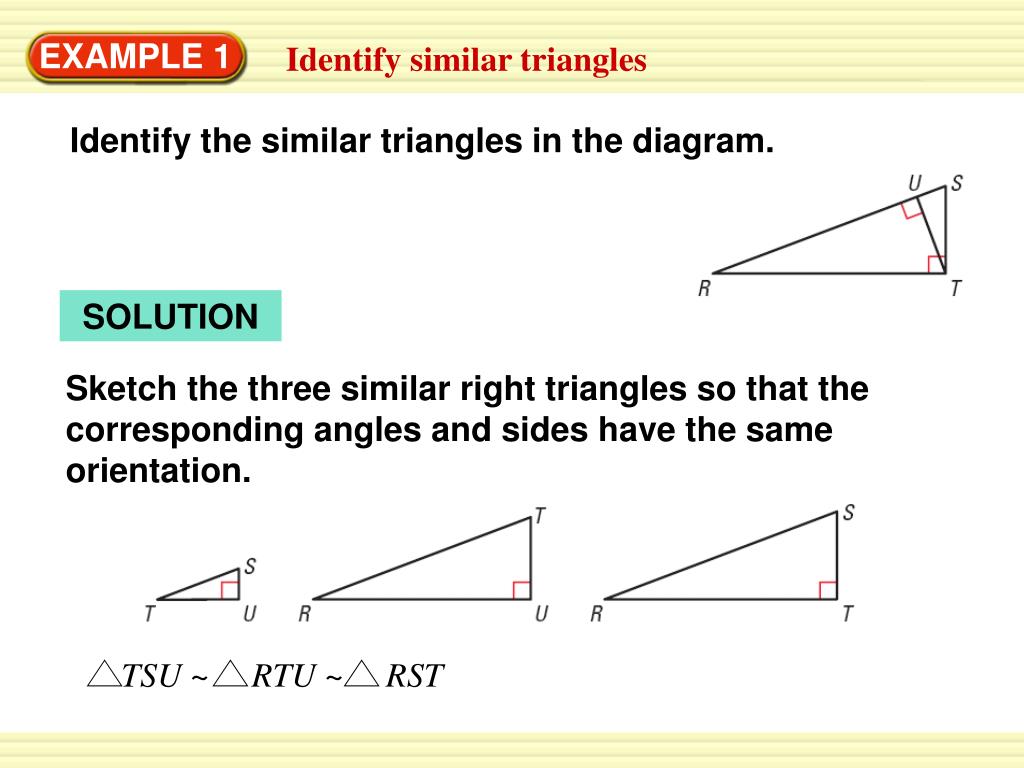

  1. Identify the similar triangles in the diagram. Sketch the three similar right triangles so that the corresponding angles and sides have the same orientation. TSU ~ RTU ~ RST EXAMPLE 1 Identify similar triangles SOLUTION

  2. Swimming Pool The diagram below shows a cross-section of a swimming pool. What is the maximum depth of the pool? EXAMPLE 2 Find the length of the altitude to the hypotenuse

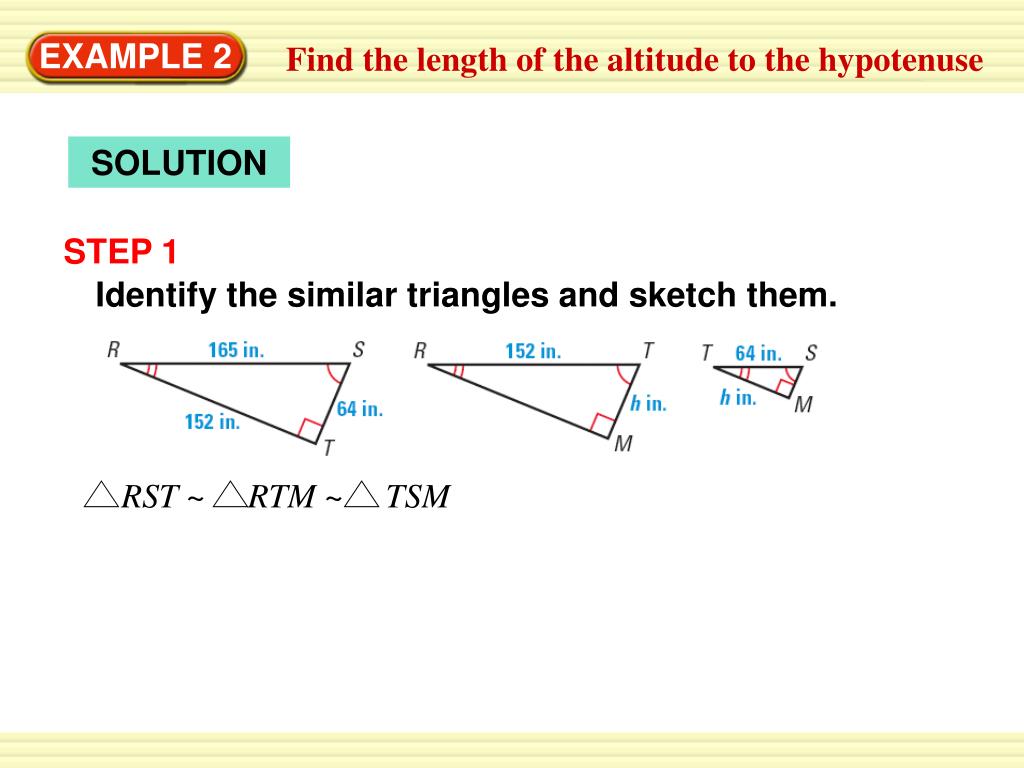

  3. STEP 1 Identify the similar triangles and sketch them. RST ~ RTM ~ TSM EXAMPLE 2 Find the length of the altitude to the hypotenuse SOLUTION

  4. = h59 STEP 3 Read the diagram. You can see that the maximum depth of the pool is h + 48, which is about 59 + 48 = 107 inches. STEP 2 Find the value of h. Use the fact that RST ~ RTMto write a proportion. h TR 152 TM = SR ST 165 64 EXAMPLE 2 Find the length of the altitude to the hypotenuse Corresponding side lengths of similar triangles are in proportion. Substitute. 165h = 64(152) Cross Products Property Solve for h. The maximum depth of the pool is about 107 inches.

  5. 1. ANSWER 12 2. EGF ~ GHF~ EHG ; ANSWER 5 60 LMJ ~ MKJ~ LKM ; 13 for Examples 1 and 2 GUIDED PRACTICE Identify the similar triangles. Then find the value of x.
