Optimal Tuning of Sextupole Components for ATF2 Extraction Line Simulation

A simulation focused on tuning off all sextupole components at the new extraction line of ATF2, reducing errors to 0.3mrad for QF*X, QD*X. Coupling correction achieved via local bump and minimizing beam size at wire scanners. Strengths of skew quadrupoles reduced by 1/10. Main coupling source addressed by adjusting sextupole and bend vertical offsets. Sextupole components at ATF2 extraction line adjusted for optimal performance. Large effects of sextupole fields on betatron coupling explored.

ariana-snider
Télécharger la présentation

Optimal Tuning of Sextupole Components for ATF2 Extraction Line Simulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

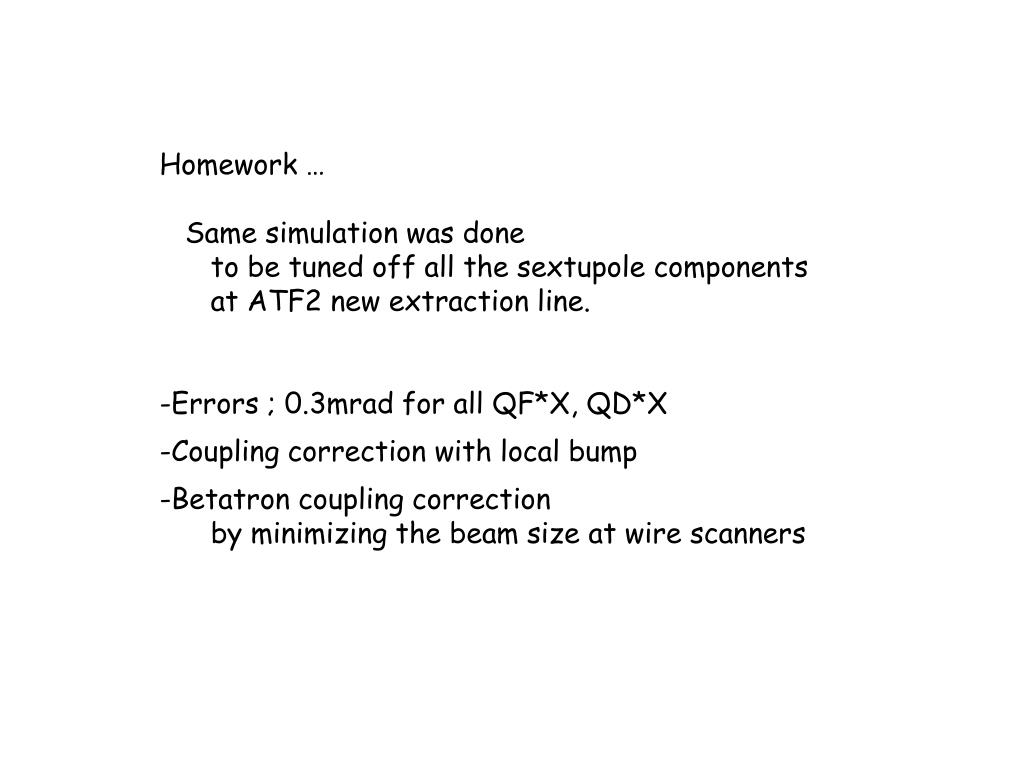

  1. Homework … • Same simulation was done • to be tuned off all the sextupole components • at ATF2 new extraction line. • Errors ; 0.3mrad for all QF*X, QD*X • Coupling correction with local bump • Betatron coupling correction • by minimizing the beam size at wire scanners

  2. Result of simulation Strengths of the skew quadrupoles were reduced by 1/10. Main coupling source was vertical offset at sextupoles and bends.

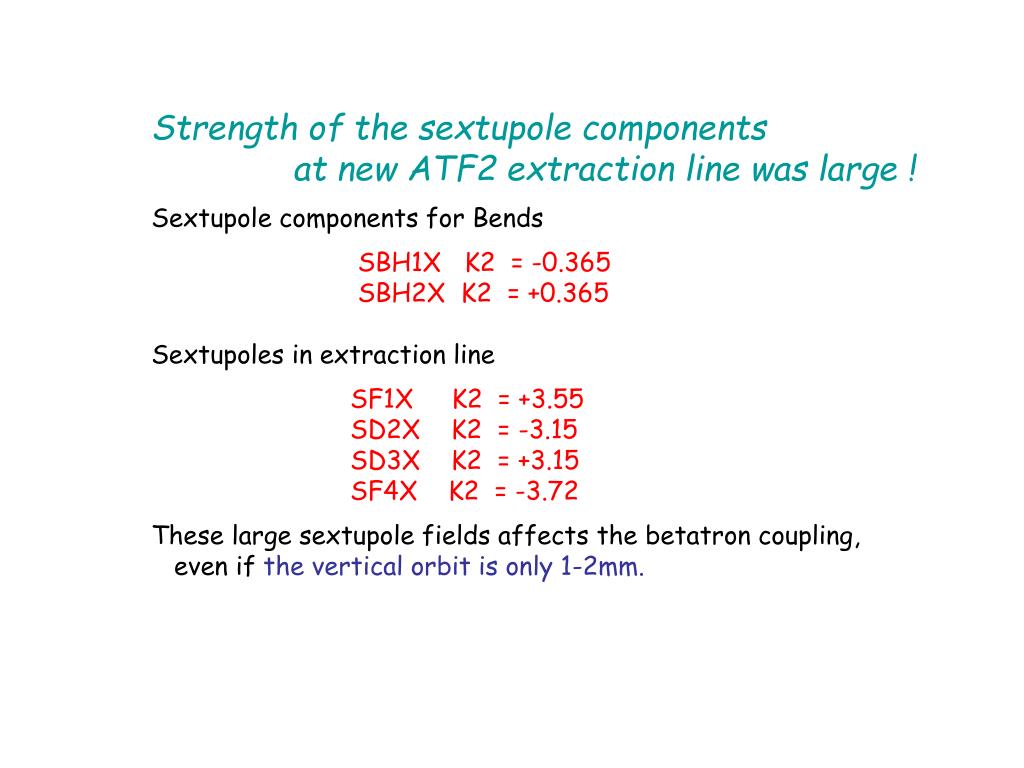

  3. Strength of the sextupole components at new ATF2 extraction line was large ! Sextupole components for Bends SBH1X K2 = -0.365 SBH2X K2 = +0.365 Sextupoles in extraction line SF1X K2 = +3.55 SD2X K2 = -3.15 SD3X K2 = +3.15 SF4X K2 = -3.72 These large sextupole fields affects the betatron coupling, even if the vertical orbit is only 1-2mm.
