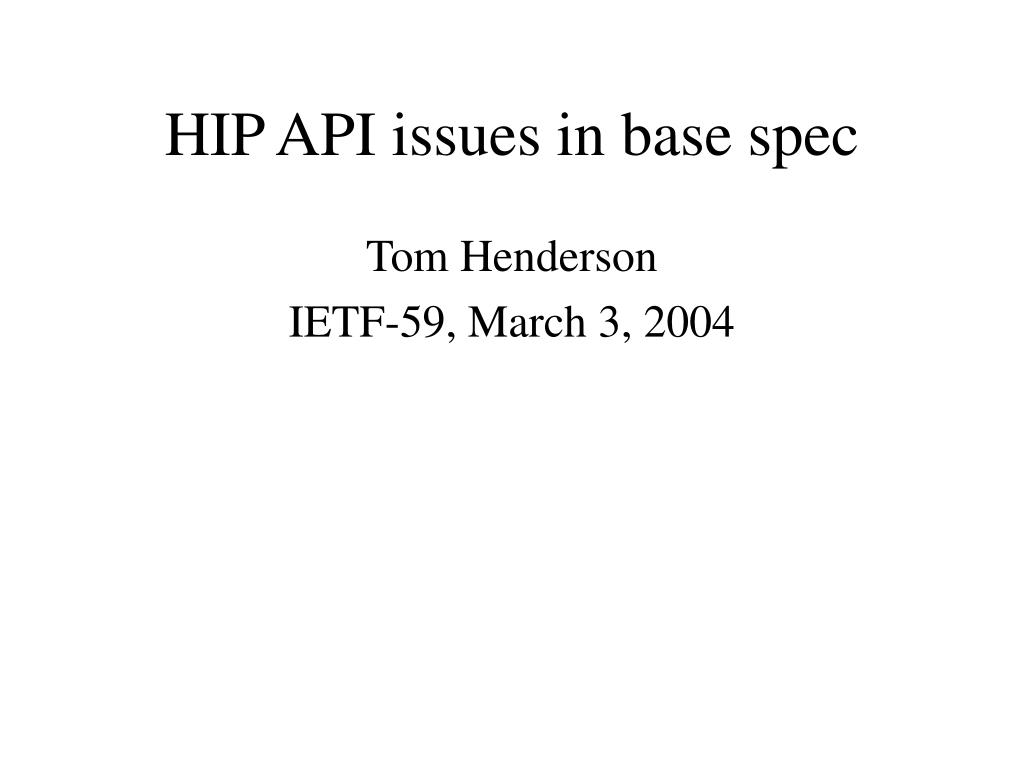

  1. HIP API issues in base spec Tom Henderson IETF-59, March 3, 2004

  2. Background • How do applications use HIP-enabled stacks? • IPv4 vs. IPv6 • legacy API vs HIP-enabled API • resolver semantics • policy choices (e.g., “try to use HIP” vs “require HIP”) • how to pass host identities to kernel space via socket calls? • reverse lookups for HITs • Many of these issues outside base spec scope

  3. Goal today • HIP base spec is concerned with bits on wire • planned for experimental RFC • API documents are informational only • Need to resolve issues in base spec with respect to interoperability only • base protocol and the application bits on wire • Other issues for further study • See Miika Komu’s work (miika@iki.fi)

  4. HIP-aware applications • should make use of HIP API and HIP resolver • pass HITs and/or HIs across socket interface • use HITs instead of IPv6 addresses in application data stream • stacks should deal with unresolved HITs somehow • HIP-aware applications are internally based on IPv6 data structures

  5. Non-HIP-aware IPv6 apps • Base spec issue: Application level data stream in a HIP ESP envelope (MUST|SHOULD|Don’t care) use HITs instead of IPv6 addresses • suggest “Don’t care” • both situations should be handled (different semantics) • Research issue: Should resolvers return HITs instead of IPv6 addresses to these apps?

  6. Case 1: Use of IPv6 addresses • connect(ipv6) has semantics: “I want to talk to the host currently located at ipv6” • Kernel may invoke HIP to the destination based on local policy rules • use opportunistic HIP • retry using IPv6 if HIP exchange fails AND policy allows non-HIP communication • application data stream contains IPv6 addresses

  7. Case 2: Use of HITs • connect(HIT) has semantics: “I want to talk to the host identified by HIT” • Kernel must invoke HIP to the destination • do not use opportunistic HIP • do not retry using IPv6 if HIP exchange fails • to find locators, kernel must either perform local HI/locator lookup, do reverse lookup based on HIT, or return “Destination unreachable” • application data stream carries HITs in the IPv6 data structures

  8. Case 3: Mixed • Server app binds to HIT, client connects to IPv6 address • server accepts connection based on policy for accepting opportunistic HIP • may allow a subsequent server-based referral to escape ESP in some cases • Server app binds to IPv6, client connects to HIT • connection could be rejected if it arrives to a different IPv6 address (policy issue) • not a problem in application data stream

  9. Non-HIP-aware IPv4 apps • Base spec issue: Application level data stream in a HIP ESP envelope (MUST|SHOULD|Don’t care) use LSIs instead of IPv4 addresses • again, suggest “Don’t care”-- same as IPv6 • Lingering issue: LSI collisions

  10. LSI collision problem • caused by two peers who have same LSIs • intermittent case, but not statistically impossible Ambiguity at socket interface here HITs different LSI’s equal e.g. FTP server

  11. LSI collision issue • options: • existing exchange in I2/R2 not really workable • lightweight exchange performed during DNS resolution to agree on LSIs: “I0/R0” • application NAT if there is an LSI collision

  12. Base spec recommendations • Remove LSIs from HIP protocol messages • keep defined as 1.x.x.x where x.x.x corresponds to low order 24 bits of HIP • Include brief section summarizing the use and semantics of LSIs and HITs in socket calls and application data streams • right after section on TCP/UDP checksums • recommend NAT if there is an LSI collision • Remove Appendix A from draft
