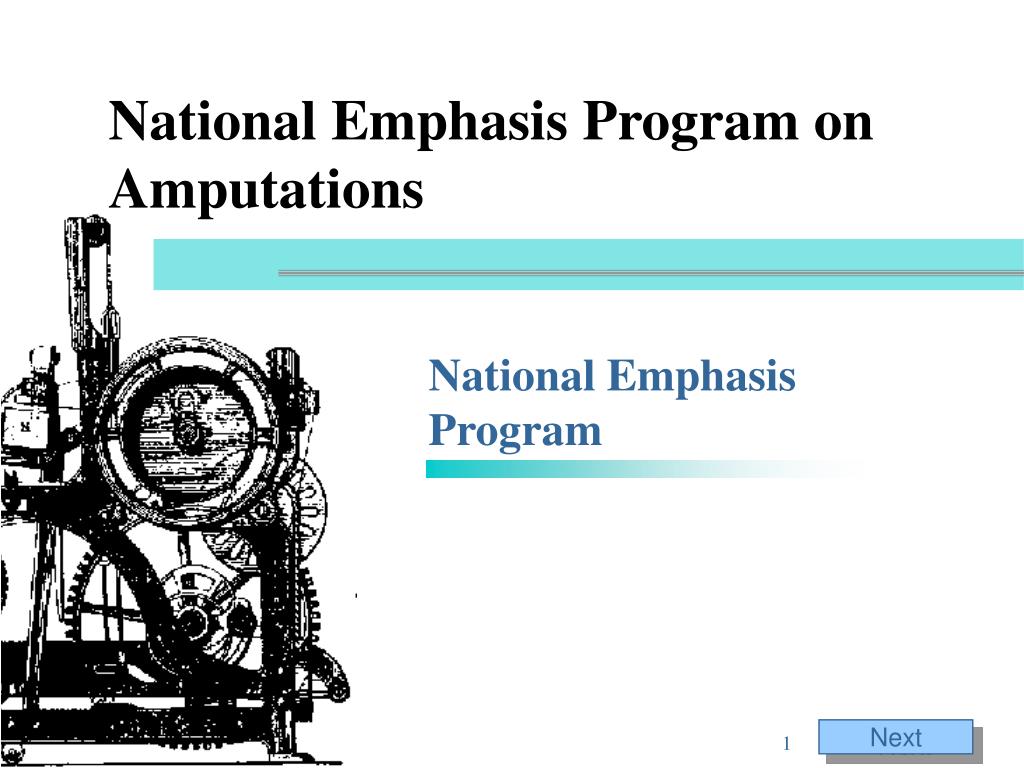

  1. National Emphasis Program on Amputations National Emphasis Program

  2. What’s its purpose? • Describe policies and procedures to identify and reduce workplace industry hazards likely to cause amputations

  3. Where does it apply? • OSHA wide • 40% of nations workplaces • States encouraged to adopt similar programs • General industry employers whose workplaces include shears, saws, slicers, and power presses (the 3s and a P)

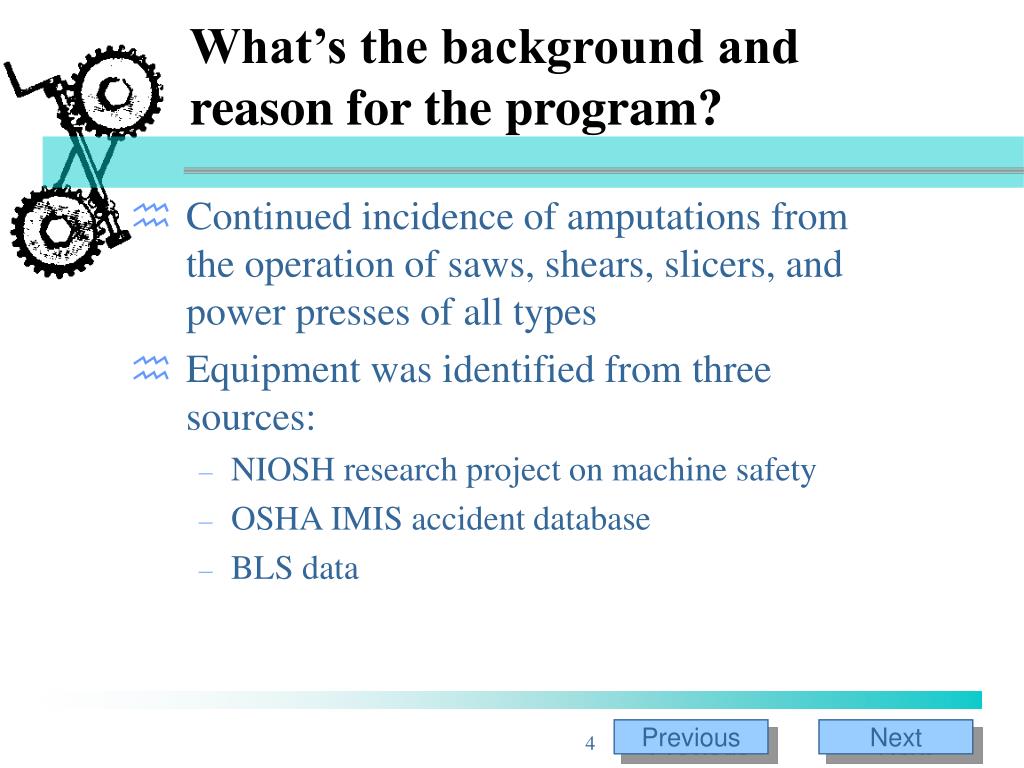

  4. What’s the background and reason for the program? • Continued incidence of amputations from the operation of saws, shears, slicers, and power presses of all types • Equipment was identified from three sources: • NIOSH research project on machine safety • OSHA IMIS accident database • BLS data

  5. Saws • Used primarily in woodworking and manufacturing shops • Two types • Table • Radial arm • Other types include: Hand held Chop Miter Skil Band

  6. Table saw

  7. Radial arm saw

  8. Hand held saw

  9. Band saw

  10. Miter saw

  11. Shears • Self-contained machines using a mechanically driven ram • Ram moves a nonrotary blade at a constant rate past the edge of fixed blade • Machine components consist of: Frame RAM Blades Drive Hold-down(s) Guards Clutch Brake

  12. Shear Pre-cut Shear for pre-cut profiles

  13. Power squaring shear

  14. Hydraulic shear

  15. Hand operated shear

  16. Slicers • Commonly used to slice meat and food • Use rotary blade • Guillotine cutters used in other industries • Most injuries occur in restaurants and grocery stores

  17. Meat slicer Meat Holder Rotating Blade On/off switch Thickness adjustment

  18. Power presses • NEP covers all types of power presses • Presses consist of stationary bed, and slide • Used in a variety of industries

  19. Part revolution clutch Floor Mounted Bench Top

  20. Presence device Control box Light curtain

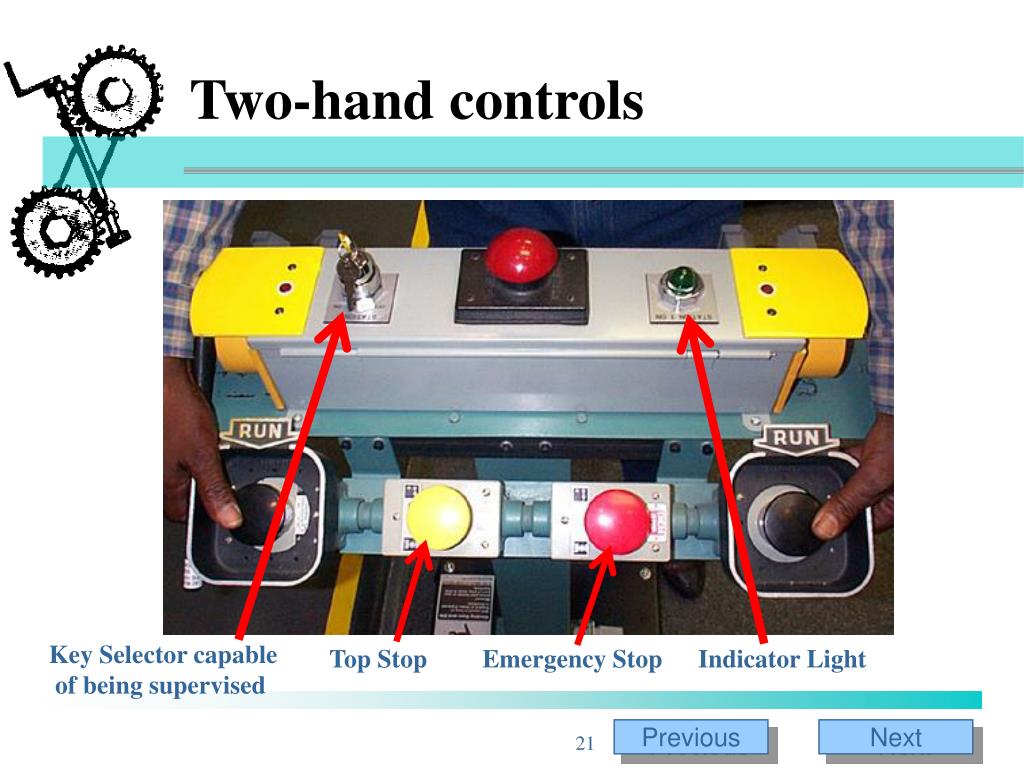

  21. Two-hand controls Key Selector capable of being supervised Top Stop Emergency Stop Indicator Light

  22. Full revolution clutch

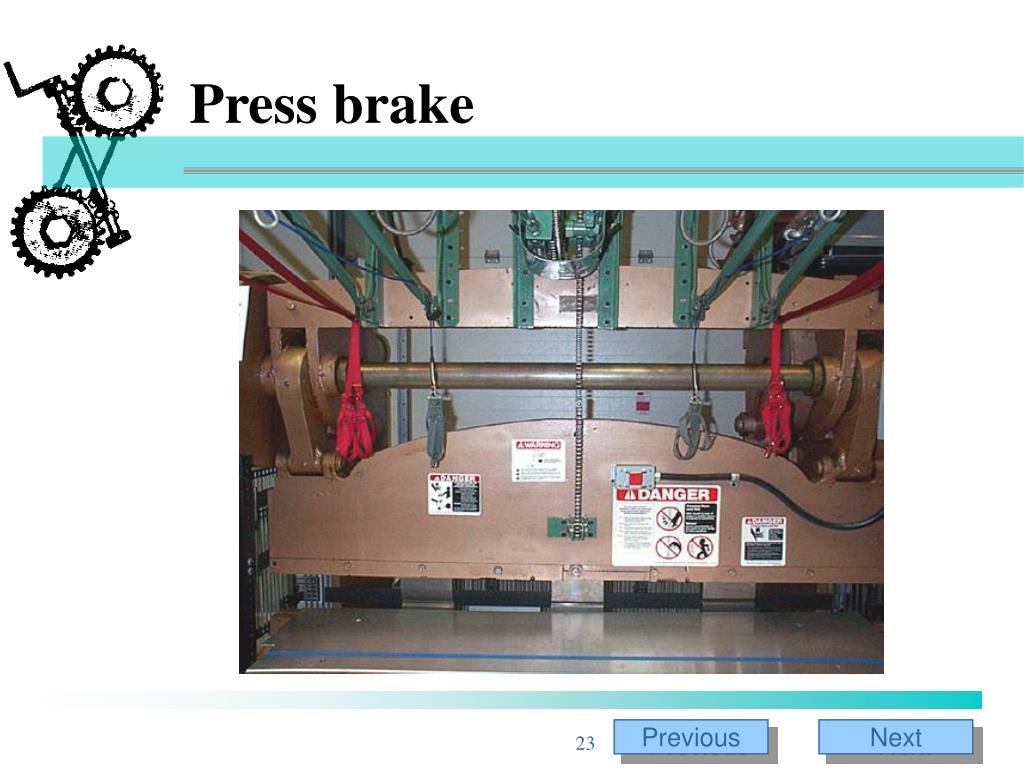

  23. Press brake

  24. Two person operation with pullbacks

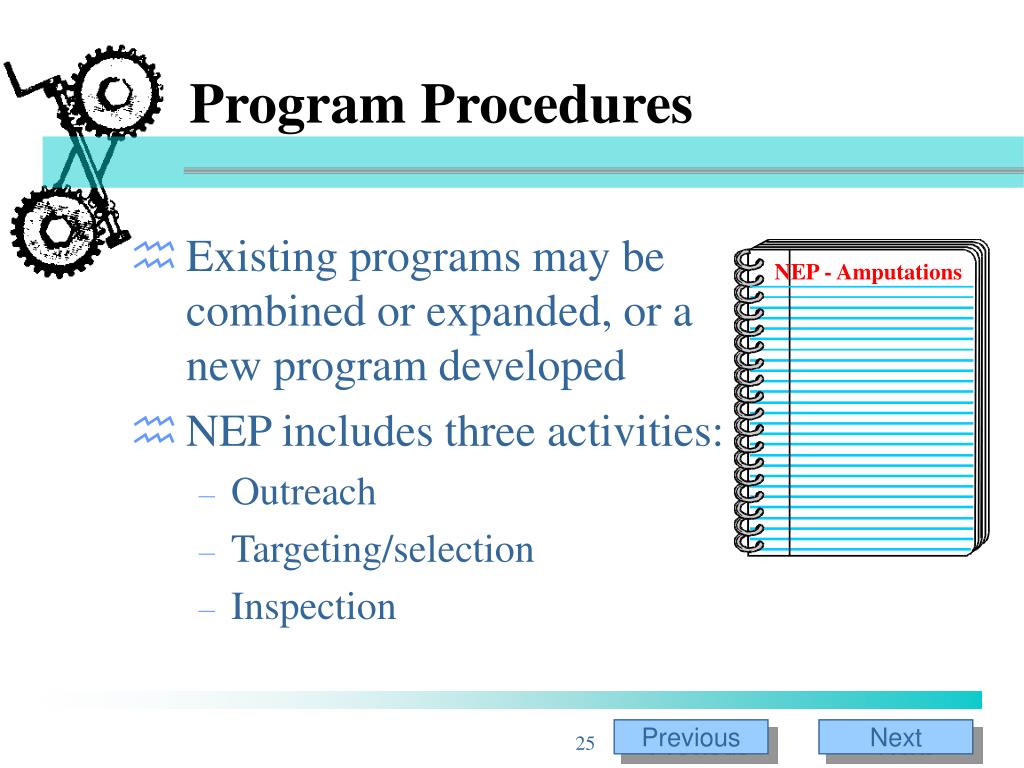

  25. Program Procedures • Existing programs may be combined or expanded, or a new program developed • NEP includes three activities: • Outreach • Targeting/selection • Inspection NEP - Amputations

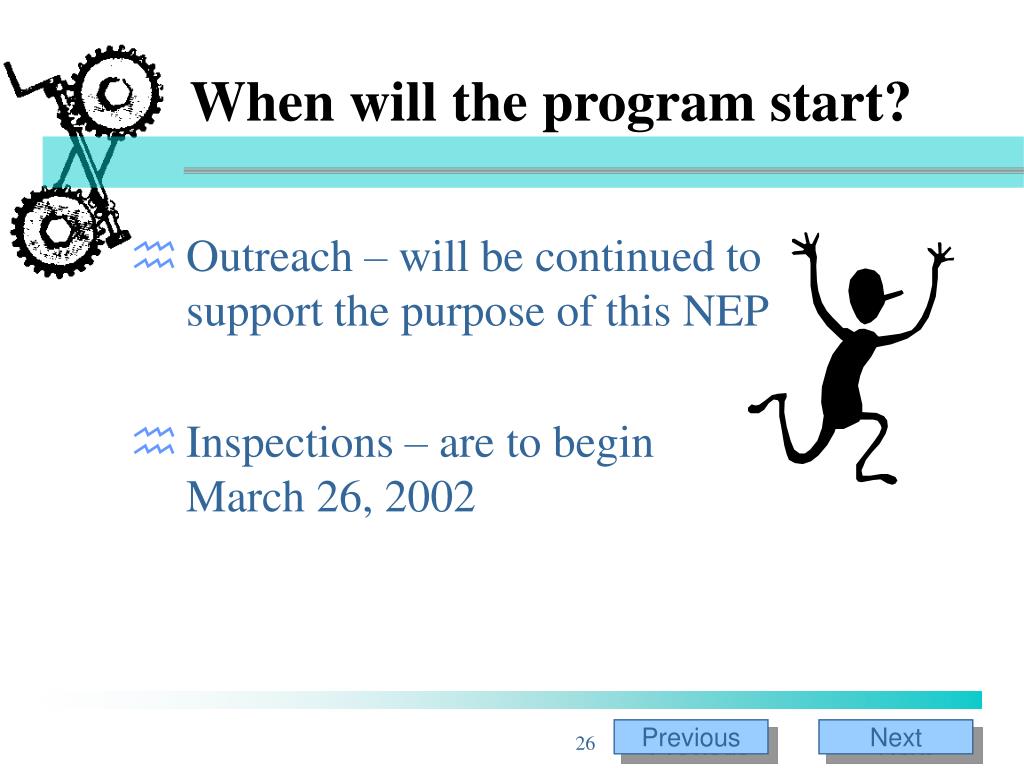

  26. When will the program start? • Outreach – will be continued to support the purpose of this NEP • Inspections – are to begin March 26, 2002

  27. Standard industrial classification codes - 1910.212, All machines SIC CodeIndustry • 3499 Fabricated Metal Products, Not Elsewhere Classified • 3443 Fabricated Plate Work (boiler shops) • 3441 Fabricated Structural Metal • 3599 Industrial and Commercial Machinery and Equipment, • Not Elsewhere Classified • Metal Doors, Sash, and Trim • 3469 Metal Stampings, Not Elsewhere Classified • 3496 Miscellaneous Fabricated Wire Products • 3714 Motor Vehicles Parts and Accessories • 3089 Plastic Products, Not Elsewhere Classified • Sheet Metal Work

  28. Standard industrial classification codes - 1910.213, Woodworking machinery SIC CodeIndustry • 3499 Fabricated Metal Products, NEC • 2431 Mill work • 2451 Mobile Homes • 3089 Plastic Products, NEC • 2421 Sawmills & Planning Mills • Wood Kitchen Cabinets • 2511 Wood Household Furniture, Excepted Upholstered • Wood Office and Store Fixtures, Partitions, Shelving, • and Lockers • 2448 Wood Pallets & Skids • 2499 Wood Products, Not Elsewhere Classified

  29. Standard industrial classification codes - 1910.217, Power presses SIC Code Industry • 3499 Fabricated Metal Products, Not Elsewhere Classified • Fabricated Plate Work (boiler shops) • Fabricated Structural Metal • 3429 Hardware, Not Elsewhere Classified • 3442 Metal Doors, Sash, Frames, Molding, and Trim • 3469 Metal Stampings, Not Elsewhere Classified • Miscellaneous Fabricated Wire Products • 3714 Motor Vehicle Parts and Accessories • 2542 Office & Store Fixtures, Partitions, Shelving, & Lockers, Except Wood • 3444 Sheet Metal Work

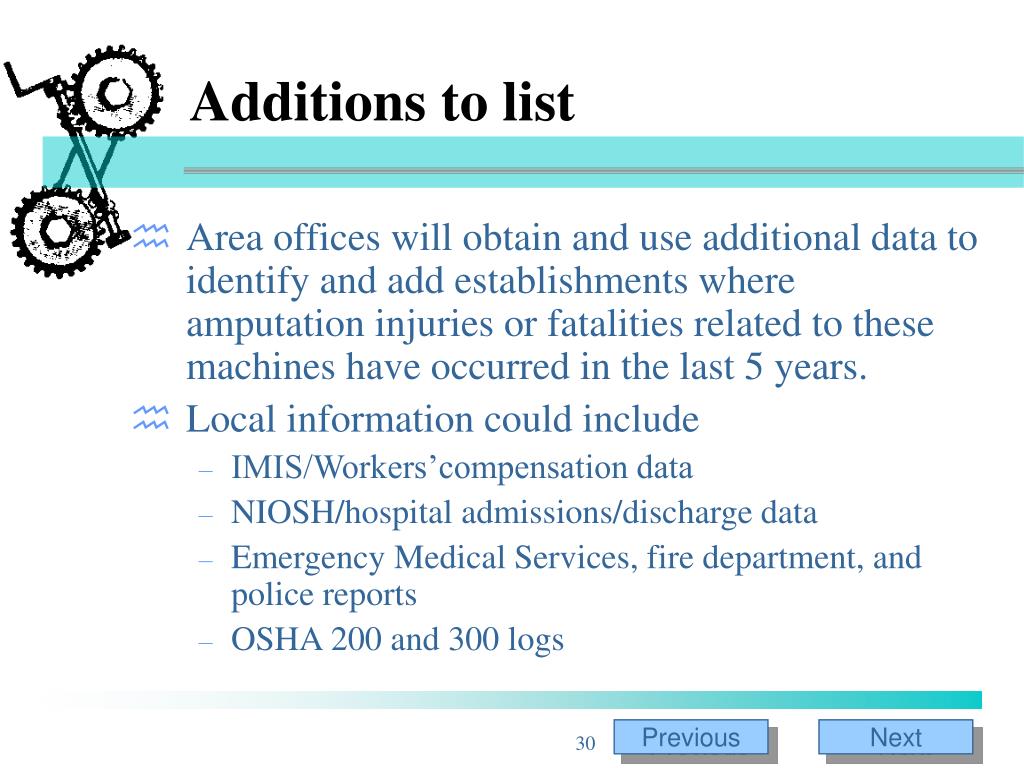

  30. Additions to list • Area offices will obtain and use additional data to identify and add establishments where amputation injuries or fatalities related to these machines have occurred in the last 5 years. • Local information could include • IMIS/Workers’compensation data • NIOSH/hospital admissions/discharge data • Emergency Medical Services, fire department, and police reports • OSHA 200 and 300 logs

  31. Inspection Procedures • Scheduled I.A.W. firm • Once scheduled, IMIS data base will be searched for employer’s citation and fatality/accident history prior to opening conference • At opening conference, CSHO will inquire if any of this machinery is present in the workplace

  32. Inspection procedures (cont’d) • If present, a thorough inspection will be conducted focusing on: • Nip points • Pinch points • Shear points • Cutting actions • Point(s) of operation

  33. Inspection procedures (cont’d) • CSHO will also evaluate employee exposures during the following: • Regular operation of machine • Setup/threading/preparation for operation of machine • Clearing jamups or upset conditions • Making adjustments while machine is operating • Cleaning of machine • Oiling/greasing of machine /machine parts • Scheduled/unscheduled maintenance • Lockout/tagout considerations

  34. Inspections procedures (cont’d) • CSHO will review OSHA 200 and 300logs for all amputation injuries or hazards • Limited to hazards associated with power presses, saws, shears, and slicers, but may be expanded • Inspections will begin March 26, 2002 • Because program may yield significant cases, A.D.s, supervisors and CSHOs should ensure case developments are being met

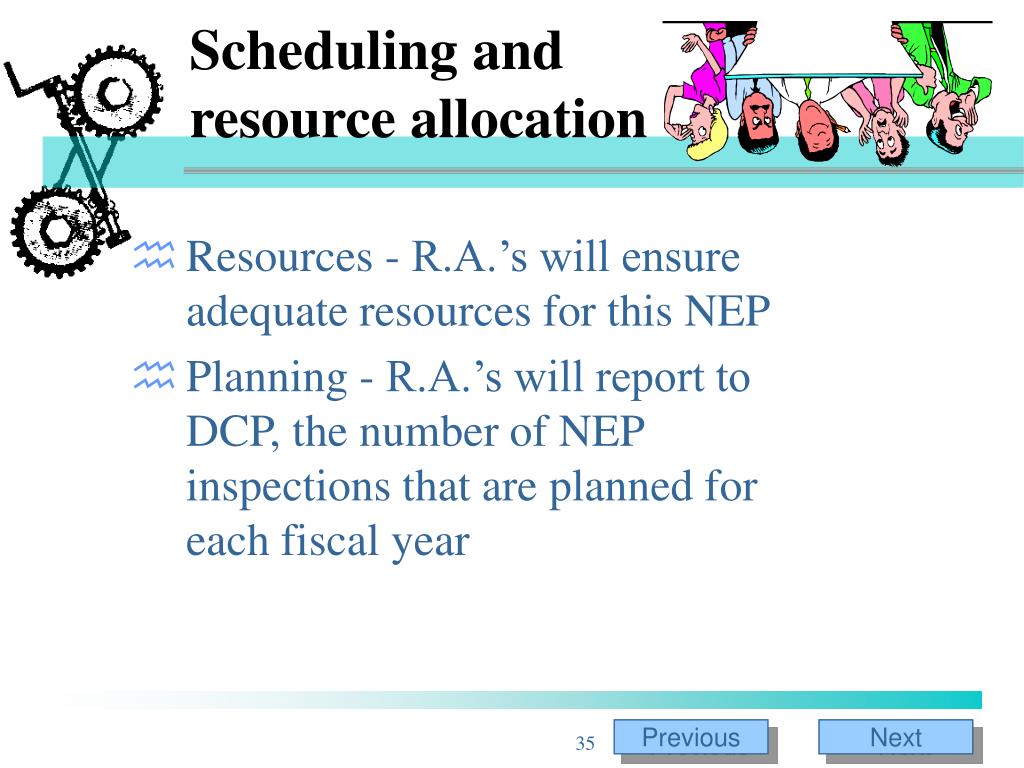

  35. Scheduling and resource allocation • Resources - R.A.’s will ensure adequate resources for this NEP • Planning - R.A.’s will report to DCP, the number of NEP inspections that are planned for each fiscal year

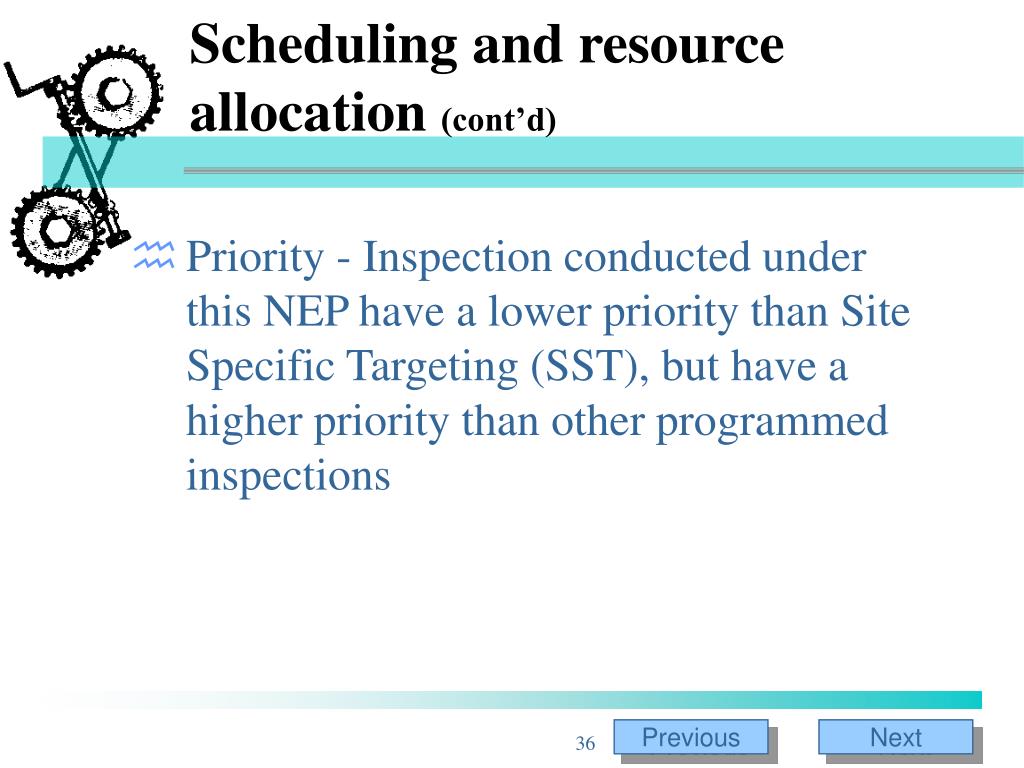

  36. Scheduling and resource allocation (cont’d) • Priority - Inspection conducted under this NEP have a lower priority than Site Specific Targeting (SST), but have a higher priority than other programmed inspections

  37. Coordination • National Office • NEP will be coordinated with Office of General Industry Compliance, DCP • Field • Each R.A. will have a coordinator

  38. Training • Due to nature of program, staff must have adequate training or experience • OTI provides training materials • Additional sessions of power press/machine guarding course can be made available • Can be expanded to include use of stop time measuring device

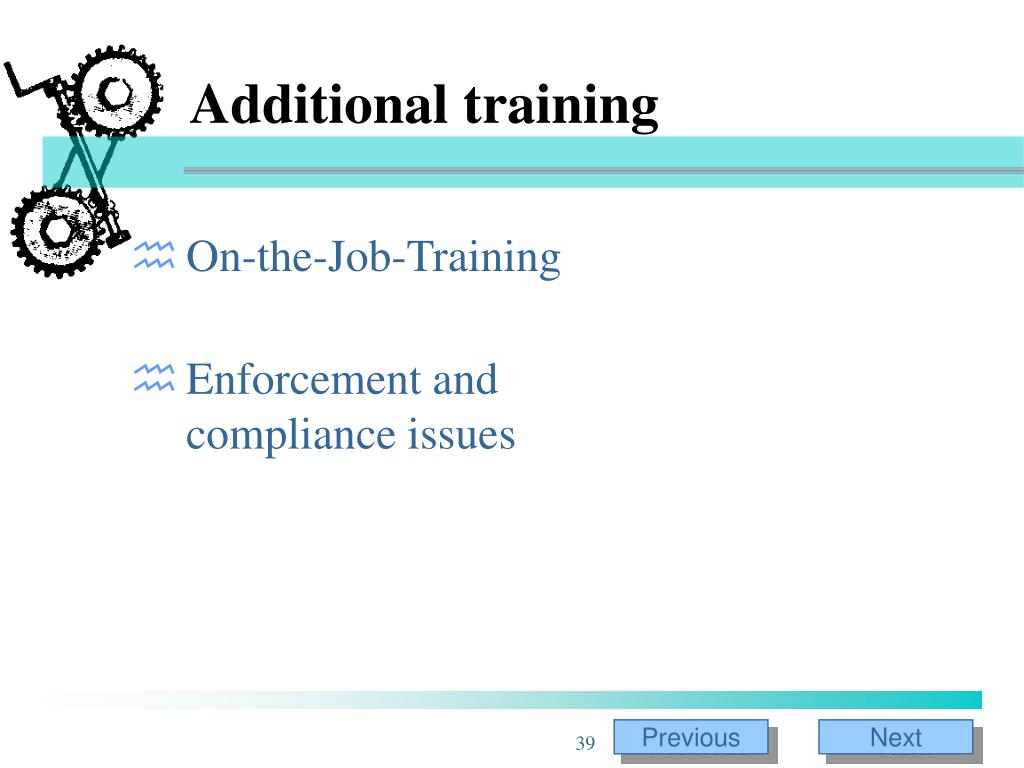

  39. Additional training • On-the-Job-Training • Enforcement and compliance issues

  40. Federal agencies/program evaluation Area Offices Federal Agencies Evaluate according to CPL2.102 A Regional Offices

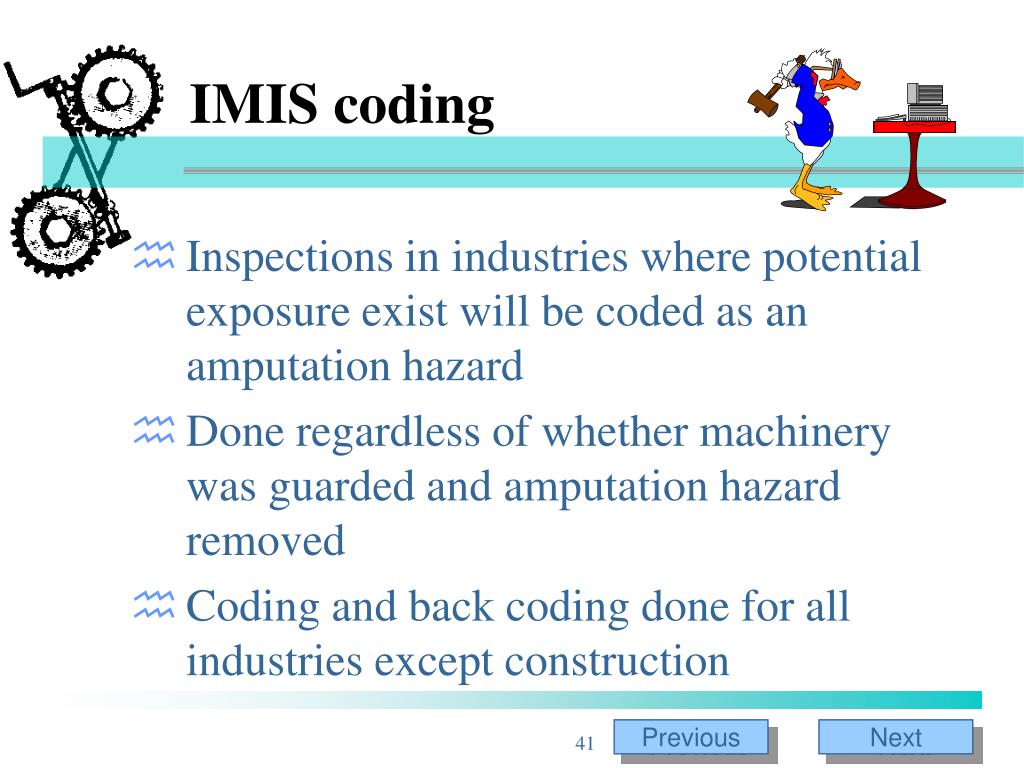

  41. IMIS coding • Inspections in industries where potential exposure exist will be coded as an amputation hazard • Done regardless of whether machinery was guarded and amputation hazard removed • Coding and back coding done for all industries except construction
