  1. Concrete Architecture of Firefox 2 Team One July 6, 2007

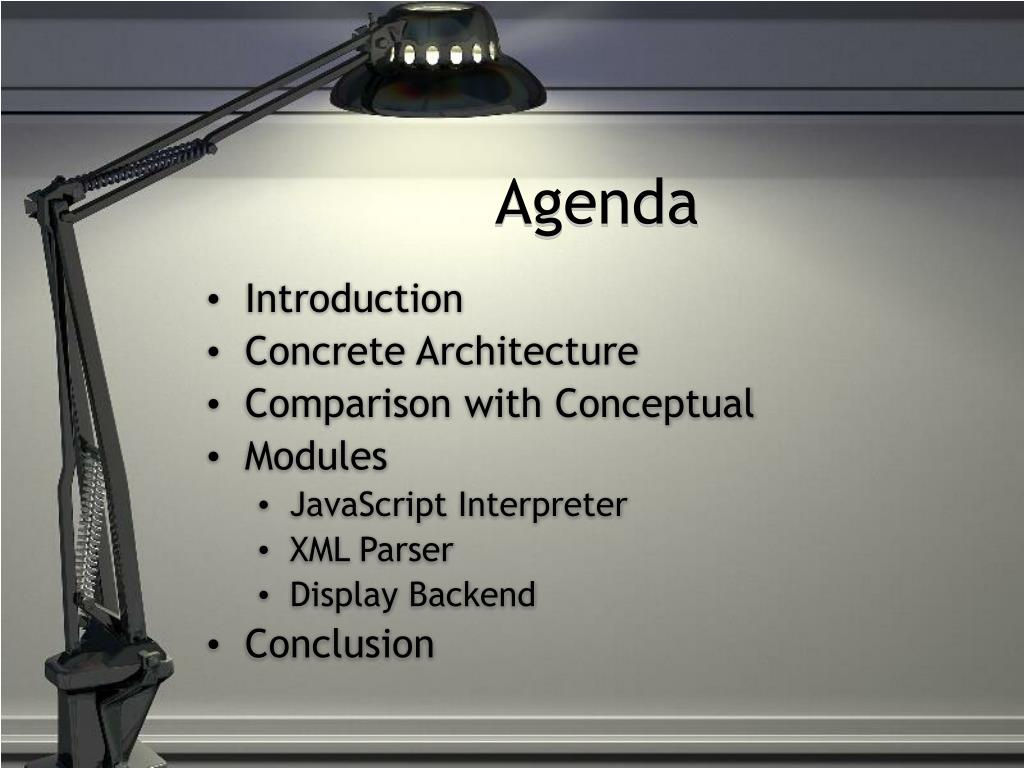

  2. Agenda • Introduction • Concrete Architecture • Comparison with Conceptual • Modules • JavaScript Interpreter • XML Parser • Display Backend • Conclusion

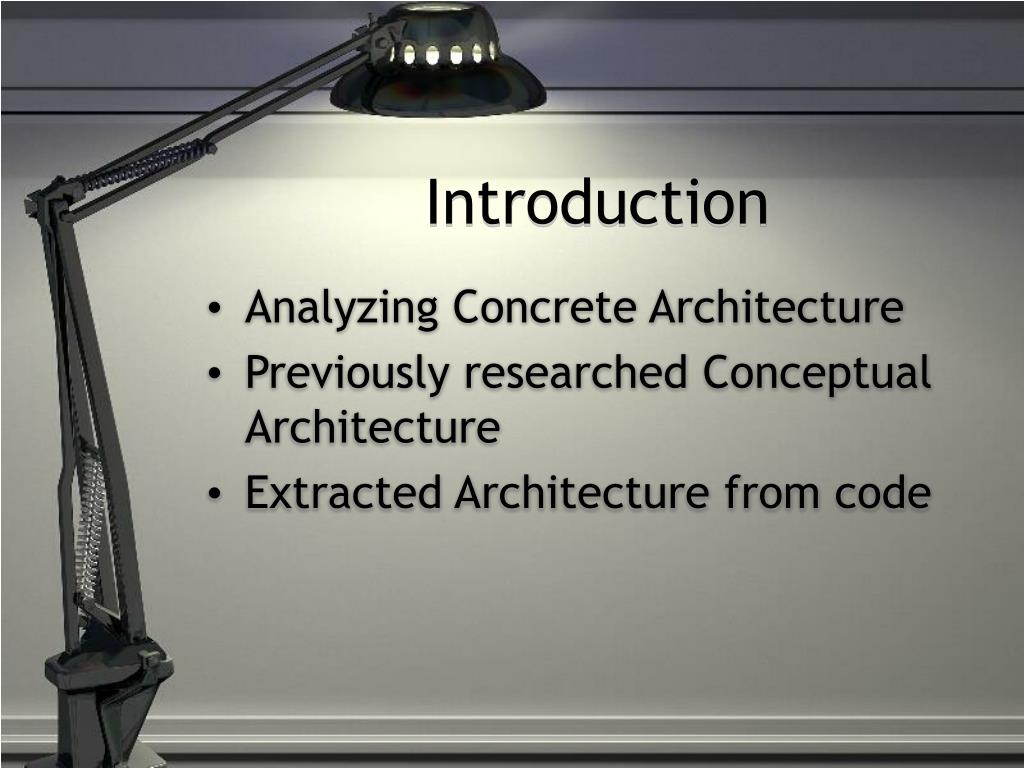

  3. Introduction • Analyzing Concrete Architecture • Previously researched Conceptual Architecture • Extracted Architecture from code

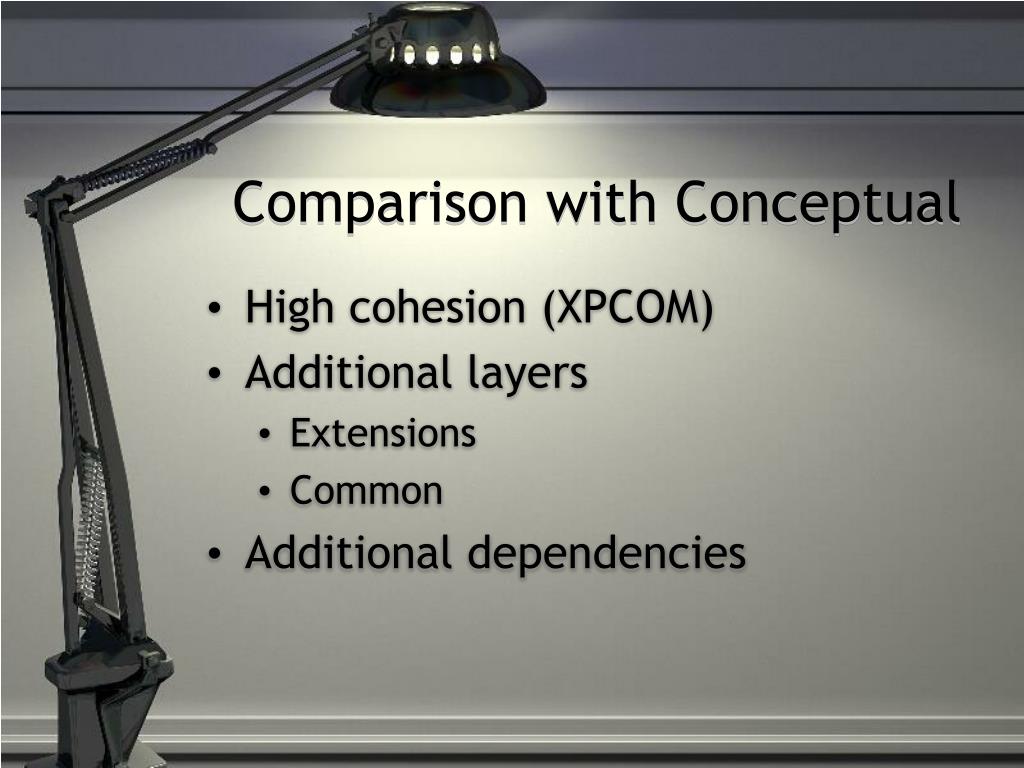

  4. Comparison with Conceptual • High cohesion (XPCOM) • Additional layers • Extensions • Common • Additional dependencies

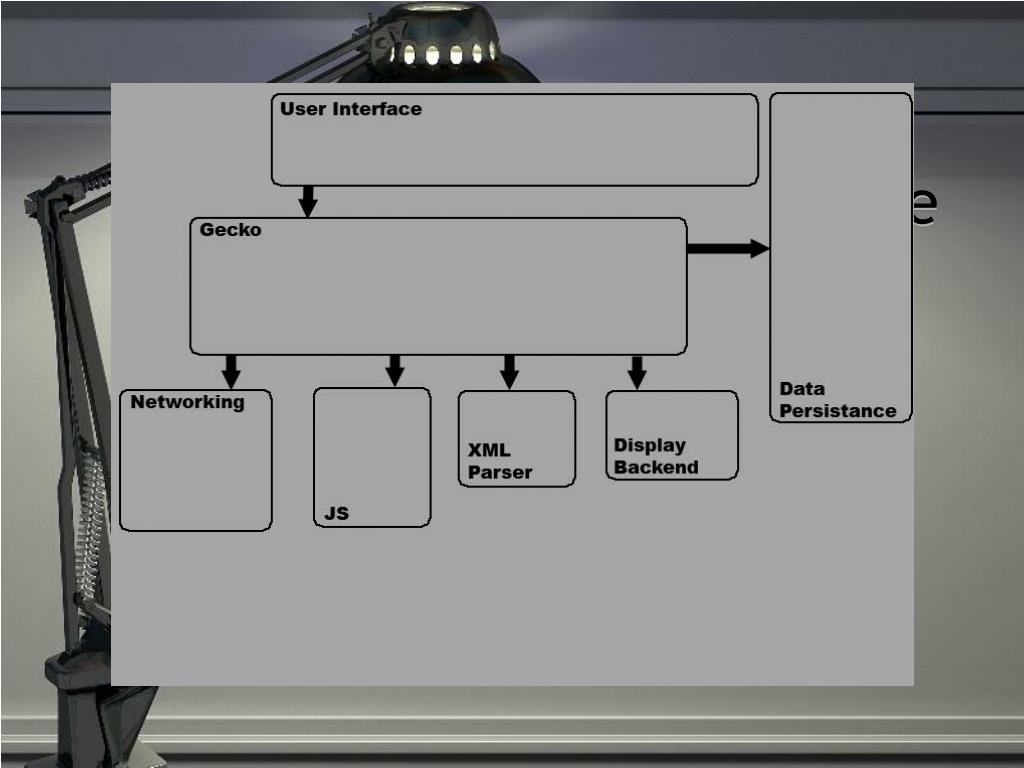

  5. Conceptual Architecture

  6. Concrete Boxes

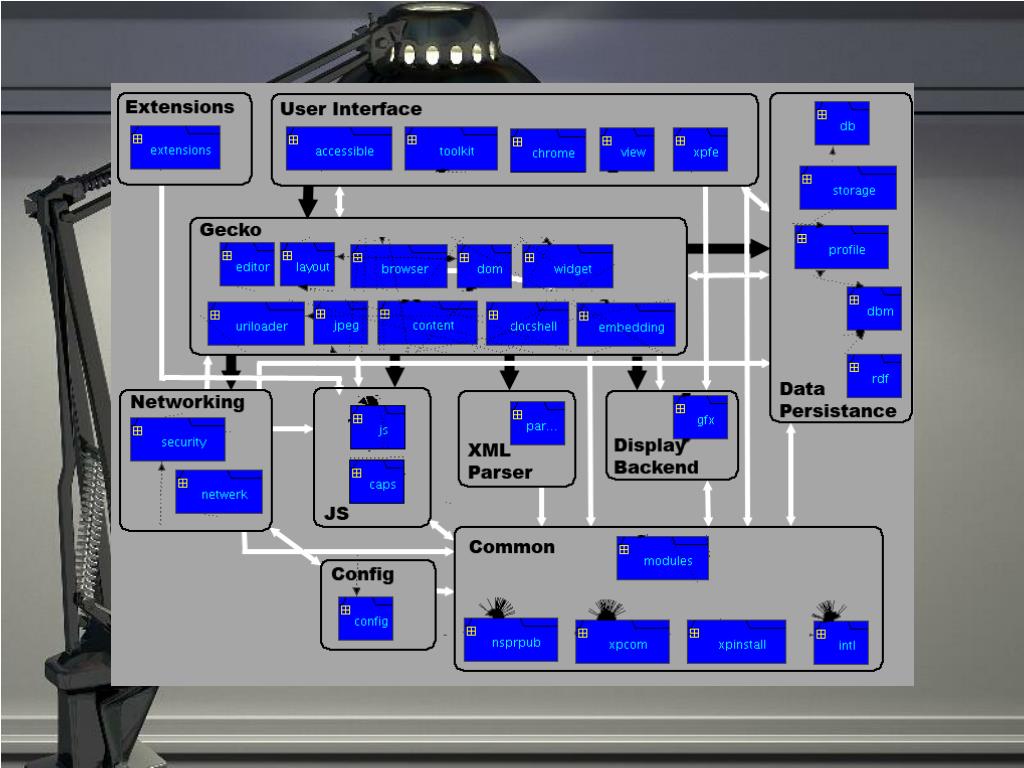

  7. Concrete Arrows

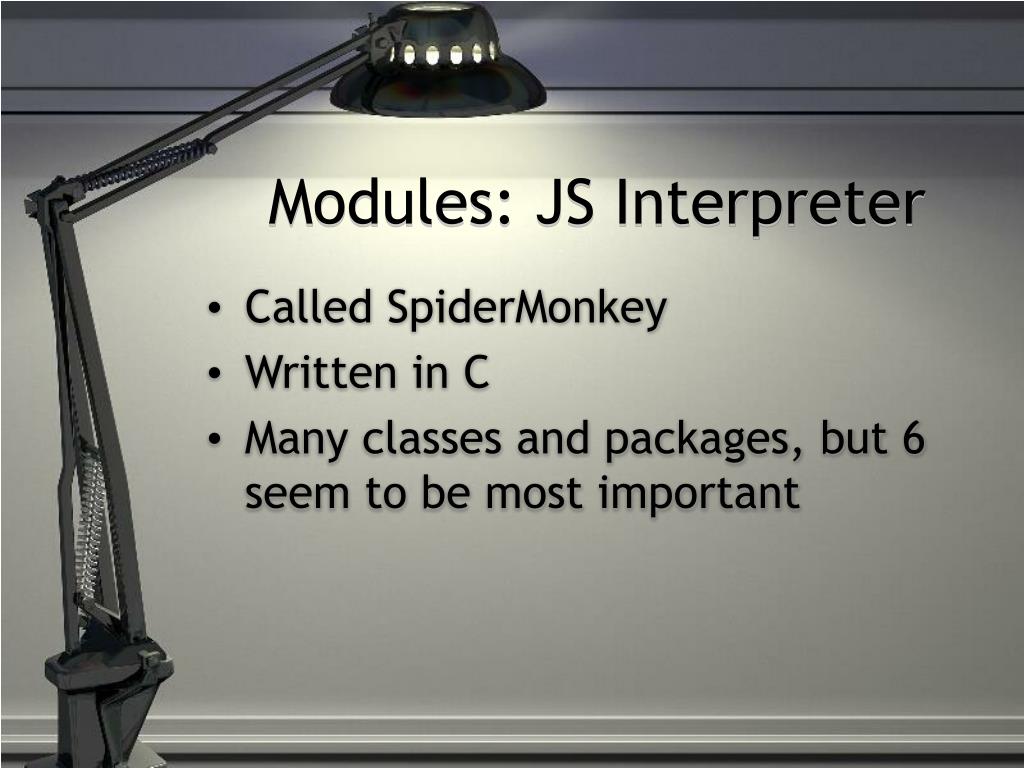

  8. Modules: JS Interpreter • Called SpiderMonkey • Written in C • Many classes and packages, but 6 seem to be most important

  9. LiveConnect • Package in SpiderMonkey • Bridge between JavaScript and Java • Depends on a few internal classes and XPCOM

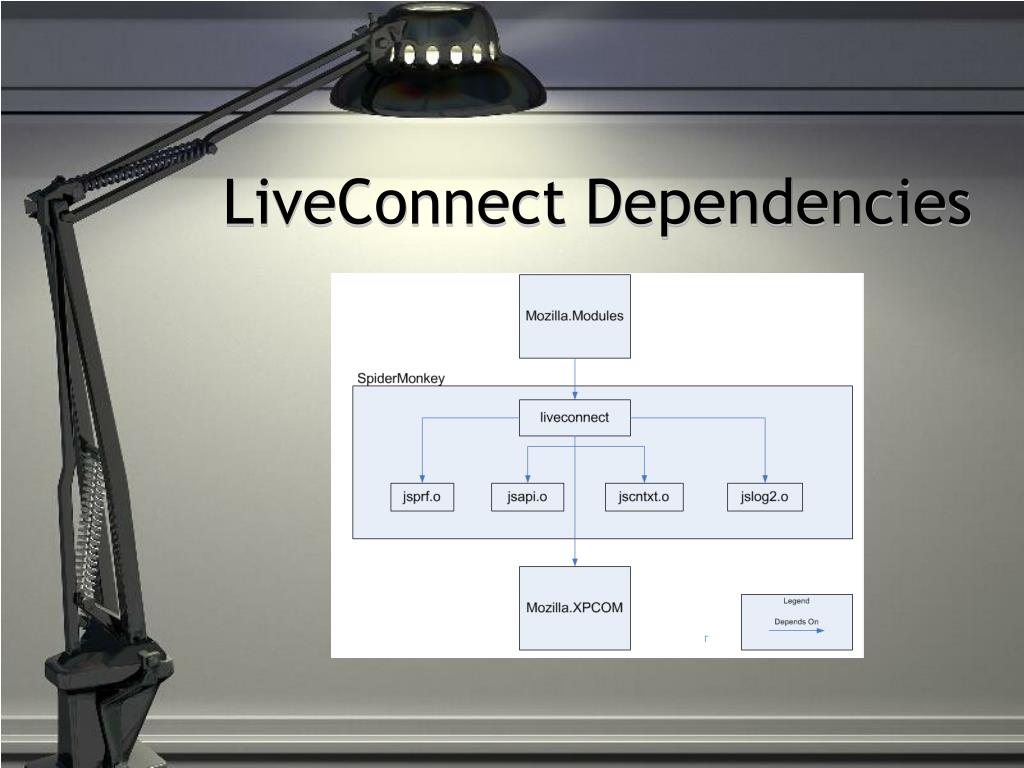

  10. LiveConnect Dependencies

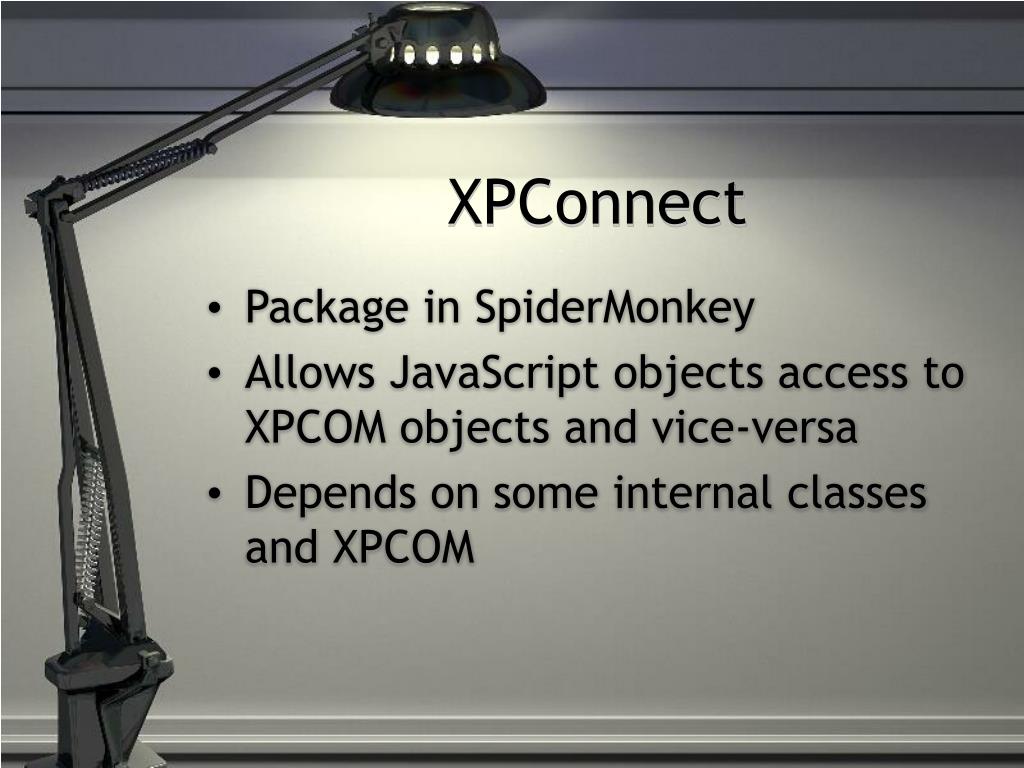

  11. XPConnect • Package in SpiderMonkey • Allows JavaScript objects access to XPCOM objects and vice-versa • Depends on some internal classes and XPCOM

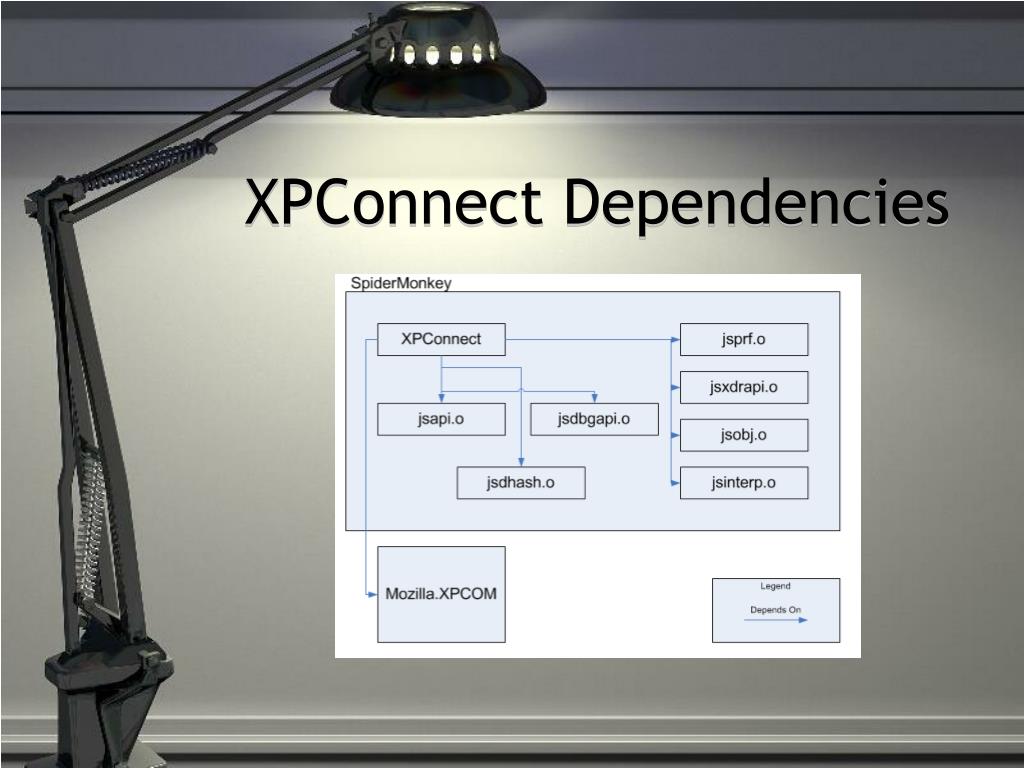

  12. XPConnect Dependencies

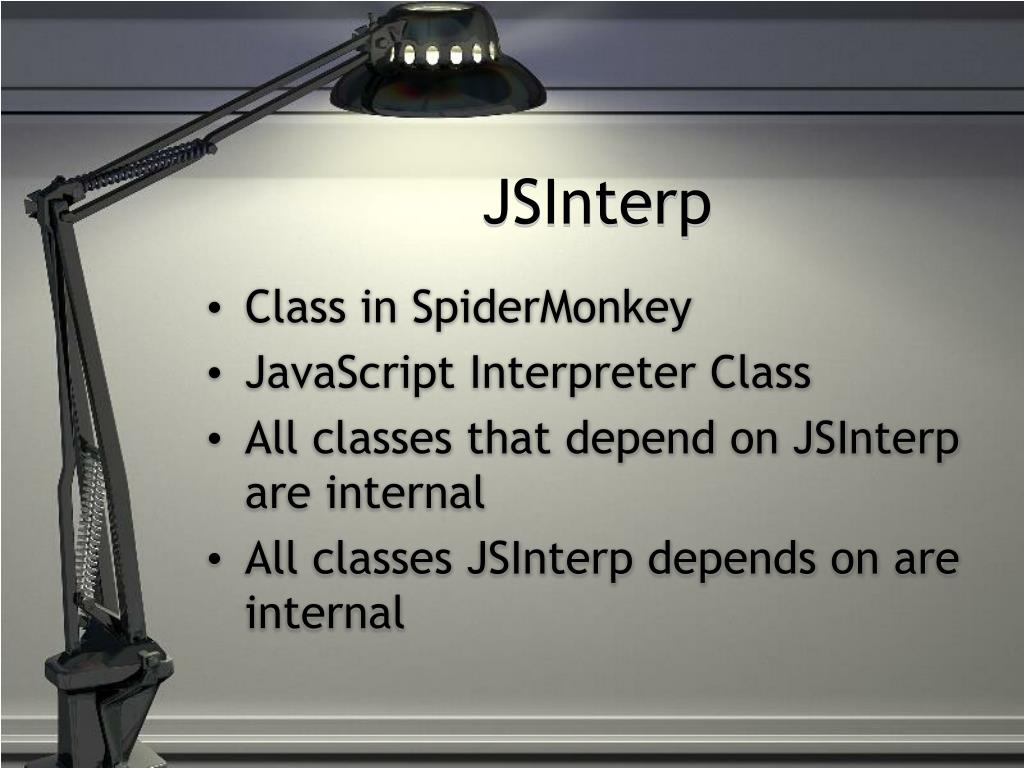

  13. JSInterp • Class in SpiderMonkey • JavaScript Interpreter Class • All classes that depend on JSInterp are internal • All classes JSInterp depends on are internal

  14. API Classes • JSAPI, JSXDRAPI, JSDbgAPI • Used by external classes • Depend on and are depended on by many internal classes • Façade Pattern

  15. API Classes • JSAPI is the main API for SpiderMonkey • JSXDRAPI is the external data representation API • JSDbgAPI is SpiderMonkey’s debug API

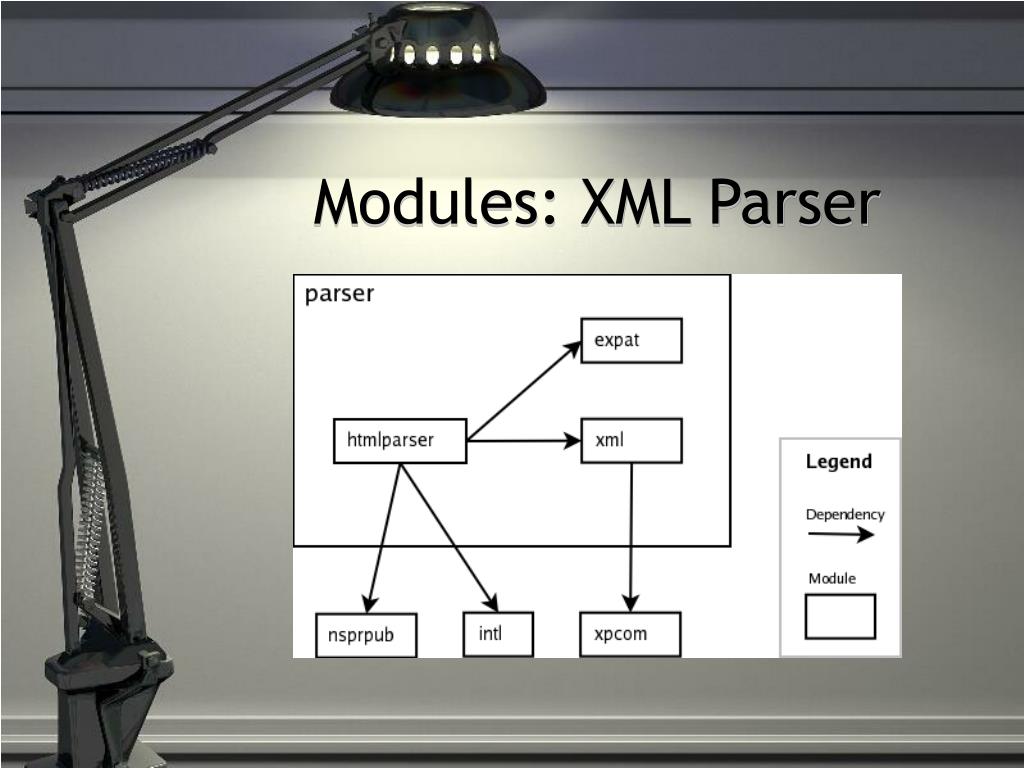

  16. Modules: XML Parser

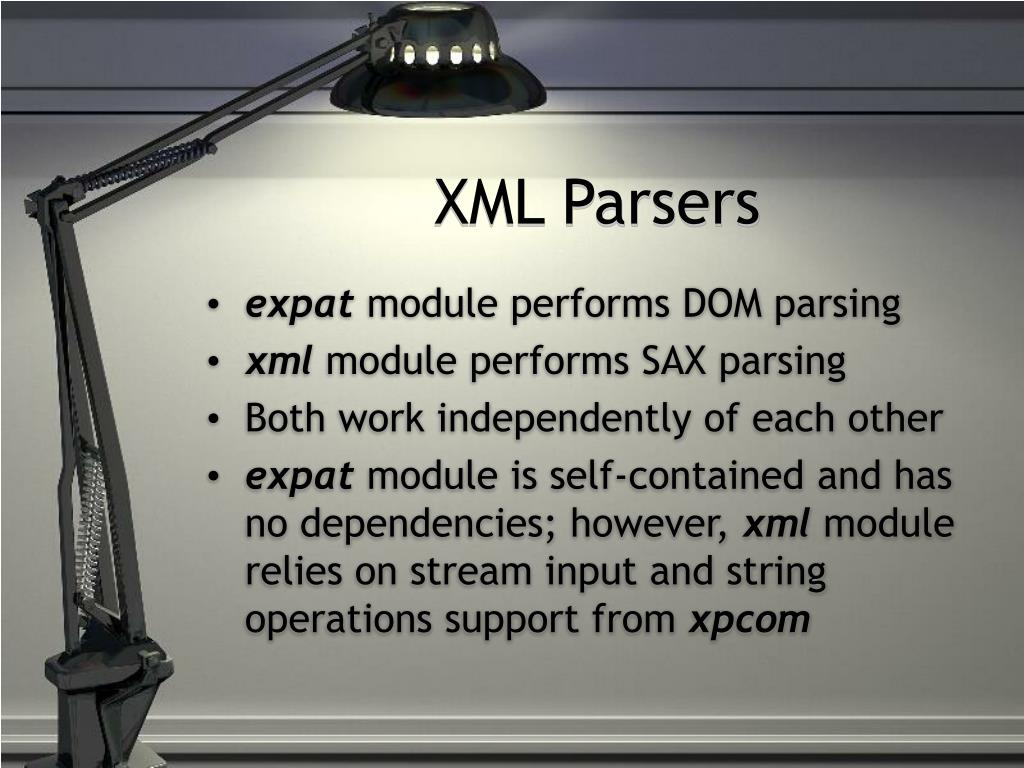

  17. XML Parsers • expat module performs DOM parsing • xml module performs SAX parsing • Both work independently of each other • expat module is self-contained and has no dependencies; however, xml module relies on stream input and string operations support from xpcom

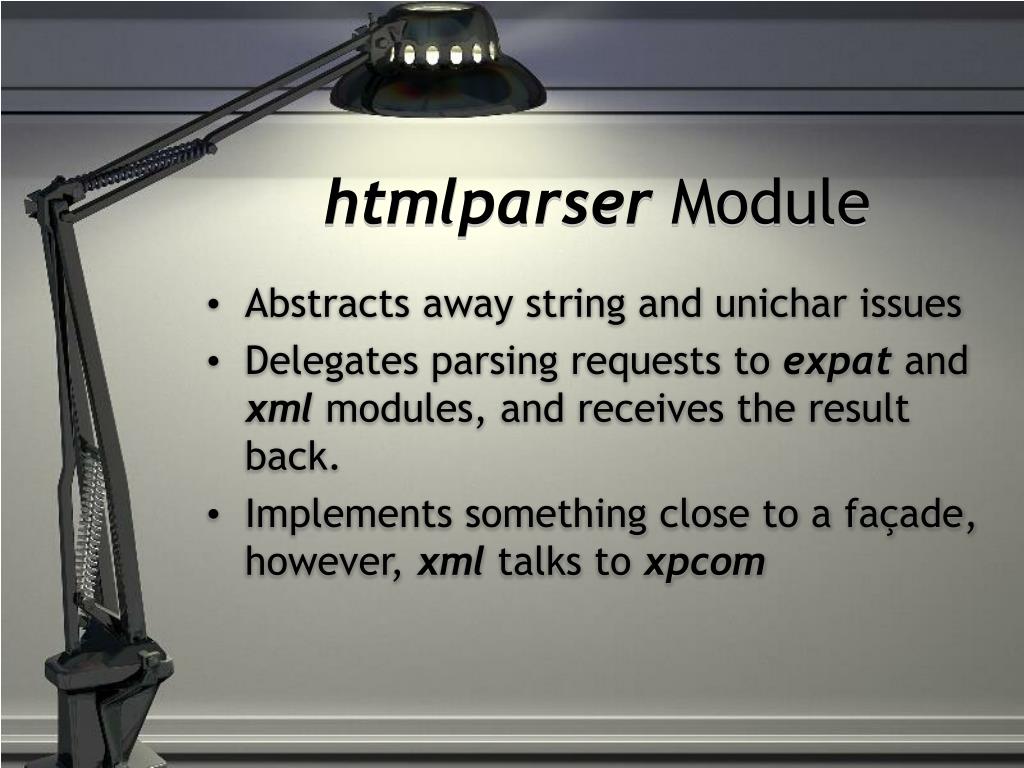

  18. htmlparser Module • Abstracts away string and unichar issues • Delegates parsing requests to expat and xml modules, and receives the result back. • Implements something close to a façade, however, xml talks to xpcom

  19. Deviation from Conceptual • Nothing is invoking/depending on parser module for XML parsing requests • Could be a dynamic dependency rather than static, which bfx and lsedit cannot capture

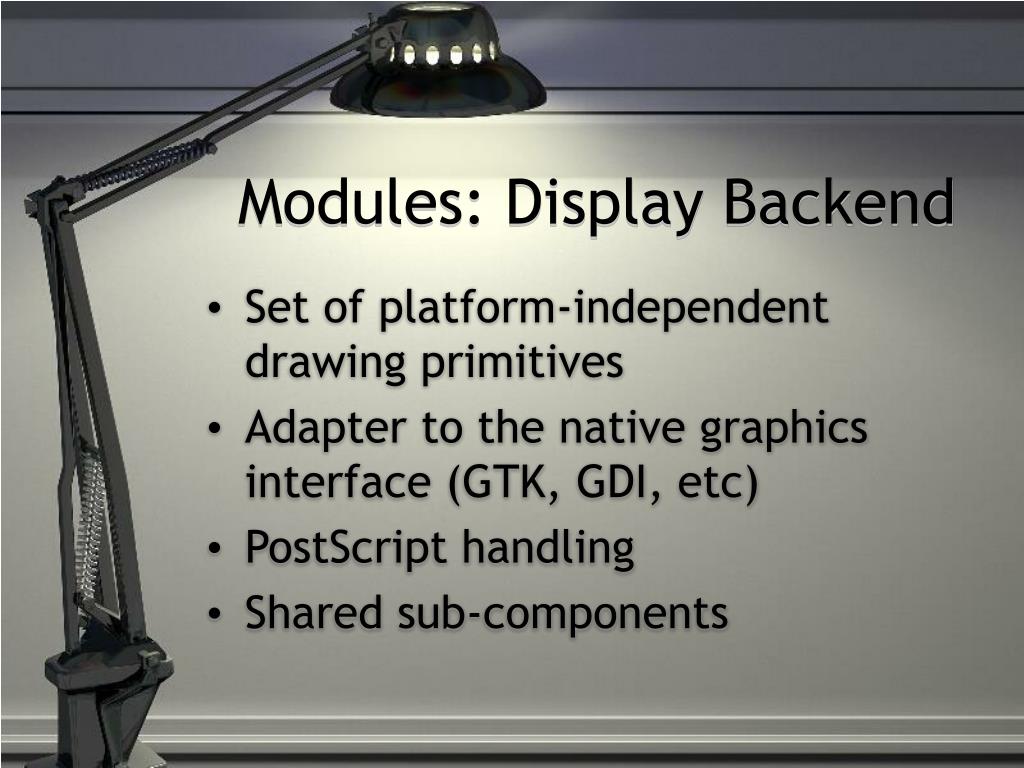

  20. Modules: Display Backend • Set of platform-independent drawing primitives • Adapter to the native graphics interface (GTK, GDI, etc) • PostScript handling • Shared sub-components

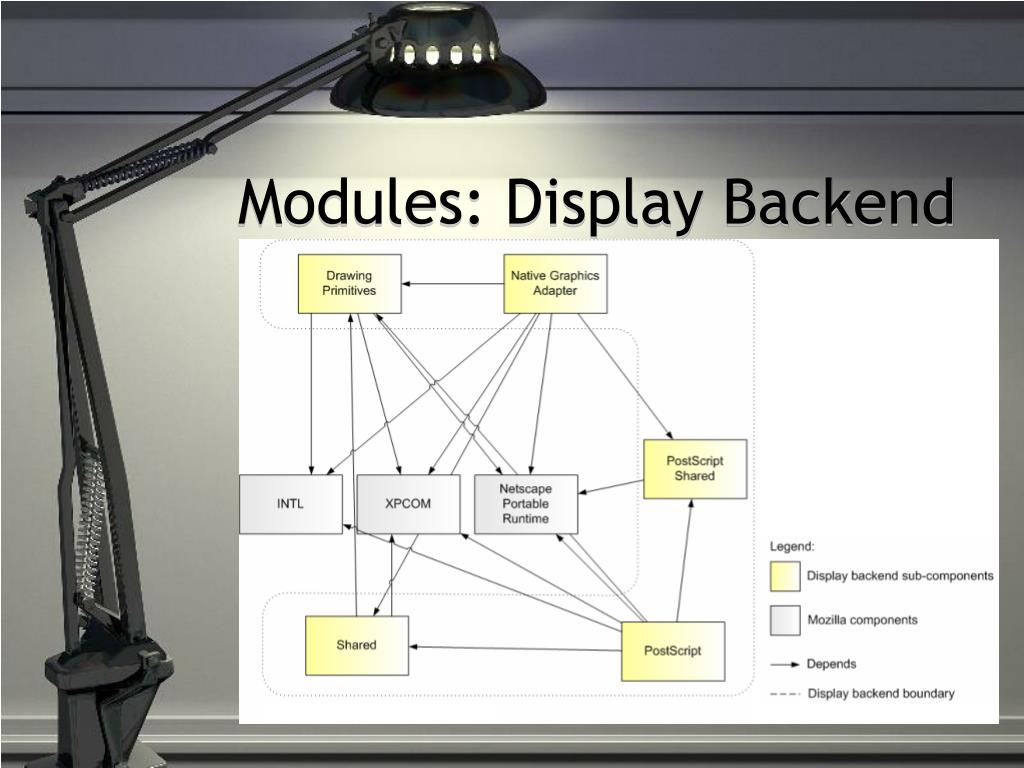

  21. Modules: Display Backend

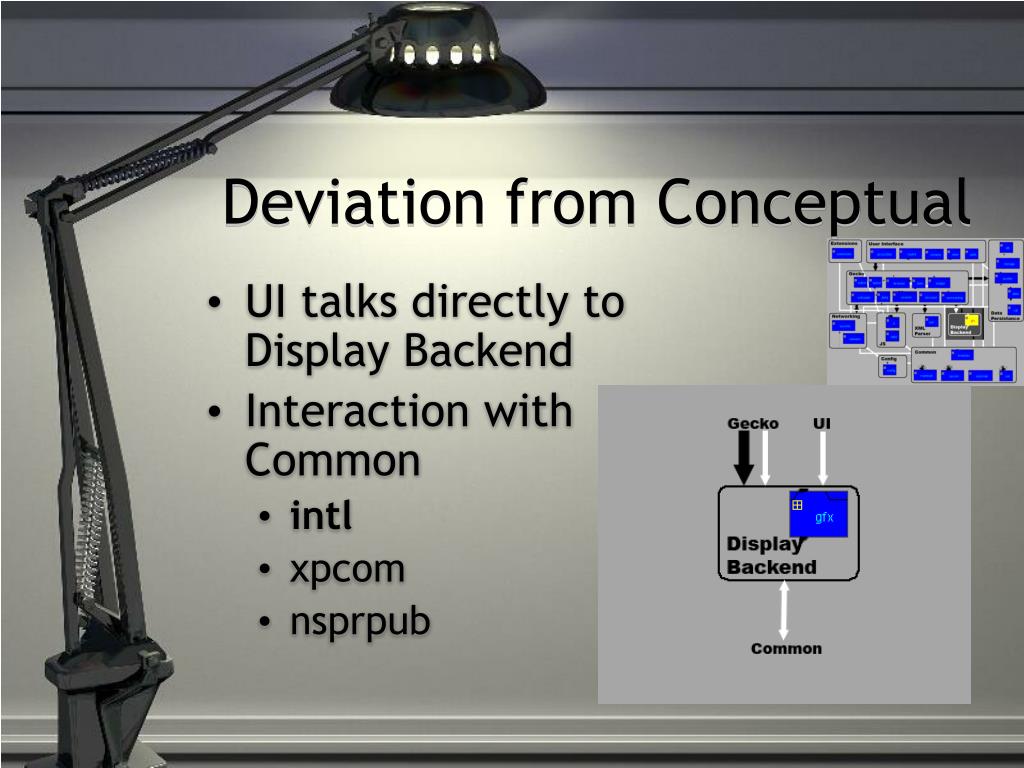

  22. Deviation from Conceptual • UI talks directly to Display Backend • Interaction with Common • intl • xpcom • nsprpub

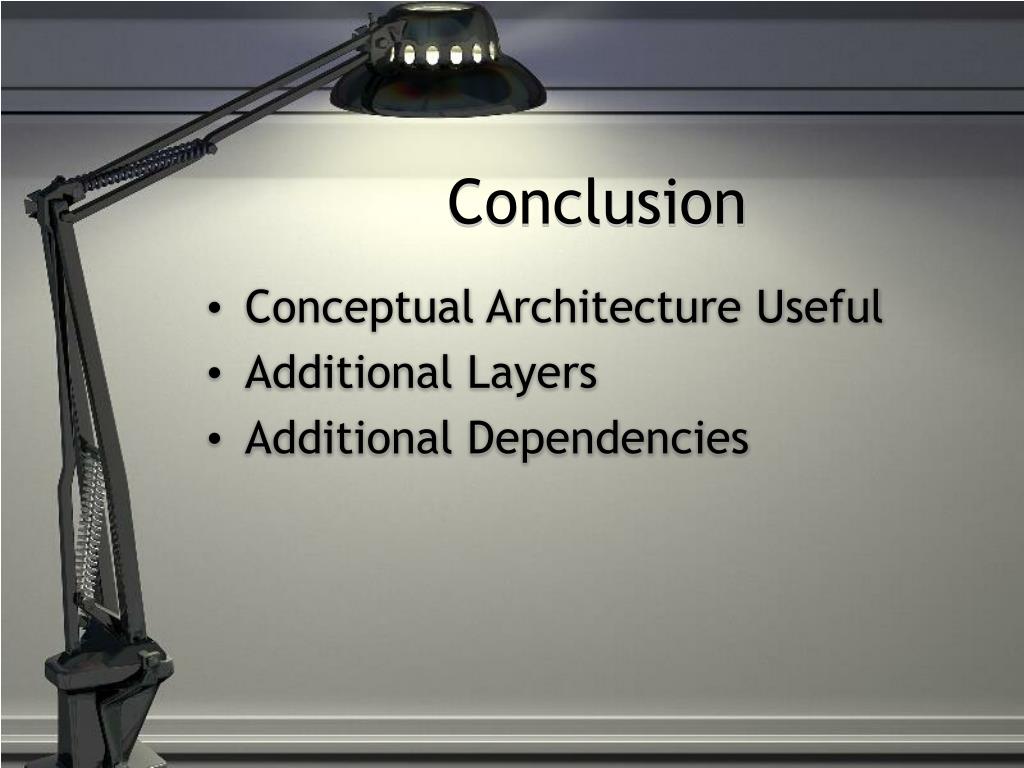

  23. Conclusion • Conceptual Architecture Useful • Additional Layers • Additional Dependencies

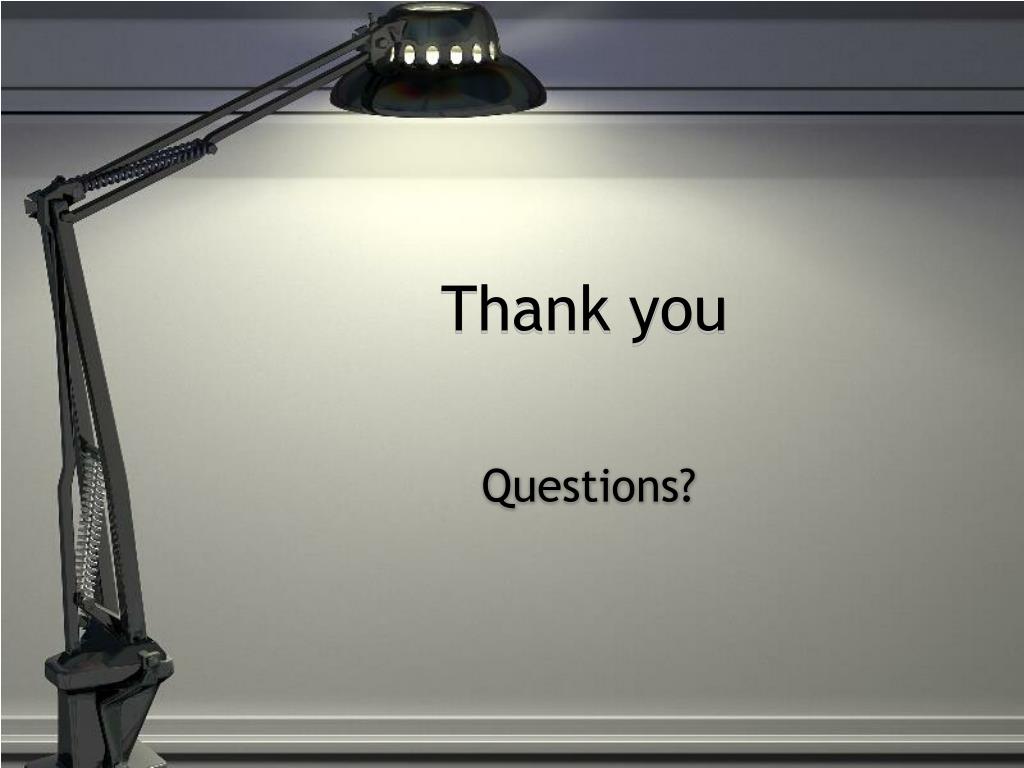

  24. Thank you Questions?
