  1. LUKU 15 – Unix Domain Socket • Unix Domain Socket • Descriptorien välittäminen prosessien välillä • Asiakkaan tietojen välittäminen (client credentials)

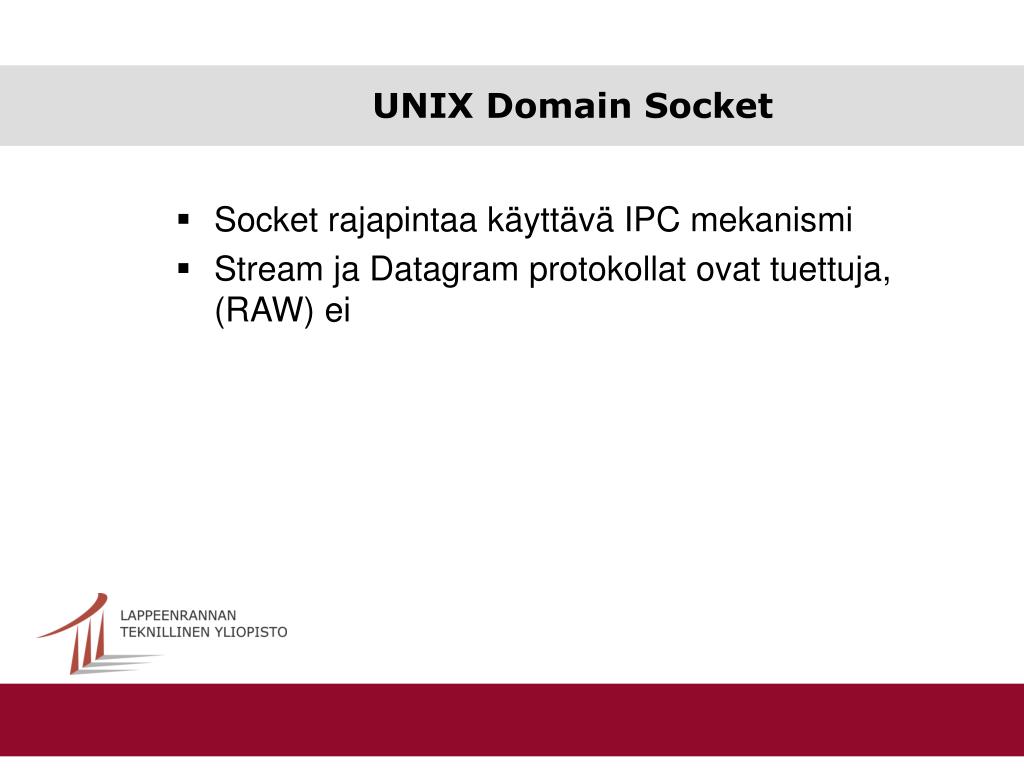

  2. UNIX Domain Socket • Socket rajapintaa käyttävä IPC mekanismi • Stream ja Datagram protokollat ovat tuettuja, (RAW) ei

  3. Osoitestruktuuri • #include sys/un.h • struct sockaddr_un { • sa_family_t sun_family; • char sun_path[108]; • }; • sun_path[0] = ”INADDR_ANY”;

  4. unixdomain/unixbind.c • int • main(int argc, char **argv) • { • int sockfd; • socklen_t len; • struct sockaddr_un addr1, addr2; • if (argc != 2) • err_quit("usage: unixbind <pathname>"); • sockfd = Socket(AF_LOCAL, SOCK_STREAM, 0); • unlink(argv[1]); /* OK if this fails */ • bzero(&addr1, sizeof(addr1)); • addr1.sun_family = AF_LOCAL; • strncpy(addr1.sun_path, argv[1], sizeof(addr1.sun_path)-1); • Bind(sockfd, (SA *) &addr1, SUN_LEN(&addr1)); • len = sizeof(addr2); • Getsockname(sockfd, (SA *) &addr2, &len); • printf("bound name = %s, returned len = %d\n", addr2.sun_path, len); • exit(0); • }

  5. Huomioita • Bind ei onnistu, jos tiedoston nimi on jo olemassa →unlink() • Tarkasta polun mahtuminen osoitekenttään

  6. socketpair • #include <sys/types.h> • #include <sys/socket.h> • int socketpair(int family, int type, int protocol, int sv[2]); • Osoite perheen pitää olla AF_LOCAL • tyyppi voi olla SOCK_STREAM tai SOCK_DGRAM • Vertaa pipe() funktioon!

  7. Huomioita • Annetun polun tulisi olla absoluuttinen. Suhteellisten polkujen käyttäminen voi antaa epäluotettavia tuloksia. • Connect():lle annetun polun tulee olla avoin domain socket ja oikeaa protokolla tyyppiä • Tiedosto-oikeuksien tarkastus connect():in yhteydessä vastaa open() kutsua kirjoitustilaan. • Stream ja datagrammi protokollat • Connect palauttaa ECONNREFUSED, mikäli kuuntelevan socketin jono on täynnä. Ei uudelleen lähetystä! • Jos bind():iä ei ole kutsuttu, datagrammin mukana ei välity lähettäjän tietoja. Vastaanottaja ei voi siis lähettää vastausta.

  8. unixdomain/unixstrserv01.c • int main(int argc, char **argv) • { • int listenfd, connfd; • pid_t childpid; • socklen_t clilen; • struct sockaddr_un cliaddr, servaddr; • void sig_chld(int); • listenfd = Socket(AF_LOCAL, SOCK_STREAM, 0); • unlink(UNIXSTR_PATH); • bzero(&servaddr, sizeof(servaddr)); • servaddr.sun_family = AF_LOCAL; • strcpy(servaddr.sun_path, UNIXSTR_PATH); • Bind(listenfd, (SA *) &servaddr, sizeof(servaddr)); • Listen(listenfd, LISTENQ); • Signal(SIGCHLD, sig_chld); • for ( ; ; ) { • clilen = sizeof(cliaddr); • if ( (connfd = accept(listenfd, (SA *) &cliaddr, &clilen)) < 0) { • if (errno == EINTR) • continue; /* back to for() */ • else • err_sys("accept error"); • } • if ( (childpid = Fork()) == 0) { /* child process */ • Close(listenfd); /* close listening socket */ • str_echo(connfd); /* process request */ • exit(0); • } • Close(connfd); /* parent closes connected socket */ • } • }

  9. unixdomain/unixstrcli01.c • int main(int argc, char **argv) • { • int sockfd; • struct sockaddr_un servaddr; • sockfd = Socket(AF_LOCAL, SOCK_STREAM, 0); • bzero(&servaddr, sizeof(servaddr)); • servaddr.sun_family = AF_LOCAL; • strcpy(servaddr.sun_path, UNIXSTR_PATH); • Connect(sockfd, (SA *) &servaddr, sizeof(servaddr)); • str_cli(stdin, sockfd); /* do it all */ • exit(0); • }

  10. unixdomain/unixdgserv01.c • int main(int argc, char **argv) • { • int sockfd; • struct sockaddr_un servaddr, cliaddr; • sockfd = Socket(AF_LOCAL, SOCK_DGRAM, 0); • unlink(UNIXDG_PATH); • bzero(&servaddr, sizeof(servaddr)); • servaddr.sun_family = AF_LOCAL; • strcpy(servaddr.sun_path, UNIXDG_PATH); • Bind(sockfd, (SA *) &servaddr, sizeof(servaddr)); • dg_echo(sockfd, (SA *) &cliaddr, sizeof(cliaddr)); • }

  11. unixdomain/unixdgcli01.c • int main(int argc, char **argv) • { • int sockfd; • struct sockaddr_un cliaddr, servaddr; • sockfd = Socket(AF_LOCAL, SOCK_DGRAM, 0); • bzero(&cliaddr, sizeof(cliaddr)); /* bind an address for us */ • cliaddr.sun_family = AF_LOCAL; • strcpy(cliaddr.sun_path, tmpnam(NULL)); • Bind(sockfd, (SA *) &cliaddr, sizeof(cliaddr)); • bzero(&servaddr, sizeof(servaddr)); /* fill in server's address */ • servaddr.sun_family = AF_LOCAL; • strcpy(servaddr.sun_path, UNIXDG_PATH); • dg_cli(stdin, sockfd, (SA *) &servaddr, sizeof(servaddr)); • exit(0); • }

  12. tmpnam • #include <stdio.h> • char *tmpnam(char *s); • Jos s == NULL, palauttaa sisäisen staattisen puskurin osoitteen • - s:n pitää olla L_tempnam pituinen

  13. Descriptorin välittäminen • Luodaan domain socket tai käytetään socketpair-funktiota • forkataan, mikäli on tarkoitus, että lapsi avaa descriptorin, joka välitetään vanhemmalle • Joku prosessi avaa välitettävän descriptorin (open, pipe, mkfifo, socket, accept) • Lähettävä prosessi rakentaa msghdr struktuurin, jossa descriptori lähetetään • Lähettävä prosessi lähettää dataa ja msghdr-struktuurin sendmsg-funktiolla • Vastaanottava prosessi kutsuu recvmsg funktiota • Descriptori ja descriptorin numero prosessissa ovat eri asiat!!!

  14. Esimerkki exit( exit status ) fork mycat openfile descriptori

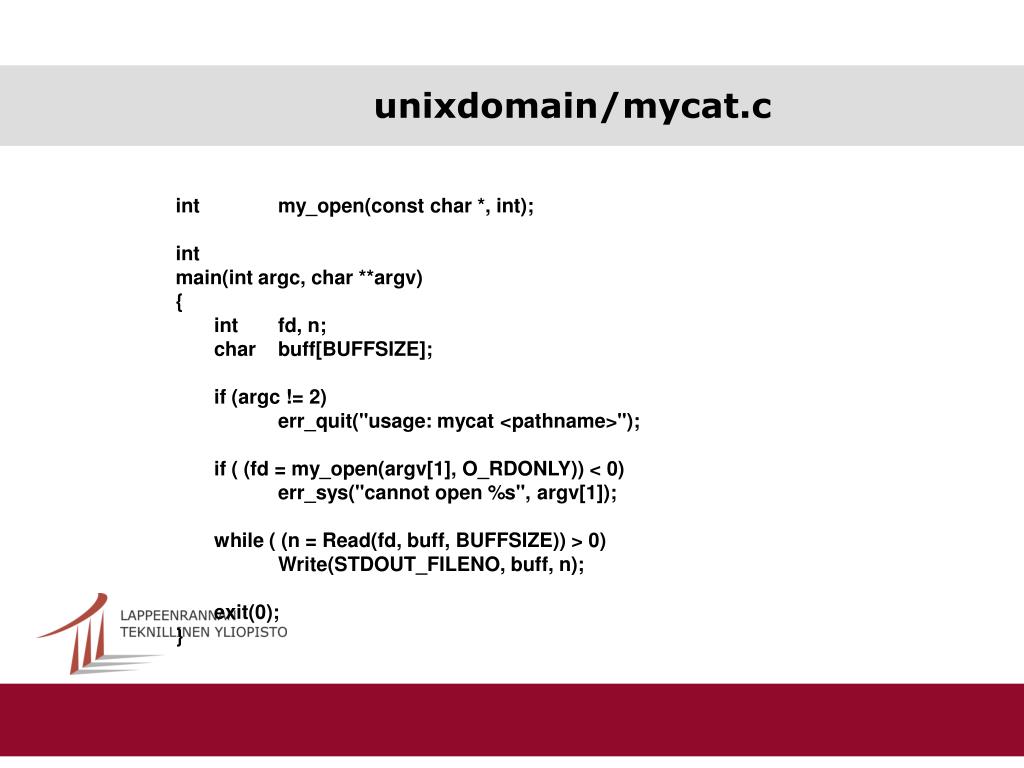

  15. unixdomain/mycat.c • int my_open(const char *, int); • int • main(int argc, char **argv) • { • int fd, n; • char buff[BUFFSIZE]; • if (argc != 2) • err_quit("usage: mycat <pathname>"); • if ( (fd = my_open(argv[1], O_RDONLY)) < 0) • err_sys("cannot open %s", argv[1]); • while ( (n = Read(fd, buff, BUFFSIZE)) > 0) • Write(STDOUT_FILENO, buff, n); • exit(0); • }

  16. unixdomain/myopen.c • int my_open(const char *pathname, int mode) • { • int fd, sockfd[2], status; • pid_t childpid; • char c, argsockfd[10], argmode[10]; • Socketpair(AF_LOCAL, SOCK_STREAM, 0, sockfd); • if ( (childpid = Fork()) == 0) { /* child process */ • Close(sockfd[0]); • snprintf(argsockfd, sizeof(argsockfd), "%d", sockfd[1]); • snprintf(argmode, sizeof(argmode), "%d", mode); • execl("./openfile", "openfile", argsockfd, pathname, argmode, • (char *) NULL); • err_sys("execl error"); • } • /* parent process - wait for the child to terminate */ • Close(sockfd[1]); /* close the end we don't use */ • Waitpid(childpid, &status, 0); • if (WIFEXITED(status) == 0) • err_quit("child did not terminate"); • if ( (status = WEXITSTATUS(status)) == 0) • Read_fd(sockfd[0], &c, 1, &fd); • else { • errno = status; /* set errno value from child's status */ • fd = -1; • } • Close(sockfd[0]); • return(fd); • }

  17. msghdr • struct msghdr { • void * msg_name; /* optional address */ • socklen_t msg_namelen; /* size of address */ • struct iovec * msg_iov; /* scatter/gather array */ • size_t msg_iovlen; /* # elements in msg_iov */ • void * msg_control; /* ancillary data, see below */ • socklen_t msg_controllen; /* ancillary data buffer len */ • int msg_flags; /* flags on received message */ • };

  18. msgcontrol • struct cmsghdr { • socklen_t cmsg_len; /* data byte count, including hdr */ • int cmsg_level; /* originating protocol */ • int cmsg_type; /* protocol-specific type */ • /* followed by u_char cmsg_data[]; */ • };

  19. Makrot msgcontrol struktuurien käsittelyyn • #include <sys/socket.h> • struct cmsghdr *CMSG_FIRSTHDR(struct msghdr *msgh); • struct cmsghdr *CMSG_NXTHDR(struct msghdr *msgh, struct cmsghdr *cmsg); • size_t CMSG_ALIGN(size_t length); • size_t CMSG_SPACE(size_t length); • size_t CMSG_LEN(size_t length);

  20. lib/read_fd • ssize_t read_fd(int fd, void *ptr, size_t nbytes, int *recvfd) • { • struct msghdr msg; • struct iovec iov[1]; • ssize_t n; • #ifdef HAVE_MSGHDR_MSG_CONTROL • union { • struct cmsghdr cm; • char control[CMSG_SPACE(sizeof(int))]; • } control_un; • struct cmsghdr *cmptr; • msg.msg_control = control_un.control; • msg.msg_controllen = sizeof(control_un.control); • #else • int newfd; • msg.msg_accrights = (caddr_t) &newfd; • msg.msg_accrightslen = sizeof(int); • #endif • msg.msg_name = NULL; • msg.msg_namelen = 0; • iov[0].iov_base = ptr; • iov[0].iov_len = nbytes; • msg.msg_iov = iov; • msg.msg_iovlen = 1;

  21. if ( (n = recvmsg(fd, &msg, 0)) <= 0) • return(n); • #ifdef HAVE_MSGHDR_MSG_CONTROL • if ( (cmptr = CMSG_FIRSTHDR(&msg)) != NULL && • cmptr->cmsg_len == CMSG_LEN(sizeof(int))) { • if (cmptr->cmsg_level != SOL_SOCKET) • err_quit("control level != SOL_SOCKET"); • if (cmptr->cmsg_type != SCM_RIGHTS) • err_quit("control type != SCM_RIGHTS"); • *recvfd = *((int *) CMSG_DATA(cmptr)); • } else • *recvfd = -1; /* descriptor was not passed */ • #else • /* *INDENT-OFF* */ • if (msg.msg_accrightslen == sizeof(int)) • *recvfd = newfd; • else • *recvfd = -1; /* descriptor was not passed */ • /* *INDENT-ON* */ • #endif • return(n); • } • /* end read_fd */ • ssize_t • Read_fd(int fd, void *ptr, size_t nbytes, int *recvfd) • { • ssize_t n; • if ( (n = read_fd(fd, ptr, nbytes, recvfd)) < 0) • err_sys("read_fd error"); • return(n); • }

  22. unixdomain/openfile.c • int • main(int argc, char **argv) • { • int fd; • if (argc != 4) • err_quit("openfile <sockfd#> <filename> <mode>"); • if ( (fd = open(argv[2], atoi(argv[3]))) < 0) • exit( (errno > 0) ? errno : 255 ); • if (write_fd(atoi(argv[1]), "", 1, fd) < 0) • exit( (errno > 0) ? errno : 255 ); • exit(0); • }

  23. lib/write_fd.c • ssize_t • write_fd(int fd, void *ptr, size_t nbytes, int sendfd) • { • struct msghdr msg; • struct iovec iov[1]; • #ifdef HAVE_MSGHDR_MSG_CONTROL • union { • struct cmsghdr cm; • char control[CMSG_SPACE(sizeof(int))]; • } control_un; • struct cmsghdr *cmptr; • msg.msg_control = control_un.control; • msg.msg_controllen = sizeof(control_un.control); • cmptr = CMSG_FIRSTHDR(&msg); • cmptr->cmsg_len = CMSG_LEN(sizeof(int)); • cmptr->cmsg_level = SOL_SOCKET; • cmptr->cmsg_type = SCM_RIGHTS; • *((int *) CMSG_DATA(cmptr)) = sendfd; • #else • msg.msg_accrights = (caddr_t) &sendfd; • msg.msg_accrightslen = sizeof(int); • #endif • msg.msg_name = NULL; • msg.msg_namelen = 0; • iov[0].iov_base = ptr; • iov[0].iov_len = nbytes; • msg.msg_iov = iov; • msg.msg_iovlen = 1; • return(sendmsg(fd, &msg, 0)); • }

  24. cmsgcred • struct cmscred { • pid_t cmcred_pid; // PID of sender • uid_t cmcred_uid; // Real UID of sender • uid_t cmcred_euid; // Effective UID • gid_t cmcred_gid; // Real GID of process • gid_t cmcred_groups[CMGROUP_MAX]; • };

  25. unixdomain/readcred.c • #define CONTROL_LEN (sizeof(struct cmsghdr) + sizeof(struct cmsgcred)) • ssize_t • read_cred(int fd, void *ptr, size_t nbytes, struct cmsgcred *cmsgcredptr) • { • struct msghdr msg; • struct iovec iov[1]; • char control[CONTROL_LEN]; • int n; • msg.msg_name = NULL; • msg.msg_namelen = 0; • iov[0].iov_base = ptr; • iov[0].iov_len = nbytes; • msg.msg_iov = iov; • msg.msg_iovlen = 1; • msg.msg_control = control; • msg.msg_controllen = sizeof(control); • msg.msg_flags = 0; • if ( (n = recvmsg(fd, &msg, 0)) < 0) • return(n); • cmsgcredptr->cmcred_ngroups = 0; /* indicates no credentials returned */ • if (cmsgcredptr && msg.msg_controllen > 0) { • struct cmsghdr *cmptr = (struct cmsghdr *) control; • if (cmptr->cmsg_len < CONTROL_LEN) • err_quit("control length = %d", cmptr->cmsg_len); • if (cmptr->cmsg_level != SOL_SOCKET) • err_quit("control level != SOL_SOCKET"); • if (cmptr->cmsg_type != SCM_CREDS) • err_quit("control type != SCM_CREDS"); • memcpy(cmsgcredptr, CMSG_DATA(cmptr), sizeof(struct cmsgcred)); • } • return(n);

  26. unixdomain/strecho.c • ssize_t read_cred(int, void *, size_t, struct cmsgcred *); • void • str_echo(int sockfd) • { • ssize_t n; • int i; • char buf[MAXLINE]; • struct cmsgcred cred; • again: • while ( (n = read_cred(sockfd, buf, MAXLINE, &cred)) > 0) { • if (cred.cmcred_ngroups == 0) { • printf("(no credentials returned)\n"); • } else { • printf("PID of sender = %d\n", cred.cmcred_pid); • printf("real user ID = %d\n", cred.cmcred_uid); • printf("real group ID = %d\n", cred.cmcred_gid); • printf("effective user ID = %d\n", cred.cmcred_euid); • printf("%d groups:", cred.cmcred_ngroups - 1); • for (i = 1; i < cred.cmcred_ngroups; i++) • printf(" %d", cred.cmcred_groups[i]); • printf("\n"); • } • Writen(sockfd, buf, n); • } • if (n < 0 && errno == EINTR) • goto again; • else if (n < 0) • err_sys("str_echo: read error"); • }
