  1. Exploiting Instruction StreamsTo Prevent Intrusion Milena Milenkovic

  2. Outline • Introduction • Related Work • Trusted Instruction Execution Framework • The Framework Potential • Conclusion

  3. Introduction • Most of today’s computers connected to Internet, • Even more in the future, including embedded devices • One of the major security problems: the execution of the unauthorized code • A lot of applications may be vulnerable • Attack examples: • buffer overflow (heap, stack) • format string attack • …

  4. Introduction • Stack-smashing

  5. Introduction • One solution: allow only execution of trusted instructions • Trusted instructions – with a valid signature • Previous research:limited number of instruction streams(dynamic basic blocks) • Use basic block signatures:run-time verification of the last basic block in an instruction stream • Signatures calculated during trusted installation

  6. Related Work • Two categories: • Static source code analysis • Dynamic detection/prevention • Static code analysis: false alarms • Dynamic • Secure Program Execution Framework (SPEF) • Tag “spurious” data • Monitoring program “behavior” (system calls, performance monitoring registers) • Split stack for data/addresses, or secure stack • Compilers, compiler and library patches

  7. Related Work • Most related – SPEF: a given program binary has numerous representations with the same functionality • During installation, each instruction block is transformed; verified in the run-time • compute transformation-invariant hash of the instruction block • encrypt the hash value with the secret key • use encrypted value to select a transformation (e.g., a particular instruction order in case of instruction scheduling) • 7.5%-17.1% increased execution time, Mediabench • Also related: tamper-proof techniques, but different granularity

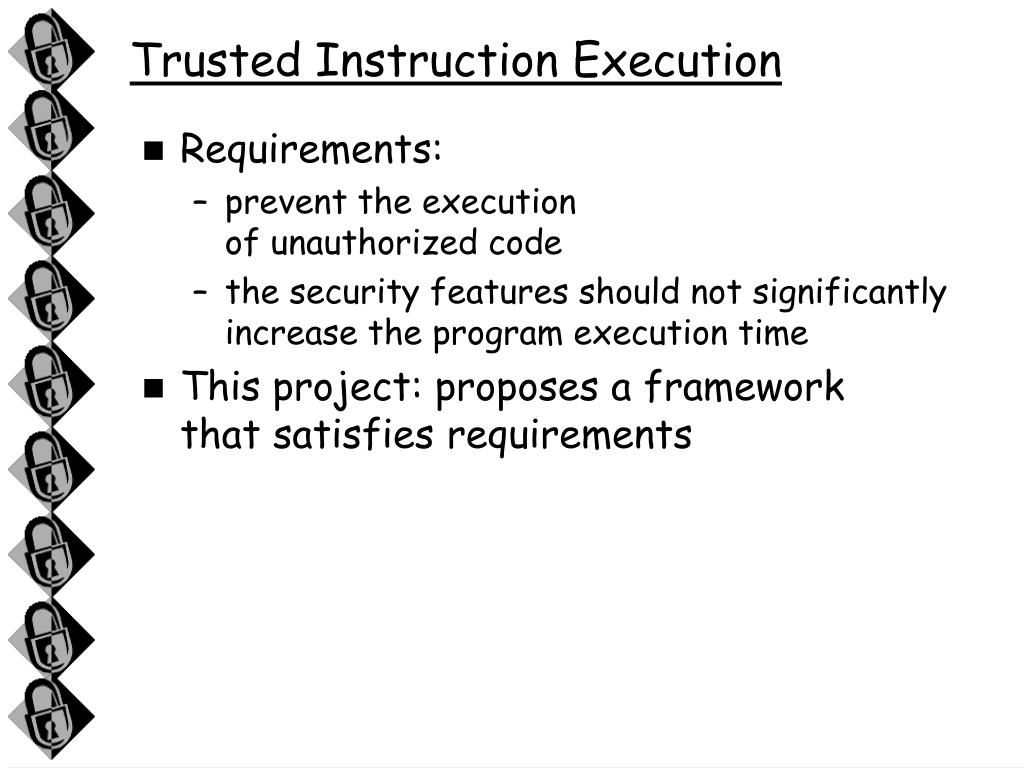

  8. Trusted Instruction Execution • Requirements: • prevent the execution of unauthorized code • the security features should not significantly increase the program execution time • This project: proposes a framework that satisfies requirements

  9. Trusted Instruction Execution • Atomic code unit protected by its signature: a basic block • Verify all basic blocks? • It is enough to verify the signatureof the last basic block (LBB) in the instruction stream, when LBB generated a cache miss • Signatures on hard disk: encrypted

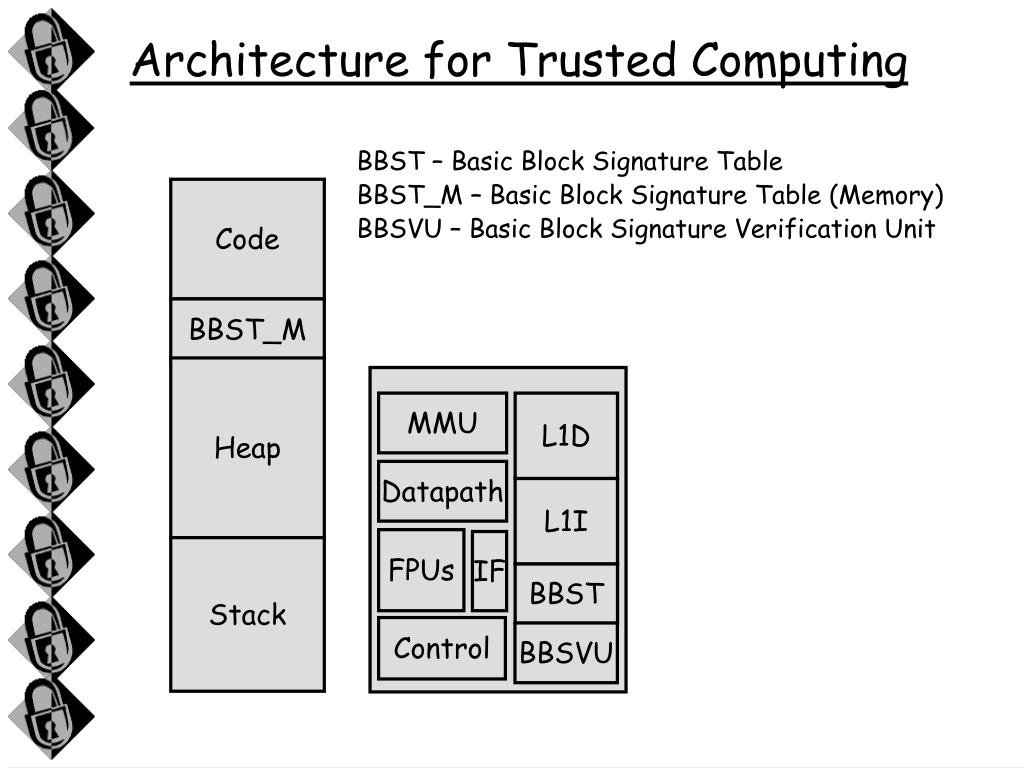

  10. Code BBST_M Heap Stack Architecture for Trusted Computing BBST – Basic Block Signature Table BBST_M – Basic Block Signature Table (Memory) BBSVU – Basic Block Signature Verification Unit MMU L1D Datapath L1I FPUs IF BBST Control BBSVU

  11. Signature Generation • MISR (Multiple input signature register) • Linear feedback coefficients – based on the processor secret key

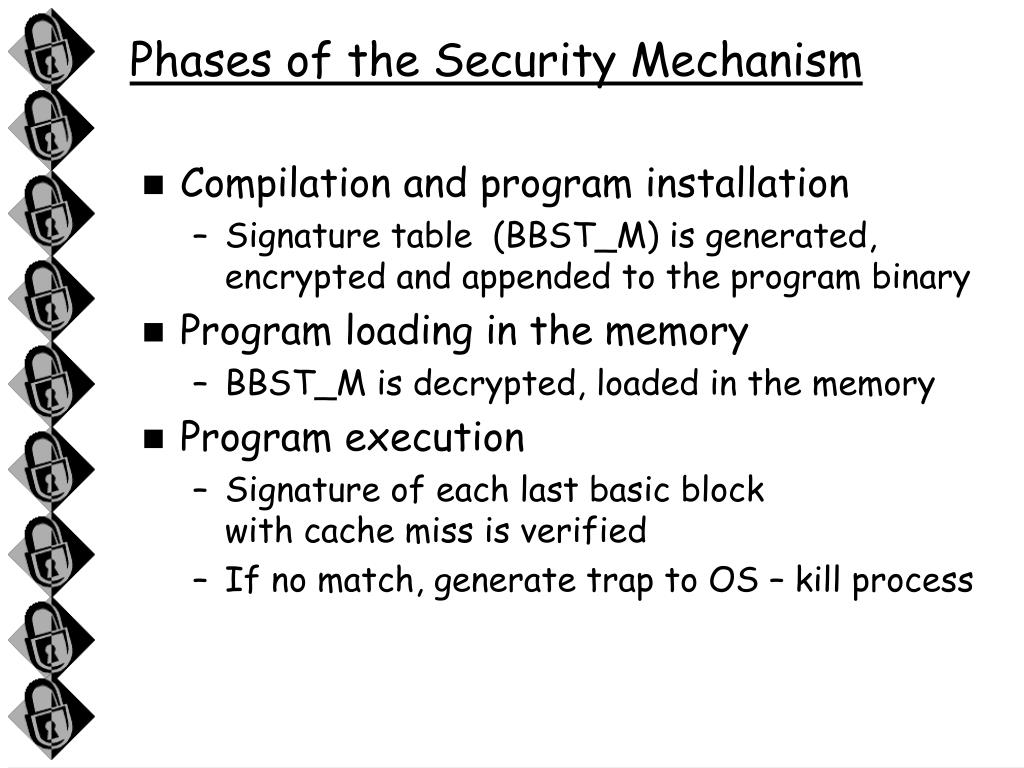

  12. Phases of the Security Mechanism • Compilation and program installation • Signature table (BBST_M) is generated, encrypted and appended to the program binary • Program loading in the memory • BBST_M is decrypted, loaded in the memory • Program execution • Signature of each last basic block with cache miss is verified • If no match, generate trap to OS – kill process

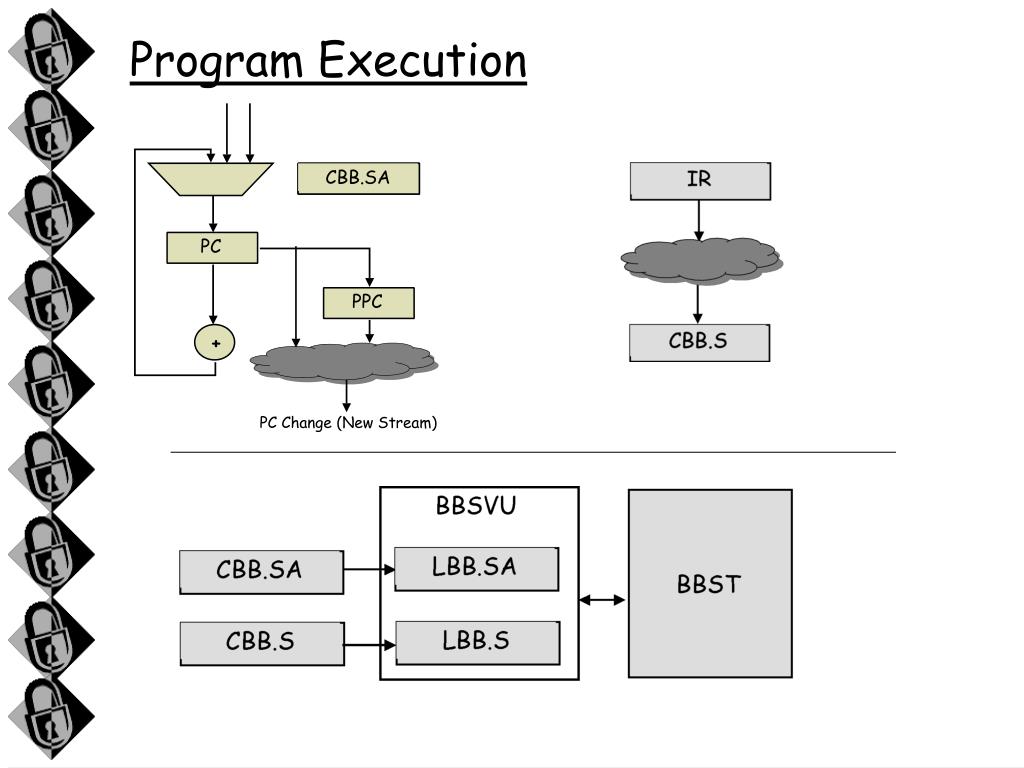

  13. Program Execution

  14. The Framework Potential • 32-bit MISR • I-cache: 4 ways, 128 sets, 64B line • BBST: 4 ways, 4B line, 128/256 sets • LRU replacement • Traces of SPEC CPU2000 benchmarks for Alpha architecture • F2B, M2B segments • 10 integer (CINT), 11 floating-point benchmarks (CFP)

  15. The Framework Potential

  16. The Framework Potential

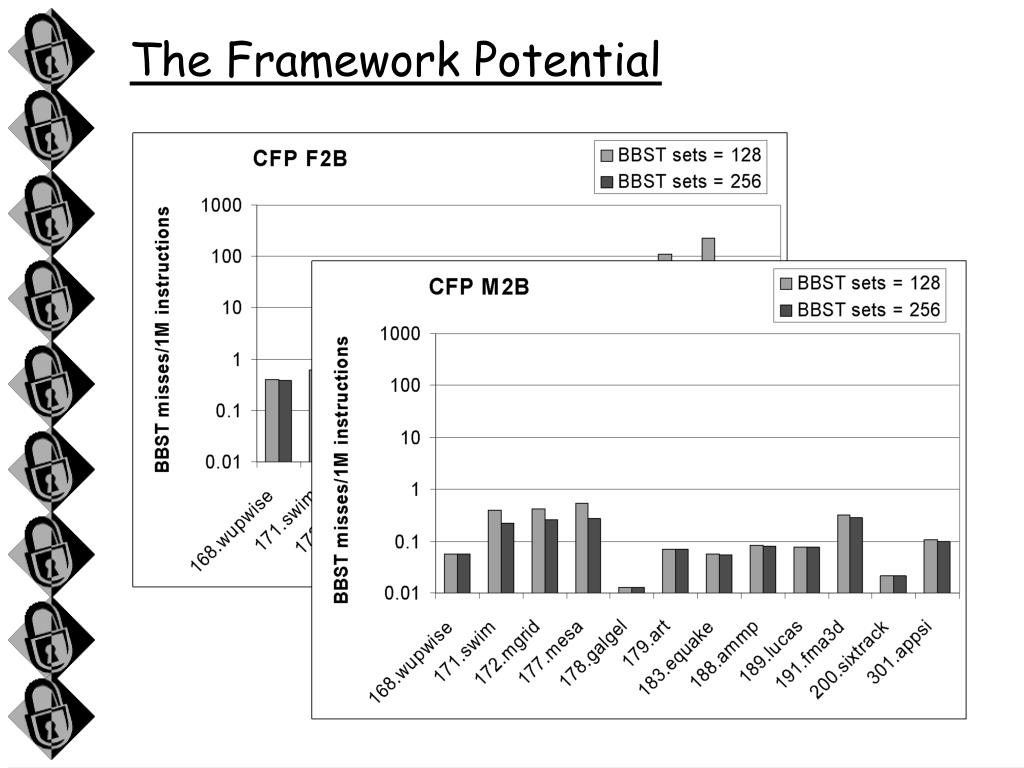

  17. The Framework Potential

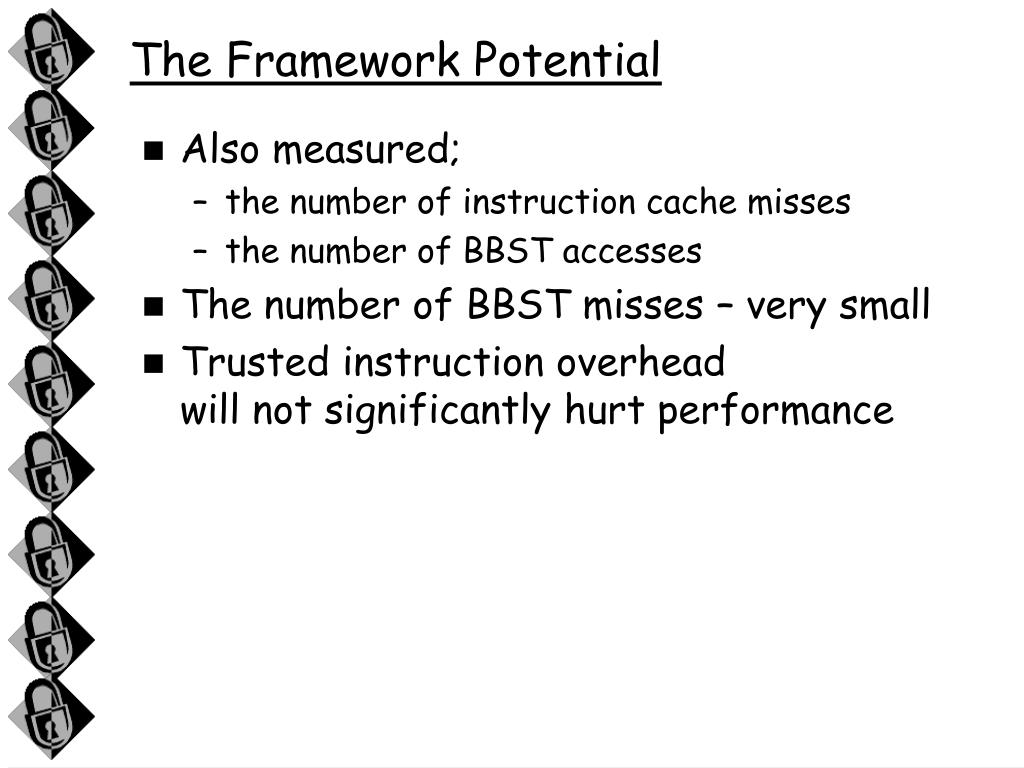

  18. The Framework Potential • Also measured; • the number of instruction cache misses • the number of BBST accesses • The number of BBST misses – very small • Trusted instruction overheadwill not significantly hurt performance

  19. Conclusion • Proposed a framework for trusted instruction execution,evaluated potential • Promises to be faster than SPEF, with additional hardware resources and BBST appended to program binary • Future work: • asses different BBST organizations • preload BBST? • simulate execution time • evaluate an alternative implementation:signature embedded in the code
