Presentation Transcript

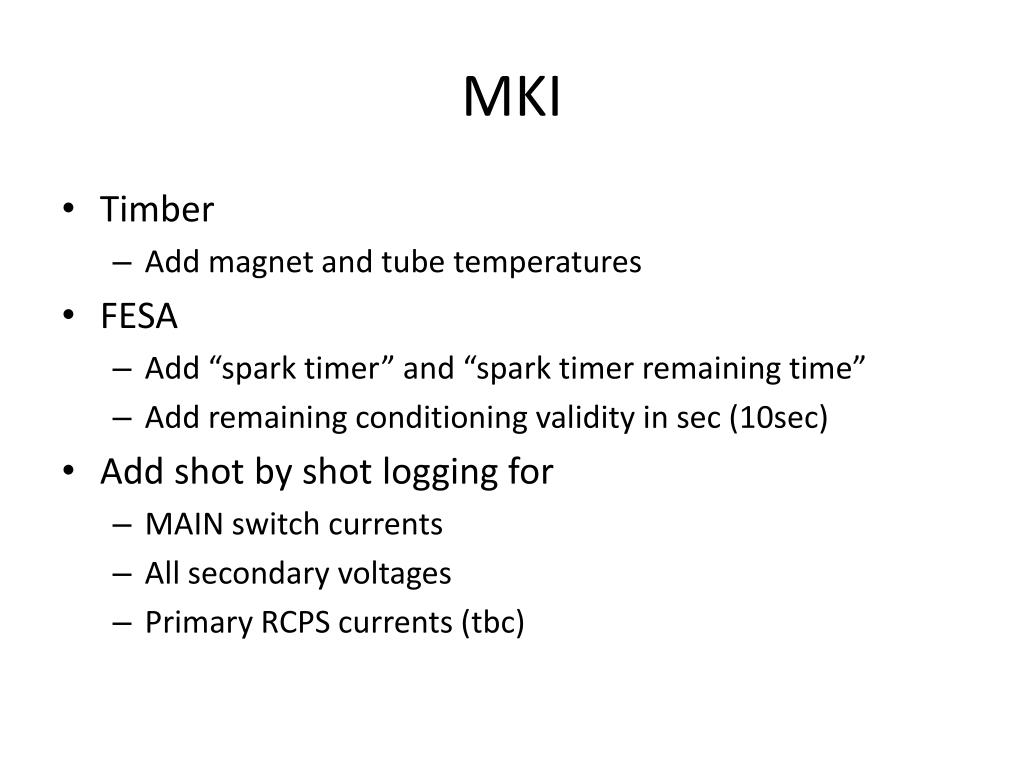

  1. MKI • Timber • Add magnet and tube temperatures • FESA • Add “spark timer” and “spark timer remaining time” • Add remaining conditioning validity in sec (10sec) • Add shot by shot logging for • MAIN switch currents • All secondary voltages • Primary RCPS currents (tbc)

  2. MKI • Increase fast interlock sensitivity • Reduce inhibit threshold from 15kV  7.5kV • Deploy new release of KITS • Improved diagnostic for missing kicks • Install new version of CIBO into FIB (remove when not used???) • Jitter issue • Install new Timing Pulse Adapter (TPA) • Re-check / re-sync AGK • IPOC on AGK??? • Fine synchronization

  3. MKQA • ….

  4. LBDS • Install generator monitoring system • Infrastructure (FEC, Ethernet, Timing…) • Will probably not be finished (delay in the delivery of the digitizers) • Upgrade TSU (Audit follow-up) • Meta-stability • Redundancy in case of internal failure • Install TSU IPOC • Upgrade BEM embedded firmware • BETS / PLC communication errors at 450 GeV

  5. LBDS • Re-cabling TFO outputs • Check re-triggering system • Change PT100 cabling (sense) • 0.5° error on absolute value

  6. TCDQ • Implement “Collimator” state machine in low level software • Implement independent sequences for TCDQ • Check offset (~0.1mm) during function execution • Seems to be mechanical • Add TCDQ positions in XPOC
