  1. Contract-based scheduling Giuseppe Lipari

  2. Summary • Overview of classical scheduling theory • Limitations of classical scheduling • Contract based scheduling • Techniques: • Resource Reservations and periodic servers • Bandwidth Inheritance • Applications • Hard and soft real-time tasks • Supporting imprecise computation model with contracts • Hierarchical scheduling • Component based systems • Adaptive Systems • Feedback control MOTIVES - ARTIST 2 Winter School

  3. Classical Scheduling Theory MOTIVES - ARTIST 2 Winter School

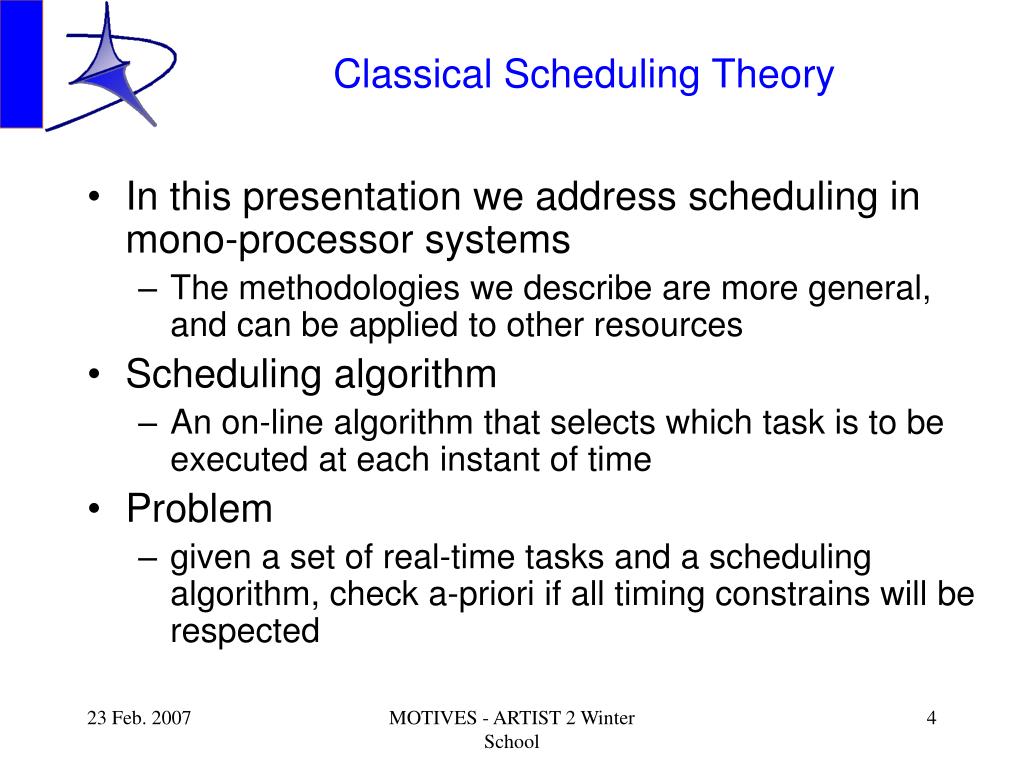

  4. Classical Scheduling Theory • In this presentation we address scheduling in mono-processor systems • The methodologies we describe are more general, and can be applied to other resources • Scheduling algorithm • An on-line algorithm that selects which task is to be executed at each instant of time • Problem • given a set of real-time tasks and a scheduling algorithm, check a-priori if all timing constrains will be respected MOTIVES - ARTIST 2 Winter School

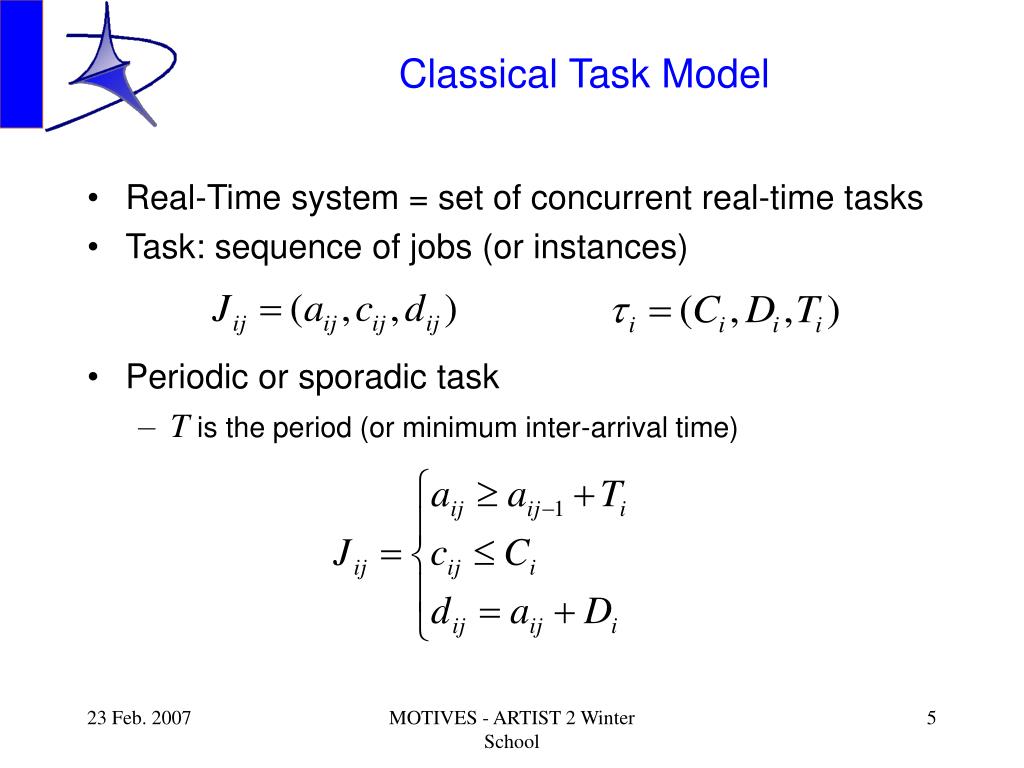

  5. Classical Task Model • Real-Time system = set of concurrent real-time tasks • Task: sequence of jobs (or instances) • Periodic or sporadic task • T is the period (or minimum inter-arrival time) MOTIVES - ARTIST 2 Winter School

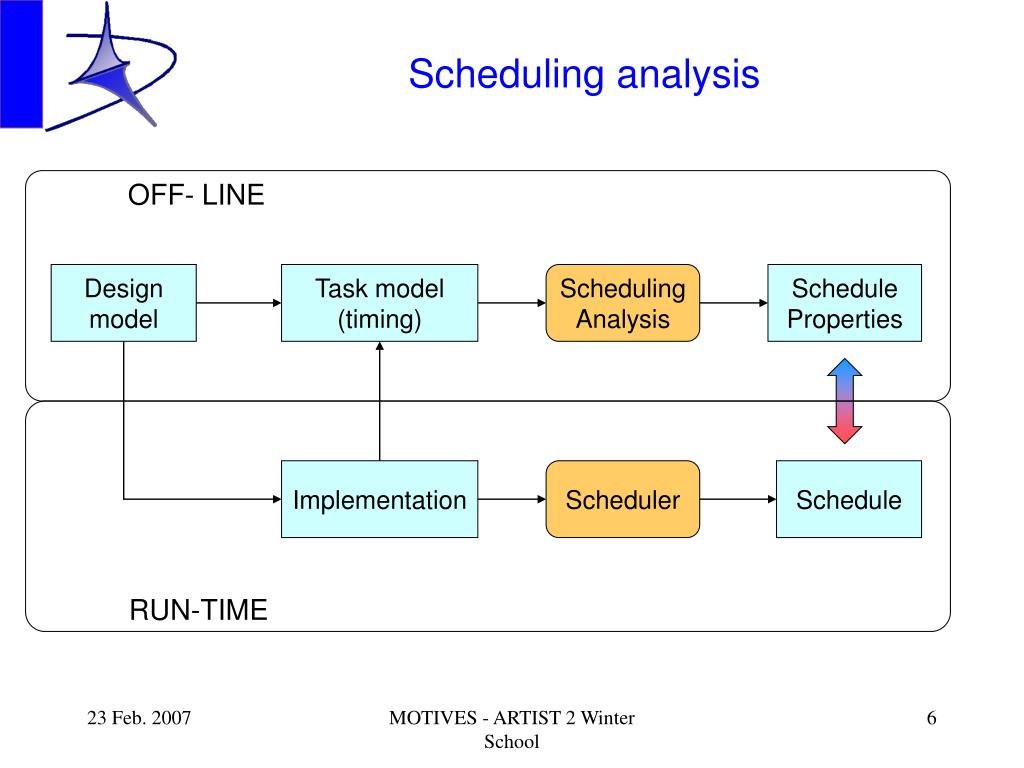

  6. Scheduling analysis OFF- LINE Design model Task model (timing) Scheduling Analysis Schedule Properties Implementation Scheduler Schedule RUN-TIME MOTIVES - ARTIST 2 Winter School

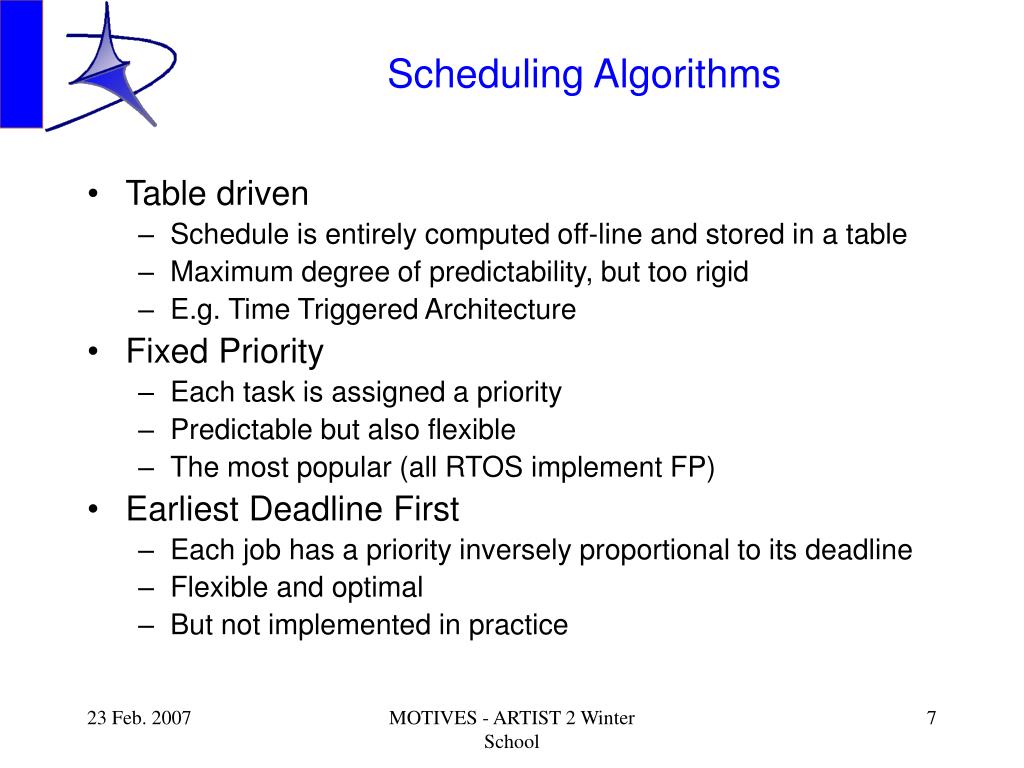

  7. Scheduling Algorithms • Table driven • Schedule is entirely computed off-line and stored in a table • Maximum degree of predictability, but too rigid • E.g. Time Triggered Architecture • Fixed Priority • Each task is assigned a priority • Predictable but also flexible • The most popular (all RTOS implement FP) • Earliest Deadline First • Each job has a priority inversely proportional to its deadline • Flexible and optimal • But not implemented in practice MOTIVES - ARTIST 2 Winter School

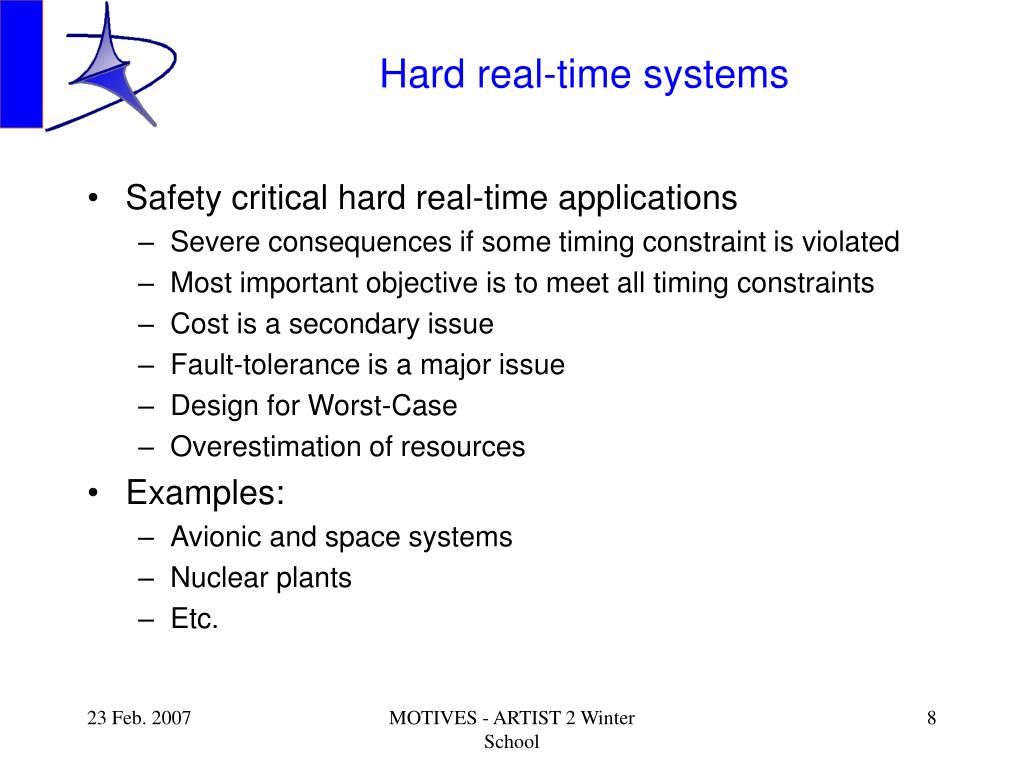

  8. Hard real-time systems • Safety critical hard real-time applications • Severe consequences if some timing constraint is violated • Most important objective is to meet all timing constraints • Cost is a secondary issue • Fault-tolerance is a major issue • Design for Worst-Case • Overestimation of resources • Examples: • Avionic and space systems • Nuclear plants • Etc. MOTIVES - ARTIST 2 Winter School

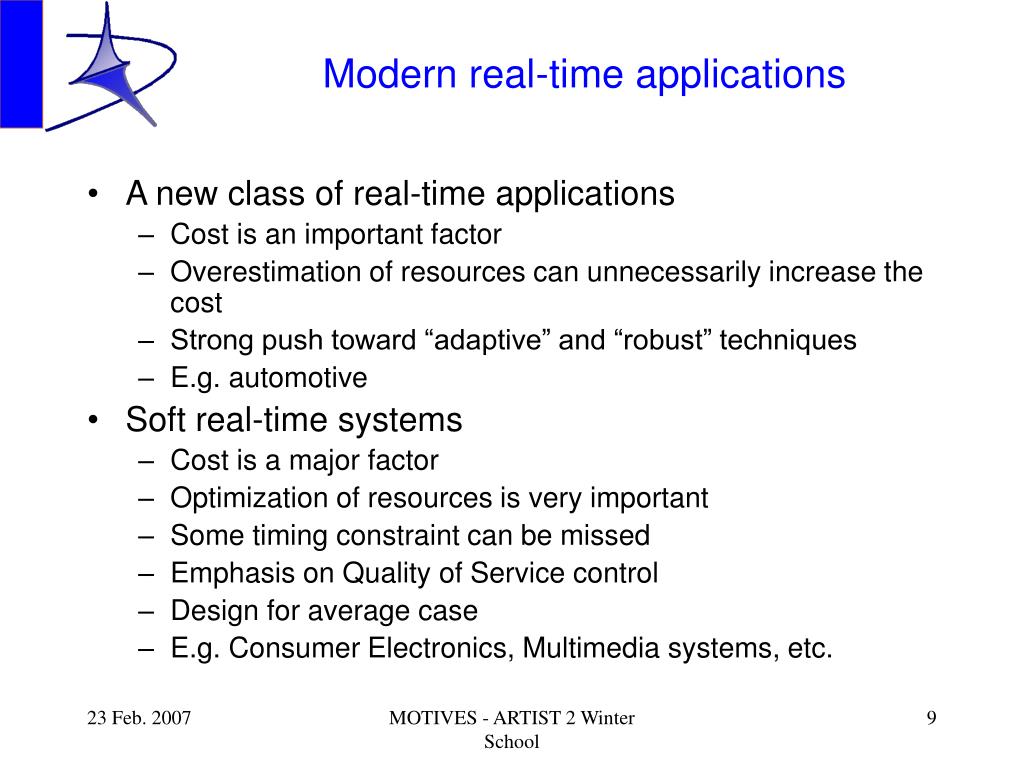

  9. Modern real-time applications • A new class of real-time applications • Cost is an important factor • Overestimation of resources can unnecessarily increase the cost • Strong push toward “adaptive” and “robust” techniques • E.g. automotive • Soft real-time systems • Cost is a major factor • Optimization of resources is very important • Some timing constraint can be missed • Emphasis on Quality of Service control • Design for average case • E.g. Consumer Electronics, Multimedia systems, etc. MOTIVES - ARTIST 2 Winter School

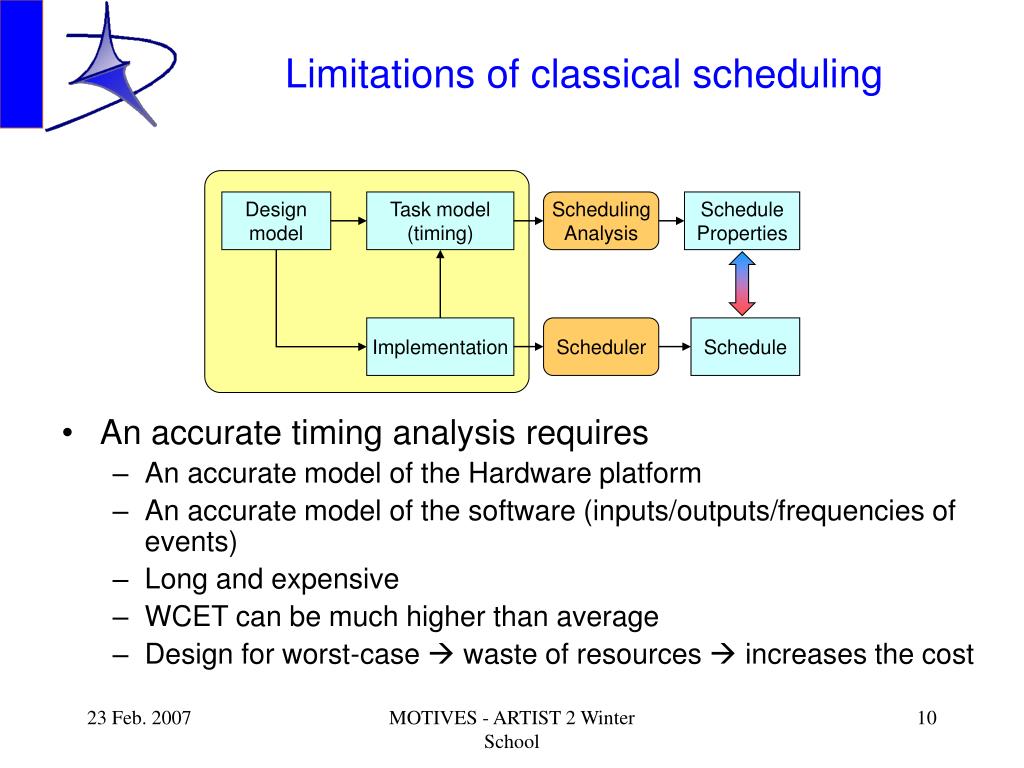

  10. Limitations of classical scheduling • An accurate timing analysis requires • An accurate model of the Hardware platform • An accurate model of the software (inputs/outputs/frequencies of events) • Long and expensive • WCET can be much higher than average • Design for worst-case  waste of resources  increases the cost Design model Task model (timing) Scheduling Analysis Schedule Properties Implementation Scheduler Schedule MOTIVES - ARTIST 2 Winter School

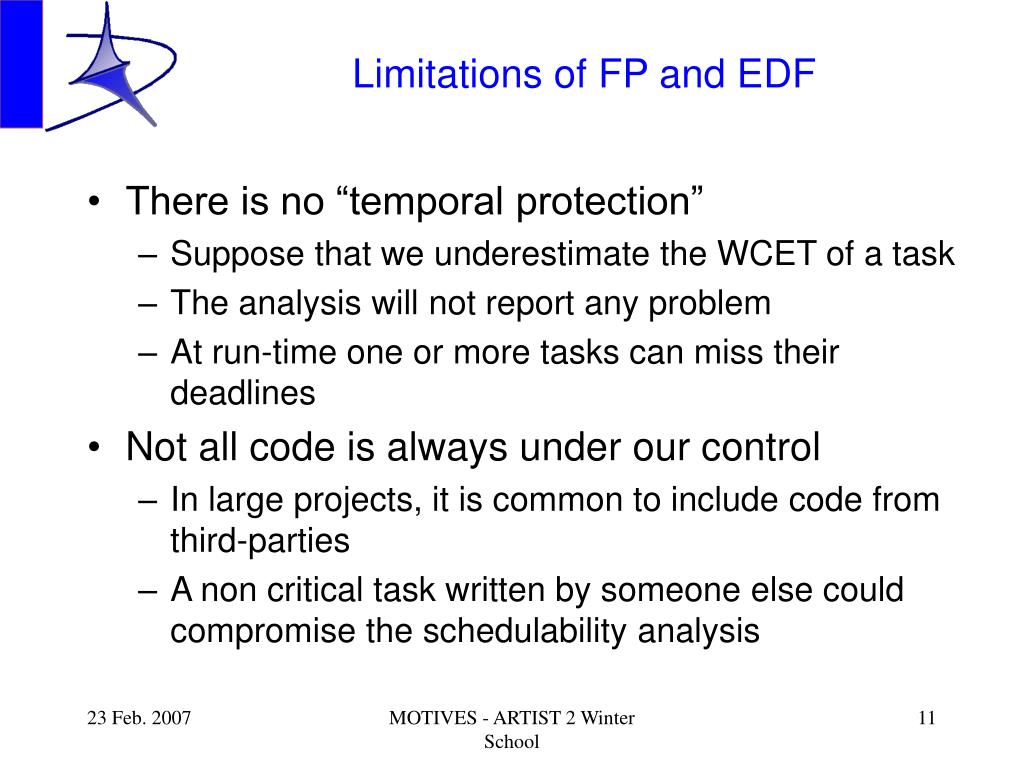

  11. Limitations of FP and EDF • There is no “temporal protection” • Suppose that we underestimate the WCET of a task • The analysis will not report any problem • At run-time one or more tasks can miss their deadlines • Not all code is always under our control • In large projects, it is common to include code from third-parties • A non critical task written by someone else could compromise the schedulability analysis MOTIVES - ARTIST 2 Winter School

  12. task1 task2 Temporal fault task1 task2 Executing more than expected... task2 fails!! MOTIVES - ARTIST 2 Winter School

  13. Example with EDF • Three tasks scheduled by EDF • C1=1, T1=4 • C2=?, T2=6 • C3=2, T3=8 task1 task2 task3 It’s executing too much... (5 instead of 3) Deadline miss! MOTIVES - ARTIST 2 Winter School

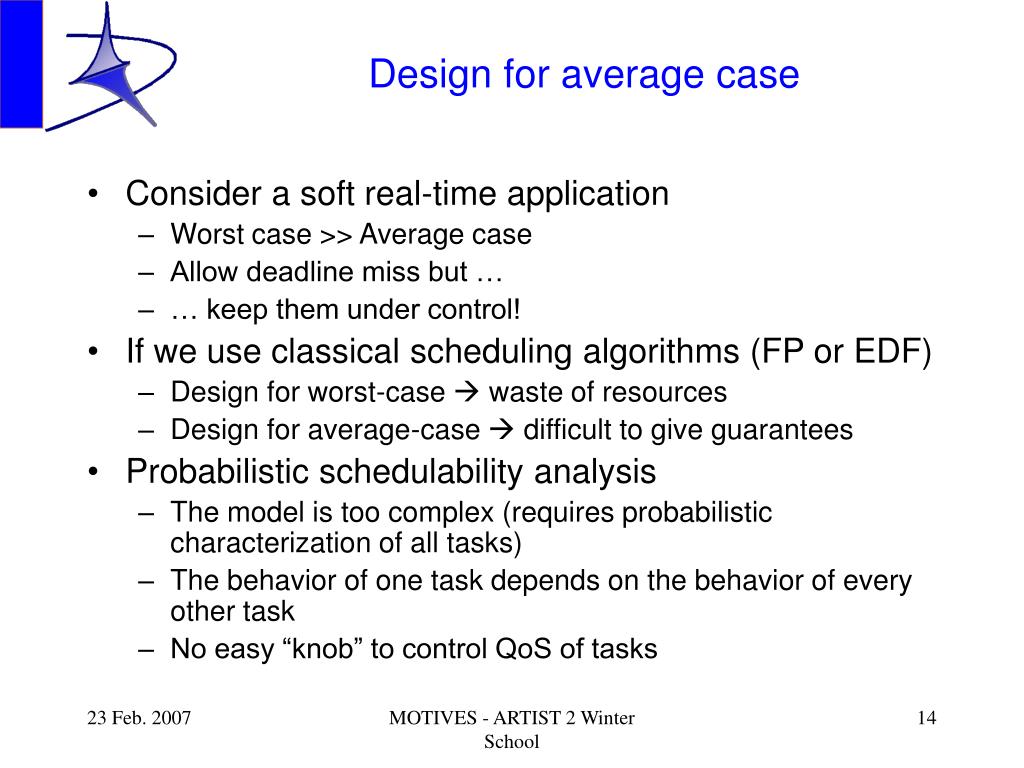

  14. Design for average case • Consider a soft real-time application • Worst case >> Average case • Allow deadline miss but … • … keep them under control! • If we use classical scheduling algorithms (FP or EDF) • Design for worst-case  waste of resources • Design for average-case  difficult to give guarantees • Probabilistic schedulability analysis • The model is too complex (requires probabilistic characterization of all tasks) • The behavior of one task depends on the behavior of every other task • No easy “knob” to control QoS of tasks MOTIVES - ARTIST 2 Winter School

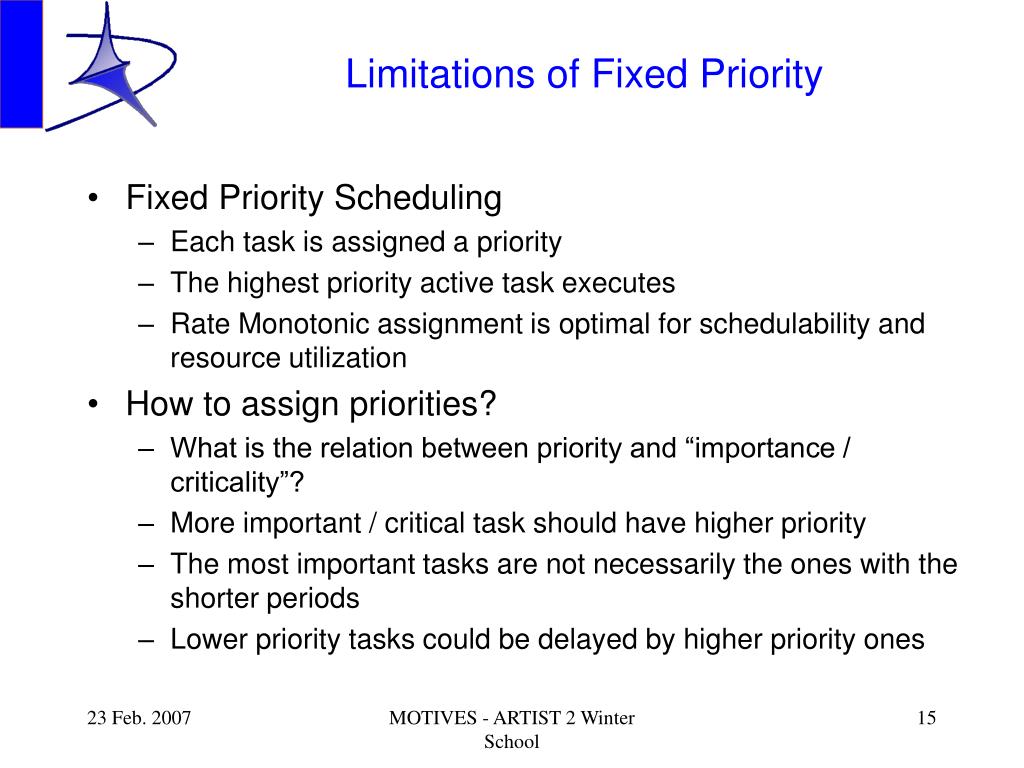

  15. Limitations of Fixed Priority • Fixed Priority Scheduling • Each task is assigned a priority • The highest priority active task executes • Rate Monotonic assignment is optimal for schedulability and resource utilization • How to assign priorities? • What is the relation between priority and “importance / criticality”? • More important / critical task should have higher priority • The most important tasks are not necessarily the ones with the shorter periods • Lower priority tasks could be delayed by higher priority ones MOTIVES - ARTIST 2 Winter School

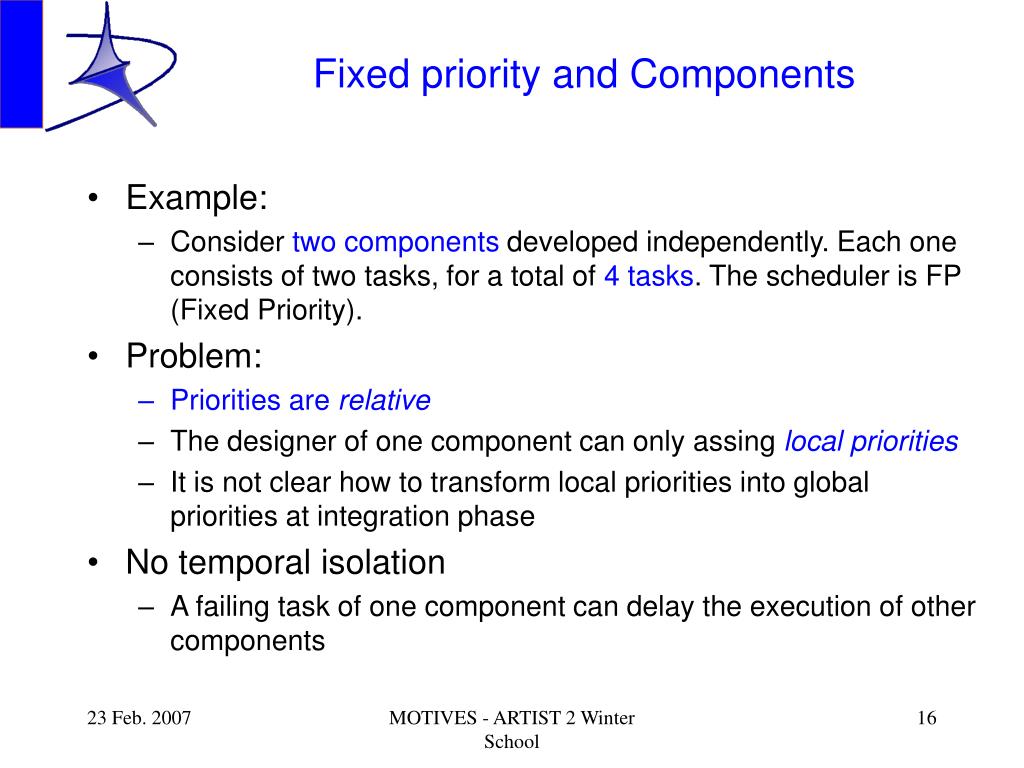

  16. Fixed priority and Components • Example: • Consider two components developed independently. Each one consists of two tasks, for a total of 4 tasks. The scheduler is FP (Fixed Priority). • Problem: • Priorities are relative • The designer of one component can only assing local priorities • It is not clear how to transform local priorities into global priorities at integration phase • No temporal isolation • A failing task of one component can delay the execution of other components MOTIVES - ARTIST 2 Winter School

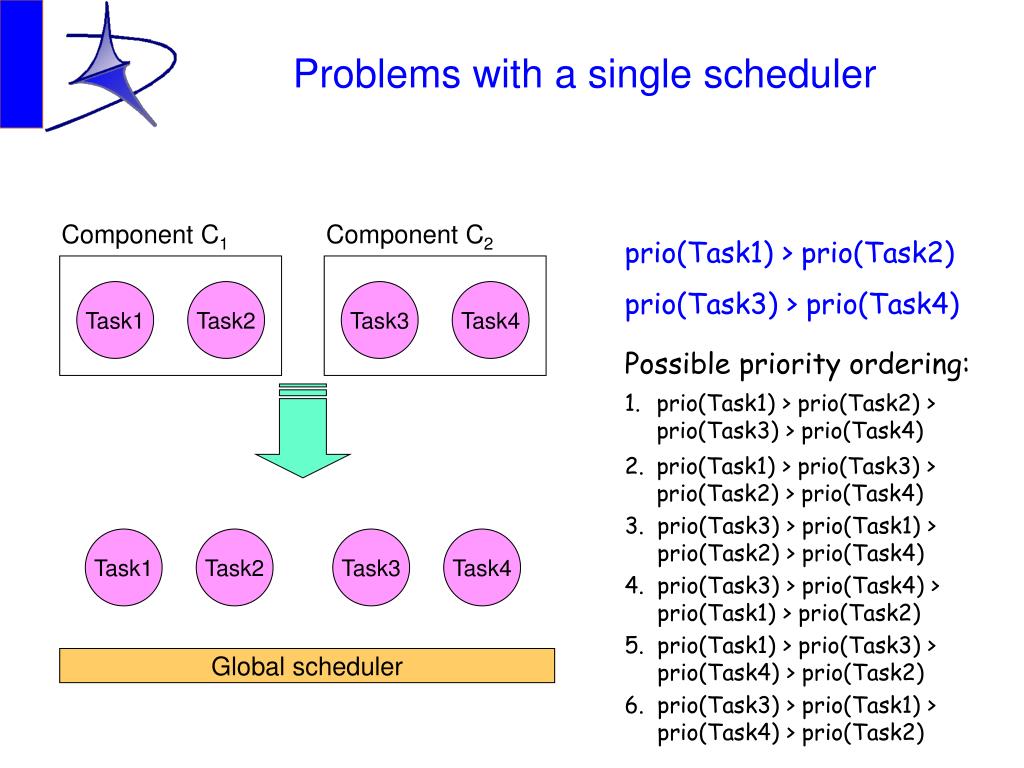

  17. Component C1 Component C2 Task1 Task2 Task3 Task4 Task1 Task2 Task3 Task4 Global scheduler Problems with a single scheduler prio(Task1) > prio(Task2) prio(Task3) > prio(Task4) Possible priority ordering: 1. prio(Task1) > prio(Task2) > prio(Task3) > prio(Task4) 2. prio(Task1) > prio(Task3) > prio(Task2) > prio(Task4) 3. prio(Task3) > prio(Task1) > prio(Task2) > prio(Task4) 4. prio(Task3) > prio(Task4) > prio(Task1) > prio(Task2) 5. prio(Task1) > prio(Task3) > prio(Task4) > prio(Task2) 6. prio(Task3) > prio(Task1) > prio(Task4) > prio(Task2)

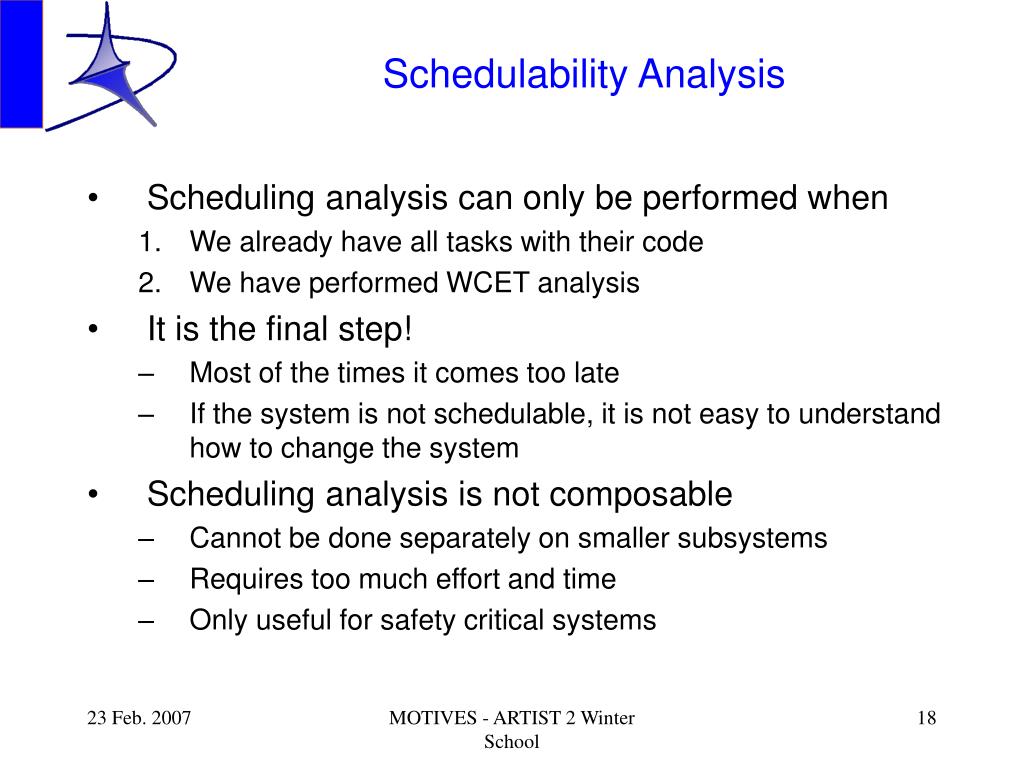

  18. Schedulability Analysis • Scheduling analysis can only be performed when • We already have all tasks with their code • We have performed WCET analysis • It is the final step! • Most of the times it comes too late • If the system is not schedulable, it is not easy to understand how to change the system • Scheduling analysis is not composable • Cannot be done separately on smaller subsystems • Requires too much effort and time • Only useful for safety critical systems MOTIVES - ARTIST 2 Winter School

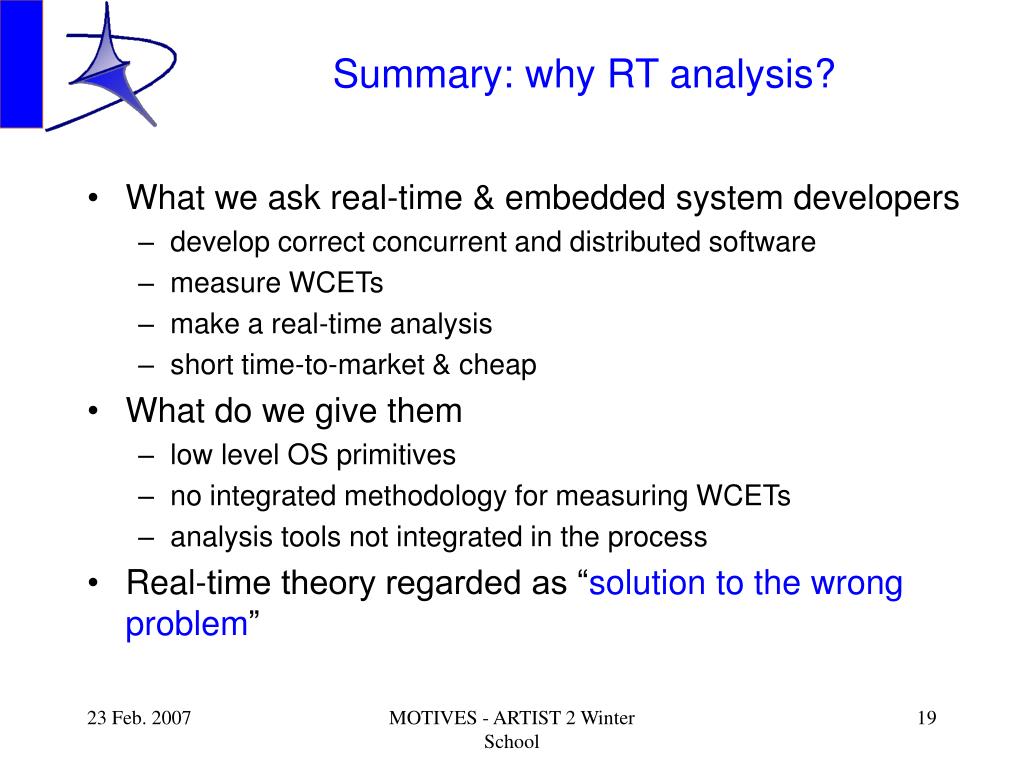

  19. Summary: why RT analysis? • What we ask real-time & embedded system developers • develop correct concurrent and distributed software • measure WCETs • make a real-time analysis • short time-to-market & cheap • What do we give them • low level OS primitives • no integrated methodology for measuring WCETs • analysis tools not integrated in the process • Real-time theory regarded as “solution to the wrong problem” MOTIVES - ARTIST 2 Winter School

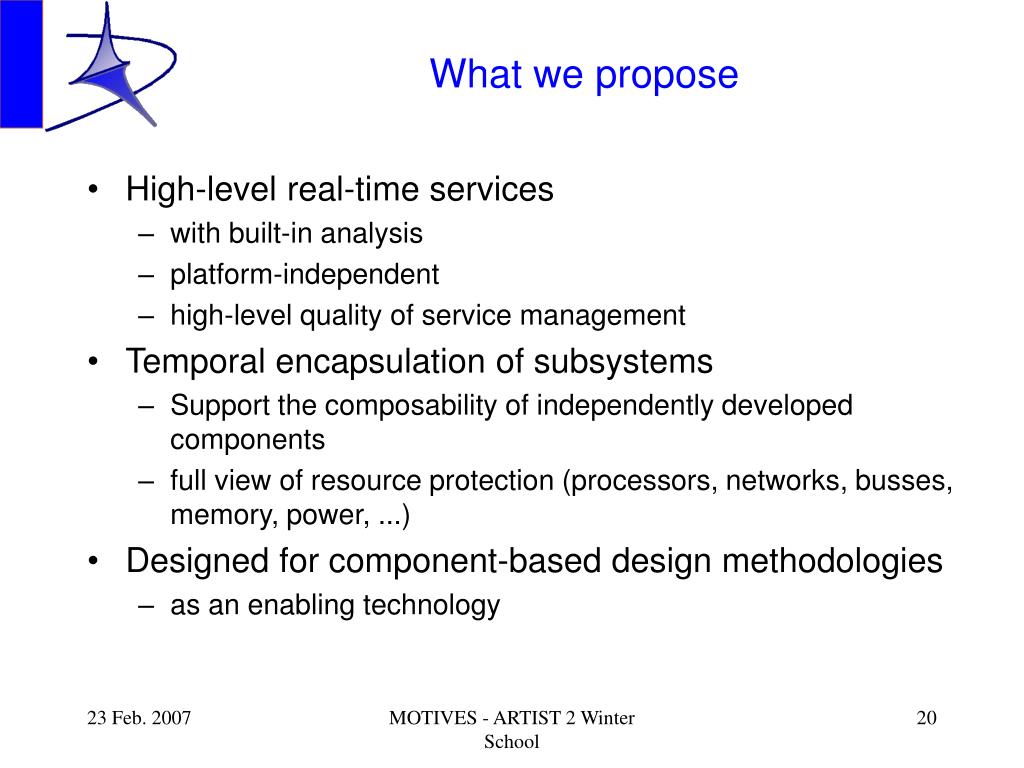

  20. What we propose • High-level real-time services • with built-in analysis • platform-independent • high-level quality of service management • Temporal encapsulation of subsystems • Support the composability of independently developed components • full view of resource protection (processors, networks, busses, memory, power, ...) • Designed for component-based design methodologies • as an enabling technology MOTIVES - ARTIST 2 Winter School

  21. Contract Based Scheduling MOTIVES - ARTIST 2 Winter School

  22. Objectives • A scheduling algorithm • Temporal protection • On-line admission control • Appropriate OS primitives • Platform-independent • “standard” • That allow QoS management and control • A scheduling analysis • Composable MOTIVES - ARTIST 2 Winter School

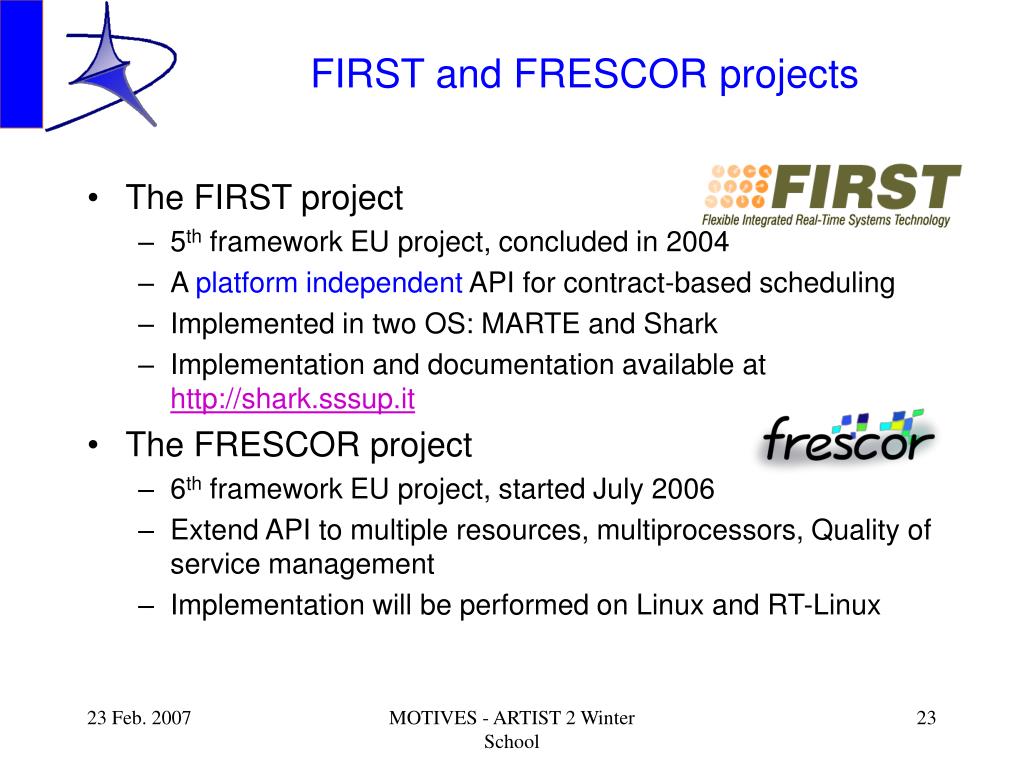

  23. FIRST and FRESCOR projects • The FIRST project • 5th framework EU project, concluded in 2004 • A platform independent API for contract-based scheduling • Implemented in two OS: MARTE and Shark • Implementation and documentation available at http://shark.sssup.it • The FRESCOR project • 6th framework EU project, started July 2006 • Extend API to multiple resources, multiprocessors, Quality of service management • Implementation will be performed on Linux and RT-Linux MOTIVES - ARTIST 2 Winter School

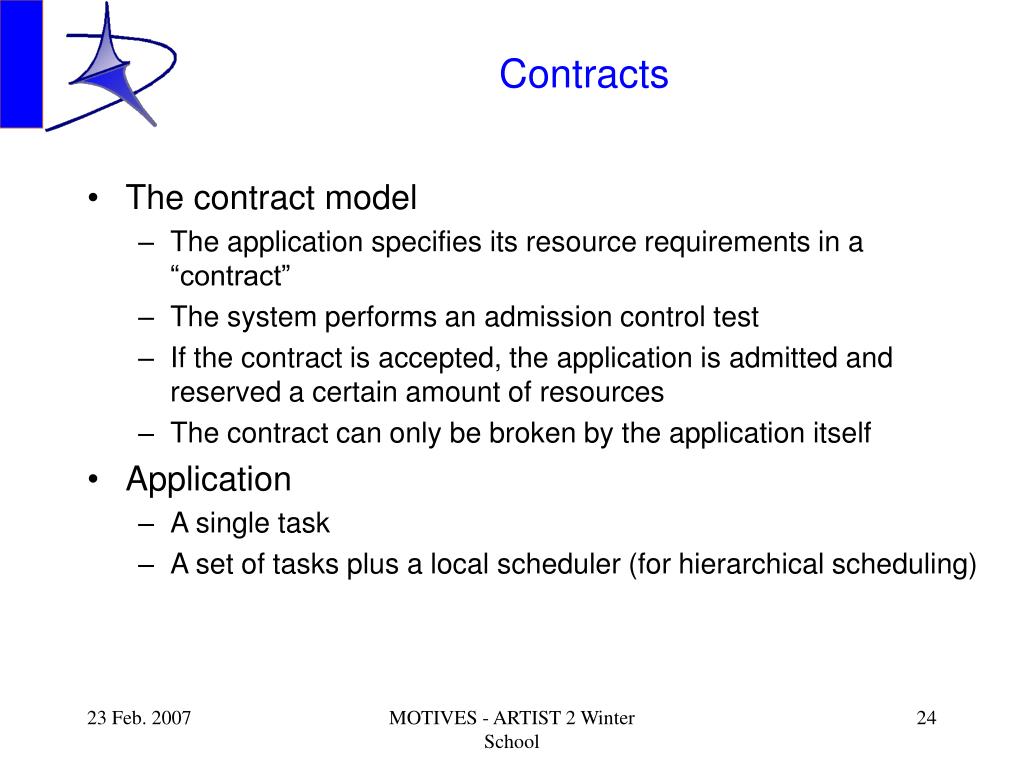

  24. Contracts • The contract model • The application specifies its resource requirements in a “contract” • The system performs an admission control test • If the contract is accepted, the application is admitted and reserved a certain amount of resources • The contract can only be broken by the application itself • Application • A single task • A set of tasks plus a local scheduler (for hierarchical scheduling) MOTIVES - ARTIST 2 Winter School

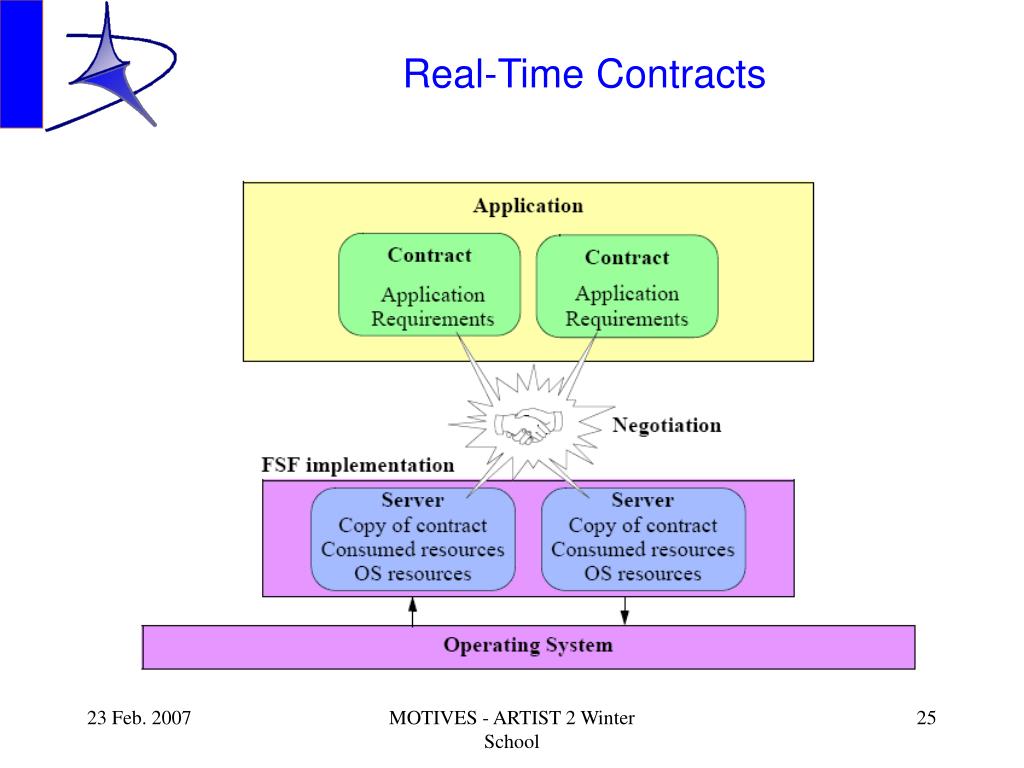

  25. Real-Time Contracts MOTIVES - ARTIST 2 Winter School

  26. The contract model in FIRST • Set of modules, each one contains the API for a specific and well defined subset of functionalities Core Implementation specific First Scheduling Framework Shared objects Hierarchical schedulers Dynamic reclamation Spare capacity sharing Distribution MOTIVES - ARTIST 2 Winter School

  27. P Q D Contract parameters • Core parameters • (Qmin, Qmax) min and max budget • (Pmin, Pmax) min and max budget • Deadline • Granularity = (discrete | continuous) • Signaling • Negotiation • If it can be admitted, selects (Q, P) • At run-time, it guarantees Q every P units of time, within D from the start MOTIVES - ARTIST 2 Winter School

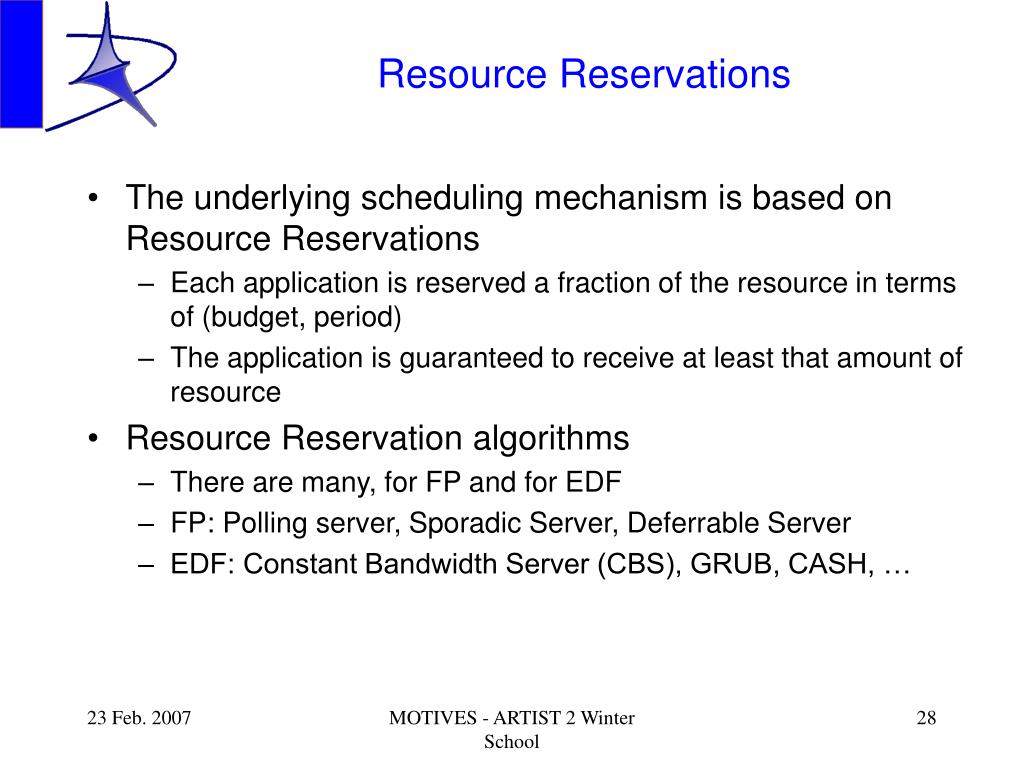

  28. Resource Reservations • The underlying scheduling mechanism is based on Resource Reservations • Each application is reserved a fraction of the resource in terms of (budget, period) • The application is guaranteed to receive at least that amount of resource • Resource Reservation algorithms • There are many, for FP and for EDF • FP: Polling server, Sporadic Server, Deferrable Server • EDF: Constant Bandwidth Server (CBS), GRUB, CASH, … MOTIVES - ARTIST 2 Winter School

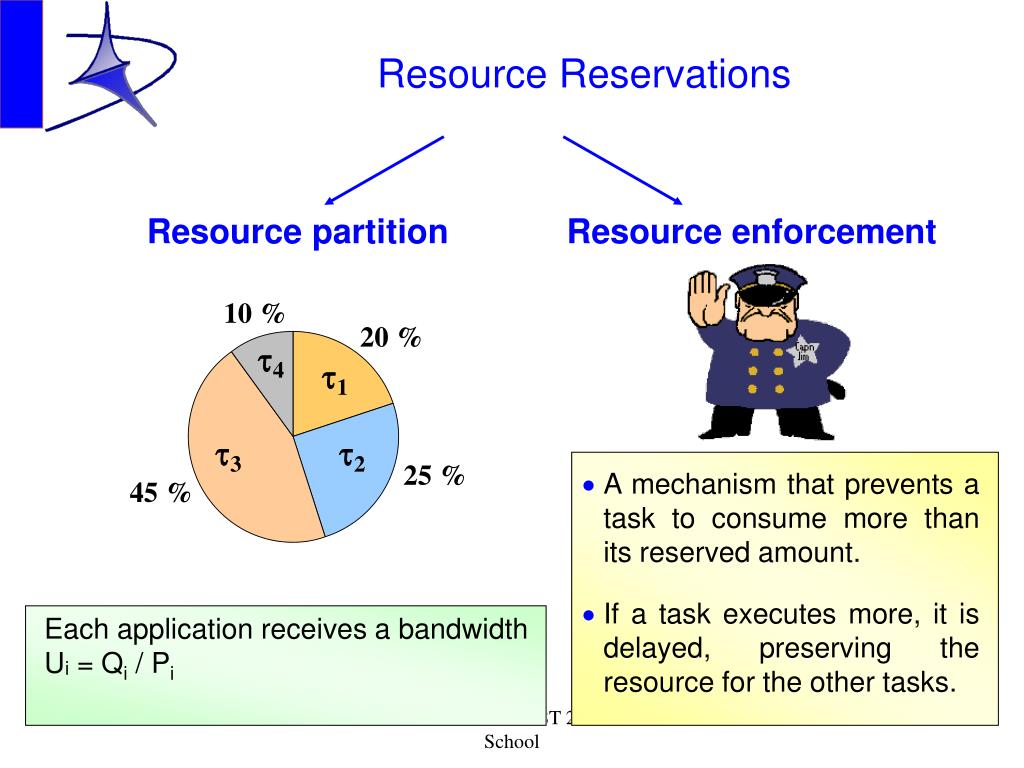

  29. Resource partition Resource enforcement 10 % 20 % t4 • A mechanism that prevents a task to consume more than its reserved amount. • If a task executes more, it is delayed, preserving the resource for the other tasks. t1 t3 t2 25 % 45 % Each application receives a bandwidth Ui = Qi / Pi Resource Reservations MOTIVES - ARTIST 2 Winter School

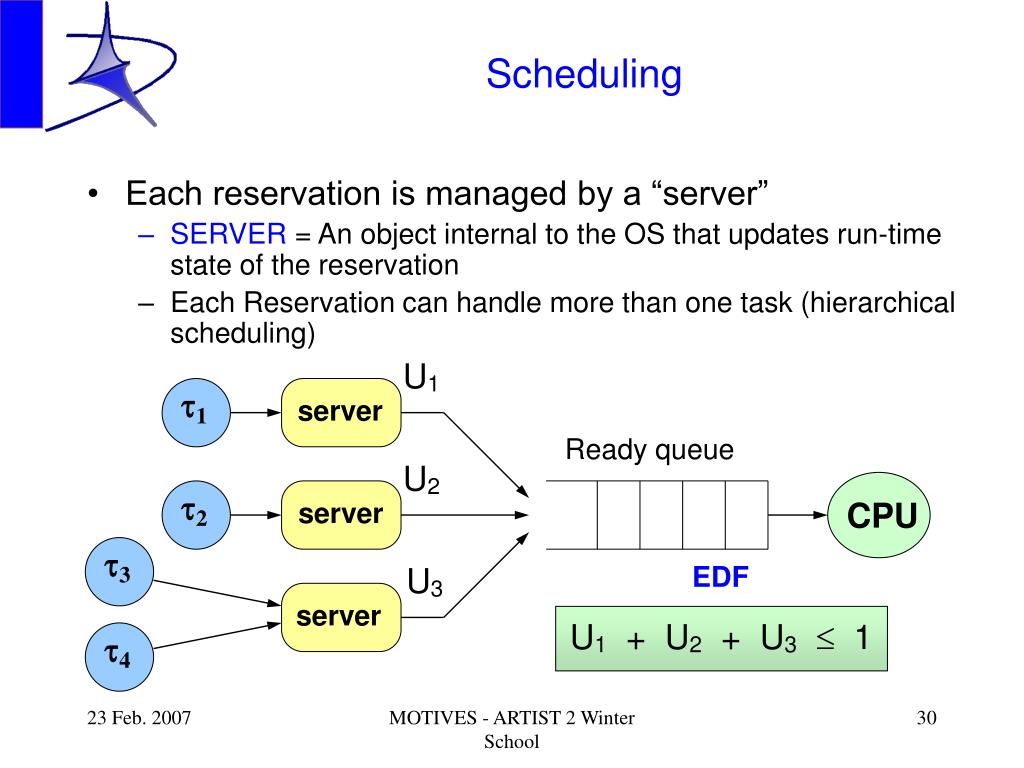

  30. Scheduling • Each reservation is managed by a “server” • SERVER = An object internal to the OS that updates run-time state of the reservation • Each Reservation can handle more than one task (hierarchical scheduling) U1 t1 server Ready queue U2 t2 CPU server t3 EDF U3 server U1 + U2 + U3 1 t4 MOTIVES - ARTIST 2 Winter School

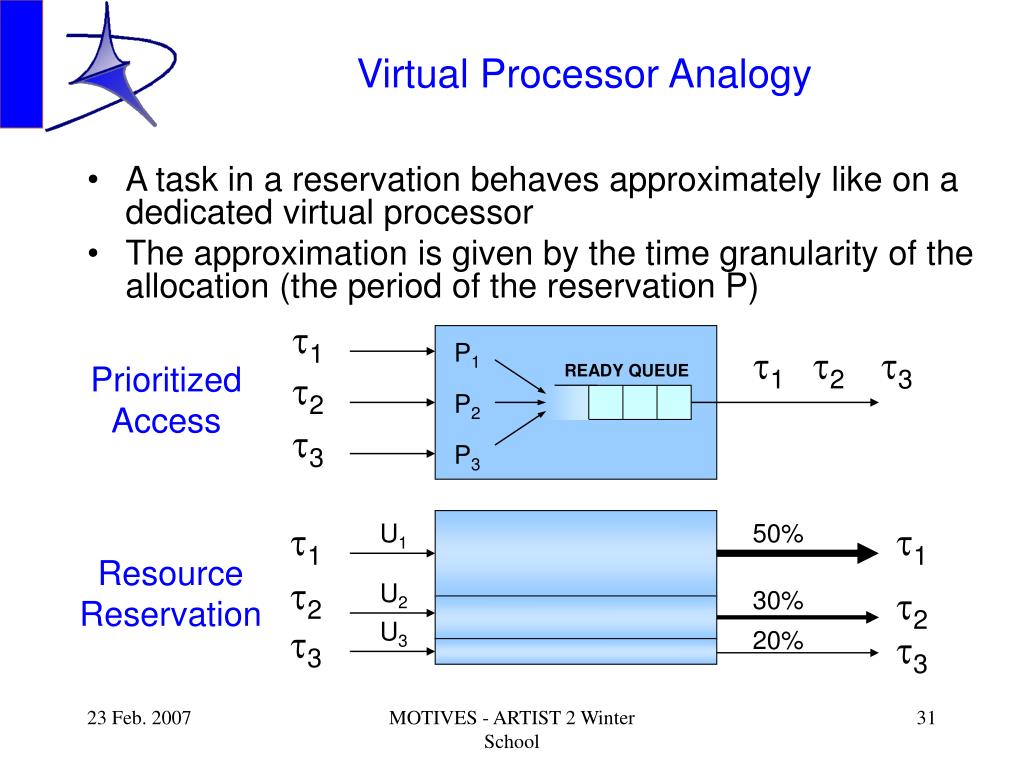

  31. Virtual Processor Analogy • A task in a reservation behaves approximately like on a dedicated virtual processor • The approximation is given by the time granularity of the allocation (the period of the reservation P) 1 P1 1 2 3 Prioritized Access READY QUEUE 2 P2 3 P3 1 1 U1 50% Resource Reservation 2 U2 2 30% U3 3 20% 3 MOTIVES - ARTIST 2 Winter School

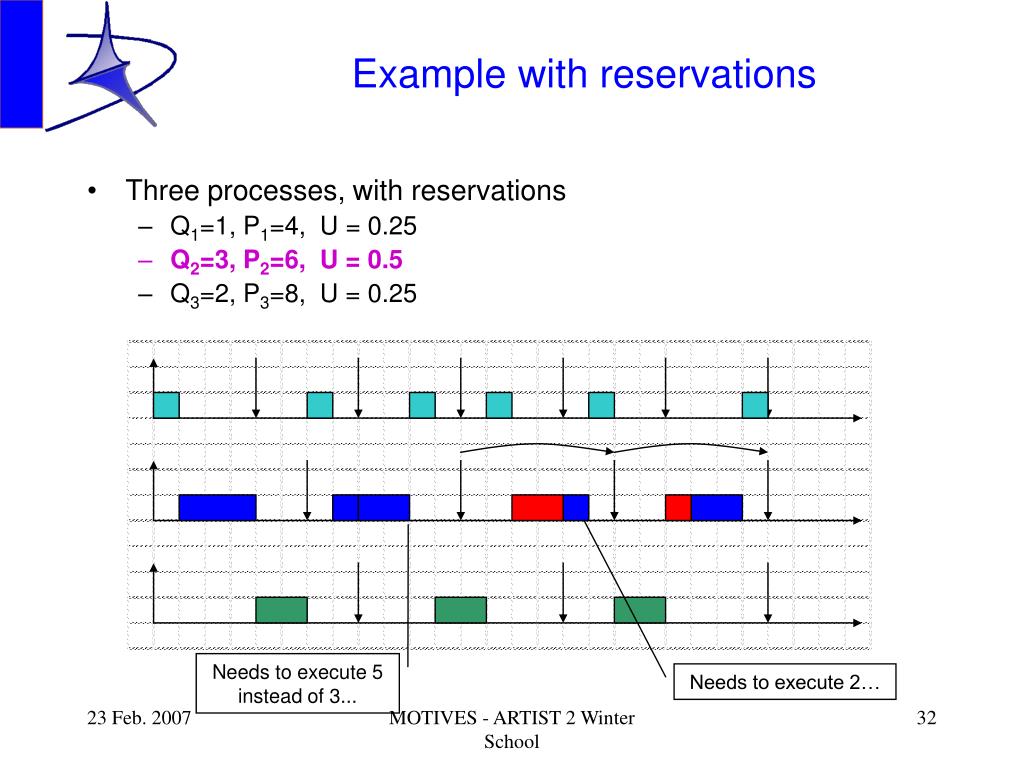

  32. Example with reservations • Three processes, with reservations • Q1=1, P1=4, U = 0.25 • Q2=3, P2=6, U = 0.5 • Q3=2, P3=8, U = 0.25 Needs to execute 5 instead of 3... Needs to execute 2… MOTIVES - ARTIST 2 Winter School

  33. Properties • Individual timing guarantees • The ability of a task to meet its deadline depends only on the amount of resources reserved to it • If a task wants to use more than reserved, it is delayed and does not influence the rest of the tasks • Approximation of Virtual Processor • Independence from underlying scheduling algorithm • The designer needs not to know about FP or EDF, but only about the reservation • Toward a component-based methodology • It is possible to analyze a subsystem independently of the others! MOTIVES - ARTIST 2 Winter School

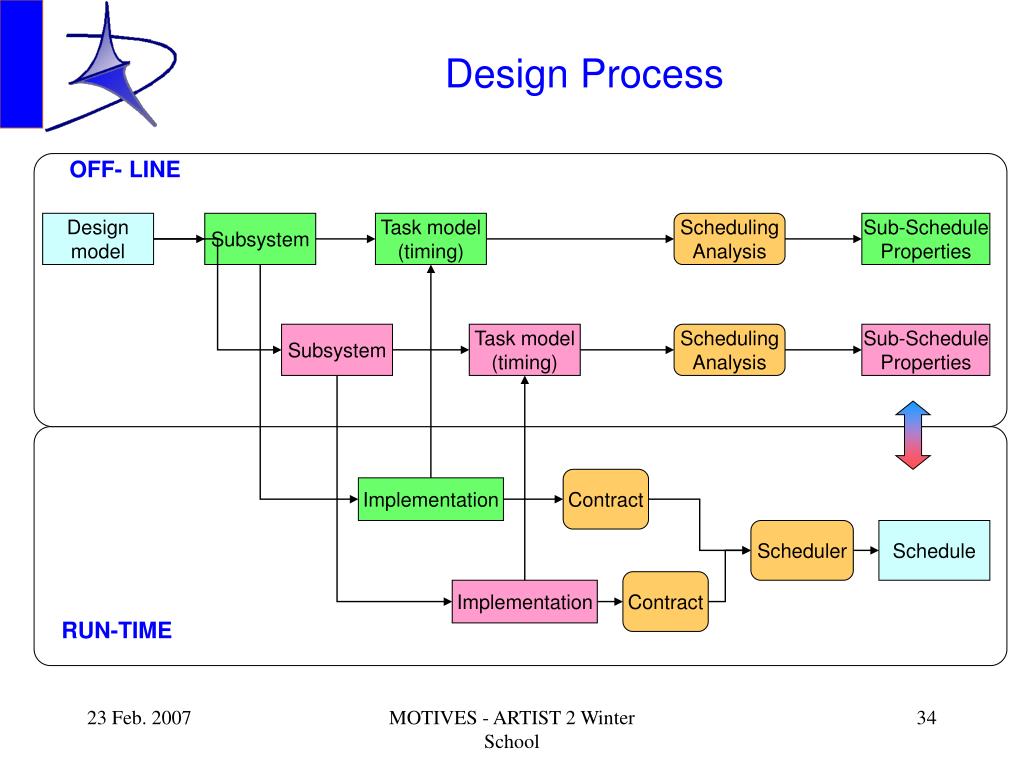

  34. Design Process OFF- LINE Design model Subsystem Task model (timing) Scheduling Analysis Sub-Schedule Properties Subsystem Task model (timing) Scheduling Analysis Sub-Schedule Properties Contract Implementation Scheduler Schedule Contract Implementation RUN-TIME MOTIVES - ARTIST 2 Winter School

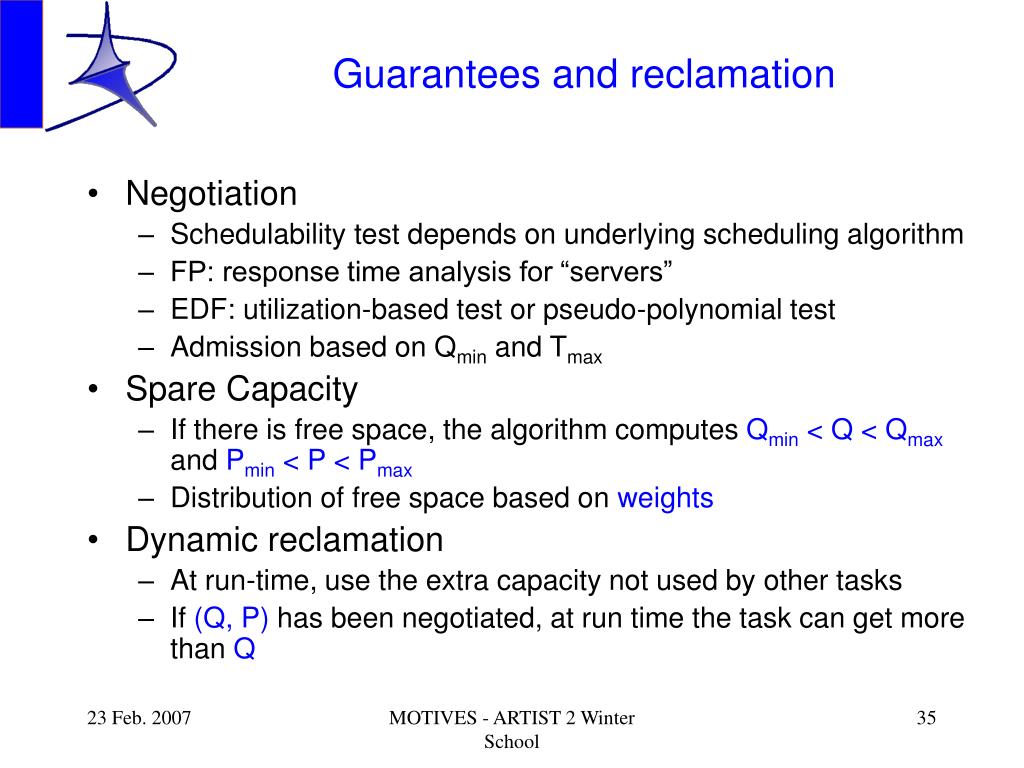

  35. Guarantees and reclamation • Negotiation • Schedulability test depends on underlying scheduling algorithm • FP: response time analysis for “servers” • EDF: utilization-based test or pseudo-polynomial test • Admission based on Qmin and Tmax • Spare Capacity • If there is free space, the algorithm computes Qmin < Q < Qmax and Pmin < P < Pmax • Distribution of free space based on weights • Dynamic reclamation • At run-time, use the extra capacity not used by other tasks • If (Q, P) has been negotiated, at run time the task can get more than Q MOTIVES - ARTIST 2 Winter School

  36. D R G Qmin Tmax Contract Negotiation • Client/server structure: • the service thread is assigned a contract • response time: • Service thread contract params: (Cmin, Tmax, D) • Computation time for negotiation: G User Thread Service Thread msg queue fsf_negotiate_contract() msg queue MOTIVES - ARTIST 2 Winter School

  37. Scheduling techniques MOTIVES - ARTIST 2 Winter School

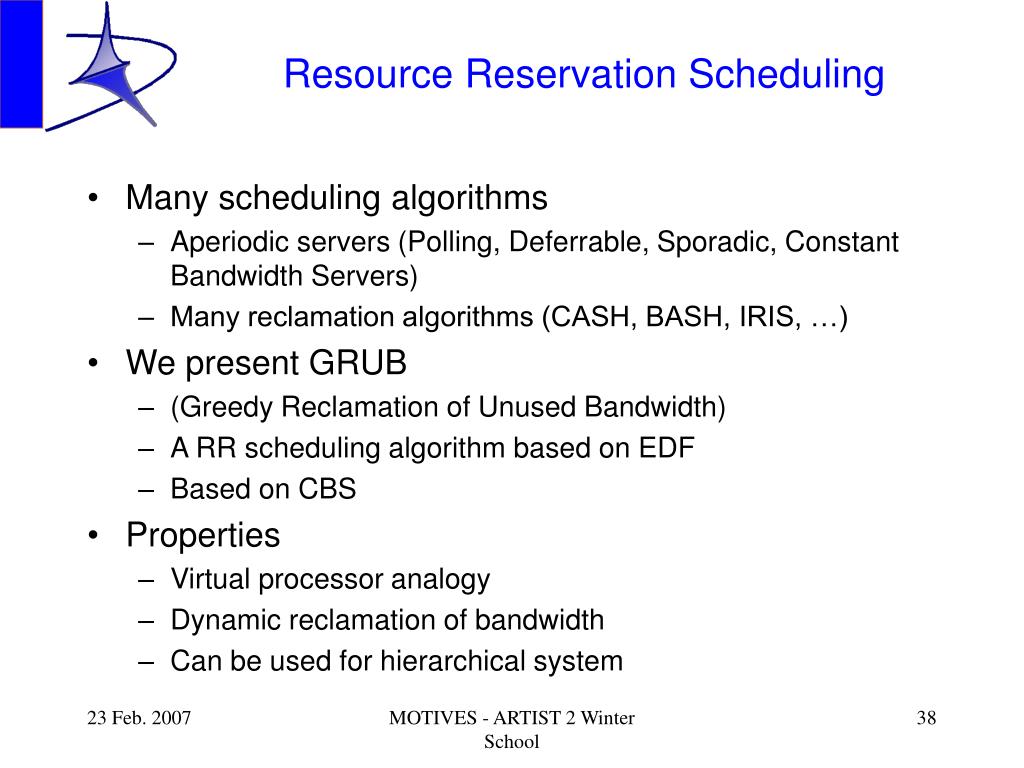

  38. Resource Reservation Scheduling • Many scheduling algorithms • Aperiodic servers (Polling, Deferrable, Sporadic, Constant Bandwidth Servers) • Many reclamation algorithms (CASH, BASH, IRIS, …) • We present GRUB • (Greedy Reclamation of Unused Bandwidth) • A RR scheduling algorithm based on EDF • Based on CBS • Properties • Virtual processor analogy • Dynamic reclamation of bandwidth • Can be used for hierarchical system MOTIVES - ARTIST 2 Winter School

  39. GRUB • System = set of “servers” • A server is the run-time object that manages a reservation • Server • Parameters: (Q, P), U = Q / P • Variables: d = server deadline, V = virtual time • States and transitions: MOTIVES - ARTIST 2 Winter School

  40. Rules • Initially, server is inactive • When task is activated (1.a) • V=t, d=t+P • While task execute • dV = dt U / Uact • If V = d (and task not completed) (4) • Go to depleted until d = t • When budget recharged (5) • V = t, d = d + P • When task completes • until V < t, stay in completed (2.b) • When V ≥ t, go to inactive (2.c or 3) • Active servers • Servers not in inactive MOTIVES - ARTIST 2 Winter School

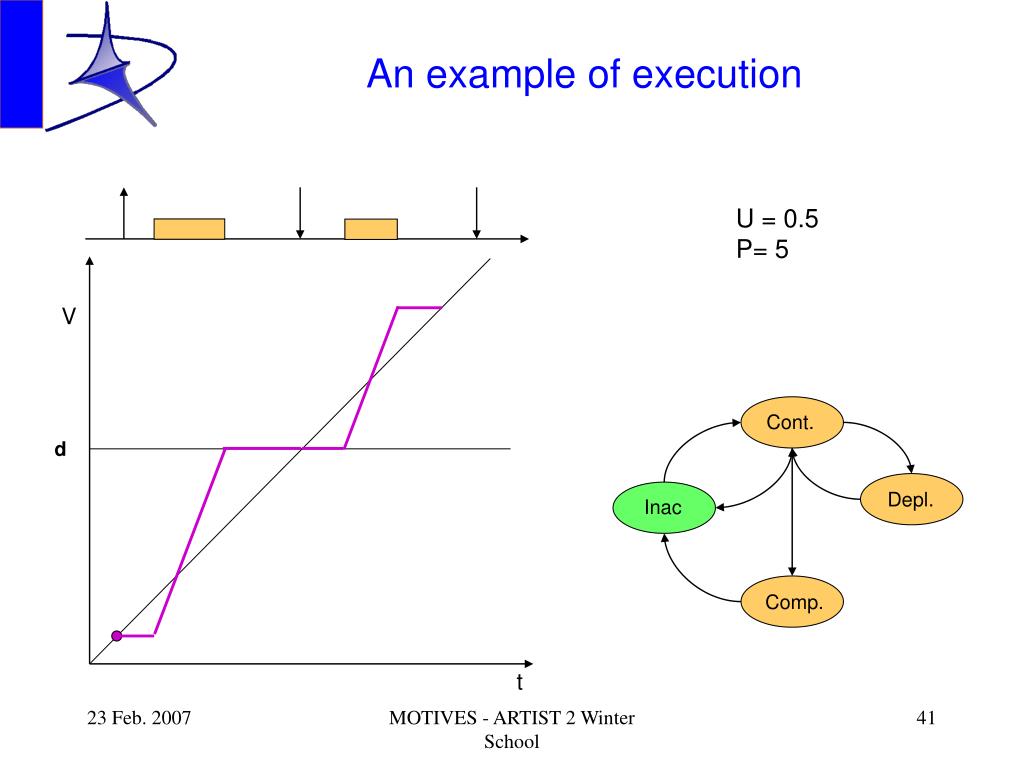

  41. d An example of execution U = 0.5 P= 5 V Cont. Depl. Inac Comp. t MOTIVES - ARTIST 2 Winter School

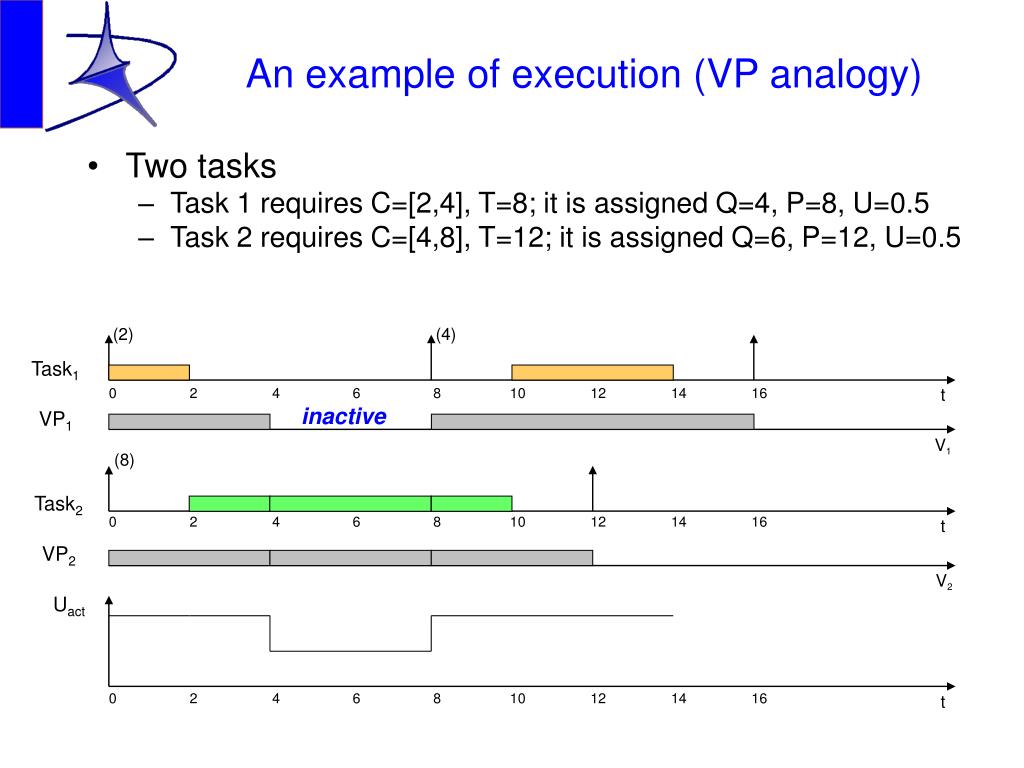

  42. 0 0 2 2 4 4 6 6 8 8 10 10 12 12 14 14 16 16 An example of execution (VP analogy) • Two tasks • Task 1 requires C=[2,4], T=8; it is assigned Q=4, P=8, U=0.5 • Task 2 requires C=[4,8], T=12; it is assigned Q=6, P=12, U=0.5 (2) (4) Task1 0 2 4 6 8 10 12 14 16 t inactive VP1 V1 (8) Task2 t VP2 V2 Uact t

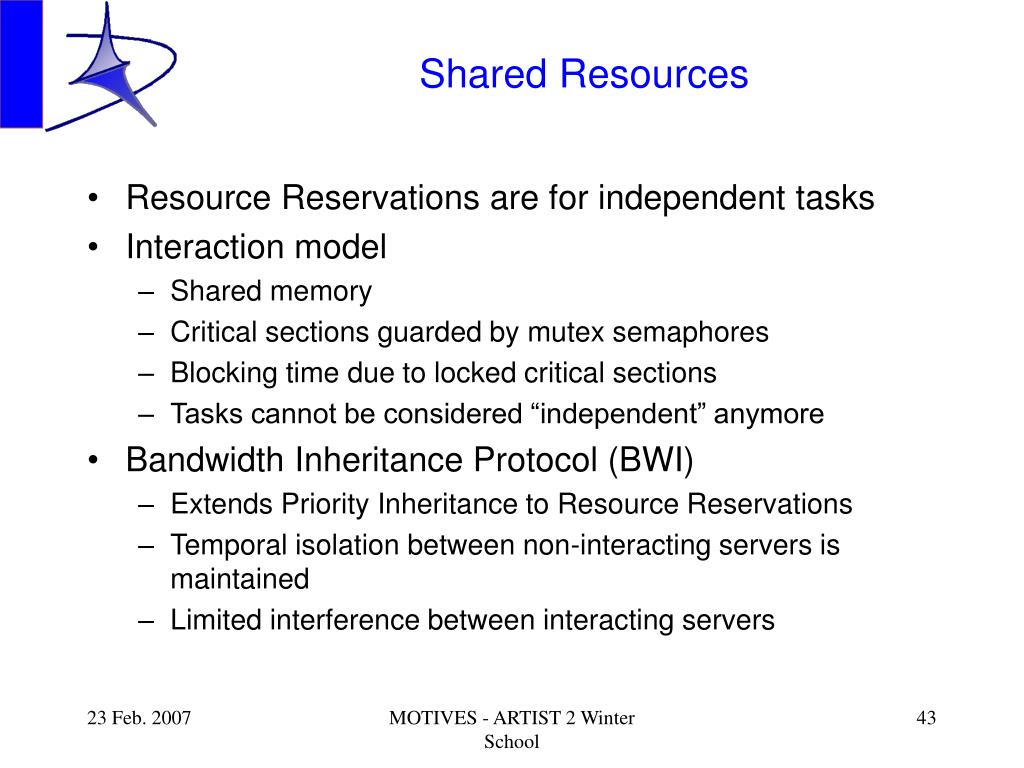

  43. Shared Resources • Resource Reservations are for independent tasks • Interaction model • Shared memory • Critical sections guarded by mutex semaphores • Blocking time due to locked critical sections • Tasks cannot be considered “independent” anymore • Bandwidth Inheritance Protocol (BWI) • Extends Priority Inheritance to Resource Reservations • Temporal isolation between non-interacting servers is maintained • Limited interference between interacting servers MOTIVES - ARTIST 2 Winter School

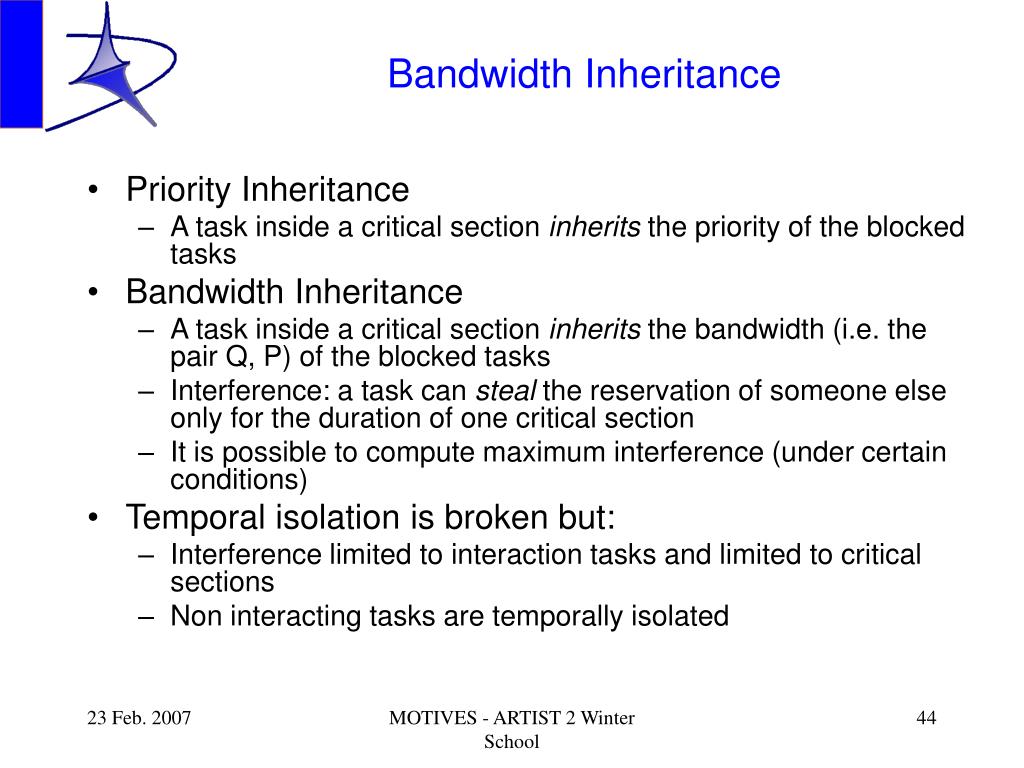

  44. Bandwidth Inheritance • Priority Inheritance • A task inside a critical section inherits the priority of the blocked tasks • Bandwidth Inheritance • A task inside a critical section inherits the bandwidth (i.e. the pair Q, P) of the blocked tasks • Interference: a task can steal the reservation of someone else only for the duration of one critical section • It is possible to compute maximum interference (under certain conditions) • Temporal isolation is broken but: • Interference limited to interaction tasks and limited to critical sections • Non interacting tasks are temporally isolated MOTIVES - ARTIST 2 Winter School

  45. Applications MOTIVES - ARTIST 2 Winter School

  46. Hard real-time tasks • Contract Parameters • Qmin=Qmax= WCET of the thread • Pmin=Pmax= thread’s period • D = thread’s deadline • budget overrun exception handling • Advantages • The thread is protected from the other non-RT and soft RT threads in the system (temporal isolation) • if dynamic reclaimation, the spare capacity of this thread can be given to others MOTIVES - ARTIST 2 Winter School

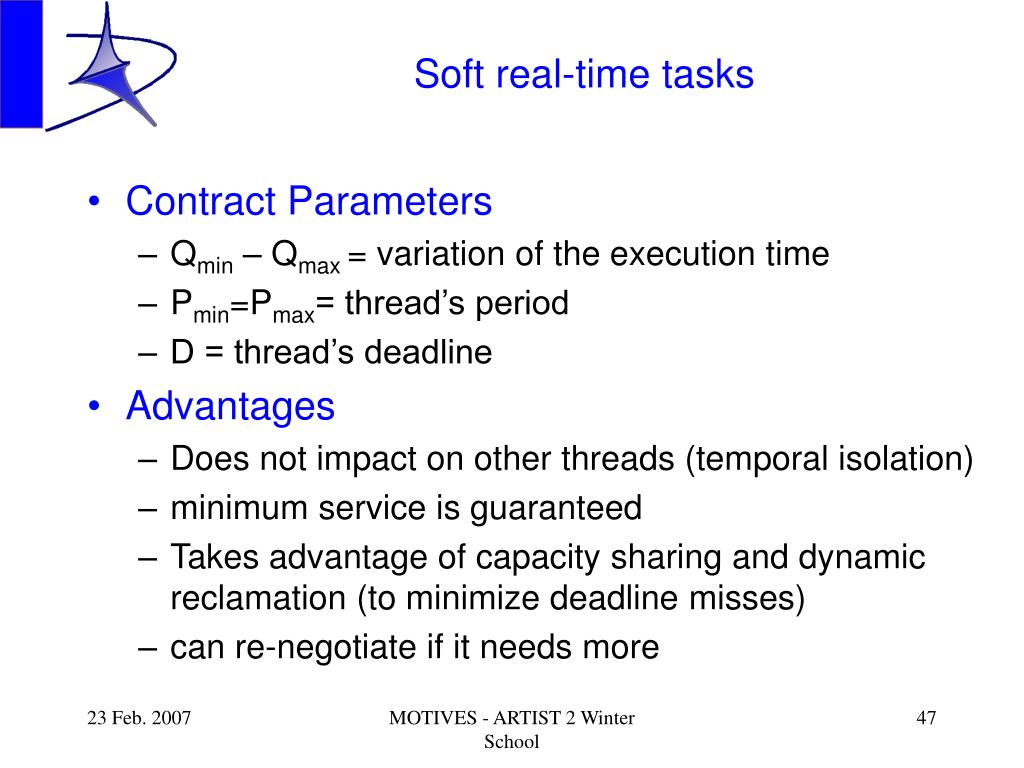

  47. Soft real-time tasks • Contract Parameters • Qmin – Qmax = variation of the execution time • Pmin=Pmax= thread’s period • D = thread’s deadline • Advantages • Does not impact on other threads (temporal isolation) • minimum service is guaranteed • Takes advantage of capacity sharing and dynamic reclamation (to minimize deadline misses) • can re-negotiate if it needs more MOTIVES - ARTIST 2 Winter School

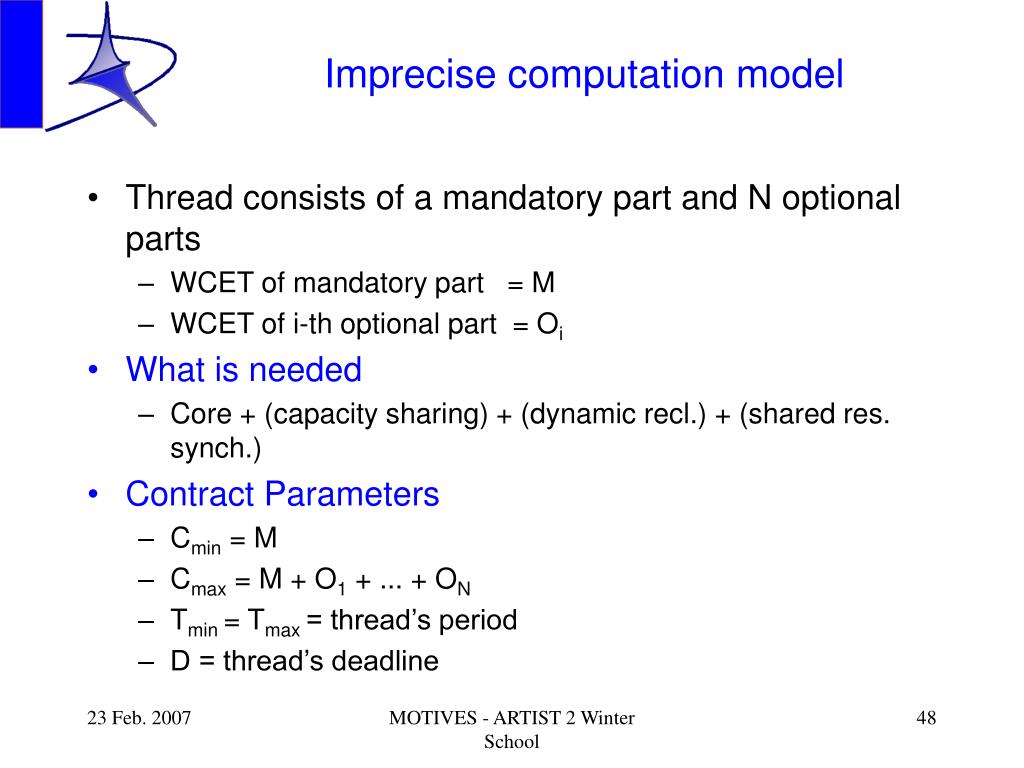

  48. Imprecise computation model • Thread consists of a mandatory part and N optional parts • WCET of mandatory part = M • WCET of i-th optional part = Oi • What is needed • Core + (capacity sharing) + (dynamic recl.) + (shared res. synch.) • Contract Parameters • Cmin = M • Cmax = M + O1 + ... + ON • Tmin = Tmax = thread’s period • D = thread’s deadline MOTIVES - ARTIST 2 Winter School

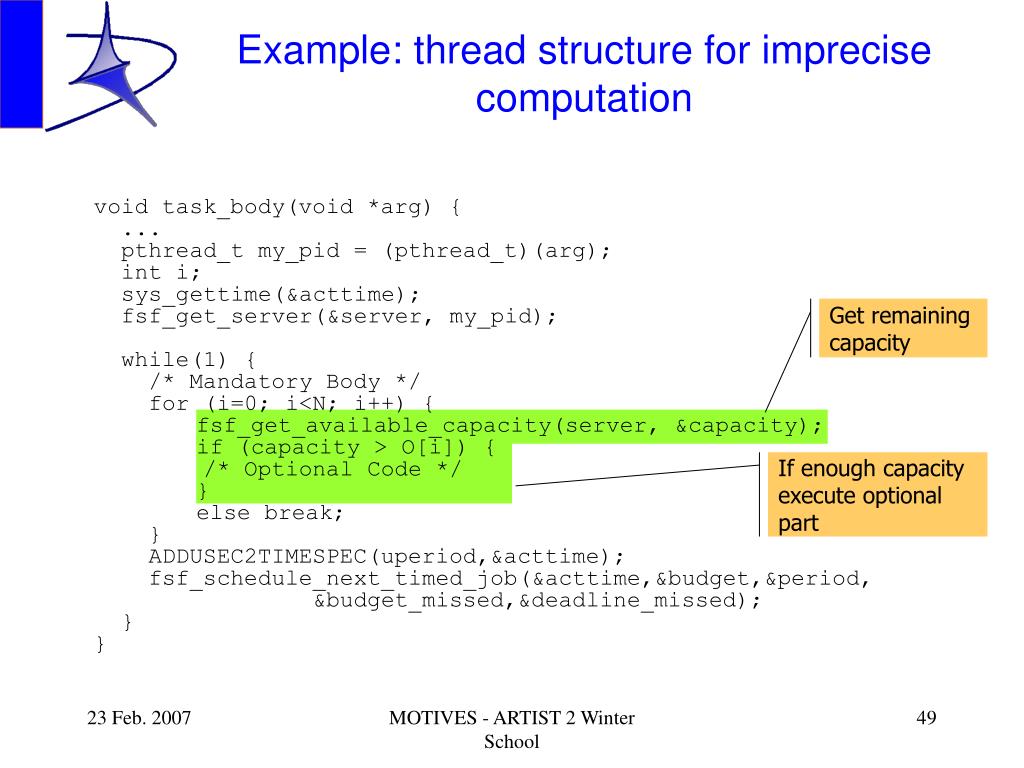

  49. Get remaining capacity If enough capacity execute optional part Example: thread structure for imprecise computation void task_body(void *arg) { ... pthread_t my_pid = (pthread_t)(arg); int i; sys_gettime(&acttime); fsf_get_server(&server, my_pid); while(1) { /* Mandatory Body */ for (i=0; i<N; i++) { fsf_get_available_capacity(server, &capacity); if (capacity > O[i]) { /* Optional Code */ } else break; } ADDUSEC2TIMESPEC(uperiod,&acttime); fsf_schedule_next_timed_job(&acttime,&budget,&period, &budget_missed,&deadline_missed); } } MOTIVES - ARTIST 2 Winter School

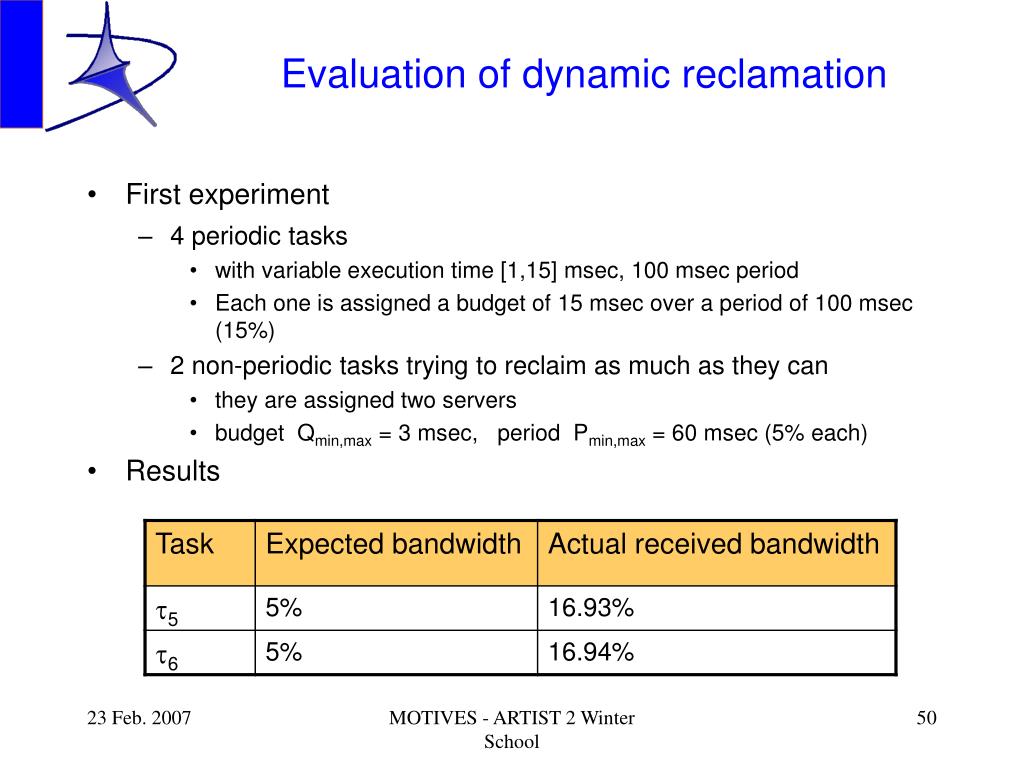

  50. Evaluation of dynamic reclamation • First experiment • 4 periodic tasks • with variable execution time [1,15] msec, 100 msec period • Each one is assigned a budget of 15 msec over a period of 100 msec (15%) • 2 non-periodic tasks trying to reclaim as much as they can • they are assigned two servers • budget Qmin,max = 3 msec, period Pmin,max = 60 msec (5% each) • Results MOTIVES - ARTIST 2 Winter School
