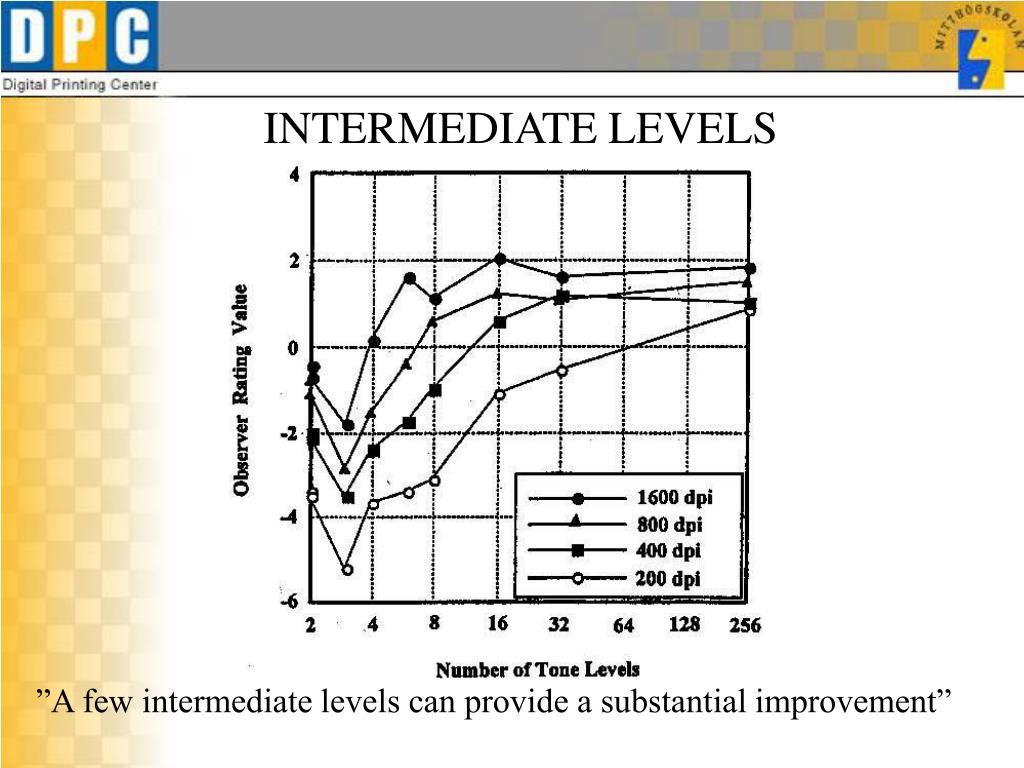

INTERMEDIATE LEVELS. ”A few intermediate levels can provide a substantial improvement”. Human vision -Contrast sensitivity function (CSF) ~30cycles/deg for 20/20 vision -Sensitive for disturbances with 0.5-10 mm wavelength for normal reading distance -Perceptible luminance modulation

asha
Télécharger la présentation

”A few intermediate levels can provide a substantial improvement”

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INTERMEDIATE LEVELS ”A few intermediate levels can provide a substantial improvement”

  2. Human vision -Contrast sensitivity function (CSF) ~30cycles/deg for 20/20 vision -Sensitive for disturbances with 0.5-10 mm wavelength for normal reading distance -Perceptible luminance modulation ~200 tone levels For normal reading distance

  3. MULTILEVEL HALFTONE SCREEN Uniform quantizer

  4. MULTILEVEL HALFTONE SCREEN Non-uniform quantizer

  5. MULTILEVEL SCREEN OPTIMIZATION Theoretical upper limit of possible tone level combinations for a cell with Np number of pixels gmax tone levels per pixel

  6. MULTILEVEL SCREEN OPTIMIZATION In practice, the distinguishable levels are much lower because of redundancy in tone level arrangements the difference between some levels is too small to be resolved visually

  7. REDUNDANCY 2x2 Trilevel Halftone cells – 15 Reflectances

  8. REDUNDANCY 2x2 Trilevel Halftone cells – 9 Unique Reflectances

  9. REDUNDANCY Ravg = 0.25

  10. OPTIMIZATION TRC ~ optical density out vs. optical density in Performance evaluation RMS-fit to 45° line

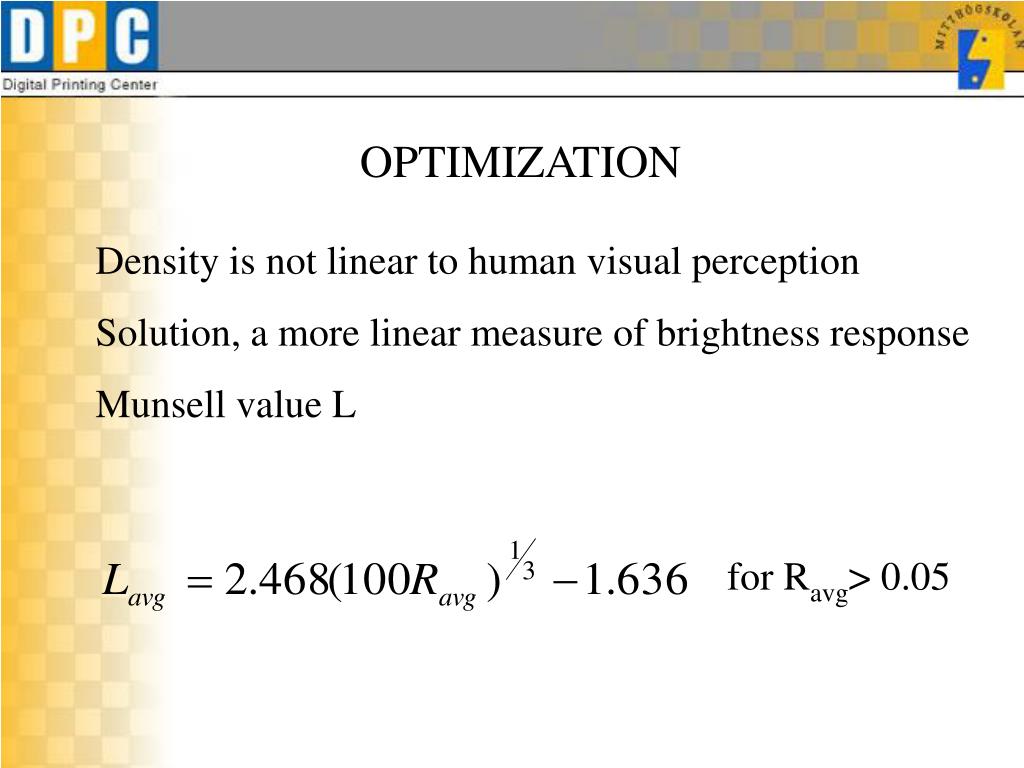

  11. OPTIMIZATION Density is not linear to human visual perception Solution, a more linear measure of brightness response Munsell value L for Ravg> 0.05

  12. OPTIMIZATION

  13. OPTIMIZATION

  14. MULTILEVEL STOCHASTIC SCREEN – USE GENERIC APPROACH TO CREATE BNM DITHER MATRIX ERROR DIFFUSION – REPLACE THRESHOLD WITH QUANTIZER AND DIFFUSE THE QUANTIZATION ERROR COLOR HALFTONING - COLOR SCREEN SUPERIMPOSITION CAN BE USED DIRECTLY. METHOD FOR ERROR DIFFUSION (OSTROMOUKHOV…)

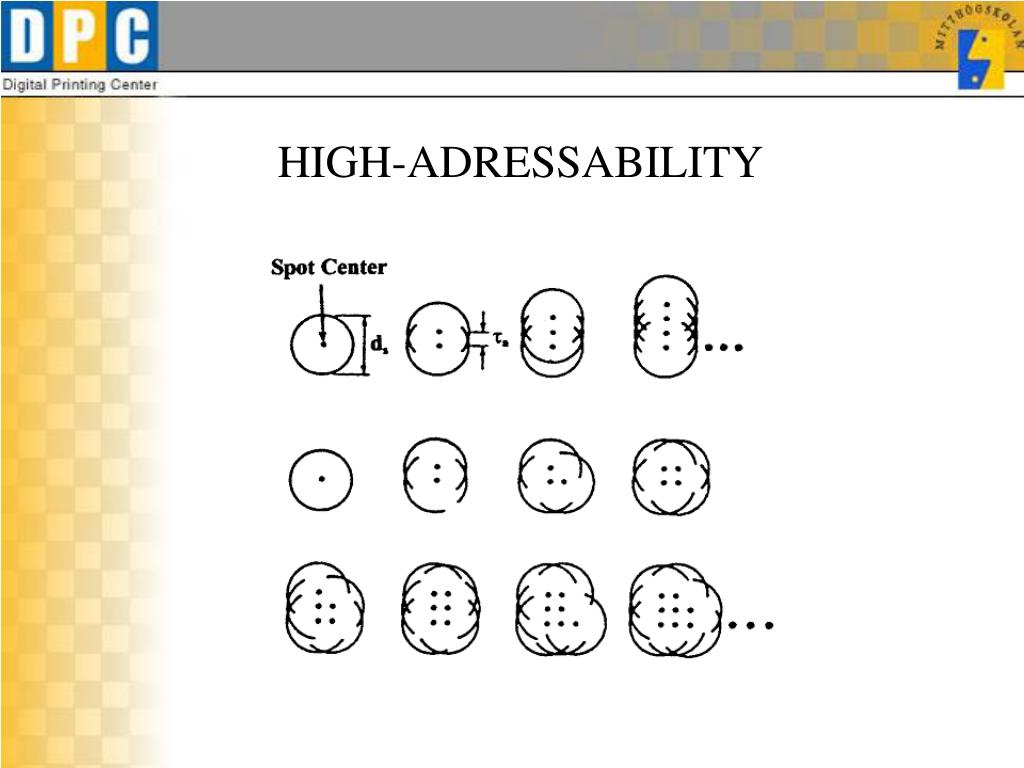

  15. HIGH-ADRESSABILITY

  16. INKJET • MULTIPLE DROPLETS • MULTIPLE NOZZLES – DIFFERENT ORIFICES • MULTIPLE INKJET HEADS – DIFFERENT INKS • USE SATELLITE DROPLETS • COMBINATIONS OF 1-4
