Clusterability A Theoretical Study

ClusterabilityA Theoretical Study Margareta Ackerman Joint work with Shai Ben-David

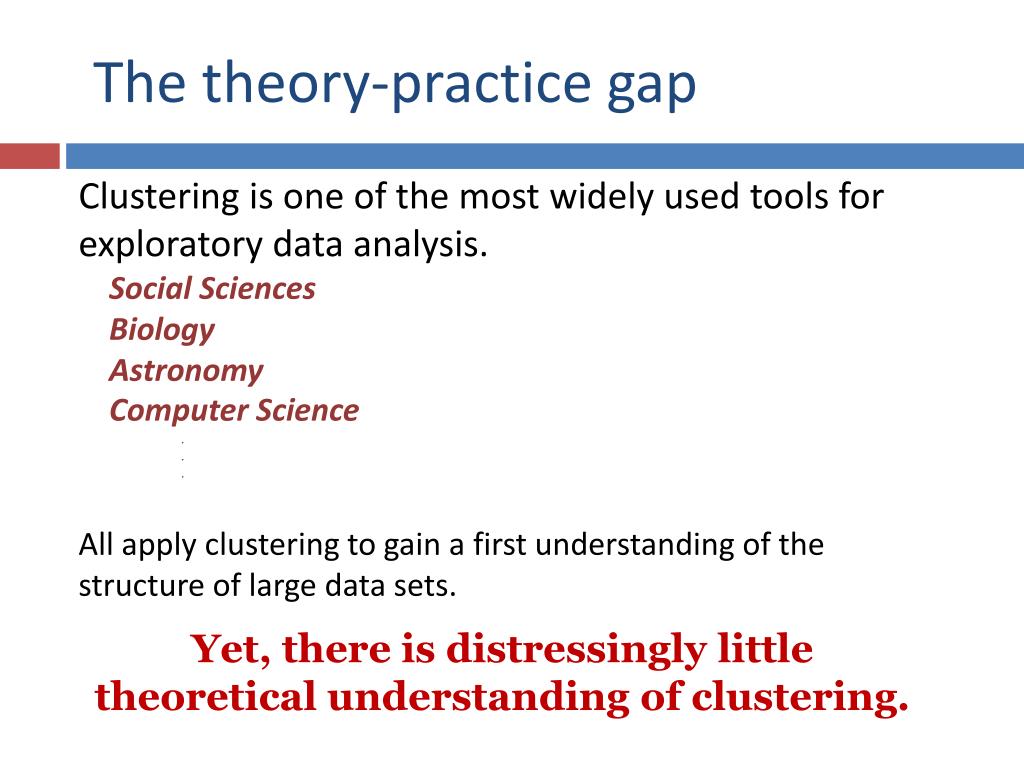

The theory-practice gap Clustering is one of the most widely used tools for exploratory data analysis. Social Sciences Biology Astronomy Computer Science. . . All apply clustering to gain a first understanding of the structure of large data sets. Yet, there is distressingly little theoretical understanding of clustering.

Inherent obstacles • Clustering is not well defined. There is a wide variety of different clustering tasks, with different (often implicit) measures of quality. • In most practical clustering tasks there is • no clear ground truth to evaluate your solution by. • (in contrast with classification tasks, in which you can • have a hold out labeled set to evaluate the classifier against).

Common solutions Objective utility functions Sum Of In-Cluster Distances, Average Distances to Center Points, Cut Weight, Spectral Clustering, etc. (Shmoys, Charikar, Meyerson, Luxburg, ..) Analyze the computational complexity of discrete optimization problems. Consider a restricted set of distributions (“generative models”): Ex. Mixtures of Gaussians [Dasgupta ‘99], [Vempala, ’03], [Kannan et al ‘04], [Achlitopas, McSherry ‘05]. Recover the parameters of the model generating the data. Many more….

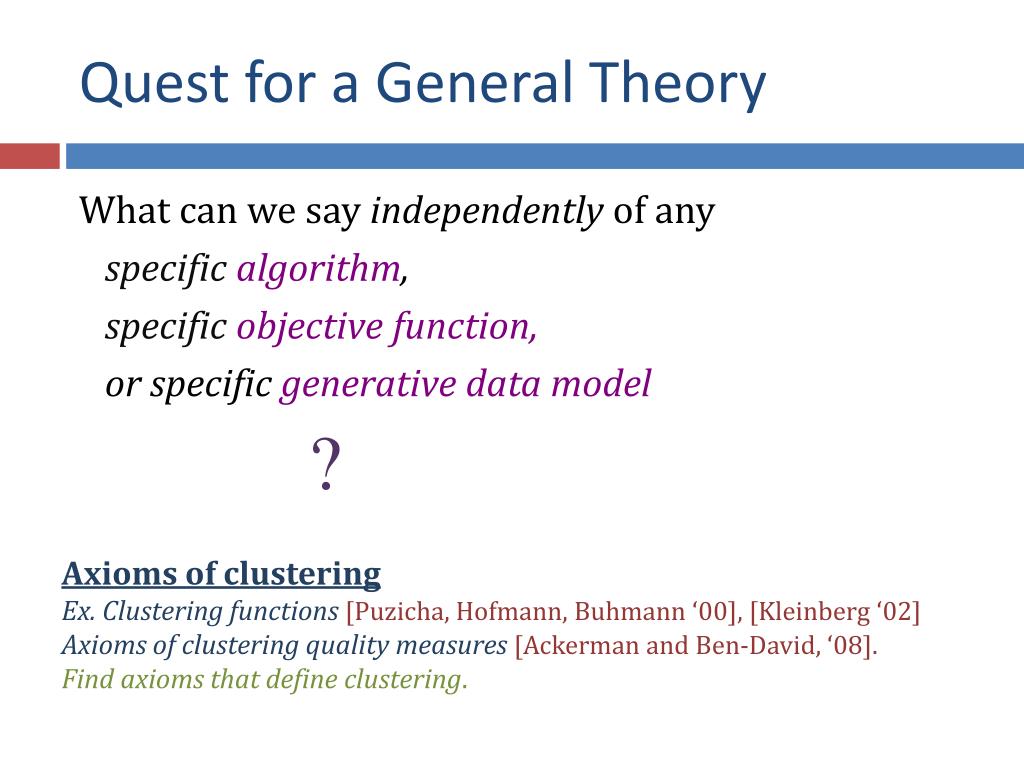

Quest for a General Theory What can we say independently of any specificalgorithm, specificobjective function, or specific generative data model ? Axioms of clustering Ex. Clustering functions [Puzicha, Hofmann, Buhmann ‘00], [Kleinberg ‘02] Axioms of clustering quality measures [Ackerman and Ben-David, ‘08]. Find axioms that define clustering.

Why study clusterability? Even if a data set has no meaningful structure, any clustering algorithm will find some partition of the data set. Clusterability aims to determine whether a data set can be meaningfully clustered. Notions of clusterability quantifythe degree of clustered structure in a data set.

Our contributions We set out to explore notions of clusterability, compare them, and find patterns of similarity. Computational complexity of clustering Data sets that are more clusterable are computationally easier to cluster well. Hardness Determining whether a data set is clusterable is usually NP-hard. Comparison Notions of clusterability are pairwise inconsistent.

Outline • Definitions and notation • Clusterability and the complexity of clustering • Introduce a new notion of clusterability: PC-clusterability • Worst pair ratio (Epter, Krishnamoorthy, and Zaki, 1999) • Separability (Ostrovsky, Rabani, Schulman, and Swamy, 2006) • Variance ratio (Zhang, 2001) • Comparison of notions of clusterability • The hardness of determining clusterability • Summary and future work

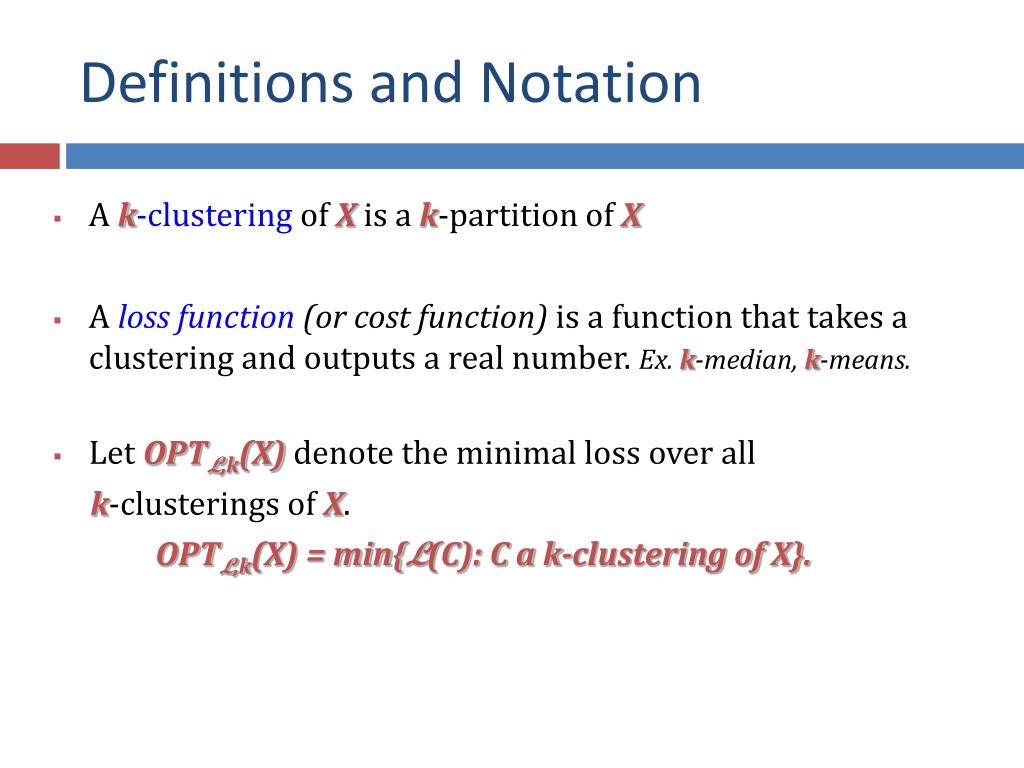

Definitions and Notation • A k-clustering of X is a k-partition of X • A loss function (or cost function) is a function that takes a clustering and outputs a real number. Ex. k-median, k-means. • LetOPTL,k(X) denote the minimal loss over all k-clusterings of X. OPTL,k(X) = min{L(C): C a k-clustering of X}.

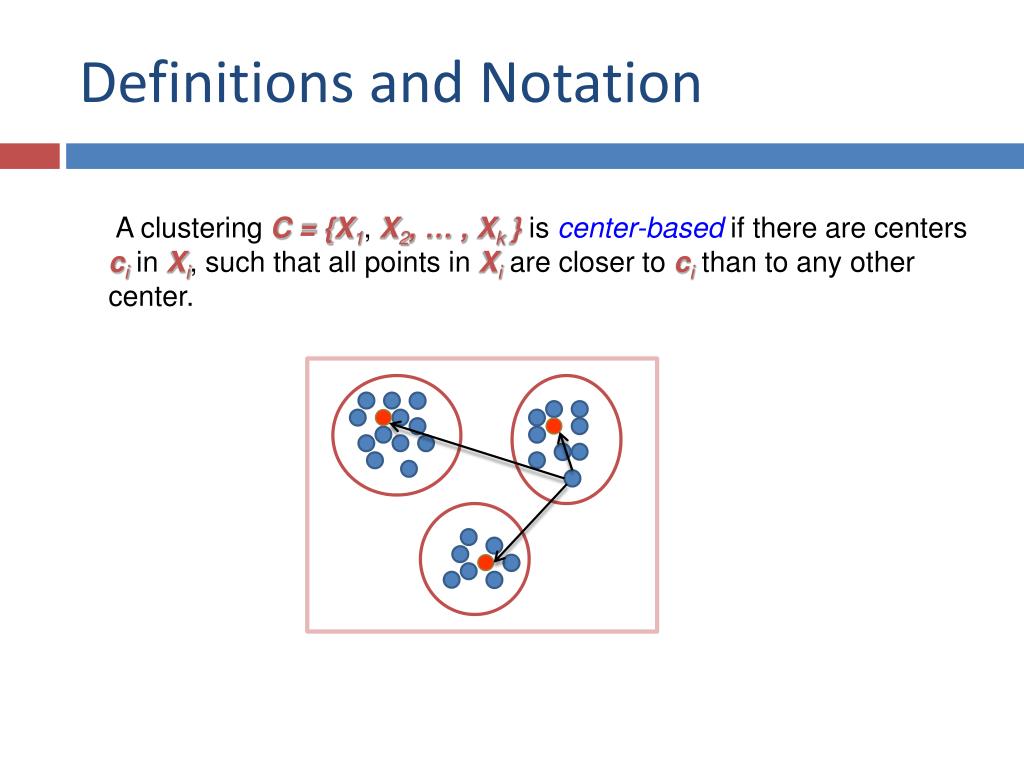

Definitions and Notation A clustering C ={X1, X2, … ,Xk } is center-based if there are centers ci in Xi, such that all points in Xi are closer to ci than to any other center.

Better clusterability implies that data is easier to cluster well In most formulations, clustering is an NP-hard problem. (ex. k-means and k-median clustering, correlation clustering, ect.) • When a data set has no significant clustered structure, there is no sense in clustering it. • Clustering makes sense only on data sets that have meaningful clustering structure. • We show that the more clusterable a data set is, the easier it is to cluster well. • Clustering is hard only when there isn’t sufficient clustering structure in the data set.

Center Perturbation Clusterability:A high level definition Call a clustering optimal when it has optimal cost by some loss function L. If a clustering looks like the optimal clustering, we might expect that its cost is also near-optimal (in well-clusterable data sets.) A data set X is CP-clusterable if all clusterings that are structurally similar to an optimal clustering of X have near-optimal cost.

Center Perturbation Clusterability Two center-based clusterings C and C’ are ε-close if there exist centers c1, c2, c3 ,…,ck of C and c’1, c’2, c’3 ,…,c’k of C’s.t. |ci-c’i| ≤ ε. Definition: A data set X is (ε,δ)-CP Clusterable(for k) if for every clustering C of X that is ε-close to some optimal k-clustering of X, L(C) ≤(1+ δ) OPTL,k(X).

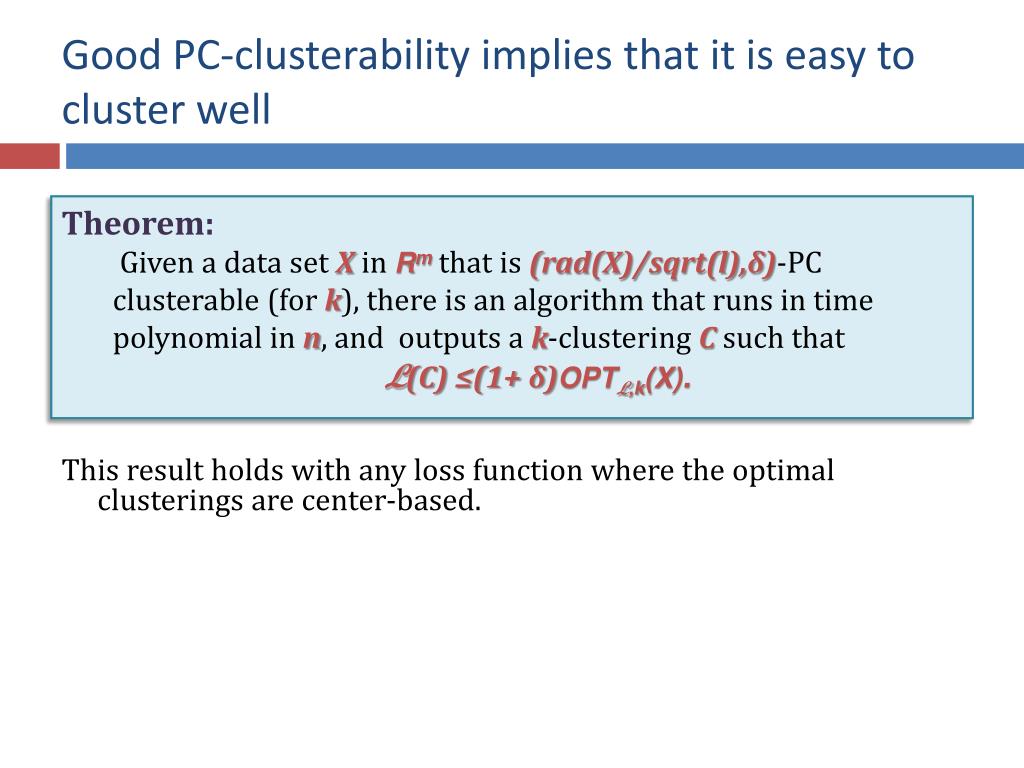

Good PC-clusterability implies that it is easy to cluster well This result holds with any loss function where the optimal clusterings are center-based. • Theorem: • Given a data set X in Rmthat is (rad(X)/sqrt(l),δ)-PC clusterable (for k), there is an algorithm that runs in time polynomial in n, and outputs a k-clustering C such that • L(C) ≤(1+ δ)OPTL,k(X).

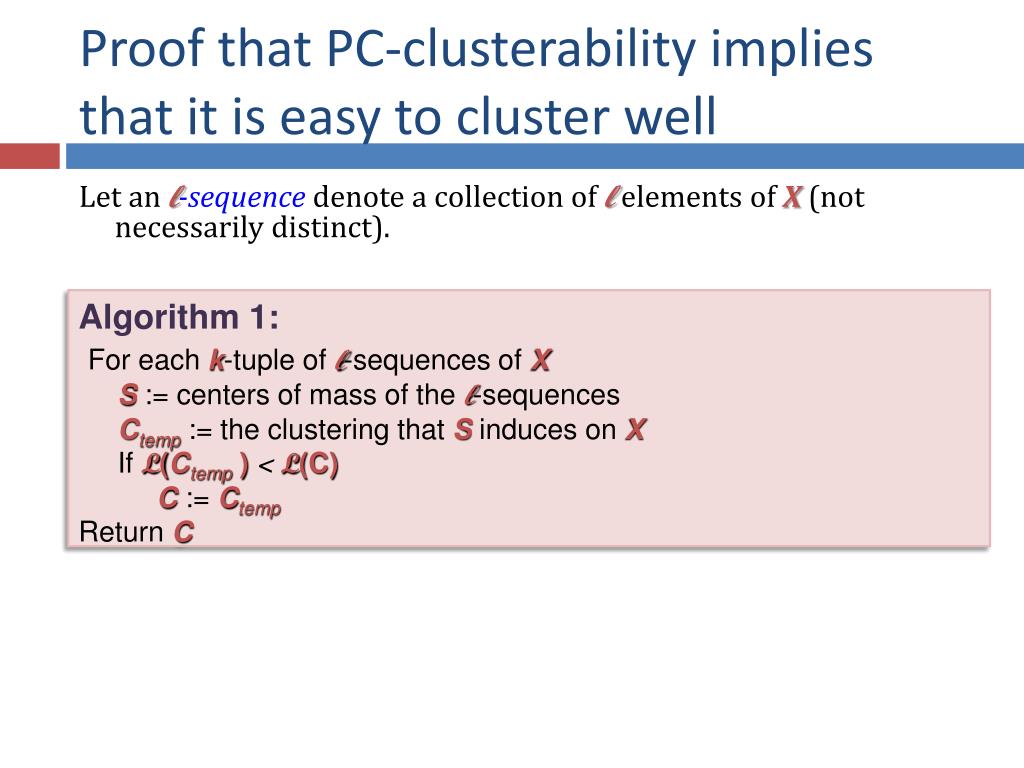

Proof that PC-clusterability implies that it is easy to cluster well Let an l-sequence denote a collection of l elements of X (not necessarily distinct). Algorithm 1: For each k-tuple of l-sequences of X S := centers of mass of the l-sequences Ctemp := the clustering that S induces on X If L(Ctemp) <L(C) C := Ctemp Return C

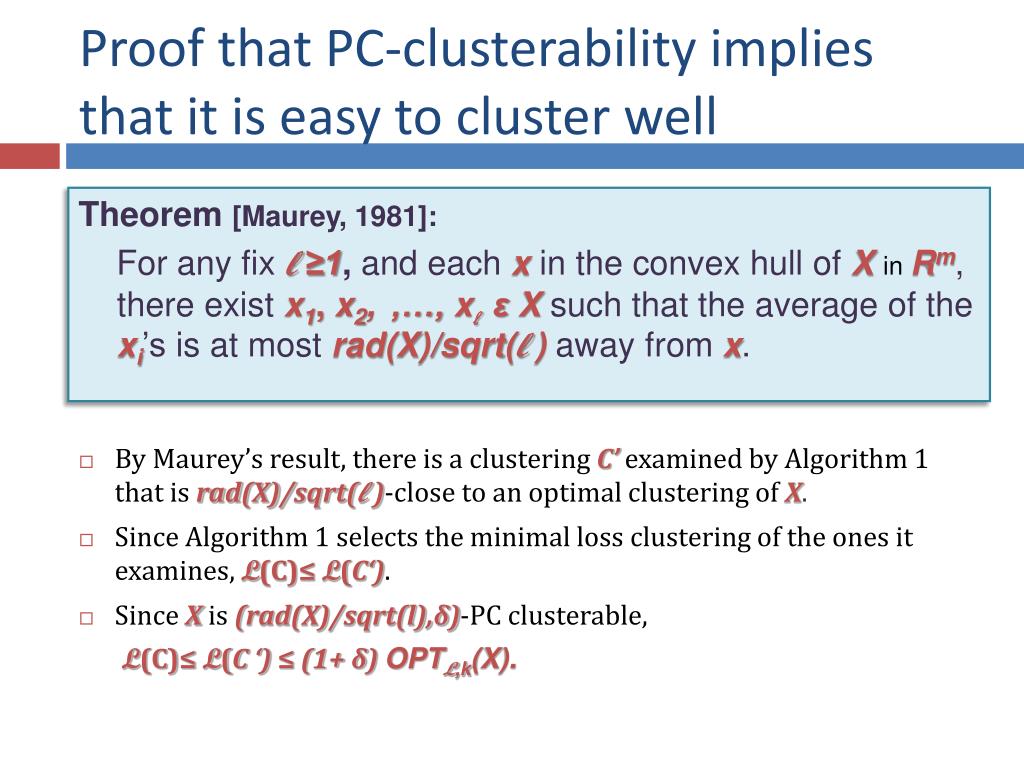

Proof that PC-clusterability implies that it is easy to cluster well • By Maurey’s result, there is a clustering C’ examined by Algorithm 1 that is rad(X)/sqrt(l )-close to an optimal clustering of X. • Since Algorithm 1 selects the minimal loss clustering of the ones it examines,L(C)≤ L(C‘). • Since X is (rad(X)/sqrt(l),δ)-PC clusterable, L(C)≤ L(C ‘) ≤ (1+ δ) OPTL,k(X). Theorem [Maurey, 1981]: For any fix l ≥1, and each x in the convex hull of Xin Rm, there existx1, x2, ,…,xl ɛX such that the average of the xi’s is at most rad(X)/sqrt(l )away from x.

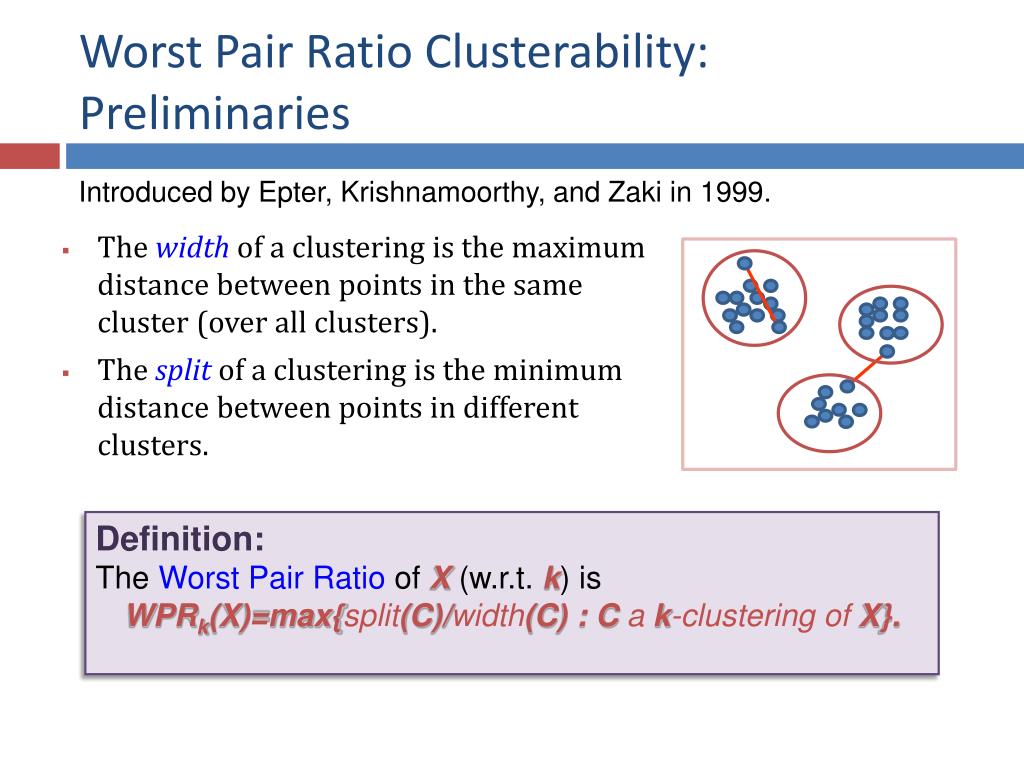

Worst Pair Ratio Clusterability: Preliminaries Introduced by Epter, Krishnamoorthy, and Zaki in 1999. • The width of a clustering is the maximum distance between points in the same cluster (over all clusters). • The split of a clustering is the minimum distance between points in different clusters. Definition: The Worst Pair Ratio of X (w.r.t. k) is WPRk(X)=max{split(C)/width(C) : C a k-clustering of X}.

Better WPR-clusterability implies that it is easier to cluster well • Theorem: • Given a data set X (on n elements) where • WPRk(X) > 1, we can find a k-clustering of X with the maximal split over width ratio in time O(n 2 log n).

Separability clusterability Introduced by Ostrovsky, Rabani, Schulman, and Swamy in 2006. • Separability measures how much is gained in the transition from k-1 to k clusters. • In the original definition, L is k-means. Definition: A data set X is (k,ε)-separable if OPTL,k(X) ≤ εOPTL,k-1(X).

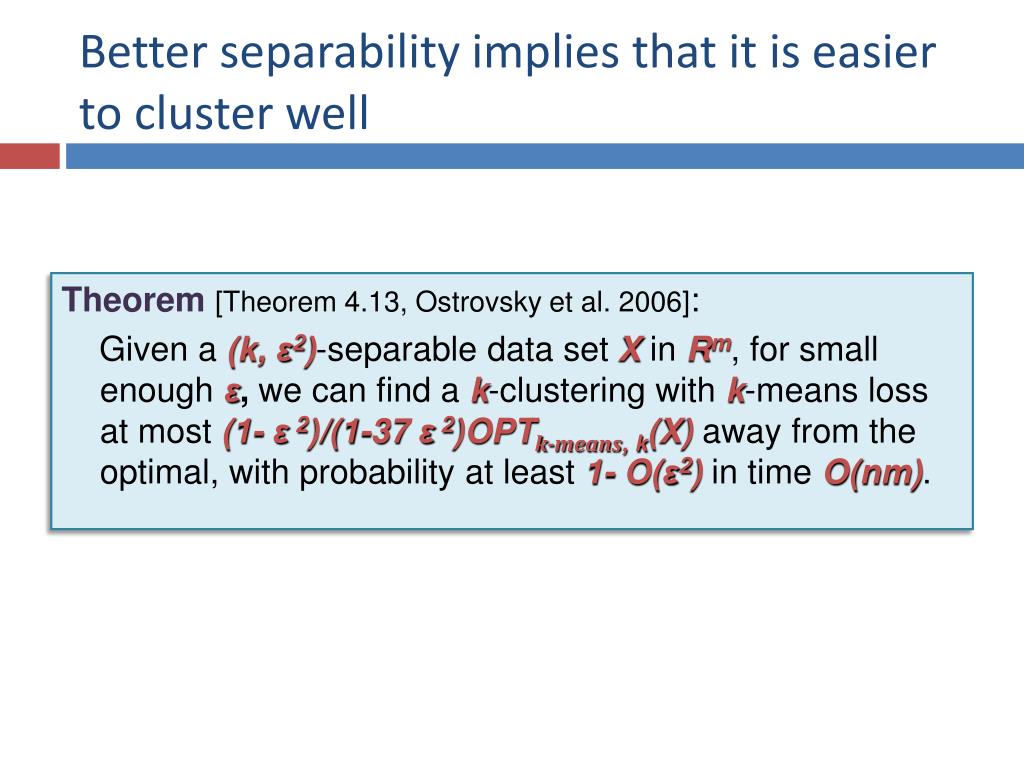

Better separability implies that it is easier to cluster well Theorem[Theorem 4.13, Ostrovsky et al. 2006]: Given a (k, ε2)-separable data set X in Rm, for small enoughε, we can find a k-clustering with k-means loss at most (1-ε 2)/(1-37 ε 2)OPTk-means, k(X) away from the optimal, with probability at least 1- O(ε2)in time O(nm).

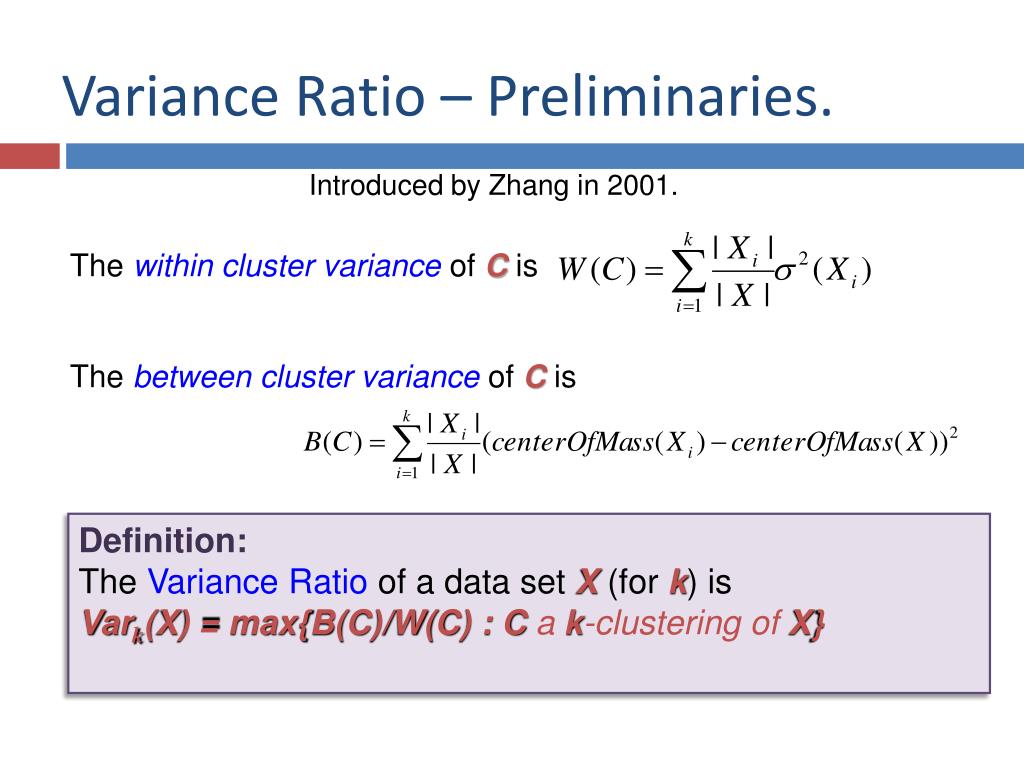

Variance Ratio – Preliminaries. Introduced by Zhang in 2001. The within cluster varianceof C is The between cluster varianceof C is Definition: The Variance Ratio of a data set X (for k) is Vark(X) = max{B(C)/W(C) : C a k-clustering of X}

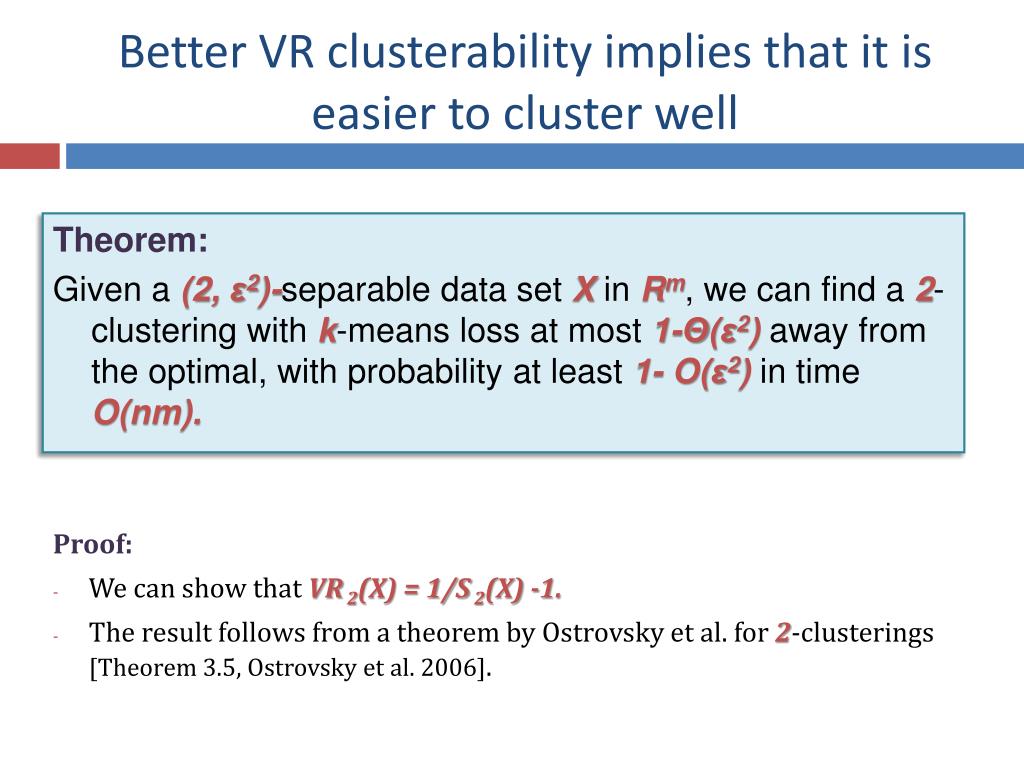

Better VR clusterability implies that it is easier to cluster well Proof: • We can show that VR 2(X) = 1/S 2(X) -1. • The result follows from a theorem by Ostrovsky et al. for 2-clusterings [Theorem 3.5, Ostrovsky et al. 2006]. Theorem: Given a (2, ε2)-separable data set X in Rm, we can find a 2-clustering with k-means loss at most 1-Θ(ε2) away from the optimal, with probability at least 1- O(ε2)in time O(nm).

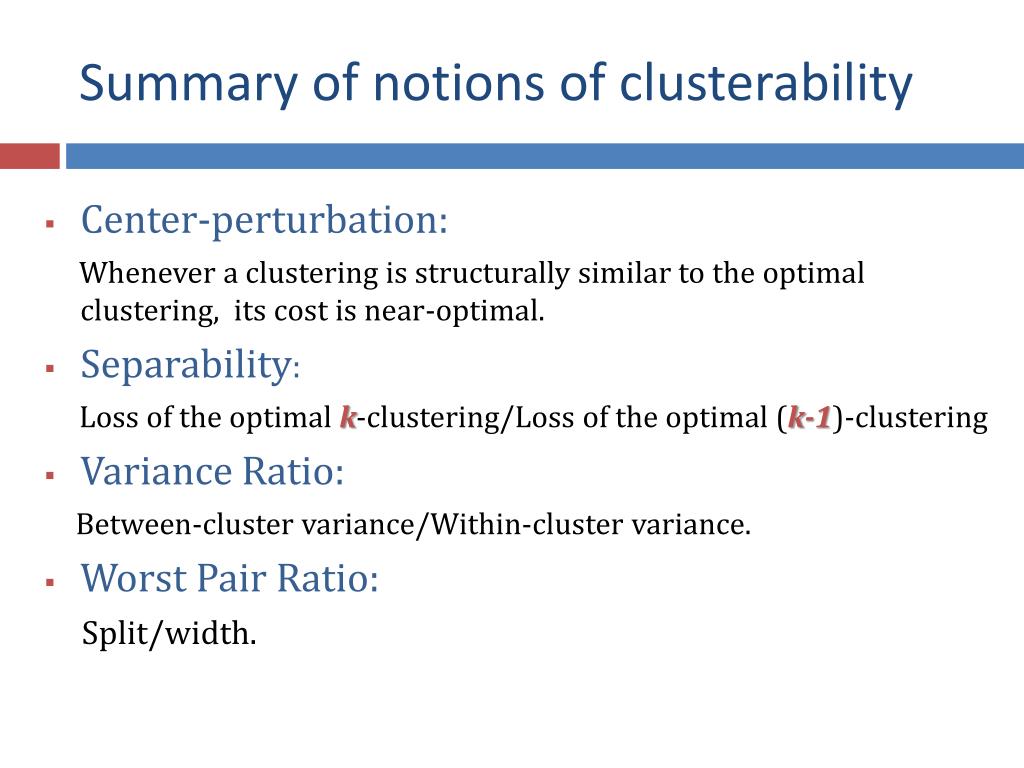

Summary of notions of clusterability • Center-perturbation: Whenever a clustering is structurally similar to the optimal clustering, its cost is near-optimal. • Separability: Loss of the optimal k-clustering/Loss of the optimal (k-1)-clustering • Variance Ratio: Between-cluster variance/Within-cluster variance. • Worst Pair Ratio: Split/width.

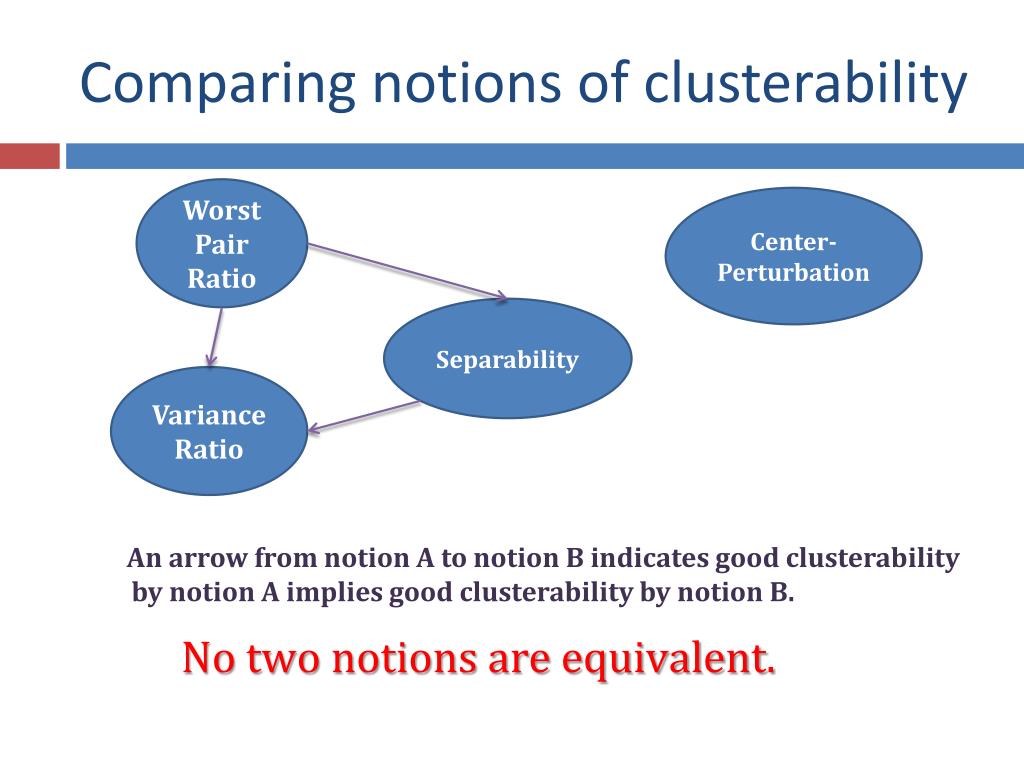

Comparing notions of clusterability An arrow from notion A to notion B indicates good clusterability by notion A implies good clusterability by notion B. Worst Pair Ratio Center-Perturbation Separability Variance Ratio No two notions are equivalent.

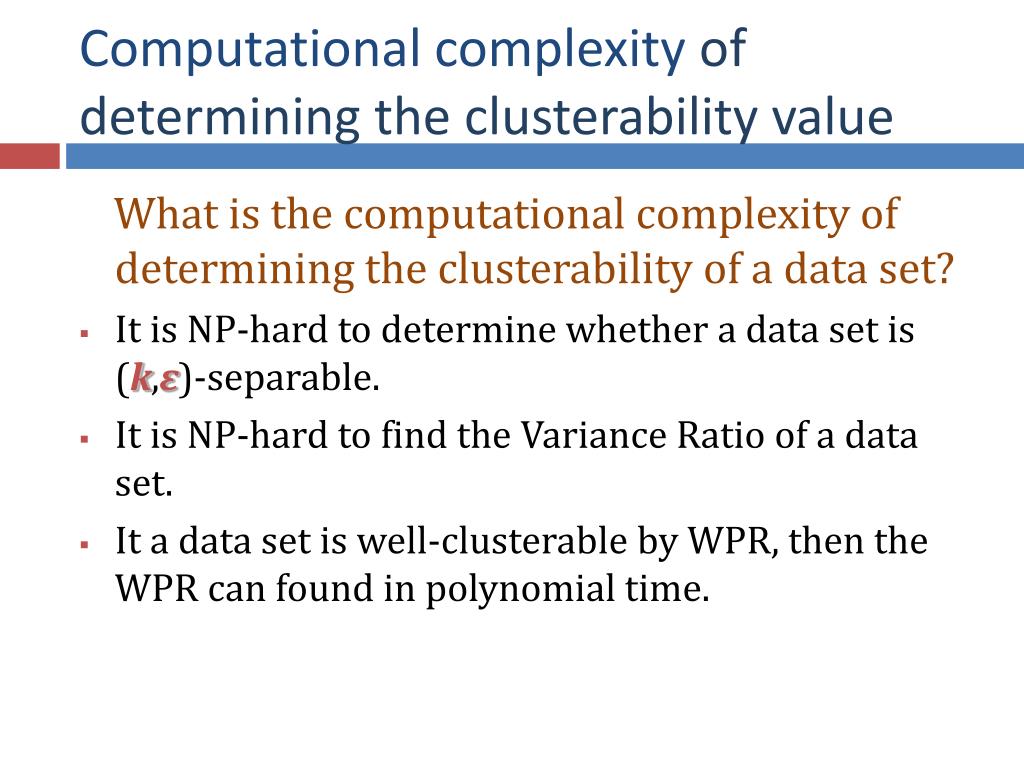

Computational complexity of determining the clusterability value What is the computational complexity of determining the clusterability of a data set? • It is NP-hard to determine whether a data set is (k,ε)-separable. • It is NP-hard to find the Variance Ratio of a data set. • It a data set is well-clusterable by WPR, then the WPR can found in polynomial time.

Summary • We initiate a study of clusterability and introduce a new notion of clusterability. • We show that three previous and the new notion of clusterabilty are pairwise distinct. • Better clusterability implies that it is easier to cluster well for distinct notions of clusterability. • Determining the degree of clusterability is usually NP-hard.

Future work Property: The more clusterable a data set is, the easier it is, computationally, to find a near-optimal clustering of the data. • Does this property hold for other natural notions of clusterability? • Can clusterability be axiomatized? • Can it be shown that the above property holds for all reasonable notions of clusterability?

Appendix: Variance Ratio does not imply the other notions • Select a data set X1with arbitrarily poor (k-1)-clusterability according to any other notion B (separability, Worst Pair Ratio, or Center-Perturbation) • Create data set X2by taking X1and adding a single point very far away, making it’s own cluster in the optimal k-clustering. • X2 can have arbitrarily good Variance Ratio. • Clusterability is the same on data sets X1and X2 by notion B. X1 X2

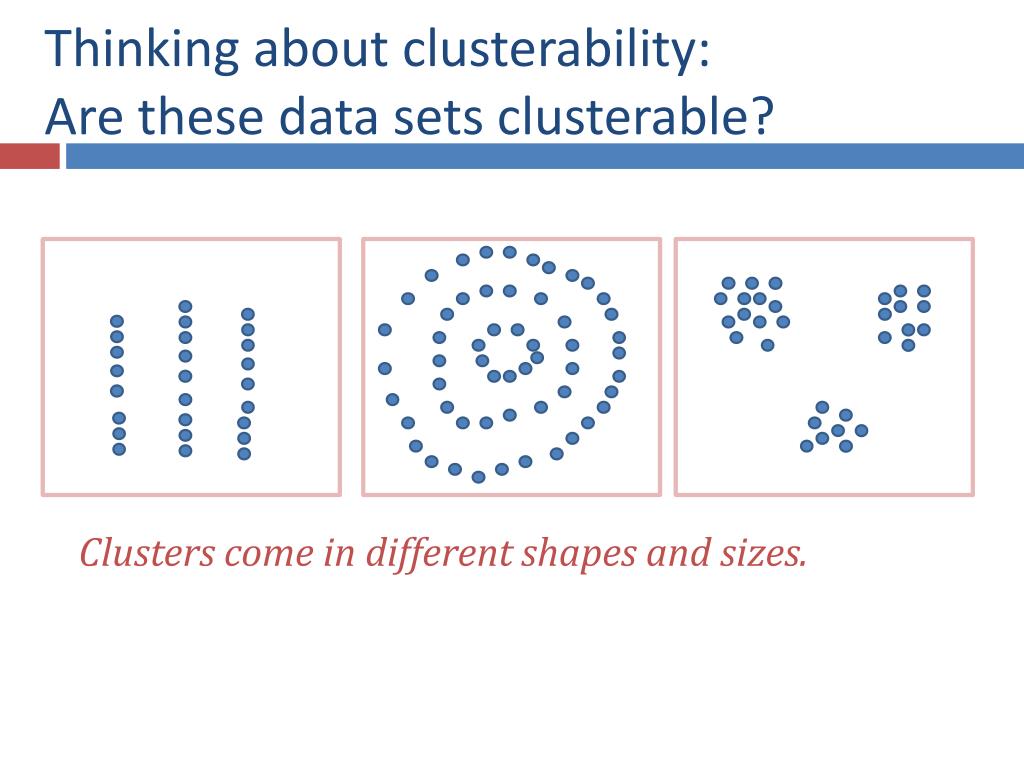

Thinking about clusterability:Are these data sets clusterable? Clusters come in different shapes and sizes.

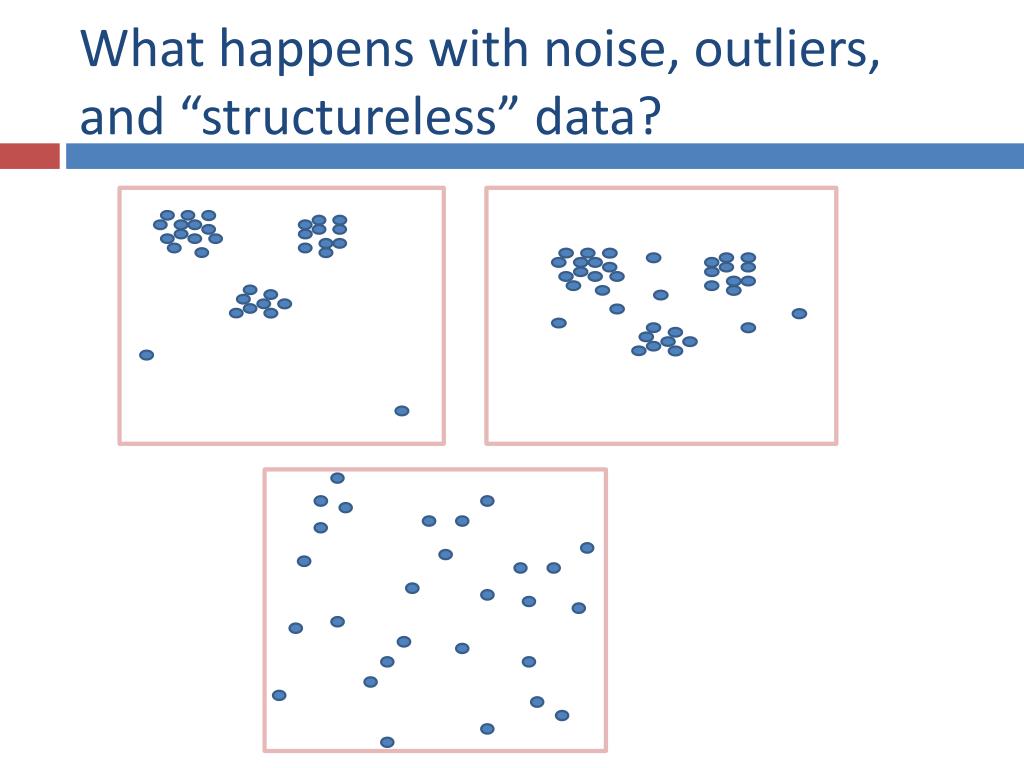

What happens with noise, outliers, and “structureless” data?
