  1. LIGHTING CIRCUITS

  2. LAMPS • A & B - Miniature bayonet/instrument/indicator • C - Single contact bayonet/lic and courtesy • D - Double contact bayonet/trunk/underhood • F - Cartridge type for dome lights • G - Wedge base/instrument • D - Double contact bayonet/trunk/underhood Bulbs

  3. HEADLIGHTS • Sealed Beam • Halogen • Composite Headlights • Concealed Headlights • Vacuum controlled • Electrically controlled

  4. HALOGEN HEADLIGHT • Sealed Housing • Grommet Seal • Twist to Lock • 25% brighter • life Span • Cleanliness when replacing

  5. HEADLIGHT SWITCHES • Dimmer Switches • Headlight Circuits • Flash to Pass

  6. CORNERING LIGHTS • Turn Signal Activated • All the time • Night time only

  7. TURN SIGNALCIRCUITS

  8. TURN SIGNAL SWITCHNeutral StopSwitch Left Rear Turn Right Rear Turn Left front Light & Indicator Right front T-Sig Flasher Light & Indicator

  9. RIGHT TURN Stop Sw. Left Rear Turn Right Rear Turn Front Left Turn & Ind. T-Sig Flasher Front Right Turn&Ind

  10. LEFT TURN Stop Sw Right Rear Turn Left Turn Rear Front Left Turn & Ind T-Sig Flasher Front Right Turn&Ind

  11. PARKING AND TAILLIGHTS • Two Bulb System • Three Bulb System

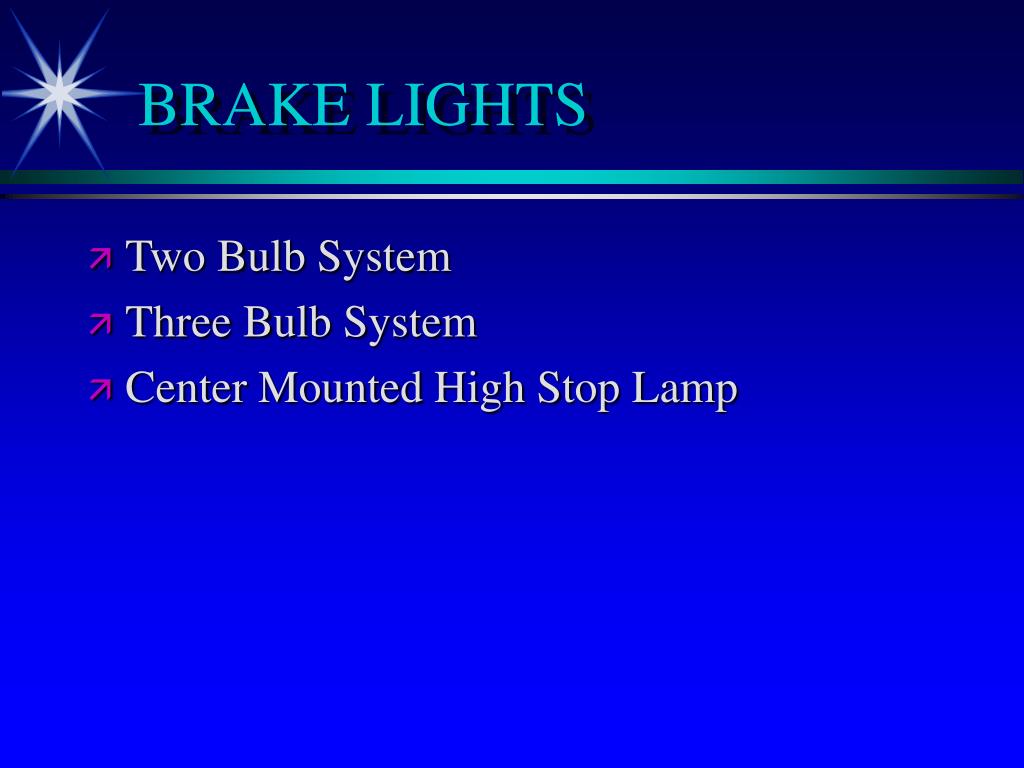

  12. BRAKE LIGHTS • Two Bulb System • Three Bulb System • Center Mounted High Stop Lamp

  13. TWO BULB BRAKE SYSTEM

  14. THREE BULB SYSTEM

  15. CENTER MOUNTED HIGH STOP LIGHT (CHMSL)

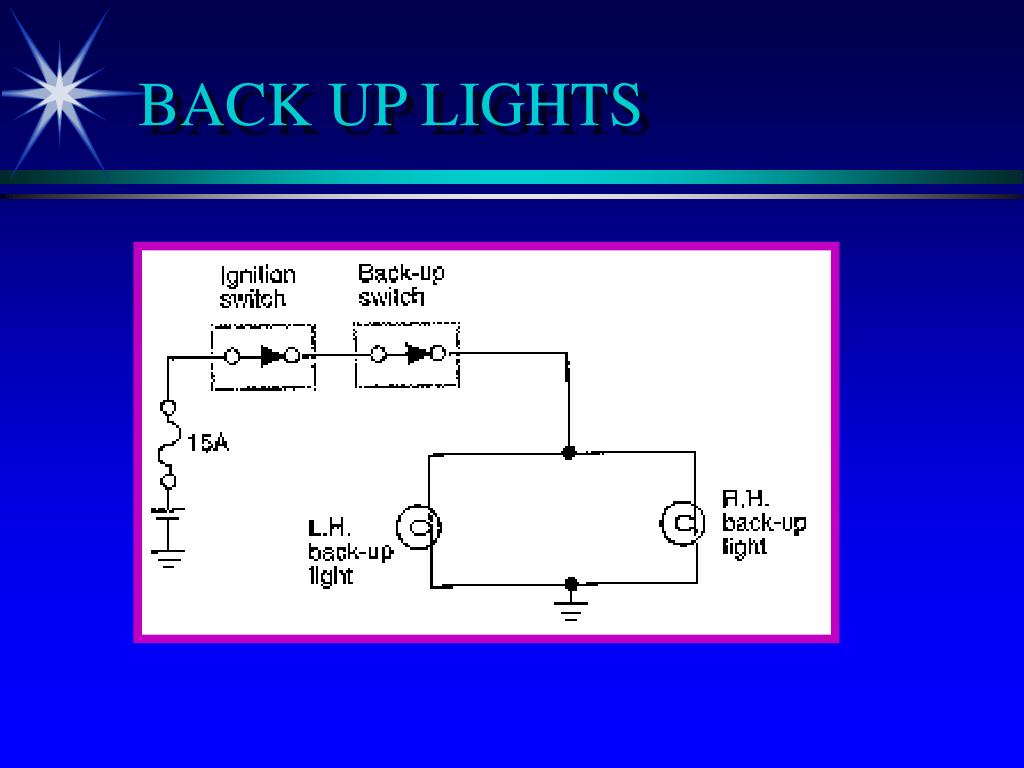

  16. BACK UP LIGHTS

  17. SIDE MARKER AND CLEARANCE LIGHTS • Federal Requirement since 1969 • Front - Amber • Rear - Red • On Steady • Flash with Turn Signal

  18. Turn Signal on/Parking Light On • Wired parallel with with parking lights. • high resistance side marker light bulb • ground through turn signal filament • turn signal filament less resistance than side marker filament

  19. Parking lights off/turn signal on • Marker light receives power from turn signal switch • Ground for side marker through park light filament • Side Marker will flash with turn signal light

  20. Turn Signal On/Park Lights On • Voltage equal to both sides of Marker Light • Flasher turns off Turn Signal Light then Turn filament is ground for Marker Light • Will Stay on until Flasher Turns Signal Light on again

  21. INTERIOR LIGHTS • COURTESY LIGHTS • INSTRUMENT CLUSTER AND PANEL LIGHTS • DOME LIGHTS • OPERA LIGHTS • WARNING LIGHTS • MAP LIGHTS
