The Tangent Function

The Tangent Function. Slope on the Unit Circle. What is the slope of the terminal side of an angle on the unit circle?. 1. (cos Ө ,sin Ө ). sin Ө. Opposite. Ө. -1. 1. cos Ө. Adjacent. Using our knowledge of the Unit Circle…. Or using trigonometry…. Slope =. -1.

astra
Télécharger la présentation

The Tangent Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

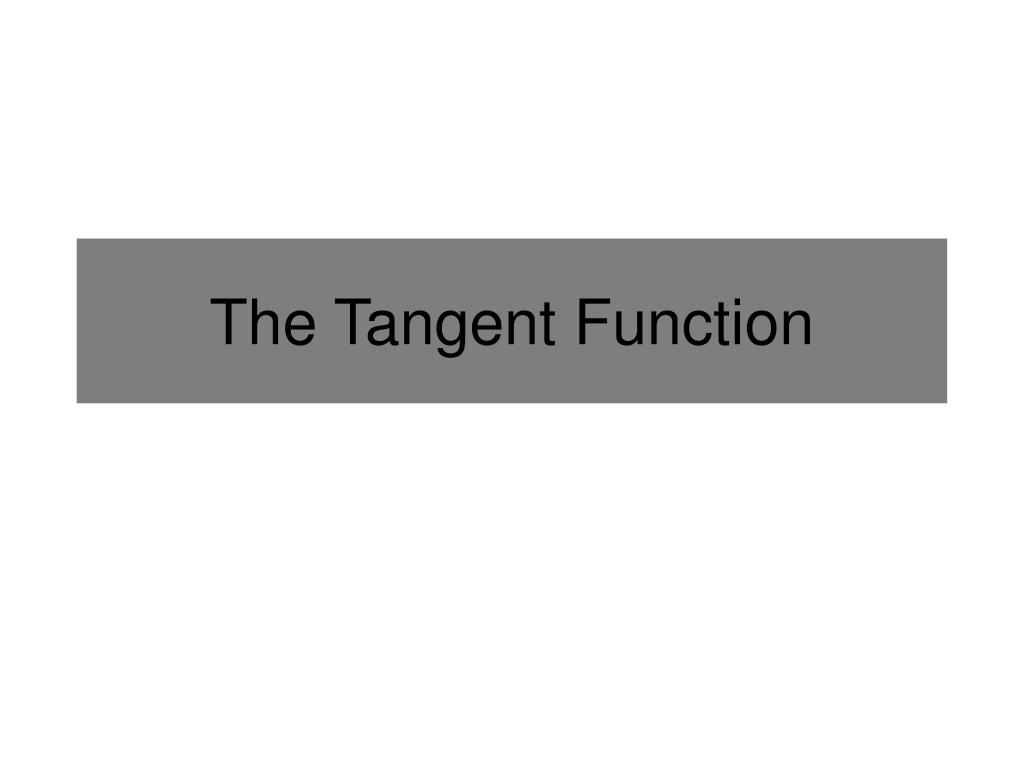

  1. The Tangent Function

  2. Slope on the Unit Circle What is the slope of the terminal side of an angle on the unit circle? 1 (cosӨ,sinӨ) sinӨ Opposite Ө -1 1 cosӨ Adjacent Using our knowledge of the Unit Circle… Or using trigonometry… Slope = -1

  3. A Definition of Tangent The tangent function is defined as: There are values for which the tangent function are undefined: Any Θ that makes cos(Θ)=0.

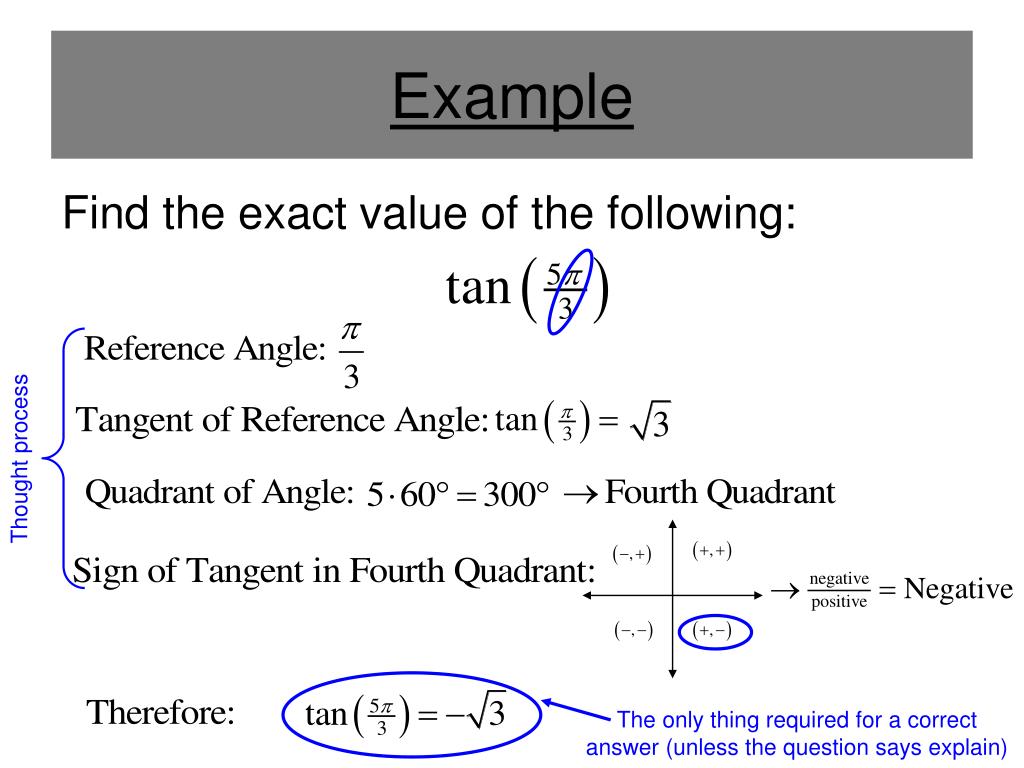

  4. Example Find the exact value of the following: Thought process The only thing required for a correct answer (unless the question says explain)

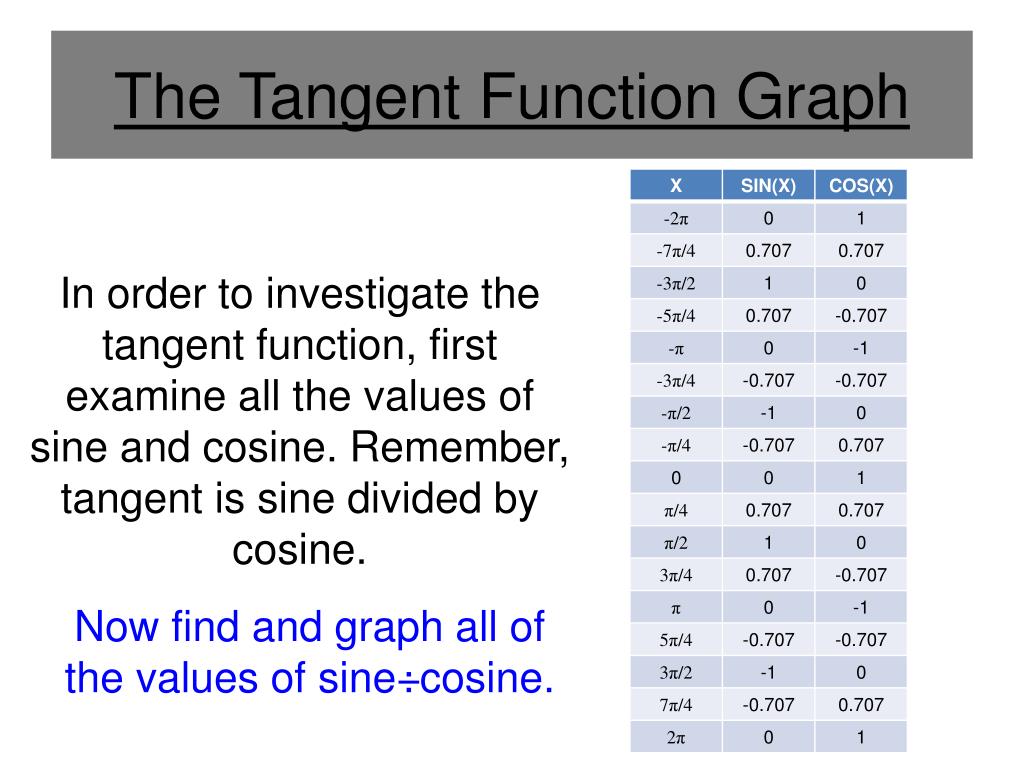

  5. The Tangent Function Graph In order to investigate the tangent function, first examine all the values of sine and cosine. Remember, tangent is sine divided by cosine. Now find and graph all of the values of sine÷cosine.

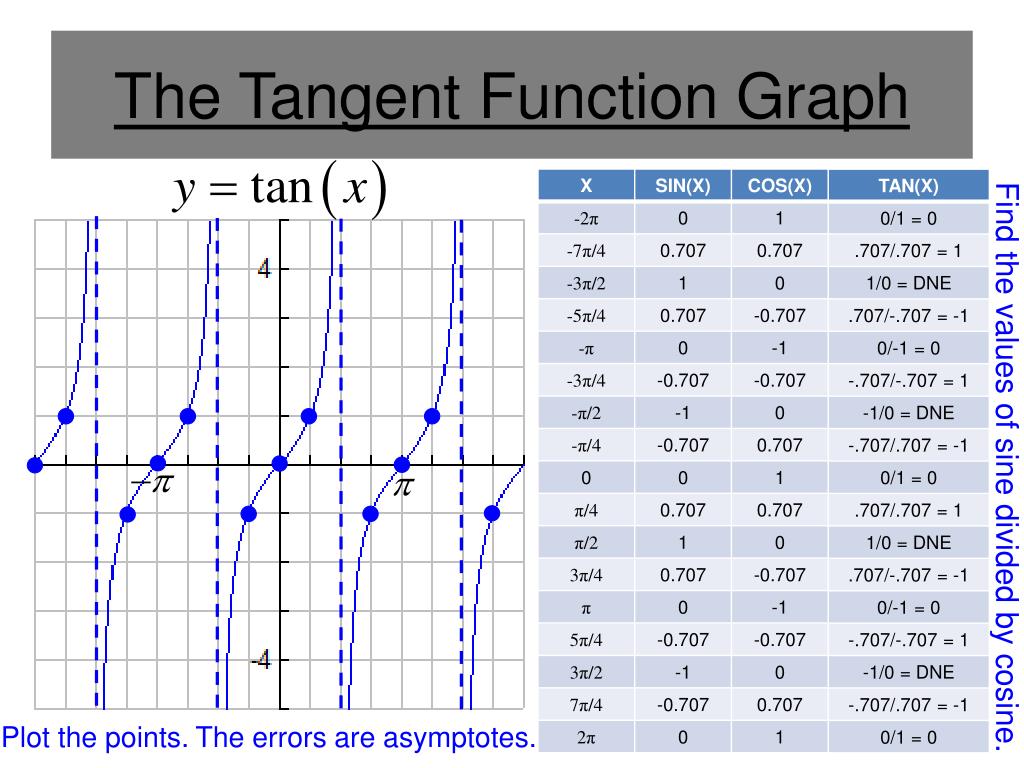

  6. The Tangent Function Graph Find the values of sine divided by cosine. The errors are asymptotes. Plot the points.

  7. The Tangent Function Graph Domain: Range: Asymptotes All Reals except All Reals

  8. Graph of Tangent (For 0 ≤ x ≤ 2π)
