  1. Grounding Practices • Dead? or • A live?

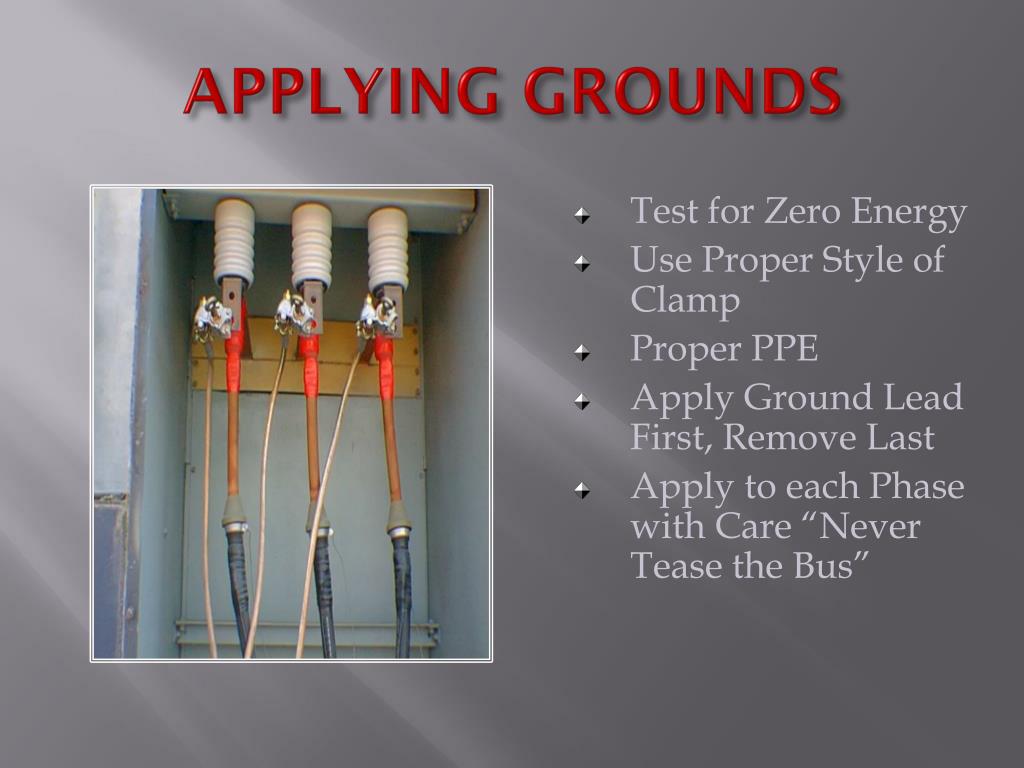

  2. APPLYING GROUNDS • Test for Zero Energy • Use Proper Style of Clamp • Proper PPE • Apply Ground Lead First, Remove Last • Apply to each Phase with Care “Never Tease the Bus”

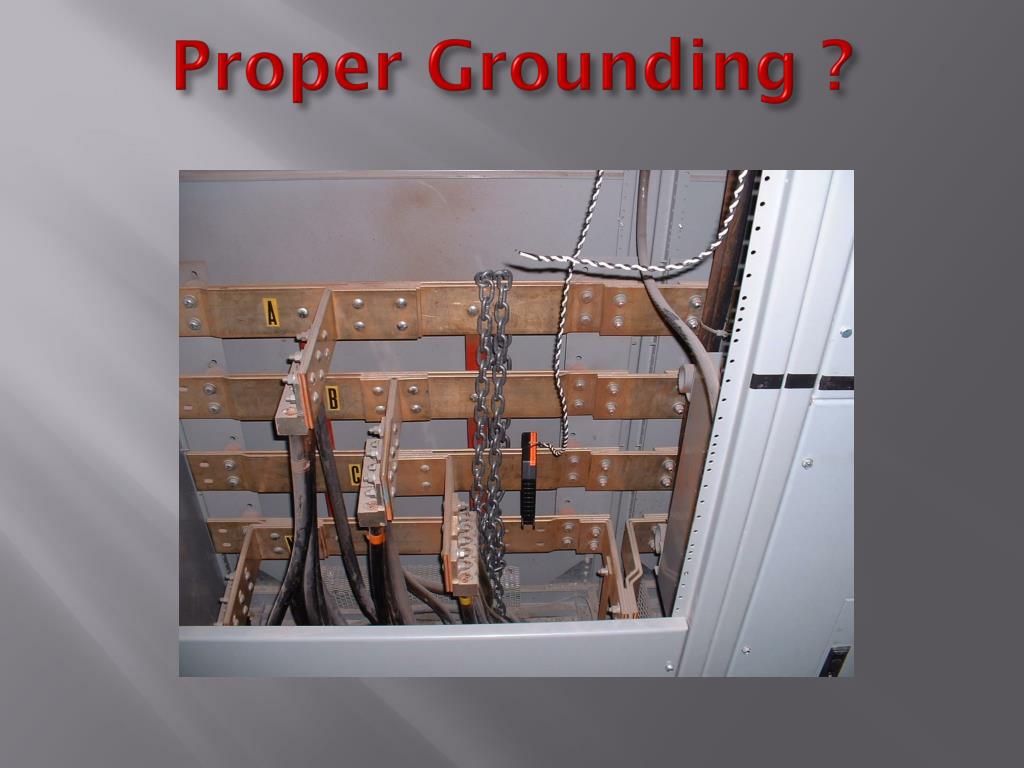

  3. Proper Grounding ?

  4. Zero Potential Zone • Grounding Platforms • Switch Operators • Bonding Straps • Hardware

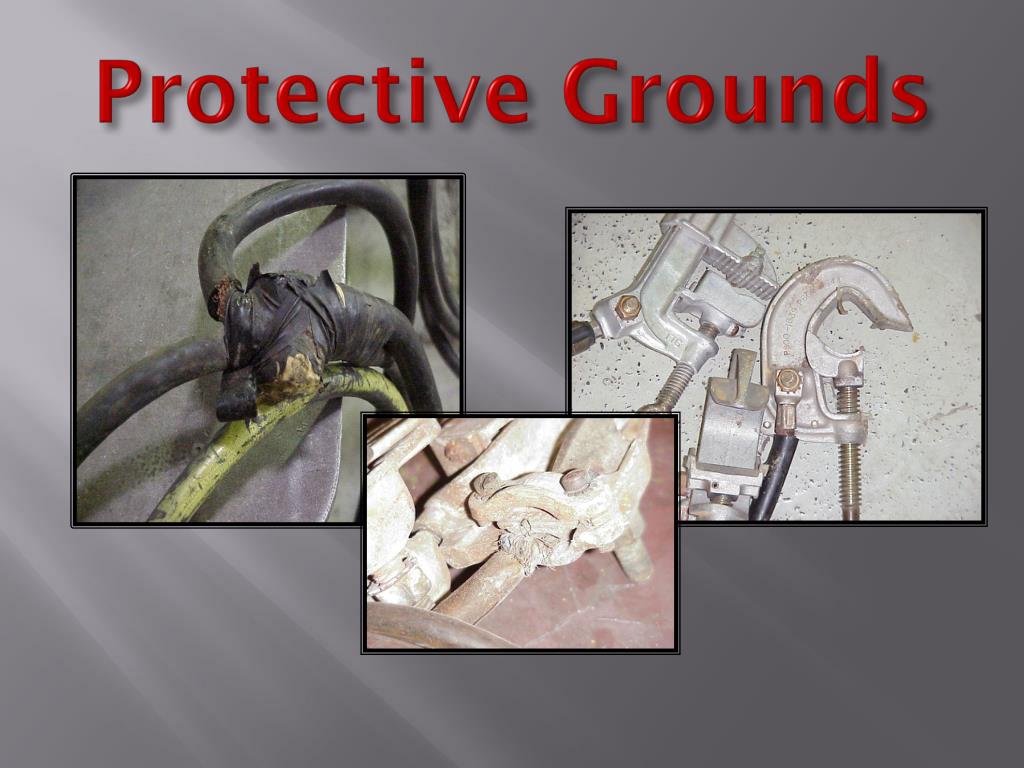

  5. Protective Grounds

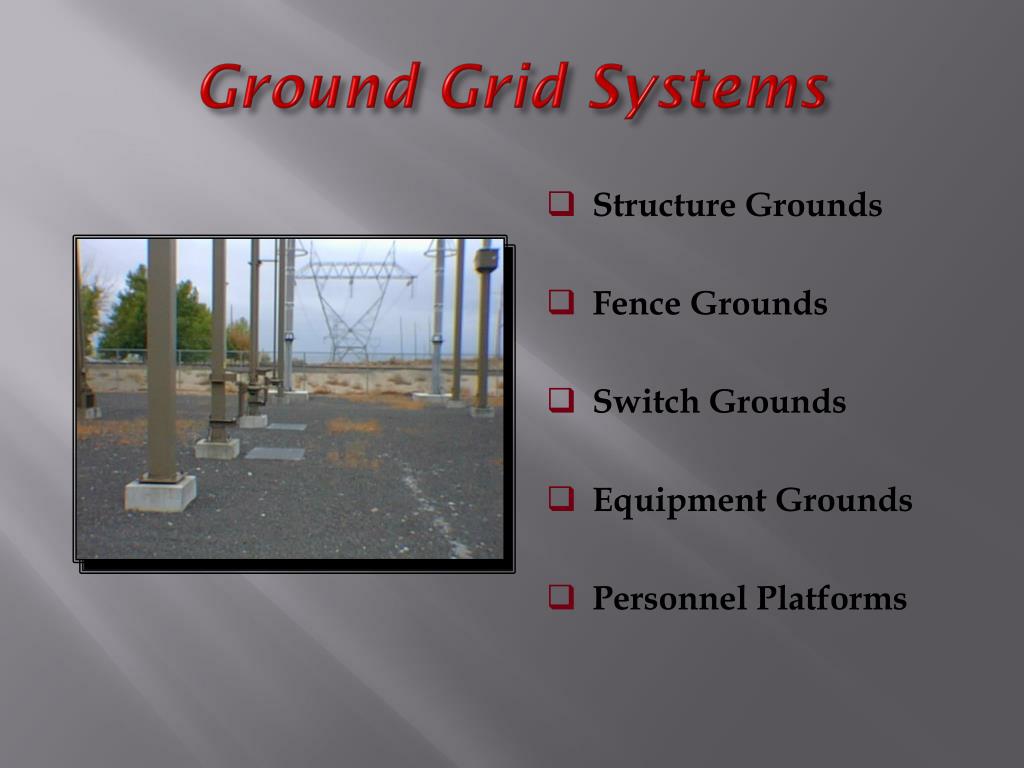

  6. Ground Grid Systems • Structure Grounds • Fence Grounds • Switch Grounds • Equipment Grounds • Personnel Platforms

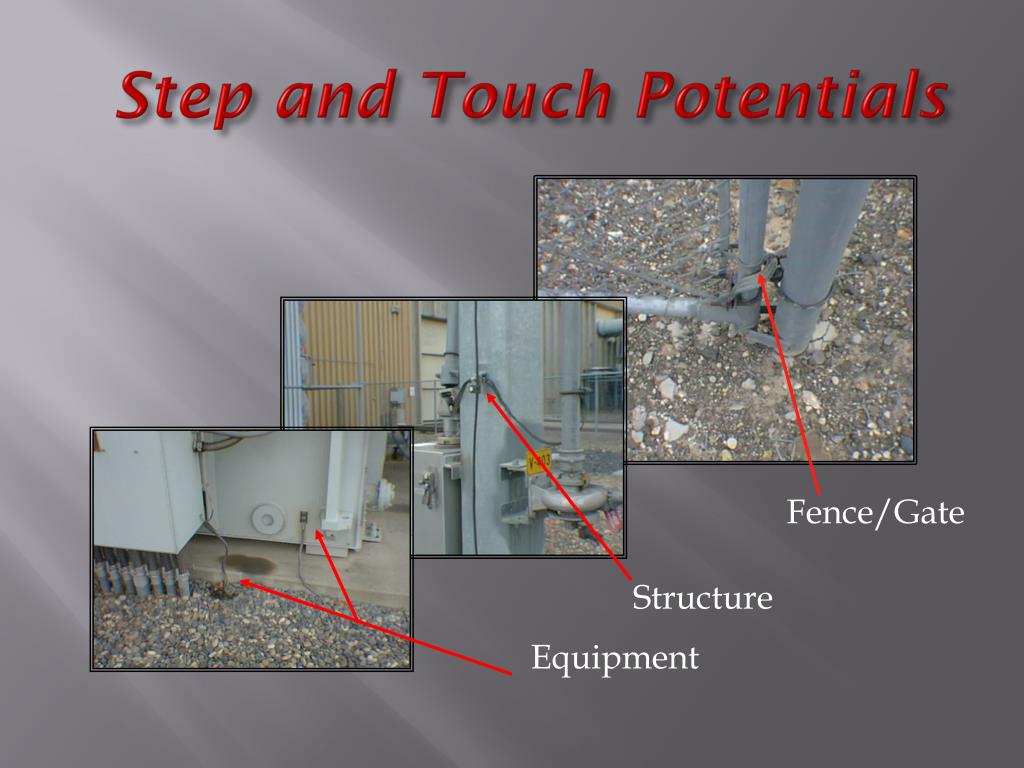

  7. Step and Touch Potentials Fence/Gate Structure Equipment

  8. Proper Safety Equipment is Mandatory • Hot Line Tools • Grounding Discharge Sticks • Grounding Cables • Protective Hoods • Rubber Mating
