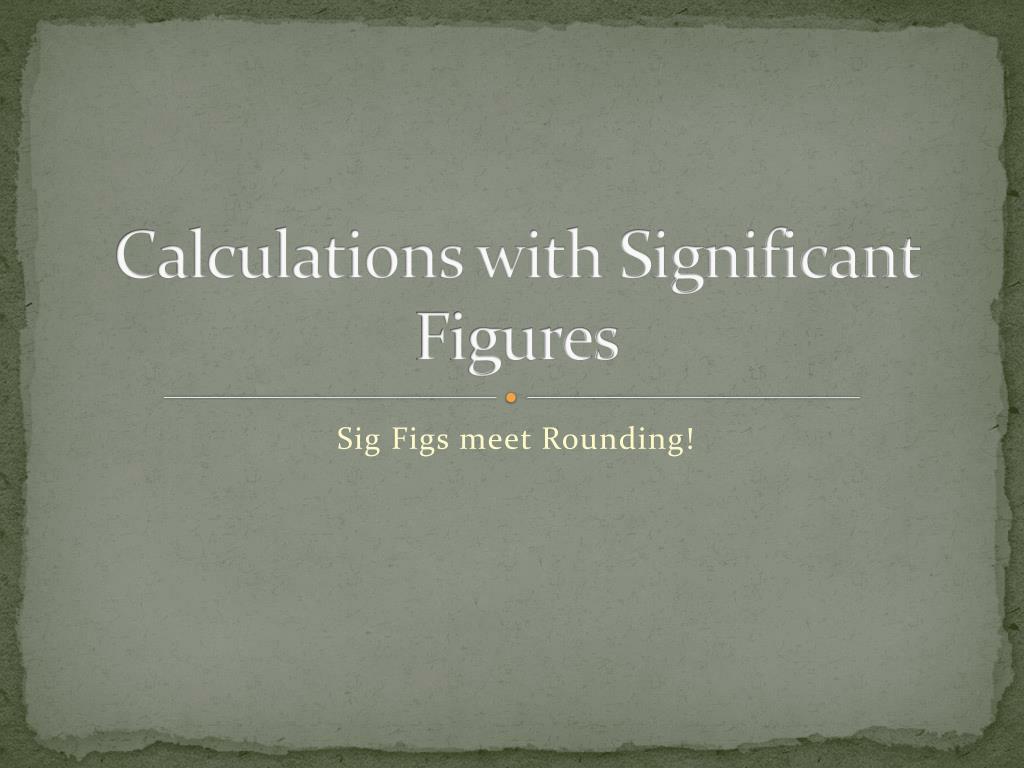

  1. Calculations with Significant Figures Sig Figs meet Rounding!

  2. Background • In Science we take measurements, but those measurements are sometimes needed to find the values that we really want. • For example: • Volume (Length x Width x Height) • Volume by Difference using a graduated cylinder (Height of Water with object – Height of water initially) • Density (Mass ÷ Volume) • Calculations cannot be more precise than the measurements.

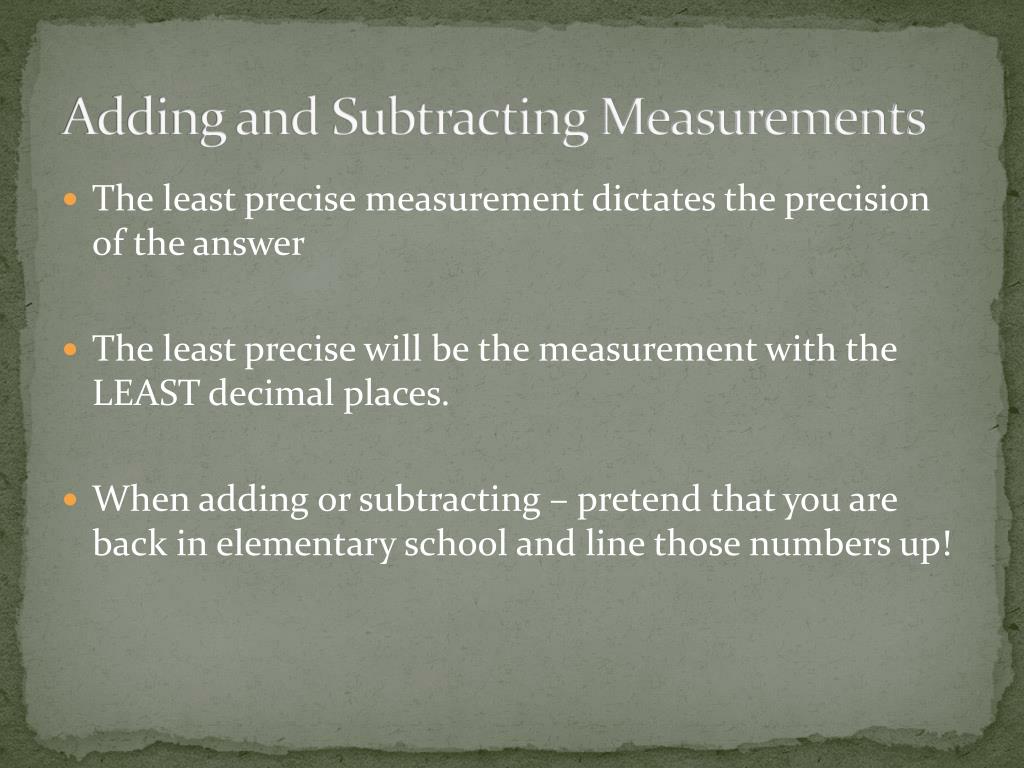

  3. Adding and Subtracting Measurements • The least precise measurement dictates the precision of the answer • The least precise will be the measurement with the LEAST decimal places. • When adding or subtracting – pretend that you are back in elementary school and line those numbers up!

  4. Adding and Subtracting Measurements • Example: Two different pieces of metal are massed separately using different balances. The first piece has a mass of 19.473 g. The second piece has a mass of 3.82 g. What is the total mass? Don’t forget to use significant figures. • Step 1 – Line them up and do the math. 19.473 + 3.82 23.293

  5. Adding and Subtracting Measurements • Step 2 – Find the LAST significant figure. Start from the right. Look for the first column that has a significant figure from both measurements. Underline the number in the answer that is in that column. 19.473 + 3.82 23.293

  6. Adding and Subtracting Measurements • Step 3 – Round to that place – do not forget to LOOK right! 19.473 + 3.82 23.293 Answer : 23.29 g – Don’t forget the Unit!!!

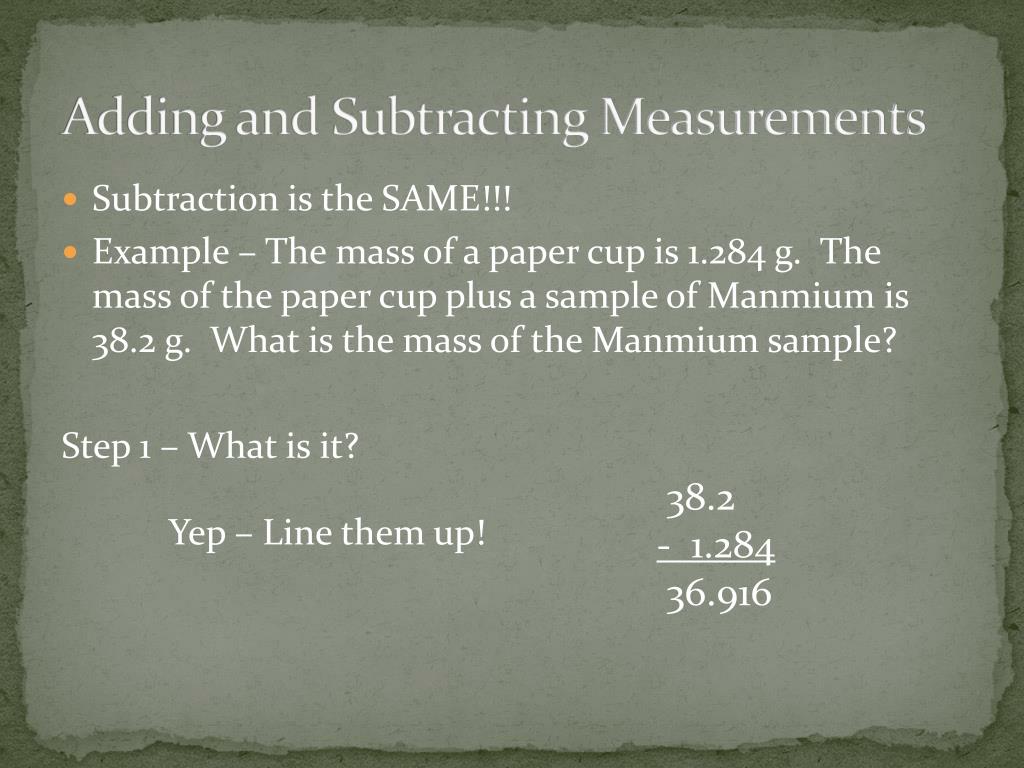

  7. Adding and Subtracting Measurements • Subtraction is the SAME!!! • Example – The mass of a paper cup is 1.284 g. The mass of the paper cup plus a sample of Manmium is 38.2 g. What is the mass of the Manmium sample? Step 1 – What is it? 38.2 - 1.284 36.916 Yep – Line them up!

  8. Adding and Subtracting Measurements Step 2 – What is it? Yep – Underline the last significant figure! 38.2 - 1.284 36.916

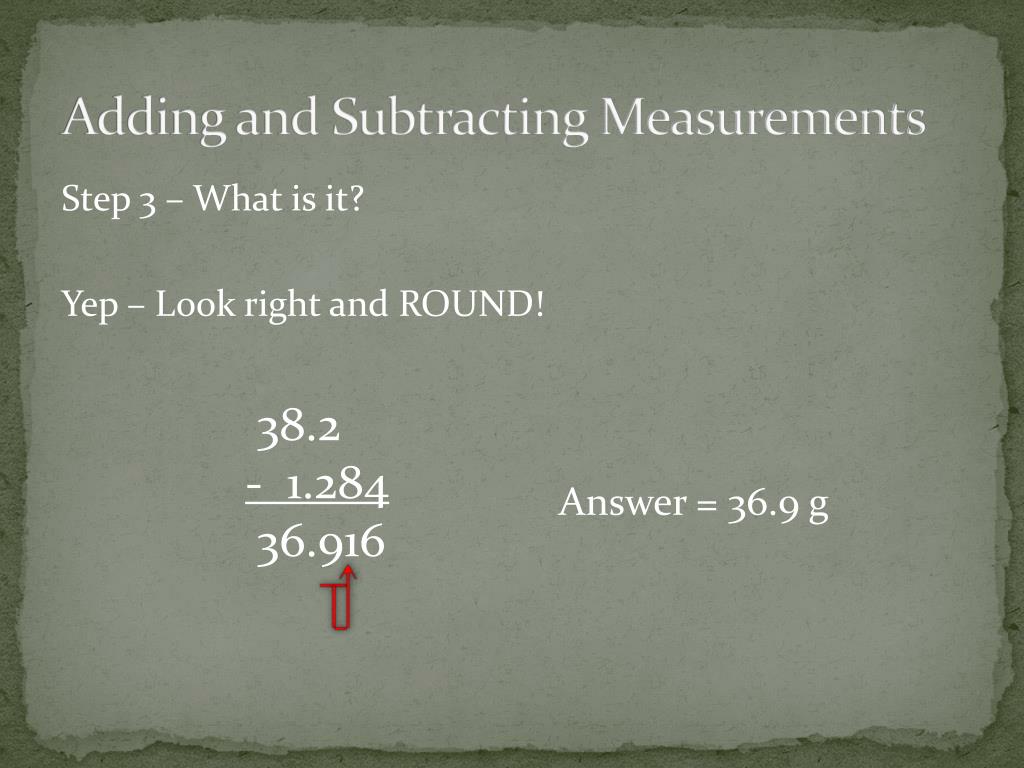

  9. Adding and Subtracting Measurements Step 3 – What is it? Yep – Look right and ROUND! 38.2 - 1.284 36.916 Answer = 36.9 g

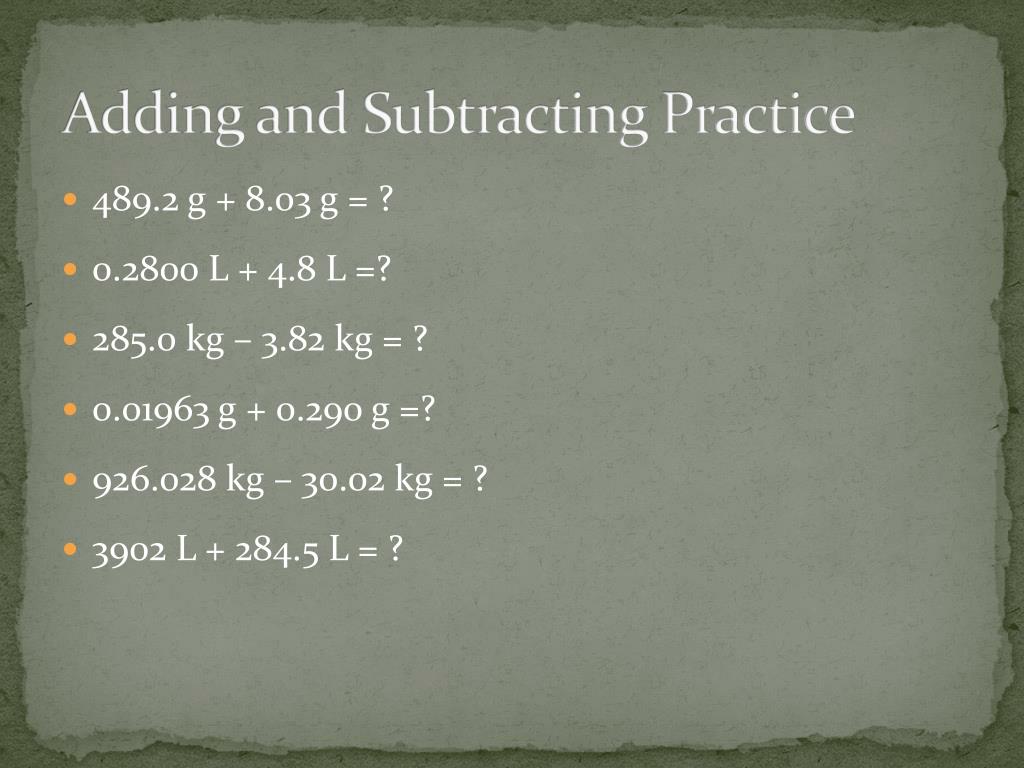

  10. Adding and Subtracting Practice • 489.2 g + 8.03 g = ? • 0.2800 L + 4.8 L =? • 285.0 kg – 3.82 kg = ? • 0.01963 g + 0.290 g =? • 926.028 kg – 30.02 kg = ? • 3902 L + 284.5 L = ?

  11. Adding and Subtracting Practice • 489.2 g + 8.03 g = 497.2 g • 0.2800 L + 4.8 L = 5.1 L • 285.0 kg – 3.82 kg = 281.2 kg • 0.01963 g + 0.290 g = 0.310 g • 926.028 kg – 30.02 kg = 896.01 kg • 3,902 L + 284.5 L = 4,186 L

  12. Multiplication and Division of Measurements • The least precise measurement dictates the precision of the answer • The least precise will be the measurement with the LEAST number of significant figures. • The answer should be rounded to the least number of significant figures

  13. Multiplication and Division of Measurements • Example: Find the area of a rectangle with a length of 24.35 m and a width of 4.09 m. • Step 1 – Do the math! • Area = Length x width • 24.35 m x 4.09 m = 99.5915 m2 • Step 2 – Determine the number of significant figures in the original measurements • 24.35 m (4 sig figs) • 4.09 m (3 sig figs)

  14. Multiplication and Division of Measurements • Step 3 – Determine the least number of sig figs • 3 sig figs is less than 4 sig figs • Step 4 – round the answer to the least number of sig figs that you determined in Step 3 • 99.5915 m2 • Final Answer – 99.6 m2

  15. Multiplication and Division of Measurements • Division is the same! • Example – An object has a mass of 48.309 g and a volume of 9.28 mL. What is the density of this object? • What is Step 1? • Yep – do the math! • Density = mass/volume • Density = 48.309 ÷ 9.28 = 5.20571121 g/mL

  16. Multiplication and Division of Measurements • What is Step 2? • Yep – determine the number of significant figures in each of the original measurements • 48.309 g (5 sig figs) • 9.28 mL ( 3 sig figs) • What is Step 3? • Yep – determine the least number of sig figs in the original measurements • 3 sig figs

  17. Multiplication and Division of Measurements • What is Step 4? • Yep – Round to the least number of sig figs found in Step 3 • 5.20571121 g/mL round to three sig figs • Final Answer = 5.21 g/mL

  18. Multiplication and Division Practice • 40.38 cm x 3.2903 cm = ? • 0.00382 m x 0.08291 m = ? • 293.0 g ÷ 3.0023 cm3 = ? • 3.0193 x 104 kg ÷ 4.93 L = ? • 293.0 cm x 3.28 cm = ? • Challenge: 3.927 cm x 12.736 cm x 4.000 cm = ?

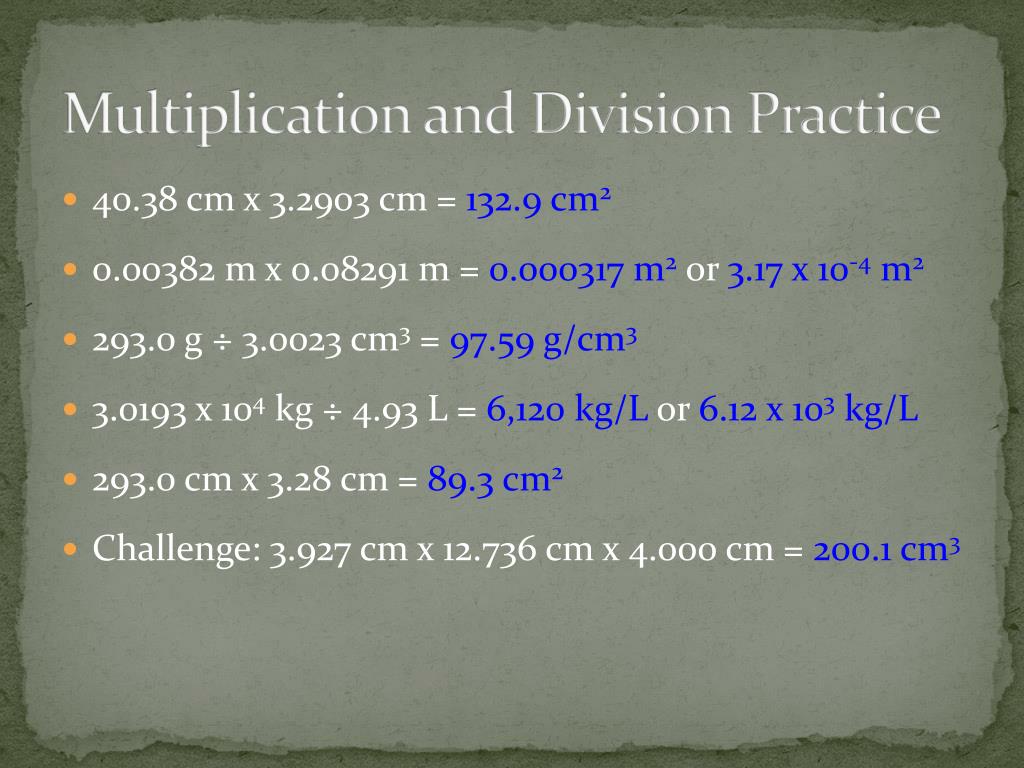

  19. Multiplication and Division Practice • 40.38 cm x 3.2903 cm = 132.9 cm2 • 0.00382 m x 0.08291 m = 0.000317 m2or 3.17 x 10-4m2 • 293.0 g ÷ 3.0023 cm3 = 97.59 g/cm3 • 3.0193 x 104 kg ÷ 4.93 L = 6,120 kg/L or 6.12 x 103 kg/L • 293.0 cm x 3.28 cm = 89.3 cm2 • Challenge: 3.927 cm x 12.736 cm x 4.000 cm = 200.1 cm3
