  1. Will Lefevers CS522 UCCS Distributed Denial of Service Attacks: Characterization and Defense

  2. Anatomy of a DDoS Attack: Gibson Research Corporation DDoS Attack Characterization Advanced DDoS with Traffic Reflection Attack Taxonomy Potential DDoS Defenses Defense Taxonomy Initiatives at UCCS Next? Outline

  3. May 4th, 2001, two direct-line 1.54Mb T1's flooded 1500B UDP packets bound for port 666, plus some ICMP and a little TCP; ISP didn't filter any of it 17 hours initial downtime, then 5 more attacks Anatomy of a DDoS: Gibson Research Corporation

  4. 474 “Zombie” systems (mostly from national ISPs), exclusively Win9X, directed by a 13-year old Attacking hosts were unable to IP spoof because of a half-implemented TCP/IP stack in Win9x Anatomy of a DDoS: Attack Vector

  5. Anatomy of a DDoS: Zombie Hosts • "Bot-farmers" preferred Cable ISPs over DSL because of upload bandwidth • Virus distributed widely, then coordinated through IRC

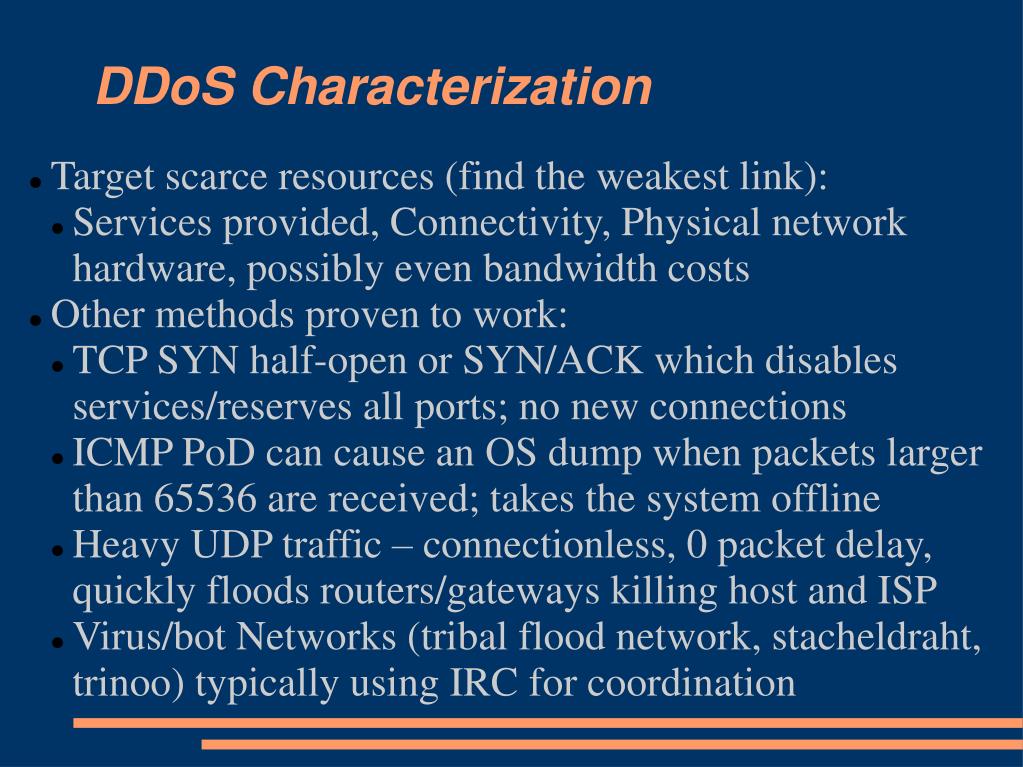

  6. DDoS Characterization • Target scarce resources (find the weakest link): • Services provided, Connectivity, Physical network hardware, possibly even bandwidth costs • Other methods proven to work: • TCP SYN half-open or SYN/ACK which disables services/reserves all ports; no new connections • ICMP PoD can cause an OS dump when packets larger than 65536 are received; takes the system offline • Heavy UDP traffic – connectionless, 0 packet delay, quickly floods routers/gateways killing host and ISP • Virus/bot Networks (tribal flood network, stacheldraht, trinoo) typically using IRC for coordination

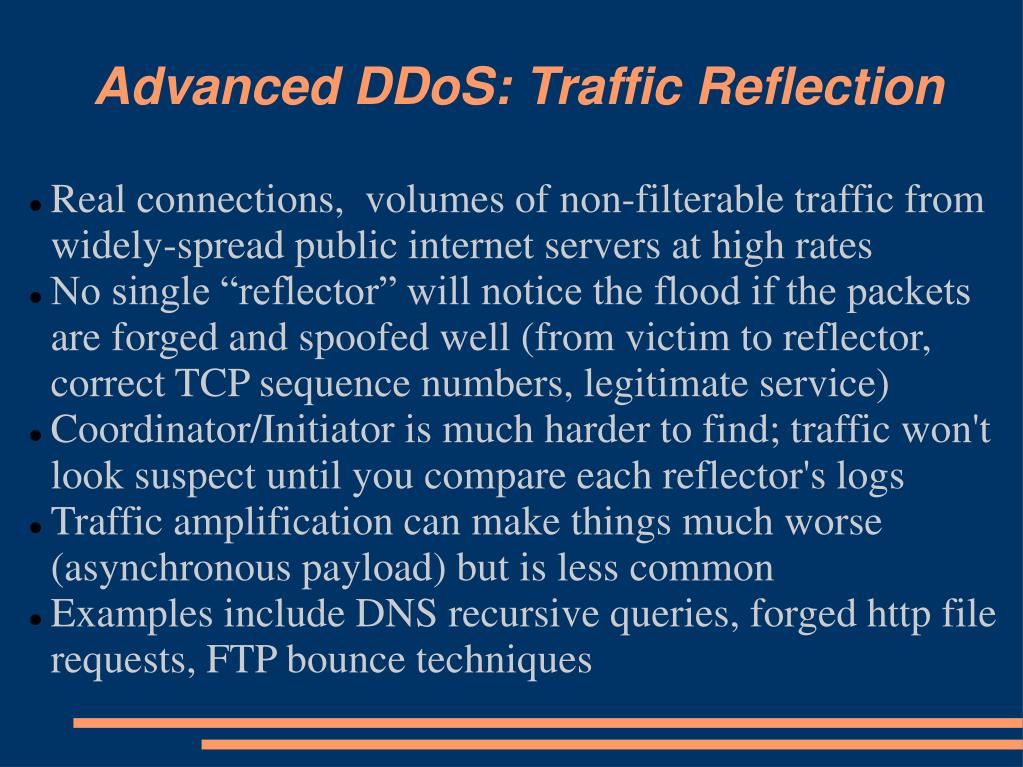

  7. Advanced DDoS: Traffic Reflection • Real connections, volumes of non-filterable traffic from widely-spread public internet servers at high rates • No single “reflector” will notice the flood if the packets are forged and spoofed well (from victim to reflector, correct TCP sequence numbers, legitimate service) • Coordinator/Initiator is much harder to find; traffic won't look suspect until you compare each reflector's logs • Traffic amplification can make things much worse (asynchronous payload) but is less common • Examples include DNS recursive queries, forged http file requests, FTP bounce techniques

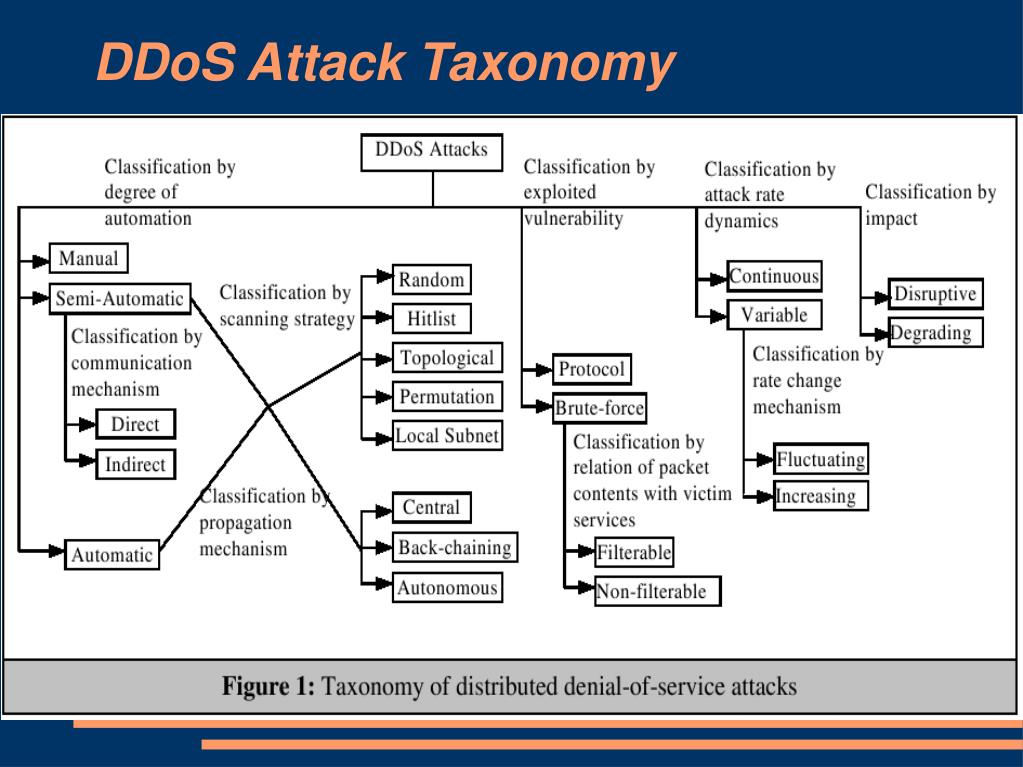

  8. DDoS Attack Taxonomy

  9. DDoS: Potential Defenses • Public Internet Routers/Gateways/Switches: • Implement filters for malformed packets and common attacks (wide deployment, but feasible) • Require ingress route filters and mapping (which side is that host on?) to prevent packet injection • "Followup" packets (ITRACE) can be forwarded by all routers via ICMP along the data path. This could highlight the slave systems to the reflector and victim. • Implement QoS and rate-limiting across the board

  10. DDoS: Potential Defenses • Operating System: • Disable address spoofing at the OS (Win9x's half-implemented TCP/IP) • Implement quota systems for limited resources (ftp shares, TCP ports, etc) • Use TCP cookies -- do not allocate resources until the handshake is complete • Application: • Make the TCP sequence numbers harder to guess • Network: • Multi-homed bandwidth and server pools/clusters

  11. DDoS Defense Taxonomy

  12. DDoS Initiatives at UCCS • Rate-limiting w/ Autonomous Anti-DDoS (A2D2) • Based on a SNORT plugin which interacts faster with the firewall and utilizes adaptive flood detection methods • Explores the efficient use of rate-limiting and content-based queuing • Network reconfiguration with Secure Collective Defense(SCOLD) • Extends the DNS system to supports update and retrieval of enhanced DNS entries including a set of proxy servers for indirect routes • Develops indirect routing protocol on Linux for setting up proxy-based indirect routes when the main route gets flooded.

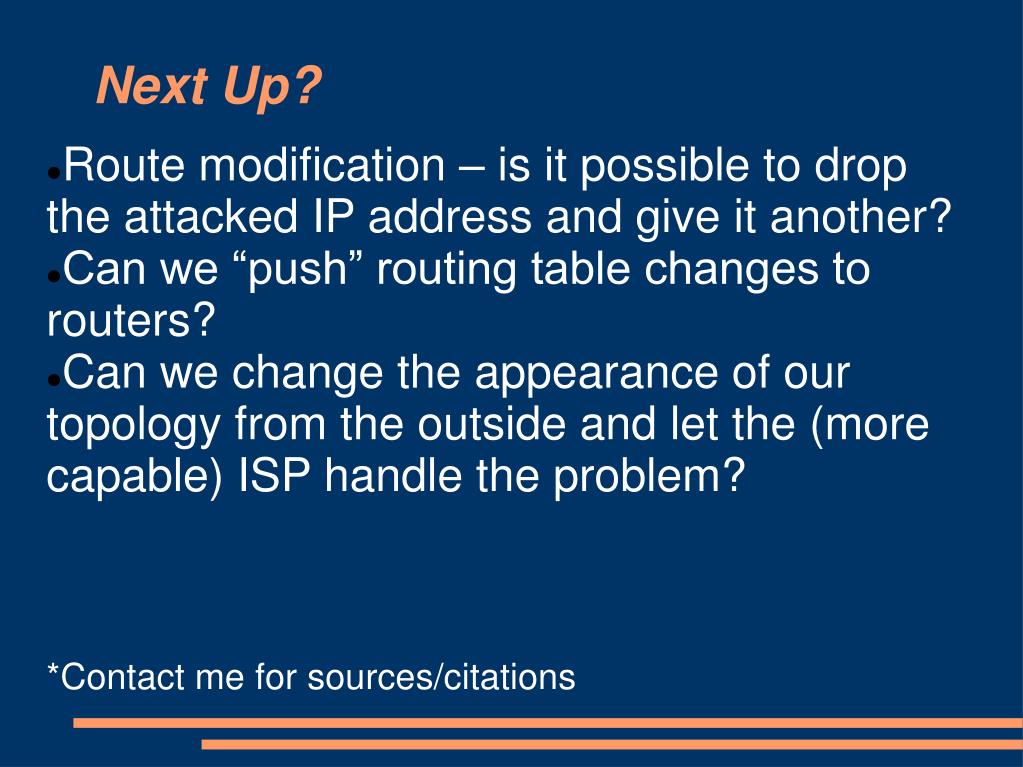

  13. Next Up? • Route modification – is it possible to drop the attacked IP address and give it another? • Can we “push” routing table changes to routers? • Can we change the appearance of our topology from the outside and let the (more capable) ISP handle the problem? • *Contact me for sources/citations

  14. Anatomy of a DDoS Attack: Gibson Research Corporation DDoS Attack Characterization Advanced DDoS with Traffic Reflection Attack Taxonomy Potential DDoS Defenses Defense Taxonomy Initiatives at UCCS Next? Review
