Camera Lighting Setup Tips: Maximizing Performance for Indoor and Outdoor Scenarios

This guide provides practical testing tips and camera setup recommendations for optimal performance in various lighting conditions, including infra-red and white-light scenarios. Learn about ideal camera settings, such as shutter speed, gain, and exposure control, to achieve high image quality. Understand the impact of reflectivity and illuminator models on camera performance. Use this comprehensive resource to enhance your surveillance system's effectiveness in both indoor and outdoor environments.

athena-juarez
Télécharger la présentation

Camera Lighting Setup Tips: Maximizing Performance for Indoor and Outdoor Scenarios

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

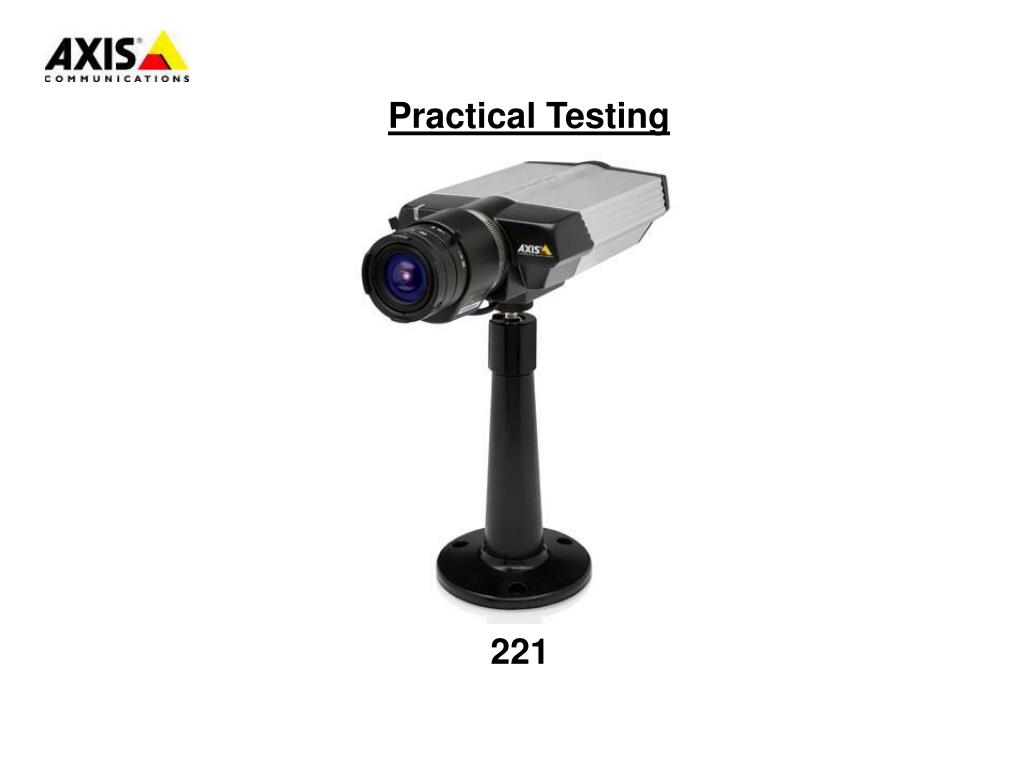

  1. Practical Testing 221

  2. Axis Infra-Red Light Indoor RM50-AI-30 No Illumination

  3. Axis Infra-Red Light Outdoor RM50-AI-30 No Illumination

  4. Axis Infra-Red Light Outdoor RM50-AI-30 No Illumination

  5. Axis Infra-Red Light Outdoor RM50-AI-30 No Illumination

  6. Axis Infra-Red Light Outdoor RM50-AI-30 Low Shutter No Illumination

  7. Axis Infra-Red Light Outdoor RM50-AI-30 Low Shutter No Illumination

  8. Axis White-Light Indoor RL100-AI-30 No Illumination

  9. Axis White-Light Indoor RL25 No Illumination

  10. Axis White-Light Indoor RL50-AI-30 Low Shutter No Illumination

  11. Axis White-Light Indoor RL50-AI-50 Low Shutter No Illumination

  12. Axis White-Light Indoor RL50-AI-50 Low Shutter No Illumination

  13. Camera Setup Tips For a typical scene try the following settings: • Shutter: 1/10 • Gain: 13dB • Prioritize: Image Quality • IR Cut Filter: Auto (Combining White-Light & Infra-Red Lighting ) • Iris: F1.4 – F1.8 • Shutter: 1/15 IR or 1/6 WL • Exposure Control: Automatic • Exposure Area: Auto • Color Level: 50 • Brightness: 50 • Sharpness: 50 • Contrast: 50 Reflectivity of surface and illuminator model will affect the camera’s performance

  14. RAYMAX IR and RAYLUX White-Light Typical Distance Matrix
