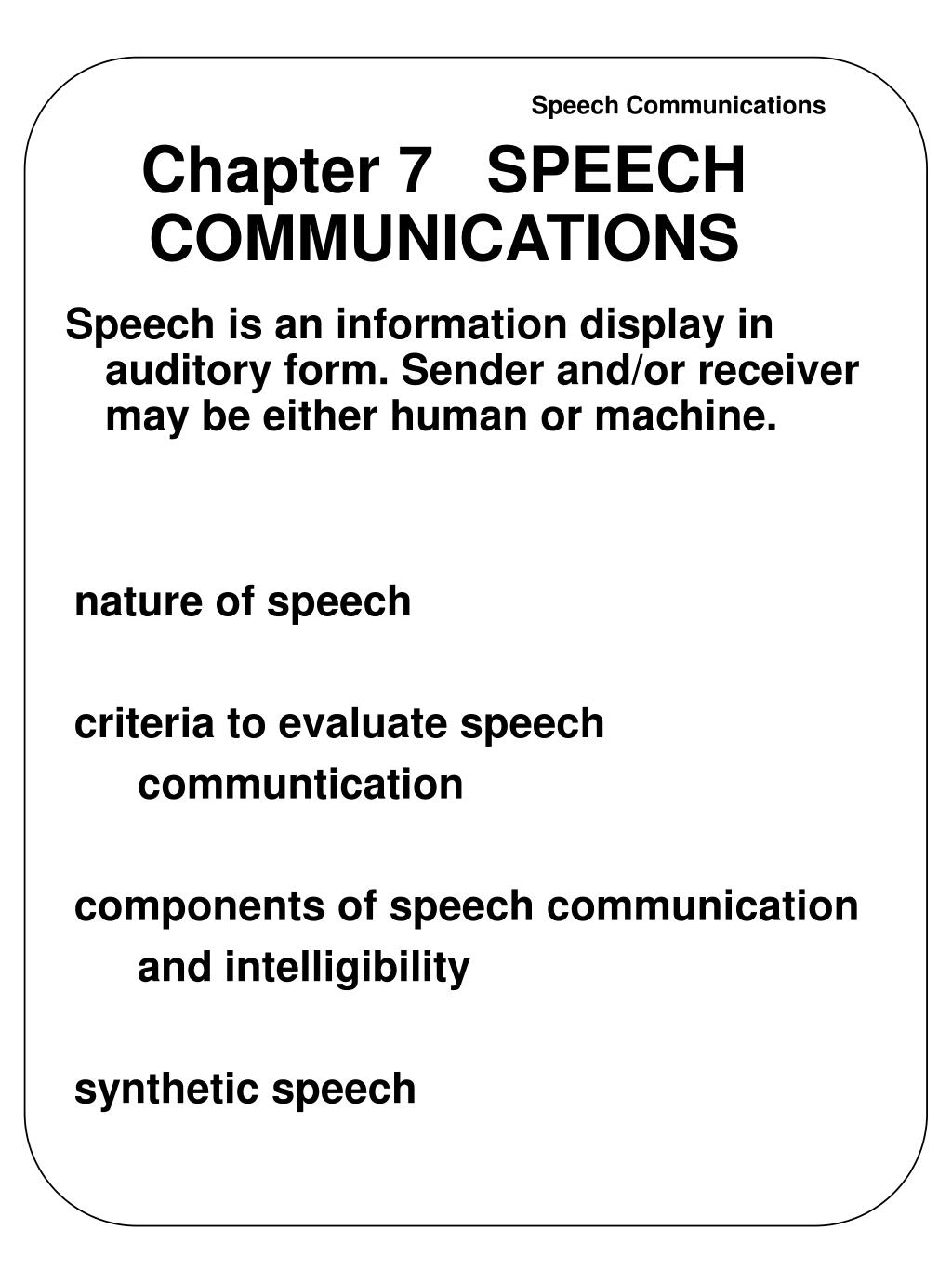

  1. Chapter 7 SPEECH COMMUNICATIONS • Speech is an information display in auditory form. Sender and/or receiver may be either human or machine. • nature of speech • criteria to evaluate speech • communtication • components of speech communication • and intelligibility • synthetic speech

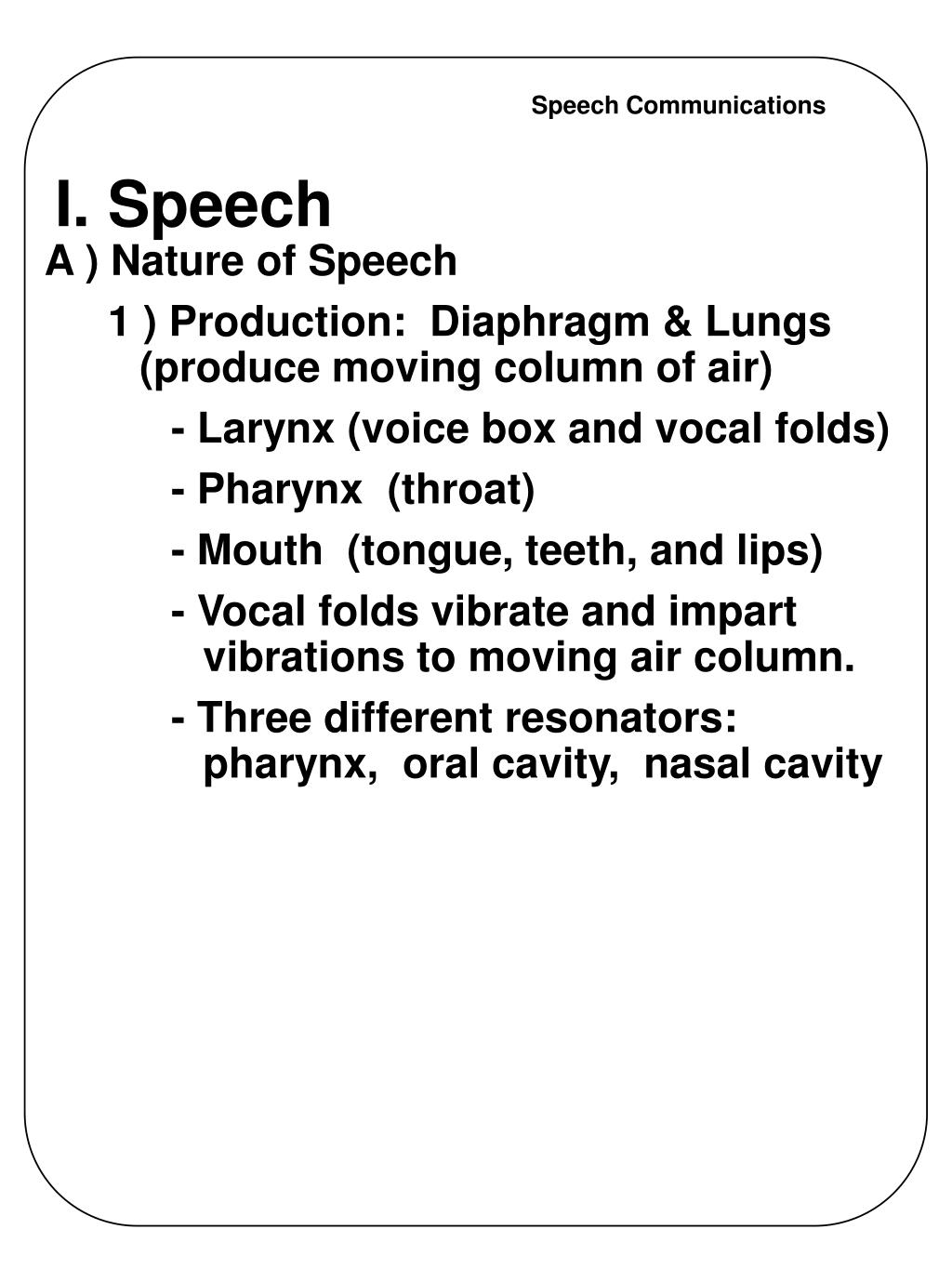

  2. I. Speech • A ) Nature of Speech • 1 ) Production: Diaphragm & Lungs (produce moving column of air) • - Larynx (voice box and vocal folds) • - Pharynx (throat) • - Mouth (tongue, teeth, and lips) • - Vocal folds vibrate and impart vibrations to moving air column. • - Three different resonators: pharynx, oral cavity, nasal cavity

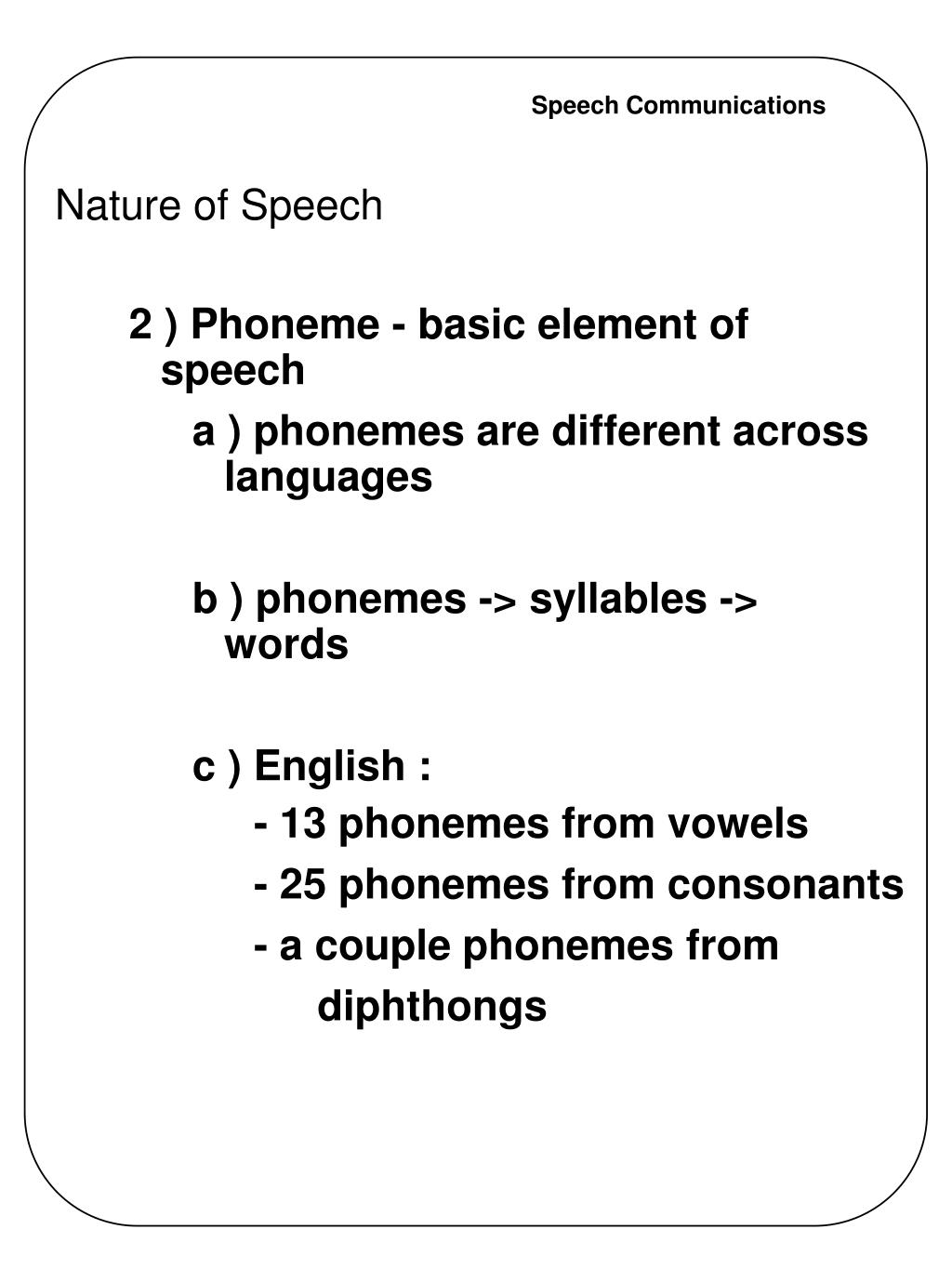

  3. Nature of Speech • 2 ) Phoneme - basic element of speech • a ) phonemes are different across languages • b ) phonemes -> syllables -> words • c ) English : • - 13 phonemes from vowels • - 25 phonemes from consonants • - a couple phonemes from • diphthongs

  4. Nature of Speech • 3 ) Characteristics: Sinusoidal wave and harmonics • - Complex composite and waveform envelope • - Depicting Speech ( fig 7.1): • - Frequency composition • 4 ) Intensity • - Vowels more intense than consonants • - Males more intense than females by 3 - 5 dB • - 45 dbA (weak) and 85 dbA (shouting) • a ) Waveform • b ) Spectrum • c ) Spectrogram

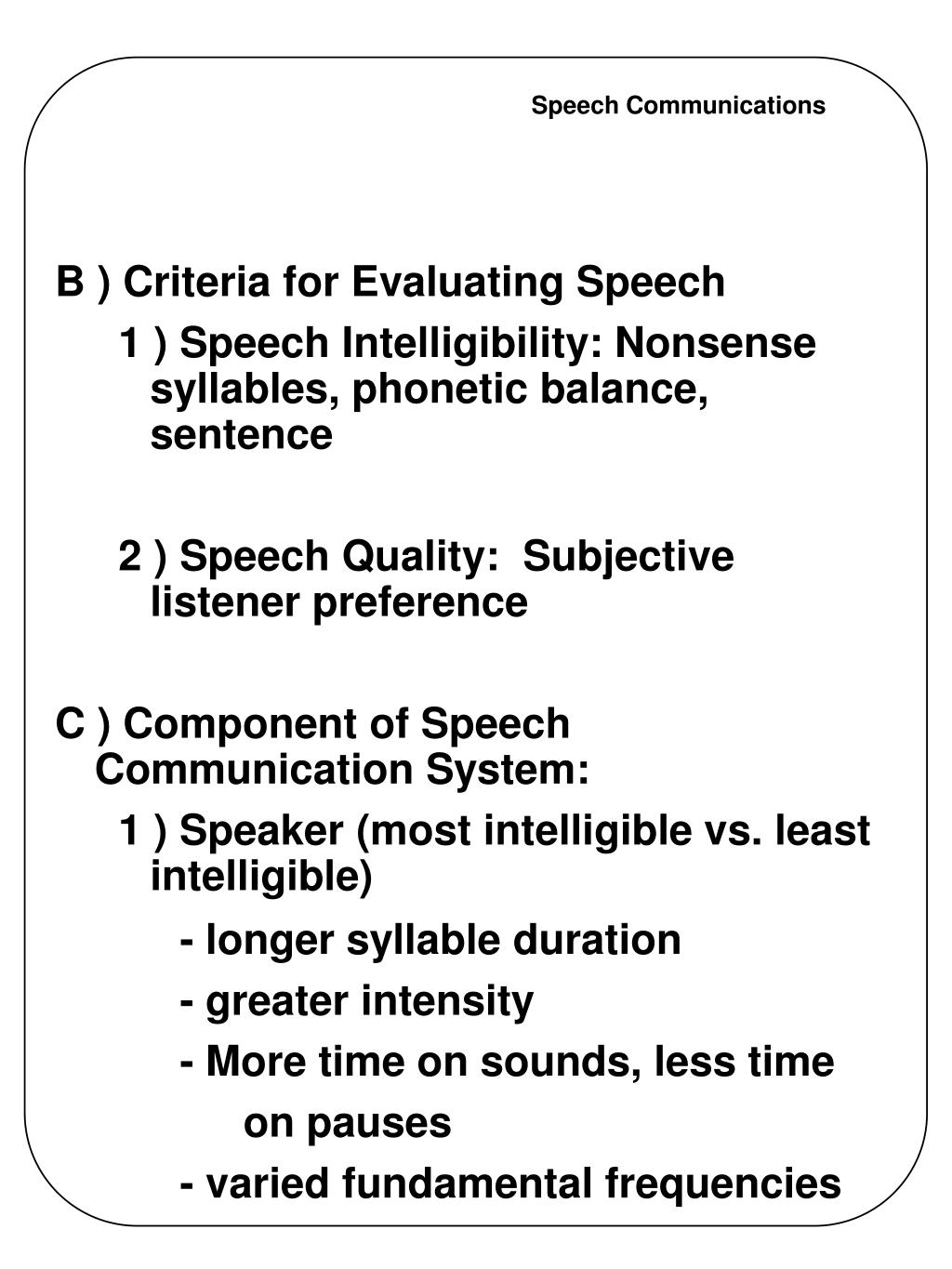

  5. B ) Criteria for Evaluating Speech • 1 ) Speech Intelligibility: Nonsense syllables, phonetic balance, sentence • 2 ) Speech Quality: Subjective listener preference • C ) Component of Speech Communication System: • 1 ) Speaker (most intelligible vs. least intelligible) • - longer syllable duration • - greater intensity • - More time on sounds, less time • on pauses • - varied fundamental frequencies

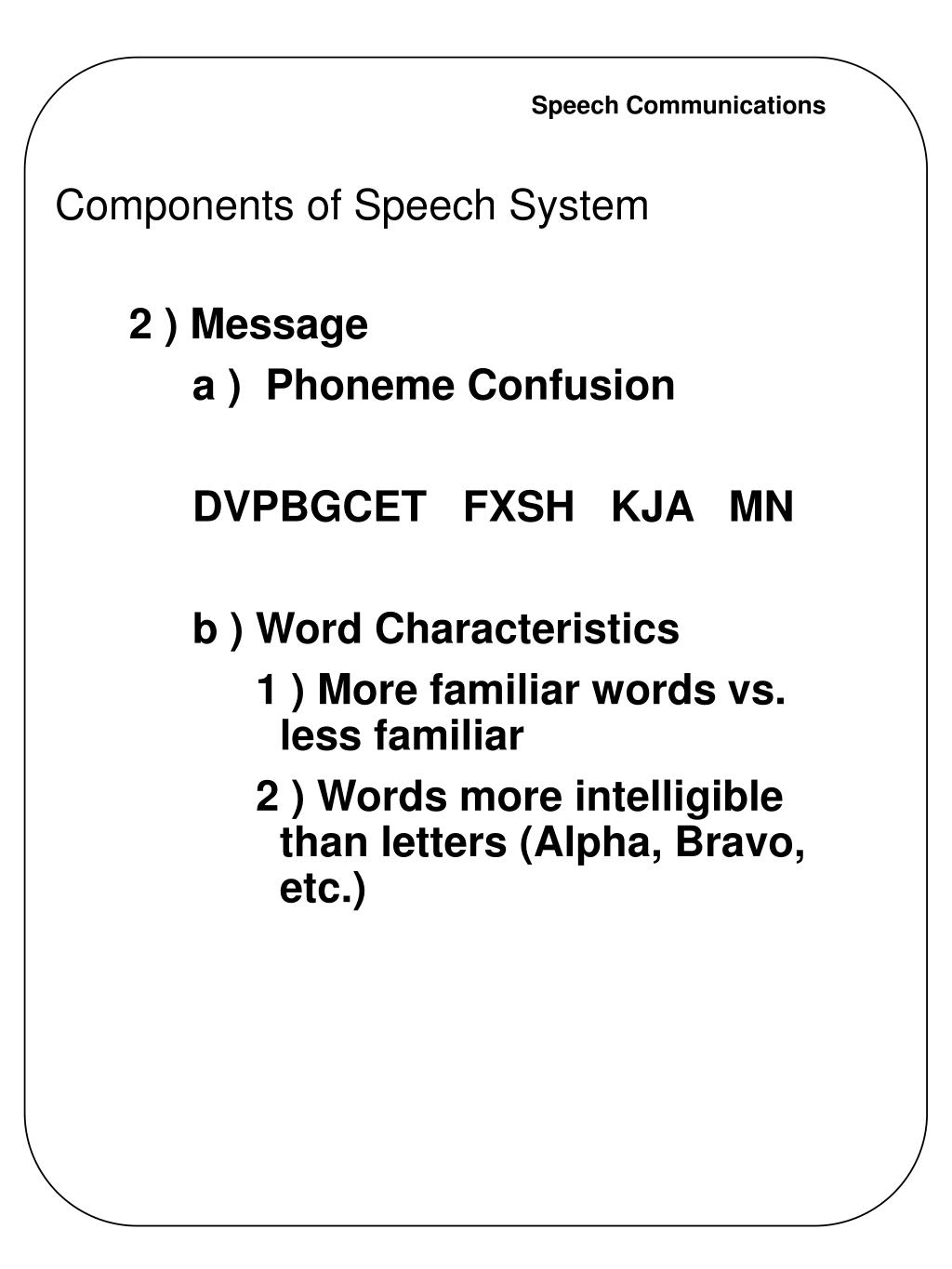

  6. Components of Speech System • 2 ) Message • a ) Phoneme Confusion • DVPBGCET FXSH KJA MN • b ) Word Characteristics • 1 ) More familiar words vs. less familiar • 2 ) Words more intelligible than letters (Alpha, Bravo, etc.)

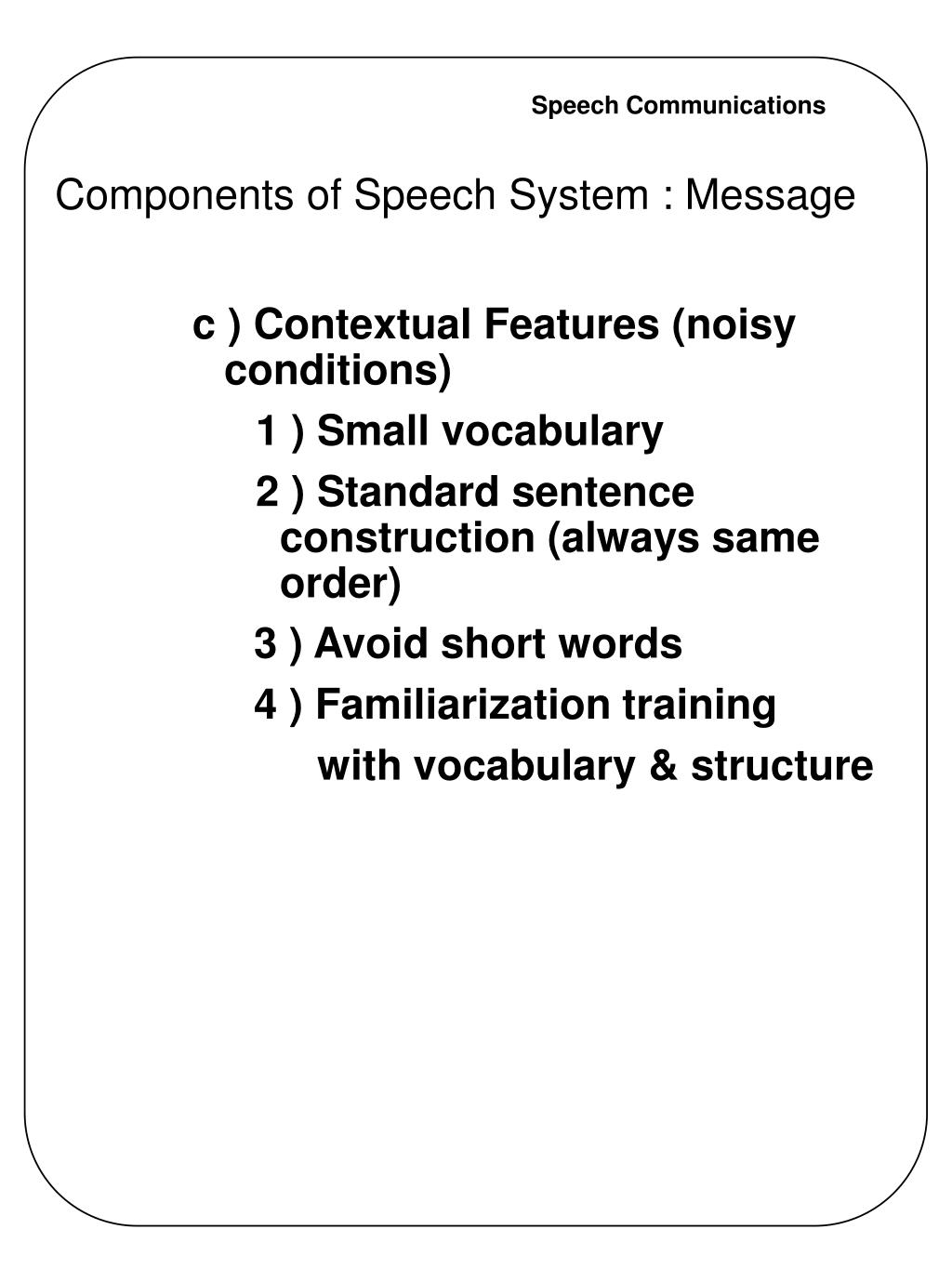

  7. Components of Speech System : Message • c ) Contextual Features (noisy conditions) • 1 ) Small vocabulary • 2 ) Standard sentence construction (always same order) • 3 ) Avoid short words • 4 ) Familiarization training • with vocabulary & structure

  8. Components of Speech System • 3 ) Transmission system • - Intelligibility vs. fidelity • a ) Effects of Filtering (Frequency distortion) • - Low Pass Filter eliminates high frequencies • - High Pass Filter eliminates low frequencies • - Band Pass Filter eliminations frequencies above & below • - Below 600Hz or above • 4000Hz - little effect • - Between 1000-3000Hz - • major loss of intelligibility

  9. Components of Speech System : Transmission • b ) Effects of Amplitude Distortion (non-linear circuitry) • - Peak Clipping - no major degradation • - Center clipping - almost total garble

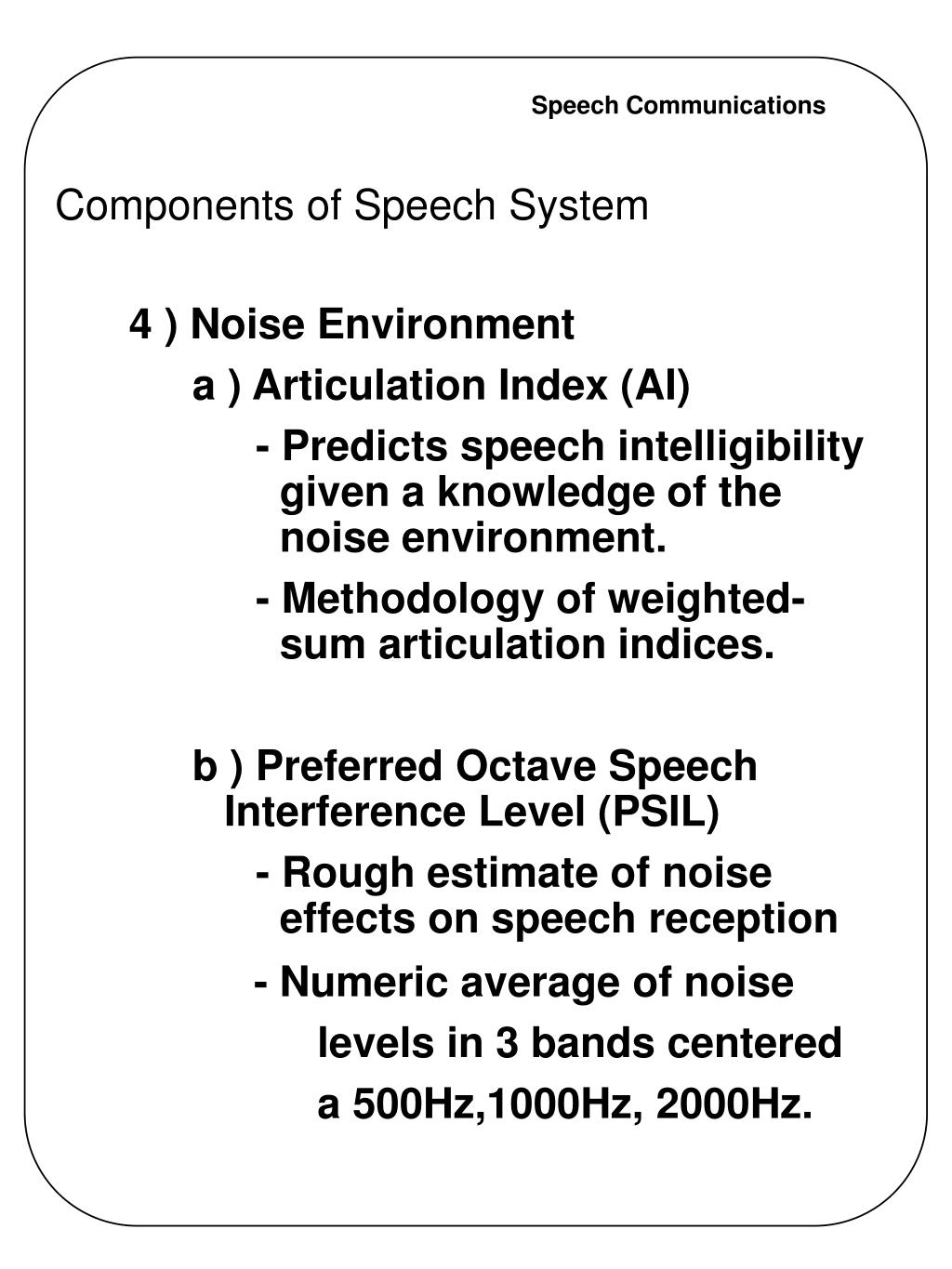

  10. Components of Speech System • 4 ) Noise Environment • a ) Articulation Index (AI) • - Predicts speech intelligibility given a knowledge of the noise environment. • - Methodology of weighted-sum articulation indices. • b ) Preferred Octave Speech Interference Level (PSIL) • - Rough estimate of noise effects on speech reception • - Numeric average of noise • levels in 3 bands centered • a 500Hz,1000Hz, 2000Hz.

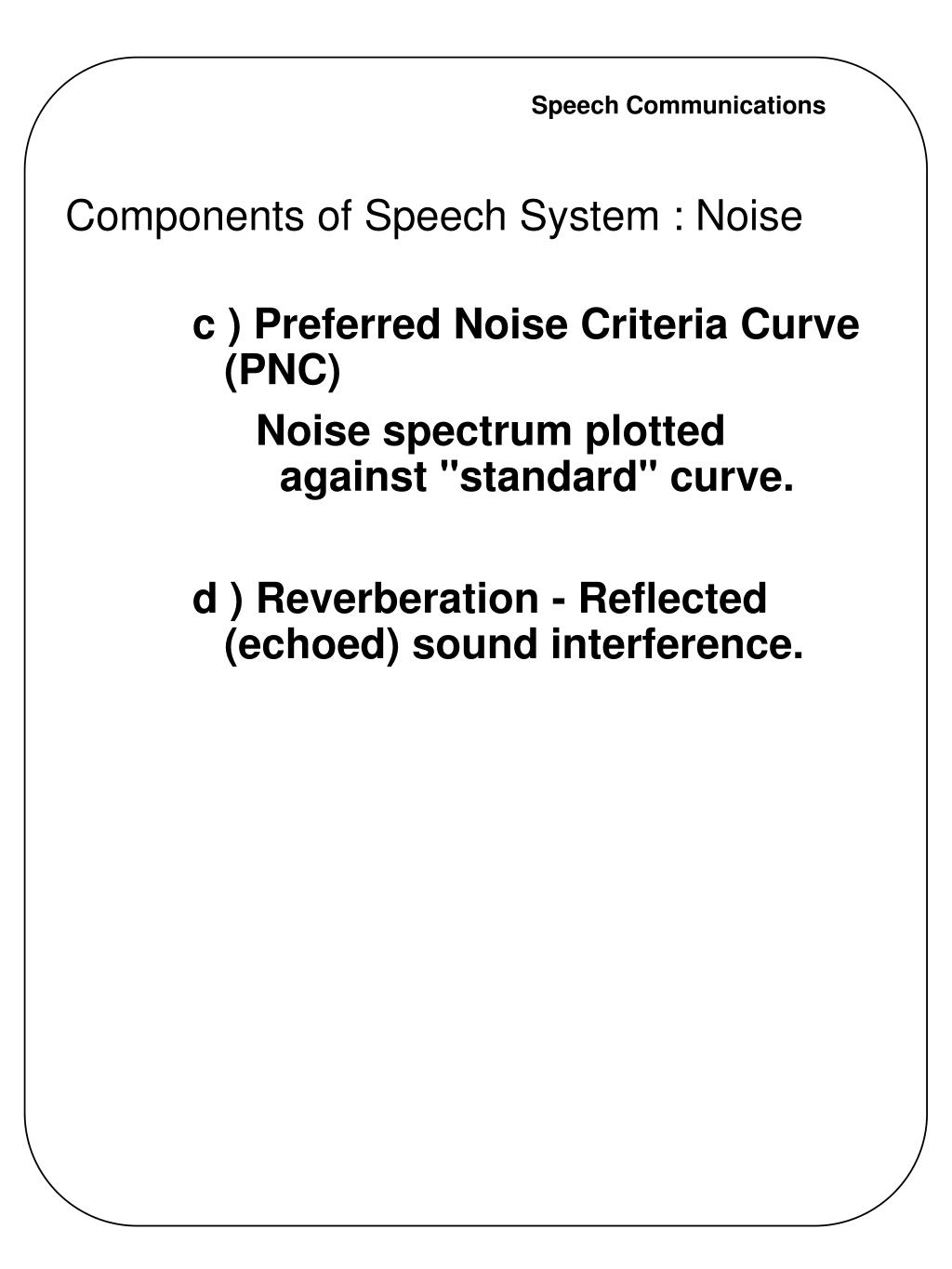

  11. Components of Speech System : Noise • c ) Preferred Noise Criteria Curve (PNC) • Noise spectrum plotted against "standard" curve. • d ) Reverberation - Reflected (echoed) sound interference.

  12. Components of Speech System • 5 ) Hearer • a ) Hearing ability • b ) Attentiveness • c ) Familiarity • - age • - hearing protection

  13. II. SYNTHESIZED SPEECH • Human Factors Considerations: • 1. Determine most appropriate uses. • 2. Which aspects influence human perception and performance. • 3. System improvements • A ) Types : • 1 ) Analog recordings • 2 ) Digitized Speech • - Mechanical complexities • - Only pre-recorded messages • - Time-to-access • - Memory Requirements • (8-24 Kbyte / sec 1Mbyte = 40 sec) • - Fast access (can also be parsed)

  14. SYNTHESIZED SPEECH • B ) Methods of Synthesized Speech • 1 ) Analysis-Synthesis • Electronic Model (Synthesizer Keyboard) • Filters, Modulators, Envelop Generators • Requires much less memory • Previously analyzed, encoded & stored sounds • Co-articulation problem (bookcase-book Kase)

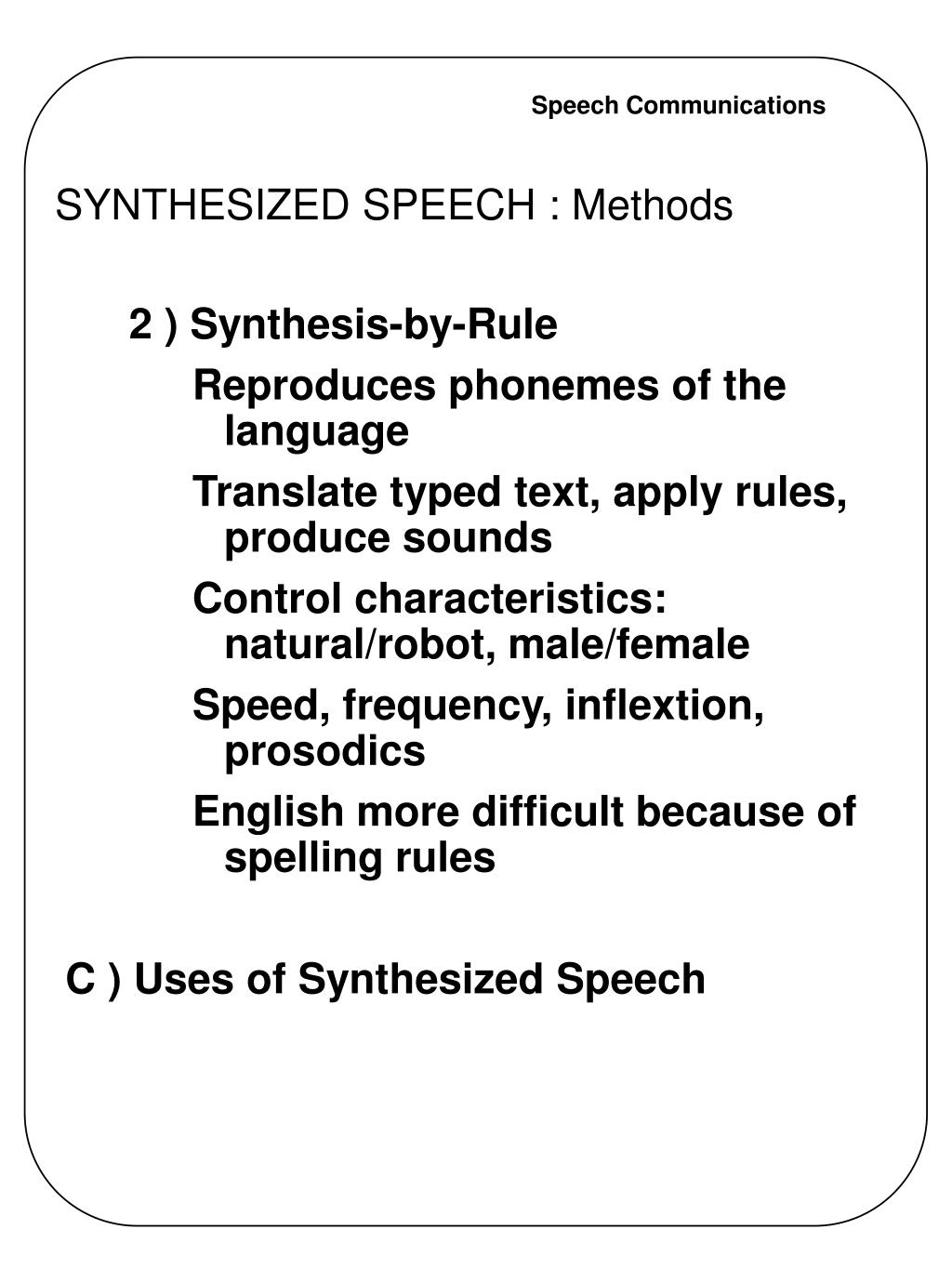

  15. SYNTHESIZED SPEECH : Methods • 2 ) Synthesis-by-Rule • Reproduces phonemes of the language • Translate typed text, apply rules, produce sounds • Control characteristics: natural/robot, male/female • Speed, frequency, inflextion, prosodics • English more difficult because of spelling rules • C ) Uses of Synthesized Speech

  16. SYNTHESIZED SPEECH • D ) Human Performance • 1 ) Intelligibility - Variable (simple words, high S/N, Intelligibility = 99%) • 2 ) Remembering • - May require more processing capability. • - Encoding difficulty may disrupt working memory • - as well as transfer to long-term memory.

  17. SYNTHESIZED SPEECH : Performance • 3 ) Preference • General criticism: • - Some people dislike talking machines • - Machinelike, choppy, harsh, grainy, flat, noisy • Beware: • - Lacks co-articulation and • natural intonation • - Poor quality may be highly • intelligible • - Pleasant sounding may be • totally incomprehensible

  18. SYNTHESIZED SPEECH • E ) Guidelines for use of synthesized speech • 1 ) Voice warnings should be qualitatively different • 2 ) If used exclusively for warnings, no pre-alerting • 3 ) If multiple uses, attention direction may be appropriate • 4 ) Maximize intelligibility • 5 ) For GP use, maximize user acceptance via natural sound

  19. SYNTHESIZED SPEECH : Guidelines • 6 ) Replay option • 7 ) Interrupt capability • 8 ) Spelling mode requires higher quality • 9 ) Introductory/familiarization/training message • 10 ) Use sparingly - where appropriate and accepted
