  1. TUTORIAL 8 NAV 2 TRIANGLE of VECTORS

  2. Triangle of Velocities Wind = 240@28kt Track = 351 TAS = 102 kt

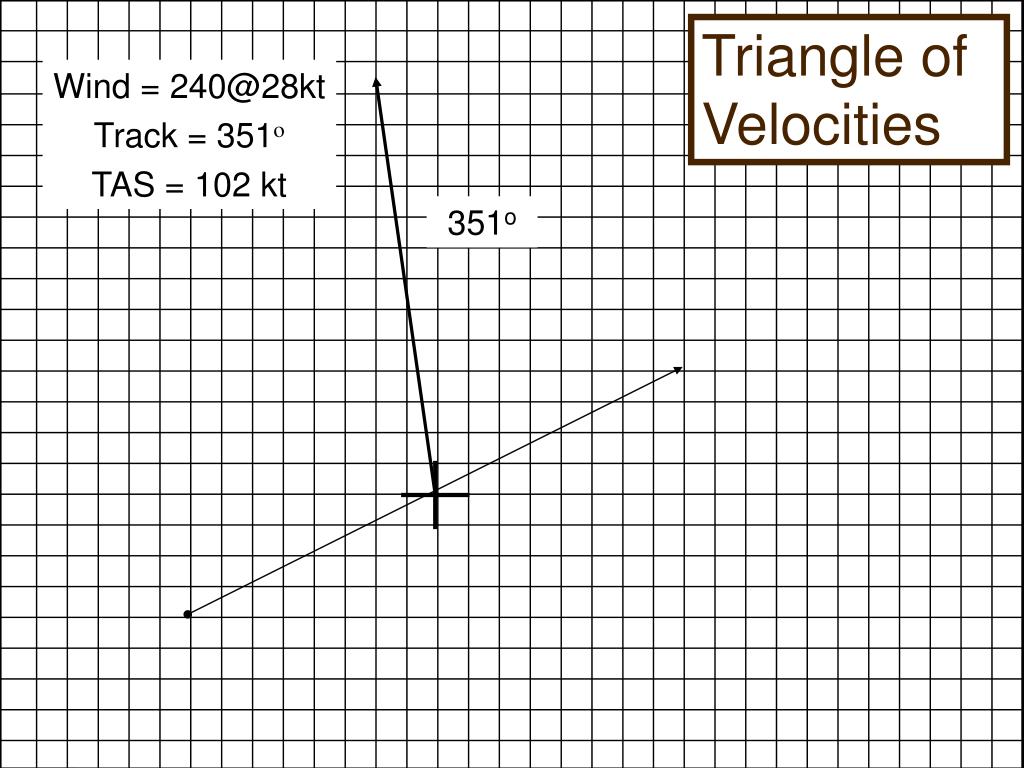

  3. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 351o

  4. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 28 kt

  5. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 102 kt 28 kt

  6. Triangle of Velocities Wind = 240@28kt Track = 351 TAS = 102 kt Heading = 336 Gnd speed = 109 kt 102 kt 28 kt

  7. 351o Direction of travel Triangle of Velocities Wind = 240@28kt Track = 351 TAS = 102 kt MEASURE from graph Heading = 336 Gnd speed = 109 kt 336o Airspeed 102 kt 28 kt magnitude for windspeed
