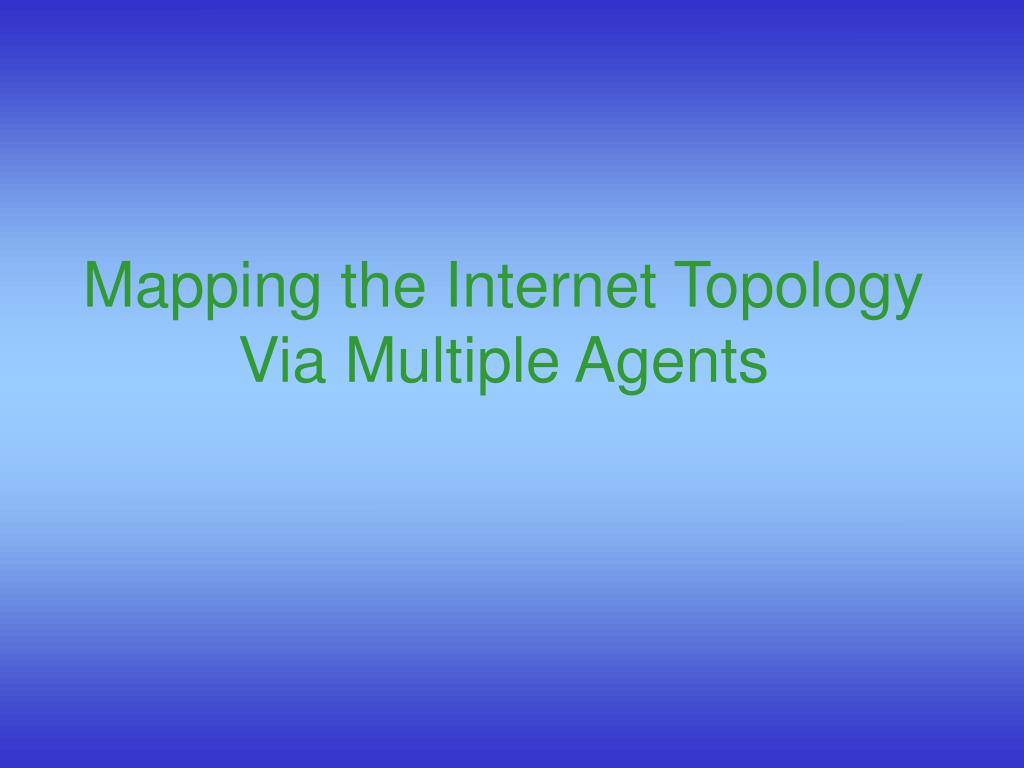

  1. Mapping the Internet Topology Via Multiple Agents

  2. What does the internet look like?

  3. Why do we care? • While communication protocols will work correctly on ANY topology ….they may not be efficient for some topologies • Knowledge of the topology can aid in optimizing protocols

  4. Topics • Power laws in the internet topology • Sampling bias in existing topology measurements • The DIMES project • Potential applications • Open issues

  5. Mapping the Internet • Required characteristics: • connectivity • delays • Metrics • In/Outdegree • Distance (delay – problematic definition)

  6. G – (un)directed graph N – number of nodes E – number of edges dv – outdegree of a node v fd – frequency of an outdegree P(h) – number of pairs in the “h-hop neighborhood” Problem definition

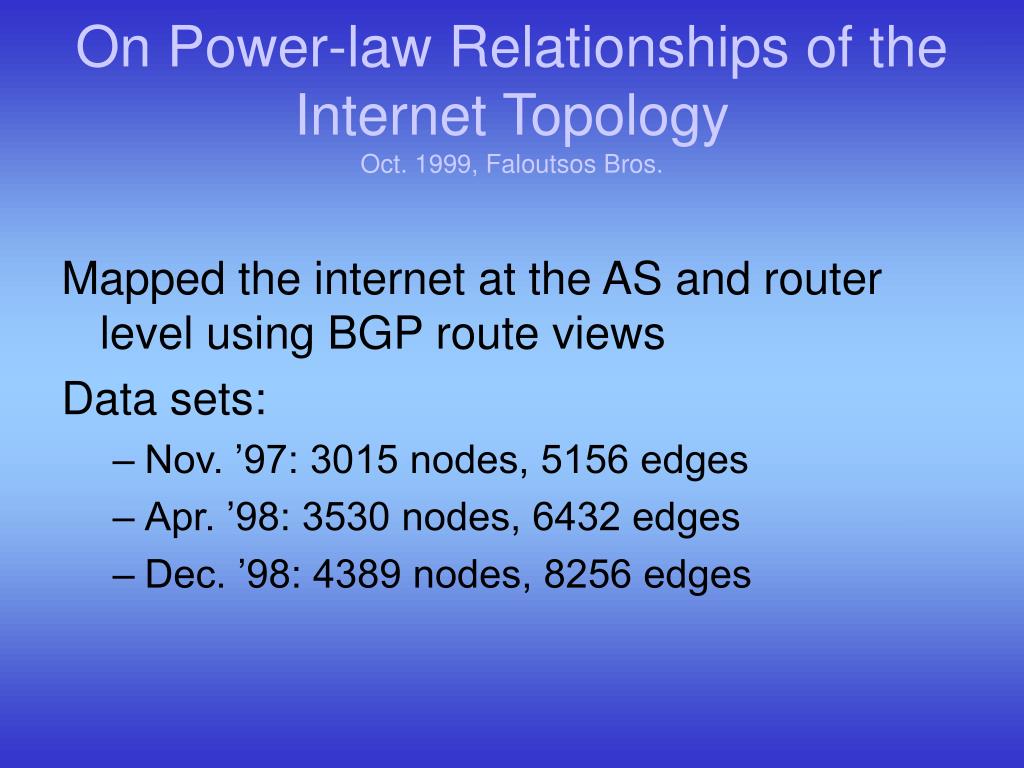

  7. On Power-law Relationships of the Internet TopologyOct. 1999, Faloutsos Bros. Mapped the internet at the AS and router level using BGP route views Data sets: • Nov. ’97: 3015 nodes, 5156 edges • Apr. ’98: 3530 nodes, 6432 edges • Dec. ’98: 4389 nodes, 8256 edges

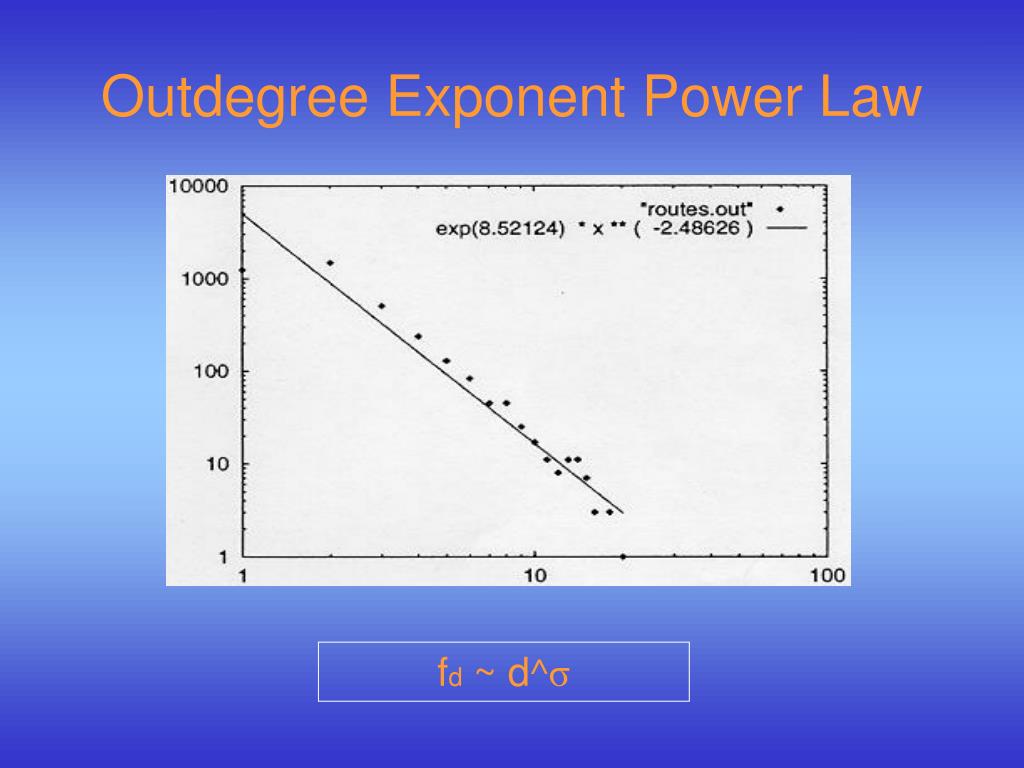

  8. Outdegree Exponent Power Law fd ~ d^σ

  9. Other places that people look for power laws…

  10. 25 2212 SCIENCE CITATION INDEX Nodes: papers Links: citations Witten-Sander PRL 1981 1736 PRL papers (1988) P(k) ~k- ( = 3) (S. Redner, 1998)

  11. Sex-web Nodes: people (Females; Males) Links: sexual relationships 4781 Swedes; 18-74; 59% response rate. Liljeros et al. Nature 2001

  12. Recall – the Faloutsos graph

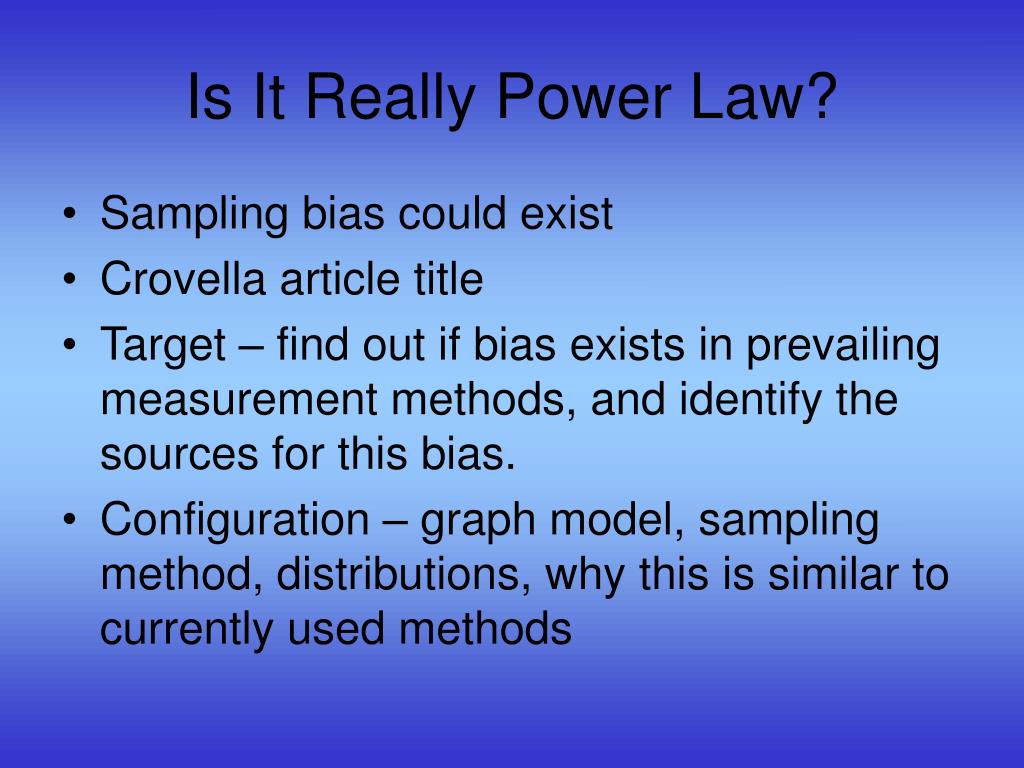

  13. Is It Really Power Law? • Sampling bias could exist • Crovella article title • Target – find out if bias exists in prevailing measurement methods, and identify the sources for this bias. • Configuration – graph model, sampling method, distributions, why this is similar to currently used methods

  14. Results • Erdos – Renyi + graphs

  15. Sources of sampling bias • Disproportional sampling of nodes • Disproportional sampling of edges • Conclusion • Identify problems in existing measurement methods (Faloutsos, Caida)

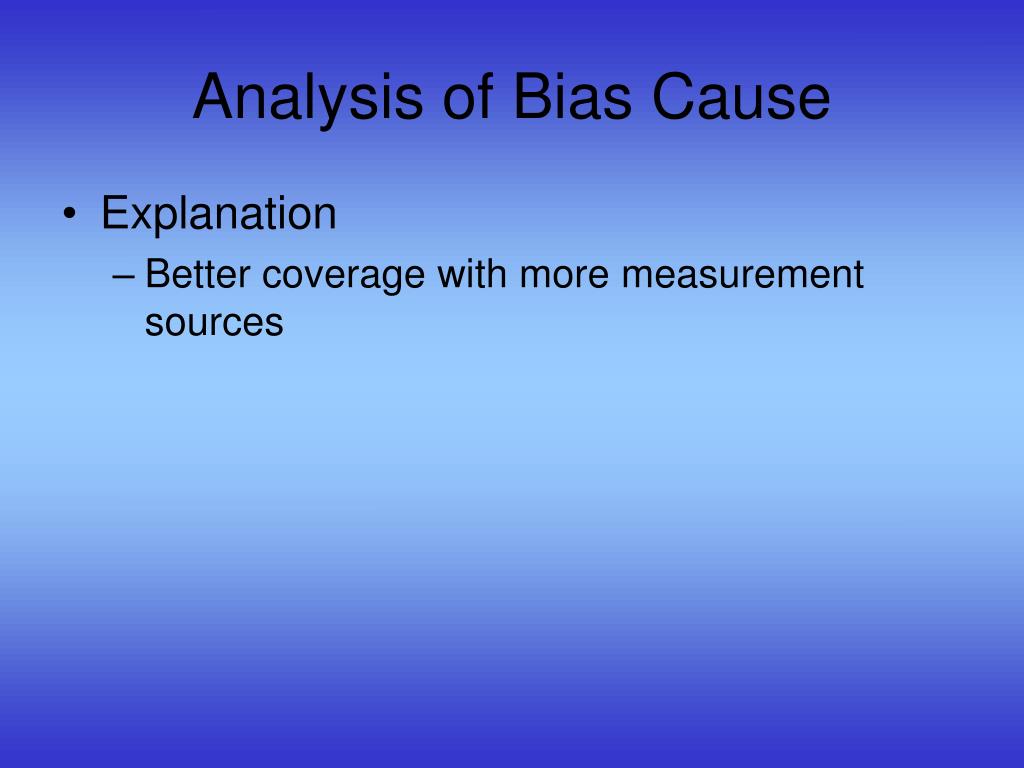

  16. Analysis of Bias Cause • Explanation • Better coverage with more measurement sources

  17. DIMES • Targets • How we try to solve the problem

  18. DIMES Platform • Description • Screenshot

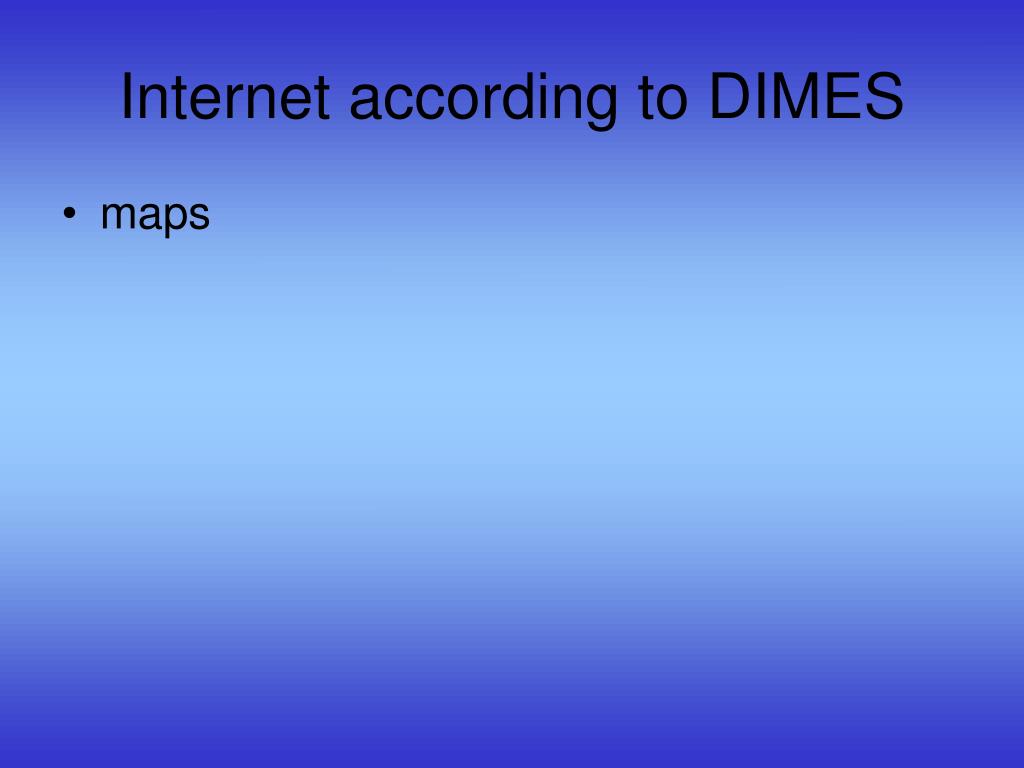

  19. Internet according to DIMES • maps

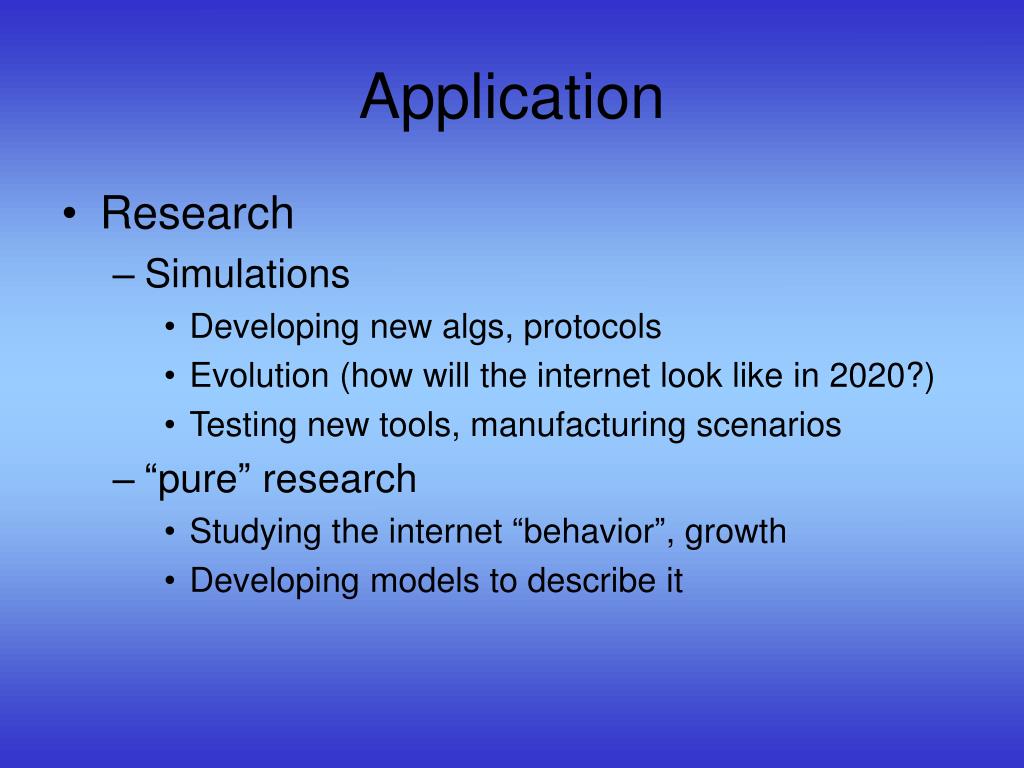

  20. Application • Research • Simulations • Developing new algs, protocols • Evolution (how will the internet look like in 2020?) • Testing new tools, manufacturing scenarios • “pure” research • Studying the internet “behavior”, growth • Developing models to describe it

  21. More Application • Potentially commercial • Improve existing algs’ using knowledge about the characteristics of the internet. • Multicast alg’ • Low – priority packet routing • Identify (and work around?) network vulnerabilities

  22. Open Issues • Measuring delays • Asymmetry • round trip is problematic • triangle inequality doesn’t necessarily hold • Mapping interfaces to server • Identifying POPs • Identifying motiffs
