Lesson 4.5 Graph of Sine & Cosine

Lesson 4.5 Graph of Sine & Cosine. Find your work on graphs of sine and cosine from the last couple of days. Sine/Cosine Graph – Key Points. Properties of Sine & Cosine Domain: Range: Intercepts: (when y = 0) Amplitude: Period:. y = sin x. y = cos x. General Equation

ava-cummings
Télécharger la présentation

Lesson 4.5 Graph of Sine & Cosine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson 4.5Graph of Sine & Cosine Find your work on graphs of sine and cosine from the last couple of days.

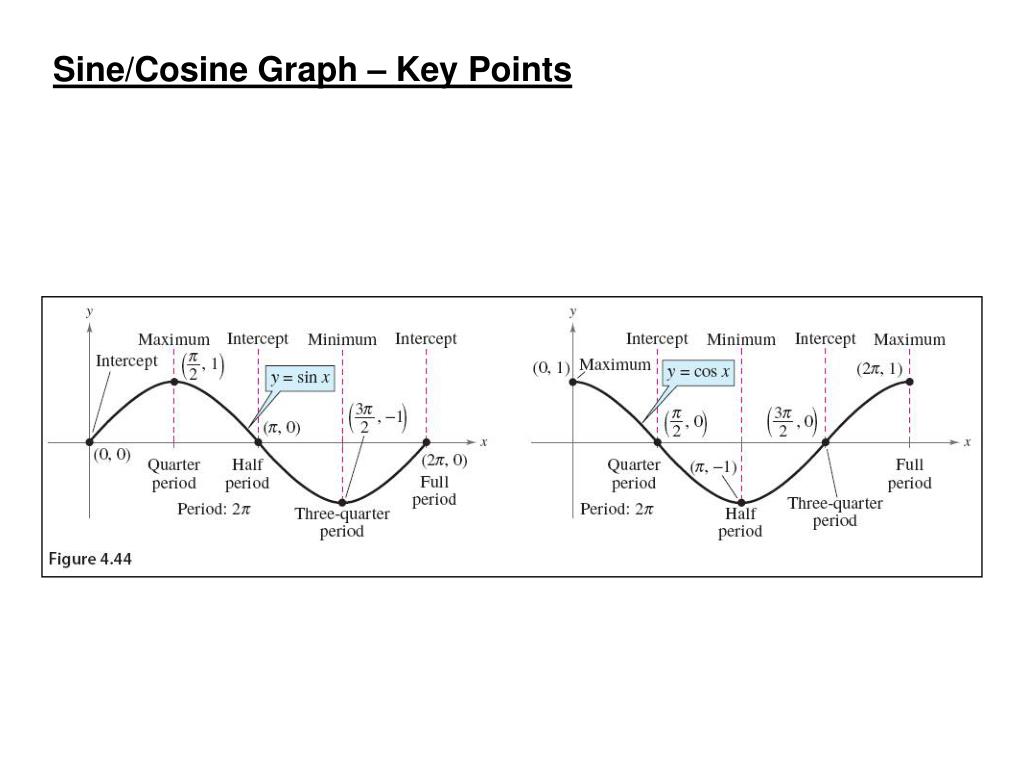

  2. Sine/Cosine Graph – Key Points

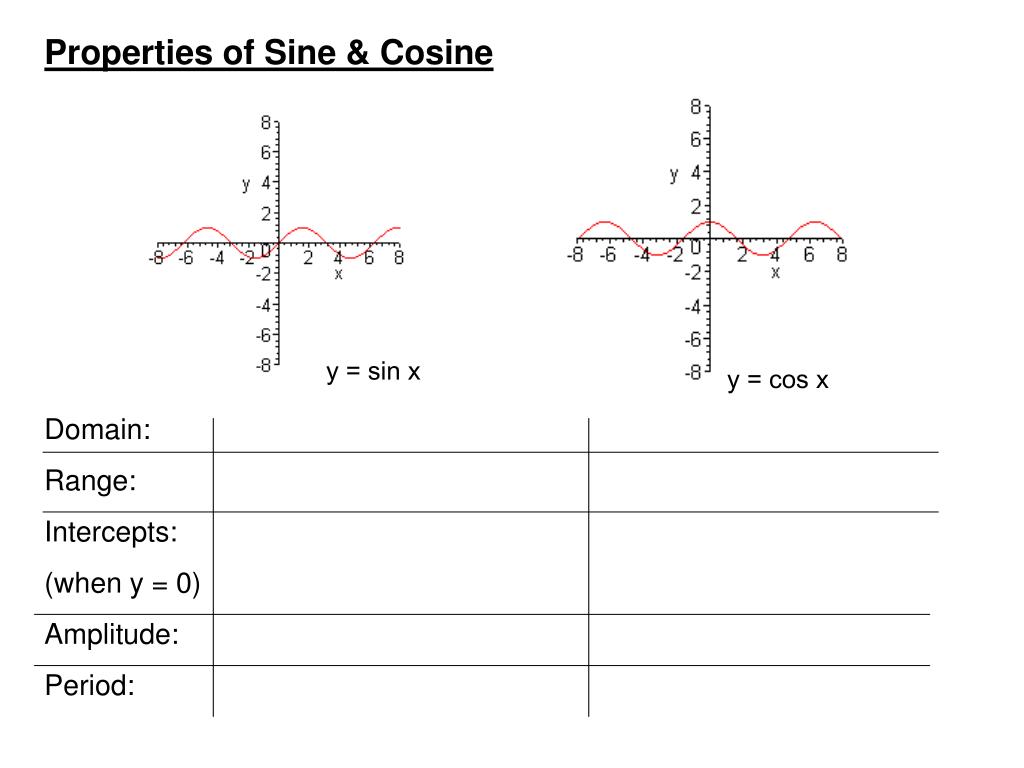

  3. Properties of Sine & Cosine Domain: Range: Intercepts: (when y = 0) Amplitude: Period: y = sin x y = cos x

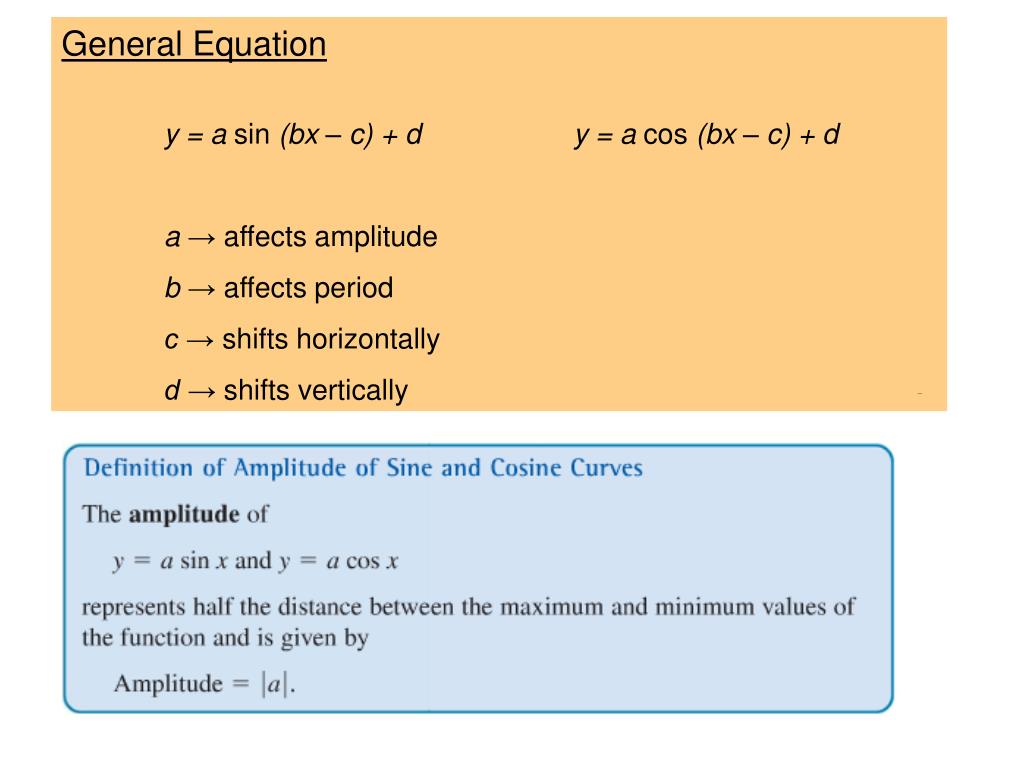

  4. General Equation y = a sin (bx – c) + d y = a cos (bx – c) + d a → affects amplitude b → affects period c → shifts horizontally d → shifts vertically

  5. Endpoints of One-Cycle Solve the equations: bx – c = 0 and bx – c = 2л

  6. Example 1: Discuss the graph of

  7. Example 2: Write an equation for the graph below:
