This update outlines key advancements for the XBOX-1 project as of July 31, 2013. Highlights include the introduction of a new 16-bit attenuator and PID control for amplitude adjustments, along with the reinstatement of the E-logbook featuring almost daily updates. A communication issue with ECL counters has been identified, causing a 24-hour delay. Successful operation with uncompressed pulses reaching 19.8 MW at 68 MV/m has been achieved alongside significant conditioning efforts at CERN T26. Enhanced software now monitors pulse width for improved system reliability.

ava-morrison
Télécharger la présentation

Progress Update on XBOX-1 Tech Developments - July 31, 2013

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

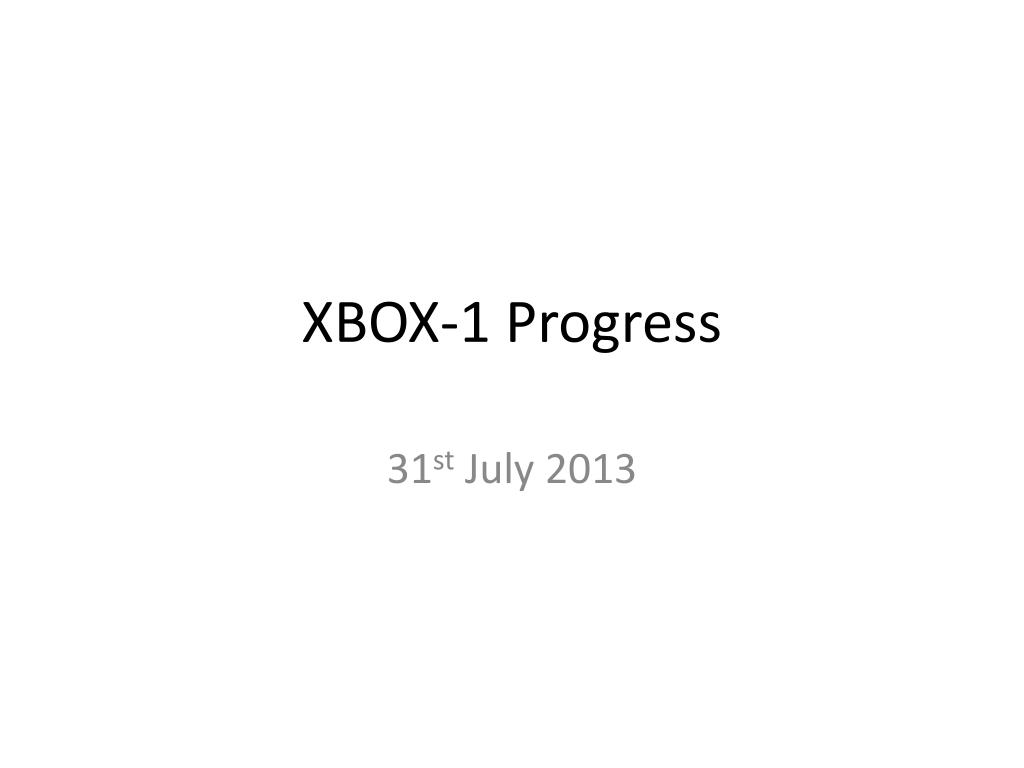

  1. XBOX-1 Progress 31st July 2013

  2. Progress • New 16-bit attenuator and PID control for amplitude. • E-logbook is back with regular (almost daily updates). • ECL counters communication problem (24hr delay) • Started running with uncompressed pulse 19-07-2013. • DAC which creates the phase program for pulse compressor had been “updated” by control group. We ran without a compressed pulse up to ~10MW. • Shortly after the pulse compressor was brought back online it detuned due to a pause in running. System was restarted with RF -> 10MW 1.5us pulse into the structure-> new software written to monitor pulse width and shut-down if needed. • 19.8 MW 68MV/m reached at 50ns so far…

  3. 128 hrs of CERN T26 Conditioning (50ns pulse) Heavy Clustering occurred due to PC detuning-> 1.5us pulse into structure. No damage done (hopefully) only ~100 BDs and low power <10MW. Problem has been fixed with addition of pulse width monitor.
