Technical briefing Internet Content Filtering

avak avatar
avak
17 diapositives · 417 Views · Jul 18, 2014

Technical briefing Internet Content Filtering. Showcasing the new Internet Content Filtering Solution. Clive Moore – Head of technical Services YHGfL. Todays Agenda. Introduction and update. 09:40 YHGfL Architecture – Clive Moore.

#technical briefing internet content filtering #technical briefing internet content filtering ppt #powerpoint #presentation
Technical briefing Internet Content Filtering - slide 1
01 / 17Technical briefing Internet Content Filtering
1 / 17

Télécharger la présentation

Technical briefing Internet Content Filtering
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Technical briefingInternet Content Filtering Showcasing the new Internet Content Filtering Solution Clive Moore – Head of technical Services YHGfL

  2. Todays Agenda • Introduction and update • 09:40 YHGfL Architecture – Clive Moore • 10:00 Introduction to Smoothwall and the new Content Filtering solution – Gavin Logan & Rob Faulkner • 10:45 Break • 10:55 Demonstration of the new Content Filtering solution – Rob Faulkner • 11:45 Content Filtering eSafeguarding advice – Richard Cook YHGfL • 12:00 What are my options for unblocking a URL?– Andrew Yoward YHGfL • 12:15 Questions

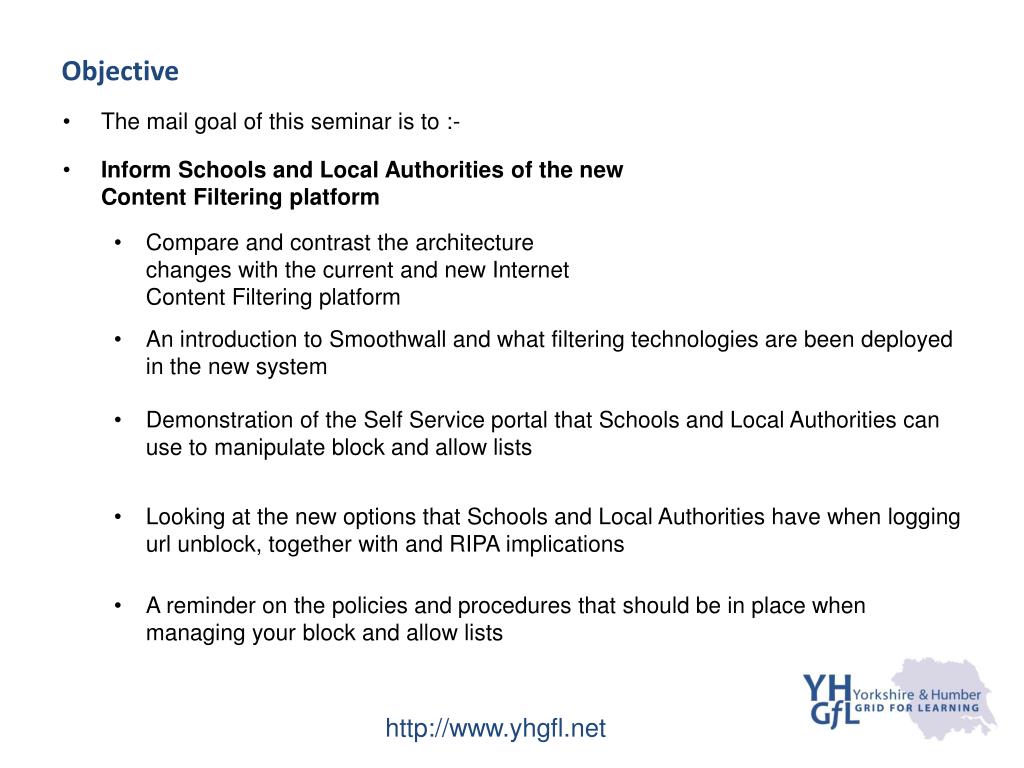

  3. Objective • The mail goal of this seminar is to :- • Inform Schools and Local Authorities of the new Content Filtering platform • Compare and contrast the architecture changes with the current and new Internet Content Filtering platform • An introduction to Smoothwall and what filtering technologies are been deployed in the new system • Demonstration of the Self Service portal that Schools and Local Authorities can use to manipulate block and allow lists • Looking at the new options that Schools and Local Authorities have when logging url unblock, together with and RIPA implications • A reminder on the policies and procedures that should be in place when managing your block and allow lists

  4. Update • Golive 9th Dec – Service finishes 7pm Thursday evening • Self service portal Golive JAN • All current school, LEA, Global block and allow lists will be carried over onto the new system • School pilots taking place during November

  5. Stepping back in time • How we used to live…. Content Filtering Proxy Load Balancers

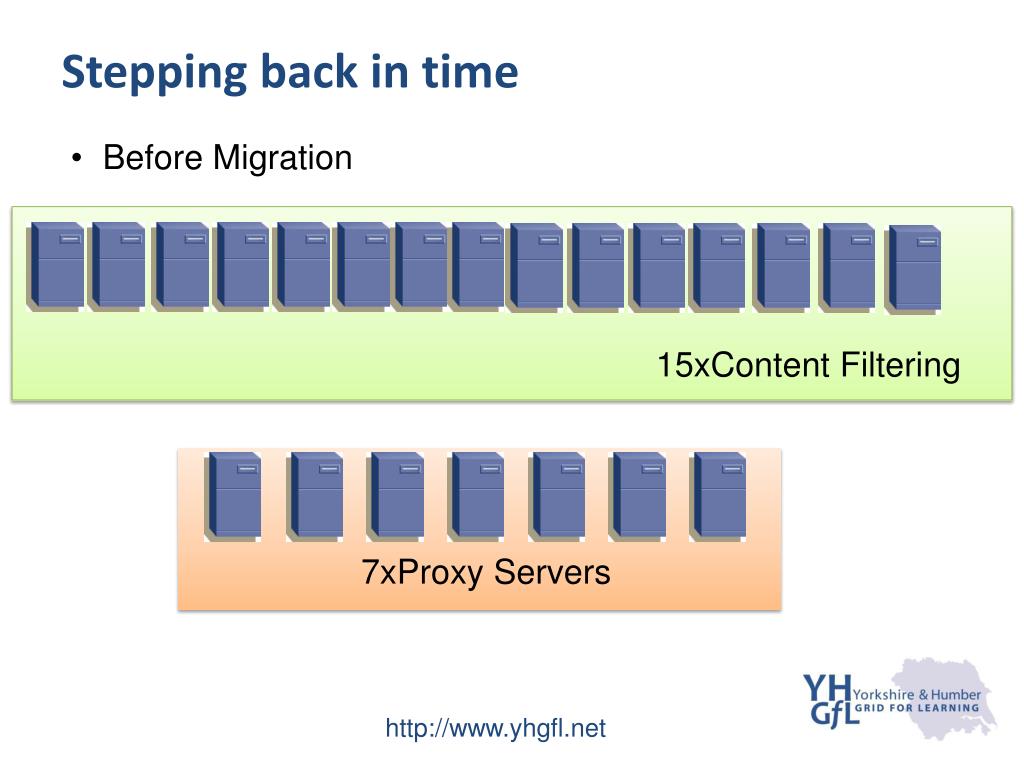

  6. Stepping back in time • Before Migration 15xContent Filtering 7xProxy Servers

  7. Present day • How we are now….. 42xContent Filtering 19xProxy Layer

  8. The Headline figures • Over 61Millions pages filtered a day • Nearly 700Mb a second of Internet traffic, and growing • All the content filtering platform is virtualised • Reduced our running cost • 8 Internal DNS servers

  9. Current Traffic Flow Internet Proxy Layer Is the site Allowed? Load Balancers School proxy.yhgfl.net : 3128

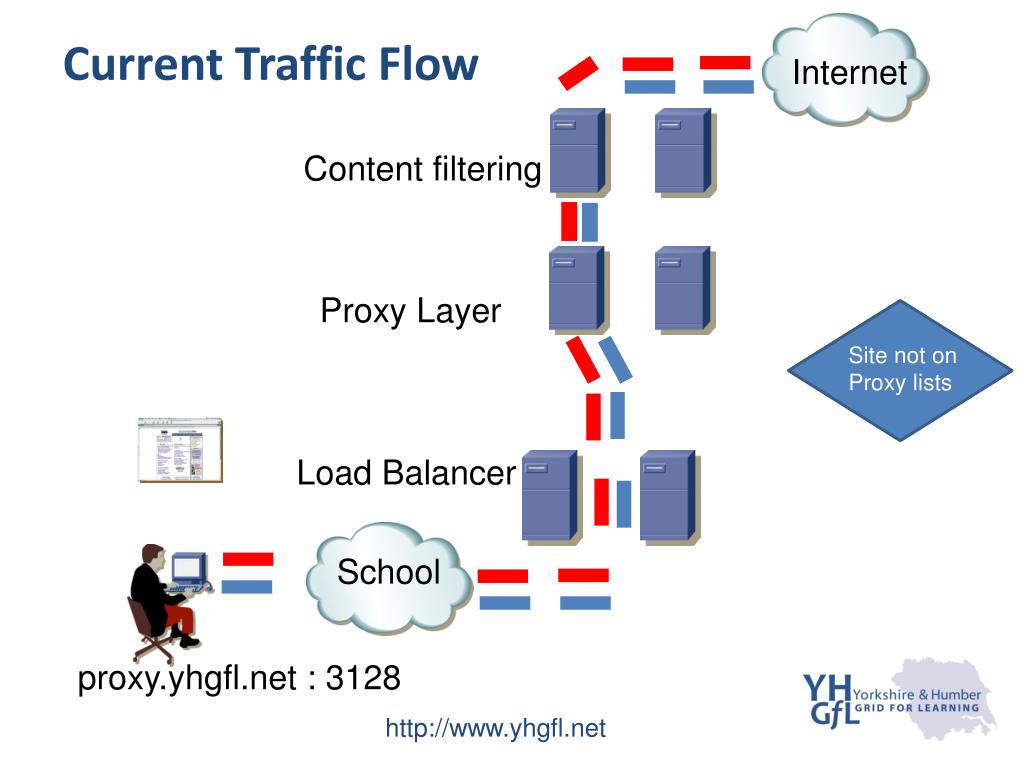

  10. Current Traffic Flow Internet Content filtering Proxy Layer Site not on Proxy lists Load Balancer School proxy.yhgfl.net : 3128

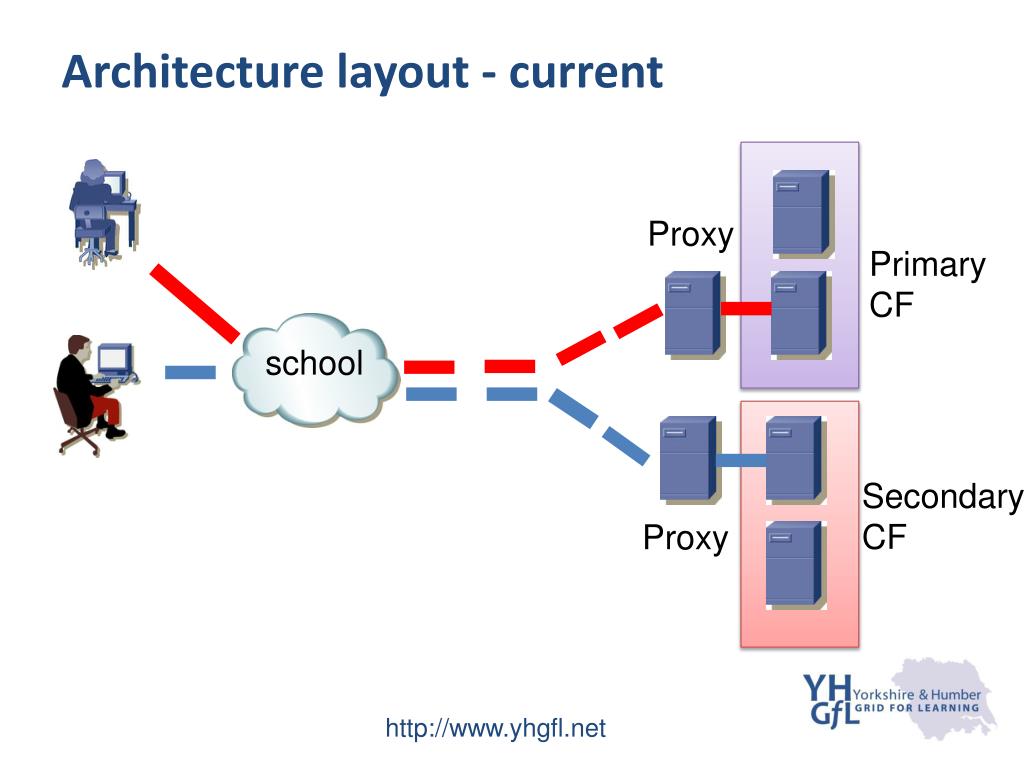

  11. Architecture layout - current Proxy Primary CF school Secondary CF Proxy

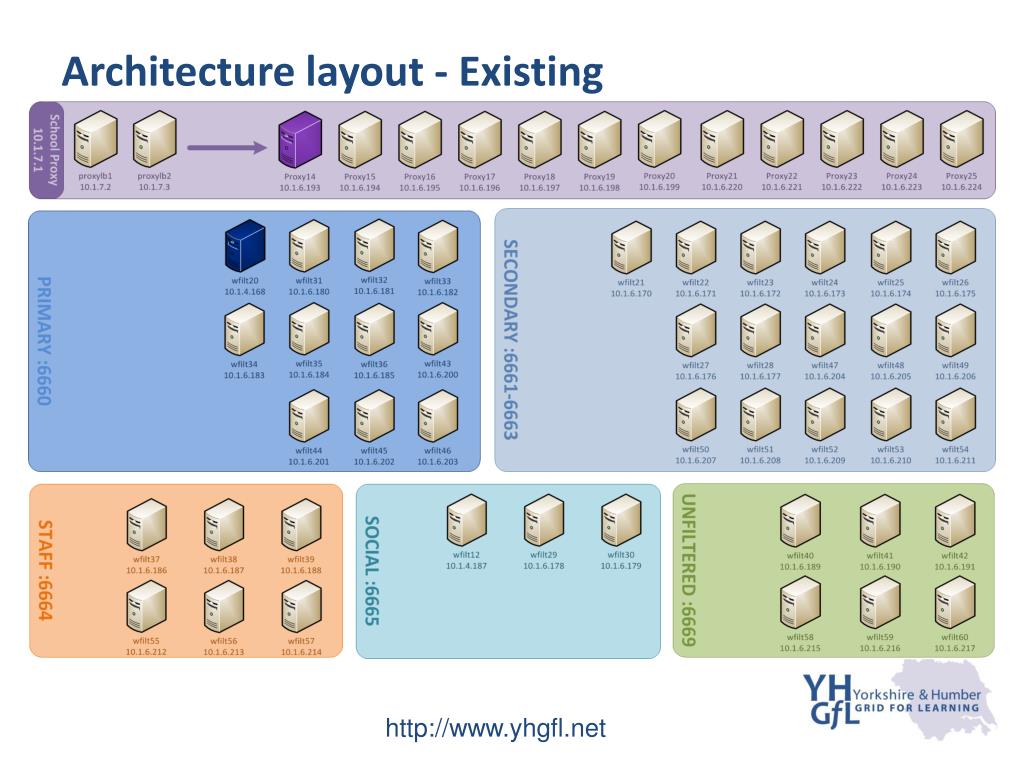

  12. Architecture layout - Existing

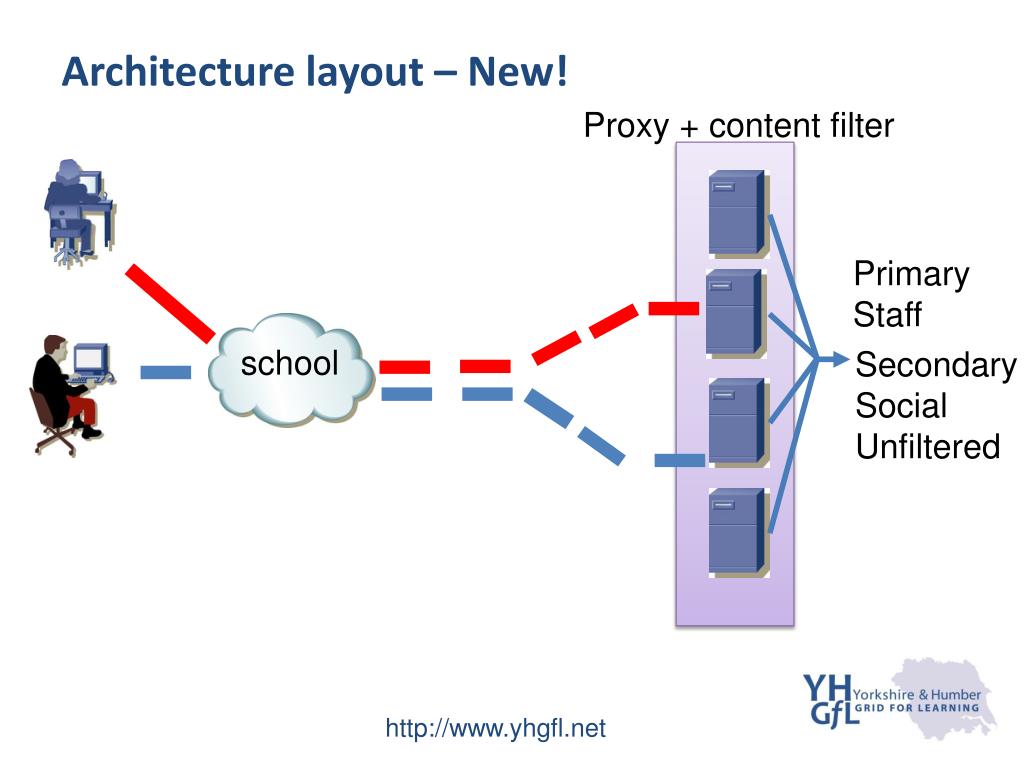

  13. Architecture layout – New! Proxy + content filter Primary Staff Secondary Social Unfiltered school

  14. Architecture layout - Existing

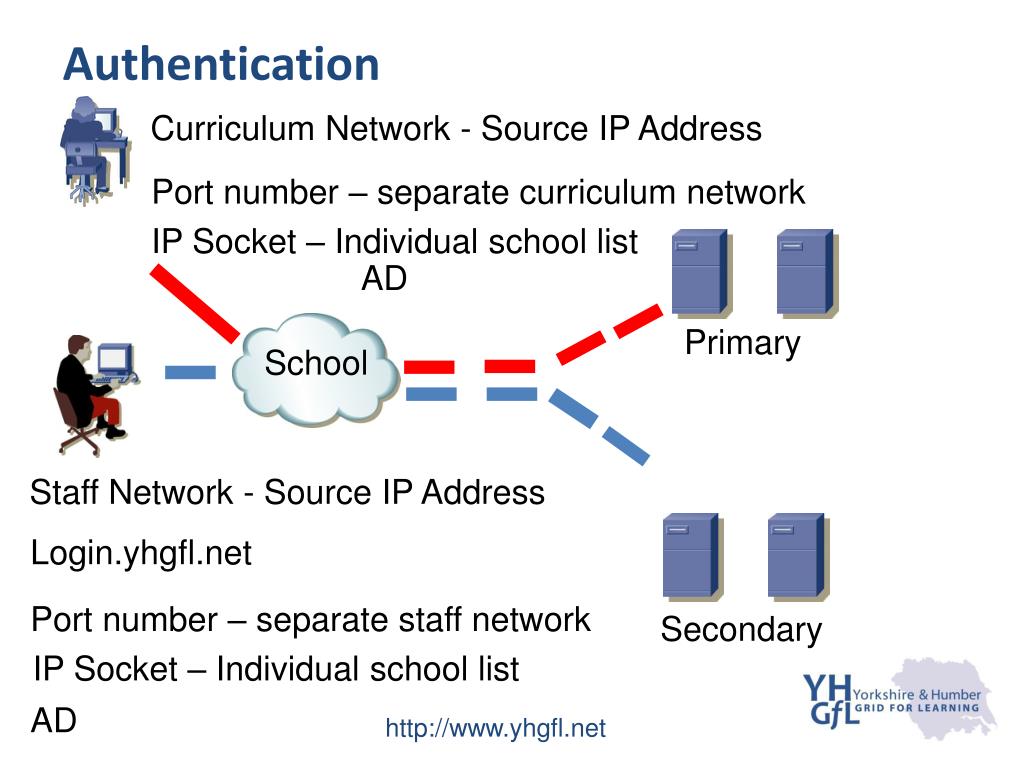

  15. Authentication Curriculum Network - Source IP Address Port number – separate curriculum network IP Socket – Individual school list AD Primary School Staff Network - Source IP Address Login.yhgfl.net Port number – separate staff network Secondary IP Socket – Individual school list AD

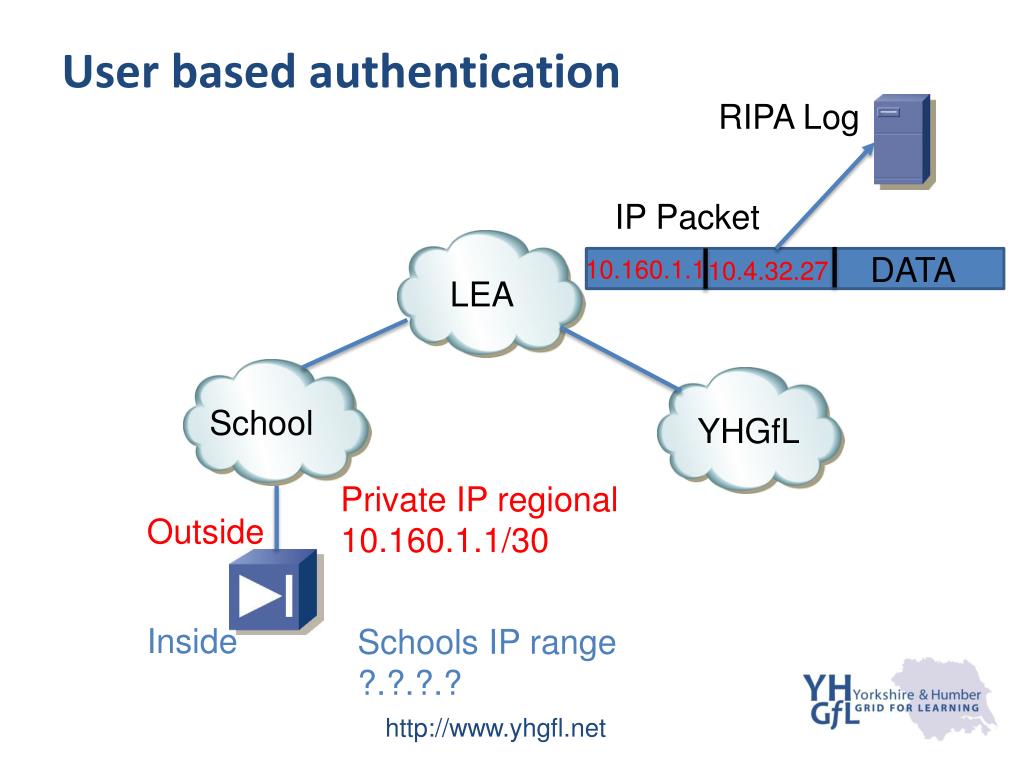

  16. User based authentication RIPA Log IP Packet DATA 10.160.1.1 10.4.32.27 LEA School YHGfL Private IP regional 10.160.1.1/30 Outside Inside Schools IP range ?.?.?.?

  17. Summary • All existing authentication methods carried over • Can now do socket based authentication • Existing school block / allow list carried over • IWF, Global Block / Allow, Lea, School lists • Schools can still override the LEA block list, and can now manage their own lists • More things may be blocked!
