Cross-spectral Analysis

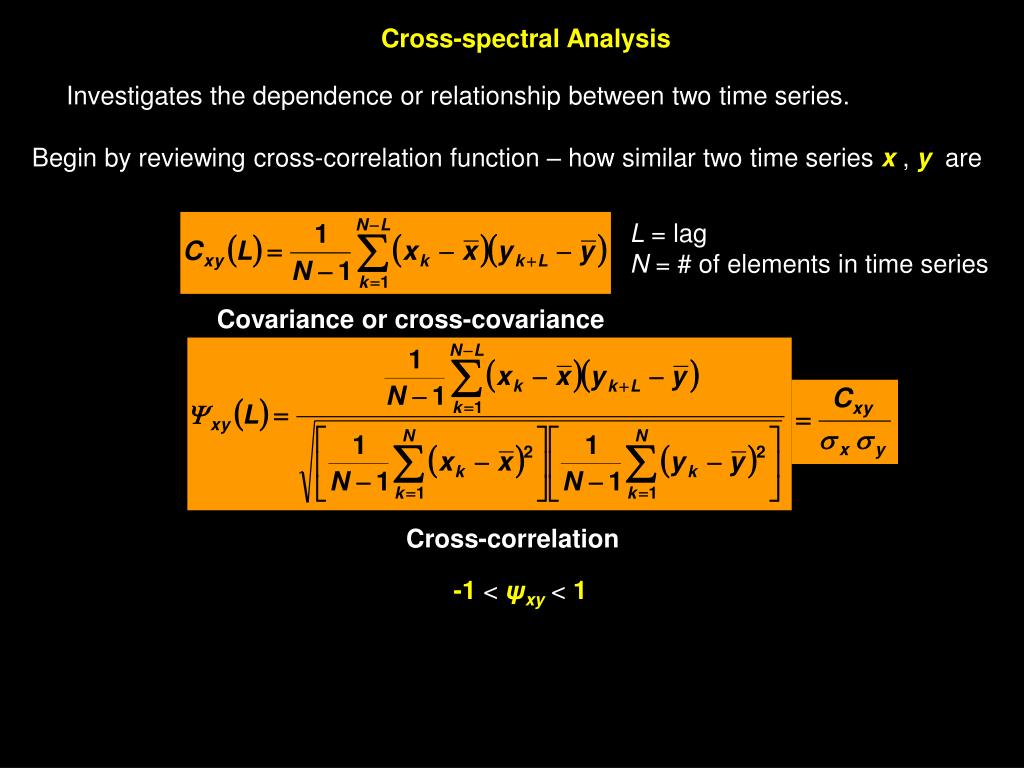

Cross-spectral Analysis. Investigates the dependence or relationship between two time series. Begin by reviewing cross-correlation function – how similar two time series x , y are. L = lag N = # of elements in time series. Covariance or cross-covariance. Cross-correlation.

avalon
Télécharger la présentation

Cross-spectral Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cross-spectral Analysis Investigates the dependence or relationship between two time series. Begin by reviewing cross-correlation function – how similar two time series x , y are L = lag N = # of elements in time series Covariance or cross-covariance Cross-correlation -1 <ψxy< 1

  2. Ensenada de la Paz

  3. Current velocity in Ensenada de La Paz Year Day

  4. Current velocity and water level (red) in Ensenada de La Paz Year Day

  5. Cross-correlation between current velocity and water level in Ensenada de La Paz

  6. Cross-correlation between current velocity and water level in Ensenada de La Paz

  7. A generalization of: Complex Cross-correlation * is the complex conjugate

  8. Complex Cross-correlation between vectors at 2 depths in Ensenada de La Paz  w1w2 L

  9. Complex Cross-correlation between vectors at 2 depths in Ensenada de La Paz

  10. Complex Cross-correlation between vectors at 2 depths in Ensenada de La Paz

  11. Coherence spectrum (coherency) < > = running mean X is the Fourier Transform  = 0.1, 0.05, 0.01

  12. Current velocity and water level (red) in Ensenada de La Paz Year Day

  13. Coherence squared window size= 2 cpd  = 0.1, 0.05, 0.01

  14.  = 0.1, 0.05, 0.01

  15. JAMES RIVER DATA

  16. 99% Coherence 2 95% Window size= 10 Phase (deg)

  17. Coherence 2 99% 95% Window size= 24 Phase (deg)

  18. 99% Coherence 2 95% Window size= 10 Phase (deg)

  19. 99% Coherence 2 95% Window size= 10 Phase (deg)

  20. Coherence 2 99% 95% Window size= 24 Phase (deg)

  21. Coherence 2 99% 95% Window size= 24 Phase (deg)
