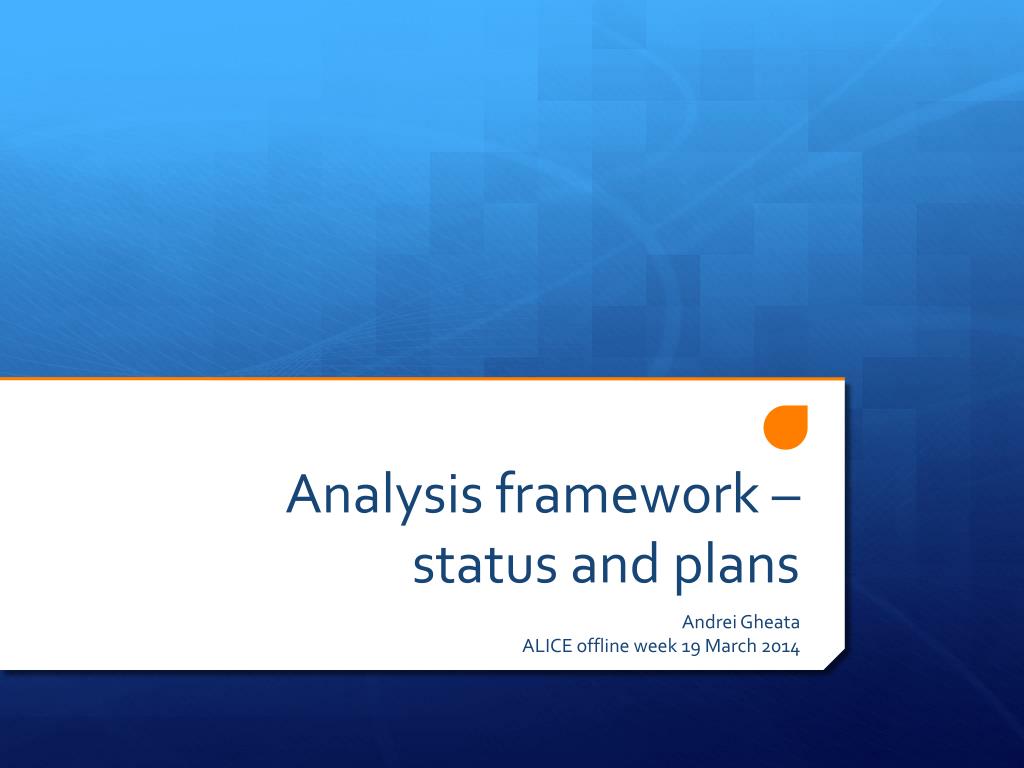

1. Analysis framework – status and plans Andrei Gheata ALICE offline week 19 March 2014

2. Outline • Framework status • I/O and AOD: the path from giga to nano • Flat AOD’s

3. Status • Many improvements in the LEGO framework – see presentation from Jan-Fiete • Support for MC loop – generation + analysis without persistent kinematics • Transient event pointer in tracks: needed for PID usage in cuts • Set automatically if using handler • User needs to ConnectTracks and Reset the event manually otherwise • Work on cleaning filtering cuts • Consistent merging of delta AOD’s • Several other small fixes • Automatic testing procedure for central filtering • Triggered by the build server • Fully implemented, to be deployed in the coming week

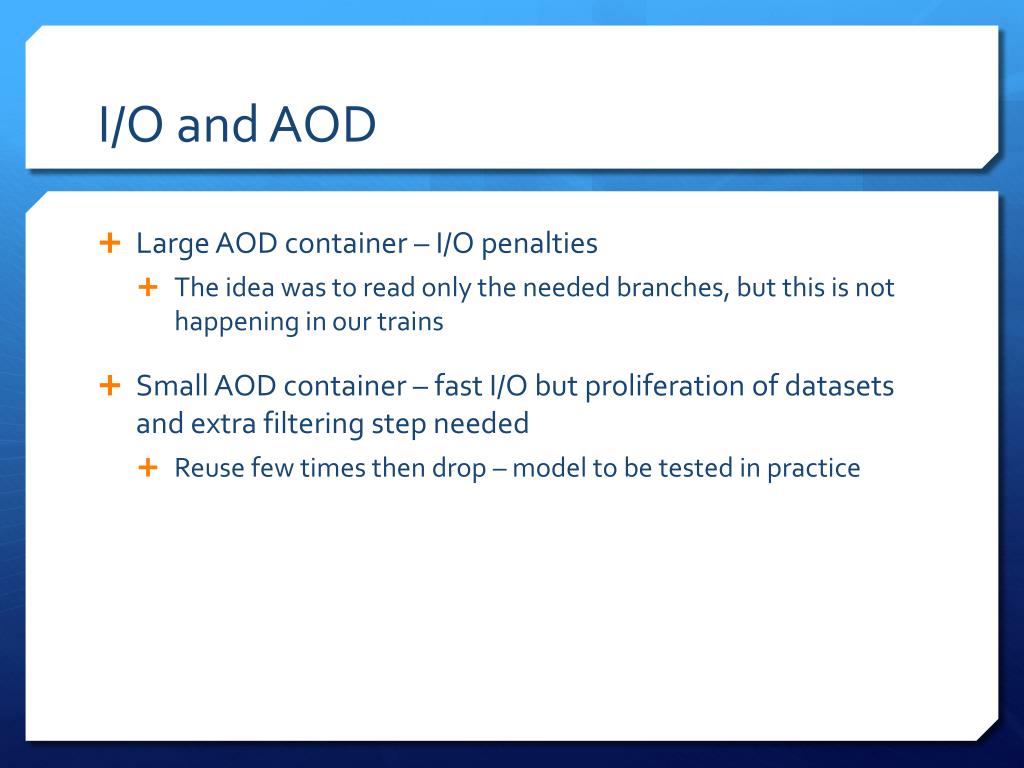

4. I/O and AOD • Large AOD container – I/O penalties • The idea was to read only the needed branches, but this is not happening in our trains • Small AOD container – fast I/O but proliferation of datasets and extra filtering step needed • Reuse few times then drop – model to be tested in practice

5. Nano AOD • Quite appealing for analyses needing a small subset of the event data • Specially when the resulting AOD fits a laptop • New (simple) interface to generate nano AOD’s • See Michele’s presentation • Not a silver bullet • Much less opportunities to make large trains sharing the input • CPU-bound analysis will still need to split • Extra overhead to access data members • Extra overhead for data management and filtering jobs – ATLAS moving slightly away from this model

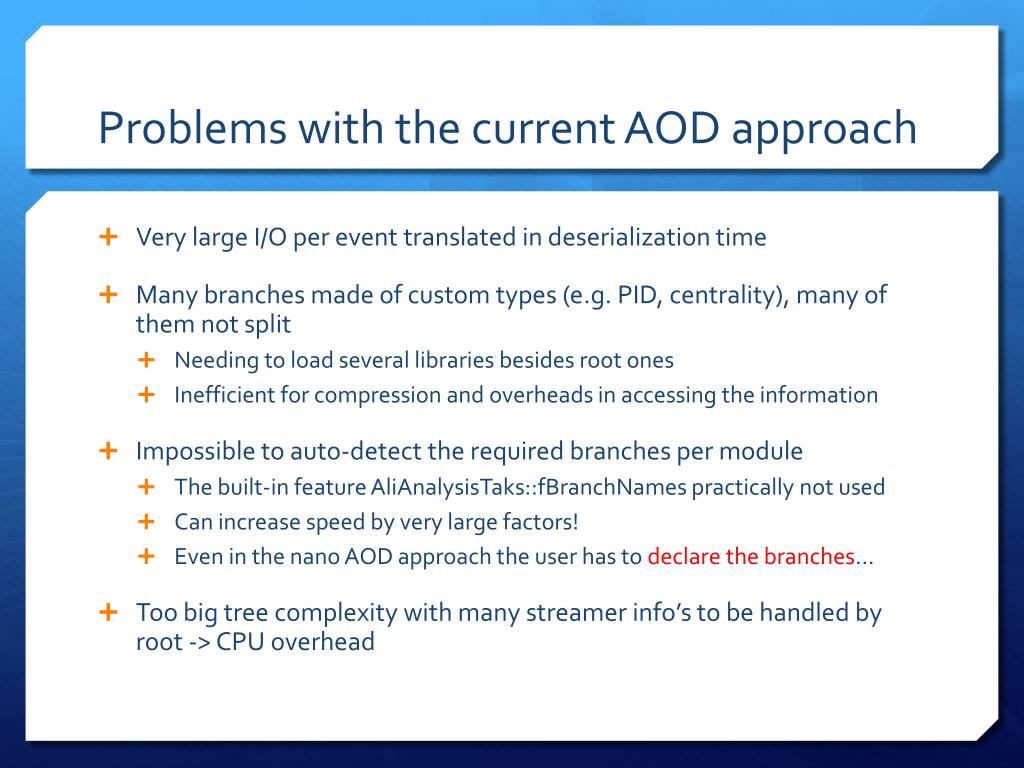

6. Problems with the current AOD approach • Very large I/O per event translated in deserialization time • Many branches made of custom types (e.g. PID, centrality), many of them not split • Needing to load several libraries besides root ones • Inefficient for compression and overheads in accessing the information • Impossible to auto-detect the required branches per module • The built-in feature AliAnalysisTaks::fBranchNames practically not used • Can increase speed by very large factors! • Even in the nano AOD approach the user has to declare the branches… • Too big tree complexity with many streamer info’s to be handled by root -> CPU overhead

7. A compromise • A simplified yet comprehensive container with a more flat (ntuple-like) structure • Fully split and having the feature to easily select the required input branches • Protect against selection errors (!) – any data request not matching the declared branches producing a Fatal • Faster access, compact data, possibility to vectorize loops • No need of custom AliRoot libs to analyze • Contiguous data per type insured by root • Alignment not yet – this is under investigation by I/O experts • Use of std::vector • Change of interface: event->GetTrack(i)->GetPt() becomes: event->GetPt(i) • Old API to be preserved (with some cost) for a while, then deprecated and removed (discussed in next slides)

8. Error protection • Make sure that the task trying to use undeclared data crashes rather than produce incorrect results • Declared branches: “tracks_fPz, tracks_fPID,…” • UserExec { … event->GetPt(itrack);} (uses px,py) • AliFatal: used undeclared branch • Implementation not trivial for preserving vectorization possibility • Mapping of API methods versus branch names • A “slow” implementation: • Pt() {if (!fBranchMap[Mask(kPx | kPy)]) AliFatal(); else return …;} • A way to switch between slow and fast versions (unfortunately at compile time) • A solution using templates (to avoid virtuality) also possible • E.g. LEGO test with slow version, actual run with fast one

9. Exercise • Use AODtree->MakeClass() to generate a skeleton, then rework • Keep all AOD info, but restructure the format Int_tfTracks.fDetPid.fTRDncls -> Int_t *fTracks_fDetPid_fTRDncls; //[ntracks_] • More complex cases to support I/O: typedefstruct{ Double32_t x[10]; } vec10dbl32; Double32_tfTracks.fPID[10] -> vec10dbl32 *fTracks_fPID; //[ntracks_] -> in future vector<Double32_t> Double32_t *fV0s.fPx //[fNprongs] -> TArrayF *fV0s.fPx; //[nv0s_] • Convert AliAODEvent-> FlatEvent • Try to keep the full content AND size • Write FlatEventon file • Compare file size and read speed

10. Results • Tested on AOD PbPb: AliAOD.root ****************************************************************************** *Tree :aodTree : AliAOD tree * *Entries : 2327 : Total = 2761263710 bytes File Size = 660491257 * * : : Tree compression factor = 4.18 * ****************************************************************************** ****************************************************************************** *Tree :AliAODFlat: Flattened AliAODEvent * *Entries : 2327 : Total = 2248164303 bytes File Size = 385263726 * * : : Tree compression factor = 5.84 * ****************************************************************************** • Data smaller (no TObject overhead, TRef->int) • 30% better compression • Reading speed • Old: CPU time= 103s , Real time=120s • New: CPU time= 54s , Real time= 64s

11. Benefits • User analysis more simple, working mostly with basic types (besides the event) • Simplified access to data, highly reducing number of (virtual) calls, specially in deep loops • ROOT-only analysis • No problem with schema evolution, supported as before • Filtering hierarchical to flat AOD’s straightforward • Much better vectorizable track loops • Deltas would have to be also flattened

12. Migration • To allow a smooth transition, the old code should run with the new format • Requires: loading new flat event, producing automatically an AliAODEvent matching it • Done smartly, can use AliAODFlat data from the original location (no copy) • AliAODInputHandler::SetSupportOldFormat • New code will immediately benefit by calling the new API • Gradually deprecate old API • Convert old AOD format to new one

13. Conclusions • Framework becoming more flexible – use with reconstruction, now also with generators • Focusing on the data structure – unification of API ESD/AOD, AOD skimming, flat AOD • Flattening the event structure has benefits • Sizeable gains in size and speed (>50%) • Benefits for user code performance (faster access and vectorisation) • Conversion straightforward • An approach we will have to consider seriously for Run2 and specially Run3
