BTeV Level-1 Trigger Segment Finding Algorithm

1. BTeV Level-1 TriggerSegment Finding Algorithm Internships for Physics Majors, August 8th, 2002 Jennifer Seiler, Fermilab (supervised by Jin-Yuan Wu)

2. BTeV detector • Silicon pixel vertex detector provides: • Pattern recognition power • Very good position resolution (~7m) • Radiation hardness

3. Si- pixel Detector • 50 m x 400 m pixels bump-bonded to readout chips – 22 million total • Two pixel planes per station (supported on a single substrate), with 30 planes (a station is 10 cm tall and they are 4.42 cm apart) • Beam hole ~ 12 mm x 12 mm • Detectors in vacuum • Half planes move together when Tevatron beams are stable. 7.2 mm 8 mm A pixel

4. 7.6 MHz 1.5 TB/s L1 rate reduction: ~100x L2/3 rate reduction: ~20x 4 KHz BTeV trigger block diagram

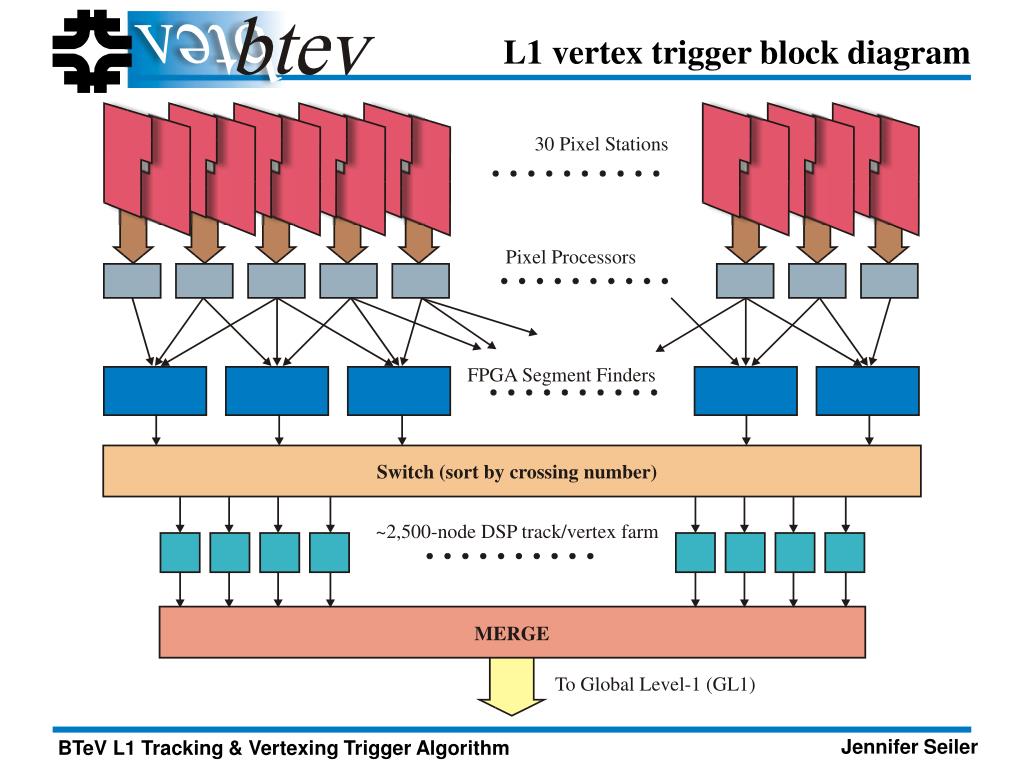

5. L1 vertex trigger block diagram

6. Triplet to Track Finding (T2T) 10 cm

7. L1 vertex trigger algorithm FPGA Segment Finder (Pattern Recognition) • Find beginning and ending segments of tracks from hit clusters in 3 adjacent stations (triplets): • beginning segments: required to originate from beam region • ending segments: required to project out of pixel detector volume DSP Tracking and Vertexing • Match beginning and ending segments found by FPGA segment finder to form complete tracks • Reconstruct primary interaction vertices using complete tracks • Find tracks that are “detached” from reconstructed primaries

8. Generate Level-1 accept if “detached” tracks in the same arm of the BTeV detector with: (GeV/c)2 cm L1 vertex trigger algorithm Execute Trigger

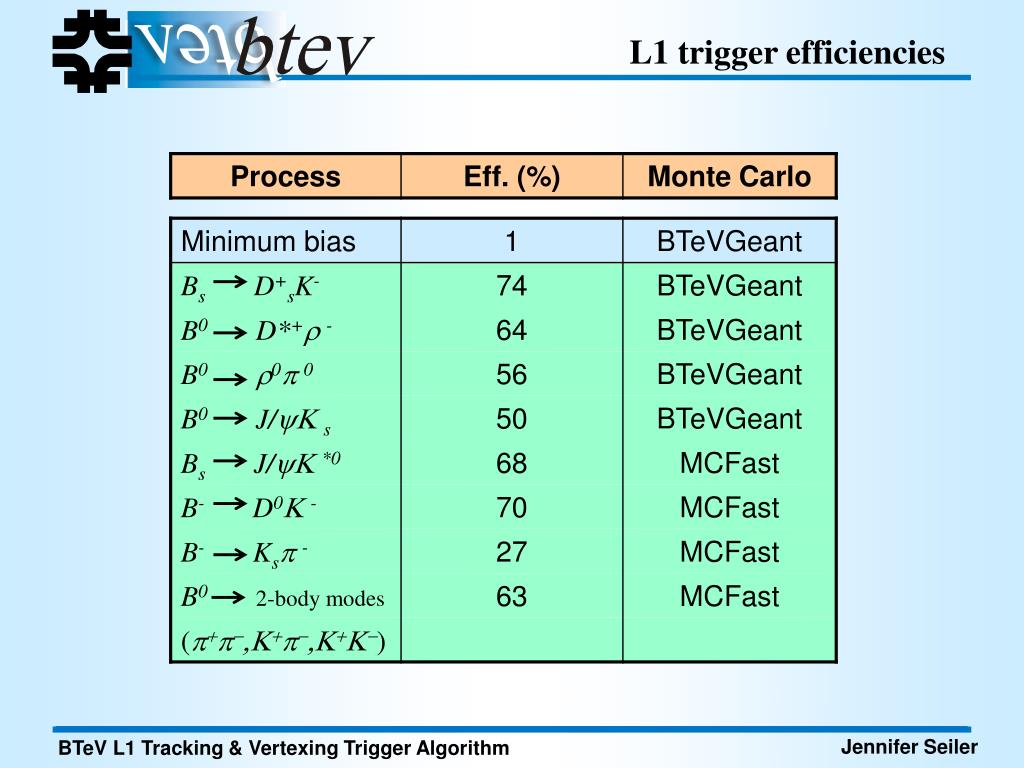

9. L1 trigger efficiencies

10. Summary: Problems & Options Problems Seen • False track / Good Track Found ratio = .1502 on average • In false tracks the false hit is most often the first station hit • Many of the false tracks we are seeing are too close to be resolved, other false tracks intersect at small angles with real tracks • 85% as many external tracks found as internal found • Internal are closer together and harder to resolve • External track finding is very complete and accurate Options • One fix I did was to change to equation for finding matching precision-x hits in the non-bend view, so that precision-x hits for a give station would be found using only the other two stations • Another possibility is to find tracks by finding short precision doublets 1st • And a third is to find secondary interior triplets and see how they overlap onto the primary interior triplets, as a quadruplet finding algorithm • All these options have potential problems

11. Proximity Issues Too Many Internal Tracks • 85% as many external as internal tracks: • Means extra data flow and more trouble matching triplets to tracks • Also means lower triggering rate • Options: • Tighter requirements for interior matches than for exterior • Quadruplet finding by overlapping triplets for interior

12. Found versus Real Tracks Found Tracks • Few real tracks are missed, but they exist among the extra tracks that are found • Internal tracks find more extra tracks, but all of the tracks it finds are basically reasonable to consider as valid tracks

13. What BB33 is Finding Dir Sta x1 y1 z1 x2 y2 z2 x3 y3 z3 track #1 #2 #3 All -1 5 0.08191 -0.60437 -46.92006 0.06346 -0.65716 -51.17007 0.08923 -0.71165 -55.42007 67 67 67 67 0 5 0.00000 0.00000 0.000000 0.07918 -0.65196 -50.77007 0.08437 -0.70800 -55.02007 -99999 67 67 -1 6 0.17461 0.74860 -42.67004 0.31188 0.93675 -46.92005 0.51947 1.17190 -51.17004 766 484 934 0 0 6 0.16701 0.74222 -42.27004 0.31291 0.93336 -46.52005 0.00000 0.00000 0.00000 766 484 -99999 -1 7 0.15769 0.63582 -38.42004 0.17461 0.74860 -42.67004 0.17878 0.86394 -46.92005 766 766 766 766 0 7 0.14627 0.64118 -38.02003 0.16701 0.74222 -42.27004 0.18857 0.86125 -46.52005 766 766 766 -1 7 0.25261 0.71937 -38.42004 0.28862 0.82680 -42.67004 0.31188 0.93675 -46.92005 484 484 484 484 0 7 0.25893 0.72209 -38.02004 0.28442 0.81960 -42.27004 0.31291 0.93336 -46.52005 484 484 484 -1 11 0.76146 -0.31655 -21.42002 1.04804 -0.38669 -25.67002 1.32104 -0.43427 -29.92003 716 716 716 716 0 11 0.73228 -0.32195 -21.02003 1.00861 -0.38545 -25.27003 1.28699 -0.42141 -29.52003 716 716 716 -1 11 0.79615 -0.36298 -21.42002 1.04804 -0.38669 -25.67002 1.32104 -0.43427 -29.92003 502 716 716 0 0 11 0.79318 -0.34968 -21.02002 1.00861 -0.38545 -25.27003 1.28699 -0.42141 -29.52003 502 716 716 -1 11 0.76146 -0.31655 -21.42002 0.95540 -0.51116 -25.67003 1.11232 -0.68513 -29.92003 716 502 502 0 0 11 0.73228 -0.32195 -21.02003 0.94011 -0.51084 -25.27002 1.08892 -0.67355 -29.52002 716 502 502 -1 11 0.79615 -0.36298 -21.42002 0.95540 -0.51116 -25.67003 1.11232 -0.68513 -29.92003 502 502 502 502 0 11 0.79318 -0.34968 -21.02002 0.94011 -0.51084 -25.27002 1.08892 -0.67355 -29.52002 502 502 502 -1 14 -0.18752 -0.70090 -8.67001 -0.24316 -0.96602 -12.92001 -0.35650 -1.20455 -17.17002 525 525 525 525 0 14 -0.18019 -0.67240 -8.27002 -0.25718 -0.95745 -12.52002 -0.33892 -1.20030 -16.77003 525 525 525 -1 14 -0.06413 -0.74273 -8.67002 -0.24316 -0.96602 -12.92001 -0.35650 -1.20455 -17.17002 78 525 525 0 0 14 -0.03917 -0.72432 -8.27002 -0.25718 -0.95745 -12.52002 -0.33892 -1.20030 -16.77003 78 525 525 -1 14 -0.06413 -0.74273 -8.67002 -0.05126 -0.92096 -12.92003 -0.04046 -1.11612 -17.17003 78 78 78 78 0 14 -0.03917 -0.72432 -8.27002 -0.04237 -0.91233 -12.54720 -0.04744 -1.11445 -16.77003 78 868 78 -1 16 -0.52026 -0.60268 -0.17000 -0.67110 -0.84793 -4.42002 -0.84493 -1.05162 -8.67002 841 247 247 0 0 16 0.00000 0.00000 0.00000 -0.67105 -0.80221 -4.02002 -0.81364 -1.02810 -8.27002 -99999 247 247 -1 16 -0.54949 -0.61751 -0.22999 -0.67110 -0.84793 -4.42002 -0.84493 -1.05162 -8.67002 736 247 247 0 0 16 -0.52883 -0.62656 0.22999 -0.67105 -0.80221 -4.02002 -0.81364 -1.02810 -8.27002 247 247 247 -1 16 -0.53961 -0.65092 -0.17002 -0.67110 -0.84793 -4.42002 -0.84493 -1.05162 -8.67002 247 247 247 247 0 16 -0.52883 -0.62656 0.22999 -0.67105 -0.80221 -4.02002 -0.81364 -1.02810 -8.27002 247 247 247

14. What’s Happening Here? • Tracks crossing at small angles • Tracks too close • Tracks options with different curvatures in the bend view • Third hit issues occur with from issue like the one illustrated in the second image (middle hit confusion occurs most rarely)

15. Beyond: Track Finding Options Short Doublet Finding BB33 • Finding tracks by first looking at the short doublets and projecting forward can be done one many ways: • Projecting to other doublets and comparing slopes to make a long doublet, then projecting forward again • Projecting the short doublet to the next plane and then the next plane New Short Doublet Finding Issues • A good portion of the good tracks have missing precision-x matches • A small percentage of false tracks can be eliminated with missing or bad short doublet hits and a significant portion are falsely confirmed • Lower resolution in either dimension

16. Beyond: Track-Finding Issues Secondary Triplets (Quadruplets) • Quadruplets can be found without new hardware by finding secondary triplets and seeing how they overlap onto the primary interior triplets: • Allows for another confirming hit • Allows for better delta dy and delta dx checks Secondary Triplets Issues • Significantly higher data flow (>20%) • The secondary triplets will only have as many false tracks • Trade-off: slightly higher computation time on finding more triplets and matching them, but cuts computation for matching false interior tracks to exterior tracks

17. The False Precision Hit Problem Solution: False Precision Hits • The BB33 algorithm finds the short doublet match at a station by looking between that station and the next • This finds the doublets for real and false tracks alike • My algorithm projects the other two stations onto the station in question (only in the non-bend view), then looks at the slope of that short doublet BB33 New Problem: Only Works in non-bend view

18. Quick note Doublet Finding • Good to Bad doublet ratio 1:3 (reasonable, maybe? But could be lower?) • Short doublet finding might give fewer false doublets, but a number of good tracks with missing false doublets would be lost, and most false tracks (though a lower percentage than real tracks) find precision hits • Any suggestions?

19. Bad versus Good Triplets False Tracks & Hits My All Triplets BB33 All Triplets

20. Which Hits Are Bad BB33 My

21. Missing Precision-x Matches BB33 Triplets My Triplets

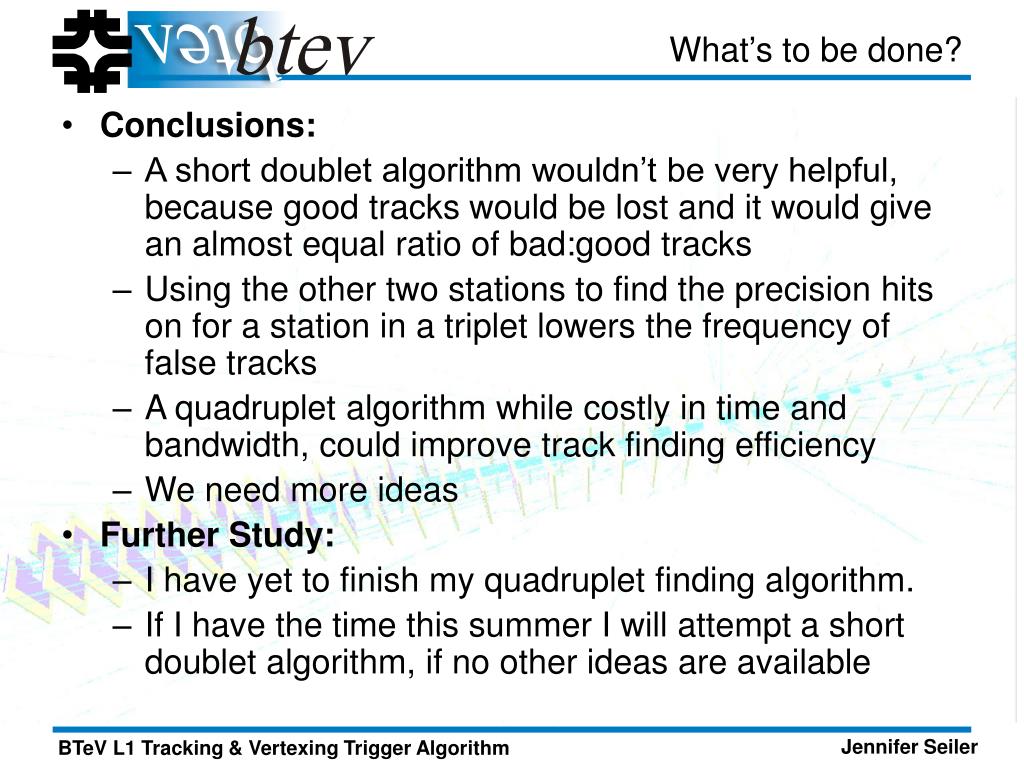

22. What’s to be done? • Conclusions: • A short doublet algorithm wouldn’t be very helpful, because good tracks would be lost and it would give an almost equal ratio of bad:good tracks • Using the other two stations to find the precision hits on for a station in a triplet lowers the frequency of false tracks • A quadruplet algorithm while costly in time and bandwidth, could improve track finding efficiency • We need more ideas • Further Study: • I have yet to finish my quadruplet finding algorithm. • If I have the time this summer I will attempt a short doublet algorithm, if no other ideas are available
