  1. GTECH 361 Lecture 04Referencing Data to Real Locations

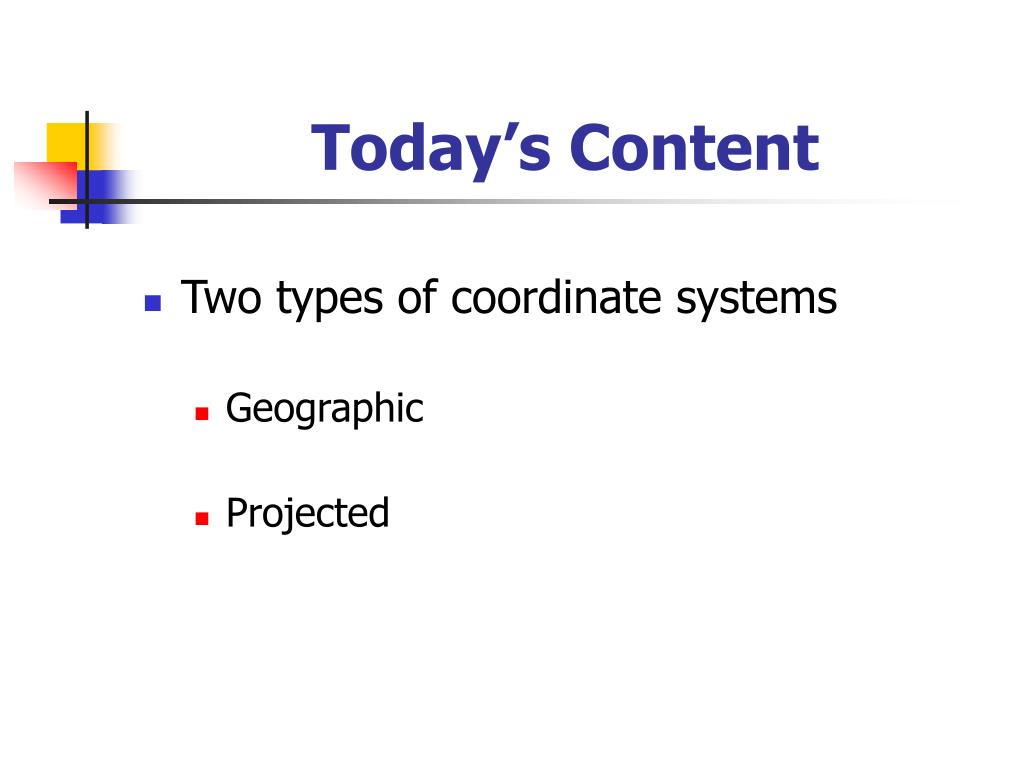

  2. Today’s Content • Two types of coordinate systems • Geographic • Projected

  3. Today’s Objectives • name two types of coordinate systems • identify components of each type of coordinate system • assign coordinate system information to a dataset • set display units for a data frame and measure distances on a map • explain what a map projection is • list the major categories of map projections • list spatial properties that may be distorted when different map projections are applied • change the map projection for a data frame and describe its effects

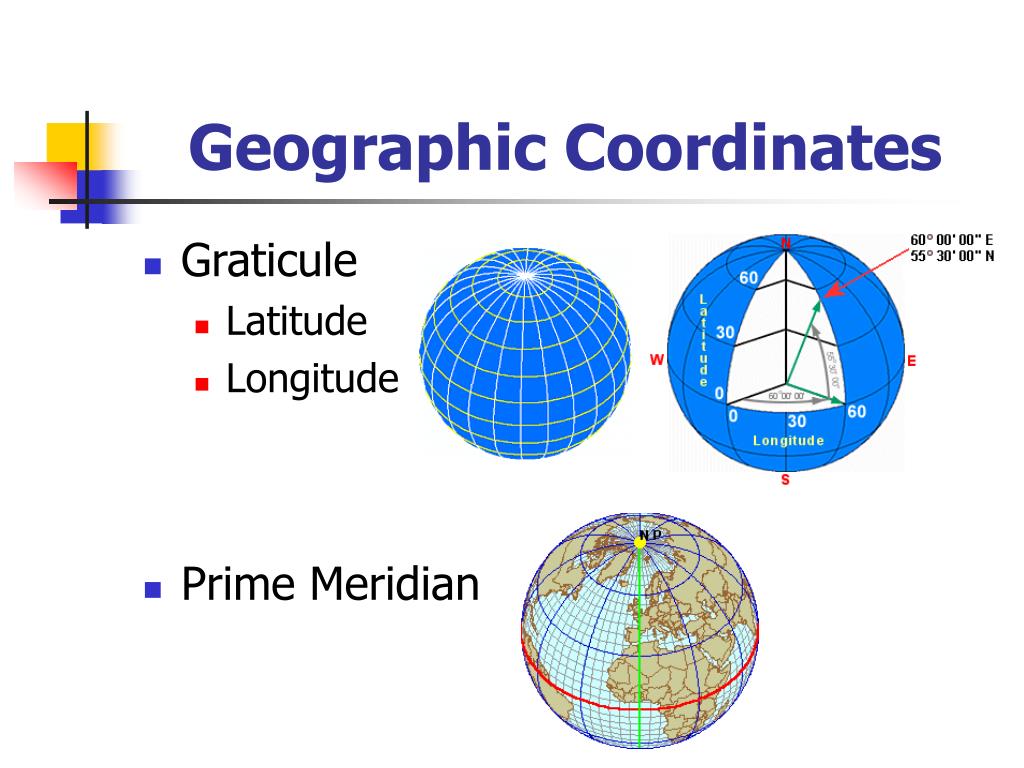

  4. Geographic Coordinates • Graticule • Latitude • Longitude • Prime Meridian

  5. The Earth’s Shape • The ancient Greek’s mathematical harmony • Simplest approximation: the sphere

  6. The Earth as an Ellipsoid

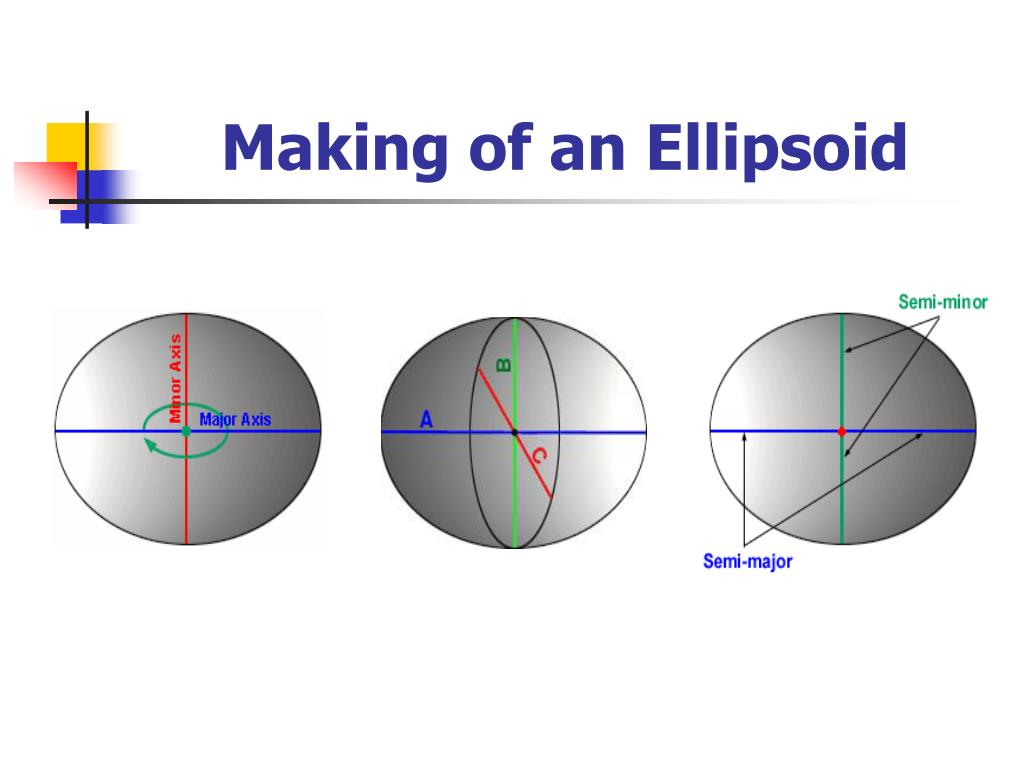

  7. Making of an Ellipsoid

  8. The Earth’s Shape

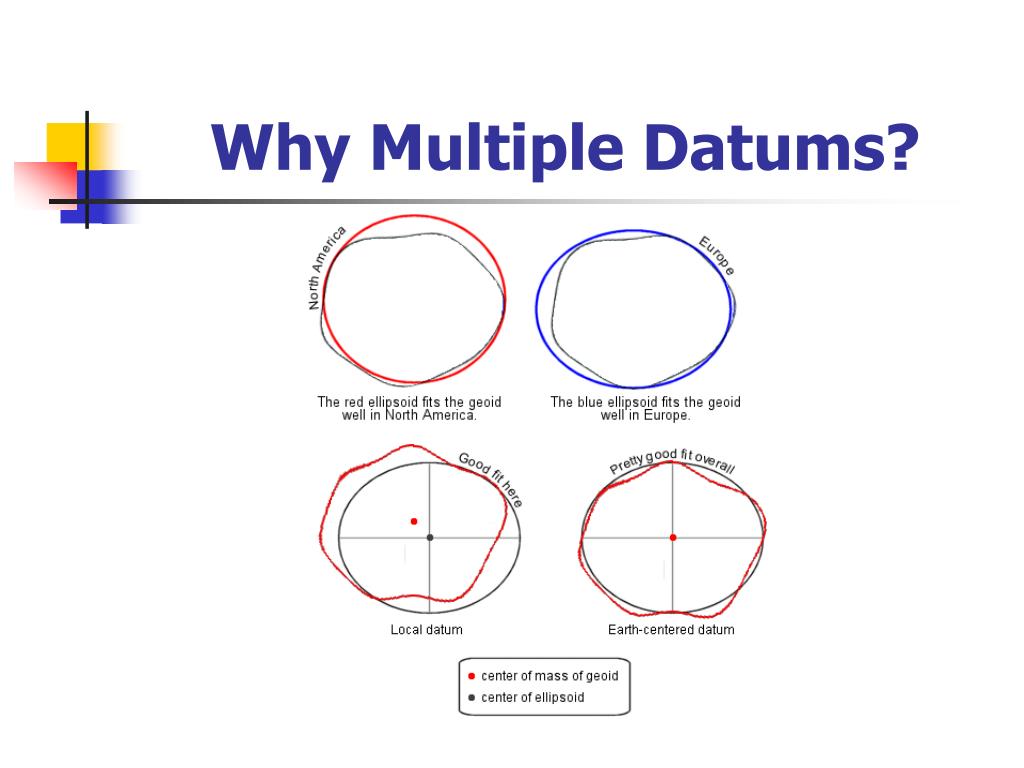

  9. Why Multiple Datums?

  10. Geodetic Datums

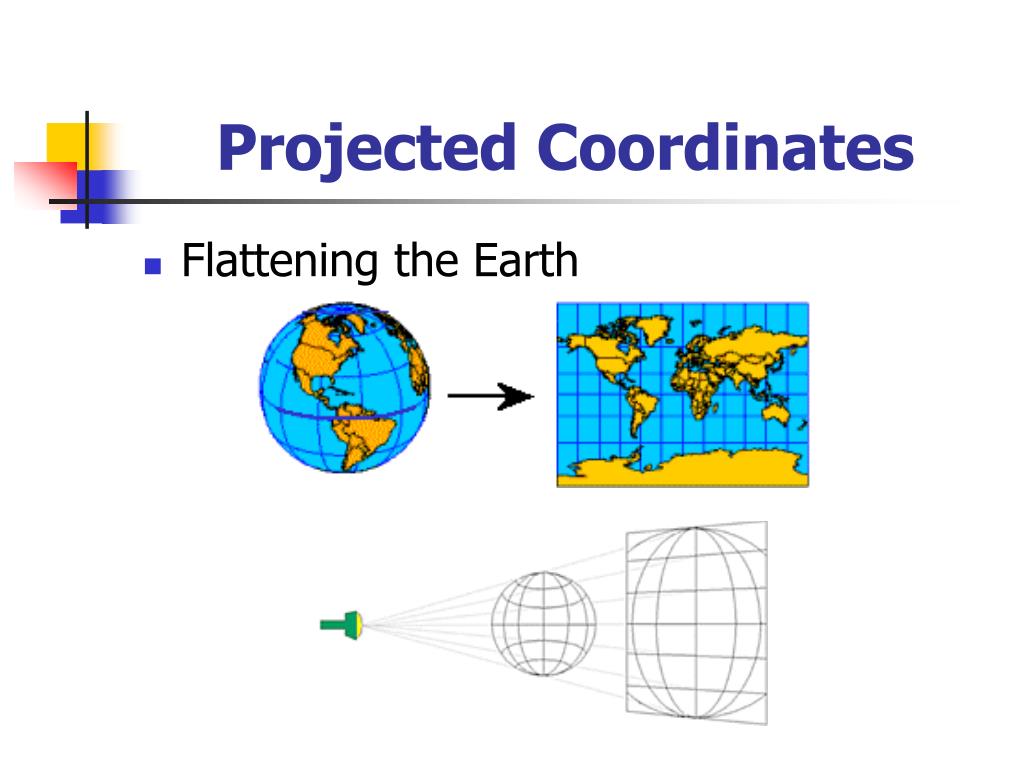

  11. Projected Coordinates • Flattening the Earth

  12. Origin of X, Y Coordinates

  13. Central Parallel

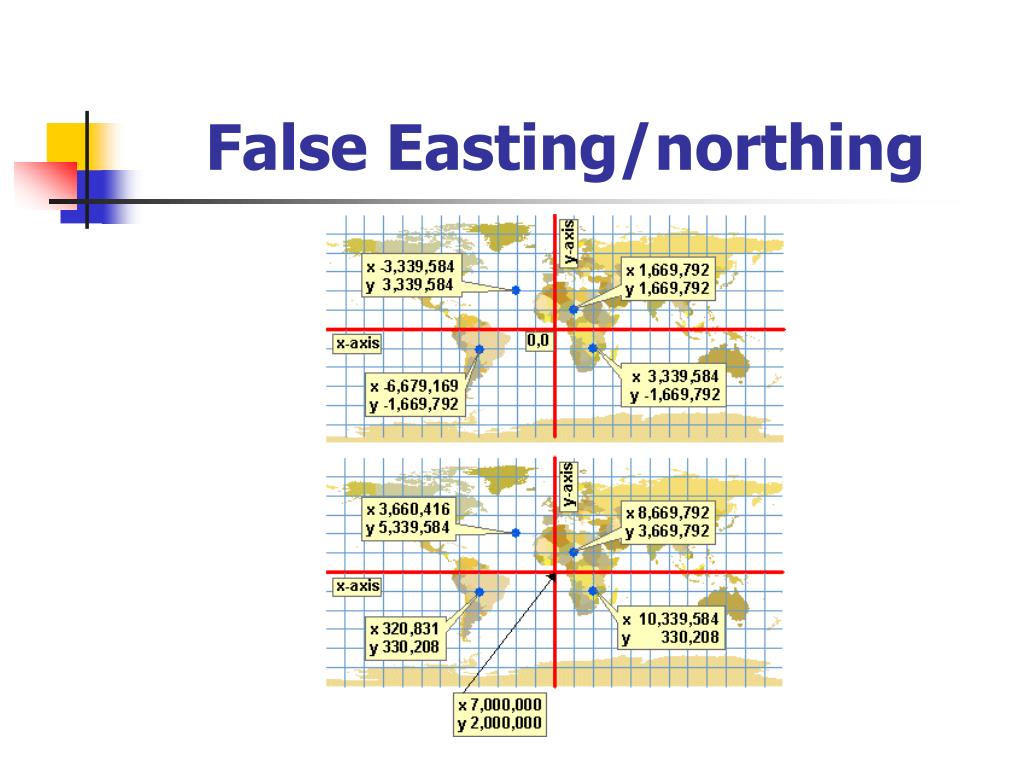

  14. False Easting/northing

  15. Coordinates in ArcGIS • All geographic data have geographic coordinates (lat/lon) • Some may have projected coordinates in addition to the geographic ones • ArcGIS assigns the coordinate system to a map based on the GCS or PCS of the first dataset loaded • Subsequent datasets are converted on-the-fly

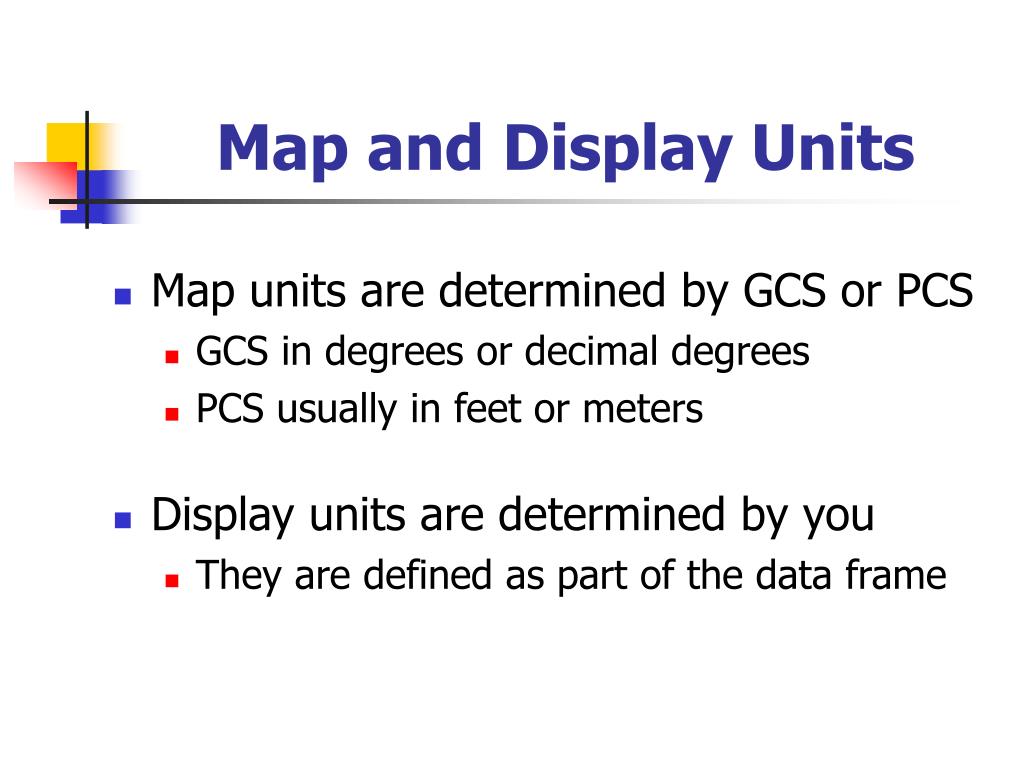

  16. Map and Display Units • Map units are determined by GCS or PCS • GCS in degrees or decimal degrees • PCS usually in feet or meters • Display units are determined by you • They are defined as part of the data frame

  17. (Decimal) Degrees • Converting from degrees to decimal degrees • Divide each value by the number of minutes (60) or seconds (3600) in a degree • Add up the degrees to get the answer

  18. Map Projection Types • Cylindrical • Planar • Conical

  19. Cylindrical Projections

  20. Conic Projections

  21. Planar Projections

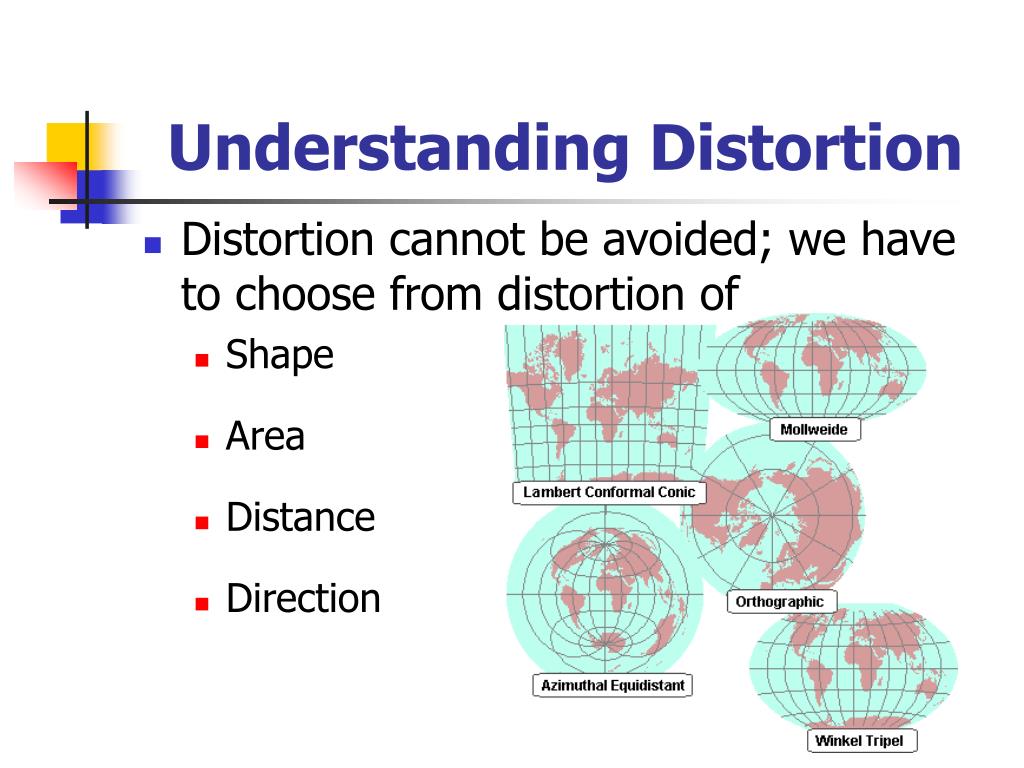

  22. Understanding Distortion • Distortion cannot be avoided; we have to choose from distortion of • Shape • Area • Distance • Direction

  23. Preserving Properties • If two properties are to be preserved then one is always direction • These properties are incompatible:

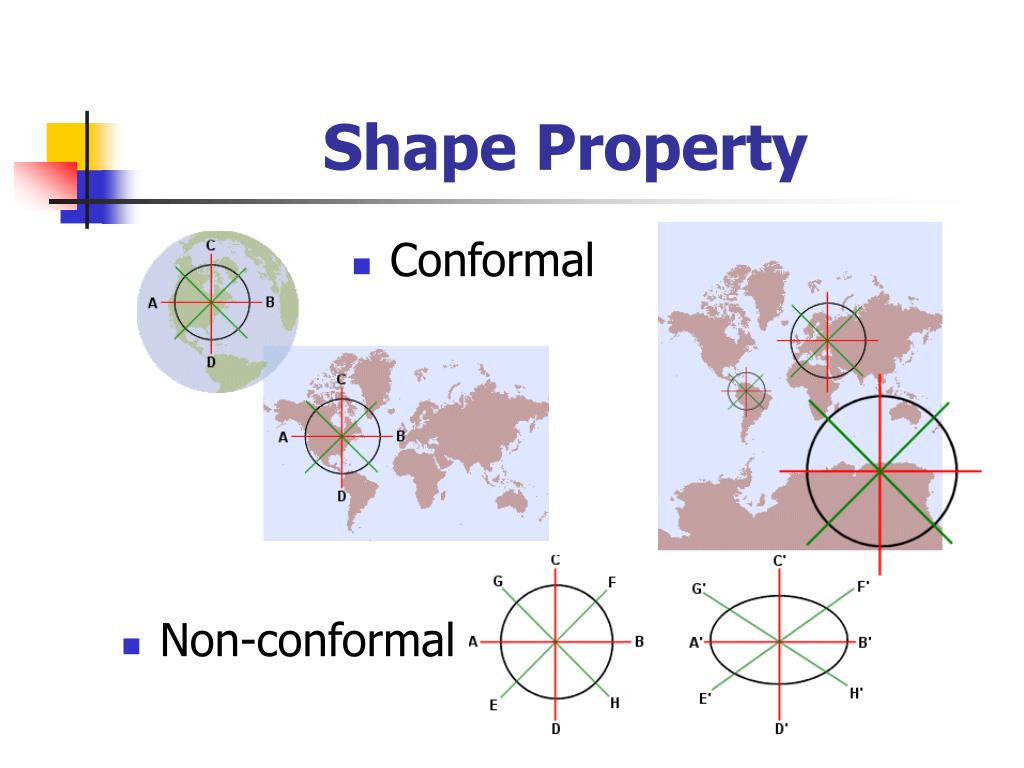

  24. Shape Property • Conformal • Non-conformal

  25. Area Property

  26. Distance Property

  27. Direction Property

  28. Direction Property • Azimuthal map with shortest distance • Mercator with rhumb line or loxodrome

  29. Tissot Indicatrices

  30. Equatorial (normal) Aspect

  31. Transverse Aspect

  32. Oblique Aspect

  33. Aspects for Planar Projections • Polar Gnomic Stereographic Orthographic

  34. Aspects for Planar Projections • Equatorial Aspect Gnomic Stereographic Orthographic

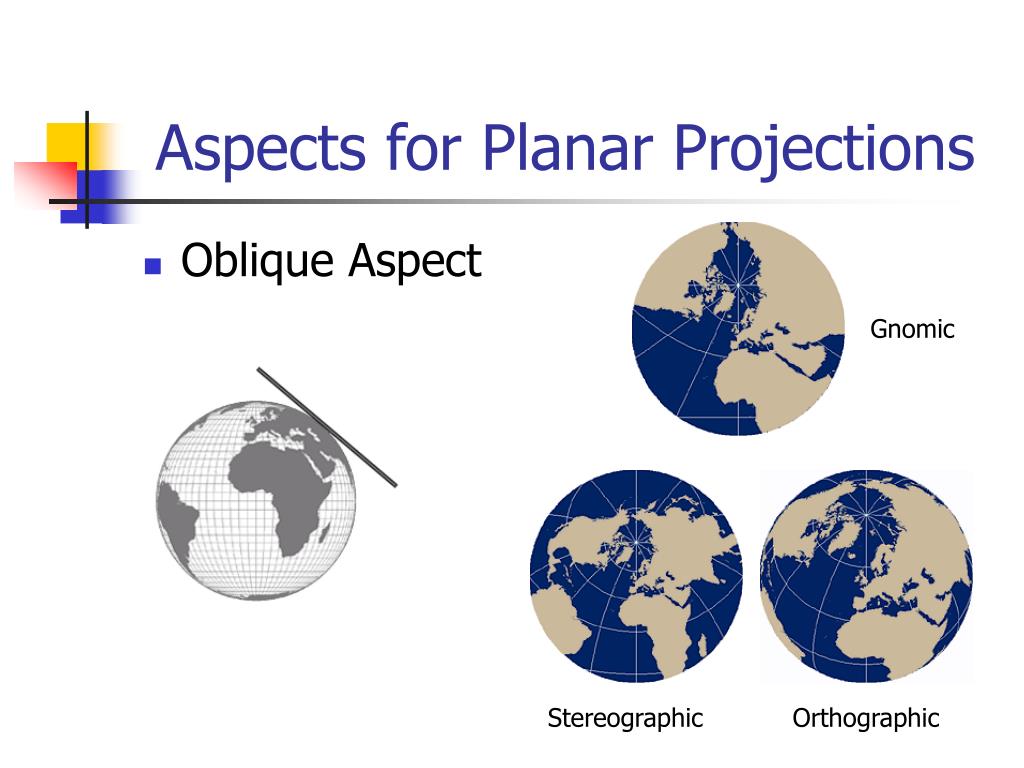

  35. Aspects for Planar Projections • Oblique Aspect Gnomic Stereographic Orthographic

  36. Aspects for Conic Projections • Normal aspect

  37. Polyconic Projection • Hassler, 1820sUS Coastal Survey

  38. Perspective • Position of thelight source

  39. Perspectives

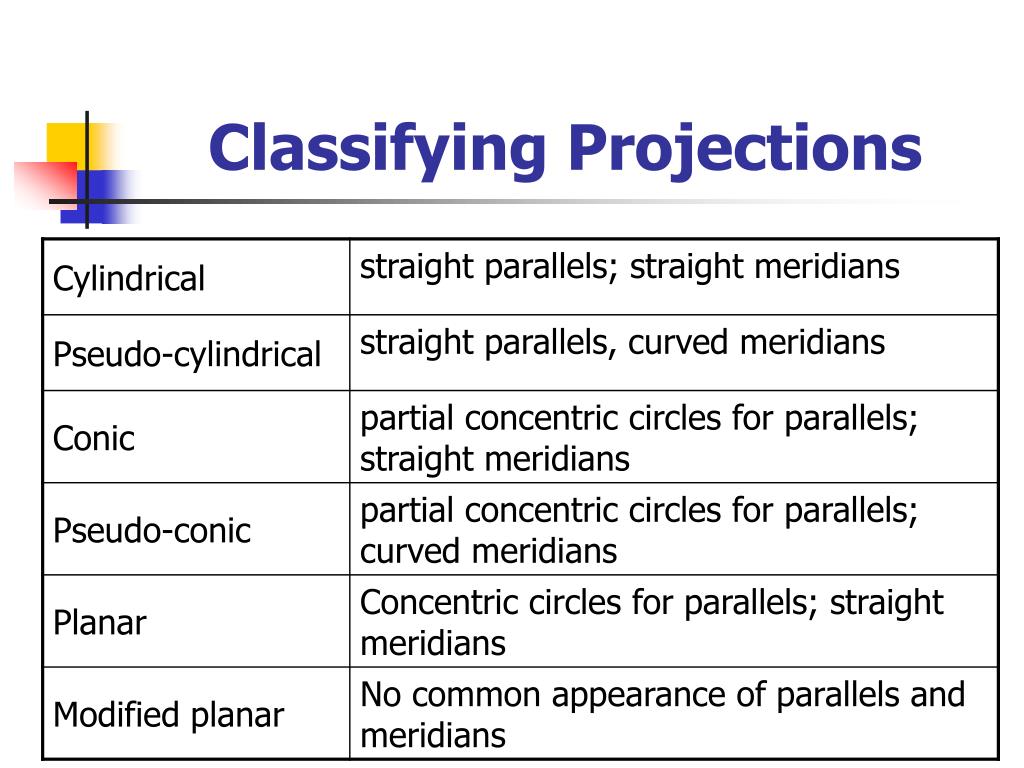

  40. Classifying Projections

  41. Classifying Projections

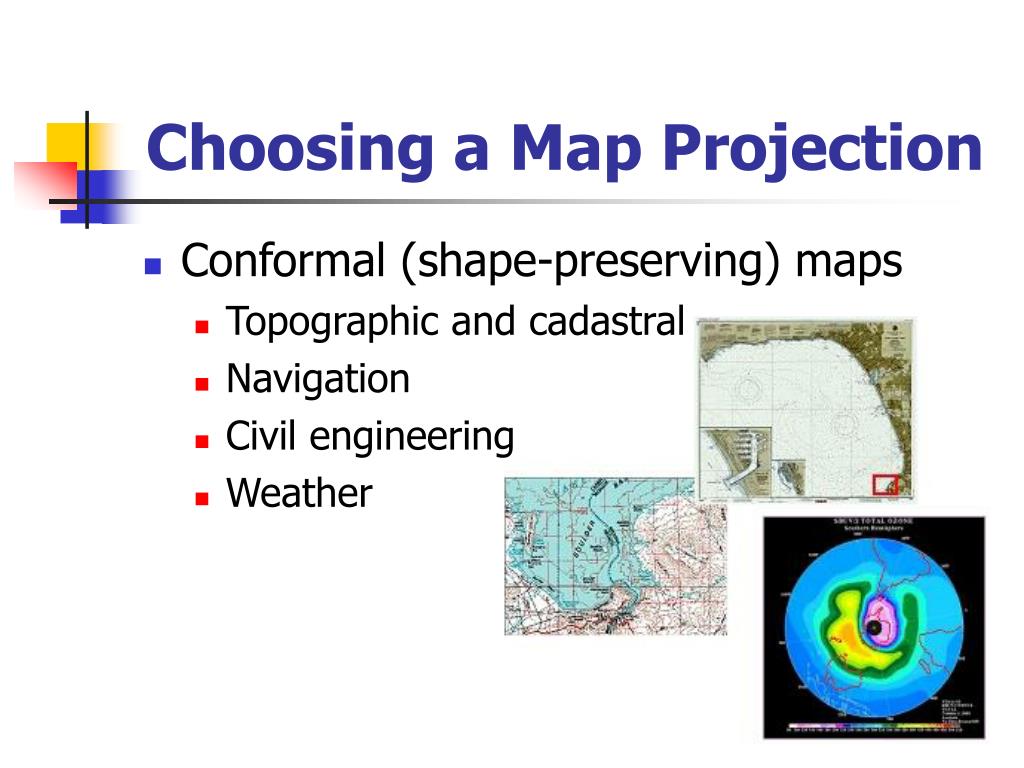

  42. Choosing a Map Projection • Conformal (shape-preserving) maps • Topographic and cadastral • Navigation • Civil engineering • Weather

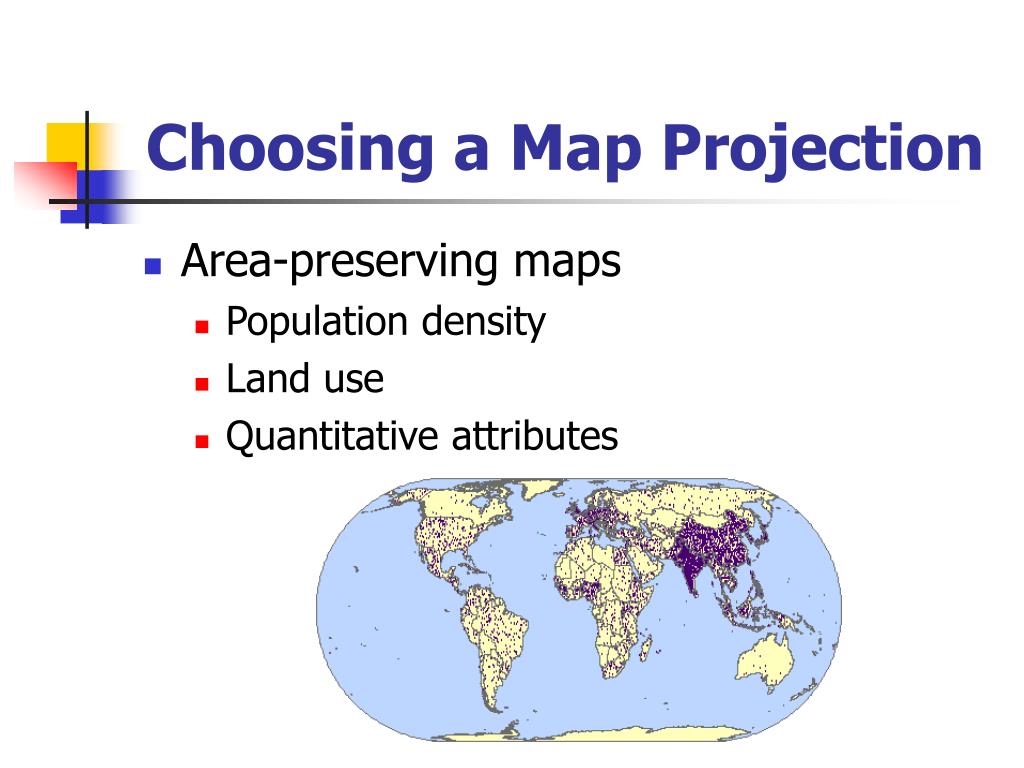

  43. Choosing a Map Projection • Area-preserving maps • Population density • Land use • Quantitative attributes

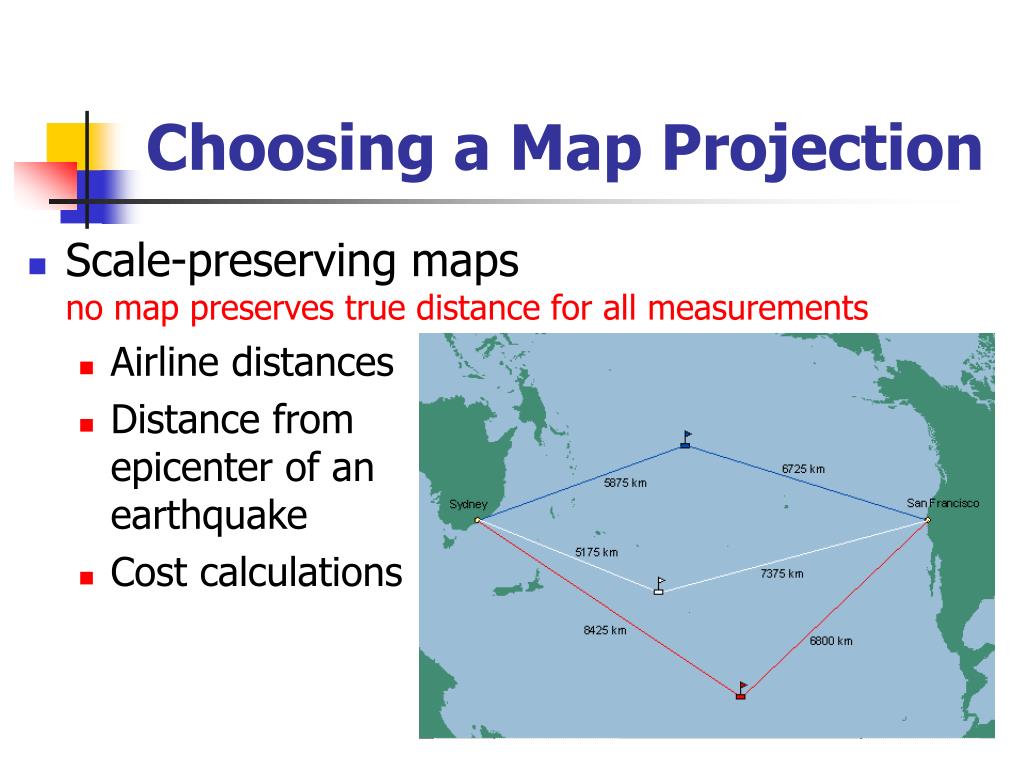

  44. Choosing a Map Projection • Scale-preserving mapsno map preserves true distance for all measurements • Airline distances • Distance from epicenter of an earthquake • Cost calculations

  45. Choosing a Map Projection

  46. Components of a GCS • An angular unit of measure • A prime meridian • A datum, which includes a spheroid

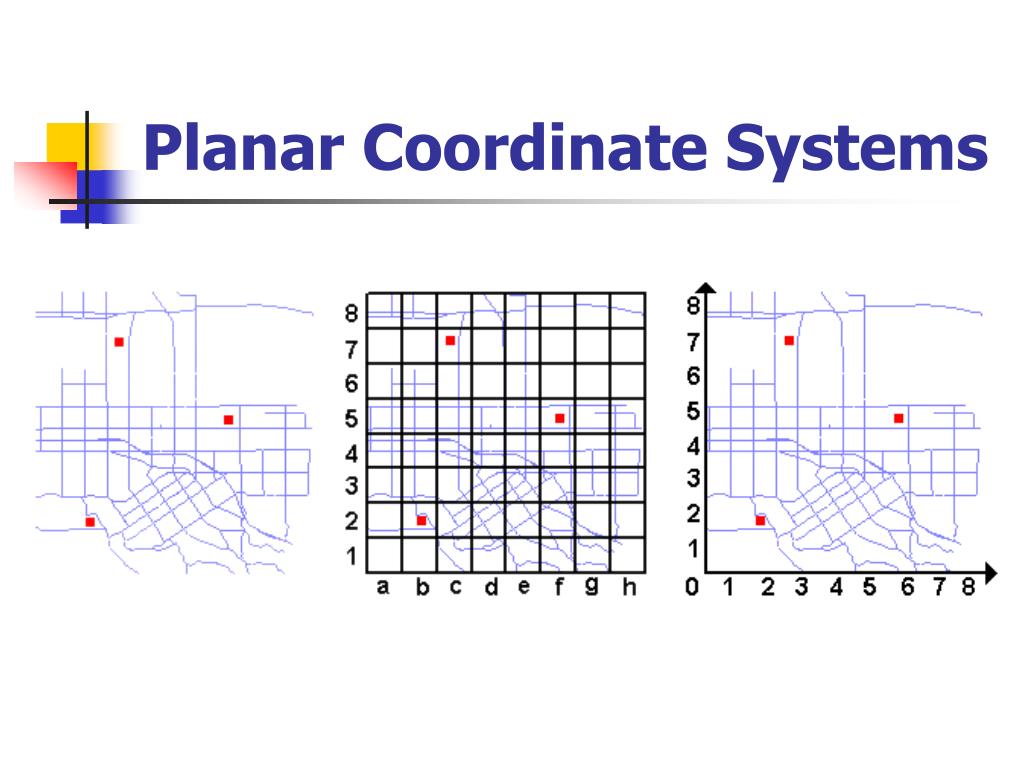

  47. Planar Coordinate Systems

  48. Cartesian Coordinates • Calculate distance A-B

  49. Universal Transverse Mercator • UTM zones

  50. UTM Zones • .. as seen from the North Pole
