  1. MACHINE PARTS (FOR DCE / DIT) Books for reference Notation: (i) N – engineering drawing ( By N.D.Bhatt) – Latest edition (ii) M – Machine drawing ( By N.D.Bhatt) MACHINE PARTS 6. Nuts (N)

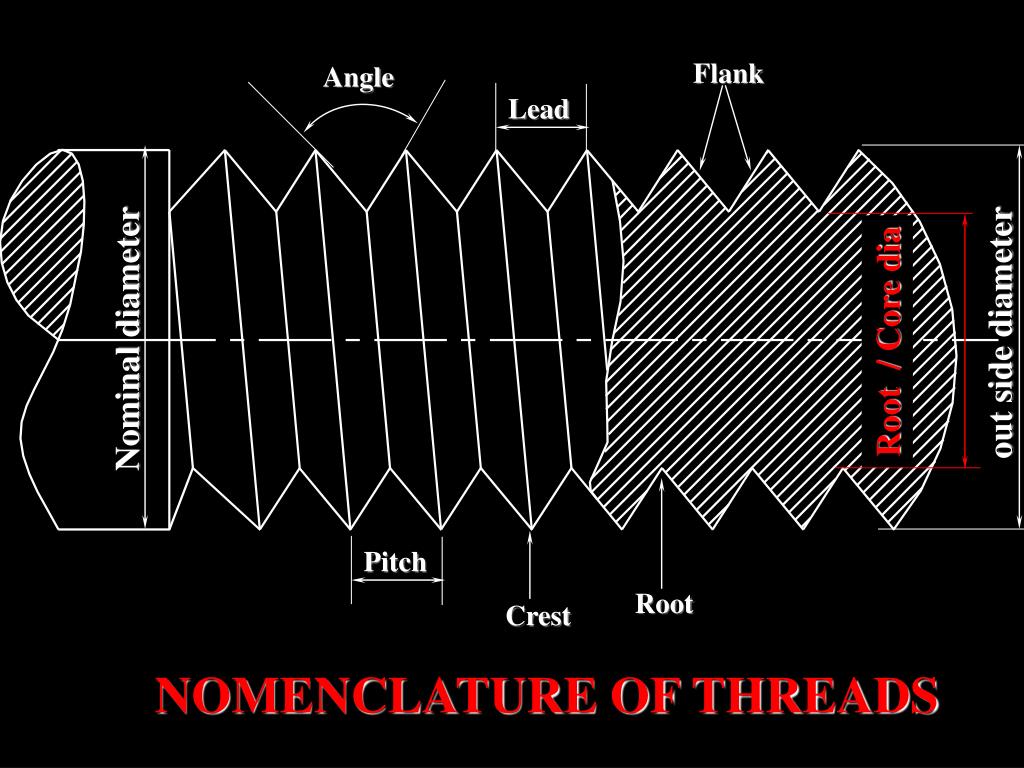

  2. Flank Angle Lead out side diameter Root / Core dia Pitch Root Crest Nominal diameter NOMENCLATURE OF THREADS

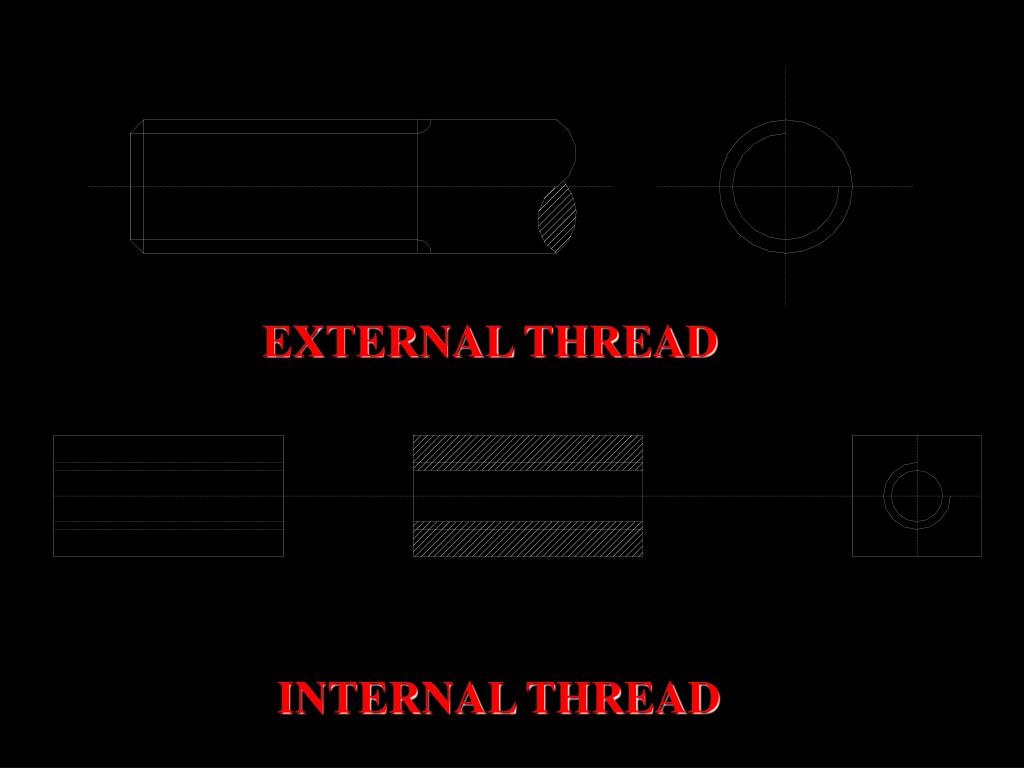

  3. EXTERNAL THREAD INTERNAL THREAD

  4. T P TYPES OF THREADS 90 d T= d = 0.5P SQUARE THREAD

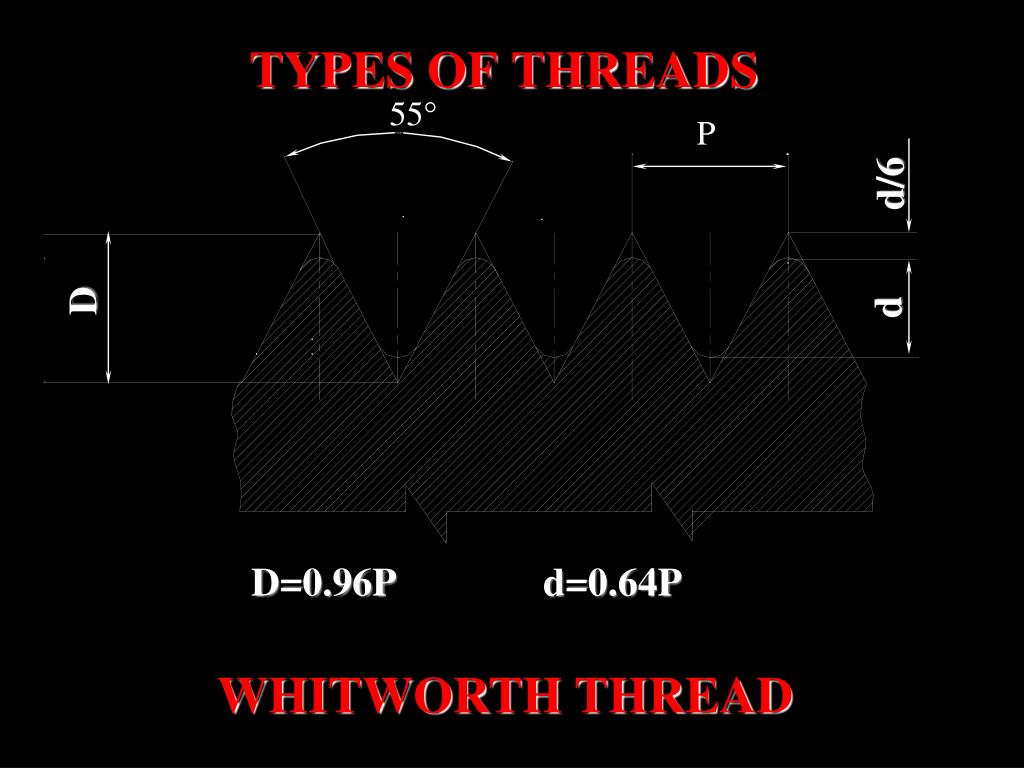

  5. TYPES OF THREADS 55° P d/6 D d D=0.96P d=0.64P WHITWORTH THREAD

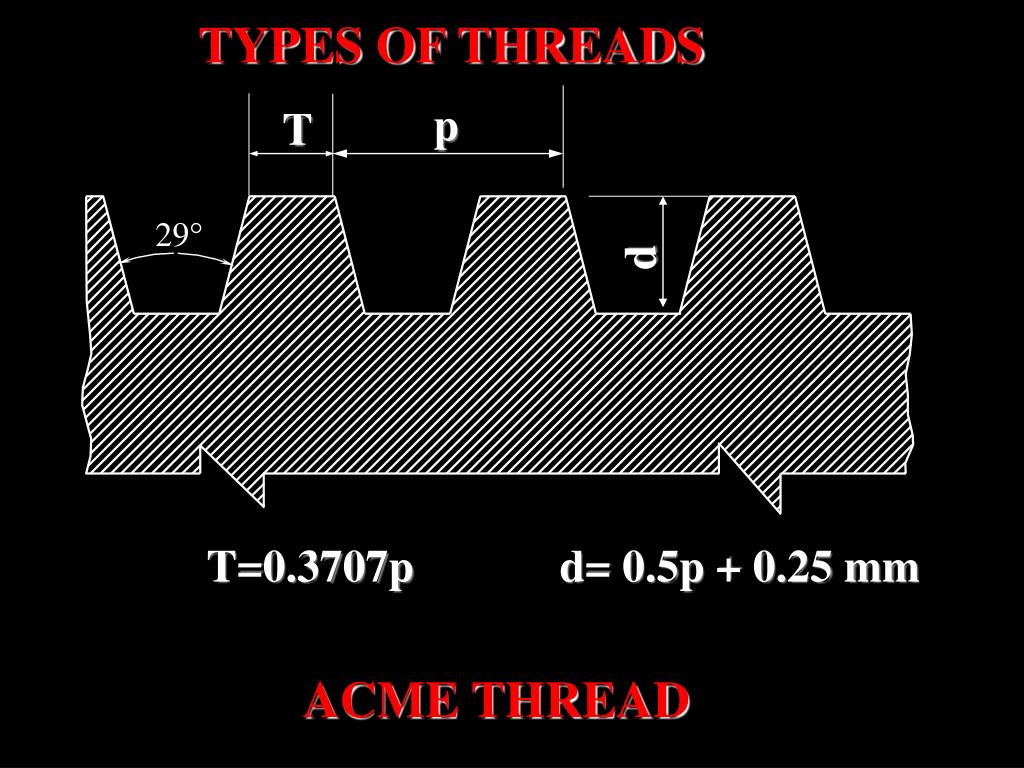

  6. TYPES OF THREADS p T 29° d T=0.3707p d= 0.5p + 0.25 mm ACME THREAD

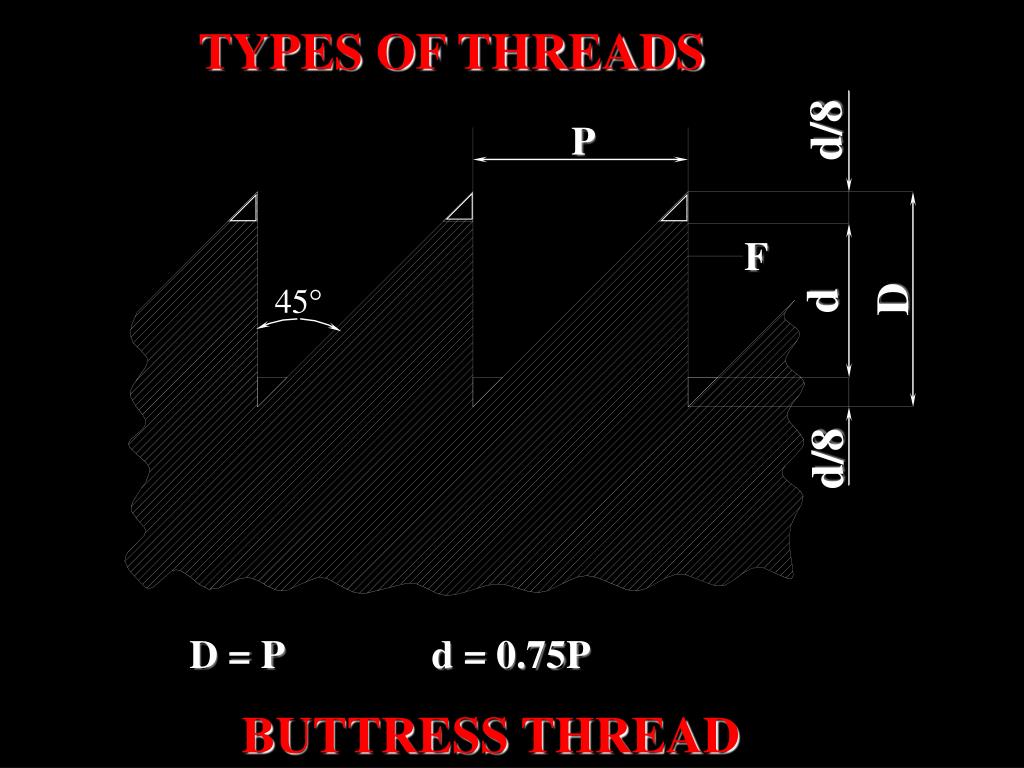

  7. TYPES OF THREADS d/8 P F D d 45° d/8 D = P d = 0.75P BUTTRESS THREAD

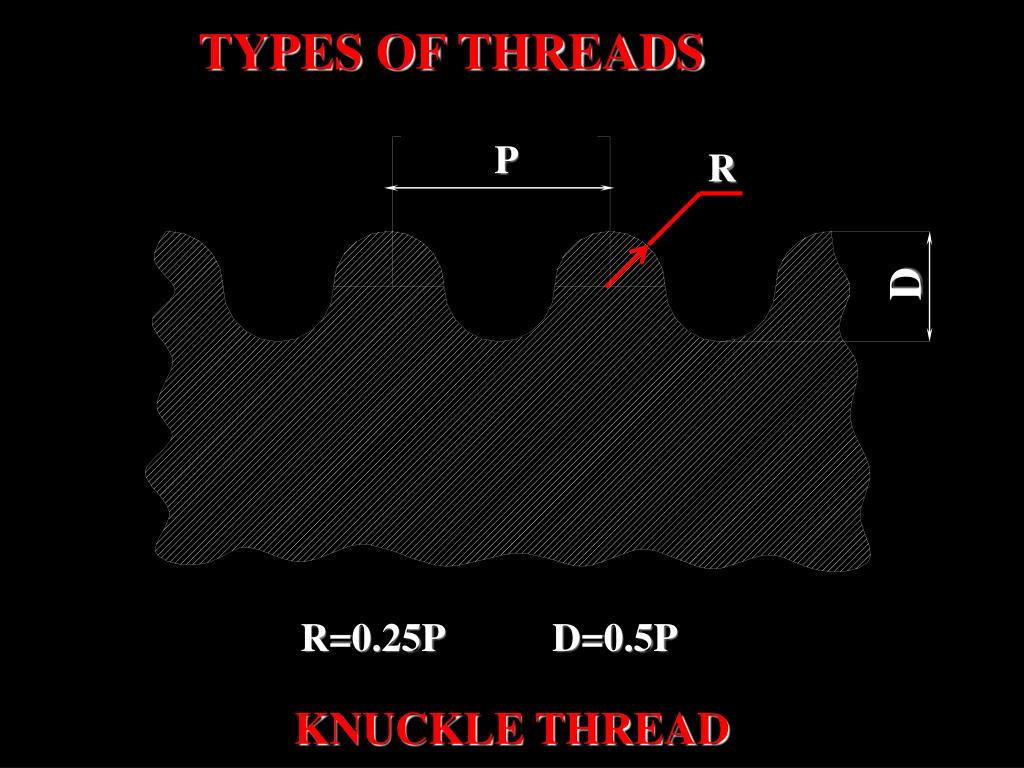

  8. TYPES OF THREADS P R D R=0.25P D=0.5P KNUCKLE THREAD

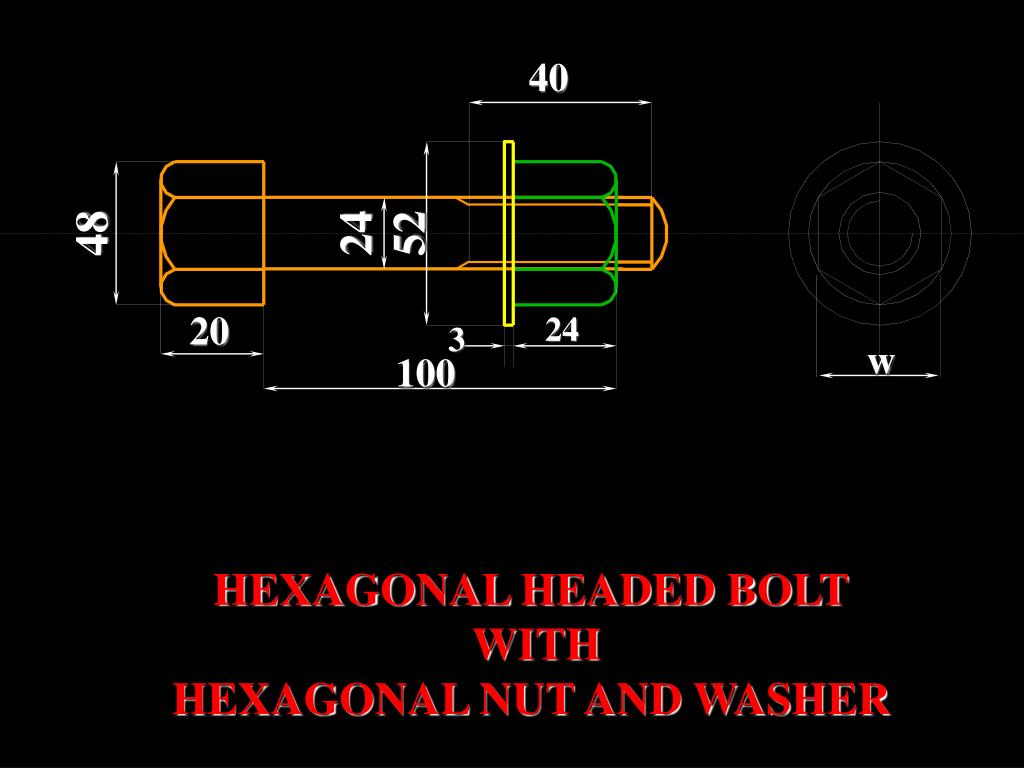

  9. 40 24 48 52 20 24 3 w 100 HEXAGONAL HEADED BOLT WITH HEXAGONAL NUT AND WASHER

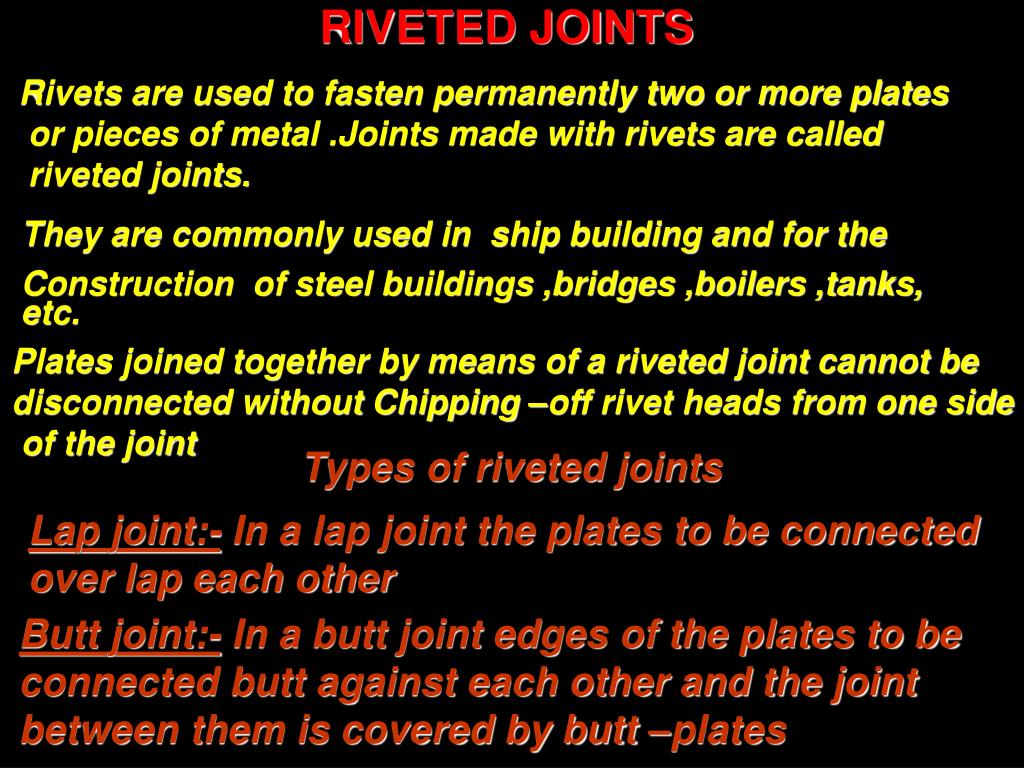

  10. RIVETED JOINTS Rivets are used to fasten permanently two or more plates or pieces of metal .Joints made with rivets are called riveted joints. They are commonly used in ship building and for the Construction of steel buildings ,bridges ,boilers ,tanks, etc. Plates joined together by means of a riveted joint cannot be disconnected without Chipping –off rivet heads from one side of the joint Types of riveted joints Lap joint:- In a lap joint the plates to be connected over lap each other Butt joint:- In a butt joint edges of the plates to be connected butt against each other and the joint between them is covered by butt –plates

  11. Pr 1.5d Pr 1.5d t d t t 1.5d 1.5d Pd P P A A L A A Doubleriveted (zig zag) lap joint Doubleriveted lap joint

  12. 1.5d 1.5d L P A A Singleriveted butt joint

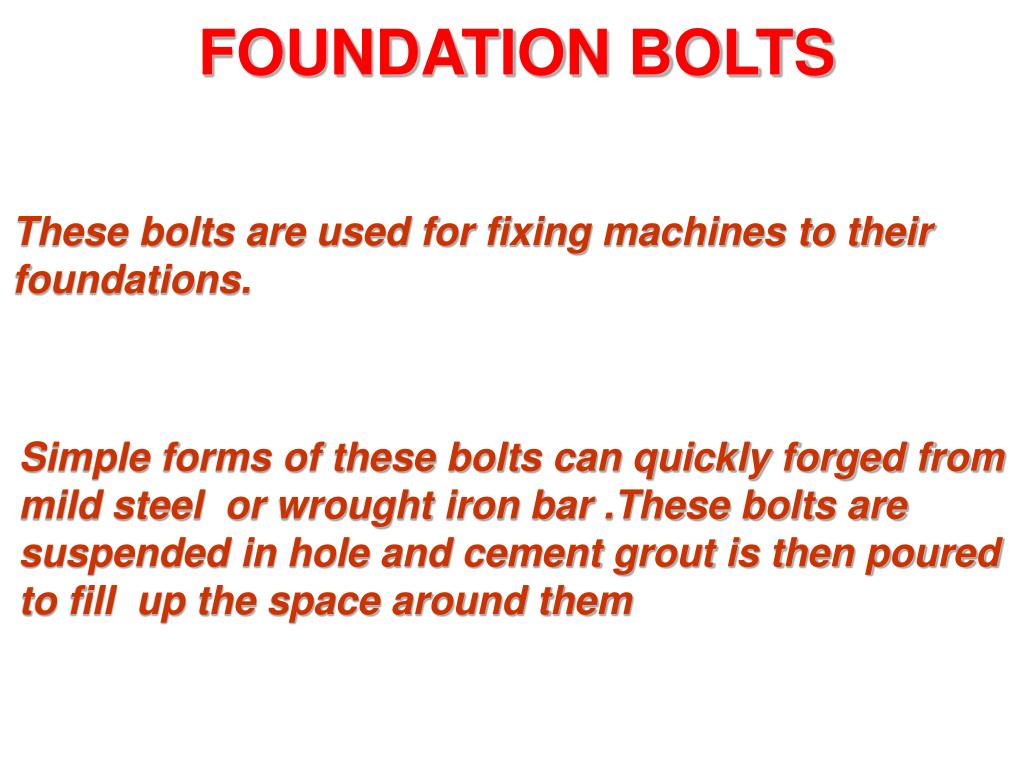

  13. FOUNDATION BOLTS These bolts are used for fixing machines to their foundations. Simple forms of these bolts can quickly forged from mild steel or wrought iron bar .These bolts are suspended in hole and cement grout is then poured to fill up the space around them

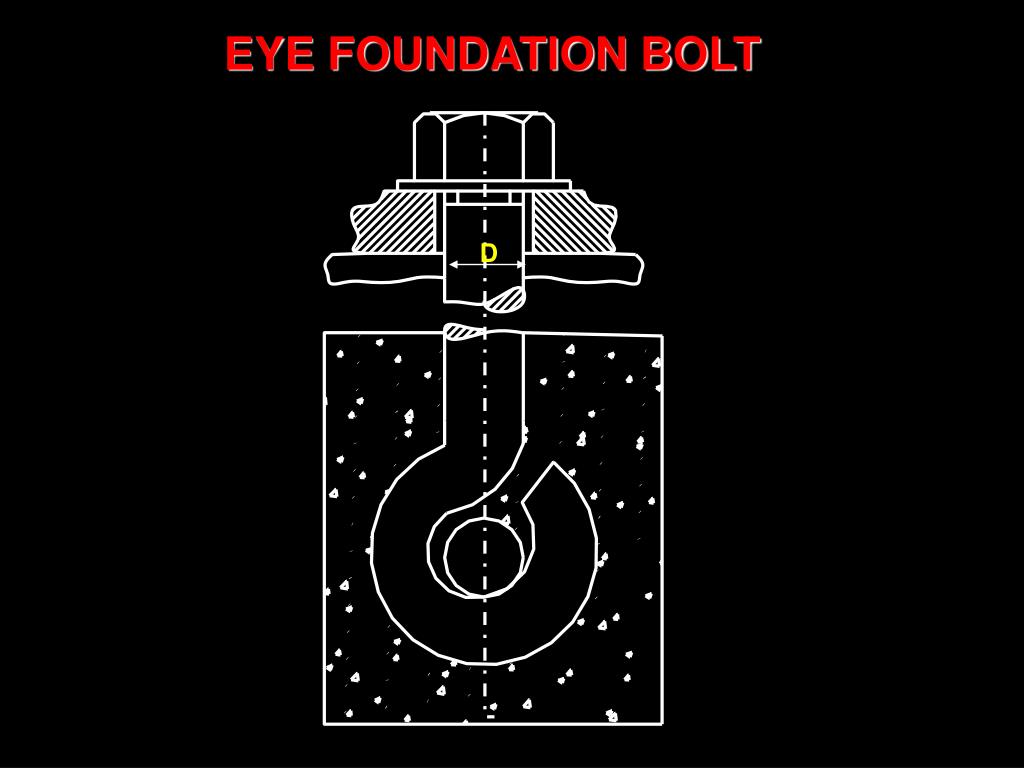

  14. EYE FOUNDATION BOLT D

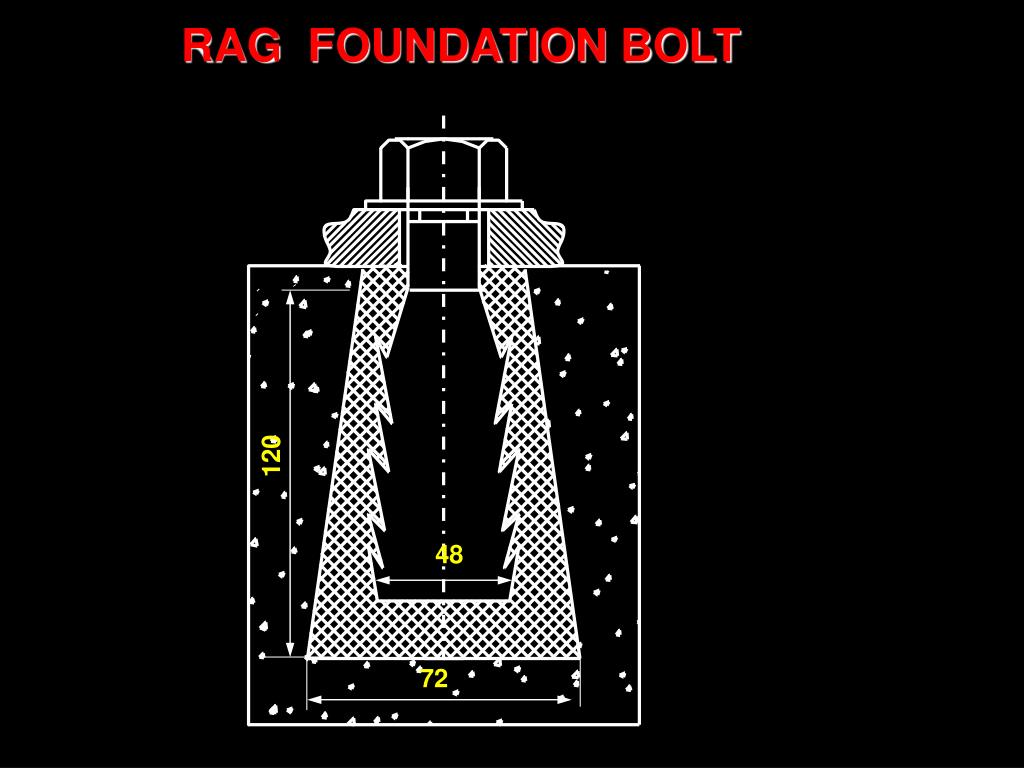

  15. RAG FOUNDATION BOLT 120 48 72

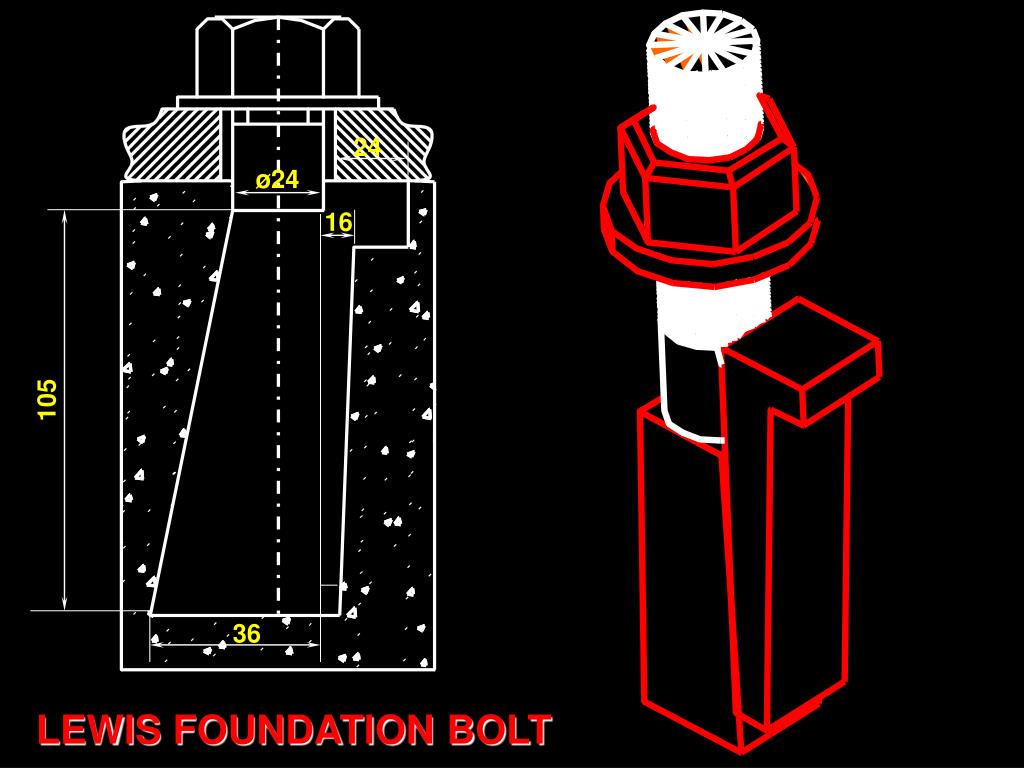

  16. 24 ø24 16 105 36 LEWIS FOUNDATION BOLT

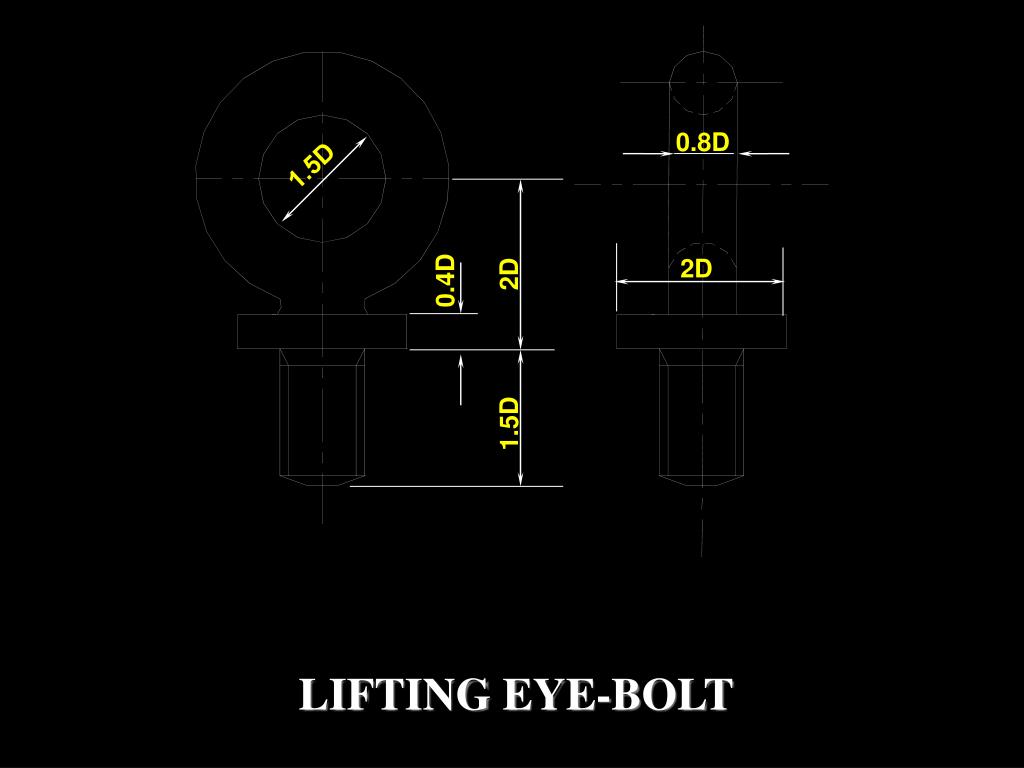

  17. 0.8D 1.5D 2D 2D 0.4D 1.5D LIFTING EYE-BOLT

  18. 2D D 2D D EYE BOLT

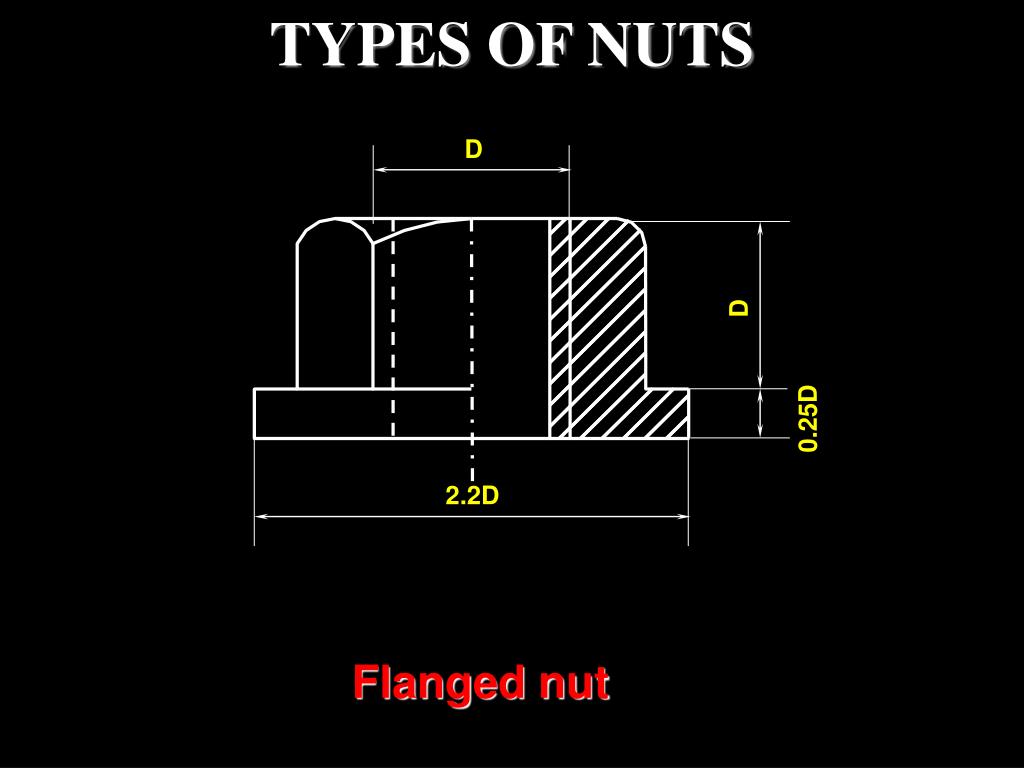

  19. TYPES OF NUTS D D 0.25D 2.2D Flanged nut

  20. 1.5D+3 0.5D 0.25D D D Cap nut

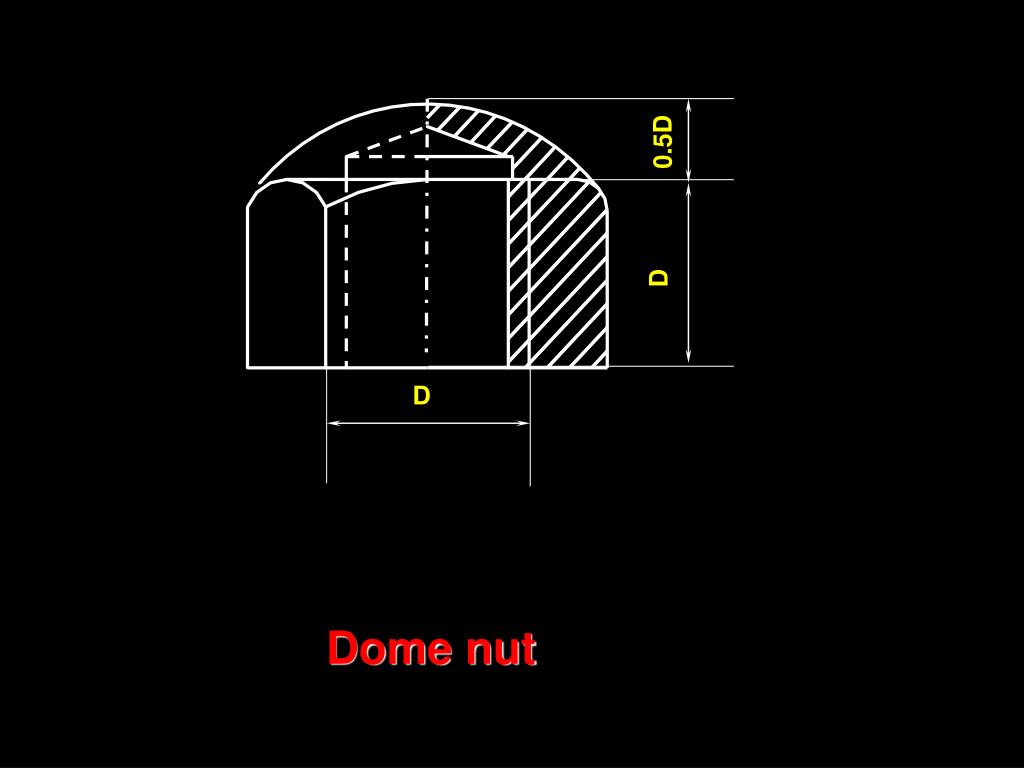

  21. 0.5D D D Dome nut

  22. 1.8D D D 0.2D Capstan nut

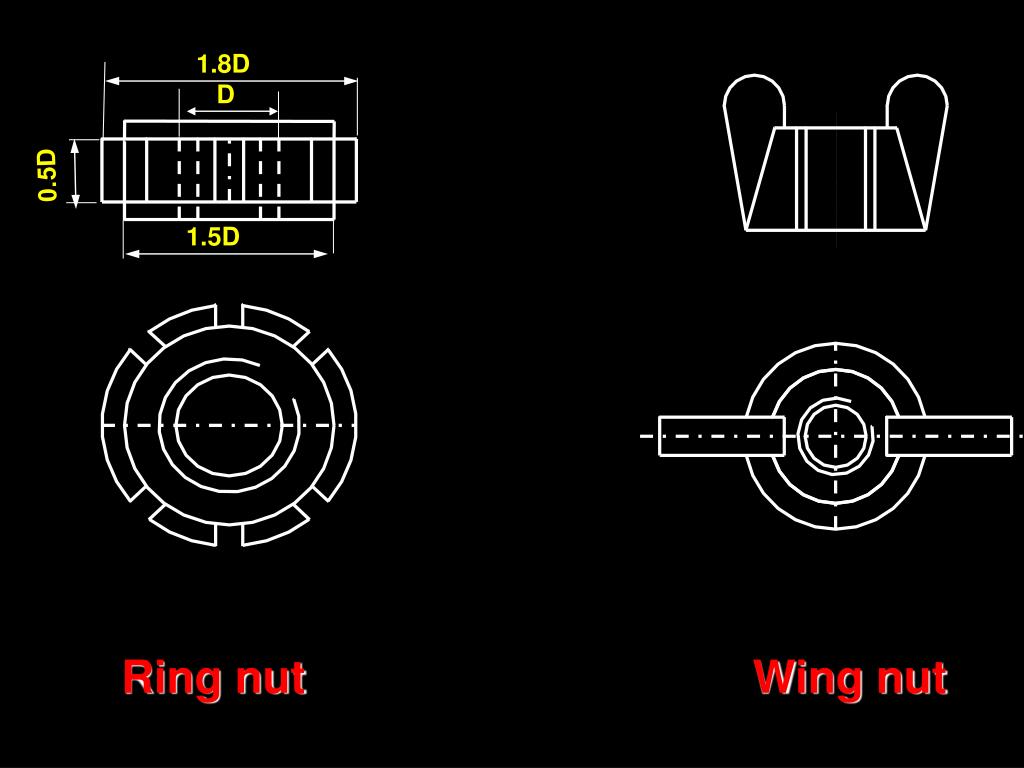

  23. 1.8D D 0.5D 1.5D Ring nut Wing nut

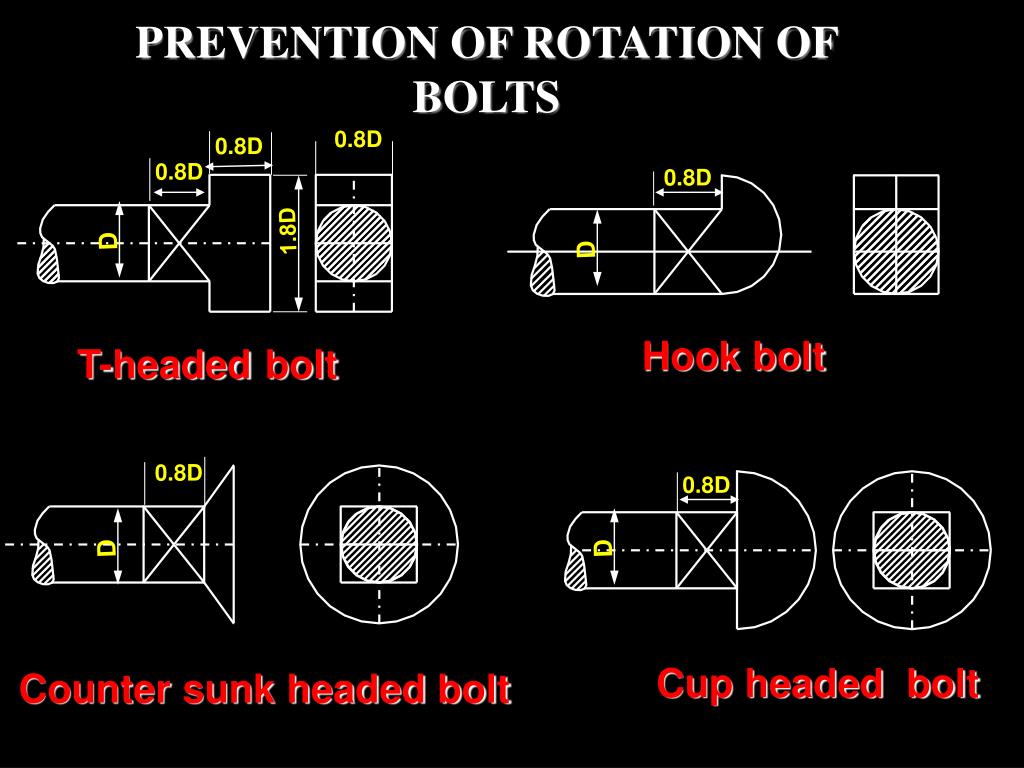

  24. 0.8D 0.8D 0.8D 0.8D 1.8D D D Hook bolt T-headedbolt 0.8D 0.8D D D Cup headed bolt Counter sunk headed bolt PREVENTION OF ROTATION OF BOLTS

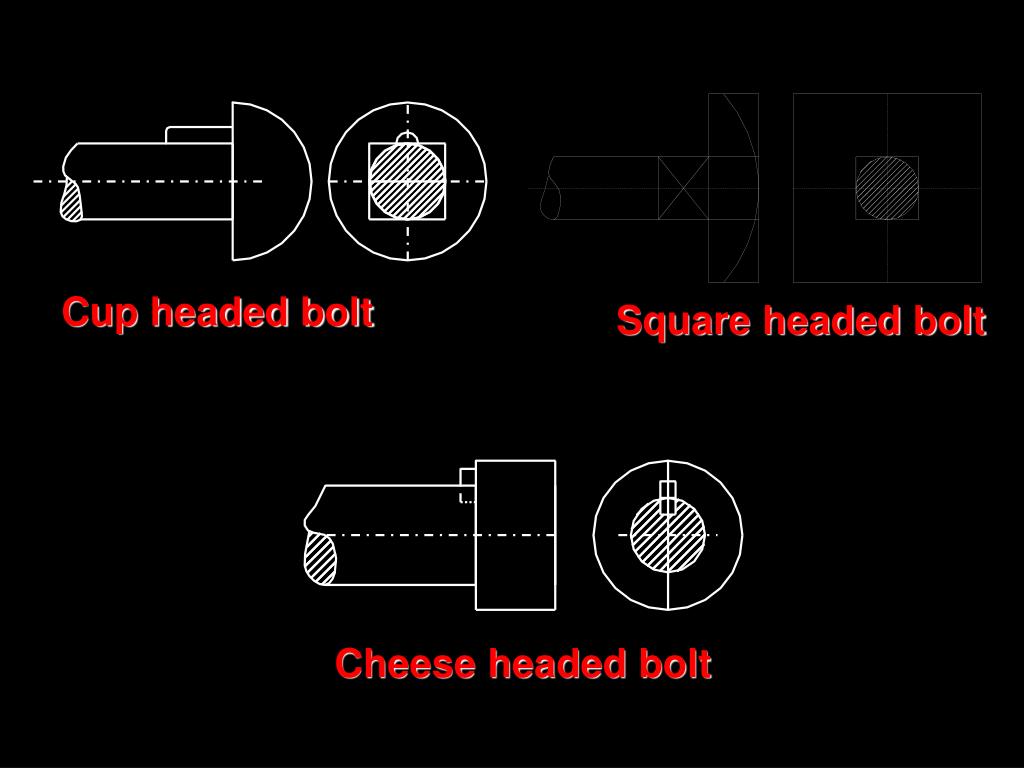

  25. Cup headed bolt Square headed bolt Cheese headed bolt

  26. LOCKING ARRANGEMENT FOR NUTS SPLIT-PIN

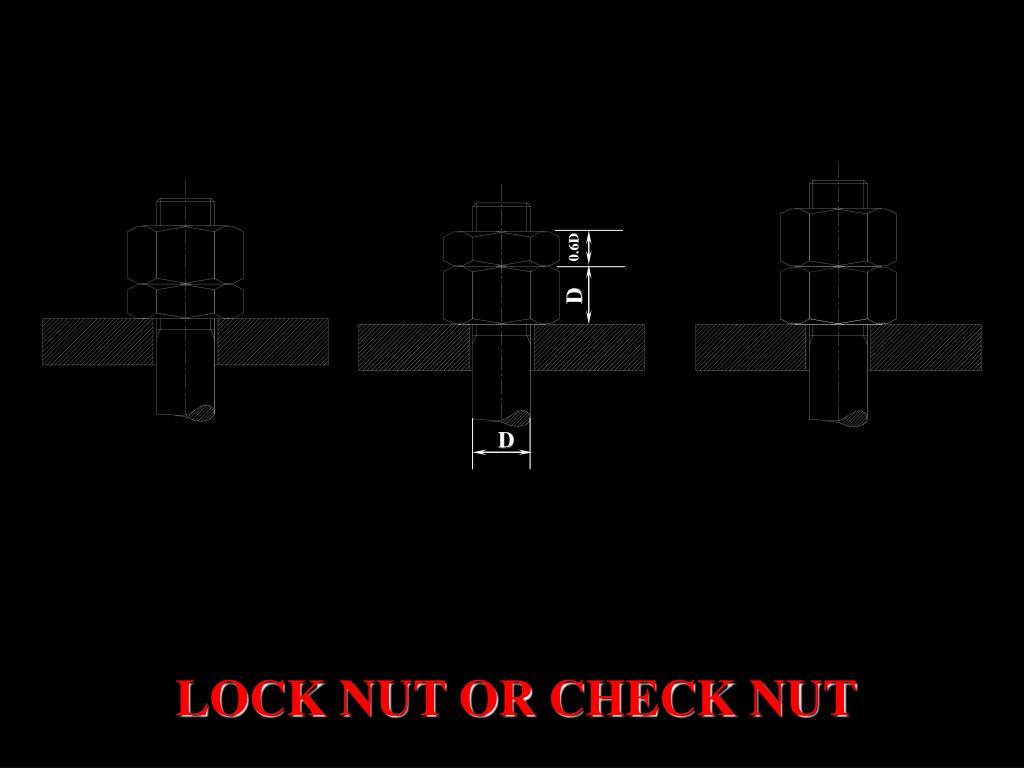

  27. 0.6D D D LOCK NUT OR CHECK NUT

  28. NUT BOLT WITH SPRING WASHER

  29. CASTLE NUT WITH A SPLIT PIN

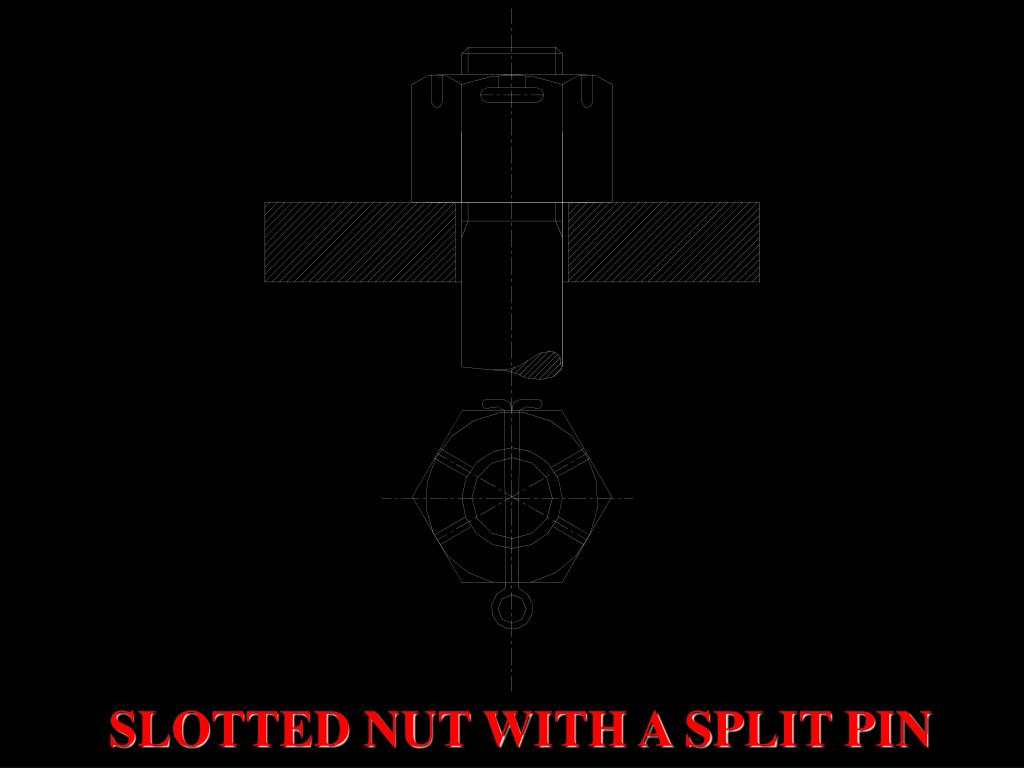

  30. SLOTTED NUT WITH A SPLIT PIN

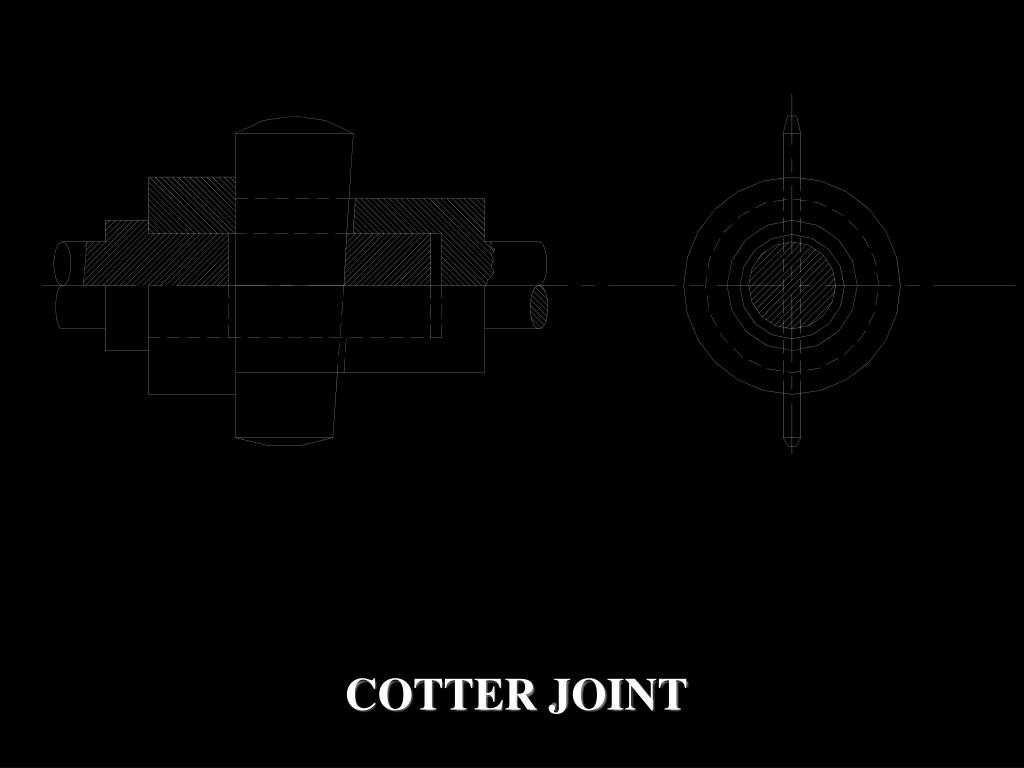

  31. COTTER JOINT

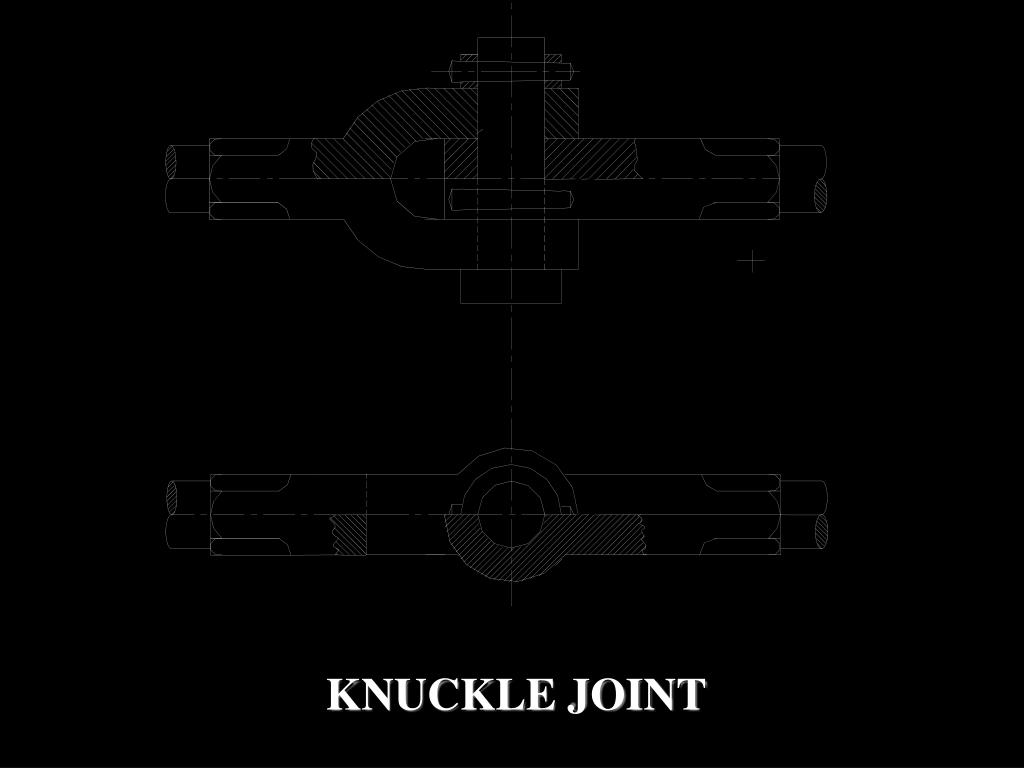

  32. KNUCKLE JOINT

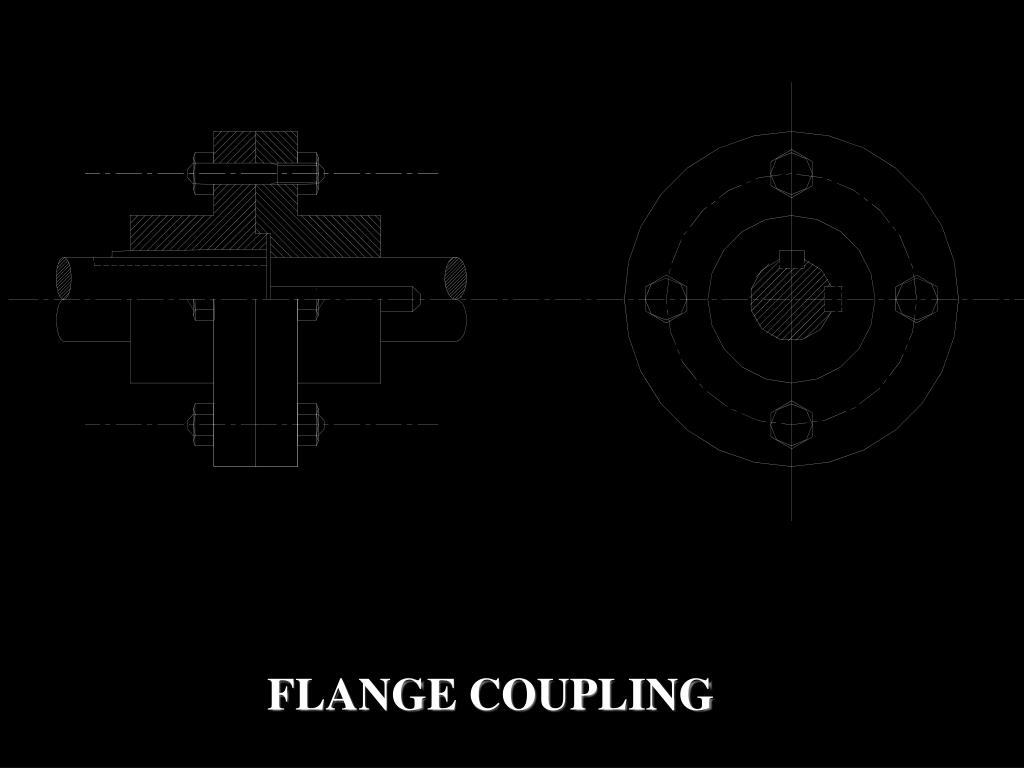

  33. FLANGE COUPLING

  34. PROTECTIVE FLANGE COUPLING

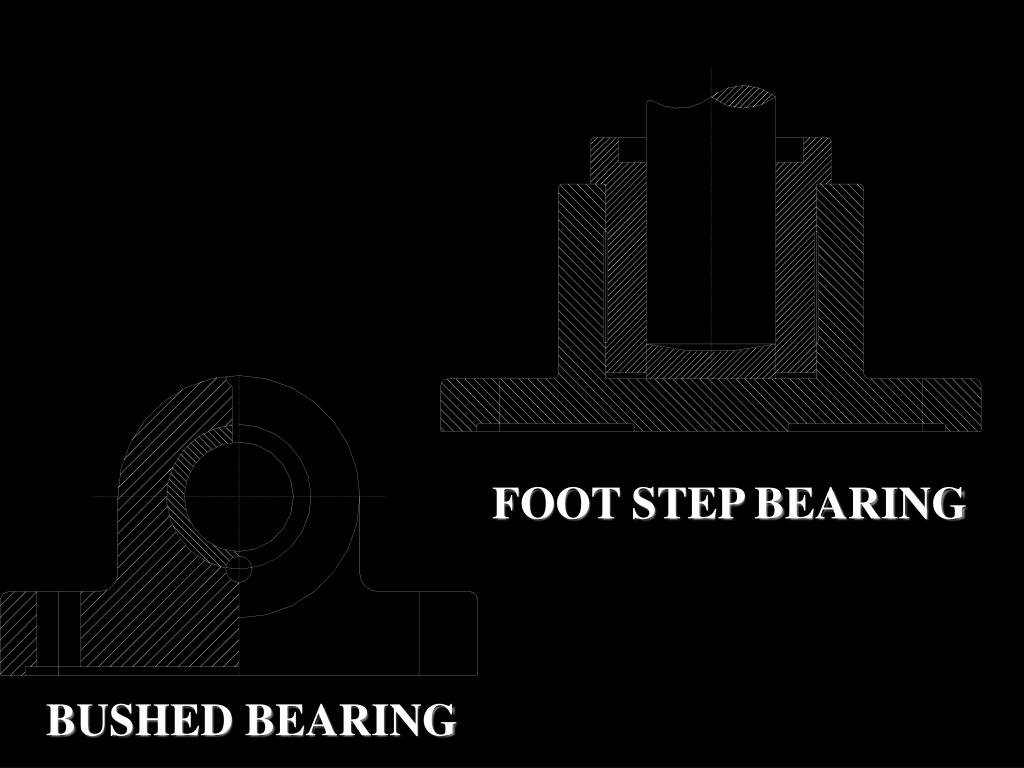

  35. FOOT STEP BEARING BUSHED BEARING

  36. PLUMMER BLOCK

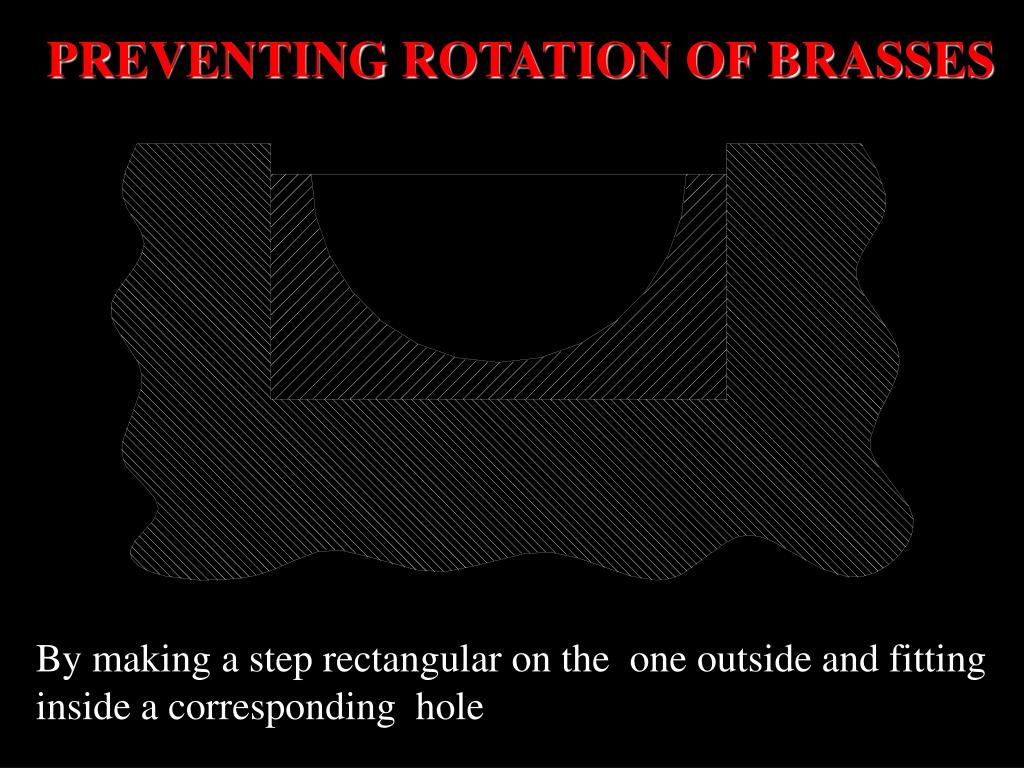

  37. PREVENTING ROTATION OF BRASSES By making a step rectangular on the one outside and fitting inside a corresponding hole

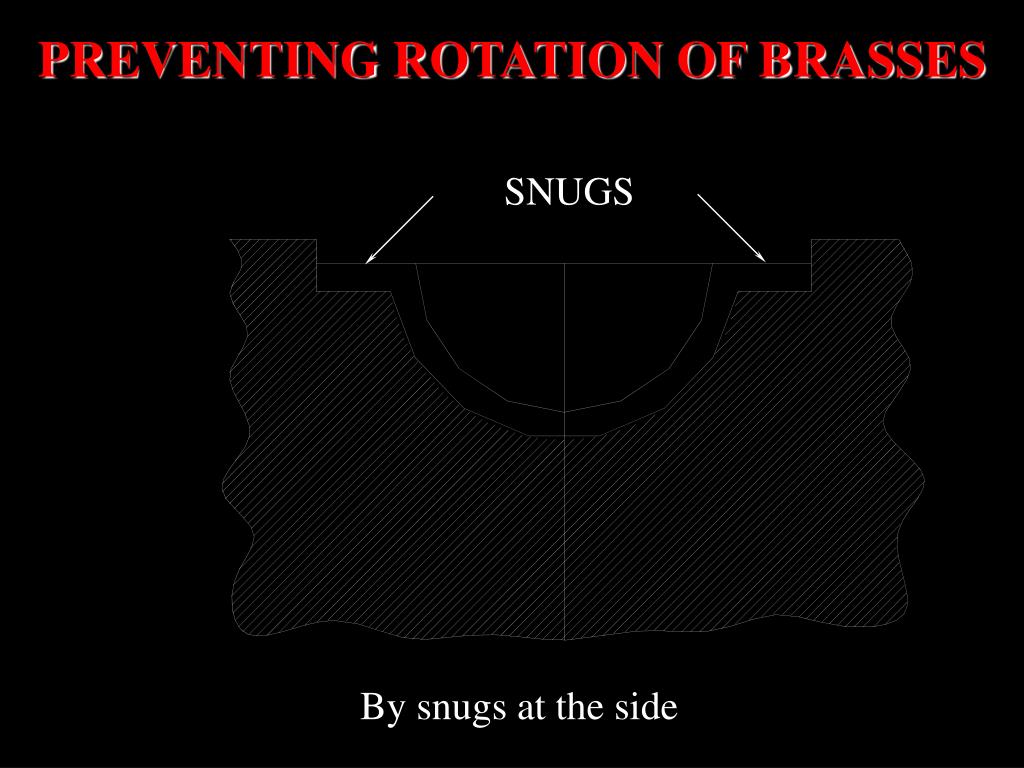

  38. SNUGS PREVENTING ROTATION OF BRASSES By snugs at the side

  39. SNUGS PREVENTING ROTATION OF BRASSES By snugs at the top fitting inside the cap. the oil hole is drilled inside a corresponding hole.

  40. PREVENTING ROTATION OF BRASSES by making the step octagonal on the outside and fitting inside a corresponding hole.
