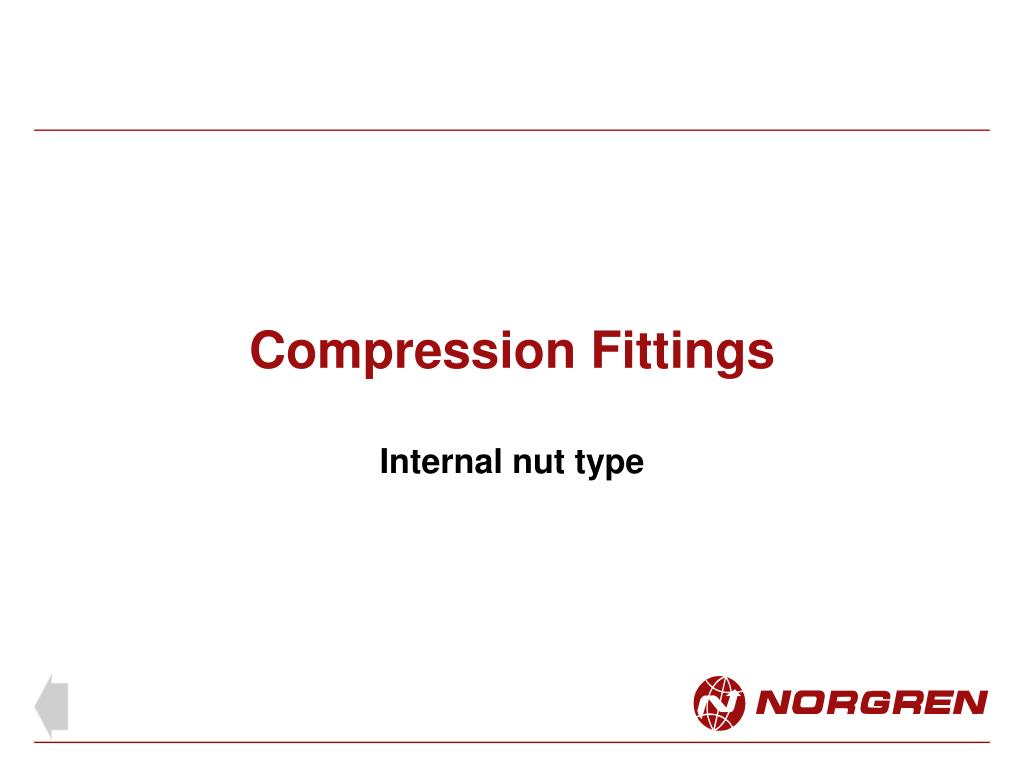

  1. Compression Fittings Internal nut type

  2. Compression fittings • Rugged and durable. • Firm joint using all brass construction • For use with plastic and metal tubing • Suitable for low and high operating temperatures • Vacuum to high pressure • Comprehensive range of sizes and forms • General purpose application

  3. Thread sizes (compression fittings) • Thread sizes range • R 1/8 , R 1/4 , R 3/8 , R 1/2 , R 3/4 • G 1/8 , G 1/4 , G 3/8 , G 1/2 , G 3/4 , G 1 • NPTF 1/8 , 1/4 , 3/8 , 1/2

  4. Tube sizes • The metric range 4, 5, 6, 8, 10, 12, 15, 16, 18, 22, 28 mm o/d • The inch range 1/8 , 5/32, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 o/d

  5. Fitting parts • Tubing nut • Tubing sleeve • Tubing thread • Machined profile for forming the tubing sleeve on to the tube and making a seal • Fitting body

  6. Tube preparation

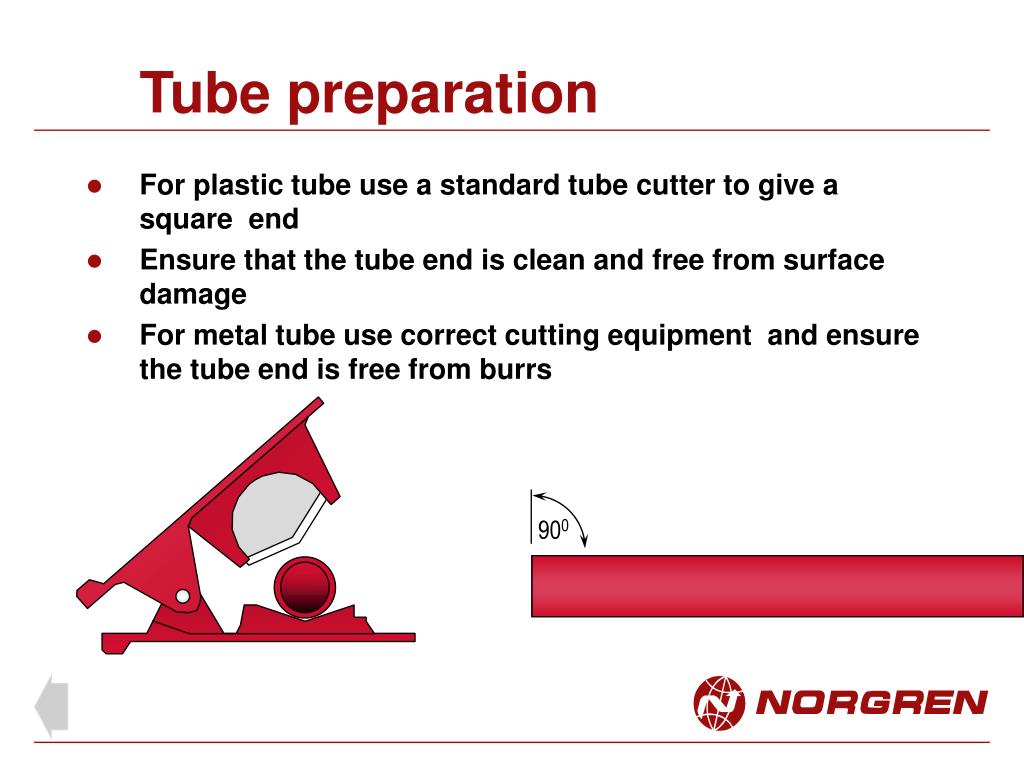

  7. 900 Tube preparation • For plastic tube use a standard tube cutter to give a square end • Ensure that the tube end is clean and free from surface damage • For metal tube use correct cutting equipment and ensure the tube end is free from burrs

  8. Tube assembly Internal nut compression fitting

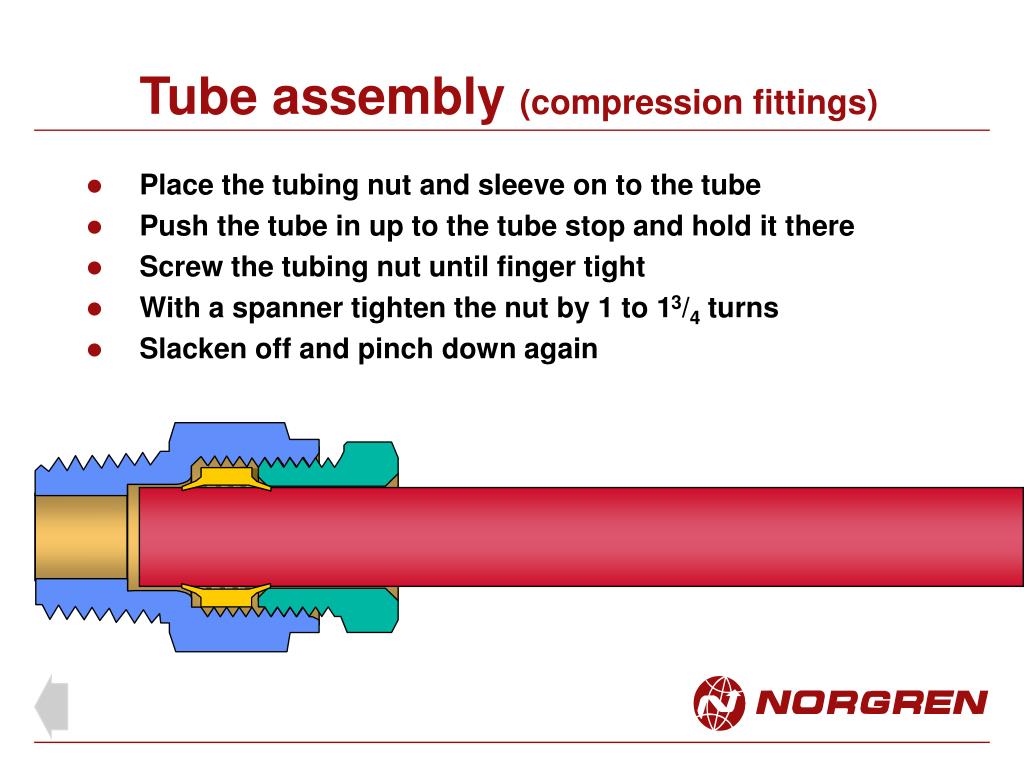

  9. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  10. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  11. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  12. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  13. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  14. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

  15. Tube assembly (compression fittings) • Place the tubing nut and sleeve on to the tube • Push the tube in up to the tube stop and hold it there • Screw the tubing nut until finger tight • With a spanner tighten the nut by 1 to 13/4 turns • Slacken off and pinch down again

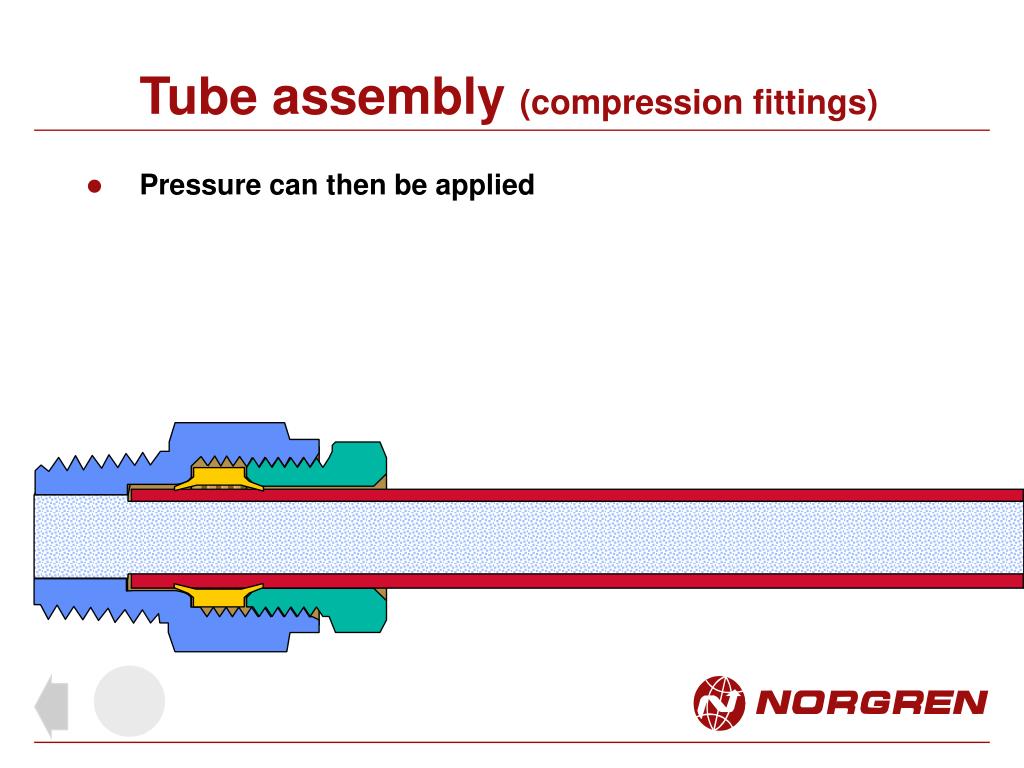

  16. Tube assembly (compression fittings) • Pressure can then be applied

  17. Tube removal Internal nut compression fittings

  18. Tube removal (compression fittings) • Turn off and exhaust the pressure • Undo the tubing nut and pull out the tube • The tubing sleeve is permanently swaged to the tube • The joint can be made and remade many times • If the tube is cut to shorten it a new sleeve is required but the tubing nut can be reused

  19. Tube removal (compression fittings) • Turn off and exhaust the pressure • Undo the tubing nut and pull out the tube • The tubing sleeve is permanently swaged to the tube • The joint can be made and remade many times • If the tube is cut to shorten it a new sleeve is required but the tubing nut can be reused

  20. Tube removal (compression fittings) • Turn off and exhaust the pressure • Undo the tubing nut and pull out the tube • The tubing sleeve is permanently swaged to the tube • The joint can be made and remade many times • If the tube is cut to shorten it a new sleeve is required but the tubing nut can be reused

  21. Tube removal (compression fittings) • Turn off and exhaust the pressure • Undo the tubing nut and pull out the tube • The tubing sleeve is permanently swaged to the tube • The joint can be made and remade many times • If the tube is cut to shorten it a new sleeve is required but the tubing nut can be reused

  22. Selection from the range Compression fittings

  23. Adaptors (compression fittings) • Male straight adaptors R, G, and NPTF threads • Female straight adaptors • Male elbow adaptors • Male tee adaptors • Male side tee adaptors • Nippled adaptors male • Nippled adaptors female metric and G threads • Locknut and ring seal fixing ( Hobbs )Elbow adaptorsTee adaptorsStraight connectors

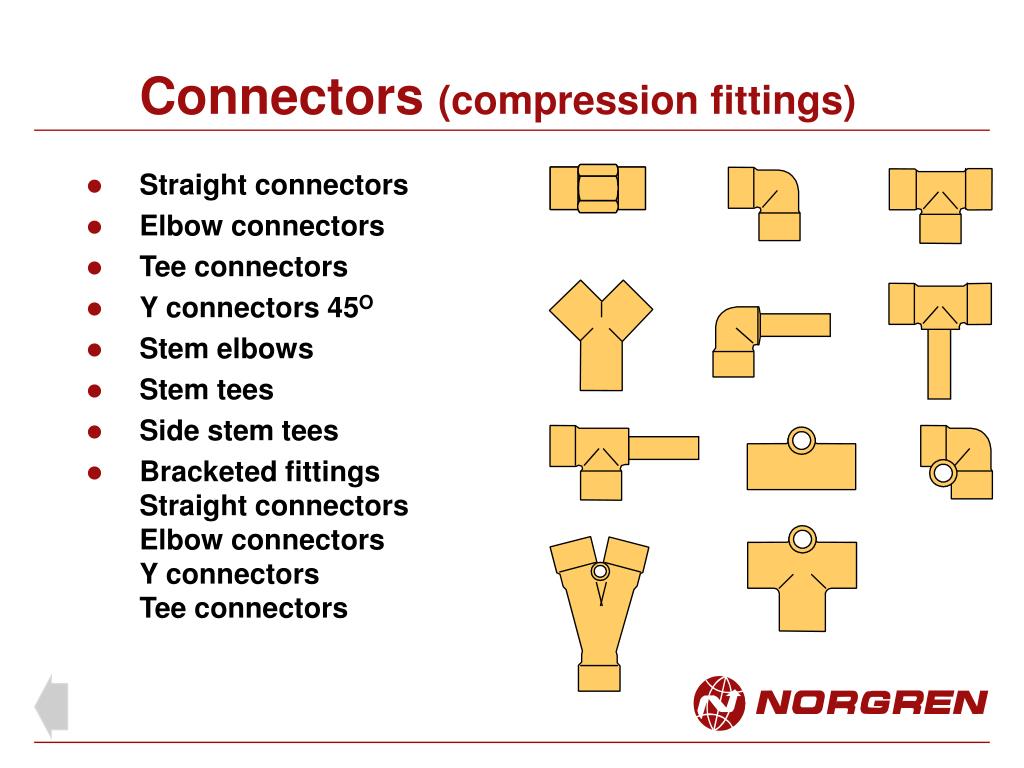

  24. Connectors (compression fittings) • Straight connectors • Elbow connectors • Tee connectors • Y connectors 45O • Stem elbows • Stem tees • Side stem tees • Bracketed fittingsStraight connectorsElbow connectorsY connectorsTee connectors

  25. Selection (compression fittings) • Reducing connector • Unequal connector(expanding) • Nippled connectors • Metric to inch adaptors • Nippled stem adaptors • Bulkhead adaptor and connectors • Plugs • Banjo bodies bolts and assemblies

  26. End
