  1. Chapter 1 INTRODUCING MICROSOFT WINDOWS SERVER 2003

  2. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 CHAPTER OVERVIEW • Identify the key differences among the Windows Server 2003 editions. • Install Windows Server 2003. • Identify the key structures and concepts of Active Directory. • Create a domain controller. • New features of Server 2003 Active Directory

  3. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 WINDOWS SERVER 2003 EDITIONS • Web Edition • Standard Edition • Enterprise Edition • Datacenter Edition

  4. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 SYSTEM REQUIREMENTS

  5. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 WEB EDITION • Single-purpose Web server platform • Limit of 10 inbound SMB connections • Support for up to two processors and up to 2 GB of RAM

  6. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 STANDARD EDITION • Designed as a departmental server or for smaller organizations • Multipurpose server platform • Supports up to four processors and 4 GB of RAM

  7. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 ENTERPRISE EDITION • Server platform for medium- to large-sized businesses • Supports up to eight processors and 32 GB of RAM • Eight-node clustering support through Microsoft Clustering Services

  8. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 DATACENTER EDITION • Designed for high-end, high-traffic application servers • Supports up to 32 processors and 64 GB of RAM • Does not include ICF or ICS

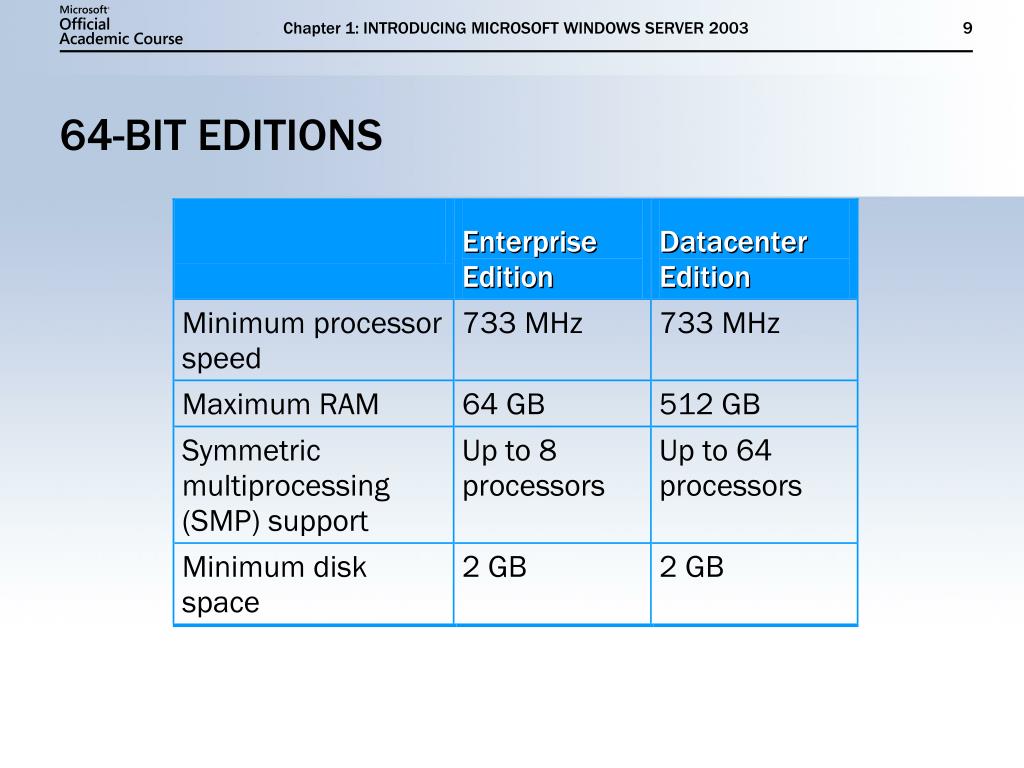

  9. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 64-BIT EDITIONS

  10. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 INSTALLING WINDOWS SERVER 2003

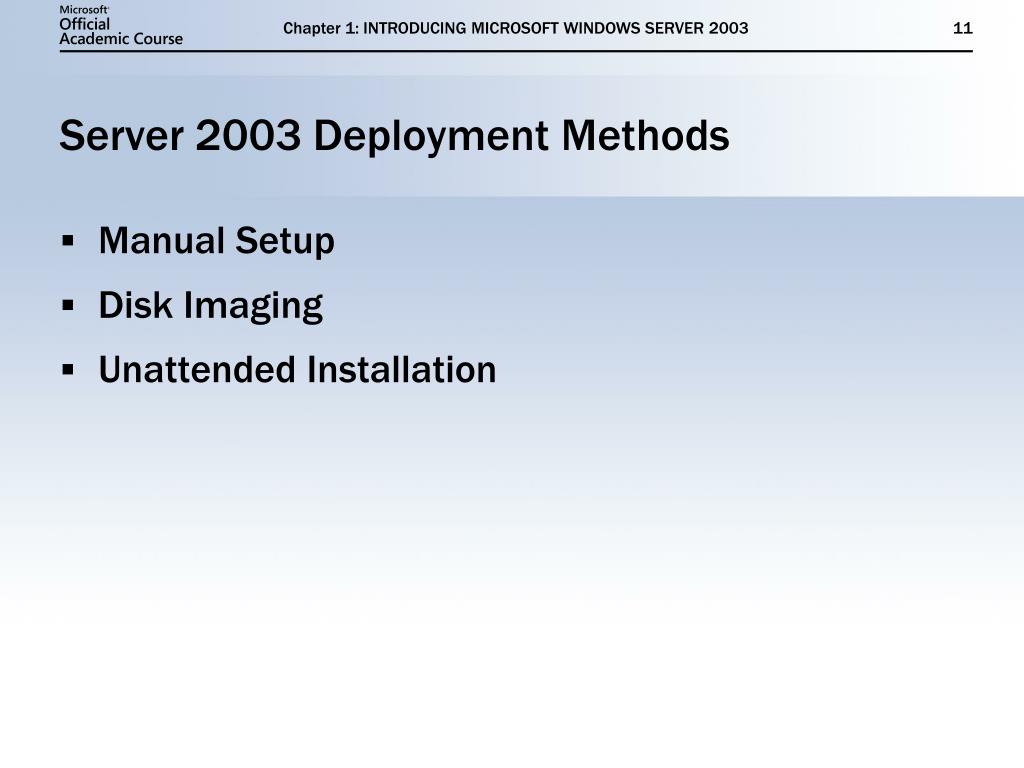

  11. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 Manual Setup Disk Imaging Unattended Installation Server 2003 Deployment Methods

  12. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 ;[Unattended] ;Method = Express|Custom ;NtUpgrade = Yes|No ;Win31Upgade = Yes|No ;TargetPath = *|<Path Name>|Manual ;OverwriteOemFilesOnUpgrade = Yes|No ;ConfirmHardware = Yes|No ;OEMPreinstall = Yes|No ;NoWaitAfterTextMode = (0 = stop, 1 = Reboot) ;NoWaitAfterGuiMode = (0 = stop, 1 = Reboot) ;FileSystem = ConvertNTFS|LeaveAlone ;ExtendOemPartition = (0 = no, 1 = Yes) Unattende.txt

  13. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 ACTIVATING WINDOWS SERVER 2003

  14. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 Launching setup Setup settings Demo: Install Windows Server 2003

  15. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 CONFIGURING WINDOWS SERVER 2003

  16. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 SERVER ROLES • File server • Print server • Application server

  17. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 SERVER ROLES (CONT.) • Mail server • Terminal Services server • Remote Access/VPN server • Domain contoller

  18. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 SERVER ROLES (CONT.) • DNS server • DHCP server • Streaming media server • WINS server

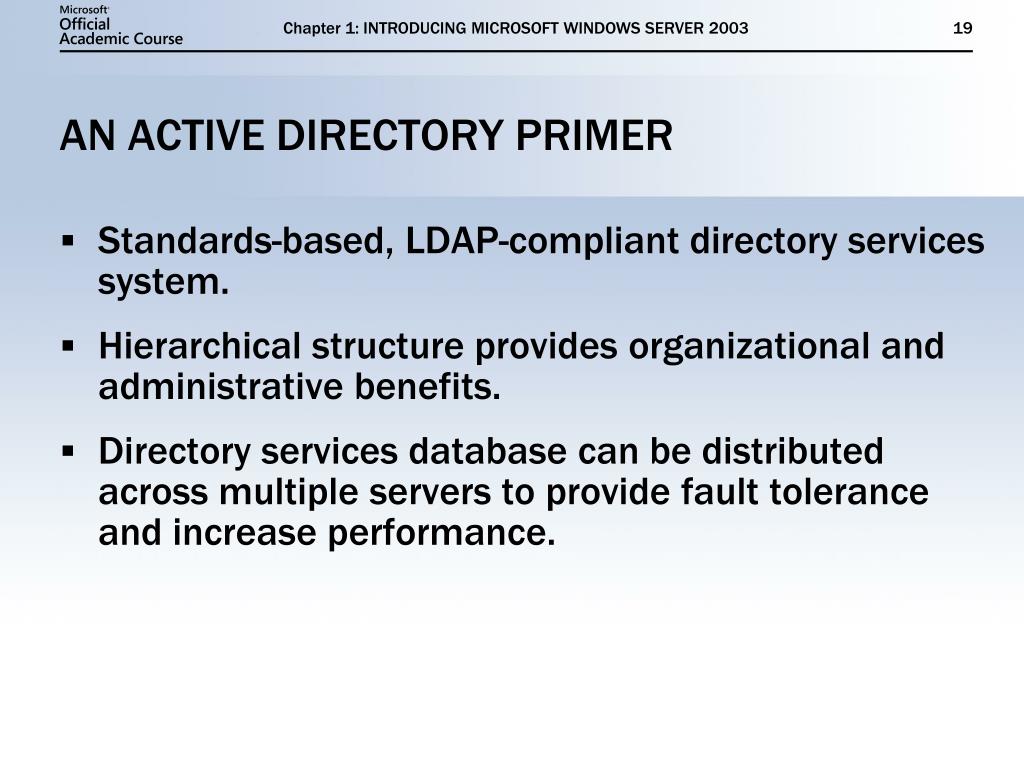

  19. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 AN ACTIVE DIRECTORY PRIMER • Standards-based, LDAP-compliant directory services system. • Hierarchical structure provides organizational and administrative benefits. • Directory services database can be distributed across multiple servers to provide fault tolerance and increase performance.

  20. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 AN ACTIVE DIRECTORY PRIMER (CONT.) • Active Directory database is stored in the \WINDOWS\NTDS directory on each domain controller. • A repository for objects and resources, including user accounts, group accounts, computer accounts, and printers. • Each object has a set of properties that is also stored in Active Directory.

  21. Active Directory Management What Is a Directory Service? A service that helps track and locate objects on a network

  22. Active Directory Management Files Workstations Services Users What Is a Directory Service? A service that helps track and locate objects on a network

  23. Active Directory Domains CONTOSO.COM

  24. Active Directory Domains Boundary of Authentication CONTOSO.COM

  25. Active Directory Domains Boundary of Policies Boundary of Authentication CONTOSO.COM

  26. Active Directory Domains Boundary of Policies Boundary of Authentication CONTOSO.COM Boundary of Replication

  27. Active Directory Trees CONTOSO.COM US.CONTOSO.COM OHIO.US.CONTOSO.COM

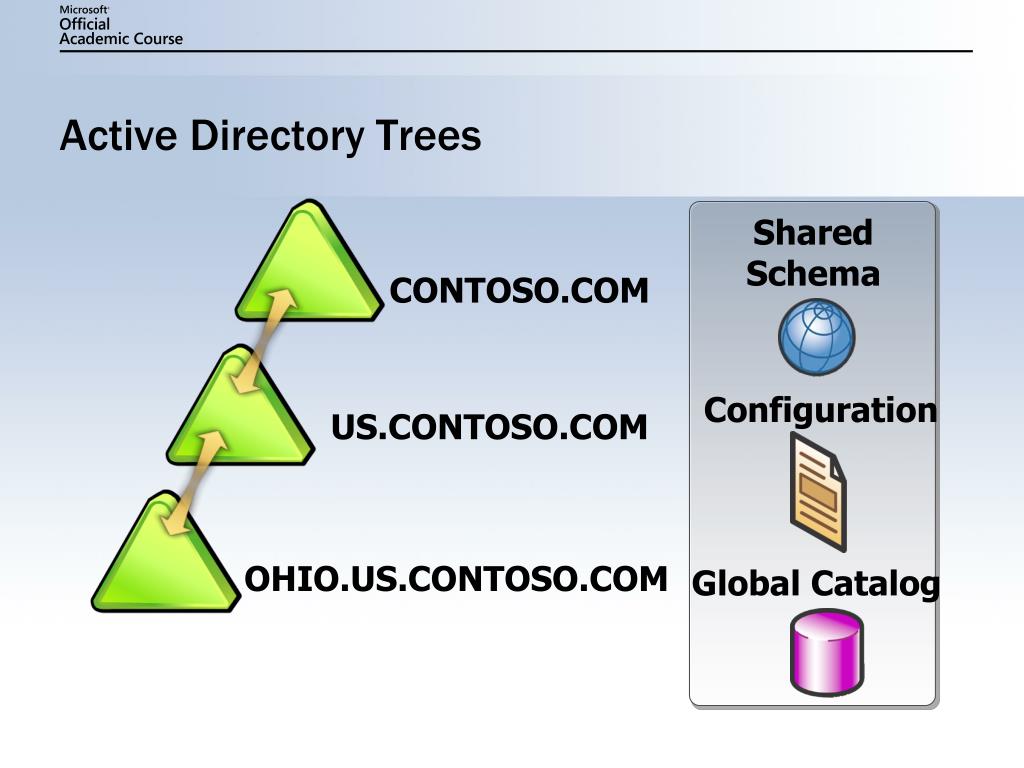

  28. Shared Schema Configuration Global Catalog Active Directory Trees CONTOSO.COM US.CONTOSO.COM OHIO.US.CONTOSO.COM

  29. Transitive Trusts CONTOSO.COM UK.CONTOSO.COM US.CONTOSO.COM

  30. Transitive Trusts CONTOSO.COM UK.CONTOSO.COM US.CONTOSO.COM

  31. Global Catalog Schema Configuration Active Directory Forests FABRIKAM.COM CONTOSO.COM US.CONTOSO.COM UK.FABRIKAM.COM

  32. Domains : Provide administrative and security boundaries Allow resources to be grouped logically Can contain Organizational Units ( OU ' s ) to further organize resources Domain Controller Contoso . com Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 DOMAINS AND DOMAIN CONTROLLERS

  33. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 OBJECTS AND ATTRIBUTES • Objects • Users, groups, printers, computers • Attributes • Names, phone numbers, locations

  34. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 CONTAINERS AND LEAVES • Containers • Domains, organizational units (OUs), groups • Leaves • Users, printers, computers

  35. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 GROUP POLICY • Group policy objects • Collections of hundreds of possible configuration settings. • Can be applied to users, computers, and OUs. • Policy applied at one level can override policy applied at another level.

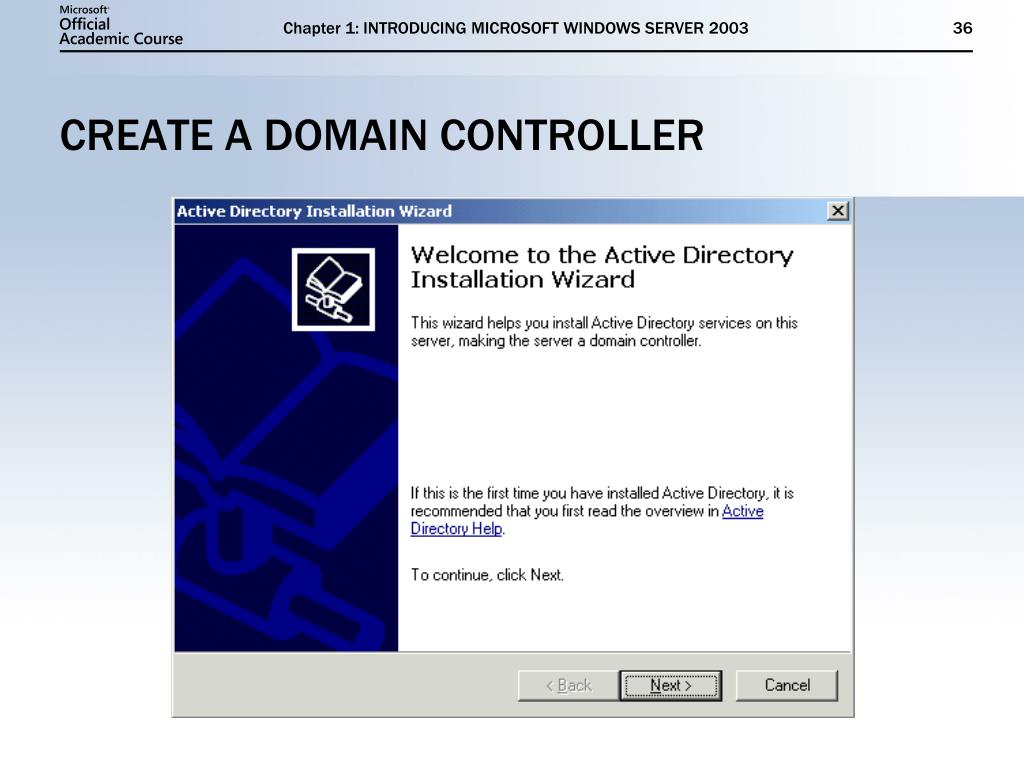

  36. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 CREATE A DOMAIN CONTROLLER

  37. Chapter 1: INTRODUCING MICROSOFT WINDOWS SERVER 2003 Running DCPROMO Configuring AD settings Demo: CREATE A DOMAIN CONTROLLER

  38. Domain & Forest Functional Levels • Choosing a functional level • Forest and domain levels • Raising functional levels

  39. Domain Functional Levels Additional features are available in each higher level.

  40. Forest Functional Levels • Improved replication • Forest-to-forest trusts • Improved schema functionality

  41. Domain Renaming and Restructuring Northwindtraders.com Fabrikam.com Sales Engineering Contoso

  42. Contoso Domain Renaming and Restructuring Northwindtraders.com Fabrikam.com Sales Engineering Move an existing domain to another tree

  43. Contoso.com Domain Renaming and Restructuring Northwindtraders.com Fabrikam.com Create a new tree Sales Engineering

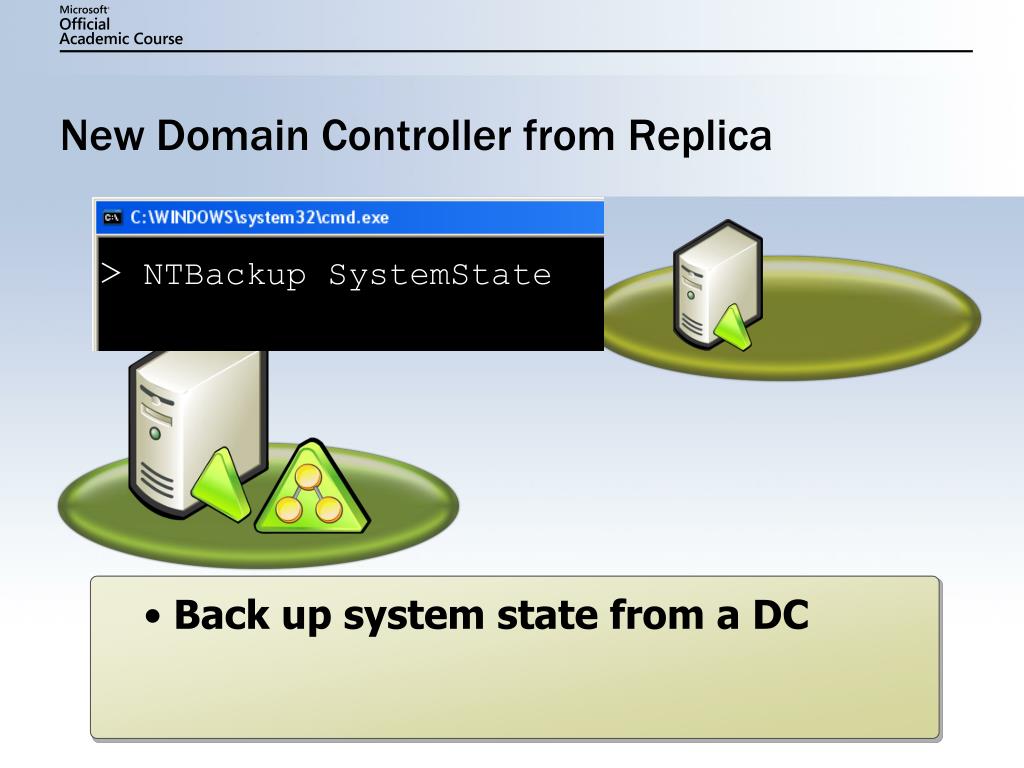

  44. New Domain Controller from Replica > NTBackup SystemState • Back up system state from a DC

  45. New Domain Controller from Replica • Back up system state from a DC • Restore to prospective new DC

  46. New Domain Controller from Replica • Back up system state from a DC • Restore to prospective new DC • Decreases initial replication load

  47. Sales New Interface Features • Drag-and-drop administration Management

  48. Sales New Interface Features • Drag-and-drop administration • Saved Queries Management 120 days since last logon

  49. Command-Line Tools

  50. Global Catalog Replication Windows 2000 Active Directory europe.contoso.com us.contoso.com
