  1. IEEE P1505.1.1Practical Representation of P1505.1 using IEEE1671.6

  2. Agenda • Description • Process review • Input Data • Intermediate Data • Trial Results • Open Items and future actions

  3. P1505.1 • Use the existing Standards documents to implement a test station interface definition/instance for P1505.1 • Automate the process as much as practical for rapid draft iterations • Closely work with TII - 1671.5/6 for best implementation • Coordinate with Signal Path work for Port definitions

  4. Input Data • P1505.1 Standard document • IEEE P1505.1™/D10Draft Trial-Use Standard for The Common Test Interface Pin Map Configuration for High-Density, Single-Tier Electronics Test Requirements Utilizing IEEE Std 1505 • June 2008 • Transpose Tables into MS Excel

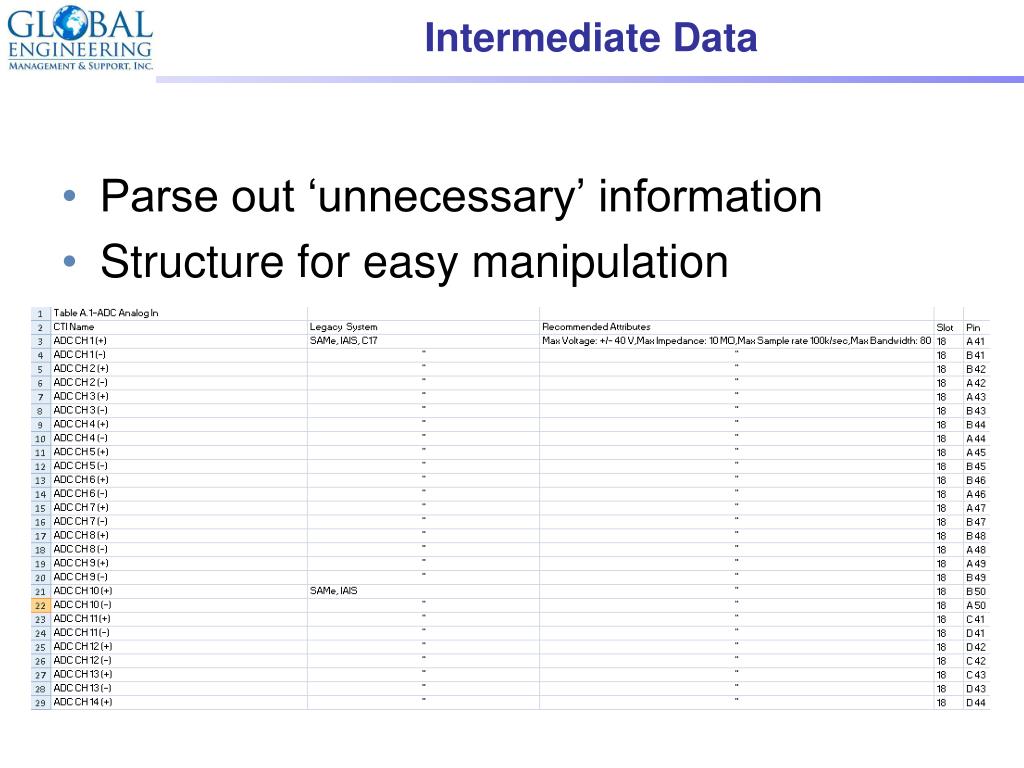

  5. Intermediate Data • Parse out ‘unnecessary’ information • Structure for easy manipulation

  6. Resulting Trial Implementation • XML Test Station Interface Port definitions

  7. Open Items • Enumeration for (currently csv-text) • Legacy Systems • Recommended Attributes • Incorporation of performance requirements • CTI connector module/contact module performance requirements • Signal switch performance requirements • Power switch performance requirements • Coax switch performance requirements • CTI Switch configuration requirements (Table 6) • Additional Port or Path information based on signal path task group
