Database Index to Large Biological Sequences

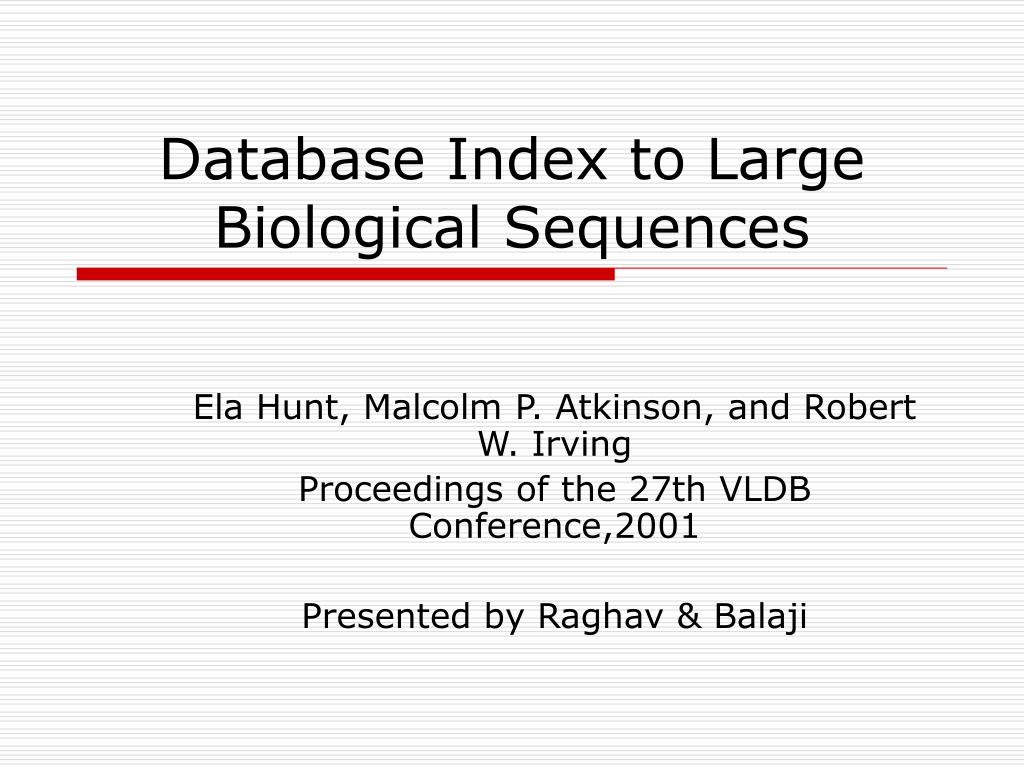

1. Database Index to Large Biological Sequences Ela Hunt, Malcolm P. Atkinson, and Robert W. Irving Proceedings of the 27th VLDB Conference,2001 Presented by Raghav & Balaji

2. Indexing Large Biological Sequences • Introduction • Indexing strategies • Suffix trees • New Construction Algorithm • Query • Experiment and Results • Conclusion

3. Introduction • What's a DNA? • A, C, G, T (A with T, C with G)‏ • Base pair • Gbp (Giga base pairs)‏ • Mammalian genomes – 3Gbp • What is the challenge in indexing DNA? • Large Size and no definite pattern • Searching genetic DNA sequences • Sequentially scanning and filtering approach (BLAST, FASTA)

4. Introduction • Rise in volume of data and demand for searches by researchers accelerated the need for better searches using indexes. • New Sequences will be revealed as improved sequencing techniques are developed. • Determining DNA sequences is useful in studying fundamental biological processes, as well as in forensic research.

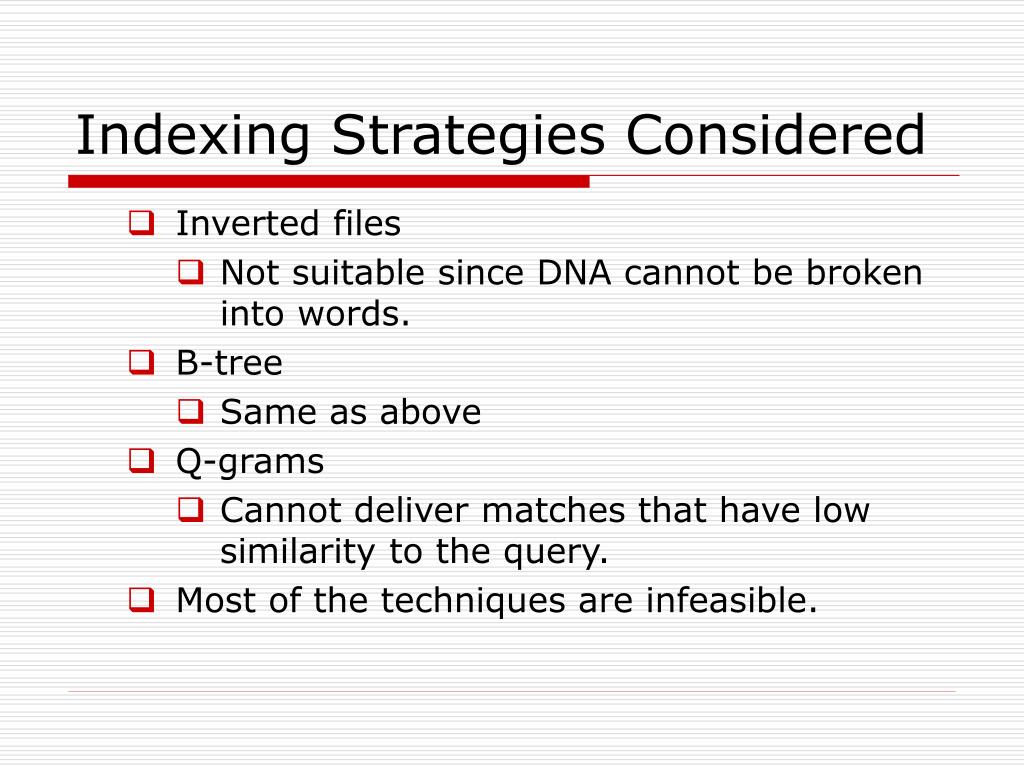

5. Indexing Strategies Considered • Inverted files • Not suitable since DNA cannot be broken into words. • B-tree • Same as above • Q-grams • Cannot deliver matches that have low similarity to the query. • Most of the techniques are infeasible.

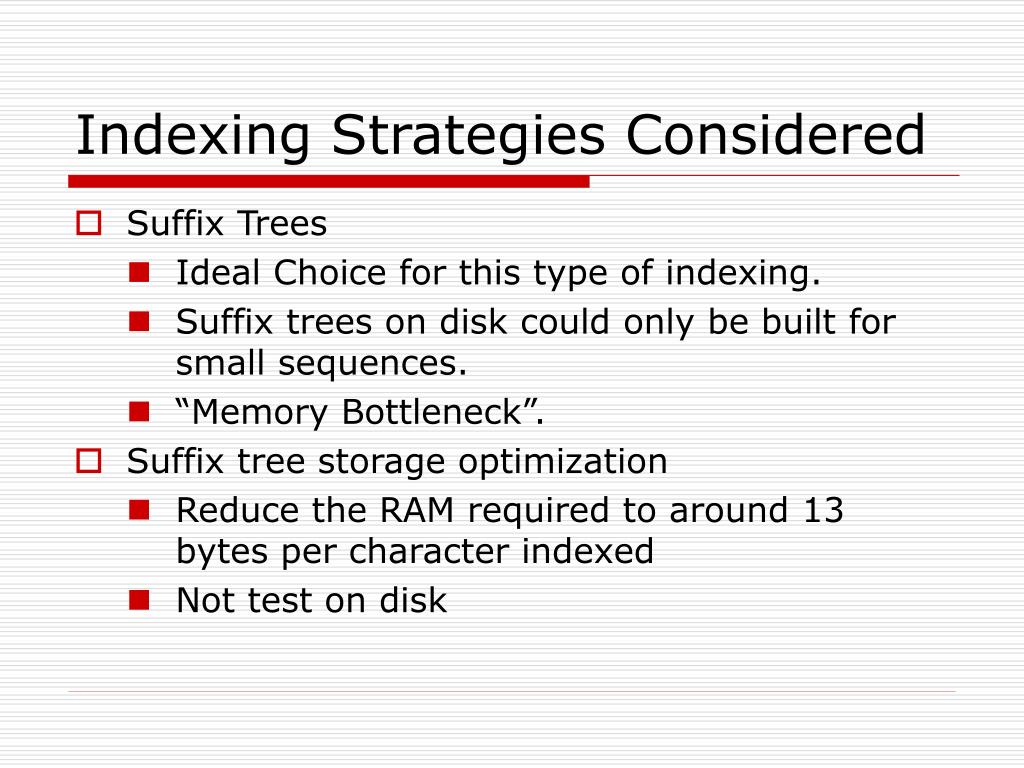

6. Indexing Strategies Considered • Suffix Trees • Ideal Choice for this type of indexing. • Suffix trees on disk could only be built for small sequences. • “Memory Bottleneck”. • Suffix tree storage optimization • Reduce the RAM required to around 13 bytes per character indexed • Not test on disk

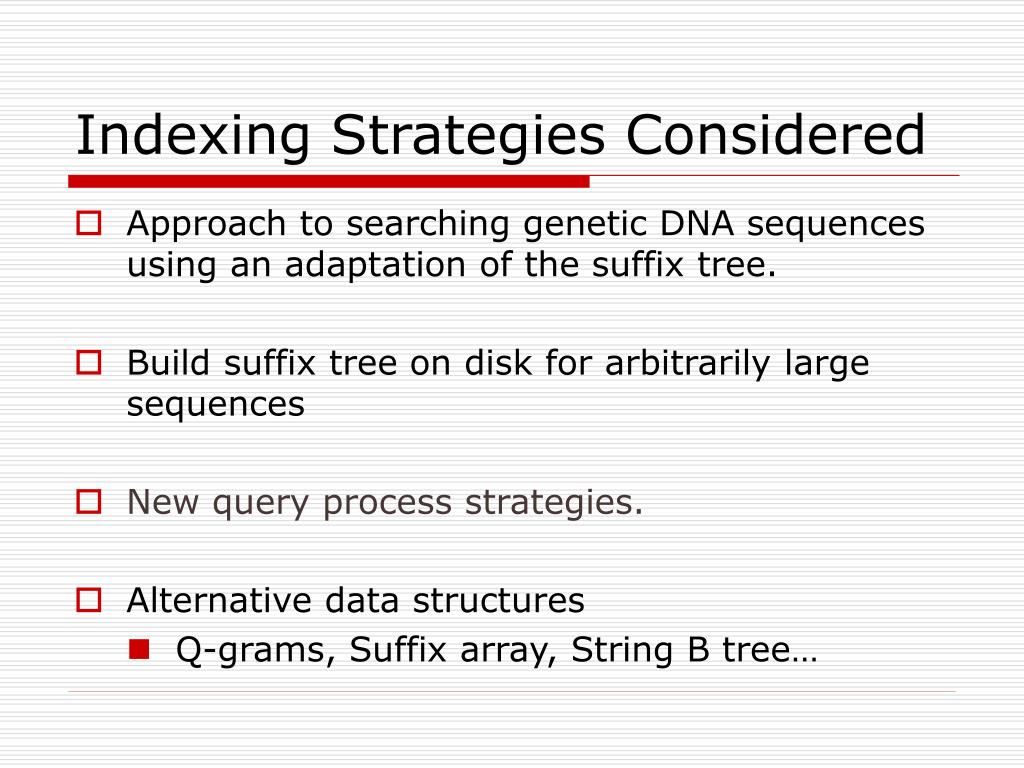

7. Indexing Strategies Considered • Approach to searching genetic DNA sequences using an adaptation of the suffix tree. • Build suffix tree on disk for arbitrarily large sequences • New query process strategies. • Alternative data structures • Q-grams, Suffix array, String B tree…

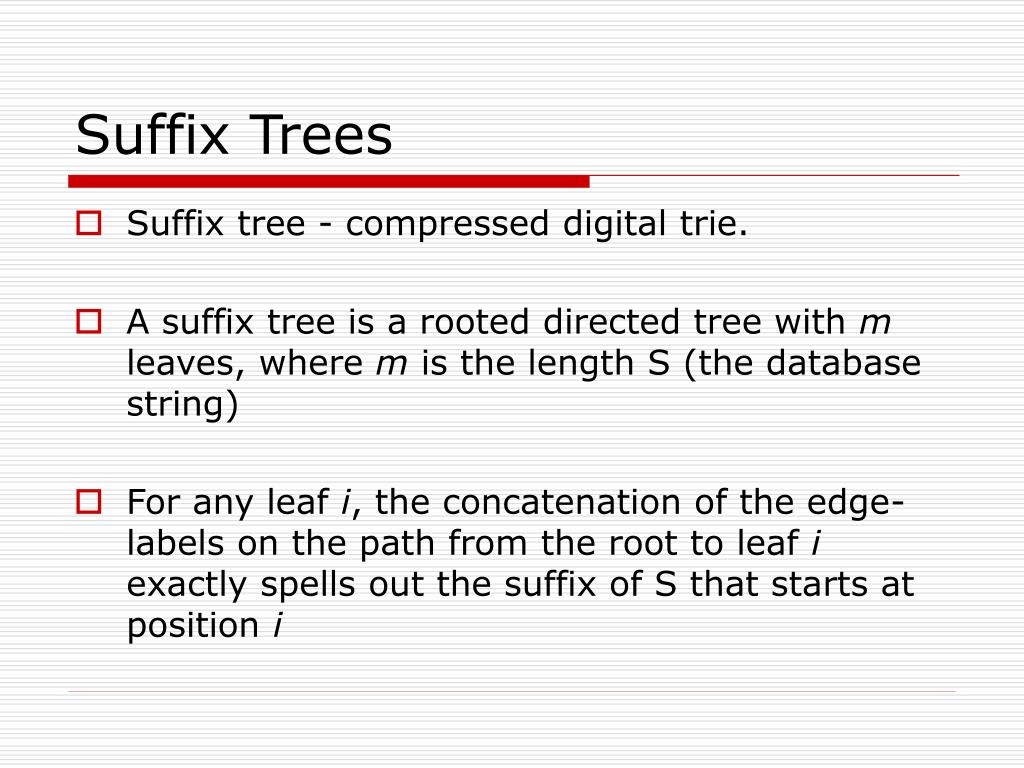

8. Suffix Trees • Suffix tree - compressed digital trie. • A suffix tree is a rooted directed tree with m leaves, where m is the length S (the database string) • For any leaf i, the concatenation of the edge-labels on the path from the root to leaf i exactly spells out the suffix of S that starts at position i

9. Suffix Trees Suffix tree is a compressed digital (suffix) trie

10. Suffix tree building root p p i m i s s i s s i p p i Suffices of mississippi: • mississippi • ississippi • ssissippi • sissippi • issippi • ssippi • sippi • ippi 9 ppi 10 pi 11 i s s i s s i p p i i i s s i s s i p p i i s s i p p i p p i p p i p p i p p i

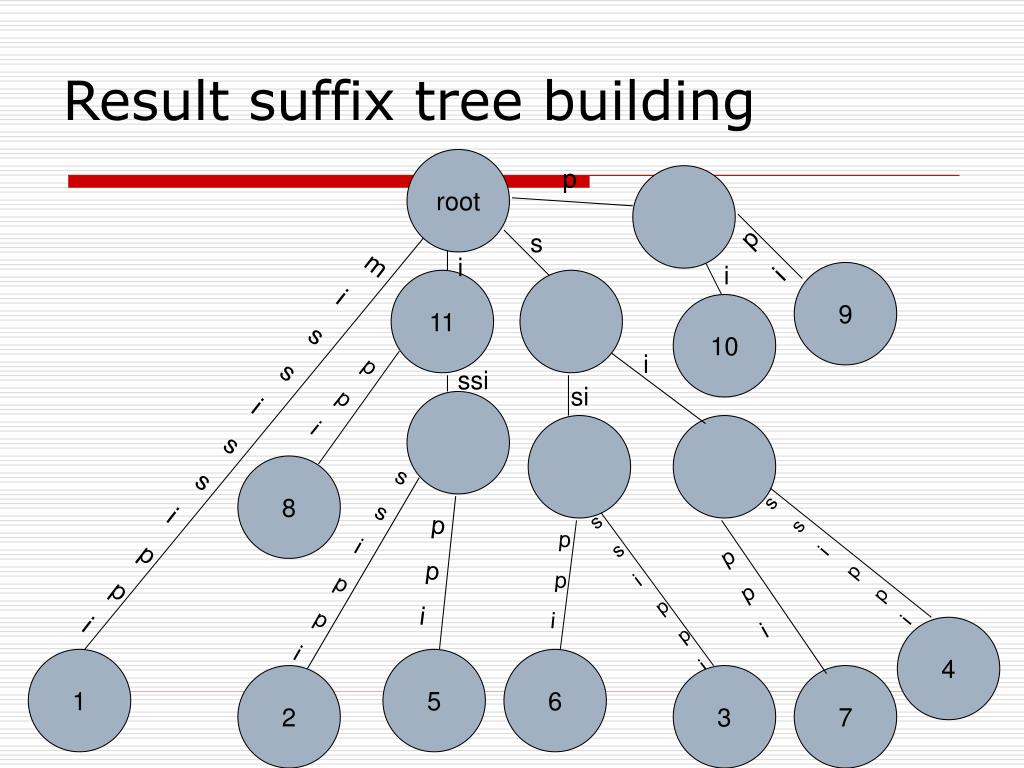

11. Result suffix tree building root p m i s s i s s i p p i p i s i i 9 11 10 p p i i ssi si s s i p p i s s i p p i 8 s s i p p i p p i p p i p p i 4 1 5 6 2 3 7

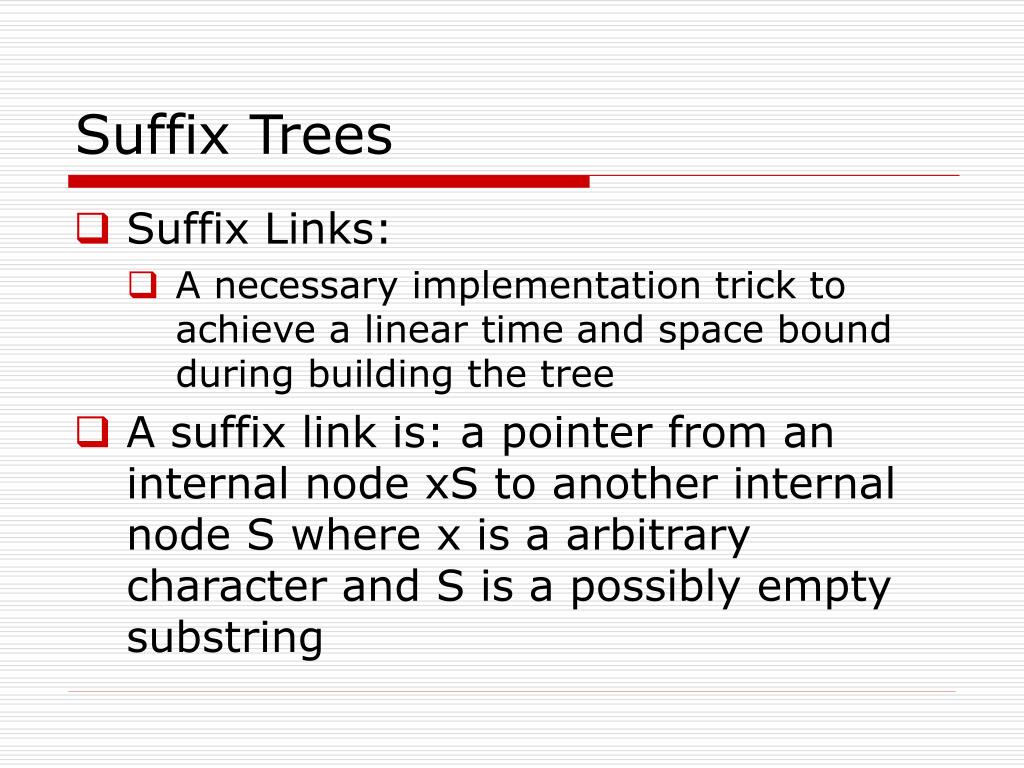

12. Suffix Trees • Suffix Links: • A necessary implementation trick to achieve a linear time and space bound during building the tree • A suffix link is: a pointer from an internal node xS to another internal node S where x is a arbitrary character and S is a possibly empty substring

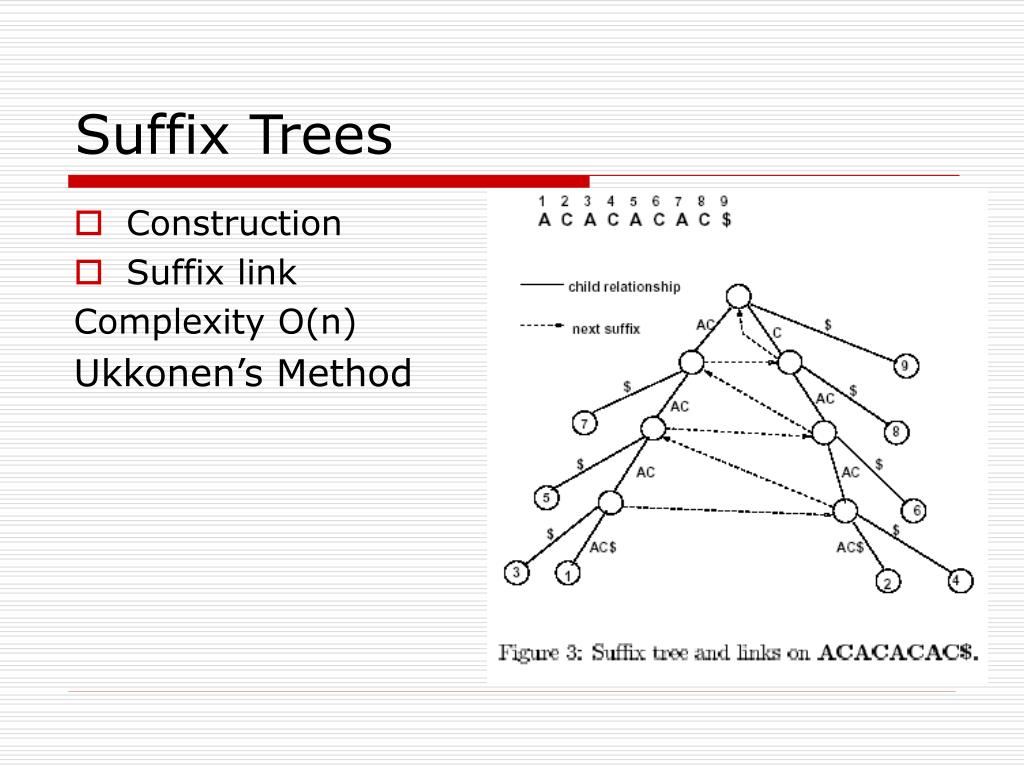

13. Suffix Trees • Construction • Suffix link Complexity O(n) Ukkonen’s Method

14. Suffix Trees • General applications of Suffix trees • Find all occurrences of q as a substring of S • Longest substring common to a set T of strings • Find the longest palindrome in S

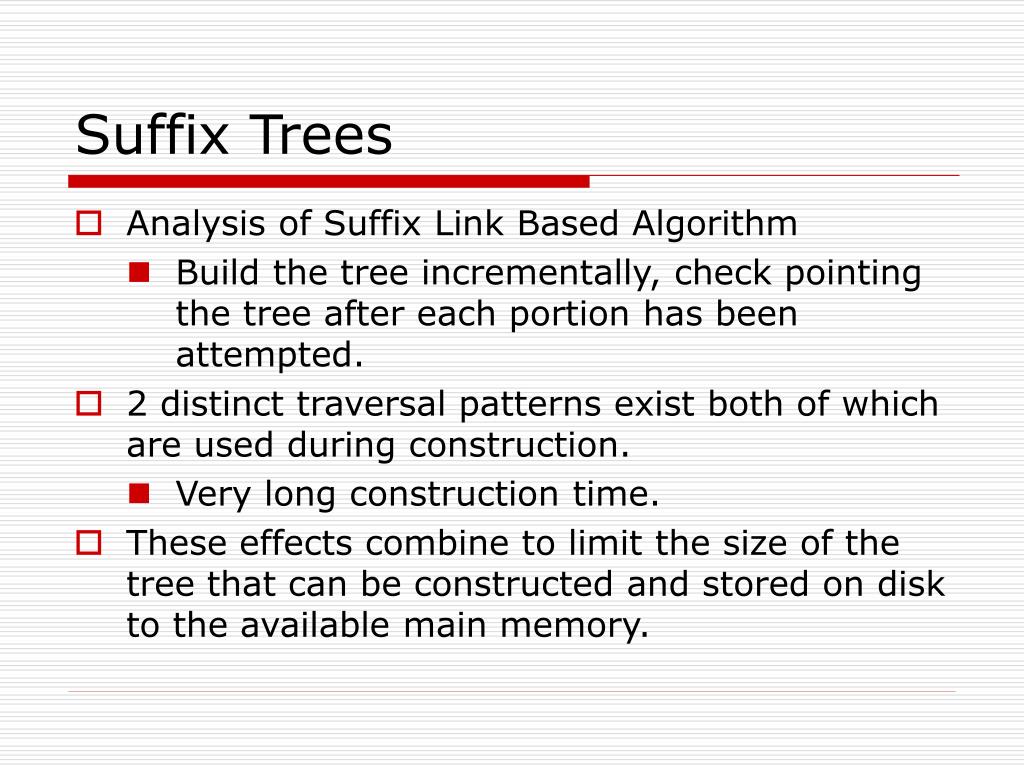

15. Suffix Trees • Analysis of Suffix Link Based Algorithm • Build the tree incrementally, check pointing the tree after each portion has been attempted. • 2 distinct traversal patterns exist both of which are used during construction. • Very long construction time. • These effects combine to limit the size of the tree that can be constructed and stored on disk to the available main memory.

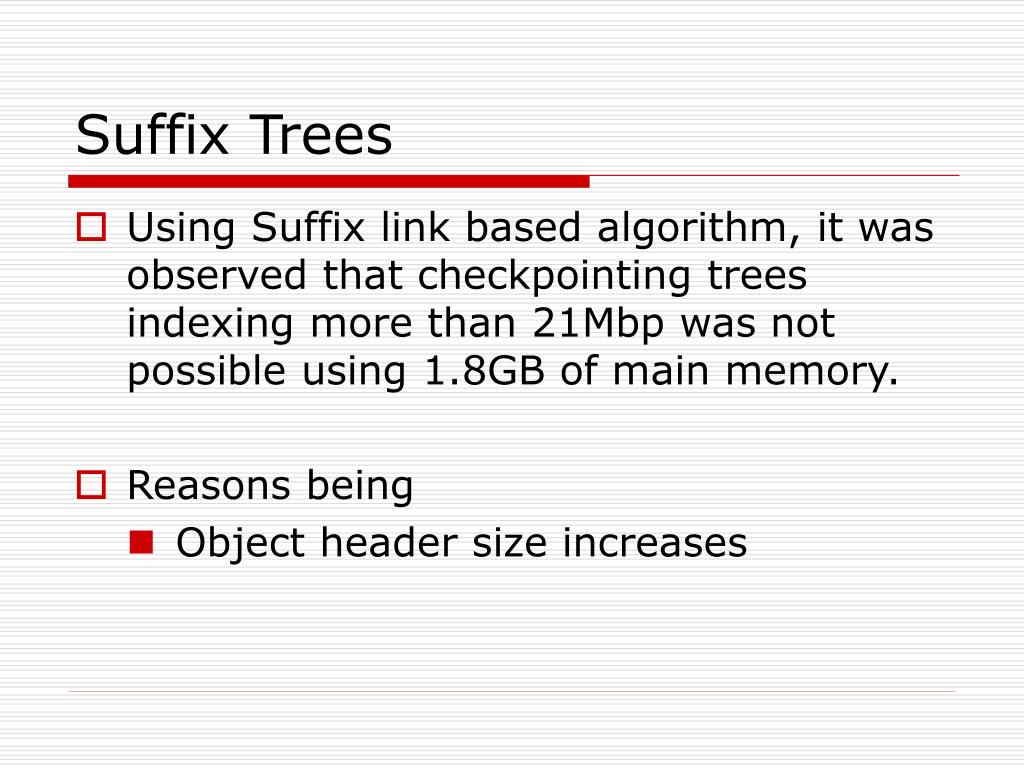

16. Suffix Trees • Using Suffix link based algorithm, it was observed that checkpointing trees indexing more than 21Mbp was not possible using 1.8GB of main memory. • Reasons being • Object header size increases

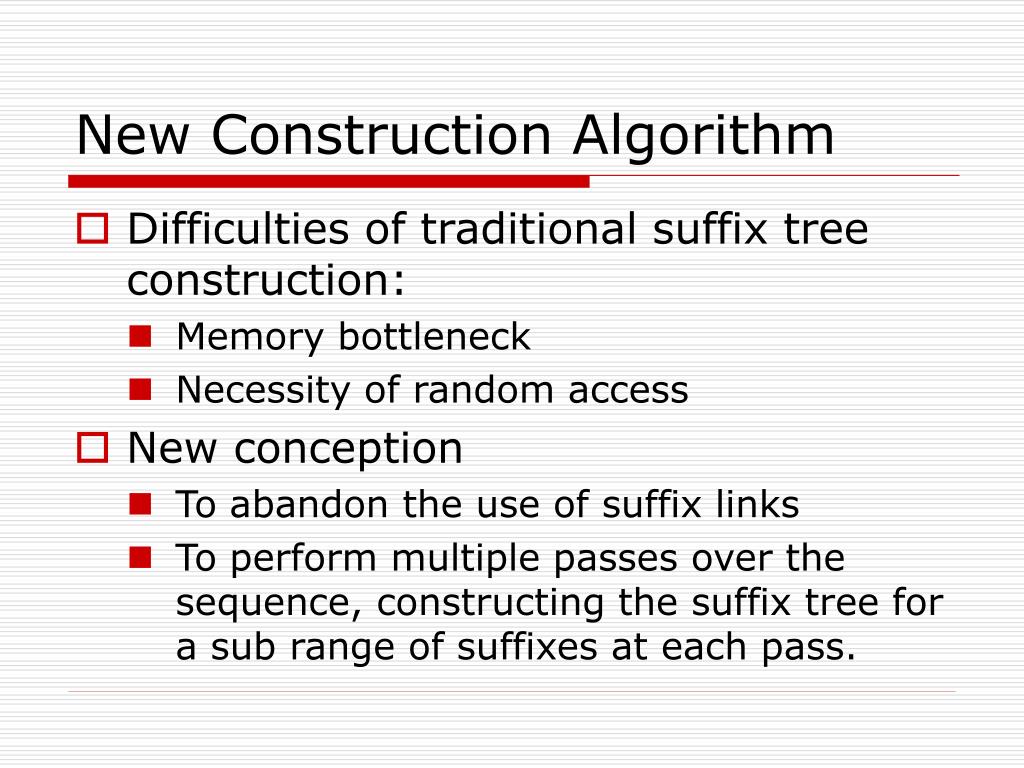

17. New Construction Algorithm • Difficulties of traditional suffix tree construction: • Memory bottleneck • Necessity of random access • New conception • To abandon the use of suffix links • To perform multiple passes over the sequence, constructing the suffix tree for a sub range of suffixes at each pass.

18. New Construction Algorithm • Removing Suffix link means that the construction of a new partition does not modify previously checkpointed partitions of the tree. • Using multiple passes, it means that it is not necessary to access or update previously checkpointed partitions. • i.e. Data structure for the complete partitions can be evicted from the main memory and will not be faulted back during the rest of the tree’s construction.

19. New Construction Algorithm • Partition concept: • Build multiple suffix tree that fit in memory(AC, AT or AG fall into different partitions) • Base on the prefixes of each suffix • Use a sliding window of length l. • Form a string s1 of window length, l. • Scan the string and count the number of occurrances of s1. • Use a bin packing technique to pack (s1, #occurrances)

20. New Construction Algorithm • Partition technology: • Assumption:tree is uniformly populated. • Prefix code(Pi): • Suffixes that are indexed during the jth pass of the sequence have jr  Pi  (j+1)r

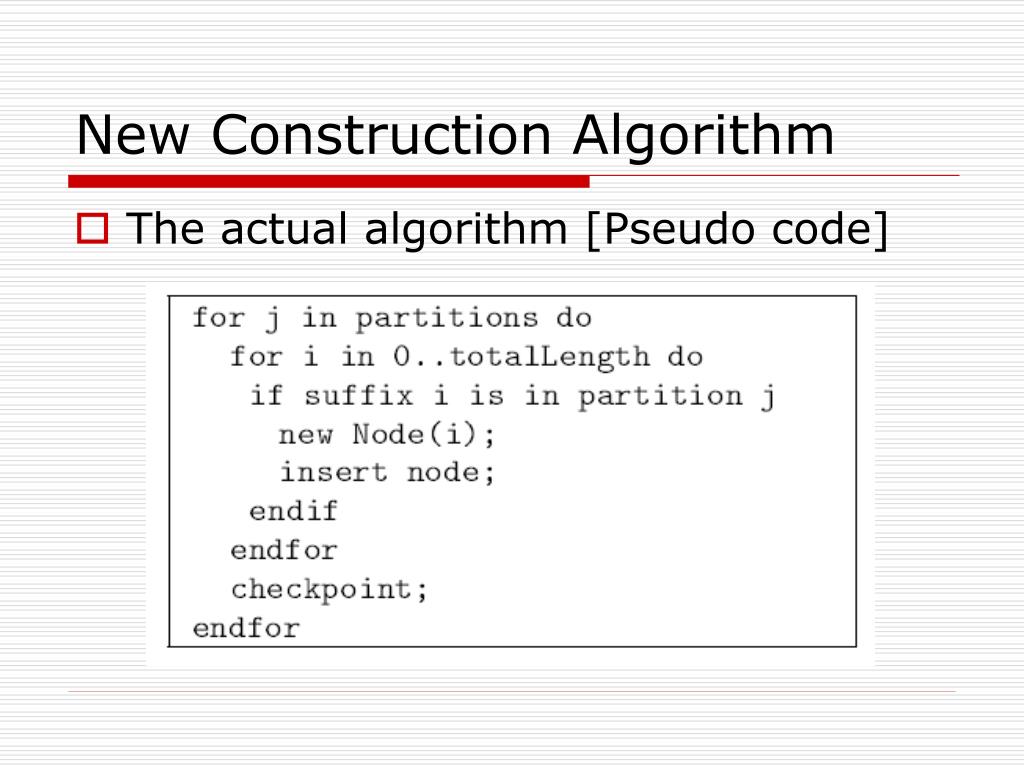

21. New Construction Algorithm • The actual algorithm [Pseudo code]

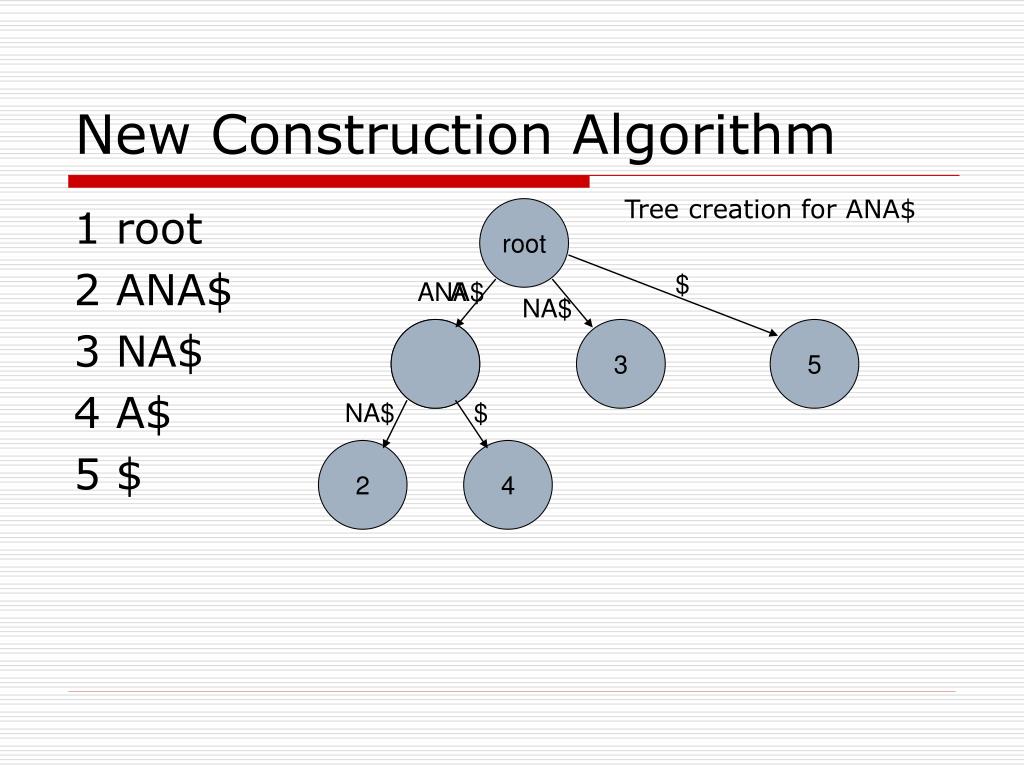

22. New Construction Algorithm Tree creation for ANA$ 1 root 2 ANA$ 3 NA$ 4 A$ 5 $ root $ ANA$ A NA$ 2 3 5 NA$ $ 2 4

23. left index child sib New Construction Algorithm Original tree (Ukkonen) Modified Node left index right index suffix number child sib suffix link

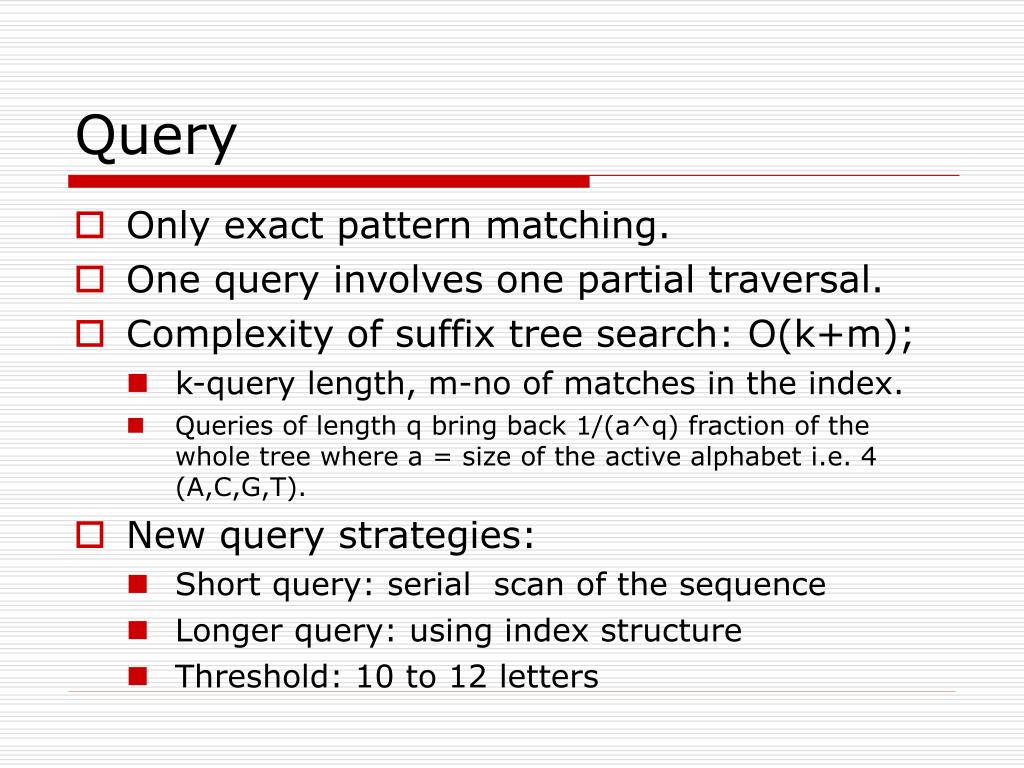

24. Query • Only exact pattern matching. • One query involves one partial traversal. • Complexity of suffix tree search: O(k+m); • k-query length, m-no of matches in the index. • Queries of length q bring back 1/(a^q) fraction of the whole tree where a = size of the active alphabet i.e. 4 (A,C,G,T). • New query strategies: • Short query: serial scan of the sequence • Longer query: using index structure • Threshold: 10 to 12 letters

25. Experiment and Results • Develop and experiment platform: • Software: PJama, JAVA 1.3 & Solaris 7 OS • Hardware: Enterprise 450 with 2GB RAM • Test data • 6 single chromosomes of worm C. elegans(20.5Mbp max. length) • Human chromosomes 21,22, and 1(280Mbp) • Alphabets • A, C, G, T, $, *

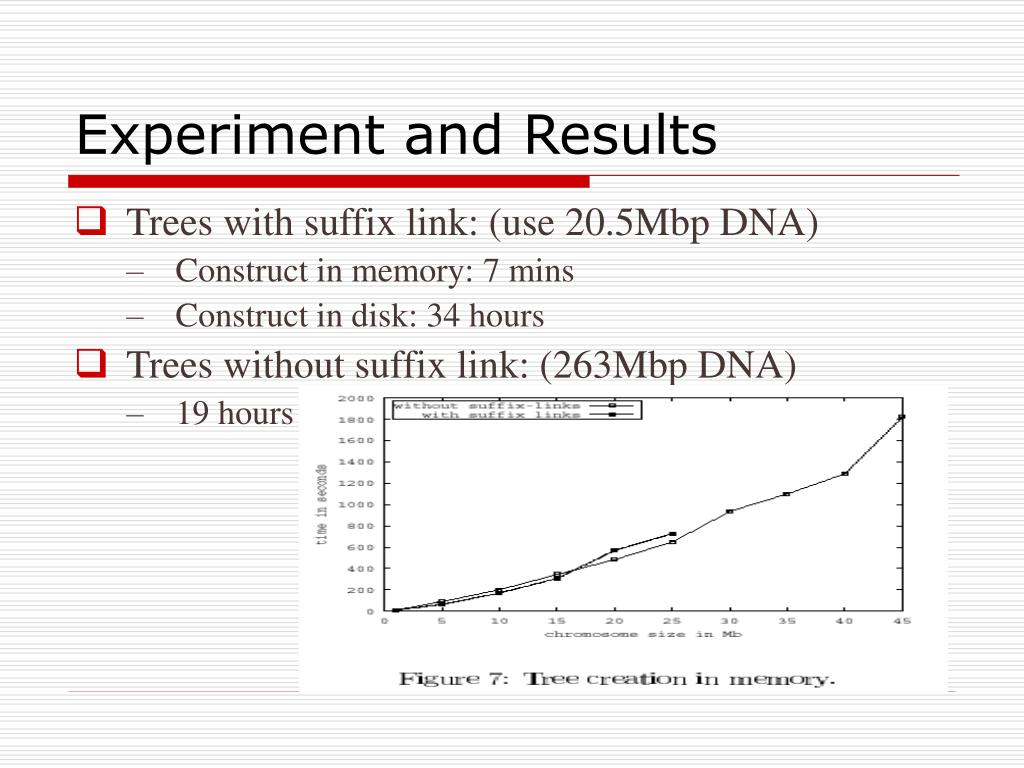

26. Experiment and Results • Trees with suffix link: (use 20.5Mbp DNA) • Construct in memory: 7 mins • Construct in disk: 34 hours • Trees without suffix link: (263Mbp DNA) • 19 hours

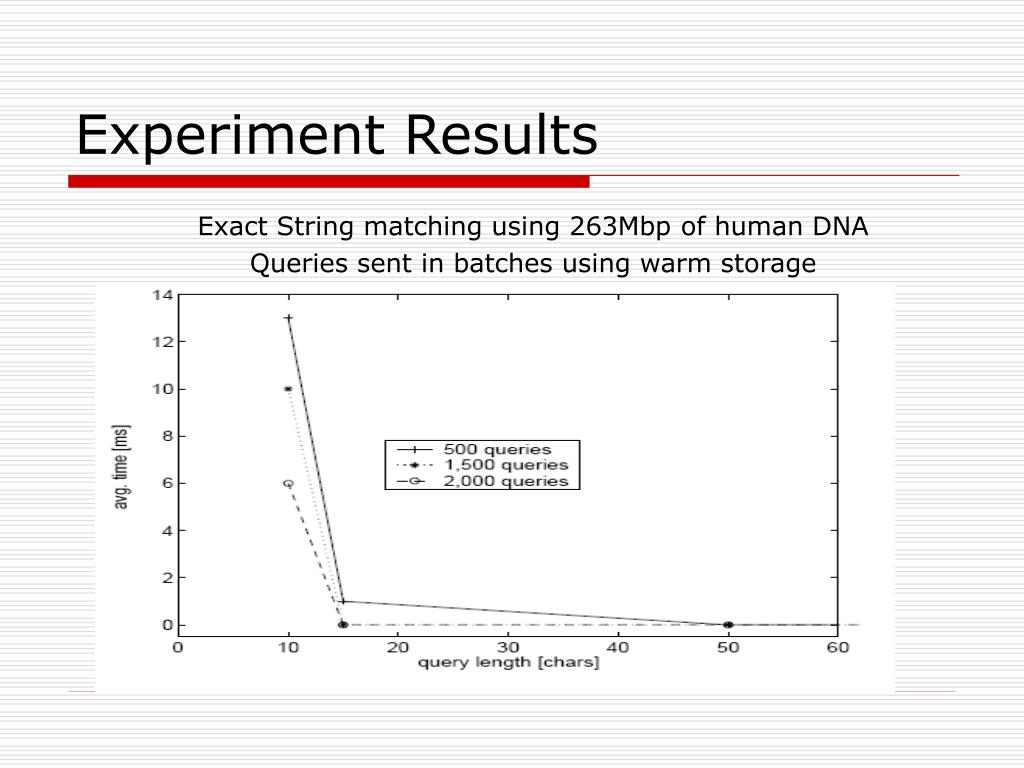

27. Experiment Results Exact String matching using 263Mbp of human DNA Queries sent in batches using warm storage

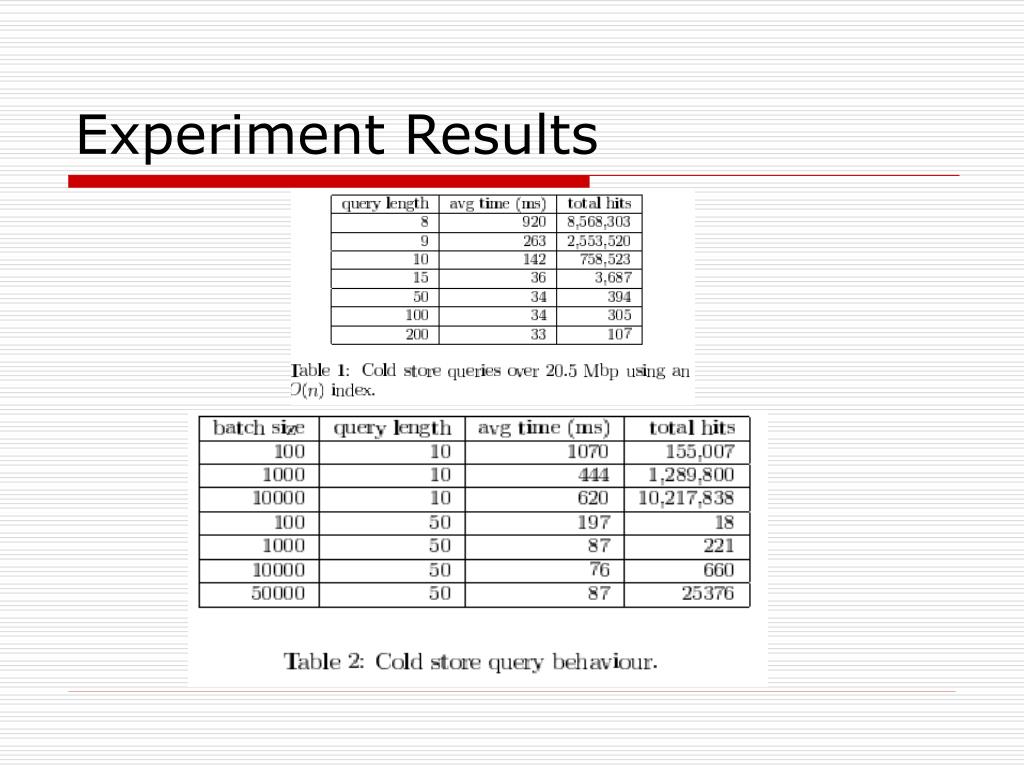

28. Experiment Results Cold Storage

29. Experiment Results

30. Further Work • Improvements to the tree representation and incremental construction algorithm. • Investigation of the interaction between approximate matching algorithms and disk-based suffix trees. • Investigation of alternative persistent storage solutions. • Integration of the algorithms with biological research tools and usability studies.

31. Conclusion • Present an approach to searching genetic DNA sequences using an adaptation of the suffix tree data structure. • Allow to build suffix trees on disk for arbitrarily large sequences. • Open up the perspective of building suffix trees in parallel, and the simplicity of this approach can make suffix trees more popular.
