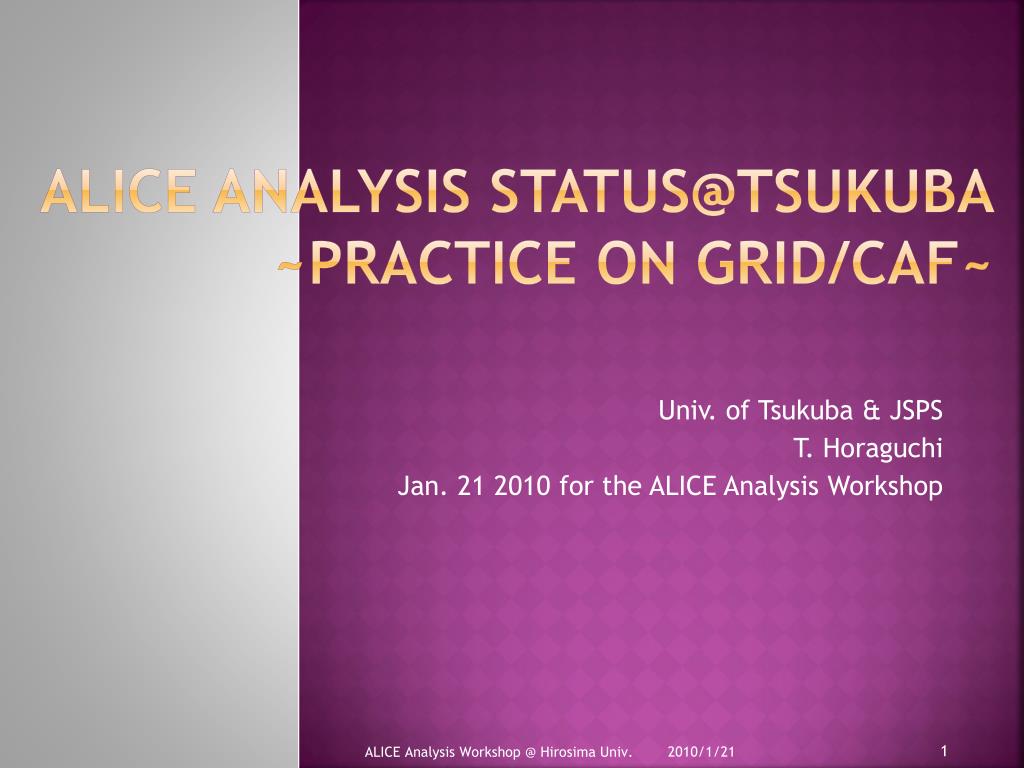

  1. ALICE Analysis Status@Tsukuba~Practice on GRID/CAF~ Univ. of Tsukuba & JSPS T. Horaguchi Jan. 21 2010 for the ALICE Analysis Workshop ALICE Analysis Workshop @ Hirosima Univ.

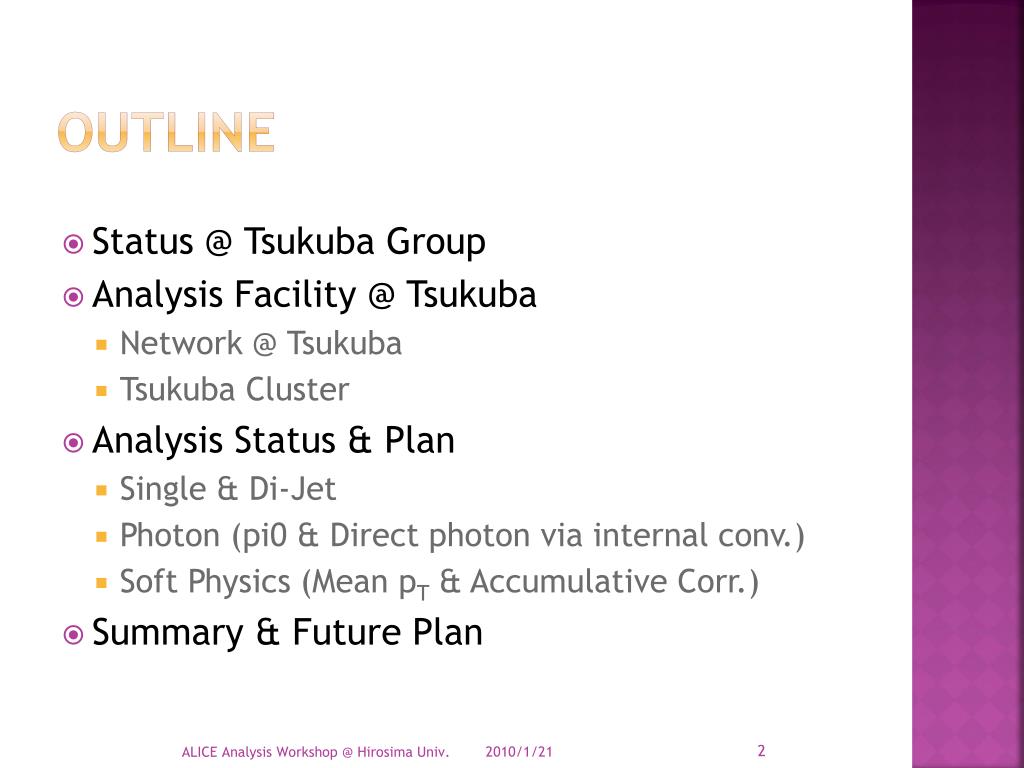

  2. Outline • Status @ Tsukuba Group • Analysis Facility @ Tsukuba • Network @ Tsukuba • Tsukuba Cluster • Analysis Status & Plan • Single & Di-Jet • Photon (pi0 & Direct photon via internal conv.) • Soft Physics (Mean pT & Accumulative Corr.) • Summary & Future Plan ALICE Analysis Workshop @ Hirosima Univ.

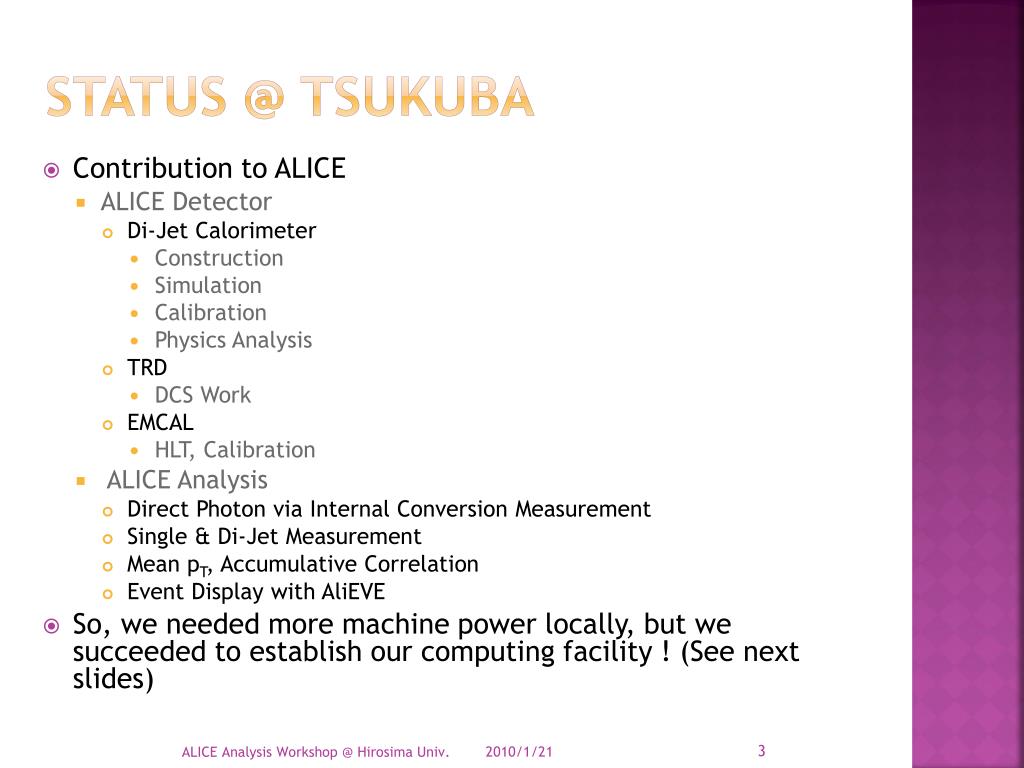

  3. Status @ Tsukuba • Contribution to ALICE • ALICE Detector • Di-Jet Calorimeter • Construction • Simulation • Calibration • Physics Analysis • TRD • DCS Work • EMCAL • HLT, Calibration • ALICE Analysis • Direct Photon via Internal Conversion Measurement • Single & Di-Jet Measurement • Mean pT, Accumulative Correlation • Event Display with AliEVE • So, we needed more machine power locally, but we succeeded to establish our computing facility ! (See next slides) ALICE Analysis Workshop @ Hirosima Univ.

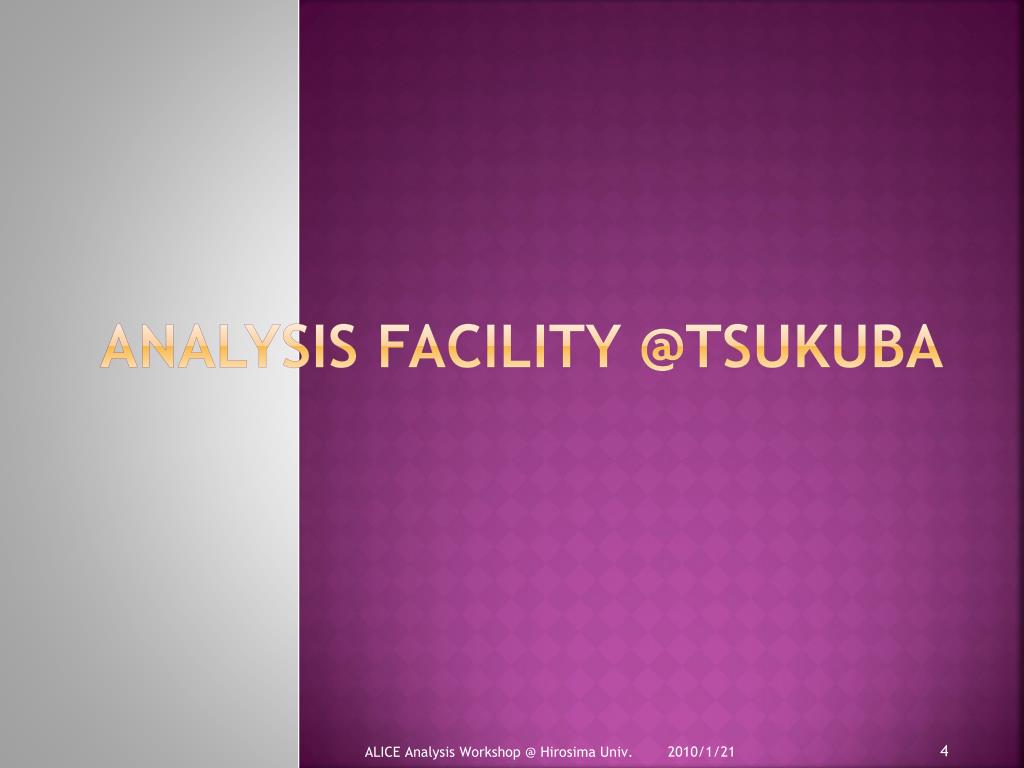

  4. Analysis Facility @Tsukuba ALICE Analysis Workshop @ Hirosima Univ.

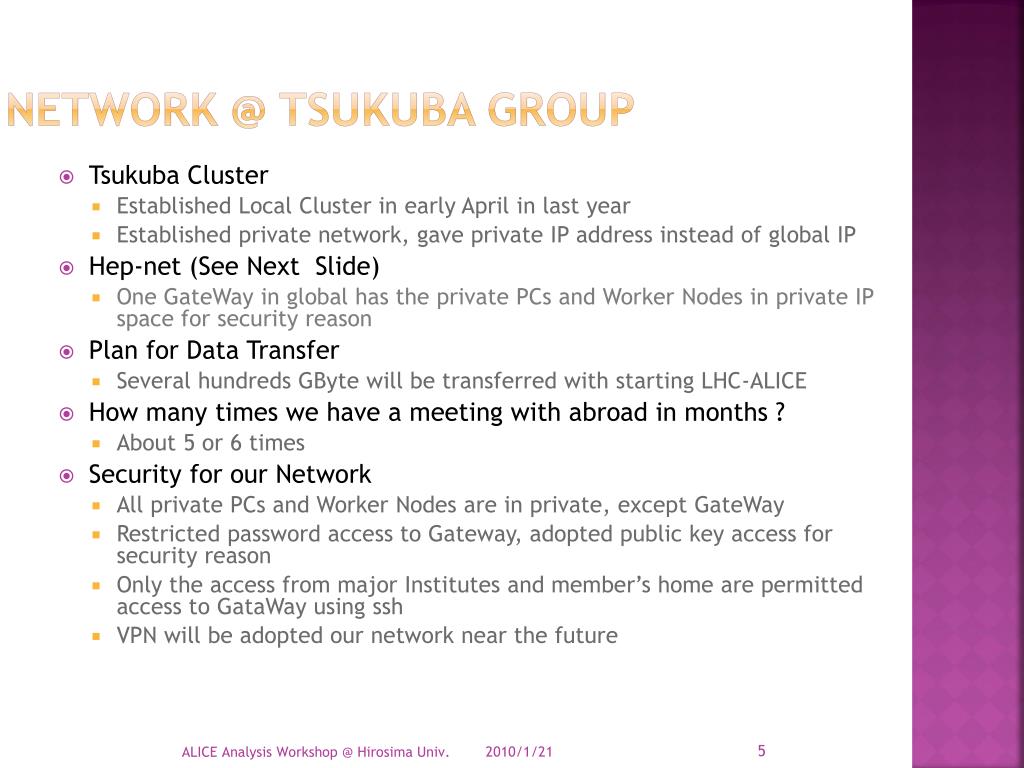

  5. NetWork @ Tsukuba Group • Tsukuba Cluster • Established Local Cluster in early April in last year • Established private network, gave private IP address instead of global IP • Hep-net(See Next Slide) • One GateWay in global has the private PCs and Worker Nodes in private IP space for security reason • Plan for Data Transfer • Several hundreds GBytewill be transferred with starting LHC-ALICE • How many times we have a meeting with abroad in months ? • About 5 or 6 times • Security for our Network • All private PCs and Worker Nodes are in private, except GateWay • Restricted password access to Gateway, adopted public key access for security reason • Only the access from major Institutes and member’s home are permitted access to GataWay using ssh • VPN will be adopted our network near the future ALICE Analysis Workshop @ Hirosima Univ.

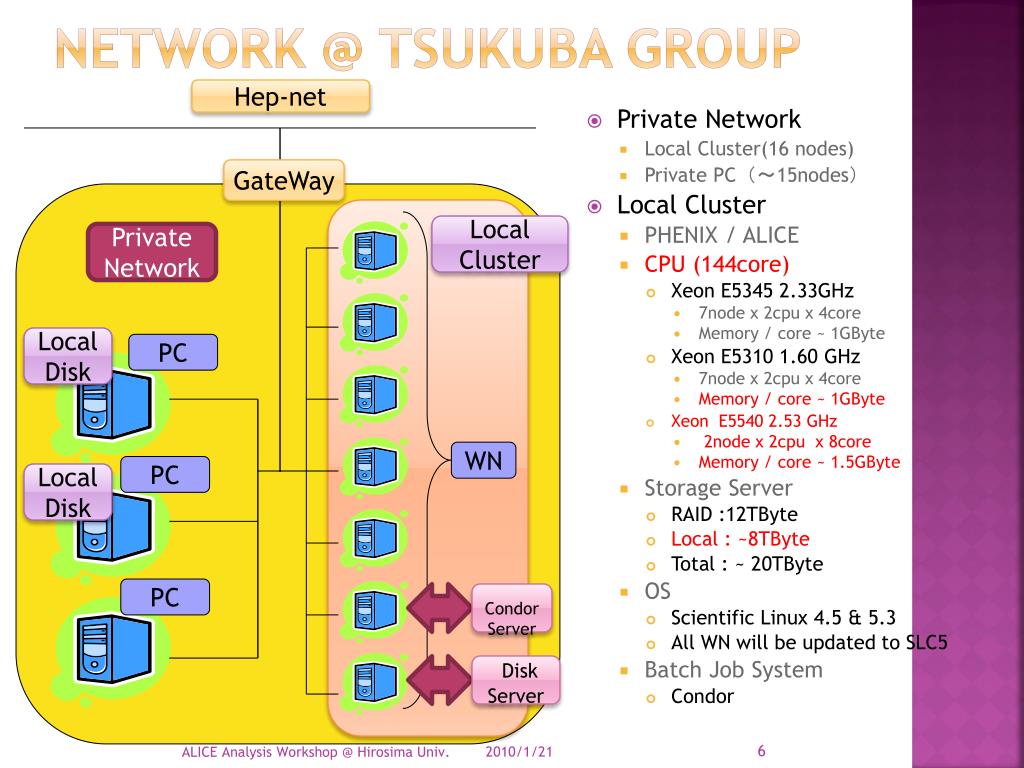

  6. NetWork @ Tsukuba Group Hep-net GateWay • Private Network • Local Cluster(16nodes) • Private PC（～15nodes） • Local Cluster • PHENIX / ALICE • CPU (144core) • Xeon E5345 2.33GHz • 7nodex 2cpu x 4core • Memory / core ~ 1GByte • Xeon E5310 1.60 GHz • 7nodex 2cpu x 4core • Memory / core ~ 1GByte • Xeon E5540 2.53 GHz • 2node x 2cpu x 8core • Memory / core ~ 1.5GByte • Storage Server • RAID :12TByte • Local : ~8TByte • Total : ~ 20TByte • OS • Scientific Linux 4.5 & 5.3 • All WN will be updated to SLC5 • Batch Job System • Condor Local Cluster Private Network Local Disk PC WN PC Local Disk PC Condor Server Disk Server ALICE Analysis Workshop @ Hirosima Univ.

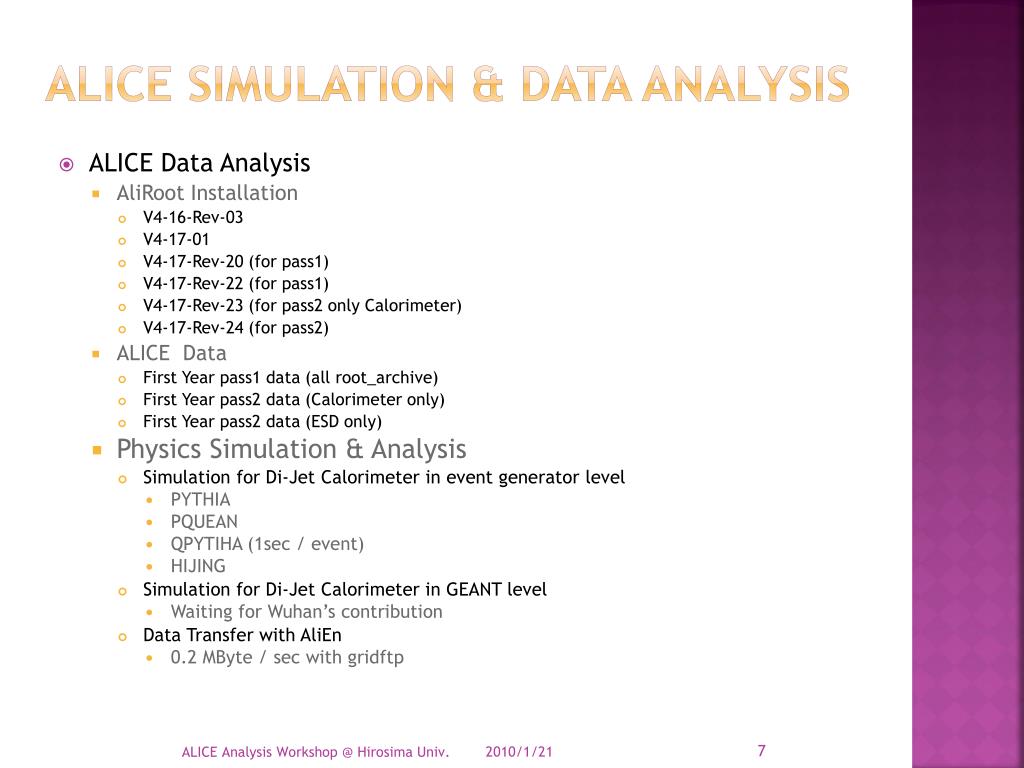

  7. ALICE Simulation & Data Analysis • ALICEData Analysis • AliRoot Installation • V4-16-Rev-03 • V4-17-01 • V4-17-Rev-20 (for pass1) • V4-17-Rev-22 (for pass1) • V4-17-Rev-23 (for pass2 only Calorimeter) • V4-17-Rev-24 (for pass2) • ALICE Data • First Year pass1 data (all root_archive) • First Year pass2 data (Calorimeter only) • First Year pass2 data (ESD only) • Physics Simulation & Analysis • Simulation for Di-Jet Calorimeter in event generator level • PYTHIA • PQUEAN • QPYTIHA (1sec / event) • HIJING • Simulation for Di-Jet Calorimeter in GEANT level • Waiting for Wuhan’s contribution • Data Transfer with AliEn • 0.2 MByte / sec with gridftp ALICE Analysis Workshop @ Hirosima Univ.

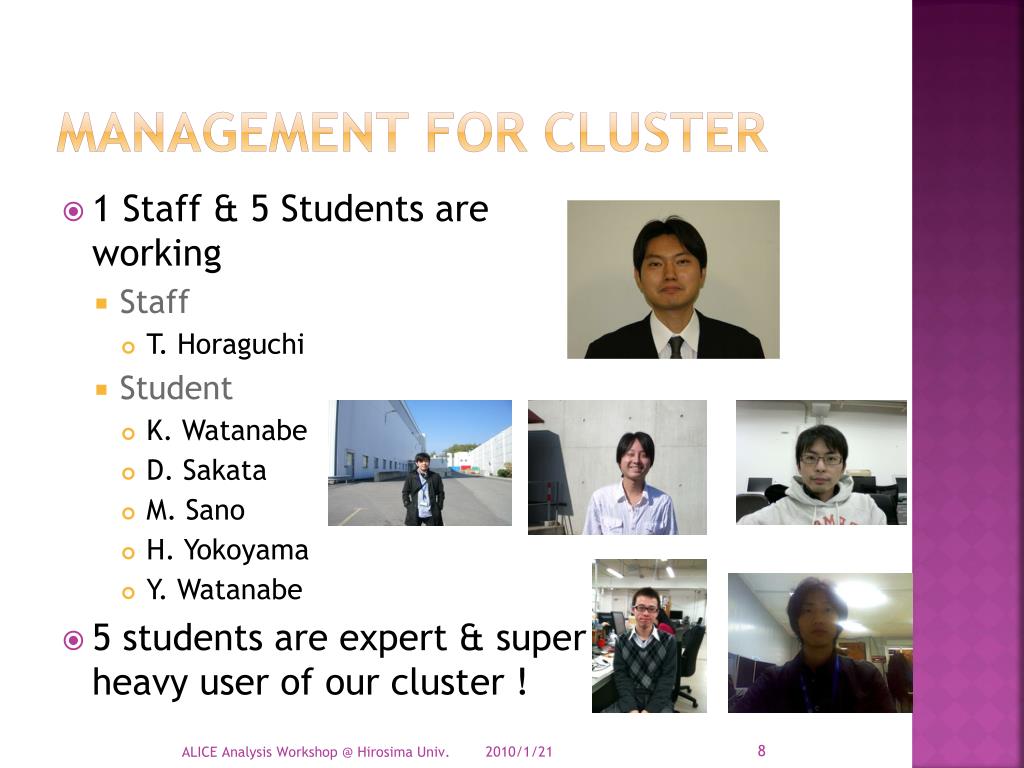

  8. Management for Cluster • 1 Staff & 5 Students are working • Staff • T. Horaguchi • Student • K. Watanabe • D. Sakata • M. Sano • H. Yokoyama • Y. Watanabe • 5 students are expert & super heavy user of our cluster ! ALICE Analysis Workshop @ Hirosima Univ.

  9. ANALYSIS Status & Plan ALICE Analysis Workshop @ Hirosima Univ.

  10. Di-Jet Calorimeter • Member • Y. Miake • S. Esumi • T. Chujo • M. Inaba • M. Shimomura • T. Horaguchi • M. Sano • D. Sakata • H. Yokoyama • S. Kubota • Y. Kondo • Y. Watanabe ALICE Analysis Workshop @ Hirosima Univ.

  11. Recoil Di-jet ETjet1>70GeV 0 in PHOS/J-cal  in PHOS/J-cal EM-cal EM-cal Recoil -jet ET>30GeV Recoil 0-jet ET0>30GeV jet (R<0.3) in J-cal M. Sano, H. Yokoyama, Grad. Student of Tsukuba EM-cal ALICE Analysis Workshop @ Hirosima Univ.

  12. Improvement in jet energy resolution ! M. Sano, H. Yokoyama, Grad. Student of Tsukuba ALICE Analysis Workshop @ Hirosima Univ.

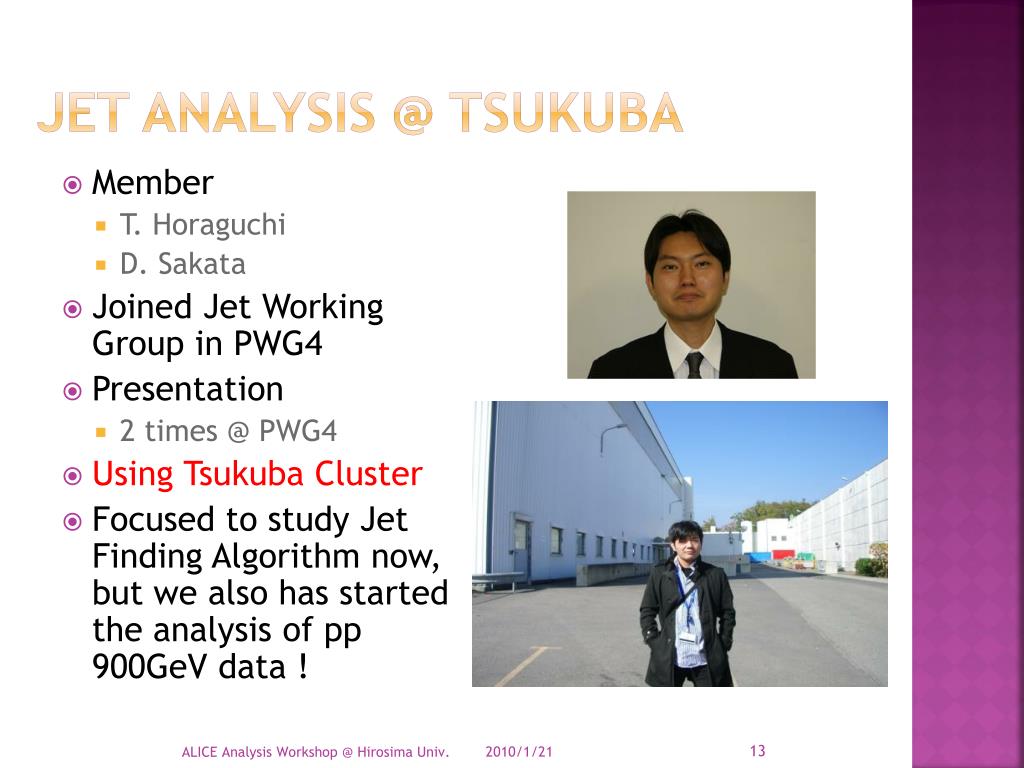

  13. Jet Analysis @ Tsukuba • Member • T. Horaguchi • D. Sakata • Joined Jet Working Group in PWG4 • Presentation • 2 times @ PWG4 • Using Tsukuba Cluster • Focused to study Jet Finding Algorithm now, but we also has started the analysis of pp 900GeV data ! ALICE Analysis Workshop @ Hirosima Univ.

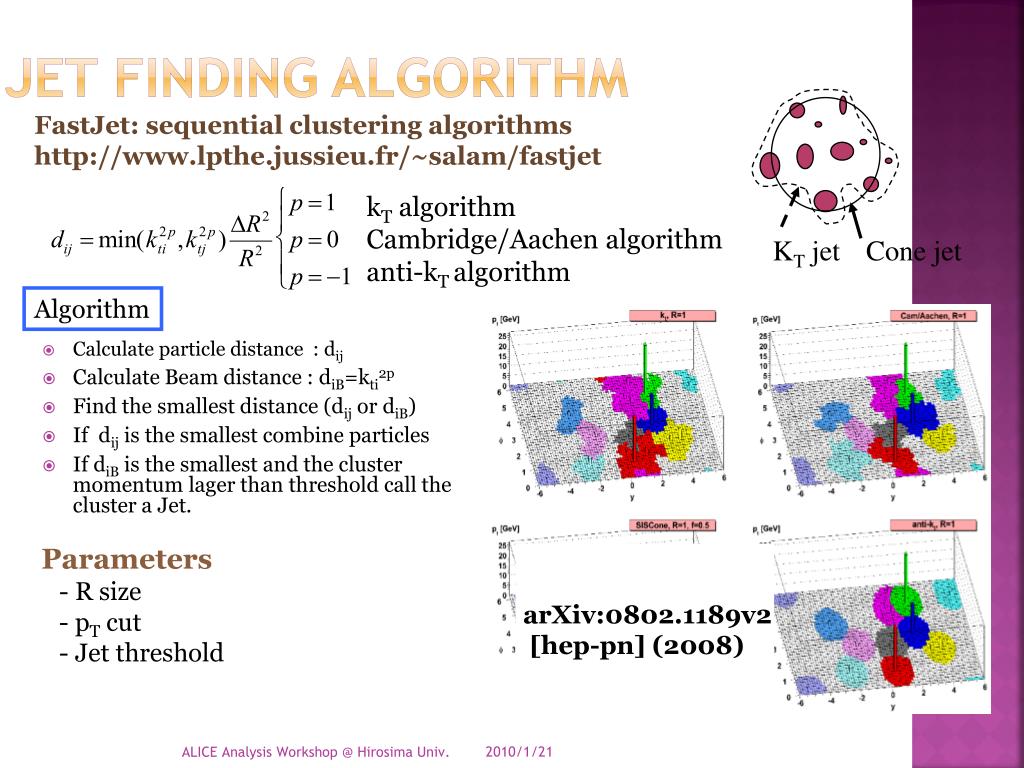

  14. KT jet Cone jet Jet Finding Algorithm FastJet:sequential clustering algorithms http://www.lpthe.jussieu.fr/~salam/fastjet kT algorithm Cambridge/Aachen algorithm anti-kT algorithm Algorithm Parameters - R size - pTcut - Jet threshold arXiv:0802.1189v2 [hep-pn] (2008) ALICE Analysis Workshop @ Hirosima Univ. Calculate particle distance : dij Calculate Beam distance : diB=kti2p Find the smallest distance (dij or diB) If dij is the smallest combine particles If diB is the smallest and the cluster momentum lager than threshold call the cluster a Jet.

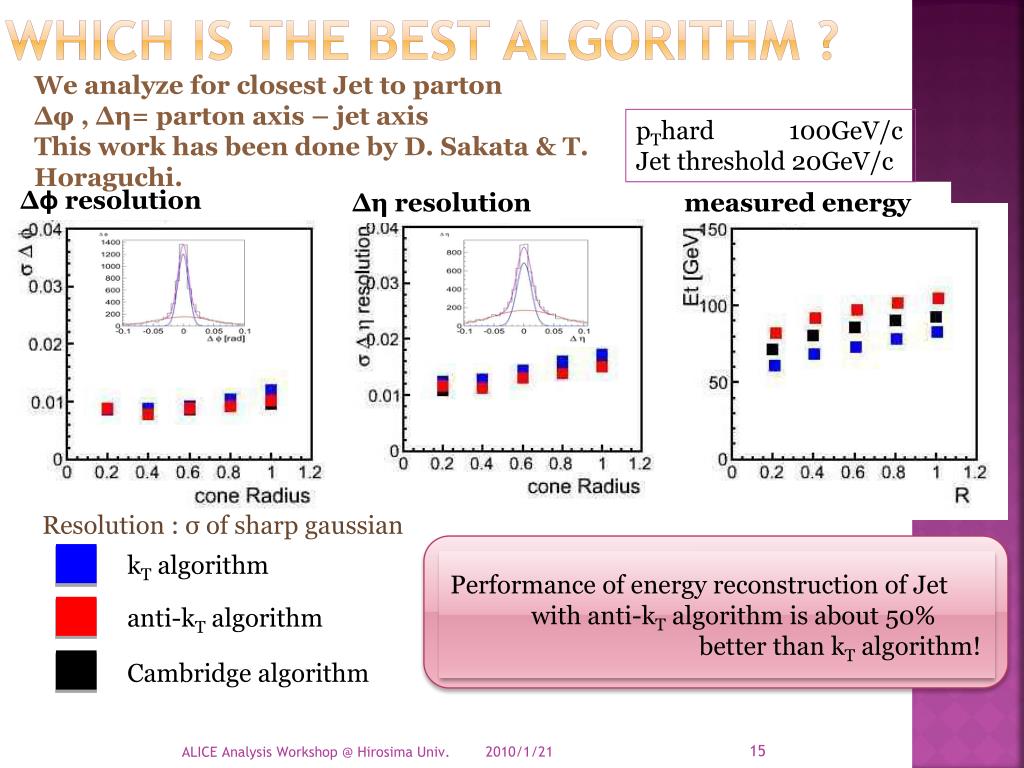

  15. Which is the best algorithm ? We analyze for closest Jet to parton Δφ , Δη= parton axis – jet axis This work has been done by D. Sakata & T. Horaguchi. pThard 100GeV/c Jet threshold 20GeV/c Δϕ resolution Δη resolution measured energy Resolution : σ of sharp gaussian Performance of energy reconstruction of Jet with anti-kT algorithm is about 50% better than kT algorithm! kT algorithm anti-kT algorithm Cambridge algorithm ALICE Analysis Workshop @ Hirosima Univ.

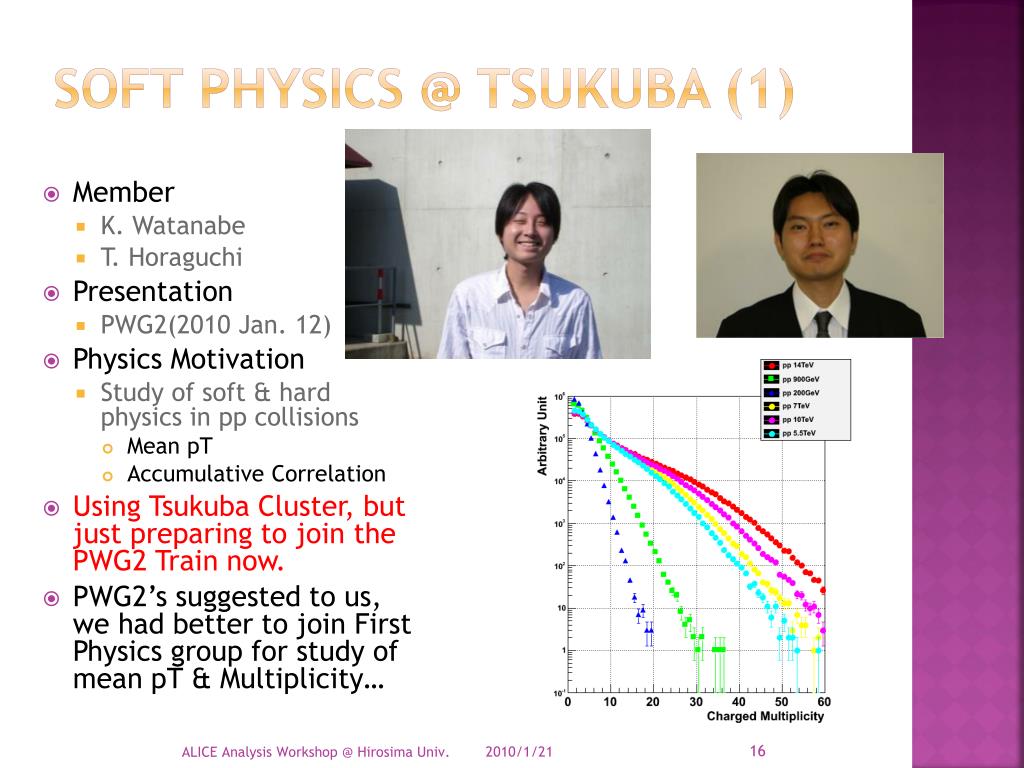

  16. Soft Physics @ Tsukuba (1) • Member • K. Watanabe • T. Horaguchi • Presentation • PWG2(2010 Jan. 12) • Physics Motivation • Study of soft & hard physics in pp collisions • Mean pT • Accumulative Correlation • Using Tsukuba Cluster, but just preparing to join the PWG2 Train now. • PWG2’s suggested to us, we had better to join First Physics group for study of mean pT & Multiplicity… ALICE Analysis Workshop @ Hirosima Univ.

  17. SOFT Physics @ Tsukuba (2) ALICE Analysis Workshop @ Hirosima Univ.

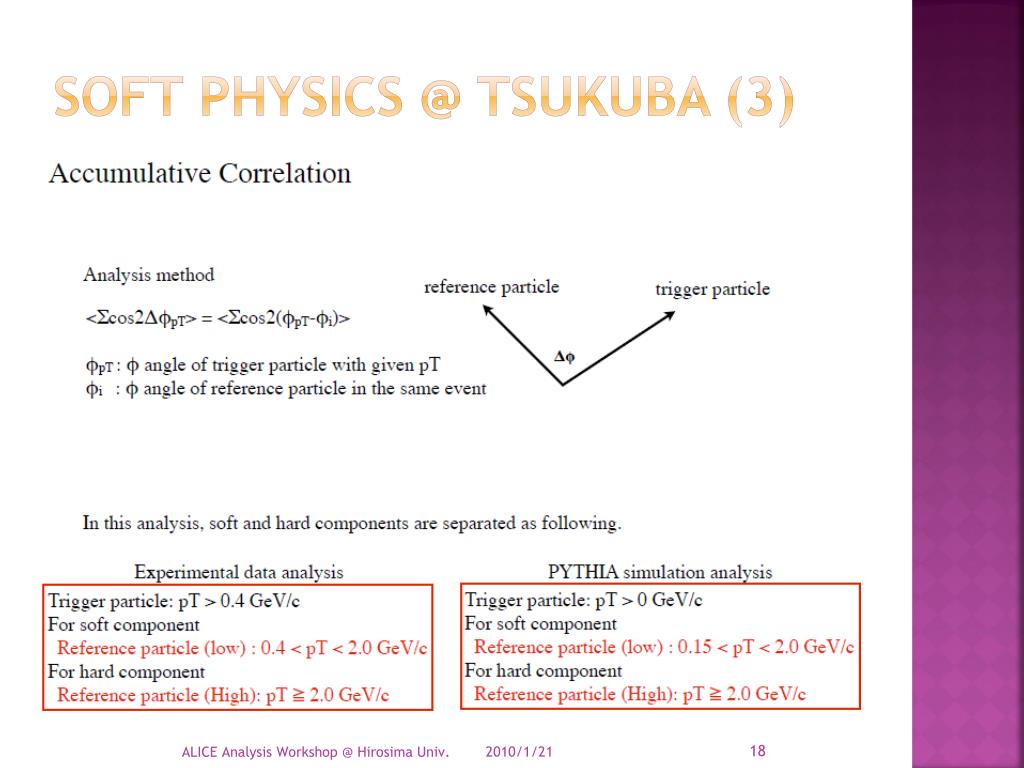

  18. SOFT Physics @ Tsukuba (3) ALICE Analysis Workshop @ Hirosima Univ.

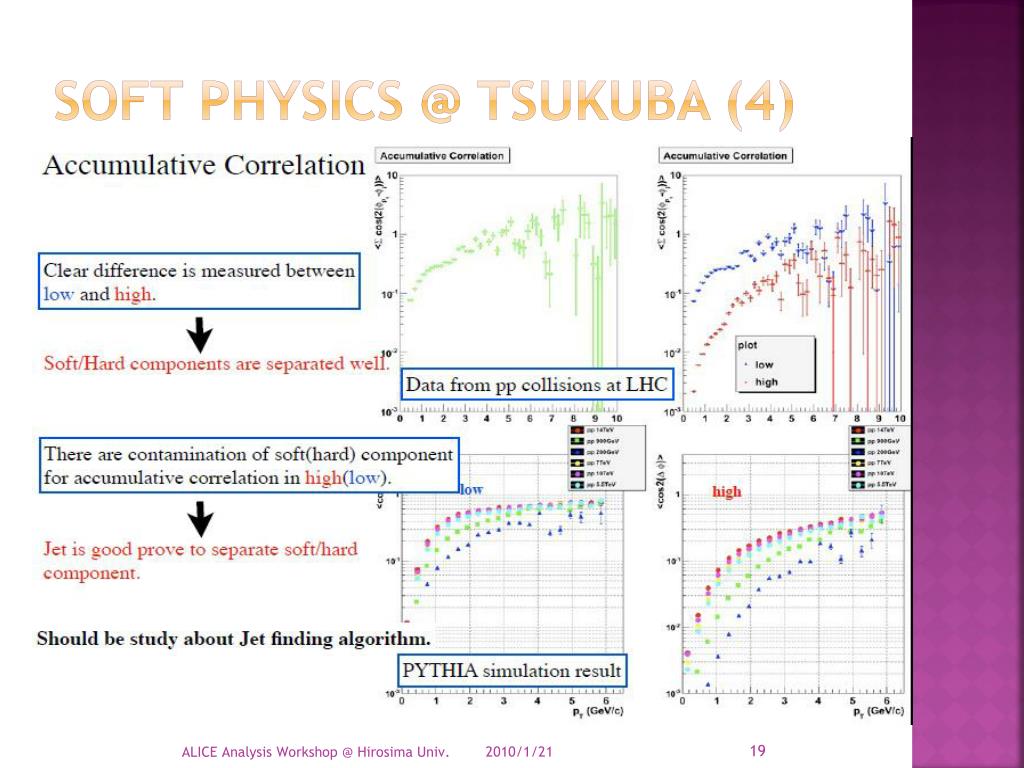

  19. SOFT Physics @ Tsukuba (4) ALICE Analysis Workshop @ Hirosima Univ.

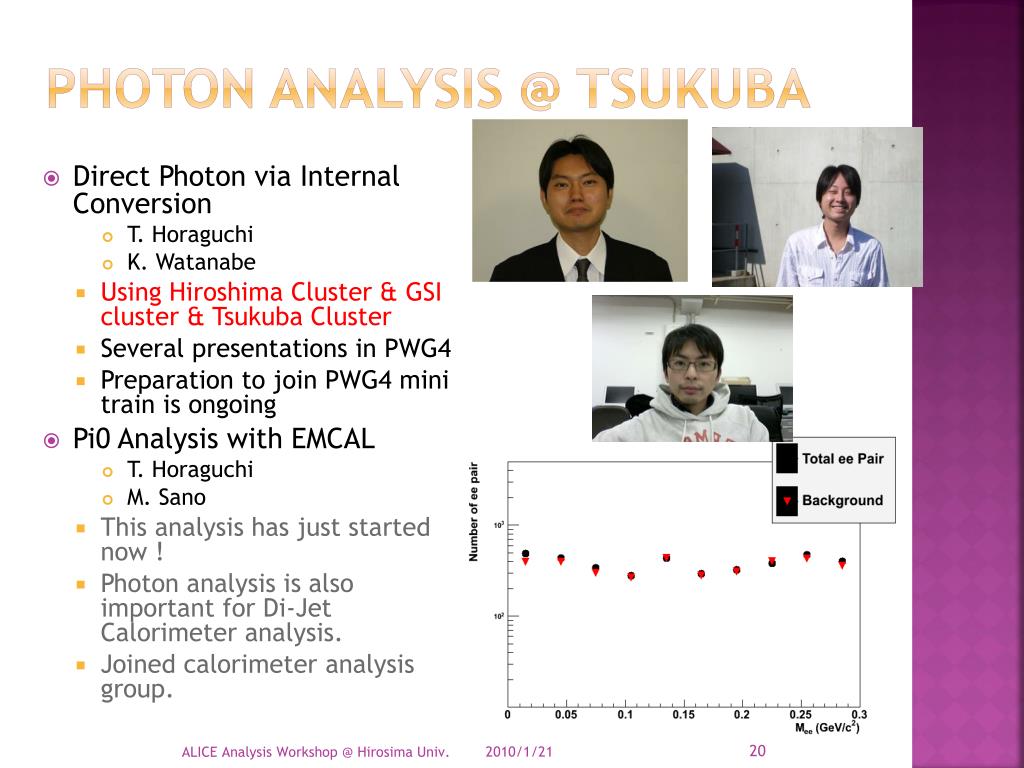

  20. Photon Analysis @ Tsukuba • Direct Photon via Internal Conversion • T. Horaguchi • K. Watanabe • Using Hiroshima Cluster & GSI cluster & Tsukuba Cluster • Several presentations in PWG4 • Preparation to join PWG4 mini train is ongoing • Pi0 Analysis with EMCAL • T. Horaguchi • M. Sano • This analysis has just started now ! • Photon analysis is also important for Di-Jet Calorimeter analysis. • Joined calorimeter analysis group. ALICE Analysis Workshop @ Hirosima Univ.

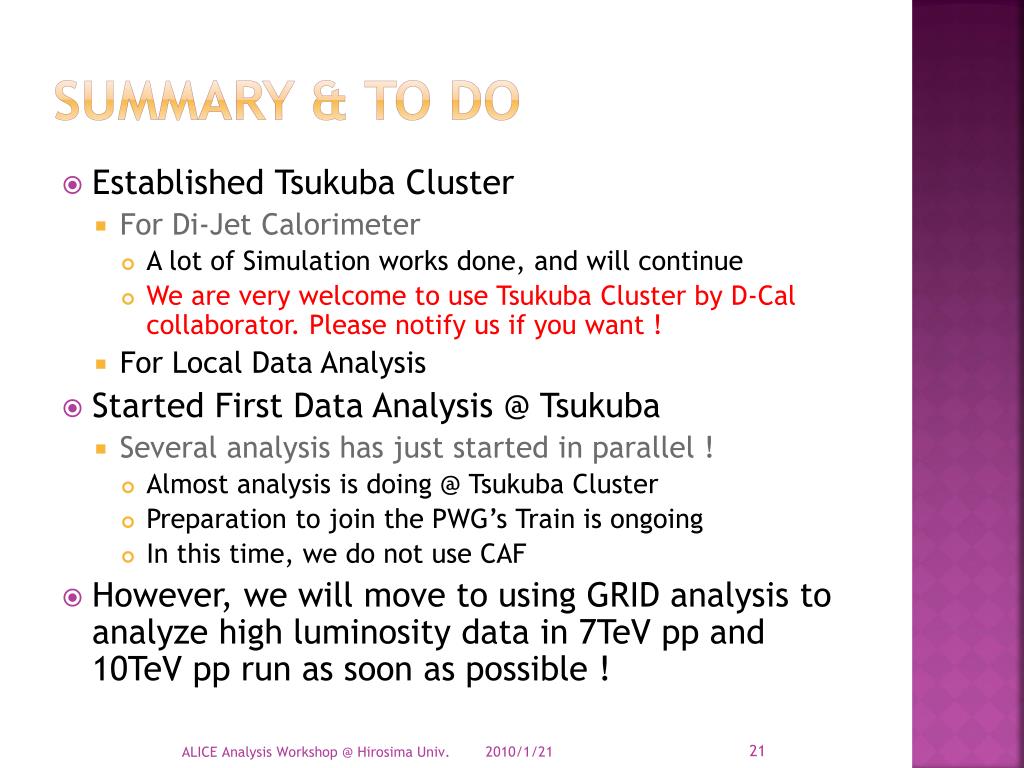

  21. Summary & To do • Established Tsukuba Cluster • For Di-Jet Calorimeter • A lot of Simulation works done, and will continue • We are very welcome to use Tsukuba Cluster by D-Cal collaborator. Please notify us if you want ! • For Local Data Analysis • Started First Data Analysis @ Tsukuba • Several analysis has just started in parallel ! • Almost analysis is doing @ Tsukuba Cluster • Preparation to join the PWG’s Train is ongoing • In this time, we do not use CAF • However, we will move to using GRID analysis to analyze high luminosity data in 7TeV pp and 10TeV pp run as soon as possible ! ALICE Analysis Workshop @ Hirosima Univ.

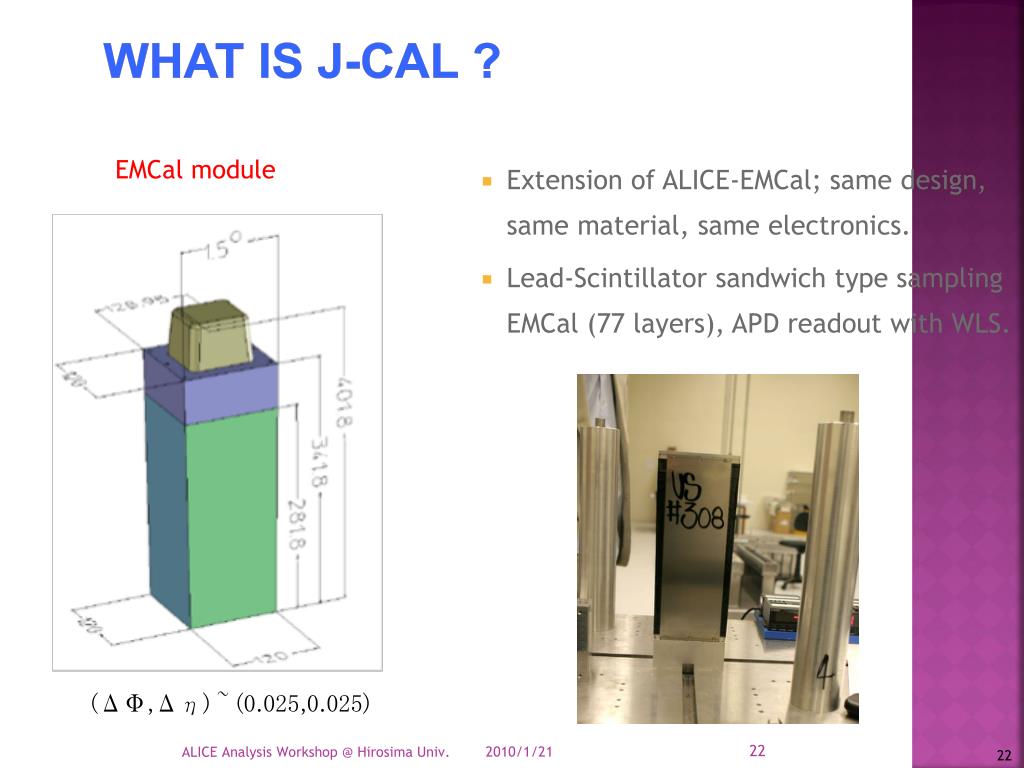

  22. What is J-Cal ? EMCal module • Extension of ALICE-EMCal; same design, same material, same electronics. • Lead-Scintillator sandwich type sampling EMCal (77 layers), APD readout with WLS. (ΔΦ,Δη) ~ (0.025,0.025) ALICE Analysis Workshop @ Hirosima Univ. 22

  23. ,Jet,0 - hadron correlation Comparisons are the most important! RHIC-AGS’09, Y. S. Lai Closer and closer to the initial parton energy Gamma trigger Jet (large R) trigger STAR Preliminary Jet (small R) trigger 0(hadron) trigger more and more surface bias given by energy loss Au+Au 0~10% QM09, M. Ploskon ALICE Analysis Workshop @ Hirosima Univ.

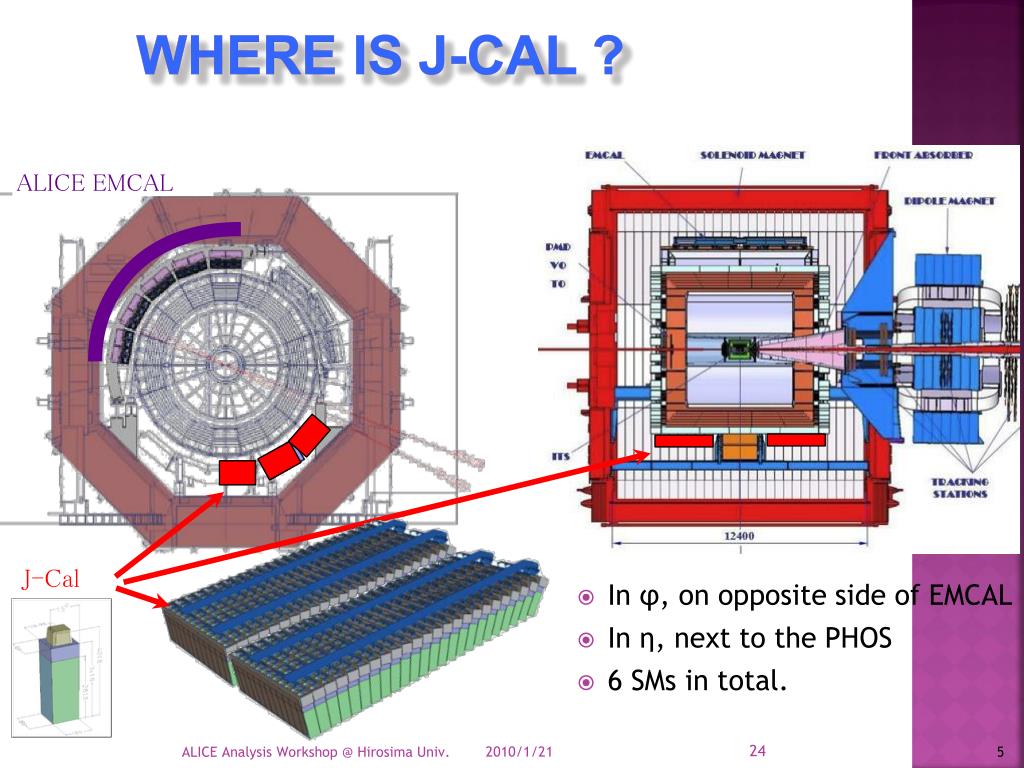

  24. ALICE EMCAL Where is J-Cal ? • In φ, on opposite side of EMCAL • In η, next to the PHOS • 6 SMs in total. eta view of ALICE & J-CAL eta view of ALICE & J-CAL J-Cal ALICE Analysis Workshop @ Hirosima Univ. 5

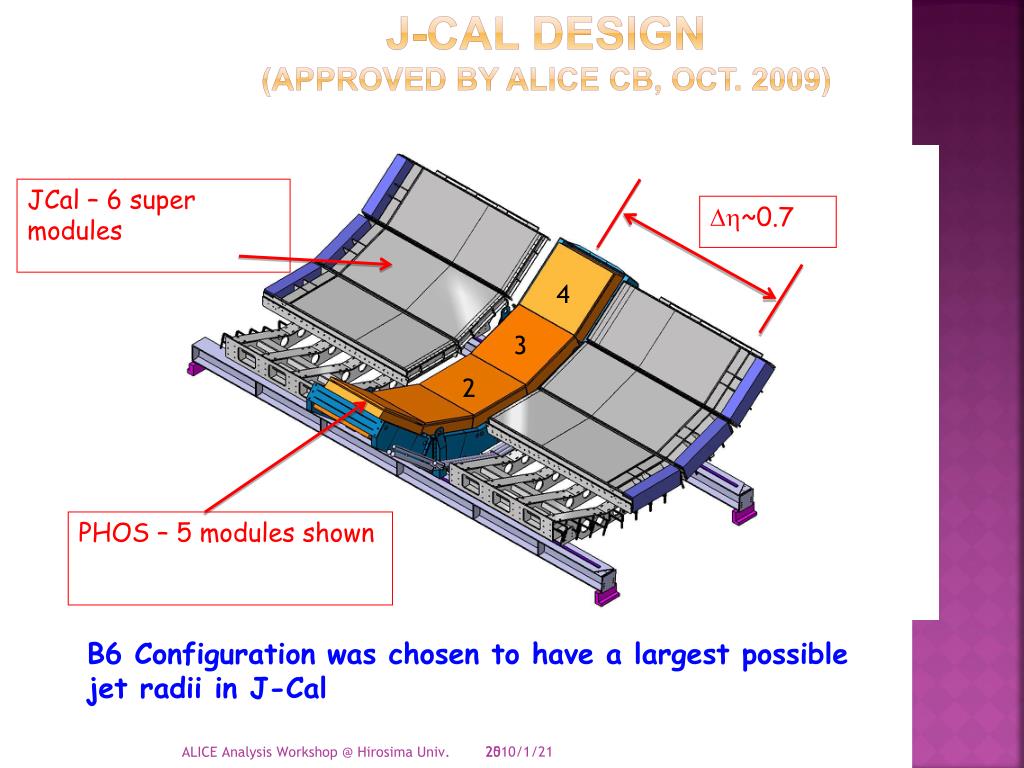

  25. J-Cal Design (approved by ALICE CB, Oct. 2009) JCal – 6 super modules Dh~0.7 4 3 2 PHOS – 5 modules shown B6 Configuration was chosen to have a largest possible jet radii in J-Cal ALICE Analysis Workshop @ Hirosima Univ.
