  1. Update on ALICE software status and ideas Ervin Dénes Wigner Research Center Hungarian Academy of Sciences

  2. How Does the RORC SW Work? • We have DMA engines in the RORC cards (FW)that take data over optical links (DDL) to store it in RAM. PC Pci Detector RORC DIU SIU DDL • We need a PCI driver for the RORC. • The driver maps the RORC’s registers into memory, so that the SW can read/write • The SW can give the addresses where to put the collected data and can assure the RORC always has addresses of free memory. Cross LHC exp. DAQ meeting, 9 July 2014

  3. Physmem • To support the DDL transfers we need a RAM area which is pinned (non-swapped), with known physical addresses, and which is accessible from user-level code. • For that at boot time we limit the amount of memory used by Linux (grub parameter mem=...) e.g.: • kernel /vmlinuz-2.6.32-358.23.2.el6.x86_64 ….. nopatmem=4G ………… Physmem area 0 Physmem area #n Linux ~2,5G 4G RAM • We have a small device driver that maps the memory outside the Linux area via remap_pfn_range() • The driver gives to the user SW the size of the mapped area and its physical address Cross LHC exp. DAQ meeting, 9 July 2014

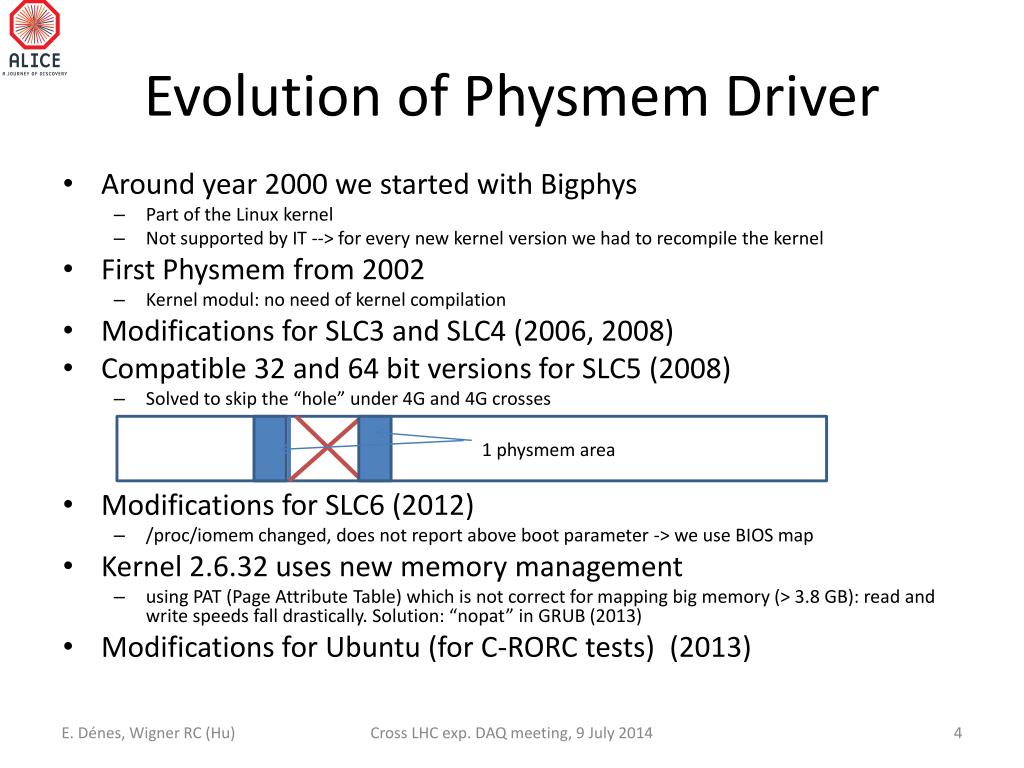

  4. Evolution of Physmem Driver • Aroundyear 2000 we started with Bigphys • Part of the Linux kernel • Not supported by IT --> for every new kernel version we had to recompile the kernel • First Physmem from 2002 • Kernel modul: no need of kernel compilation • Modifications for SLC3 and SLC4 (2006, 2008) • Compatible 32 and 64 bit versions for SLC5 (2008) • Solved to skip the “hole” under 4G and 4G crosses • Modifications for SLC6 (2012) • /proc/iomem changed, does not report above boot parameter -> we use BIOS map • Kernel 2.6.32 uses new memory management • using PAT (Page Attribute Table) which is not correct for mapping big memory (> 3.8 GB): read and write speeds fall drastically. Solution: “nopat” in GRUB (2013) • Modifications for Ubuntu (for C-RORC tests) (2013) 1 physmem area Cross LHC exp. DAQ meeting, 9 July 2014

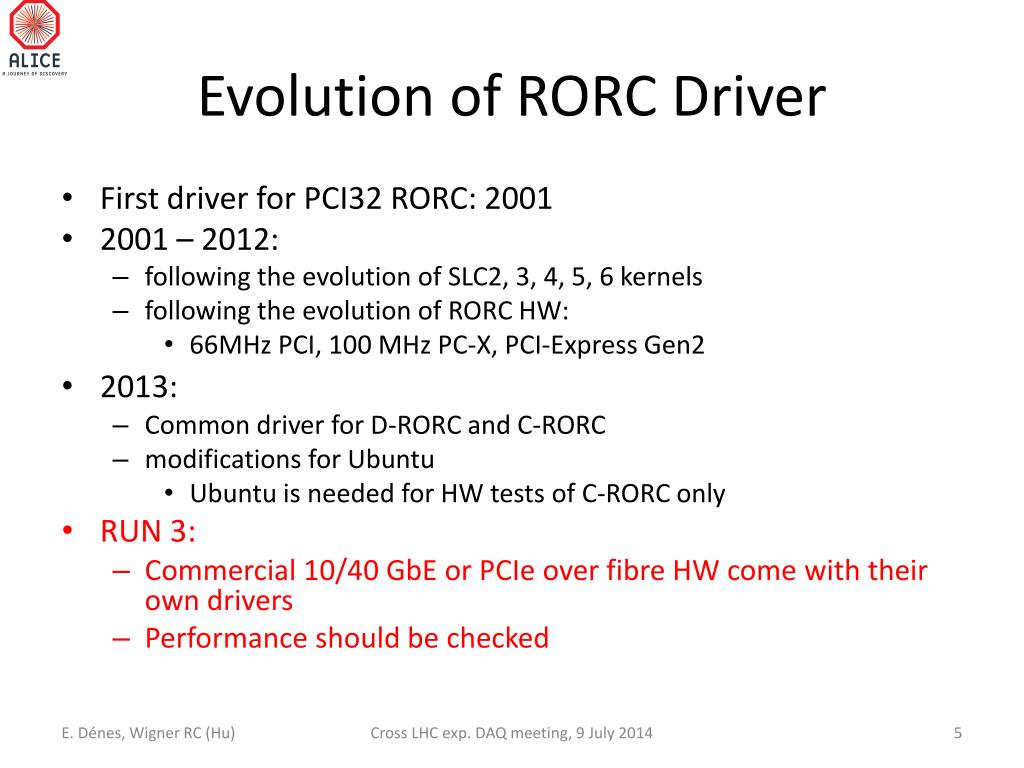

  5. Evolution of RORC Driver • First driver for PCI32 RORC: 2001 • 2001 – 2012: • following the evolution of SLC2, 3, 4, 5, 6 kernels • following the evolution of RORC HW: • 66MHz PCI, 100 MHz PC-X, PCI-Express Gen2 • 2013: • Common driver for D-RORC and C-RORC • modifications for Ubuntu • Ubuntu is needed for HW tests of C-RORC only • RUN 3: • Commercial 10/40 GbE or PCIe over fibre HW come with their own drivers • Performance should be checked Cross LHC exp. DAQ meeting, 9 July 2014

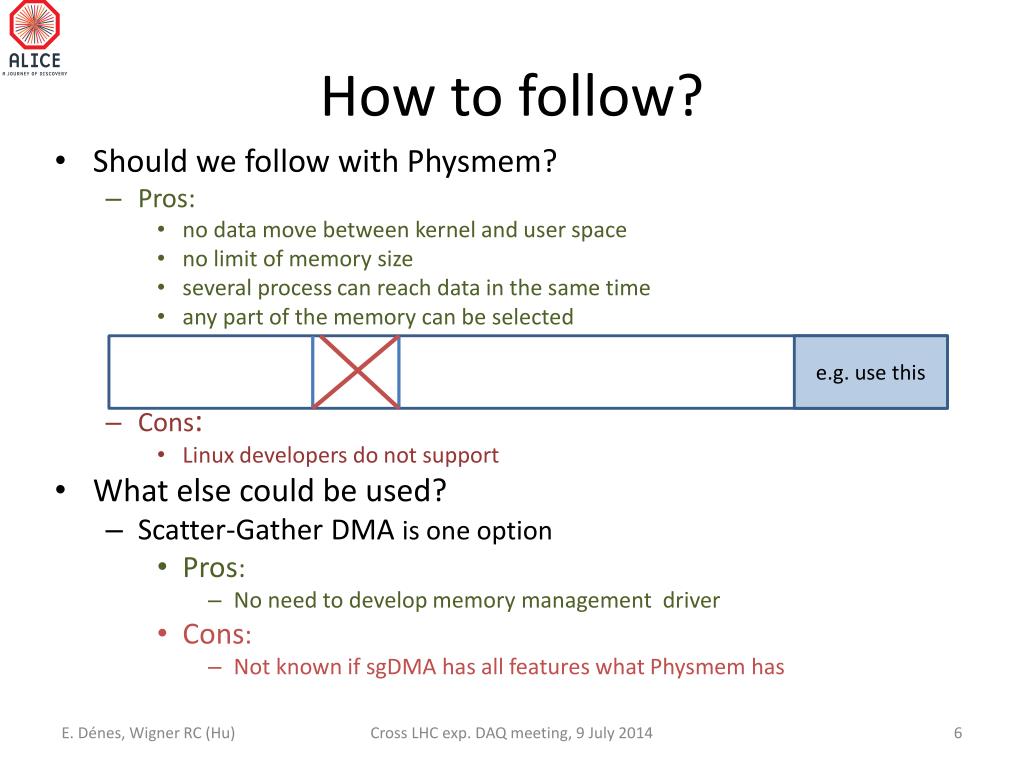

  6. How to follow? • Should we follow with Physmem? • Pros: • no data move between kernel and user space • no limit of memory size • several process can reach data in the same time • any part of the memory can be selected • Cons: • Linux developers do not support • What else could be used? • Scatter-Gather DMA is one option • Pros: • No need to develop memory management driver • Cons: • Not known if sgDMAhas all features what Physmem has e.g. use this Cross LHC exp. DAQ meeting, 9 July 2014

  7. Next steps in common • There is some opportunity for • Exchange of information • Common development Cross LHC exp. DAQ meeting, 9 July 2014
