  1. JC TECHNOLOGY GROUP CO., LIMITED Accessory catalog Siren, Strobe Panic buttons, Door sensors

  2. JC TECHNOLOGY GROUP - your 24h security guard Siren, Strobes

  3. Siren Horn JC-626 *Rated voltage: DC12V *Working voltage:9~13VDC *Working current:280~480mA *Rated Power:15W *Sound pressure: 110±3DB *Dimension:106*100*110mm（with bracket)

  4. Siren Horn JC-628 *Rated Voltage(VDC):12 *Operating Range(VDC):6-15 *Operating Temperature:-20～60℃ *Dimension:405*297*320mm

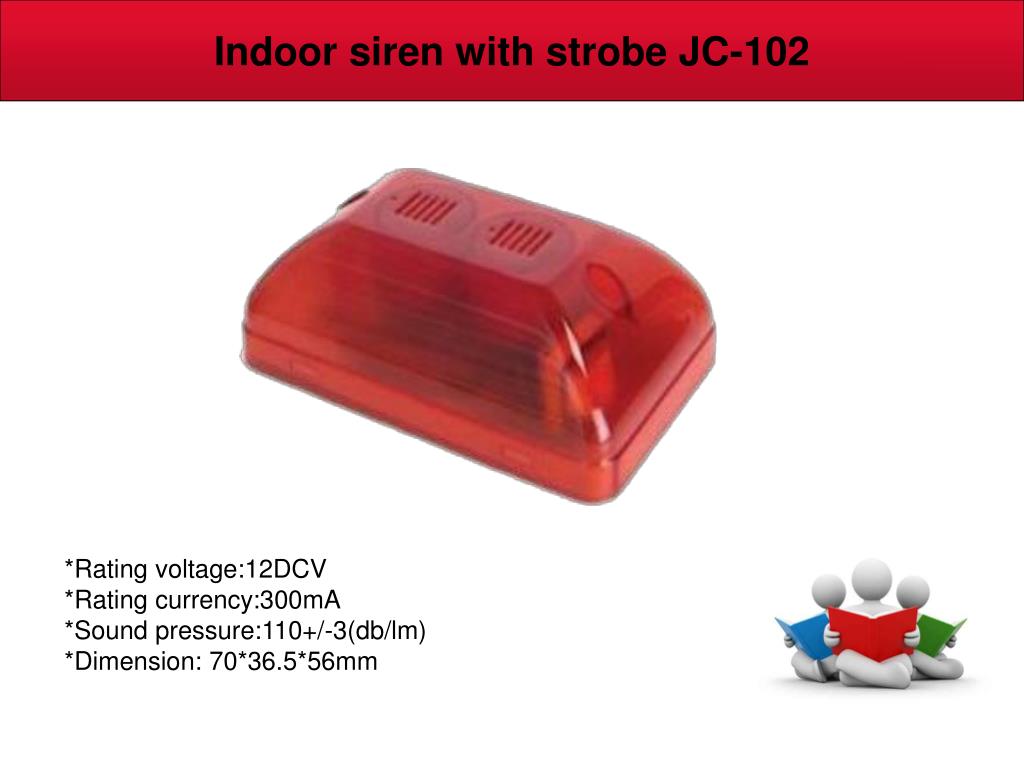

  5. Indoor siren with strobe JC-102 *Rating voltage:12DCV *Rating currency:300mA *Sound pressure:110+/-3(db/lm) *Dimension: 70*36.5*56mm

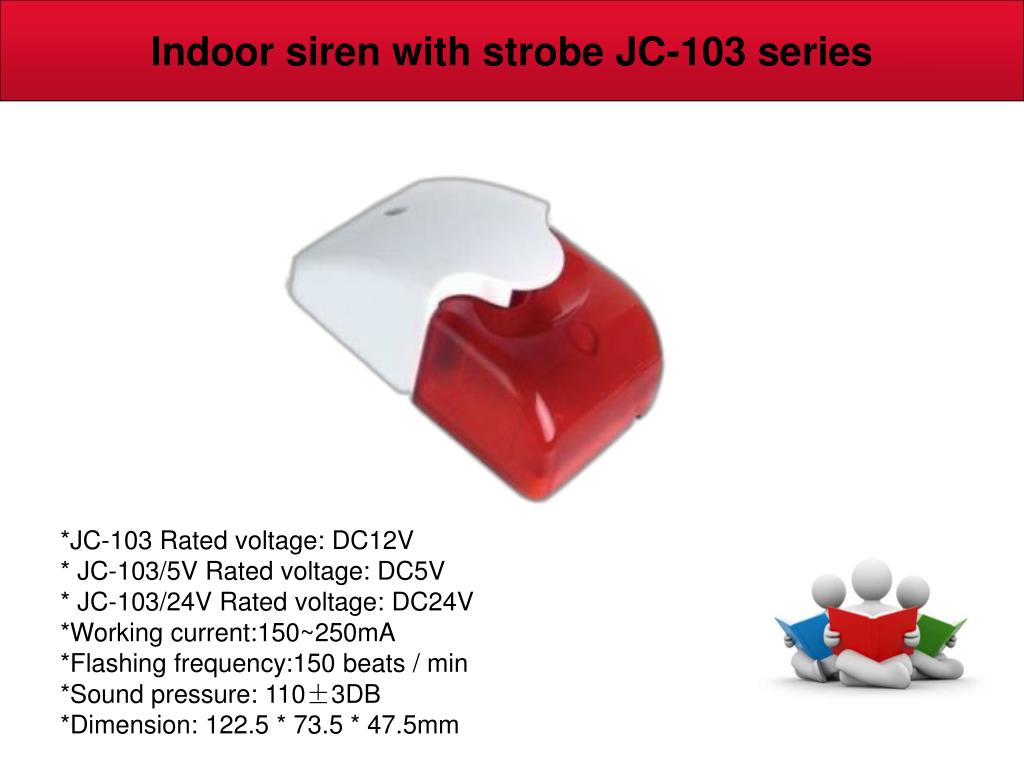

  6. Indoor siren with strobe JC-103 series *JC-103 Rated voltage: DC12V * JC-103/5V Rated voltage: DC5V * JC-103/24V Rated voltage: DC24V *Working current:150~250mA *Flashing frequency:150 beats / min *Sound pressure: 110±3DB *Dimension: 122.5 * 73.5 * 47.5mm

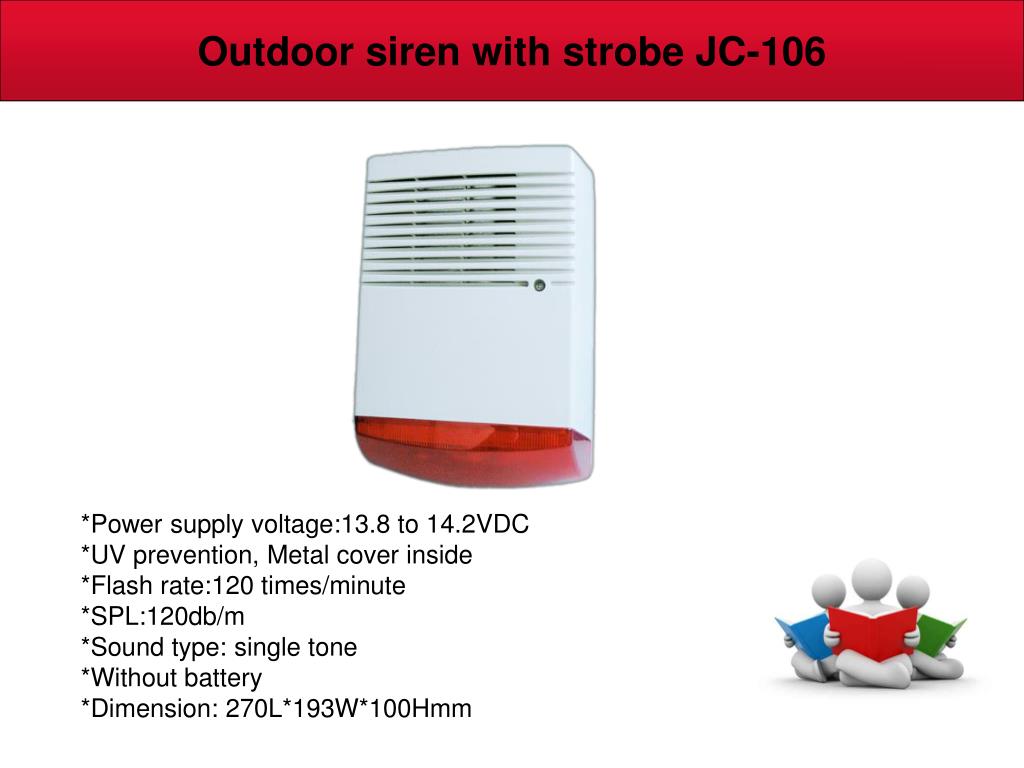

  7. Outdoor siren with strobe JC-106 *Power supply voltage:13.8 to 14.2VDC *UV prevention, Metal cover inside *Flash rate:120 times/minute *SPL:120db/m *Sound type: single tone *Without battery *Dimension: 270L*193W*100Hmm

  8. Outdoor siren with strobe JC-107 ◆Color: Red/Blue ◆Housing Material: Fireproof ABS *Operating voltage:6-18VDC *Related voltage:12VDC *Rated current:300mA *SPL Db: 128±3DB *Without battery *Dimension: 210*130*78mm

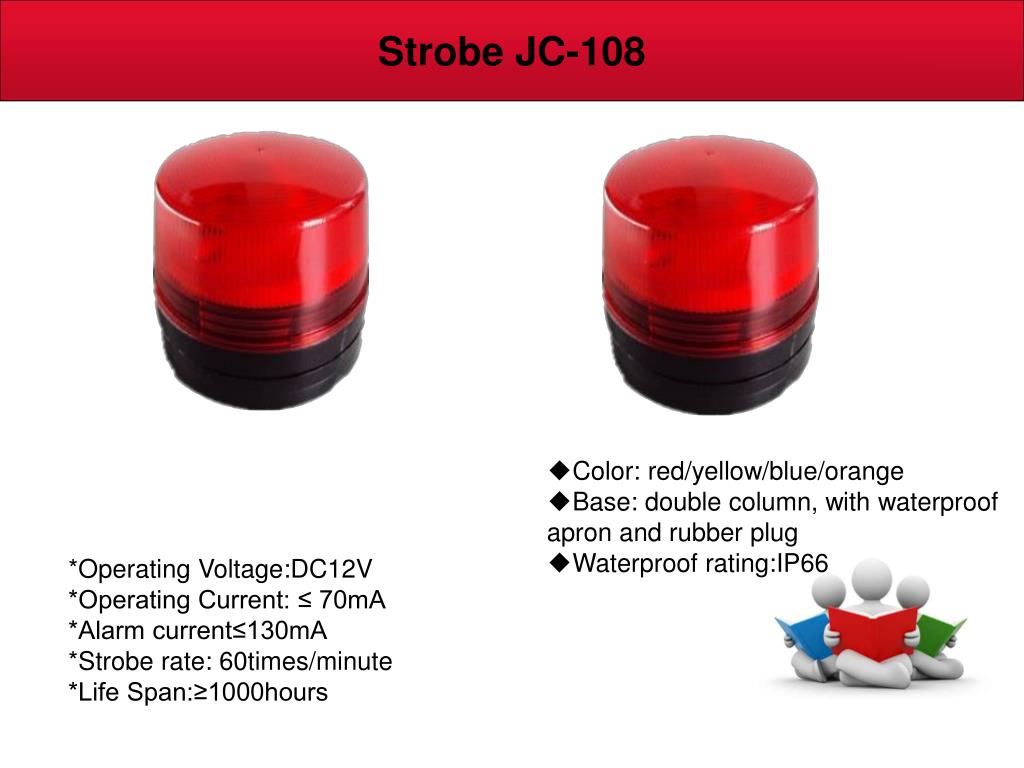

  9. Strobe JC-108 ◆Color: red/yellow/blue/orange ◆Base: double column, with waterproof apron and rubber plug ◆Waterproof rating:IP66 *Operating Voltage:DC12V *Operating Current: ≤ 70mA *Alarm current≤130mA *Strobe rate: 60times/minute *Life Span:≥1000hours

  10. JC TECHNOLOGY GROUP - your 24h security guard Wired Panic Button

  11. Wired Panic Button JC-120 ◆Emergency button and exit button ◆ABS Housing ◆Alarm Output: NO and NC Output ◆Color: white *Voltage: 12 or 24V DC *Carrying current: 0.3A *Dimension: 76 *17* 17mm *Package:1set/PE bag,10sets/bag, 700sets/carton

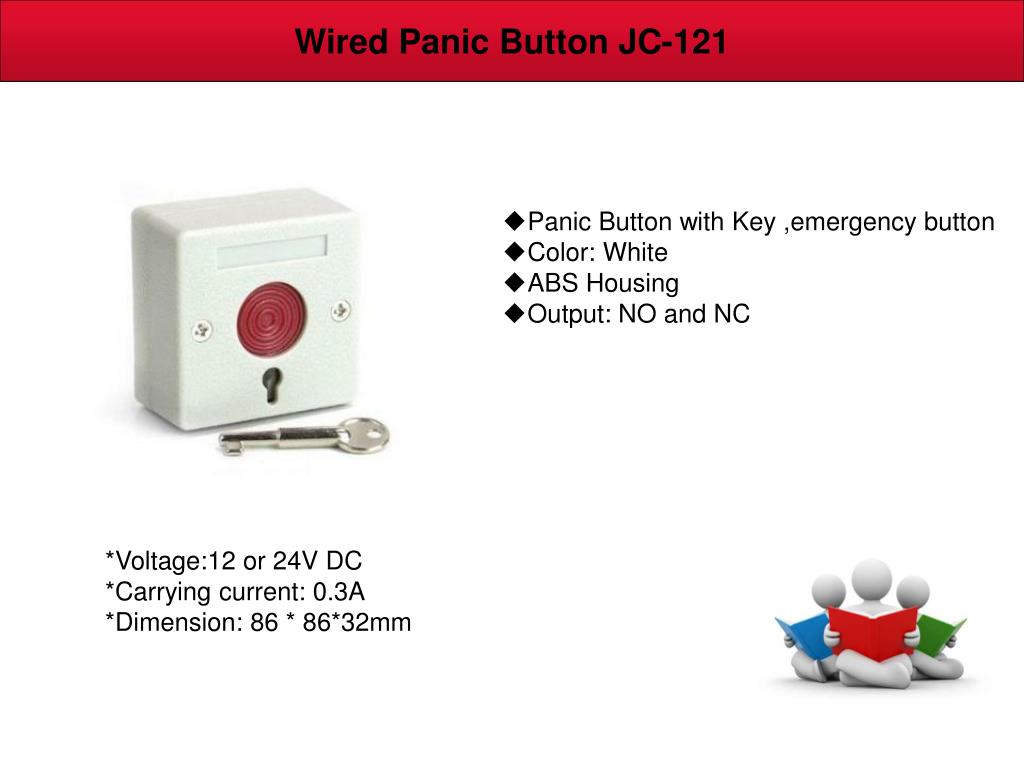

  12. Wired Panic Button JC-121 ◆Panic Button with Key ,emergency button ◆Color: White ◆ABS Housing ◆Output: NO and NC *Voltage:12 or 24V DC *Carrying current: 0.3A *Dimension: 86 * 86*32mm

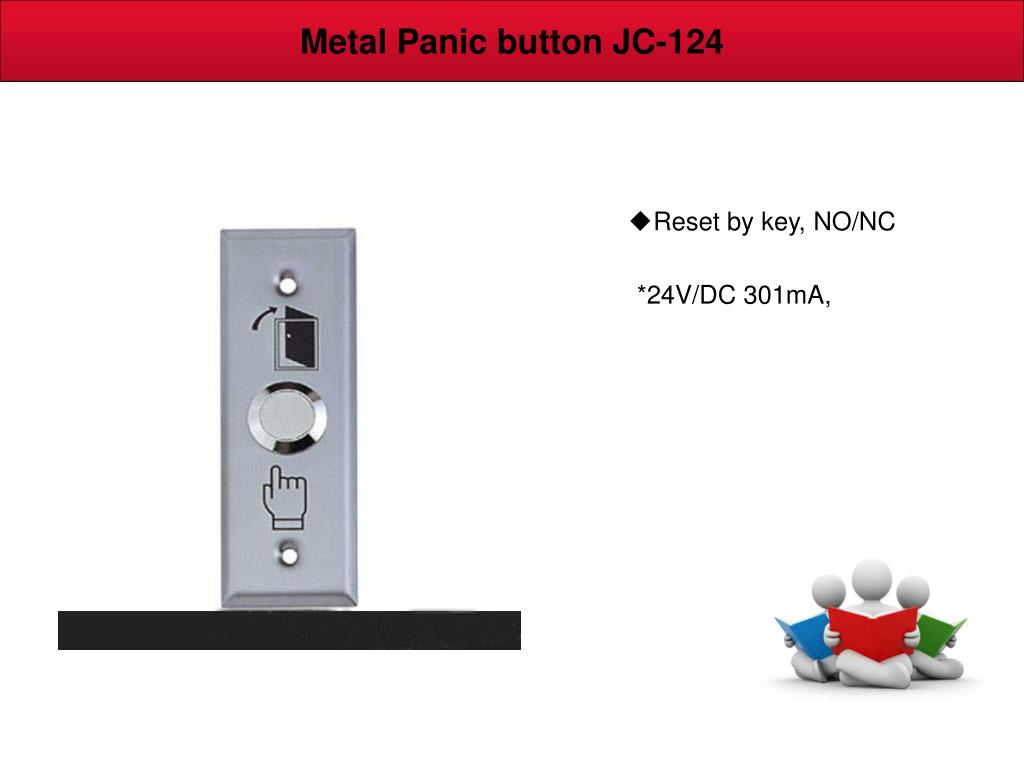

  13. Metal Panic button JC-124 ◆Reset by key, NO/NC *24V/DC 301mA,

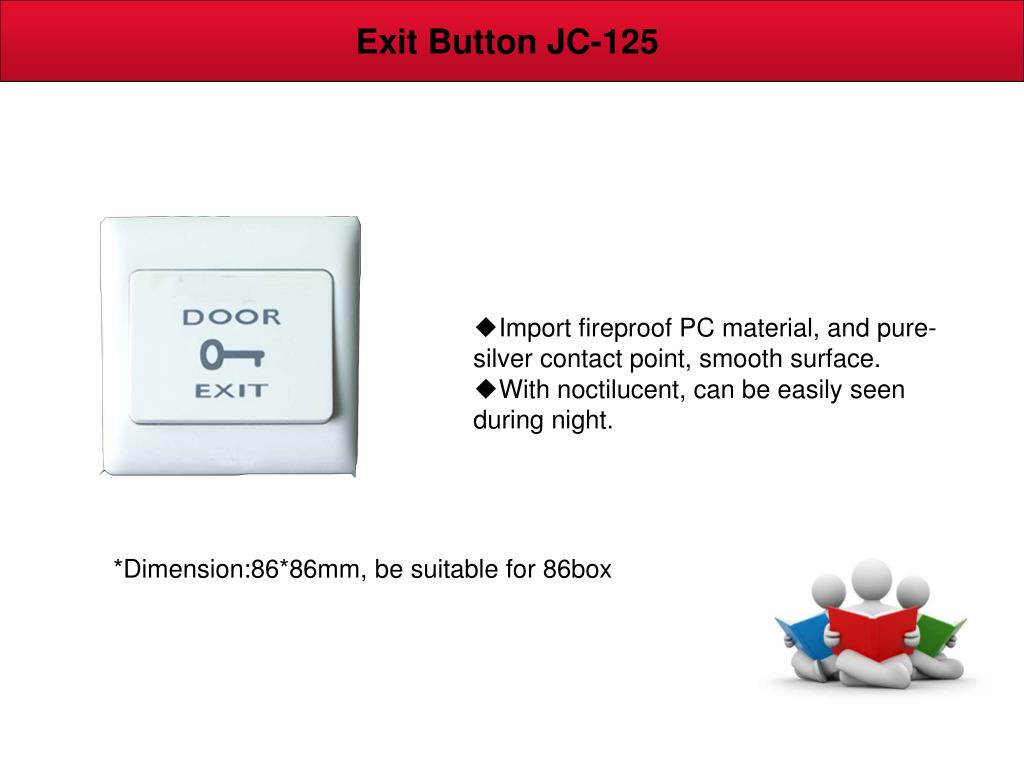

  14. Exit Button JC-125 ◆Import fireproof PC material, and pure-silver contact point, smooth surface. ◆With noctilucent, can be easily seen during night. *Dimension:86*86mm, be suitable for 86box

  15. Fire alarm panic button JC-122 *Working Voltage: AC220V 50HZ/DC24V/12V optional *Max.Current:5A AC220V 50HZ, 8A DC24V *Contact Resistance:≤0.1Ω *Power:10W *Switch state: NC/NO(single or dual) *Dimension: 87mm*87mm*51mm

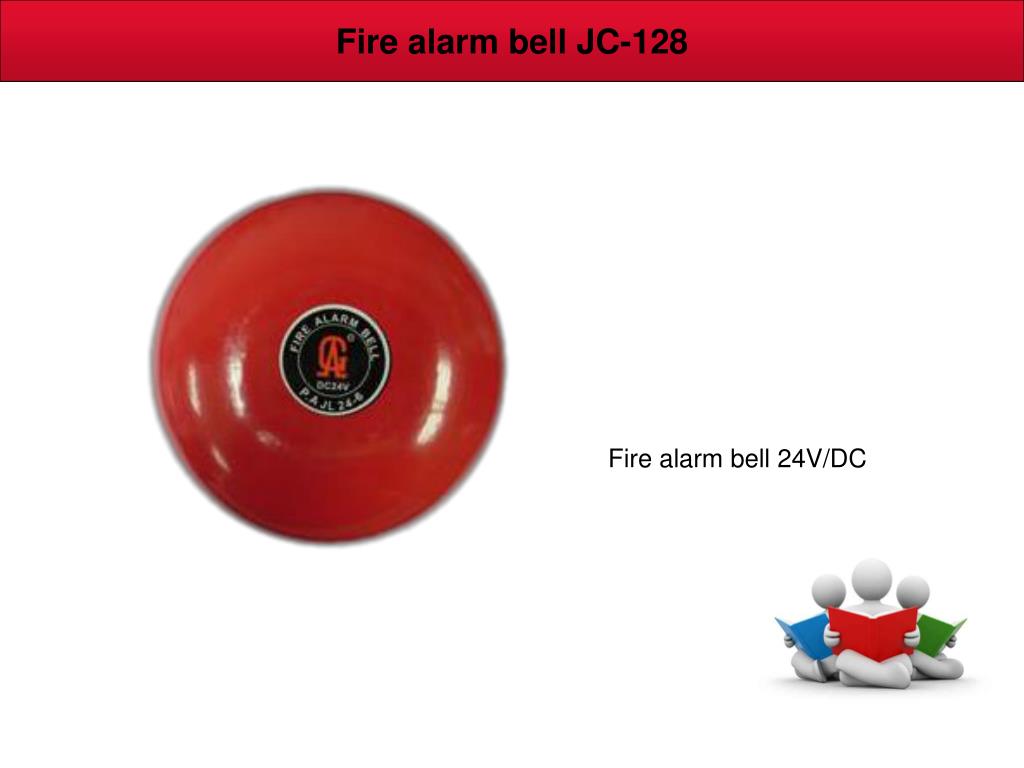

  16. Fire alarm bell JC-128 Fire alarm bell 24V/DC

  17. JC TECHNOLOGY GROUP - your 24h security guard Door Contact Sensor

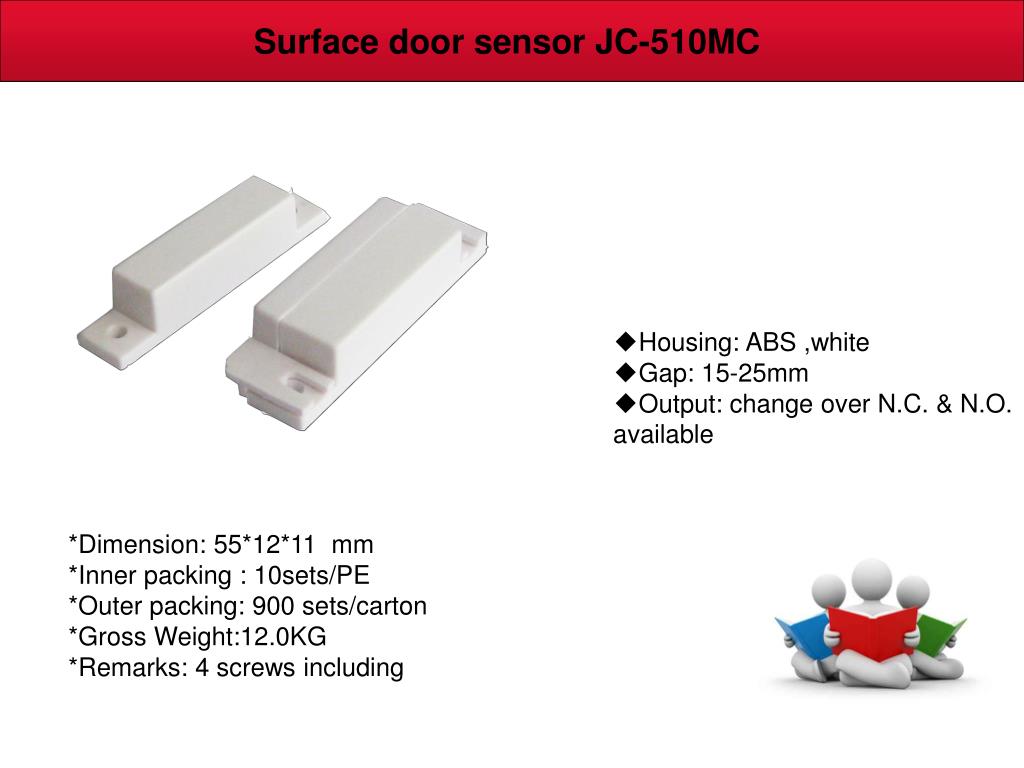

  18. Surface door sensor JC-510MC ◆Housing: ABS ,white ◆Gap: 15-25mm ◆Output: change over N.C. & N.O. available *Dimension: 55*12*11 mm *Inner packing : 10sets/PE *Outer packing: 900 sets/carton *Gross Weight:12.0KG *Remarks: 4 screws including

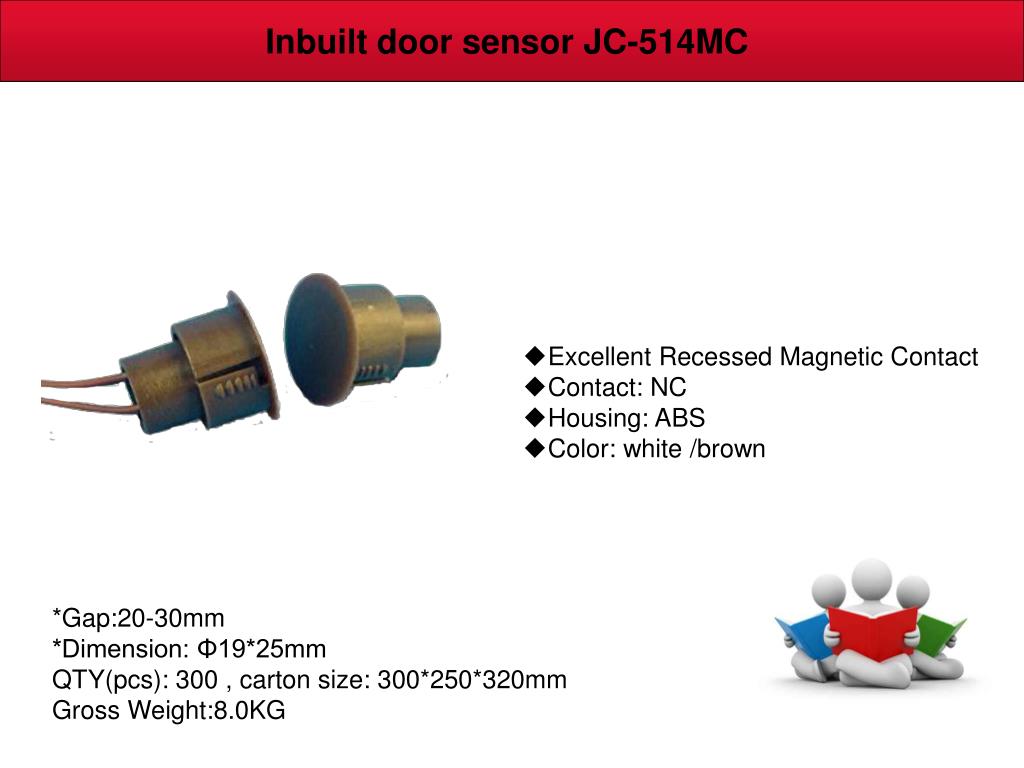

  19. Inbuilt door sensor JC-514MC ◆Excellent Recessed Magnetic Contact ◆Contact: NC ◆Housing: ABS ◆Color: white /brown *Gap:20-30mm *Dimension: Φ19*25mm QTY(pcs): 300 , carton size: 300*250*320mm Gross Weight:8.0KG

  20. Roller shutter magnet sensor JC-515MC ◆Roller shutter magnetic contact ◆Contact switch: N.C. N.O. & changeover available ◆Housing: Metal(Alloy-Al ), grey *Gap: 50 to 70mm *Remarks:4 screws included *Packing: 1sets/bag, *50 sets/carton, Gross weight:16.0KG

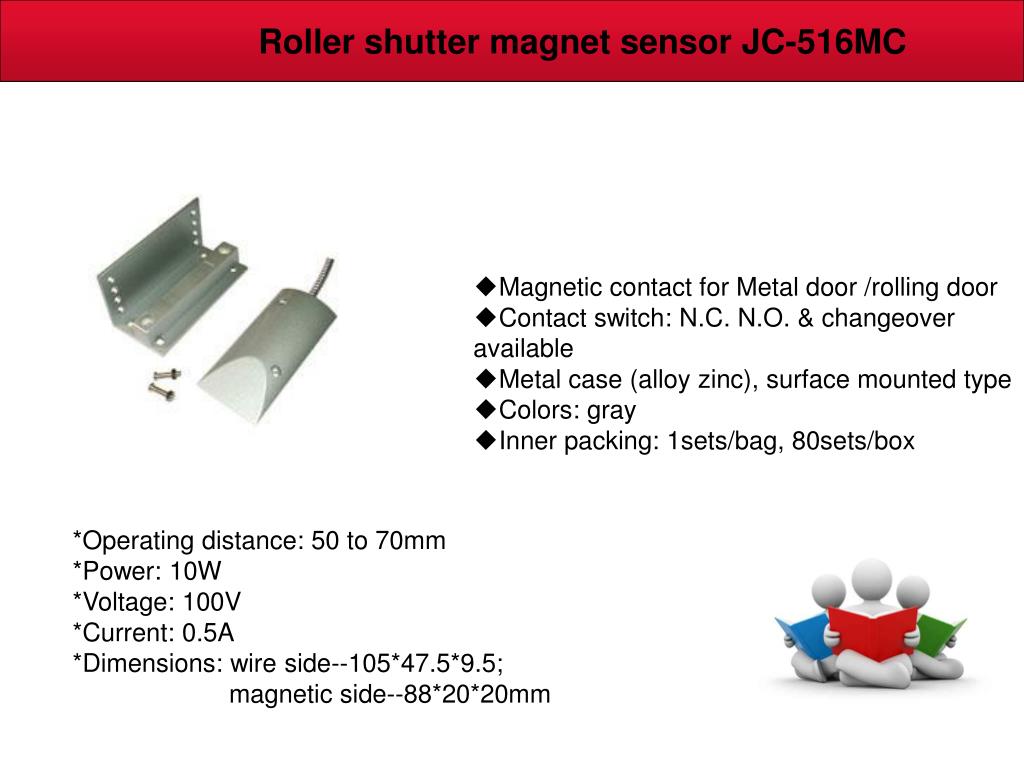

  21. Roller shutter magnet sensor JC-516MC ◆Magnetic contact for Metal door /rolling door ◆Contact switch: N.C. N.O. & changeover available ◆Metal case (alloy zinc), surface mounted type ◆Colors: gray ◆Inner packing: 1sets/bag, 80sets/box *Operating distance: 50 to 70mm *Power: 10W *Voltage: 100V *Current: 0.5A *Dimensions: wire side--105*47.5*9.5; magnetic side--88*20*20mm

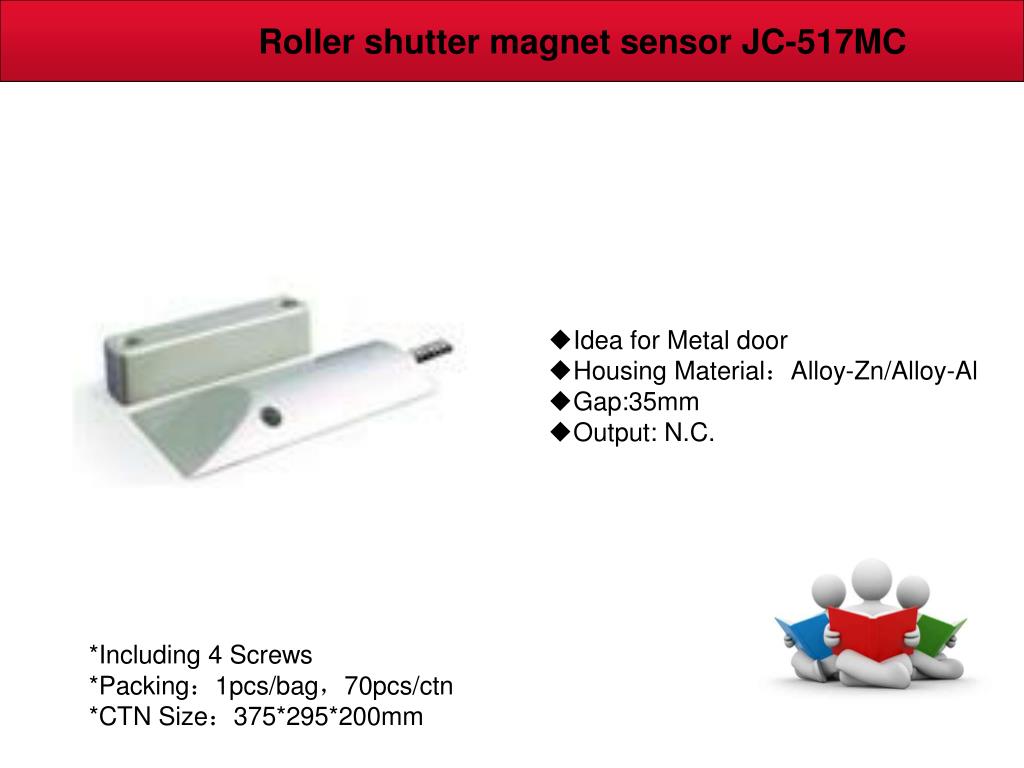

  22. Roller shutter magnet sensor JC-517MC ◆Idea for Metal door ◆Housing Material：Alloy-Zn/Alloy-Al ◆Gap:35mm ◆Output: N.C. *Including 4 Screws *Packing：1pcs/bag，70pcs/ctn *CTN Size：375*295*200mm

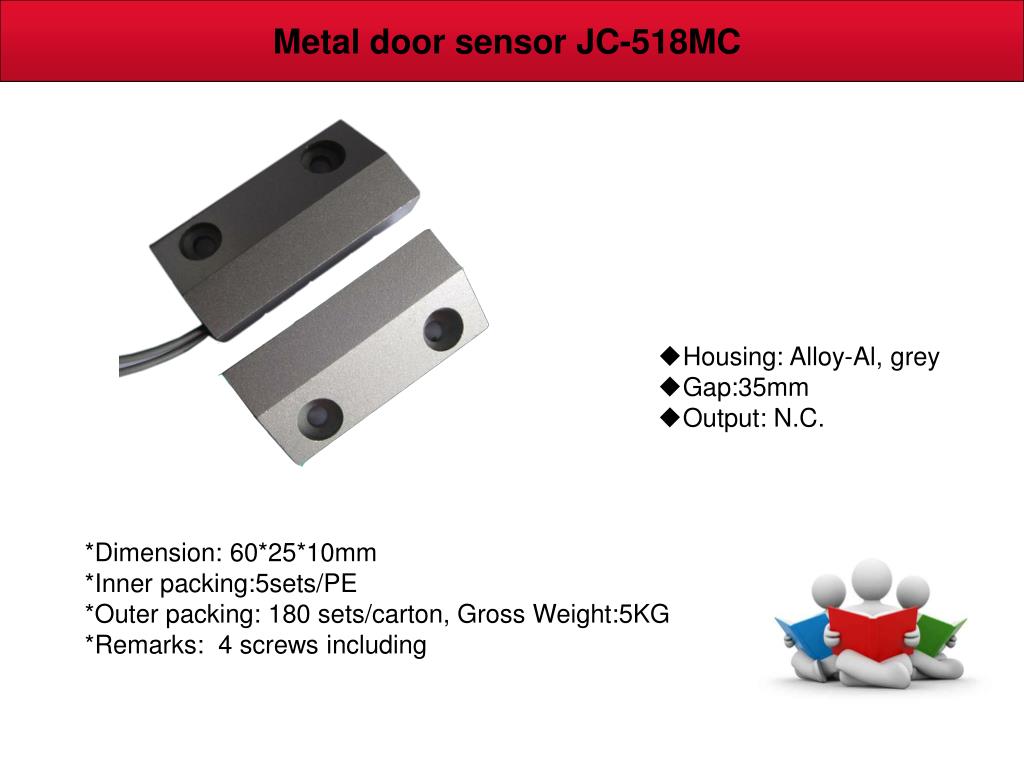

  23. Metal door sensor JC-518MC ◆Housing: Alloy-Al, grey ◆Gap:35mm ◆Output: N.C. *Dimension: 60*25*10mm *Inner packing:5sets/PE *Outer packing: 180 sets/carton, Gross Weight:5KG *Remarks: 4 screws including

  24. Metal door sensorJC-519MC ◆Housing: Alloy-Al, grey ◆Gap:35mm ◆Output: N.O.& NC Changeover available *Dimension: 60*25*10mm *Inner packing:5sets/PE *Outer packing: 180 sets/carton, Gross Weight:5KG *Remarks: 4 screws including

  25. JC TECHNOLOGY GROUP ADD: QianshiMansion, OubeiTown,Yongjia, Wenzhou, Zhejiang, China Zip: 325101 E-mail: sales@jctechgr.com, sales8@jctechgr.com Tel: 0086-155-58858528, 0086-577-67128118Fax: 0086-577-67128118 Skype: jctechsales, tracyheechina MSN: jctechsales@hotmail.com Web: www.jctechgr.com  www.jctechgr.cn Welcome to visit our factory

  26. JC TECHNOLOGY GROUP
