  1. Smart composer New project

  2. Click the PROJECTicon

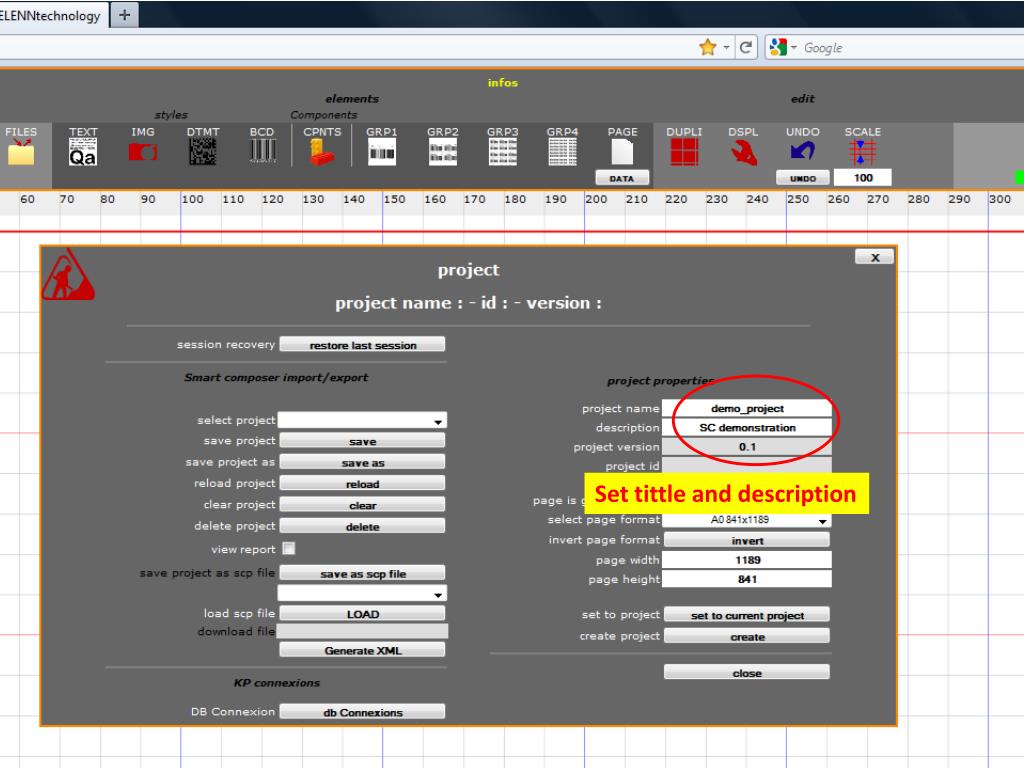

  3. Set tittle and description

  4. Define page level (2 at 4)

  5. Set page format by selecting in the listor affect custom dimension (1/100mm). Click invert to invertwidth and height

  6. Click create

  7. Close the form

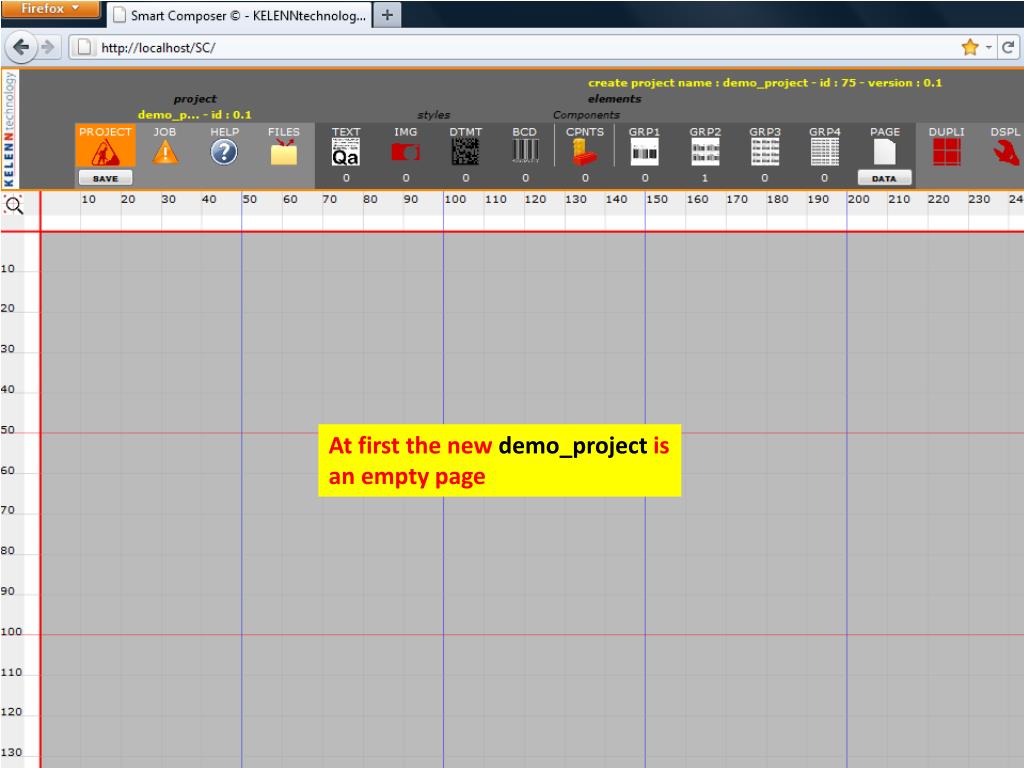

  8. At first the new demo_projectis an empty page

  9. To resize page ? Double-click page width, page heighttype custom dimension or select an otherpage format…and click set to currentproject

  10. Smart composer Manipulate group

  11. Click page to select itThe GRP2iconwill light.Click GRP2icon to open group form !

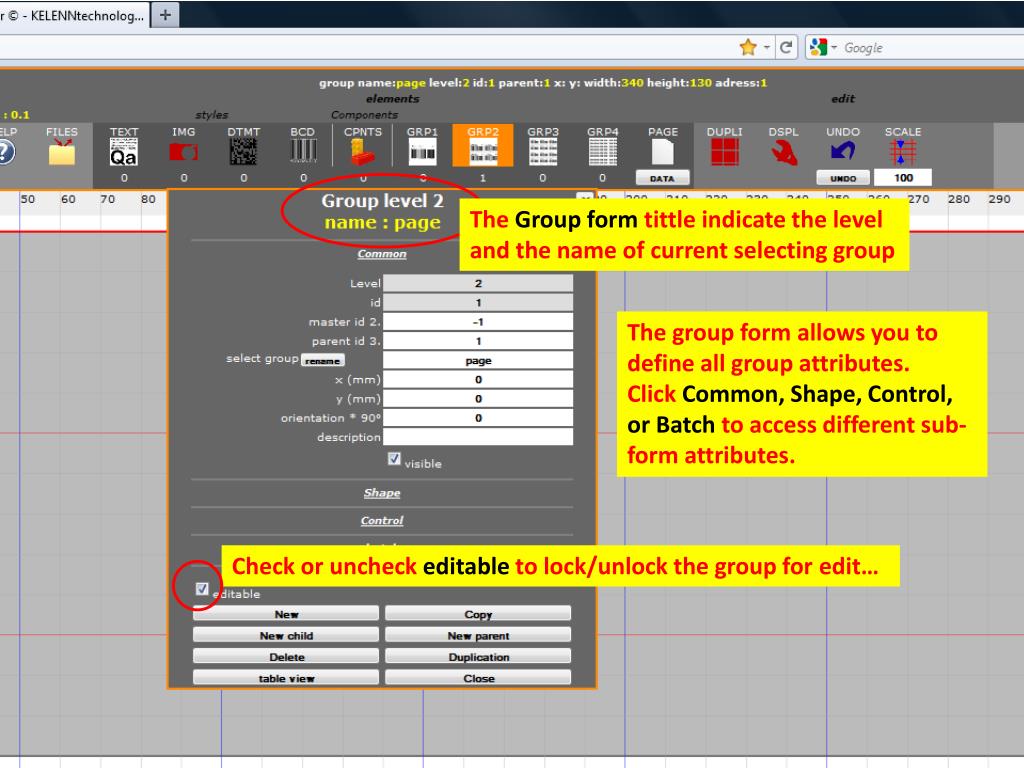

  12. The Group formtittleindicate the leveland the name of currentselecting group The group formallowsyou to define all group attributes.Click Common, Shape, Control, or Batch to accessdifferentsub-formattributes. Check or uncheckeditableto lock/unlock the group for edit…

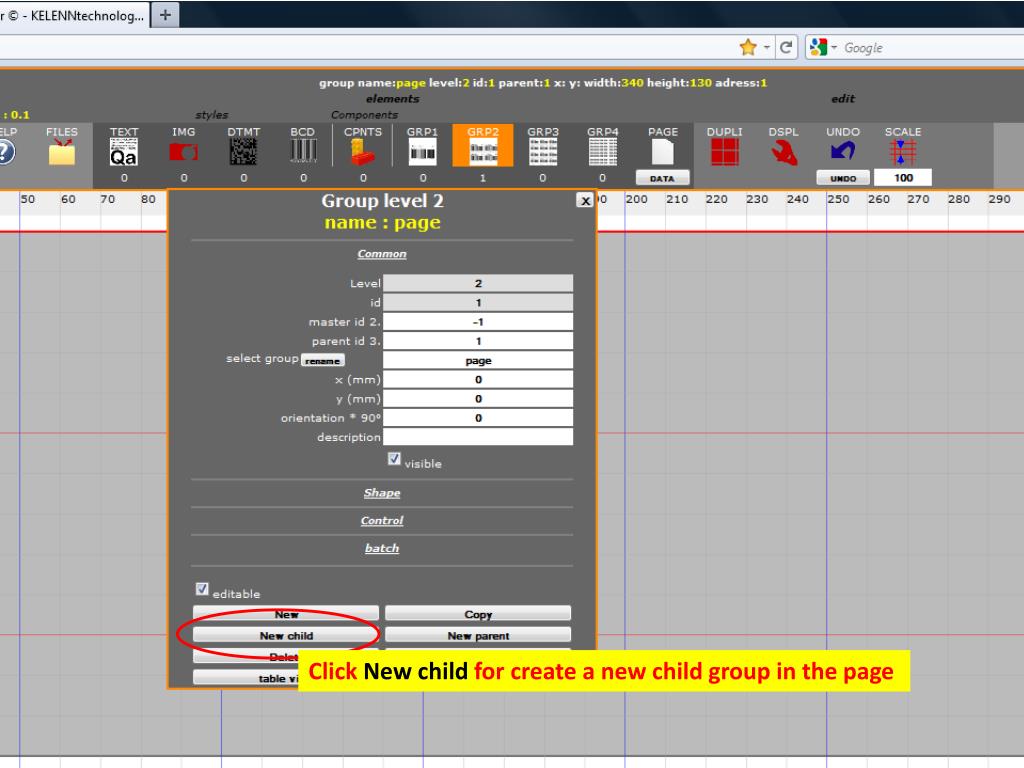

  13. Click New child for create a new child group in the page

  14. Click to confirm group creation

  15. The new group apear to the top-left corner of the pageYou have to resize and move it as youlikeas indicate by the move or the resizecursor

  16. Resize the shape

  17. Move the shape

  18. Smart composer Create style and component

  19. Click the TEXT icon to open Text style form

  20. Click New button to create a new TEXT STYLE

  21. Click OK to confirm

  22. Click the renamebutton Rename the component in dialog box and click OK

  23. Define police, size, color and otherattributes of the style

  24. You see the result in the preview

  25. CreateanyTEXT-STYLEyouneed, withdifferentproperties police, size, color…

  26. Smart composer Create component

  27. Click the level 1 Group to select it

  28. Click CPNT icon to open Componentform Click New buttonto create a new component and confirmwhendialog box apear

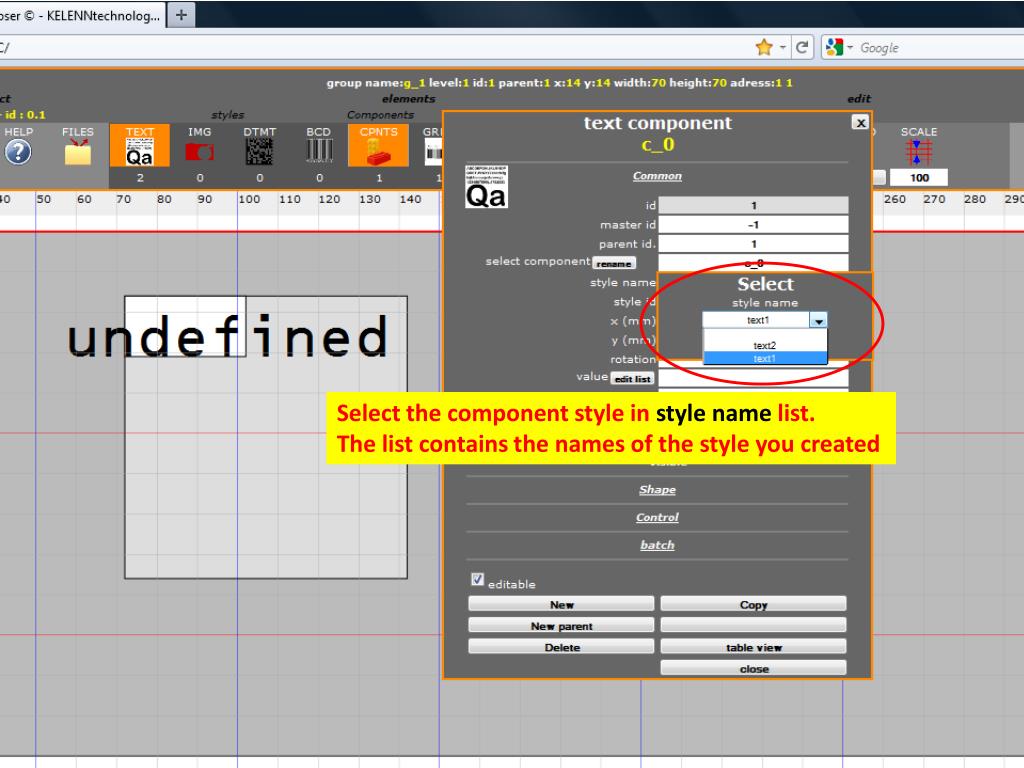

  29. Select the component style in style namelist. The list contains the names of the style you created

  30. Define component attributes description, size, position, value, data, shapeattributes, control attributes…

  31. Smart composer Scale and grid

  32. Ajust the scale in % Define the origine point x-y Click Scalepreset 1 at 4 to change proportion of the graphicspace to a predefined value. affect the current settings to the preset Show hide the grid Active/unactivemagneticgrid Defineposition unit Definegridspacement unit

  33. Gridspacement set at 50mm

  34. Shape size and dimension are automaticaly set to positionning unit multiple in manual move and size operations !

  35. This change the origincoordinates in the scale forme The inspection toolallowsyou to explore the document simply by moving the mouse on ! You can use the mouse wheel to zoom/unzoomwhen the mouse cursoris on the inspection toolor the tool bar (this change the scale)

  36. The reset button reset scaleto 100% and origin x/y to there default values

  37. Smart composer Duplicate groups and components

  38. Sometimeyouneed a components array likethis

  39. Click a component to select it Click the DUPLIicon to open the duplication form

  40. Define the number of vertical and horizontalelements and therespacement Click duplicate to create the array Click delete to erase the duplicatedelements of currentselected group

  41. The redelementis master of the group Whenresize or move it All of the elements of the group resize and move together

  42. When move a blueelementhis new position is set in the arrayscalecreate by the naturalspacement of elements

  43. Resize and move together although their locations have changed Update spacement of the elements

  44. Detach the elements of the array structure and move themanywhere They are alwayslinked for resizing

  45. Check mode cadre to do thiswhen duplicate

  46. Smart composer Undo/redo

  47. Click UNDOicon to open the undo/redoform

  48. Click the UNDObutton to go to the previousstep.

  49. The undo/redoform record each principal editionsteps of yourproject. It allowsyou to go back before a critical point, or have an overview of all whatyou do frombeginning to end of yourcurrent session.

  50. Scroll to a step Number of the currentstep Play the sequencefrom the end to the start Go to previousstep Pause/stop Go to nextstep Play the sequencefrom the start to the end
