  1. Convection Temperature Device - CTD 450

  2. g t w Convection Temperature Device CTD 450 T T

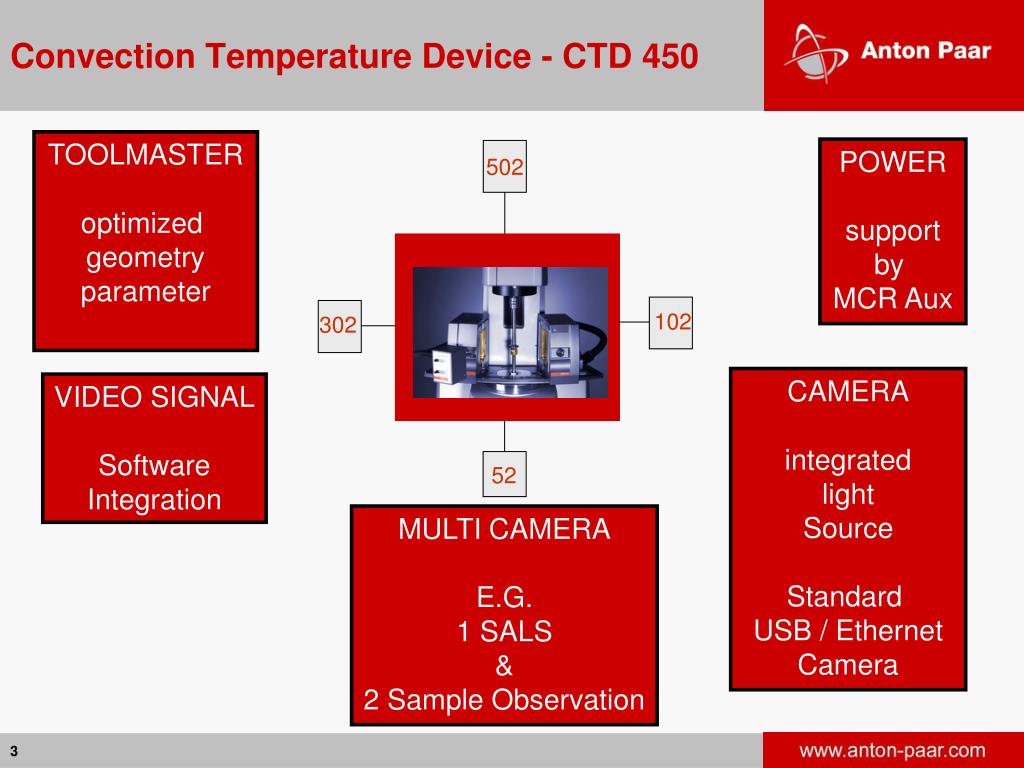

  3. 502 102 302 52 Convection Temperature Device - CTD 450 TOOLMASTER optimized geometry parameter POWER support by MCR Aux CAMERA integrated light Source Standard USB / Ethernet Camera VIDEO SIGNAL Software Integration MULTI CAMERA E.G. 1 SALS & 2 Sample Observation

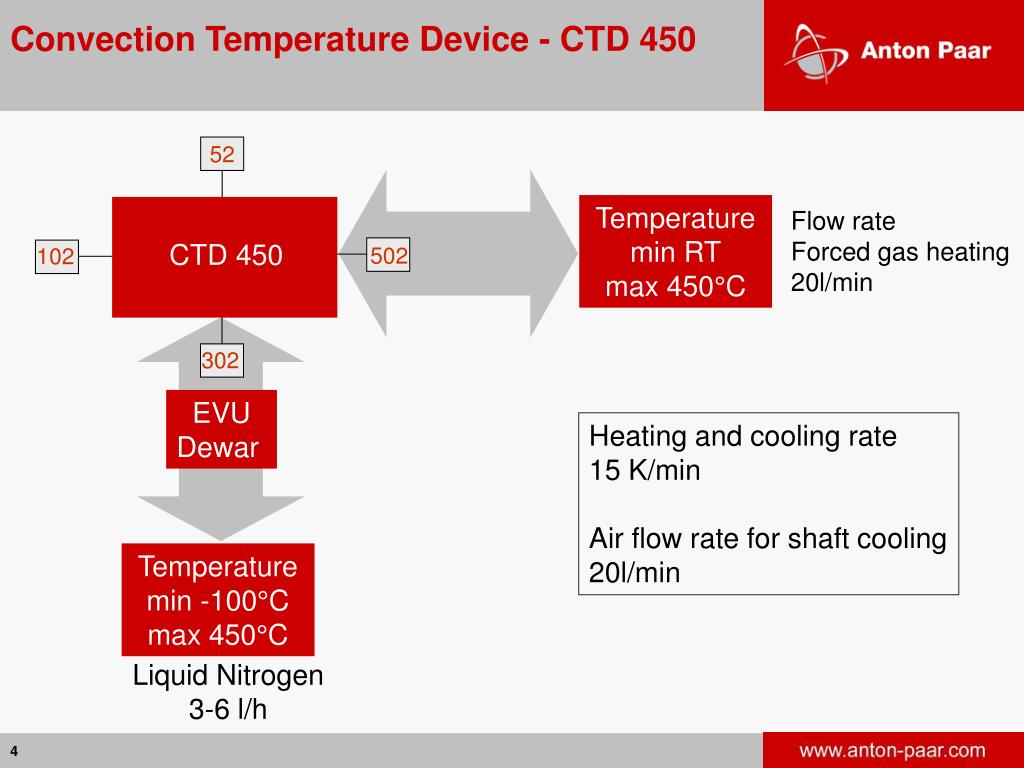

  4. 502 102 CTD 450 52 302 Convection Temperature Device - CTD 450 Temperature min RT max 450°C Flow rate Forced gas heating 20l/min EVU Dewar Heating and cooling rate 15 K/min Air flow rate for shaft cooling 20l/min Temperature min -100°C max 450°C • Liquid Nitrogen • 3-6 l/h

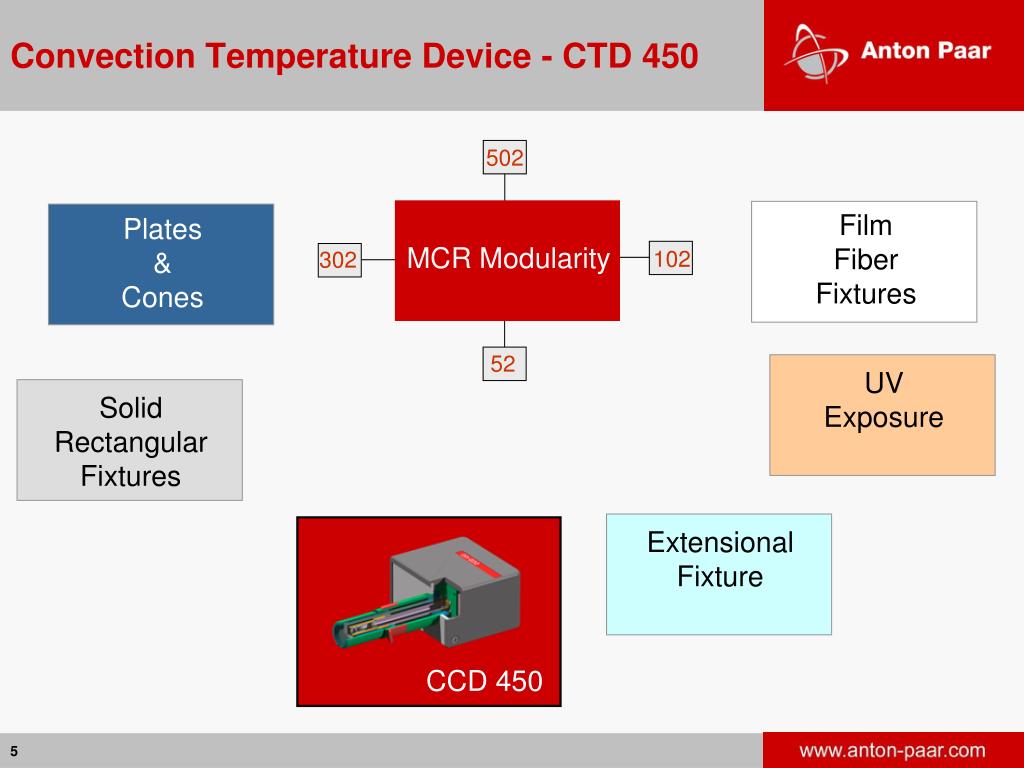

  5. Convection Temperature Device - CTD 450 102 302 MCR Modularity 502 52 Film Fiber Fixtures Plates & Cones Solid Rectangular Fixtures Extensional Fixture UV Exposure CCD 450

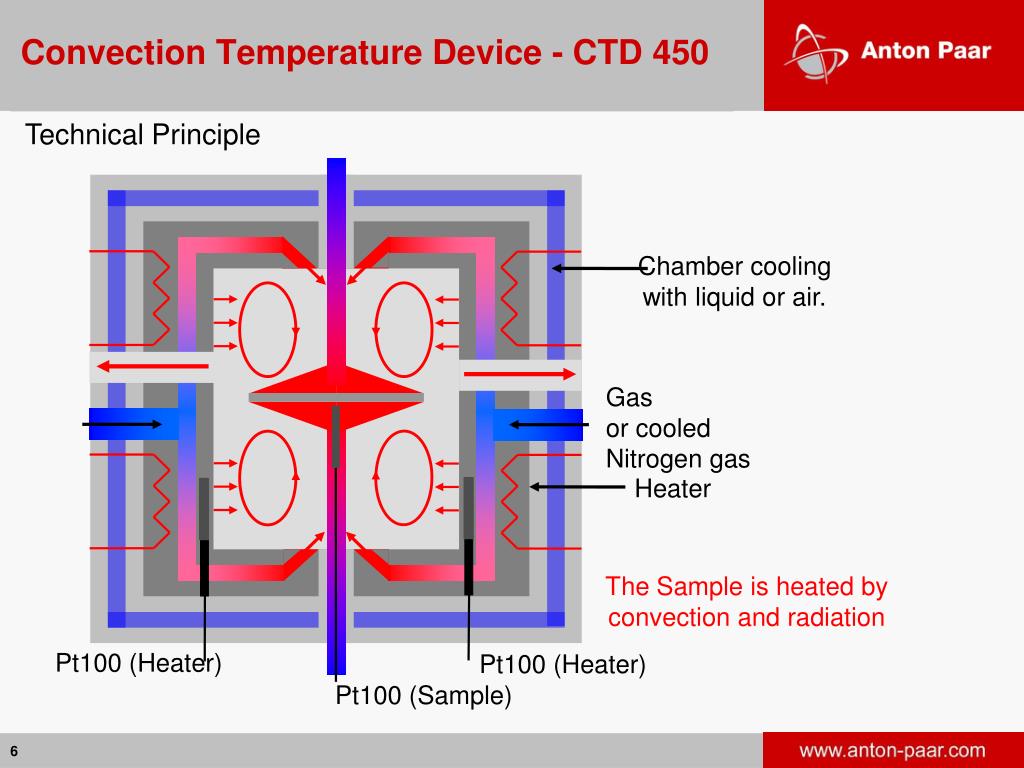

  6. Convection Temperature Device - CTD 450 Technical Principle Chamber cooling with liquid or air. Gas or cooled Nitrogen gas Heater The Sample is heated by convection and radiation Pt100 (Heater) Pt100 (Heater) Pt100 (Sample)

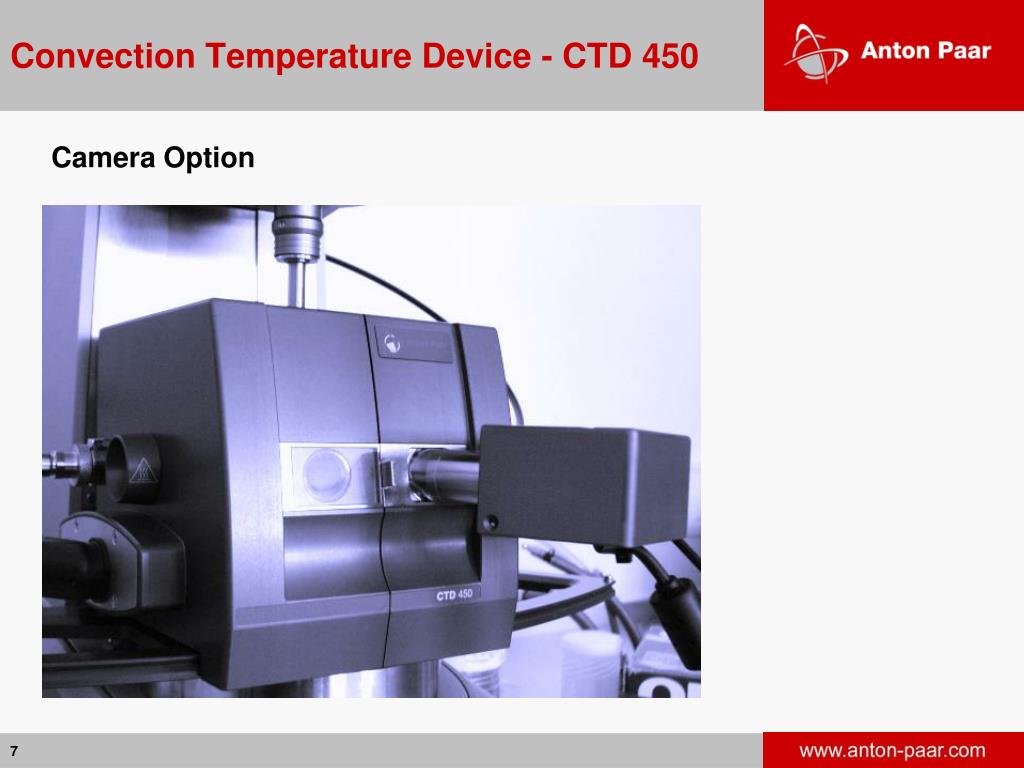

  7. Convection Temperature Device - CTD 450 Camera Option

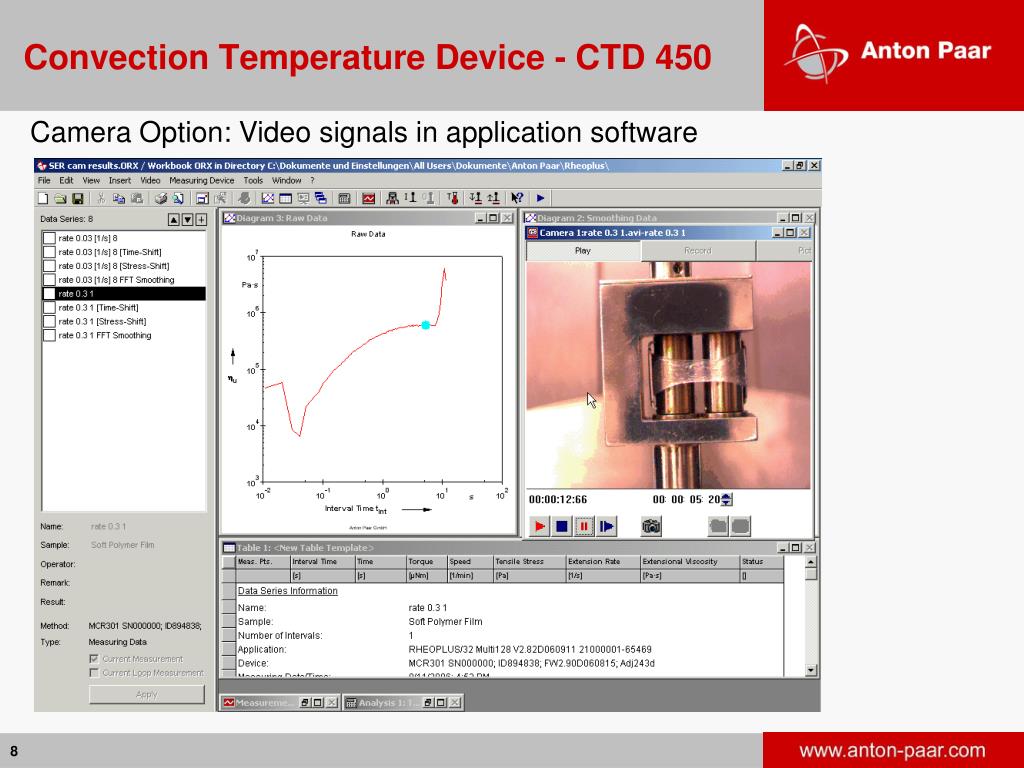

  8. Convection Temperature Device - CTD 450 Camera Option: Video signals in application software

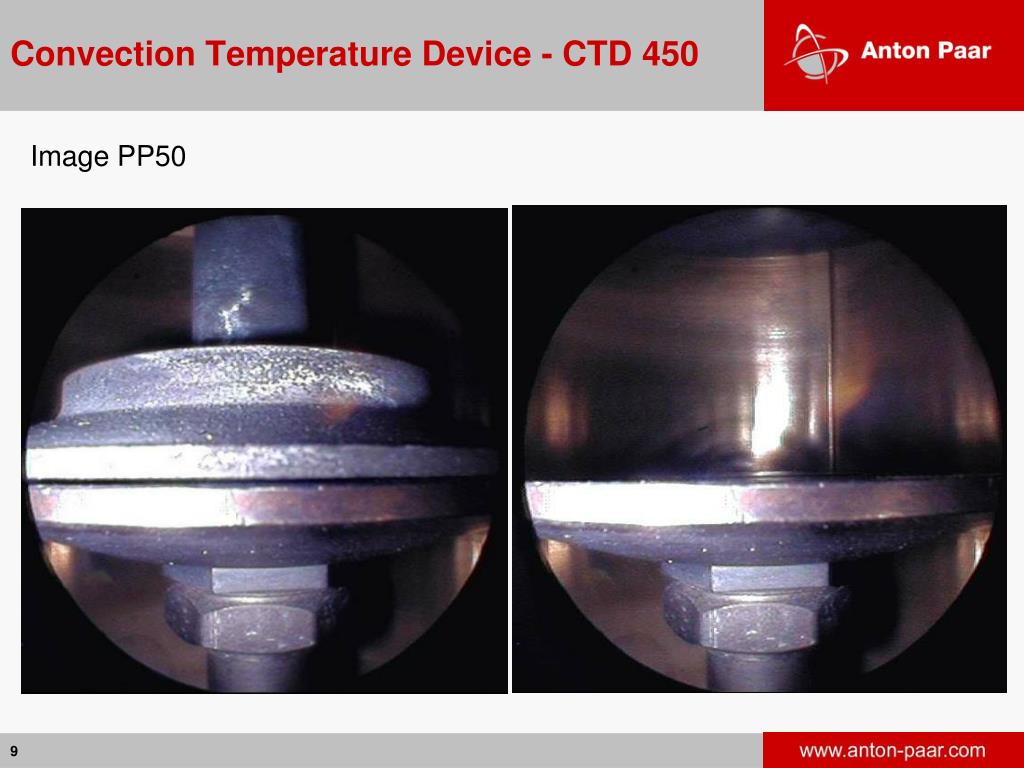

  9. Convection Temperature Device - CTD 450 Image PP50

  10. Measuring plates for CTD450 3 4 2 5 1 1 .... Holder for lower plates 2 .... lower measuring plate 8 mm 3 .... lower measuring plate 25 mm 4 .... lower measuring plate 50 mm 5 .... lower measuring plate 52 mm with groove

  11. Disposable plate systems for CTD450 4 6 3 2 2 5 1 1 .... Holder for lower plates 2 .... Fixture for disposable plates 3 .... Disposable lower measuring plate 50 mm 4 .... Disposable lower measuring plate25 mm 5 .... Fixture for disposable dishes 6 .... Disposable dishes
