1 / 19

Drill: Evaluate each sum

Drill: Evaluate each sum. Recall that. 1 2 + 2 2 + 3 2 + 4 2 + 5 2 =55 [3(0) -2] + [ 3(1) -2] + [ 3(2) -2] + [ 3(3) -2] + [ 3(4) -2] = 20 100 (0 + 1) 2 + 100 (1 + 1) 2 + 100 (2 + 1) 2 + (3 + 1) 2 + 100 (4 + 1) 2 =5500. Write the sum in sigma notation.

azure
Télécharger la présentation

Drill: Evaluate each sum

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Drill: Evaluate each sum • Recall that • 12 + 22 + 32 + 42 + 52 =55 • [3(0) -2] + [3(1) -2] + [3(2) -2] + [3(3) -2] + [3(4) -2] = 20 • 100 (0 + 1)2 + 100 (1 + 1)2+ 100 (2 + 1)2+ (3 + 1)2+ 100 (4 + 1)2=5500

  2. Write the sum in sigma notation • 1 + 2 + 3 + …..+ 98 + 99 • 0 + 2 + 4 + ….48 + 50 • 3(1)2 + 3(2)2 + …. 3(500)2

  3. Definite Integrals Lesson 5.2

  4. Objectives • Students will be able to • express the area under a curve as a definite integral and as a limit of Riemann sums. • compute the area under a curve using a numerical integration procedure.

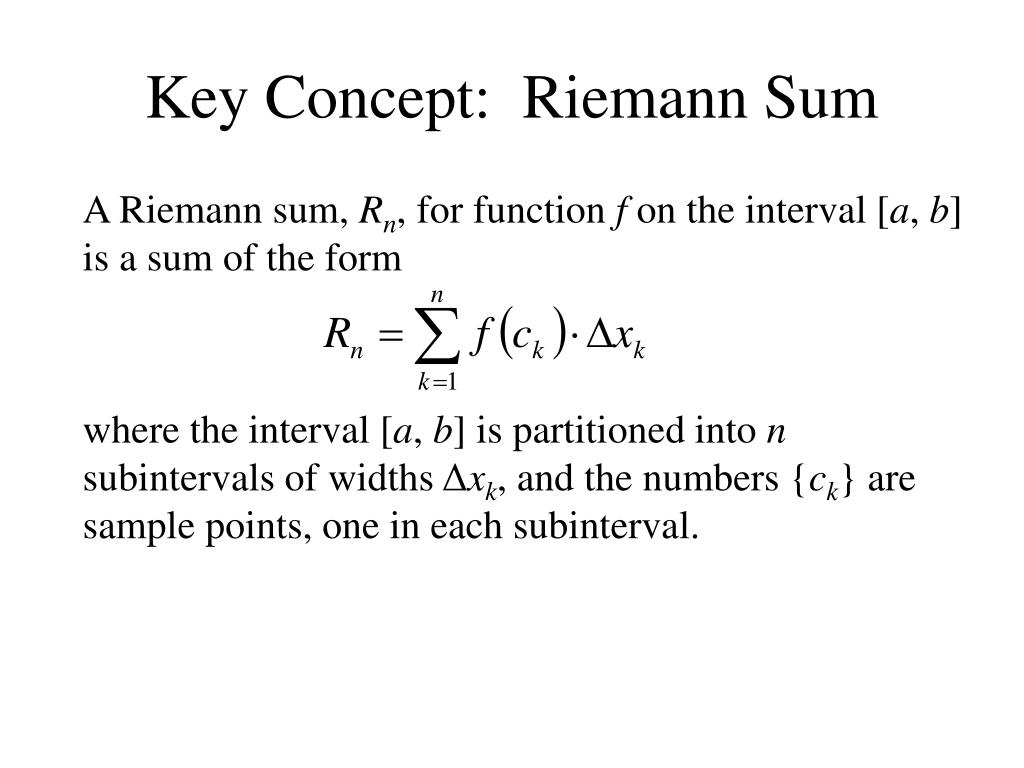

  5. Key Concept: Riemann Sum A Riemann sum, Rn, for function f on the interval [a, b] is a sum of the form where the interval [a, b] is partitioned into n subintervals of widths Δxk, and the numbers {ck} are sample points, one in each subinterval.

  6. Example: Calculating Riemann Sums Upper = using right endpoints: ¼ ( 1/8 + 27/64 + 1) = 99/256 Lower: using left endpoints: ¼ ( 1/64 + 1/8 + 27/64) = 9/64

  7. Definite Integral The function is the integrand Upper limit of integration Let f be continuous on [a,b] and be partitioned into n subintervals of equal length Δx = (b – a)/n ck is some point in the kth subinterval. When you find the value of the integral, you have evaluated the integral Integral sign x is the variable of integration lower limit of integration

  8. Express each limit as a definite interval

  9. The Integral of a Constant

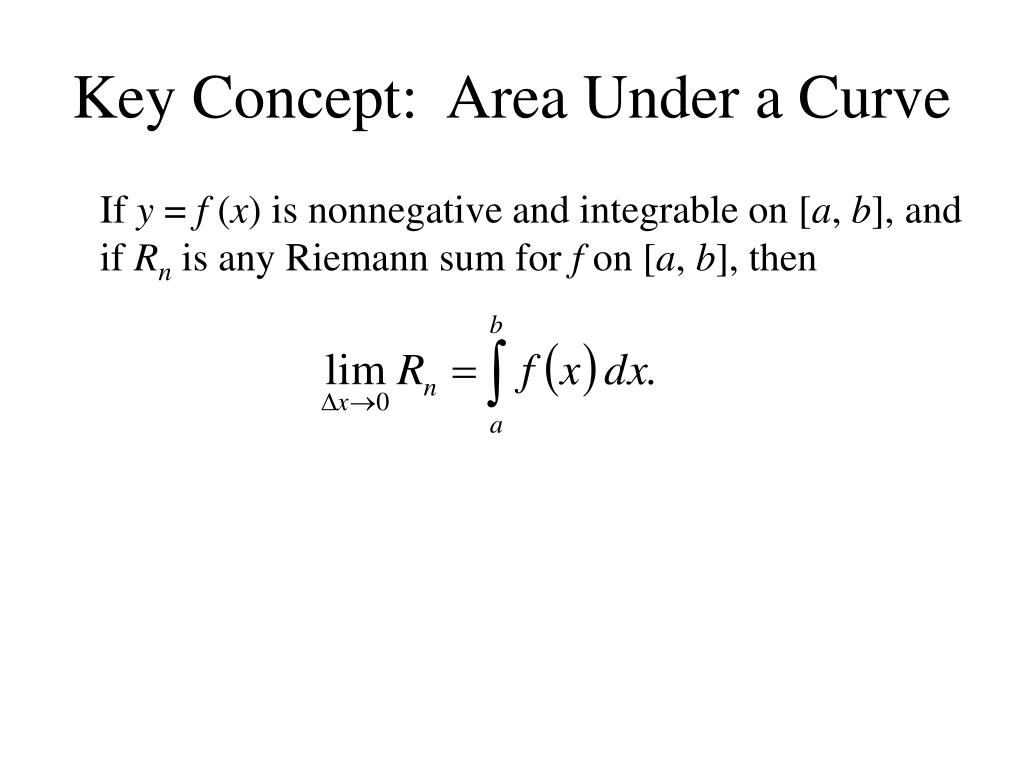

  10. Key Concept: Area Under a Curve If y = f (x) is nonnegative and integrable on [a, b], and if Rn is any Riemann sum for f on [a, b], then

  11. Use the graph of the integrand and areas to evaluate the integral 5 2 6 A=1/2(6)(2+5)= 21

  12. Homework • Day 1: p. 282/3: 3-6, 8-12, 14, 29-30 • Day 2: p. 283: 16-22, 33-36 (NINT means fnInt on your calculator)

  13. Drill (let h be measured in feet) h(t) = -5t2 + 20t + 15 • a. Estimate the instantaneous velocity of the ball 3 seconds after it’s thrown. • b. Estimate the acceleration of the ball 3 seconds after it’s thrown. • c. Estimate the maximum height. • v(t) = -10t + 20 • v(3) = -30 + 20 = -10 ft/s • a(t) = -10 ft/ s2 • 0 = -10t + 20 • t = 2 • h(2) = 35 feet

  14. Example Area Under a Curve Determine the area under the curve over the interval [–4, 4].

  15. Example Area Under a Curve Evaluate the integral.

  16. Example: Estimate • Solution: Graph the function. It is a semi-circle. The shaded area represents the area of the region bounded by the semicircle, the x-axis, and the lines x =2 and x = 3. • Determine the area of the sector of the circle: ½r2θ, where r is radius and θ is the angle in RADIANS! • You will need to find θ by tan-1(y/x) • Determine the area of the triangle: ½bh or ½ xy • Subtract the two areas.

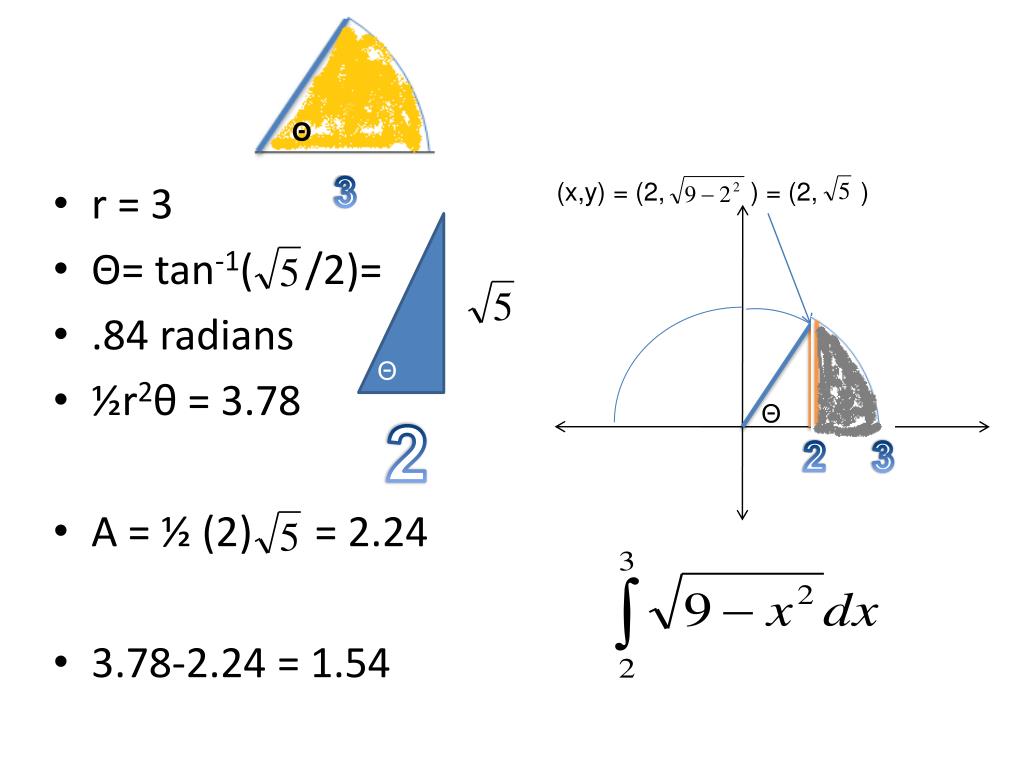

  17. Θ 3 (x,y) = (2, ) = (2, ) • r = 3 • Θ= tan-1( /2)= • .84 radians • ½r2θ = 3.78 • A = ½ (2) = 2.24 • 3.78-2.24 = 1.54 Θ Θ 2 2 3

  18. Using your calculator to determine integrals • Math • 9: fnInt • fnInt(f(x), x , a, b)

  19. Example Using Your Calculator to Evaluate Integrals Approximate the following integrals using a calculator.
