  1. Cell Culture Facilities and Equipment Presenter: Dr. R. Rahbarghazi

  2. Small Tissue Culture Laboratory suggested for use by two or three persons

  3. Medium-Sized Tissue Culture Laboratory suitable for five or six persons

  4. Tissue Culture Lab with Adjacent prep room with medium-sized tissue culture lab

  5. Large Tissue Culture Laboratory; suitable for 20 to 30 persons

  6. High-Efficiency Particulate Air (HEPA)

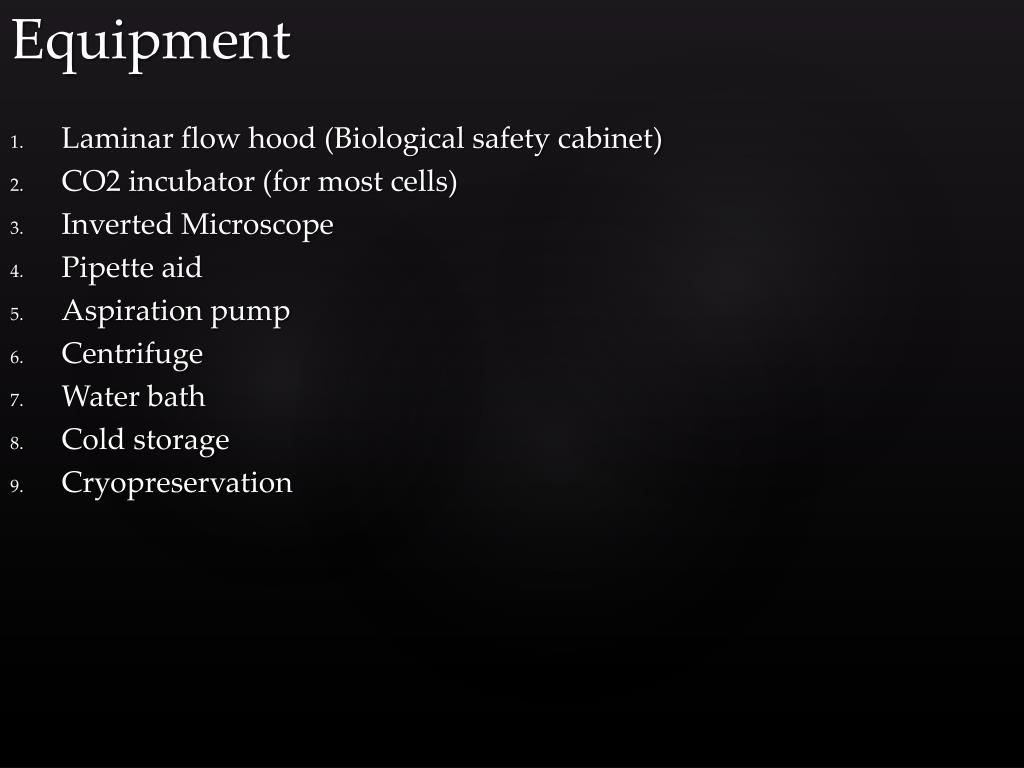

  7. Laminar flow hood (Biological safety cabinet) • CO2 incubator (for most cells) • Inverted Microscope • Pipette aid • Aspiration pump • Centrifuge • Water bath • Cold storage • Cryopreservation Equipment

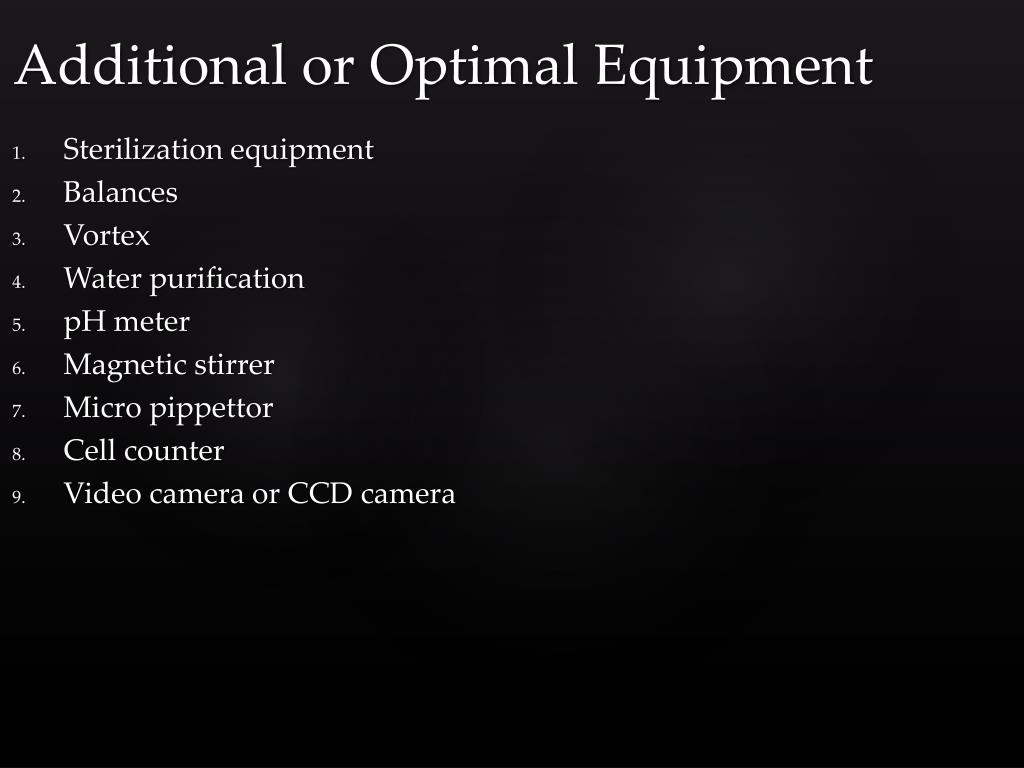

  8. Sterilization equipment • Balances • Vortex • Water purification • pH meter • Magnetic stirrer • Micro pippettor • Cell counter • Video camera or CCD camera Additional or Optimal Equipment

  9. 1. Vertical mode 2. Horizontal mode Laminar flow hood (Biological safety cabinet)

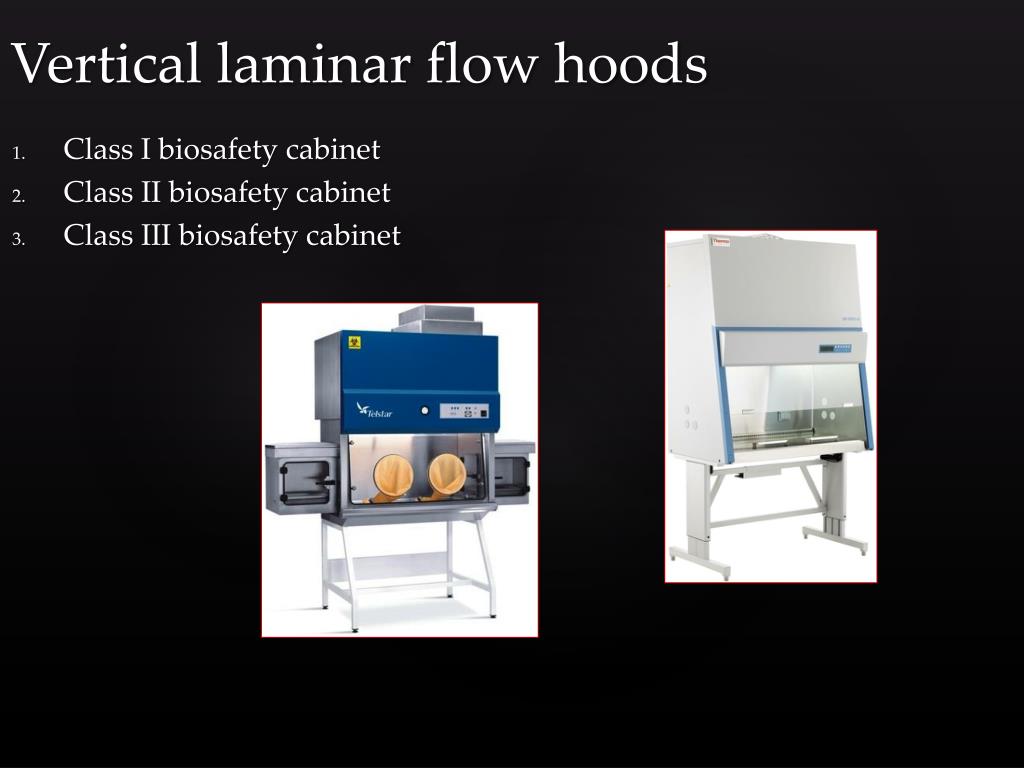

  10. Class I biosafety cabinet • Class II biosafety cabinet • Class III biosafety cabinet Vertical laminar flow hoods

  11. Air is circulated away from operator • 100% of air is exhausted • Is optimal for radionuclides and volatile (toxic) materials • Dirty room air contaminates materials Class I Biosafety Cabinet

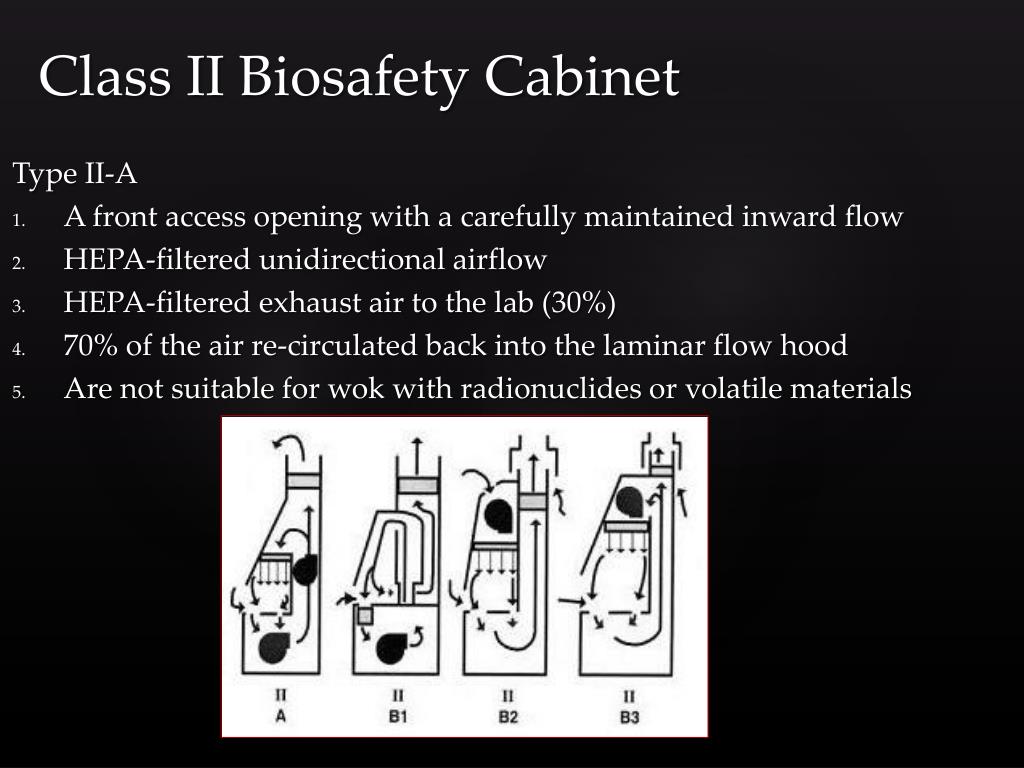

  12. Type II-A • A front access opening with a carefully maintained inward flow • HEPA-filtered unidirectional airflow • HEPA-filtered exhaust air to the lab (30%) • 70% of the air re-circulated back into the laminar flow hood • Are not suitable for wok with radionuclides or volatile materials Class II Biosafety Cabinet

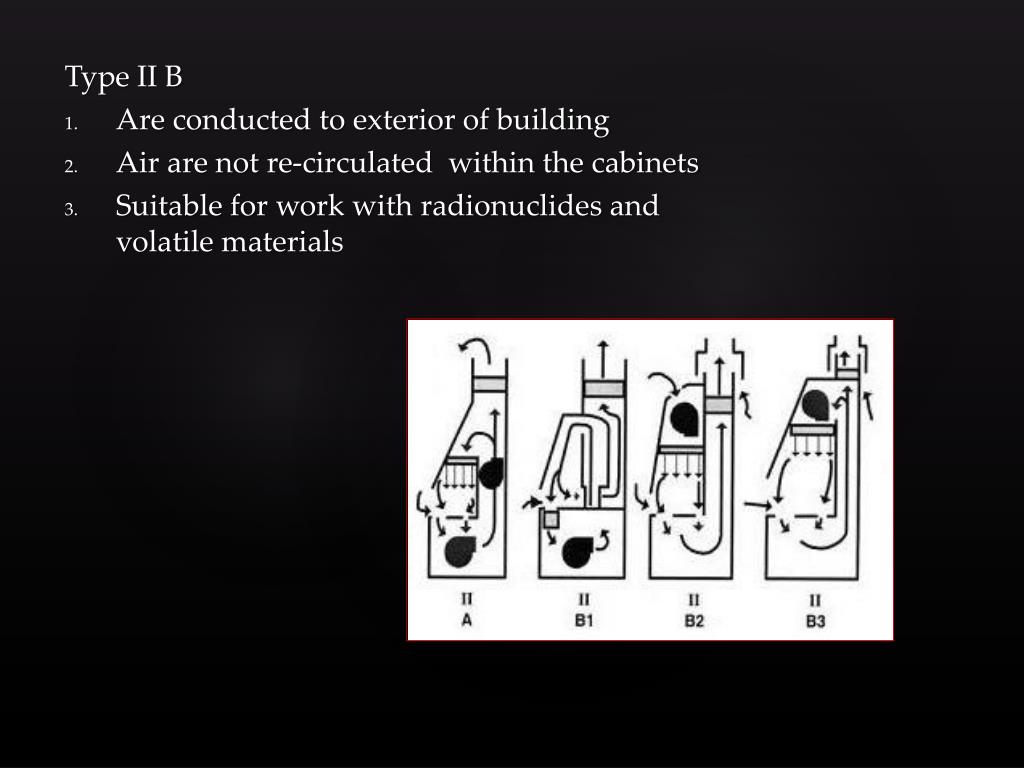

  13. Type II B • Are conducted to exterior of building • Air are not re-circulated within the cabinets • Suitable for work with radionuclides and volatile materials

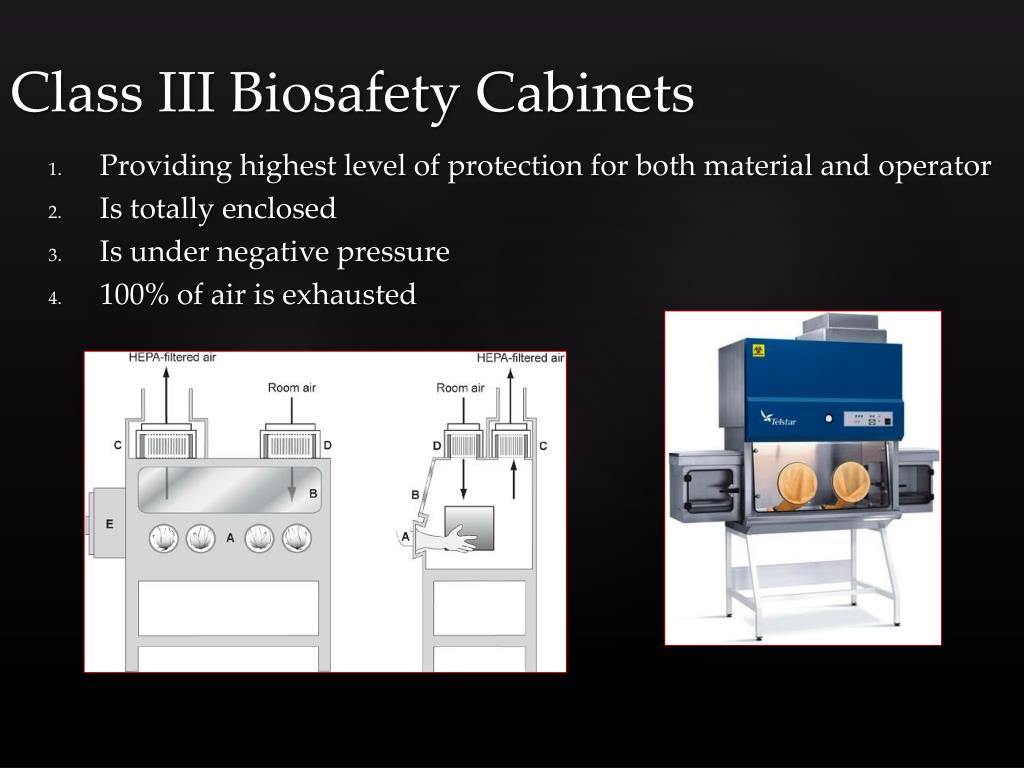

  14. Providing highest level of protection for both material and operator • Is totally enclosed • Is under negative pressure • 100% of air is exhausted Class III Biosafety Cabinets

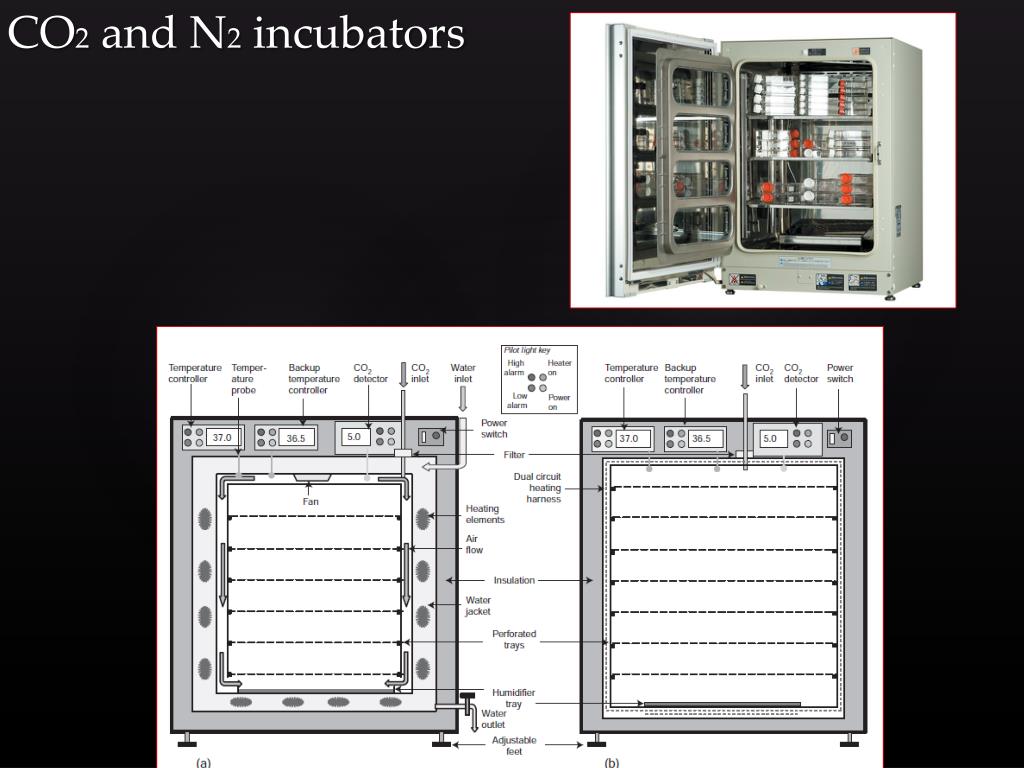

  15. CO2and N2 incubators

  16. Inverted microscope Fluorescent inverted microscope Inverted Microscope Stereo or dissecting microscope

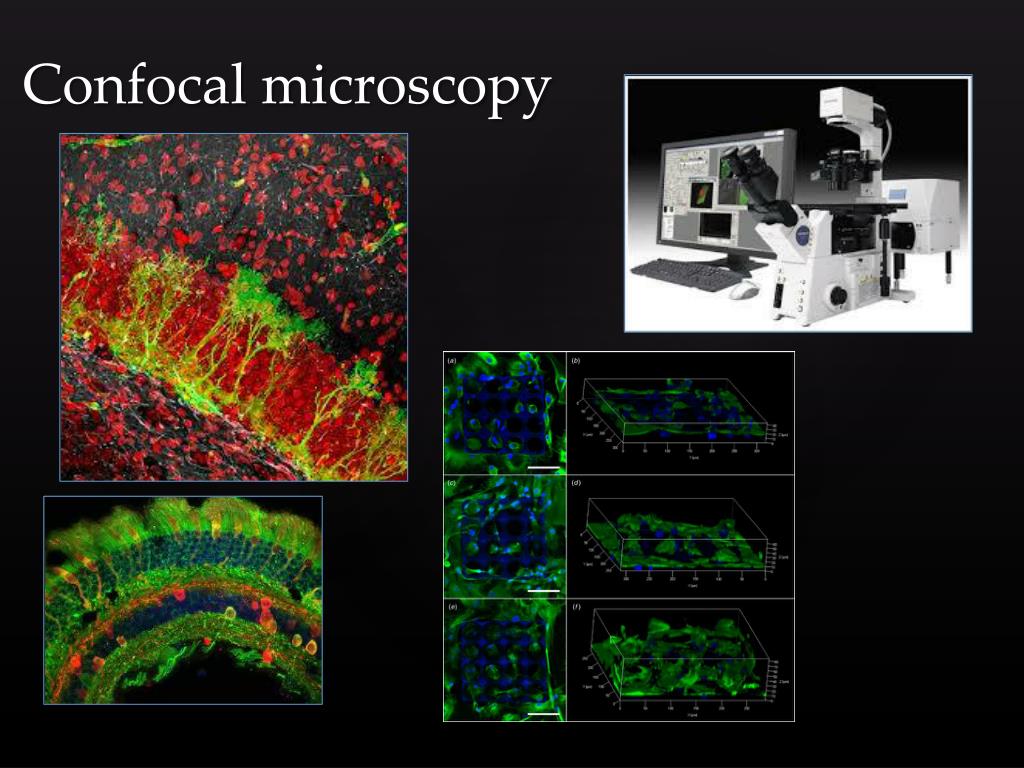

  17. Confocal microscopy

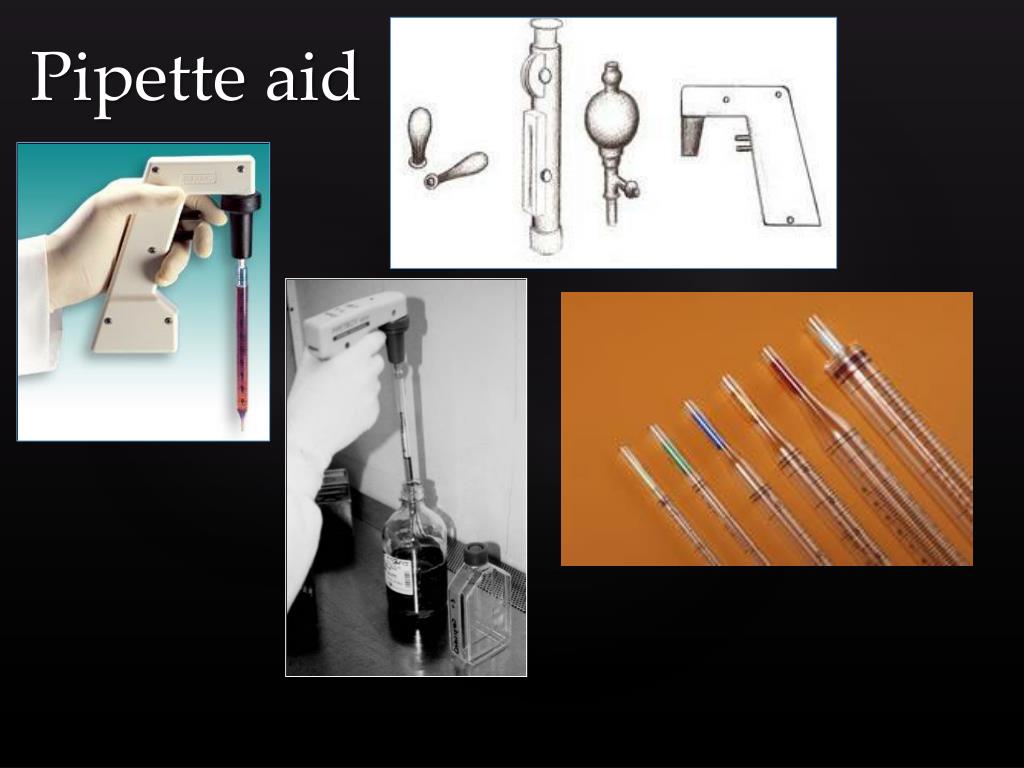

  18. Pipette aid

  19. Aspiration (vacuum) pump

  20. Stirrer Flask

  21. Bioreactors

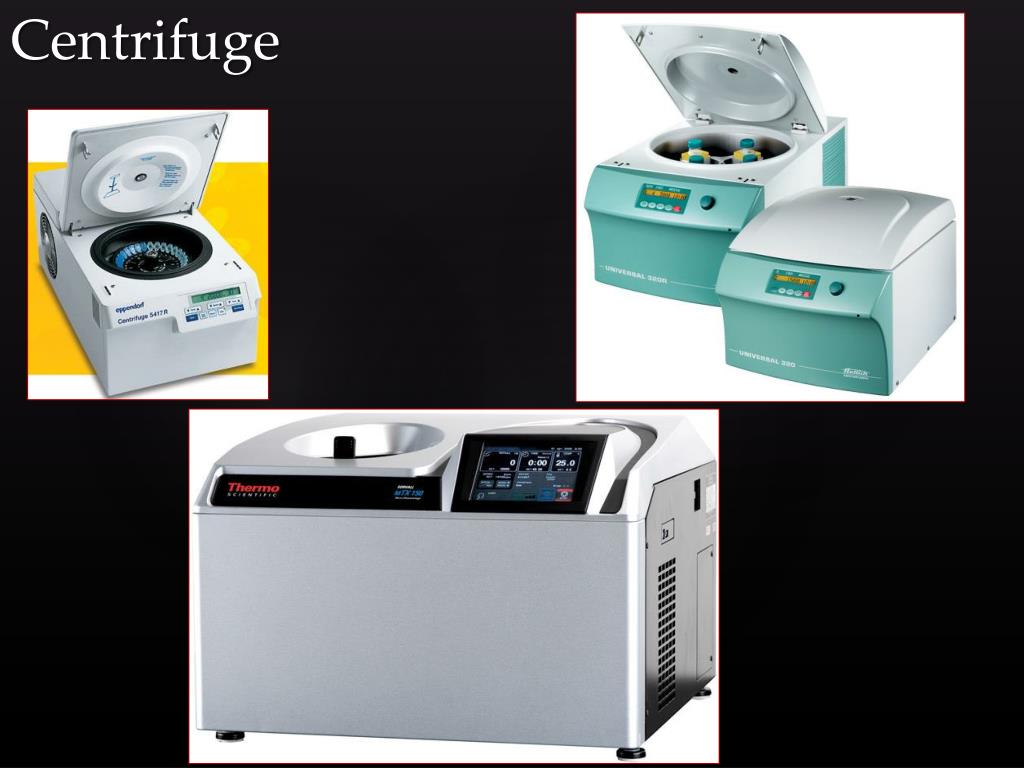

  22. Centrifuge

  23. Cold storage

  24. Cryopreservation

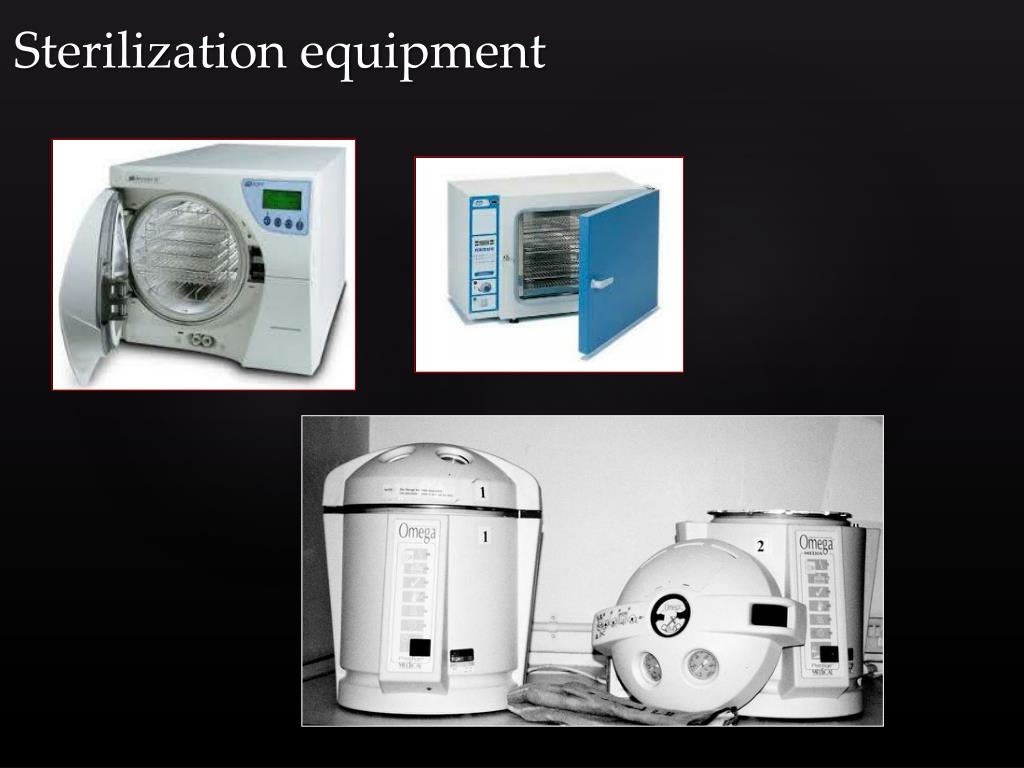

  25. Sterilization equipment

  26. Micro-filters

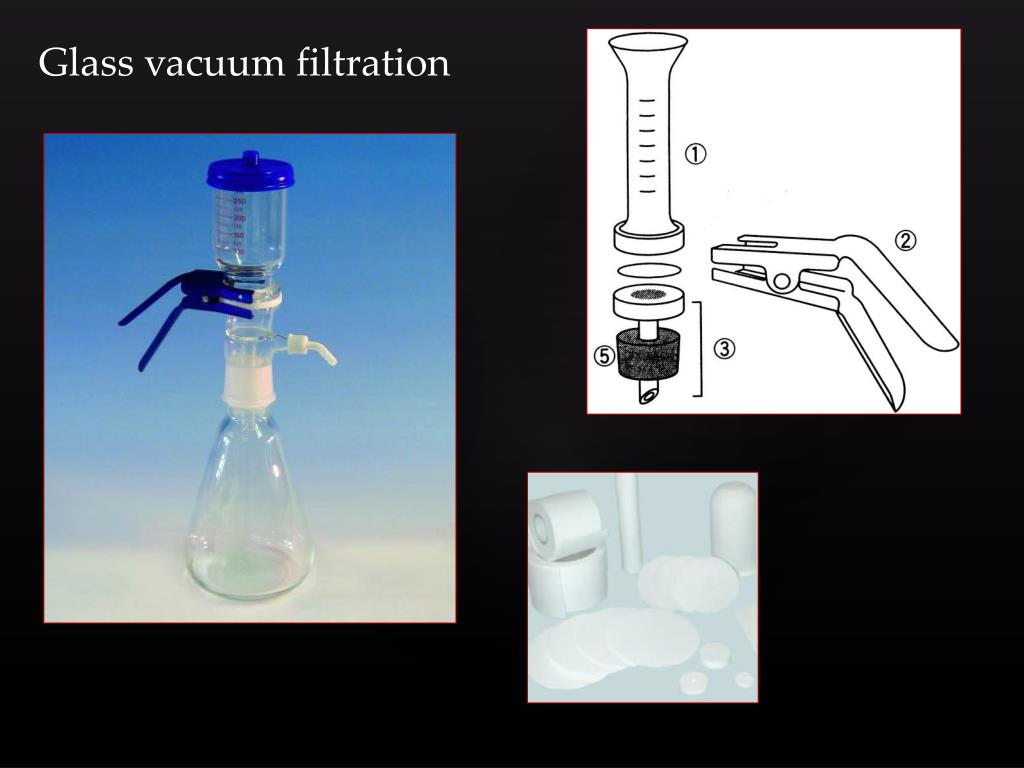

  27. Glass vacuum filtration

  28. Vortex Water bath Balances

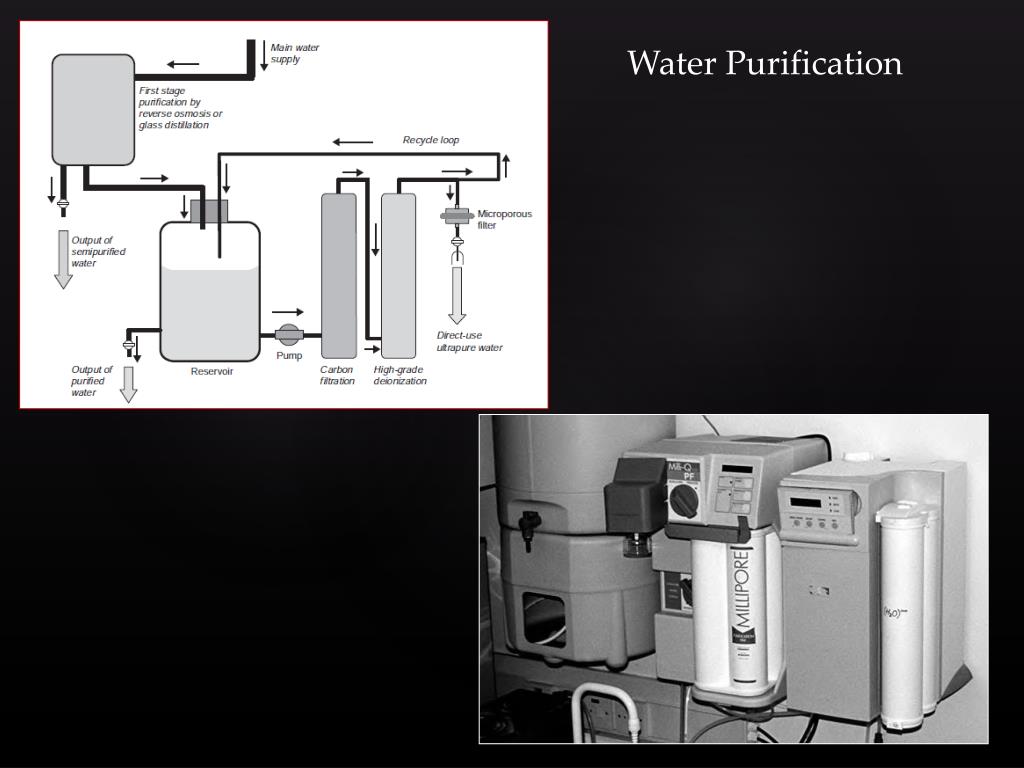

  29. Water Purification

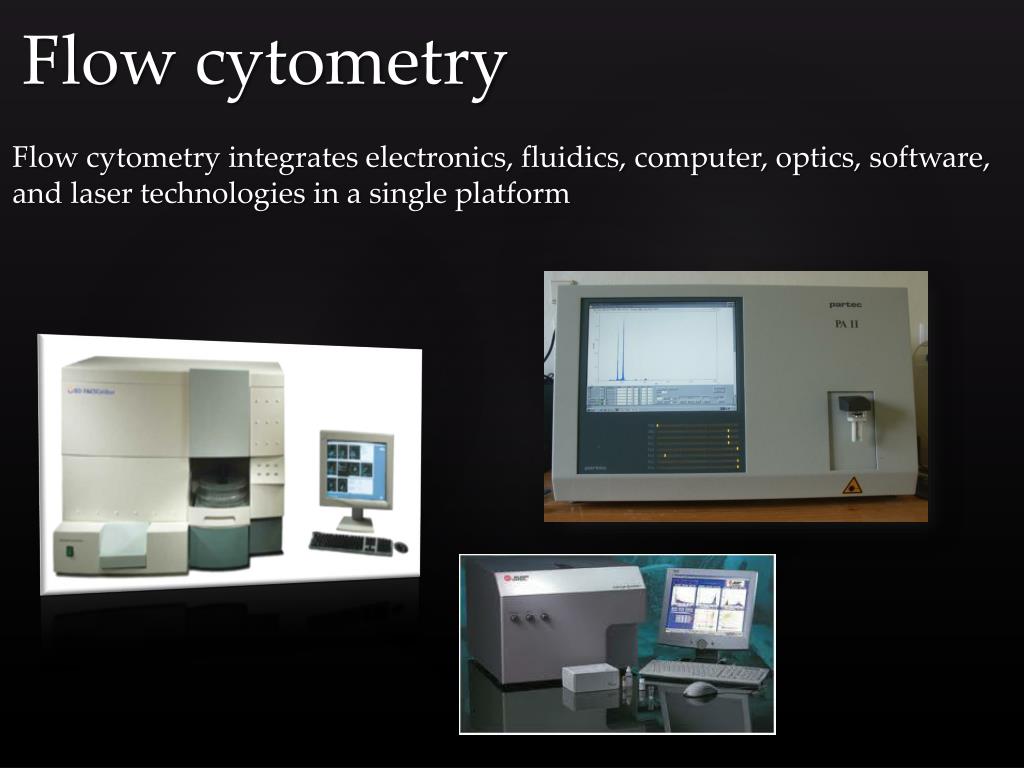

  30. Flow cytometry integrates electronics, fluidics, computer, optics, software, and laser technologies in a single platform Flow cytometry

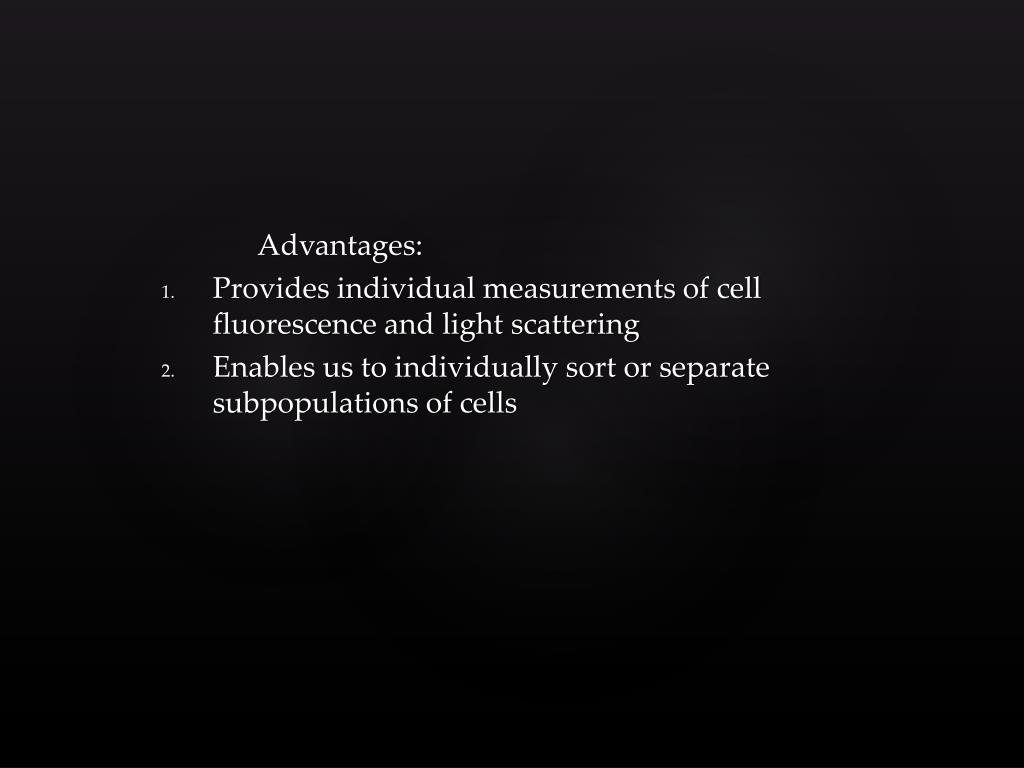

  31. Advantages: • Provides individual measurements of cell fluorescence and light scattering • Enables us to individually sort or separate subpopulations of cells

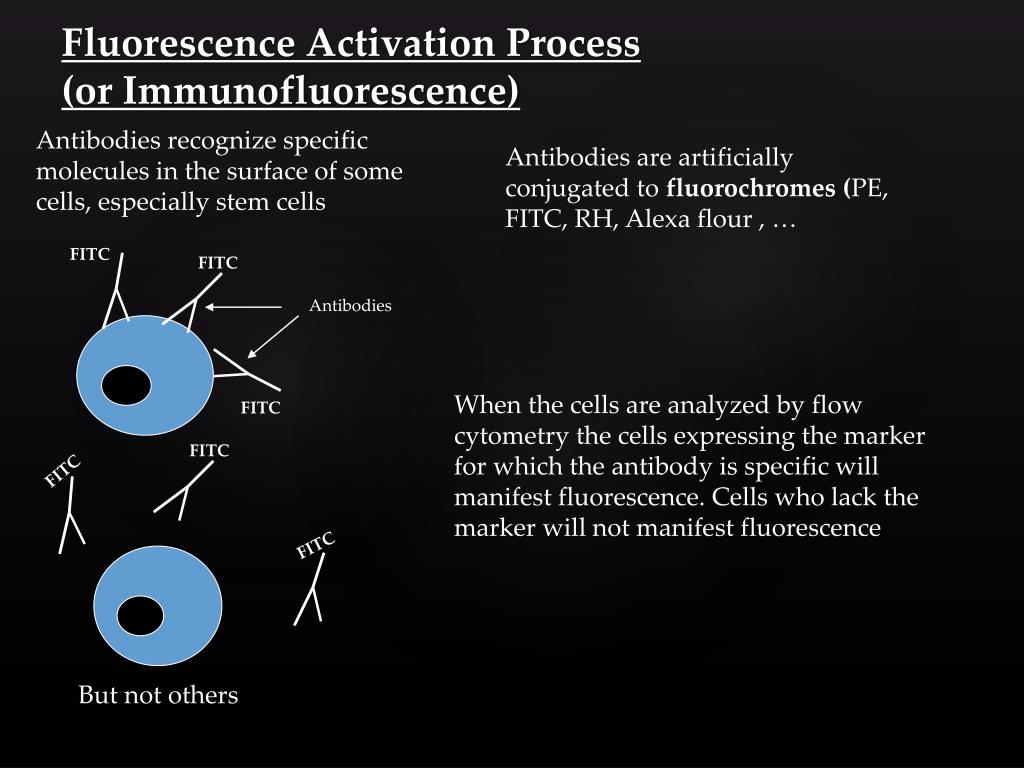

  32. FITC FITC FITC FITC Antibodies recognize specific molecules in the surface of some cells, especially stem cells Antibodies are artificially conjugated to fluorochromes (PE, FITC, RH, Alexa flour , … FITC Antibodies When the cells are analyzed by flow cytometry the cells expressing the marker for which the antibody is specific will manifest fluorescence. Cells who lack the marker will not manifest fluorescence FITC Fluorescence Activation Process (or Immunofluorescence) But not others

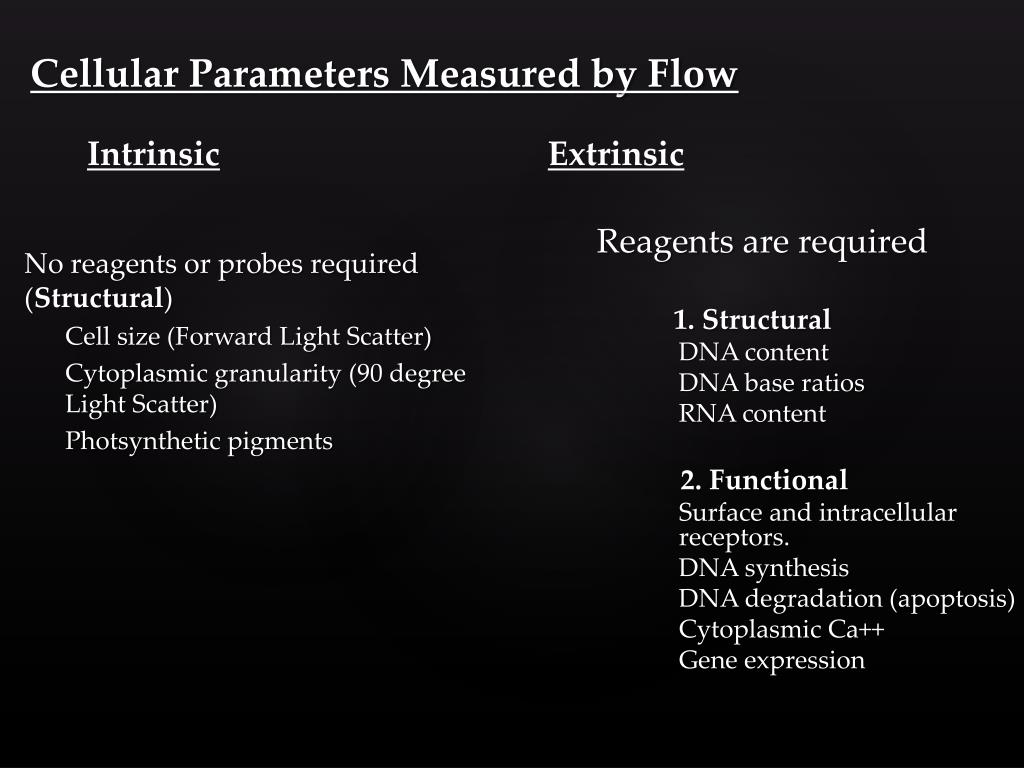

  33. No reagents or probes required (Structural) Cell size (Forward Light Scatter) Cytoplasmic granularity (90 degree Light Scatter) Photsynthetic pigments Reagents are required 1. Structural DNA content DNA base ratios RNA content 2. Functional Surface and intracellular receptors. DNA synthesis DNA degradation (apoptosis) Cytoplasmic Ca++ Gene expression Intrinsic Extrinsic Cellular Parameters Measured by Flow

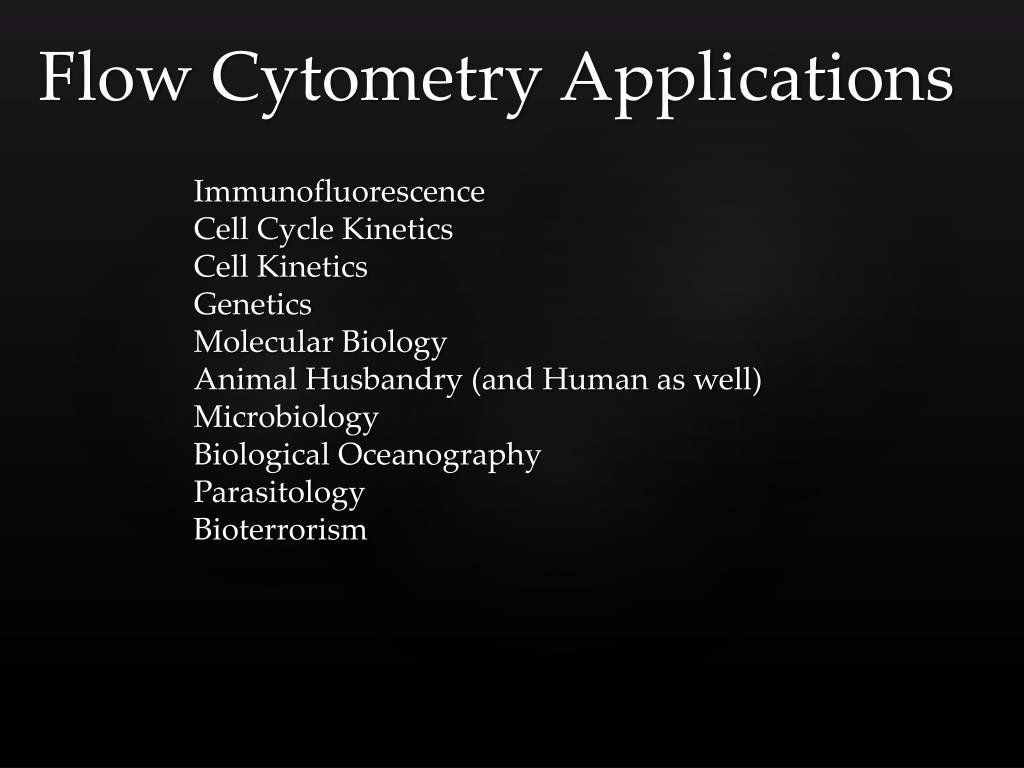

  34. Immunofluorescence Cell Cycle Kinetics Cell Kinetics Genetics Molecular Biology Animal Husbandry (and Human as well) Microbiology Biological Oceanography Parasitology Bioterrorism Flow Cytometry Applications

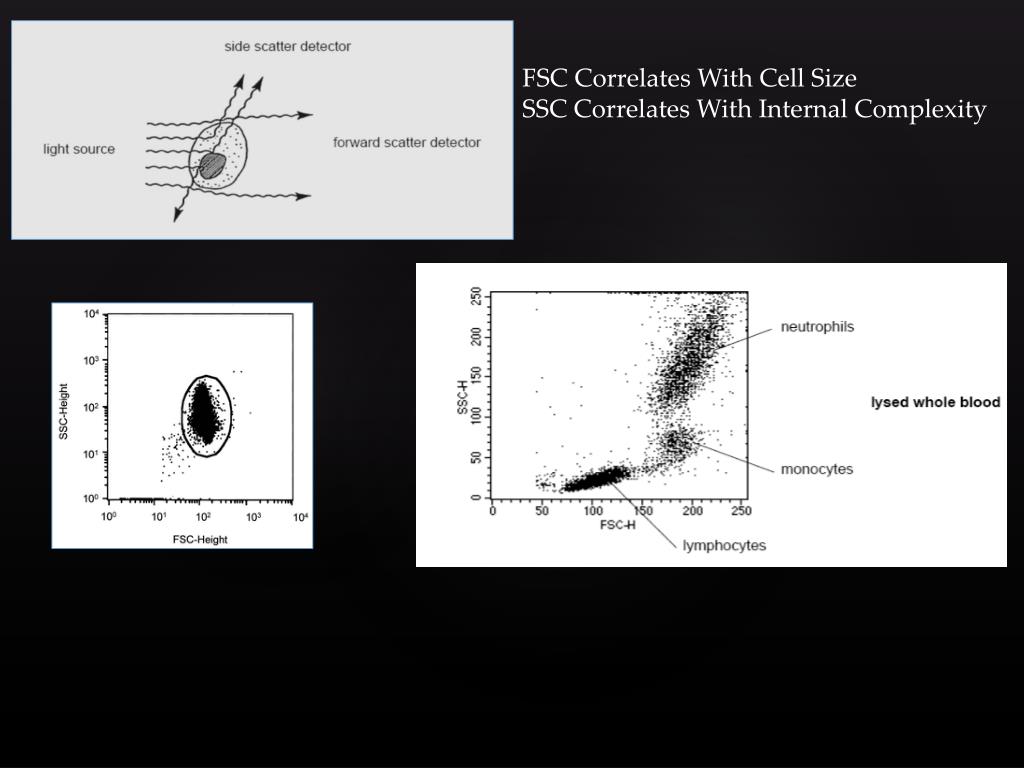

  35. FSC Correlates With Cell Size SSC Correlates With Internal Complexity

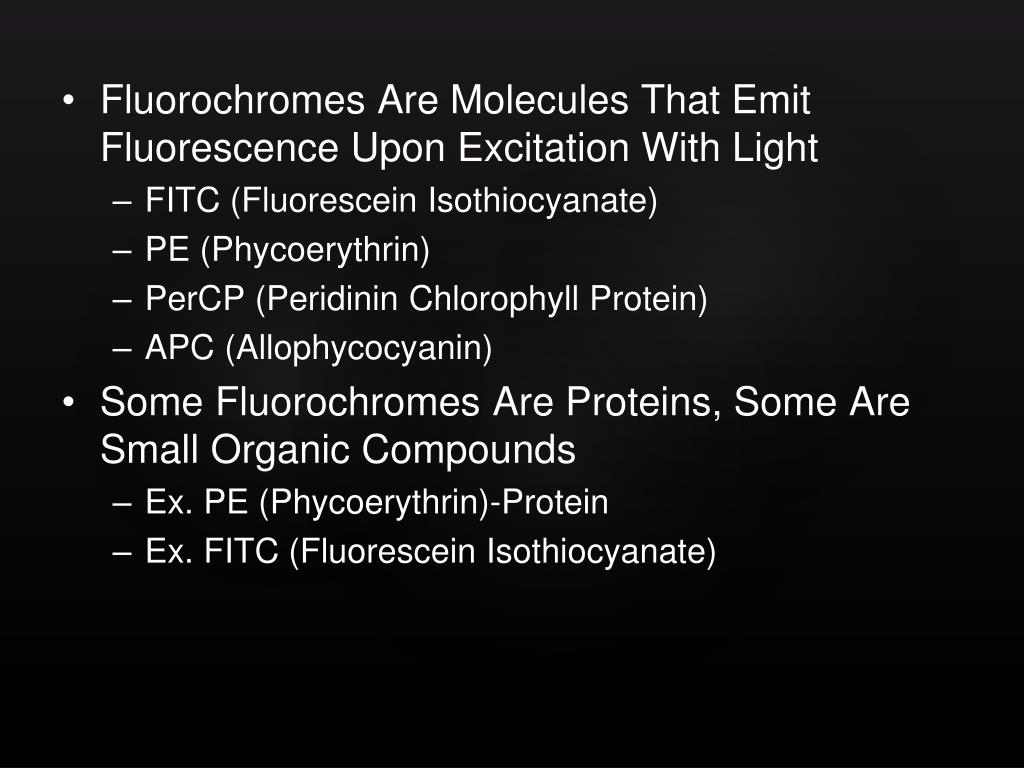

  36. Fluorochromes Are Molecules That Emit Fluorescence Upon Excitation With Light • FITC (Fluorescein Isothiocyanate) • PE (Phycoerythrin) • PerCP (Peridinin Chlorophyll Protein) • APC (Allophycocyanin) • Some Fluorochromes Are Proteins, Some Are Small Organic Compounds • Ex. PE (Phycoerythrin)-Protein • Ex. FITC (Fluorescein Isothiocyanate)

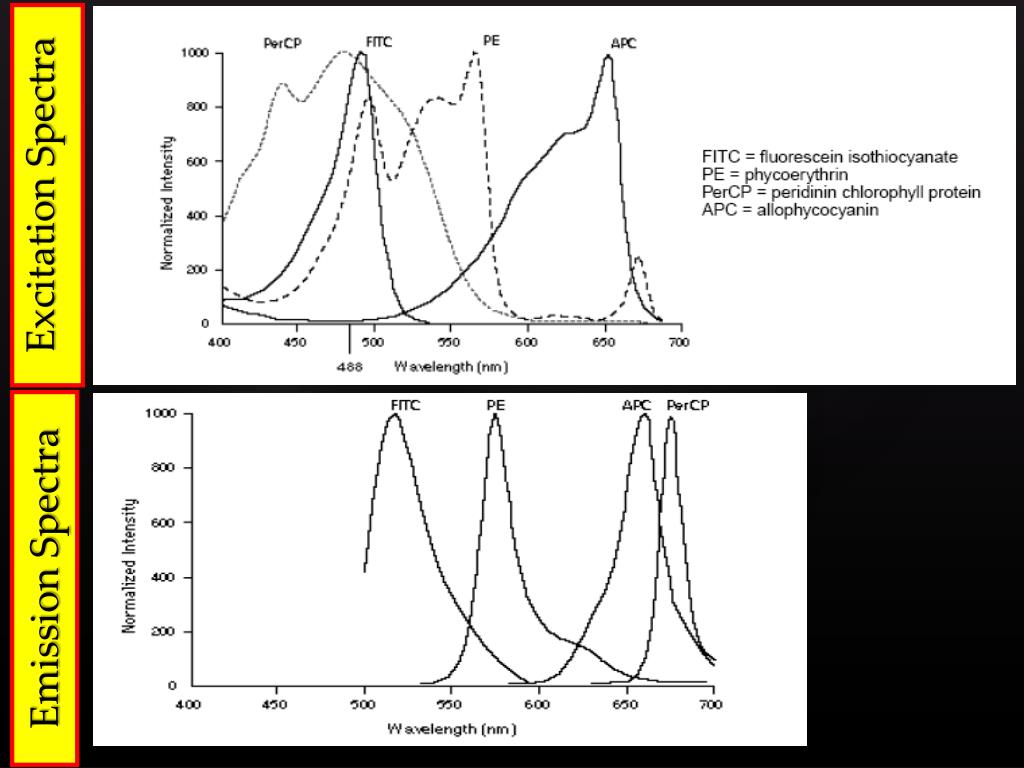

  37. Excitation Spectra Emission Spectra
