  1. UofC Large Display Framework Version 1.1 Fabrício Anastácio December, 2007

  2. Outline • Framework Overview • Touch Indicators • LargeDisplayEvent • VisComponentStrategy • Animation • Configurable Application • Final Remarks

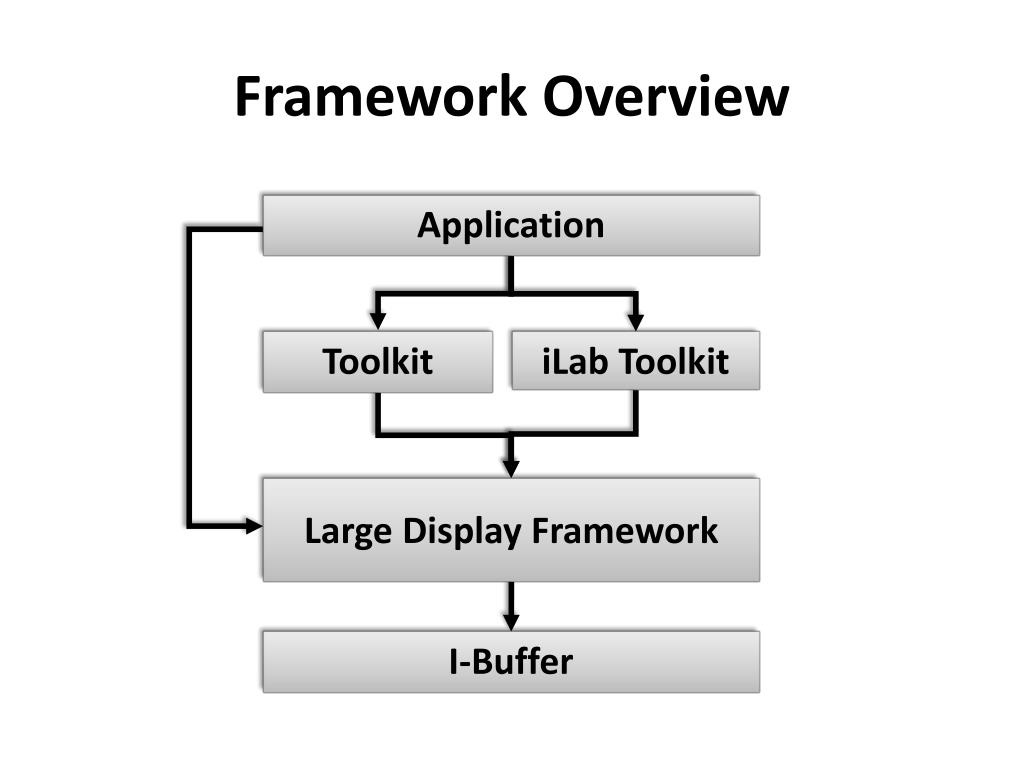

  3. Framework Overview Application Toolkit iLab Toolkit Large Display Framework I-Buffer

  4. Framework Overview FrameTimer LargeDisplayManager VisComponentStrategy LargeDisplayEvent CompositeNode VisComponent VisComponentState Point3f IBufferProxy VectorTemplate IBuffer

  5. Touch Indicators • Special case of a visual component • Touch indicators list (touchIndicators vector) in the LargeDisplayManager class • Initialized in the initTouchIndicators() method in a subclass of the LargeDisplayManager class • TouchIndicatorStrategy (Toolkit): updates the position of the associated component

  6. Touch Indicators Example: adding a touch indicator VisComponentGL* touchIndicator = new VisComponentGL(); touchIndicator->setPosition(500, 500); touchIndicator->setScaleFactor(10); GradientCircleStrategy* gradientCircle = new GradientCircleStrategy(127, 0, 127); touchIndicator->pushStrategy(gradientCircle); TouchIndicatorStrategy* indicatorStrategy = new TouchIndicatorStrategy(); touchIndicator->pushStrategy(indicatorStrategy); touchIndicator->setLeaf(true); touchIndicators.push_back(touchIndicator);

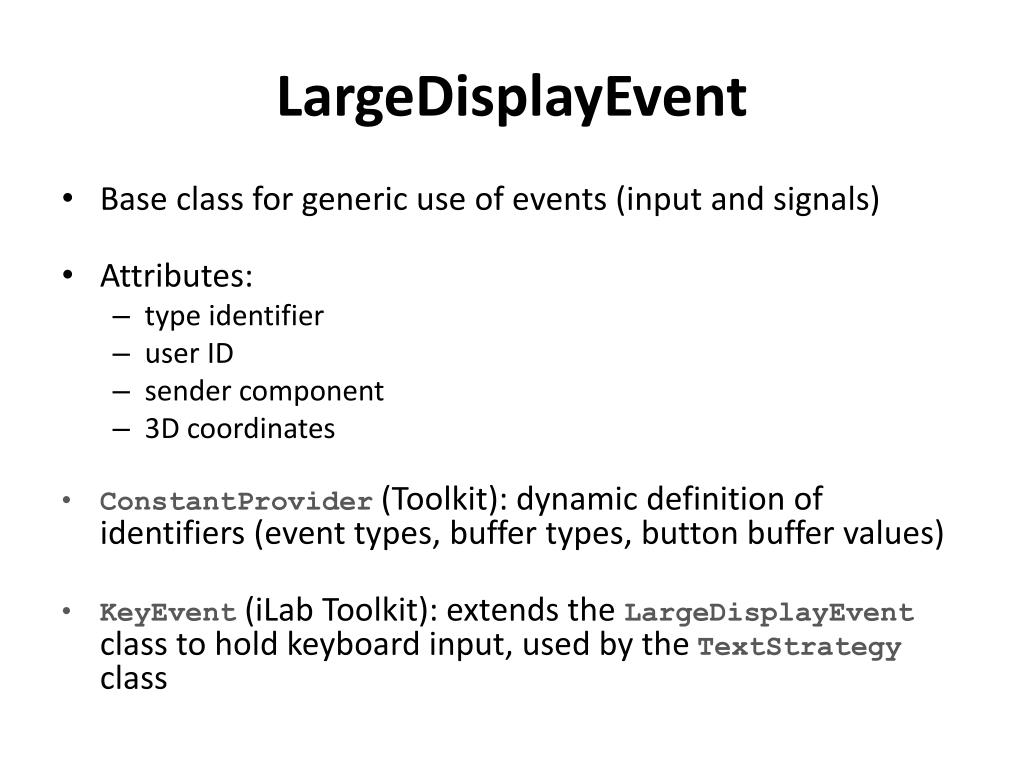

  7. LargeDisplayEvent • Base class for generic use of events (input and signals) • Attributes: • type identifier • user ID • sender component • 3D coordinates • ConstantProvider (Toolkit): dynamic definition of identifiers (event types, buffer types, button buffer values) • KeyEvent (iLab Toolkit): extends the LargeDisplayEvent class to hold keyboard input, used by the TextStrategy class

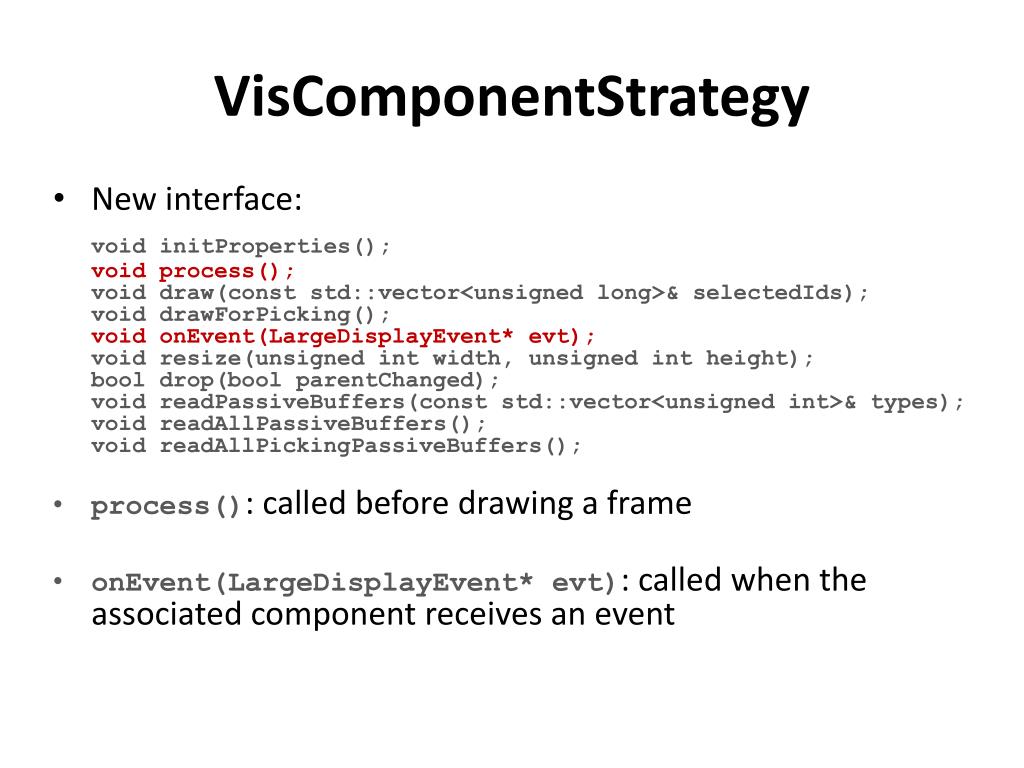

  8. VisComponentStrategy • New interface: void initProperties();void process();void draw(const std::vector<unsigned long>& selectedIds);void drawForPicking();void onEvent(LargeDisplayEvent* evt);void resize(unsigned int width, unsigned int height);bool drop(bool parentChanged);void readPassiveBuffers(const std::vector<unsigned int>& types);void readAllPassiveBuffers();void readAllPickingPassiveBuffers(); • process(): called before drawing a frame • onEvent(LargeDisplayEvent* evt): called when the associated component receives an event

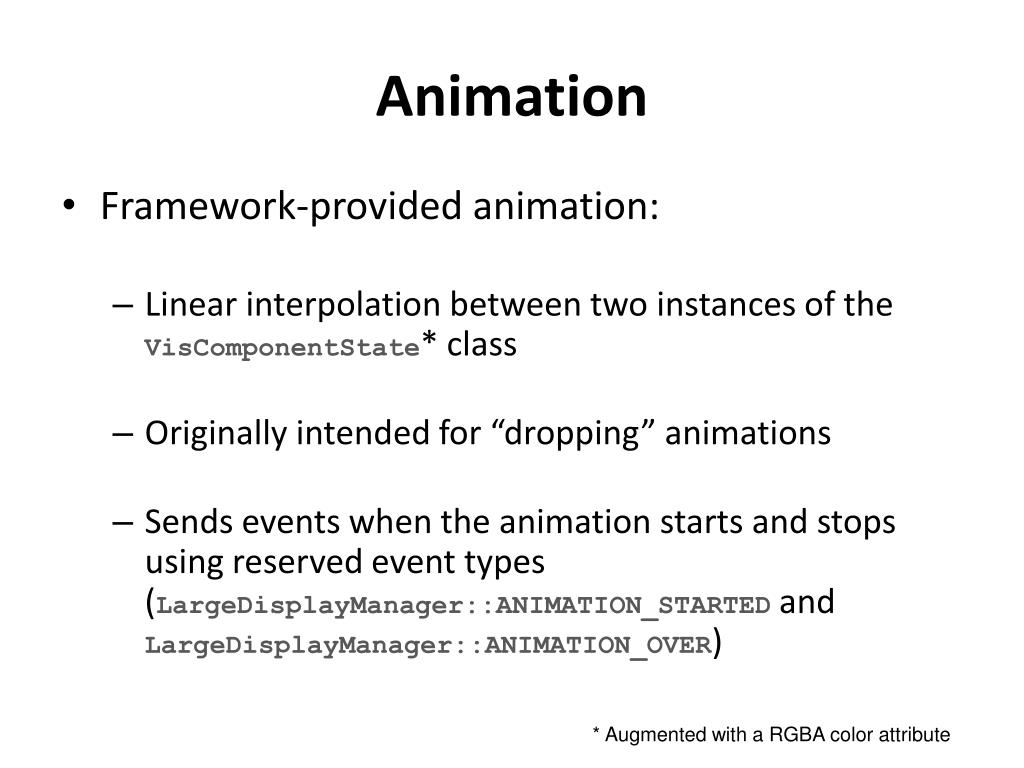

  9. Animation • Framework-provided animation: • Linear interpolation between two instances of the VisComponentState* class • Originally intended for “dropping” animations • Sends events when the animation starts and stops using reserved event types (LargeDisplayManager::ANIMATION_STARTED and LargeDisplayManager::ANIMATION_OVER) * Augmented with a RGBA color attribute

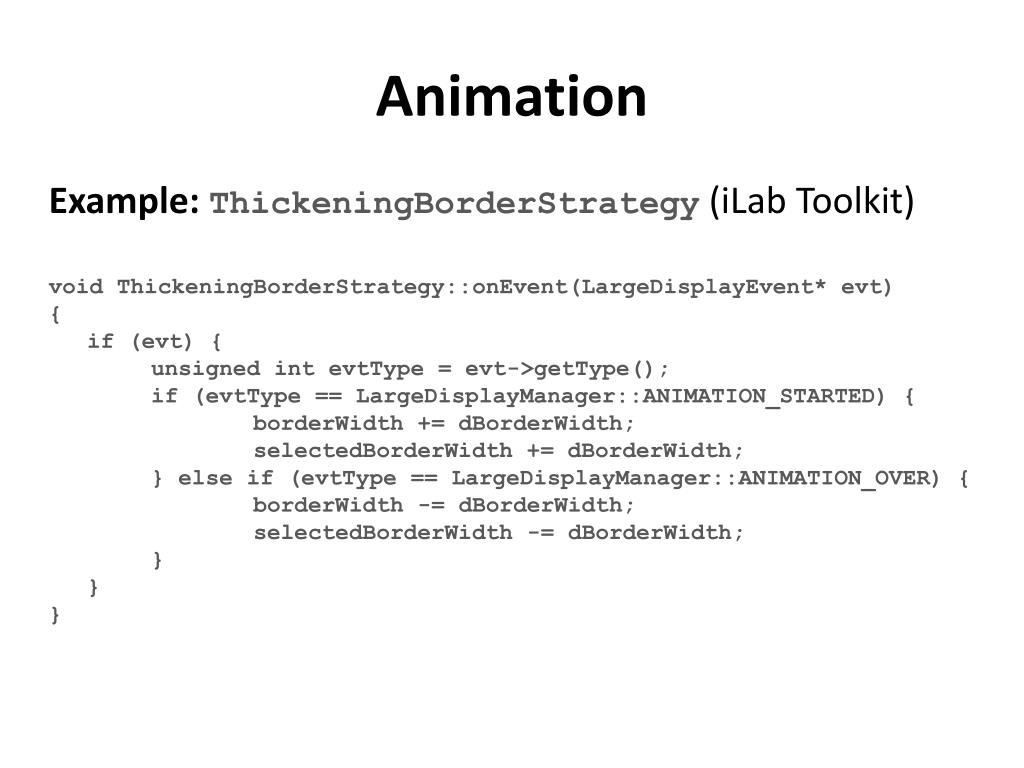

  10. Animation Example:ThickeningBorderStrategy (iLab Toolkit) void ThickeningBorderStrategy::onEvent(LargeDisplayEvent* evt) { if (evt) { unsigned int evtType = evt->getType(); if (evtType == LargeDisplayManager::ANIMATION_STARTED) { borderWidth += dBorderWidth; selectedBorderWidth += dBorderWidth; } else if (evtType == LargeDisplayManager::ANIMATION_OVER) { borderWidth -= dBorderWidth; selectedBorderWidth -= dBorderWidth; } } }

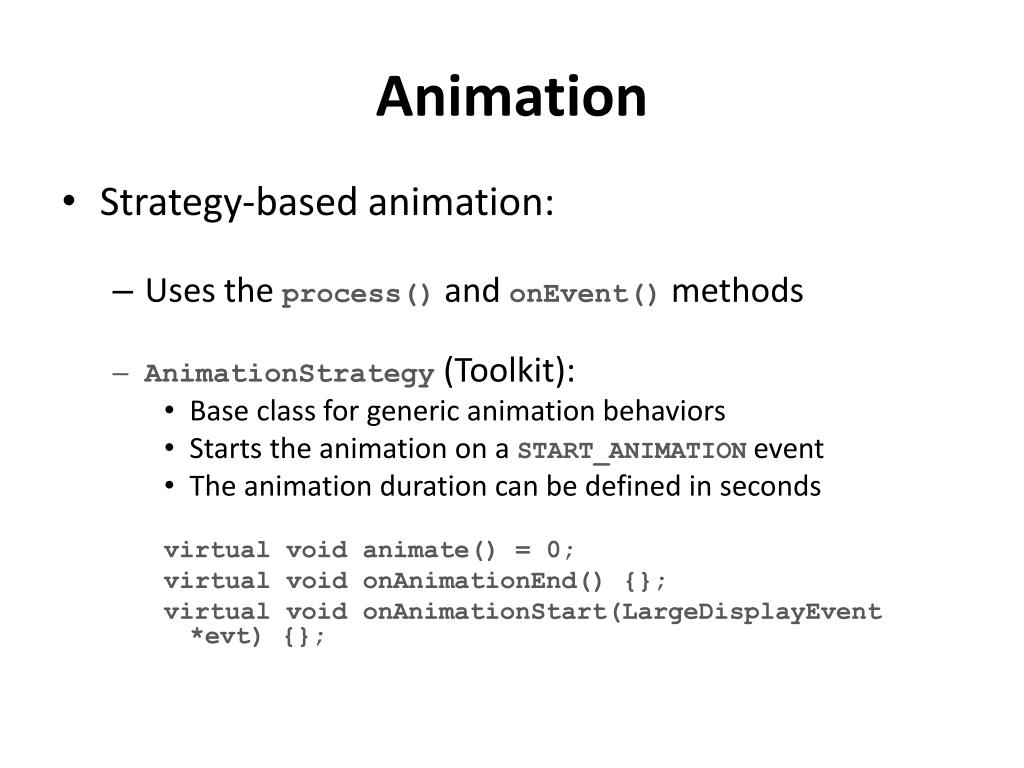

  11. Animation • Strategy-based animation: • Uses the process() and onEvent() methods • AnimationStrategy (Toolkit): • Base class for generic animation behaviors • Starts the animation on a START_ANIMATION event • The animation duration can be defined in seconds virtual void animate() = 0; virtual void onAnimationEnd() {}; virtual void onAnimationStart(LargeDisplayEvent *evt) {};

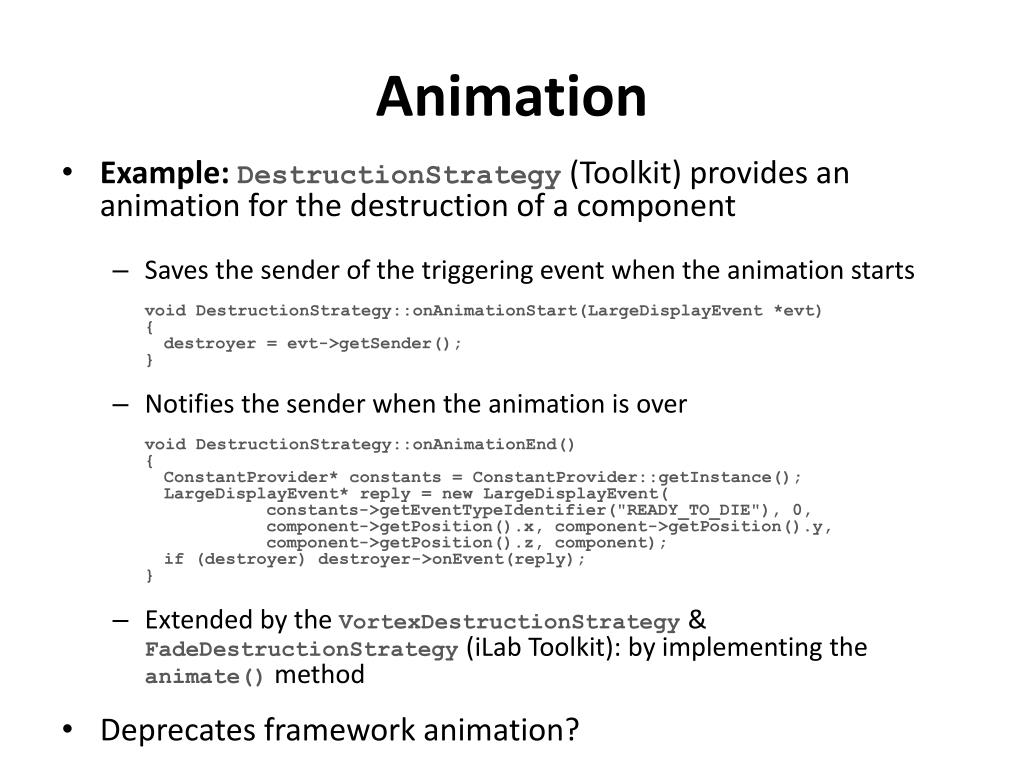

  12. Animation • Example:DestructionStrategy (Toolkit) provides an animation for the destruction of a component • Saves the sender of the triggering event when the animation startsvoid DestructionStrategy::onAnimationStart(LargeDisplayEvent *evt){ destroyer = evt->getSender();} • Notifies the sender when the animation is overvoid DestructionStrategy::onAnimationEnd(){ ConstantProvider* constants = ConstantProvider::getInstance(); LargeDisplayEvent* reply = new LargeDisplayEvent( constants->getEventTypeIdentifier("READY_TO_DIE"), 0, component->getPosition().x, component->getPosition().y, component->getPosition().z, component); if (destroyer) destroyer->onEvent(reply);} • Extended by the VortexDestructionStrategy & FadeDestructionStrategy (iLab Toolkit): by implementing the animate() method • Deprecates framework animation?

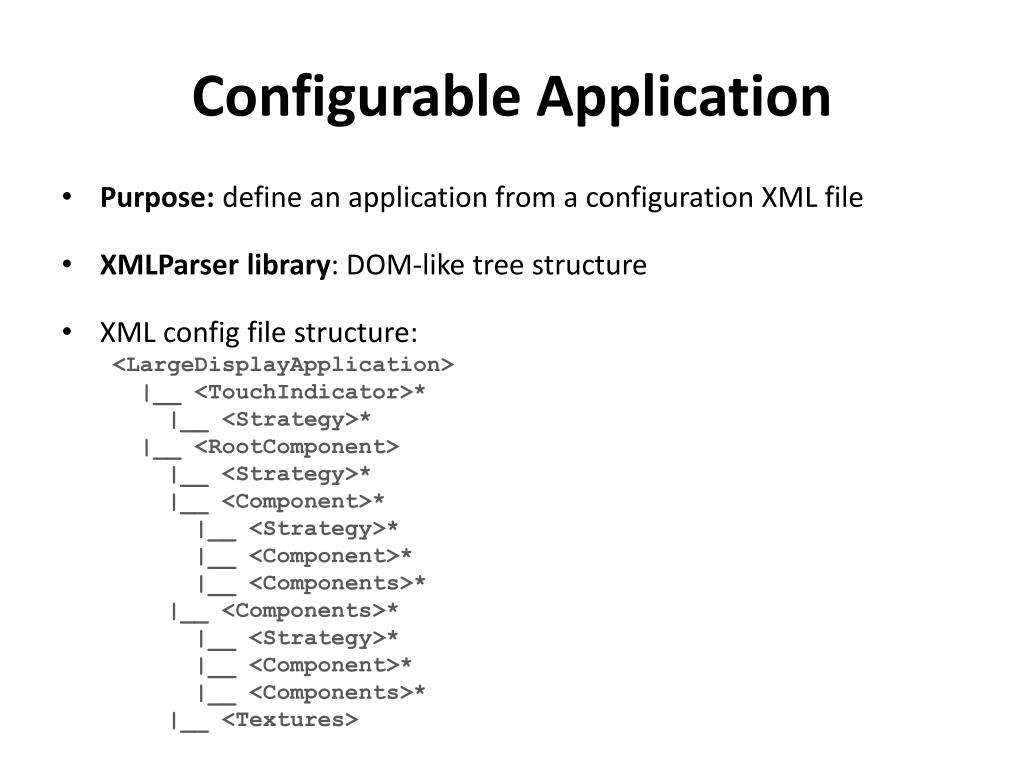

  13. Configurable Application • Purpose: define an application from a configuration XML file • XMLParser library: DOM-like tree structure • XML config file structure: <LargeDisplayApplication> |__ <TouchIndicator>* |__ <Strategy>* |__ <RootComponent> |__ <Strategy>* |__ <Component>* |__ <Strategy>* |__ <Component>* |__ <Components>* |__ <Components>* |__ <Strategy>* |__ <Component>* |__ <Components>* |__ <Textures>

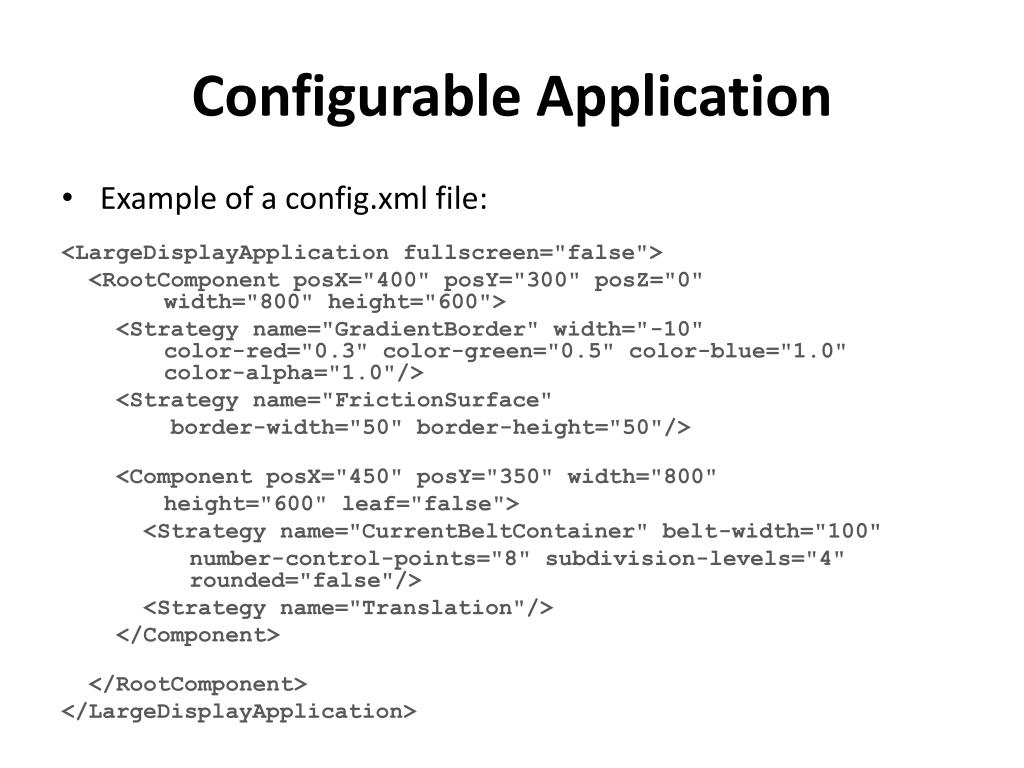

  14. Configurable Application • Example of a config.xml file: <LargeDisplayApplication fullscreen="false"> <RootComponent posX="400" posY="300" posZ="0" width="800" height="600"> <Strategy name="GradientBorder" width="-10" color-red="0.3" color-green="0.5" color-blue="1.0" color-alpha="1.0"/> <Strategy name="FrictionSurface" border-width="50" border-height="50"/> <Component posX="450" posY="350" width="800" height="600" leaf="false"> <Strategy name="CurrentBeltContainer" belt-width="100" number-control-points="8" subdivision-levels="4"rounded="false"/> <Strategy name="Translation"/> </Component> </RootComponent> </LargeDisplayApplication>

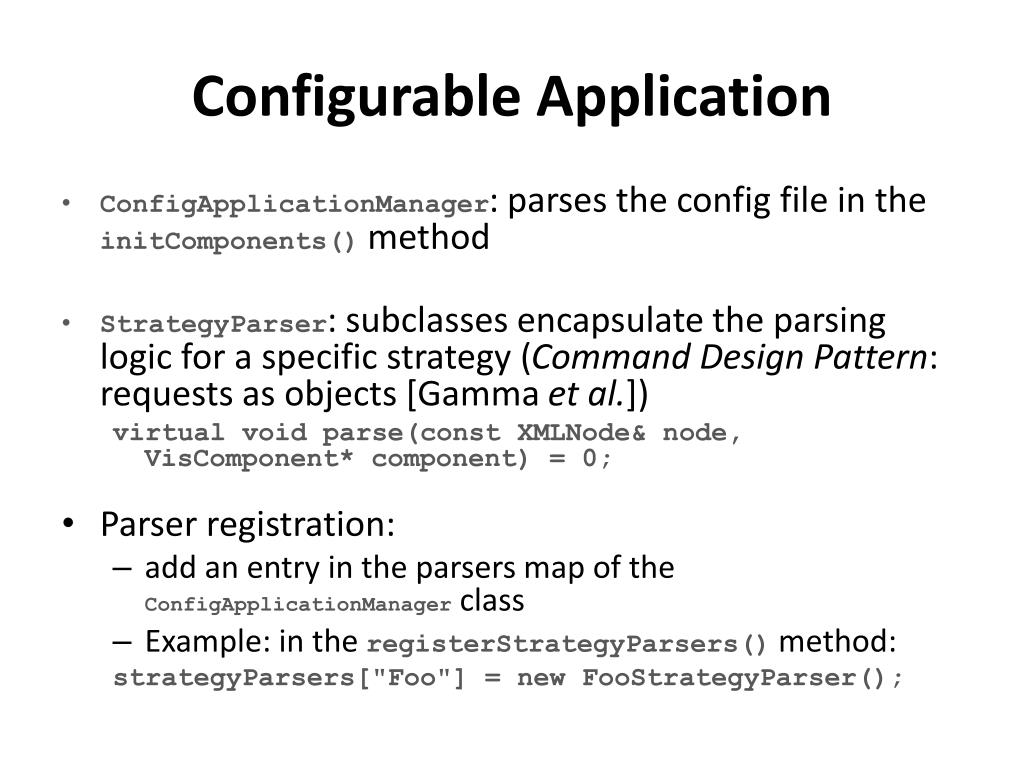

  15. Configurable Application • ConfigApplicationManager: parses the config file in the initComponents() method • StrategyParser: subclasses encapsulate the parsing logic for a specific strategy (Command Design Pattern: requests as objects [Gamma et al.]) virtual void parse(const XMLNode& node, VisComponent* component) = 0; • Parser registration: • add an entry in the parsers map of the ConfigApplicationManager class • Example: in the registerStrategyParsers() method: strategyParsers["Foo"] = new FooStrategyParser();

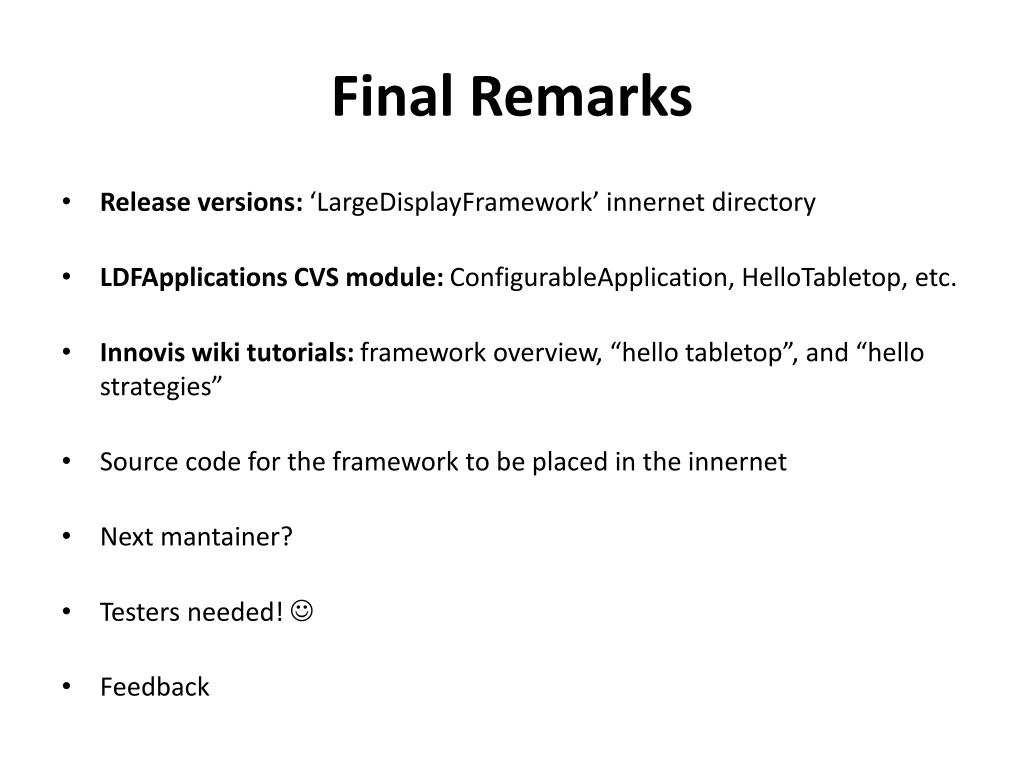

  16. Final Remarks • Release versions: ‘LargeDisplayFramework’ innernet directory • LDFApplications CVS module: ConfigurableApplication, HelloTabletop, etc. • Innovis wiki tutorials: framework overview, “hello tabletop”, and “hello strategies” • Source code for the framework to be placed in the innernet • Next mantainer? • Testers needed!  • Feedback

  17. Thanks!
